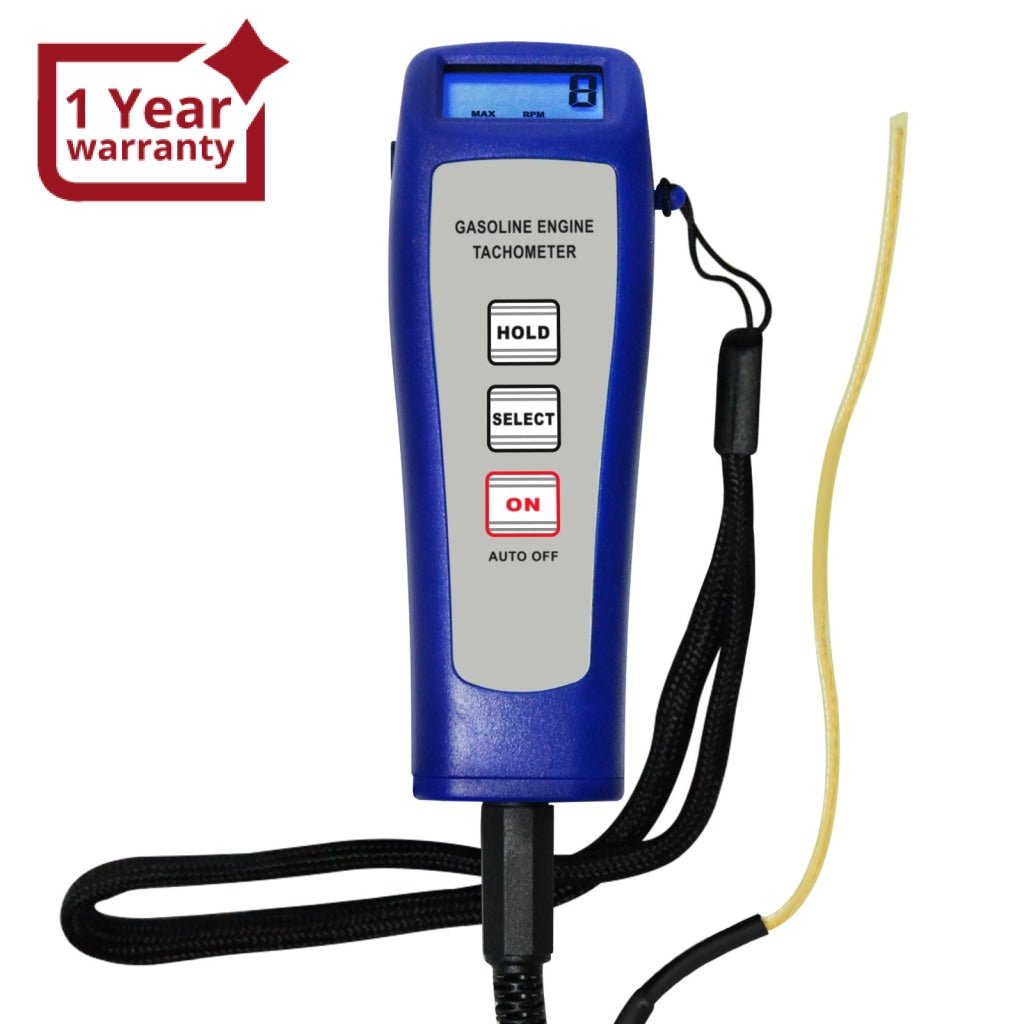

GED-2600P Digital Gasoline Engine Non Contact Tachometer 50.0~9,999 r/min Rotate Speed Tester Meter for Motor Machine Fan Chemical Fiber Automobile Airplane Steamer

  • 0% OFF
  • Regular Price


Add to Wishlist

Check shipping / delivery time for your country | Free Shipping Worldwide Request for Quotation

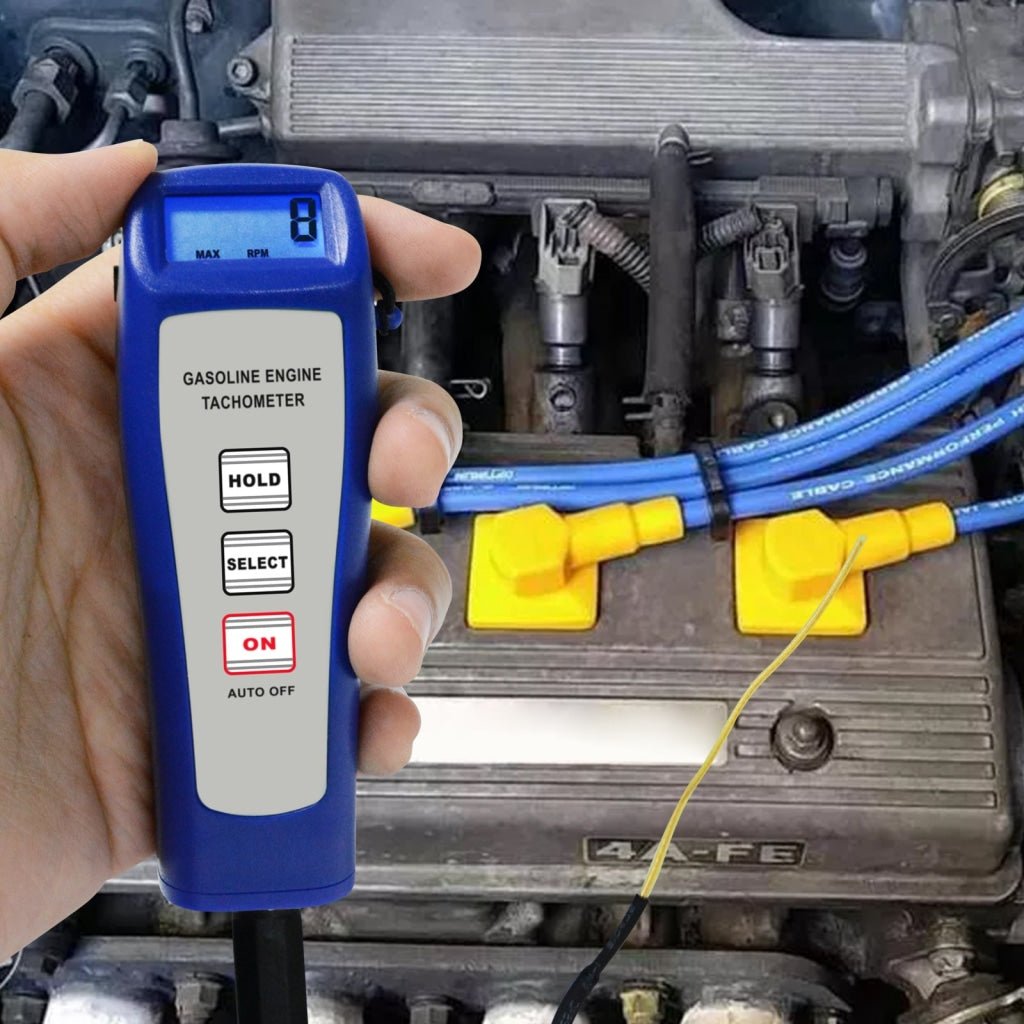

Detector, counter and display handheld engine tachometer runs with batteries which make highly portable and suitable for outdoor measurement. It displays rotational speed of gasoline engines in r/min unit. It is a non-contacting type tachometer which easily measures the rotational speed just by bringing the detection head close to the high-tension wires of gasoline engines.

Applications: Applicable to the product departments of motor, fan, paper-product, plastics, chemical fiber, washing-machine, automobile, airplane, steamer etc.

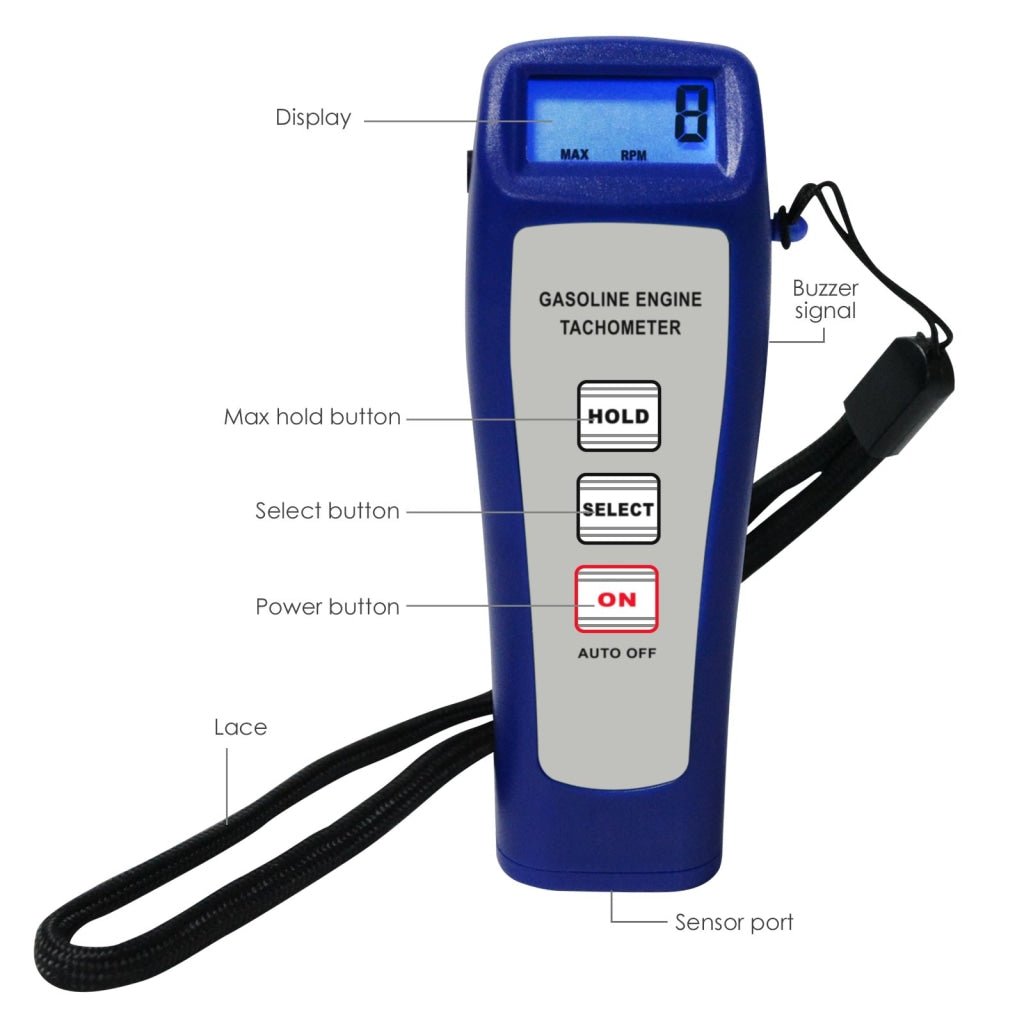

  • Non-contacting detection enables an easy and safe measurement
  • Assures an accurate measurement because the signal indicator shows how the signal is captured
  • Accurate rotational speed can be obtained in 0.1 or 1 r/min unit
  • Comes with battery life indicator
  • With audible alarm and Max data Hold function
  • Compact, light weight and easy-to-carry, enabling one-hand measurement
  • Record, analyze, print, communicate with PC


  • Display: 4 Digits 10mm LCD
  • Applications Engine Type: Gasoline Engine
    • 2-Cycle (1, 2, 3, 4 Cylinder)
    • 4-Cycle (1, 2, 3, 4, 5, 6, 8 Cylinder)
  • Detection Method: Ignition Spark Noise Detection
  • Detecting Object: high-tension wire (ignition cord)
  • Detection Distance: 30~200mm
  • Range: 50.0~9,999 r/min
  • Resolution:
    • 0.1RPM (50.0~999.9RPM)
    • 1RPM (over 1000RPM)
  • Accuracy: ±(0.05% n+1d)
  • Connection: PC connection via RS232C interface
  • Operating Condition: 0~50°C , <85%

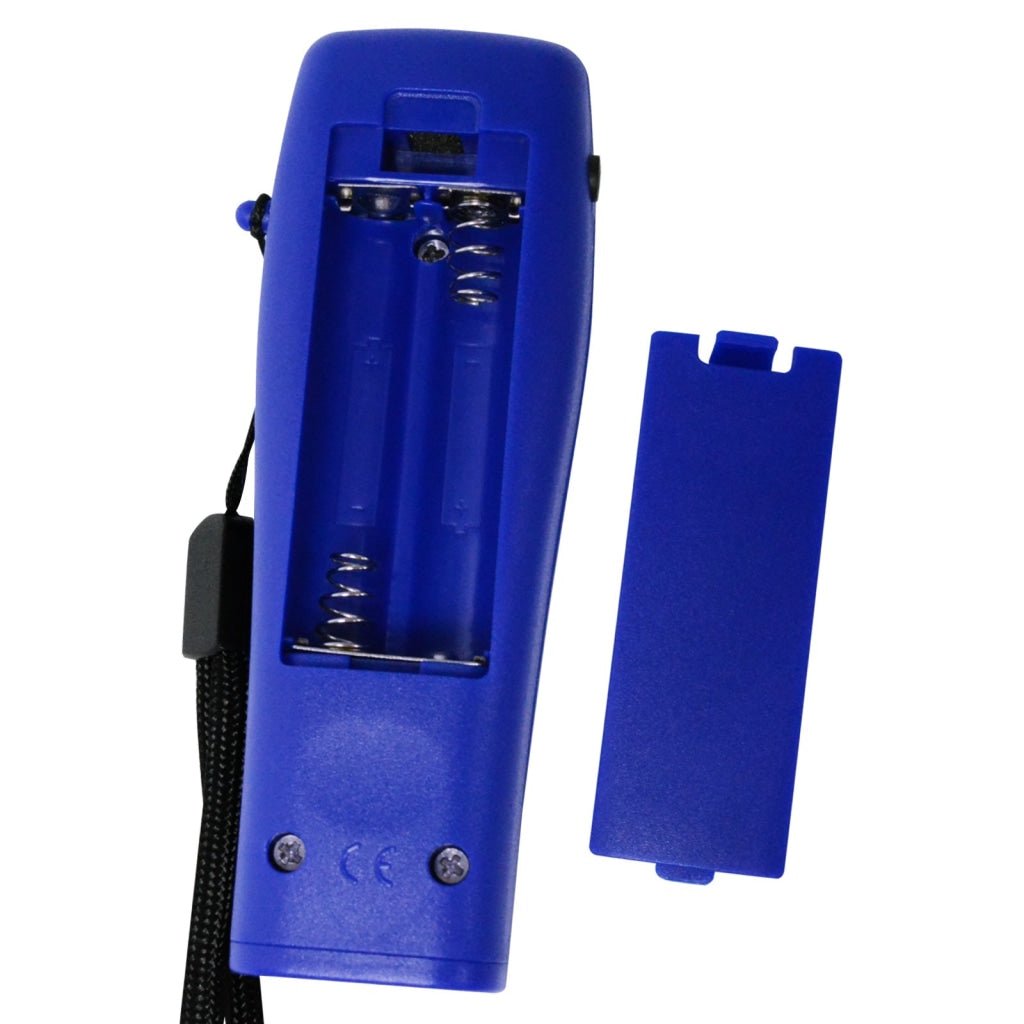

  • Power Supply: 2 x 1.5V AAA Battery
  • Weight: 65g (including batteries)
  • Memory: Max / Min / Last Value

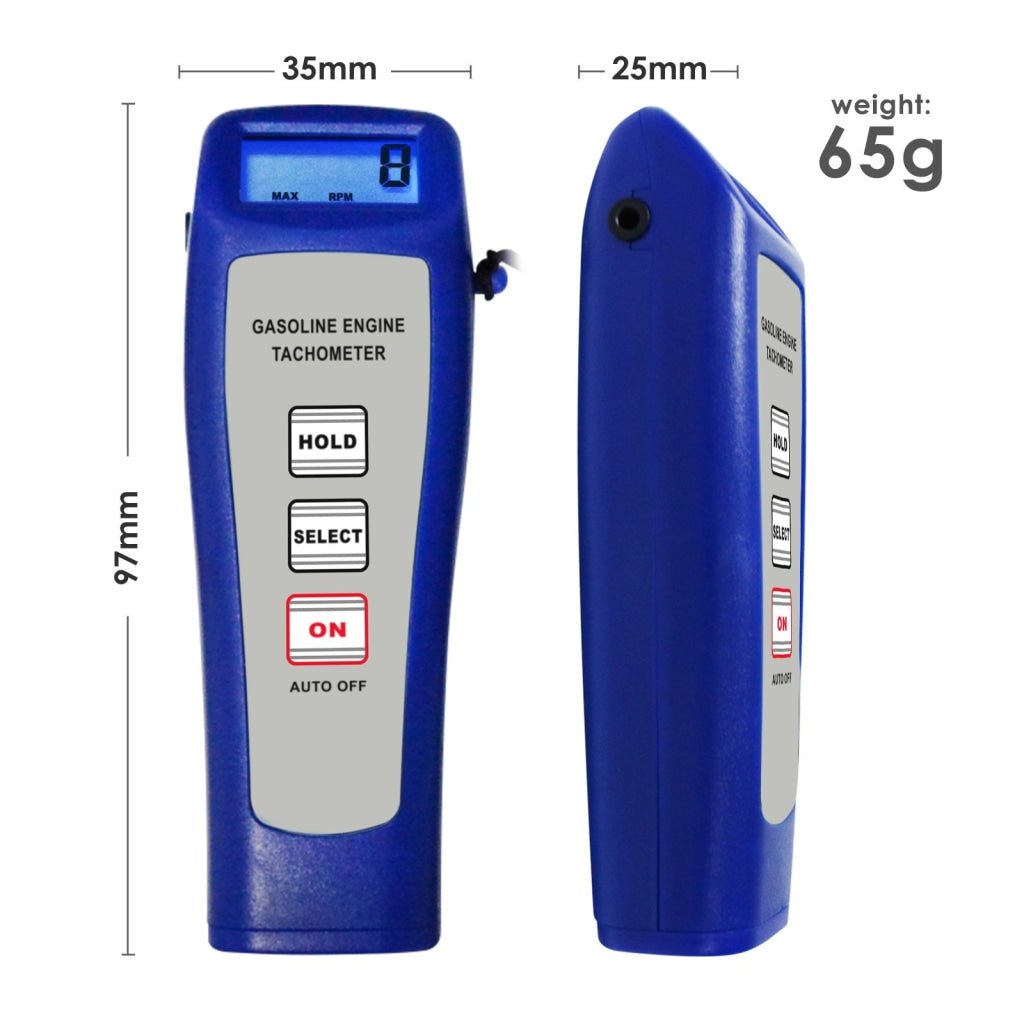

  • Size: 97 x 35 x 25mm

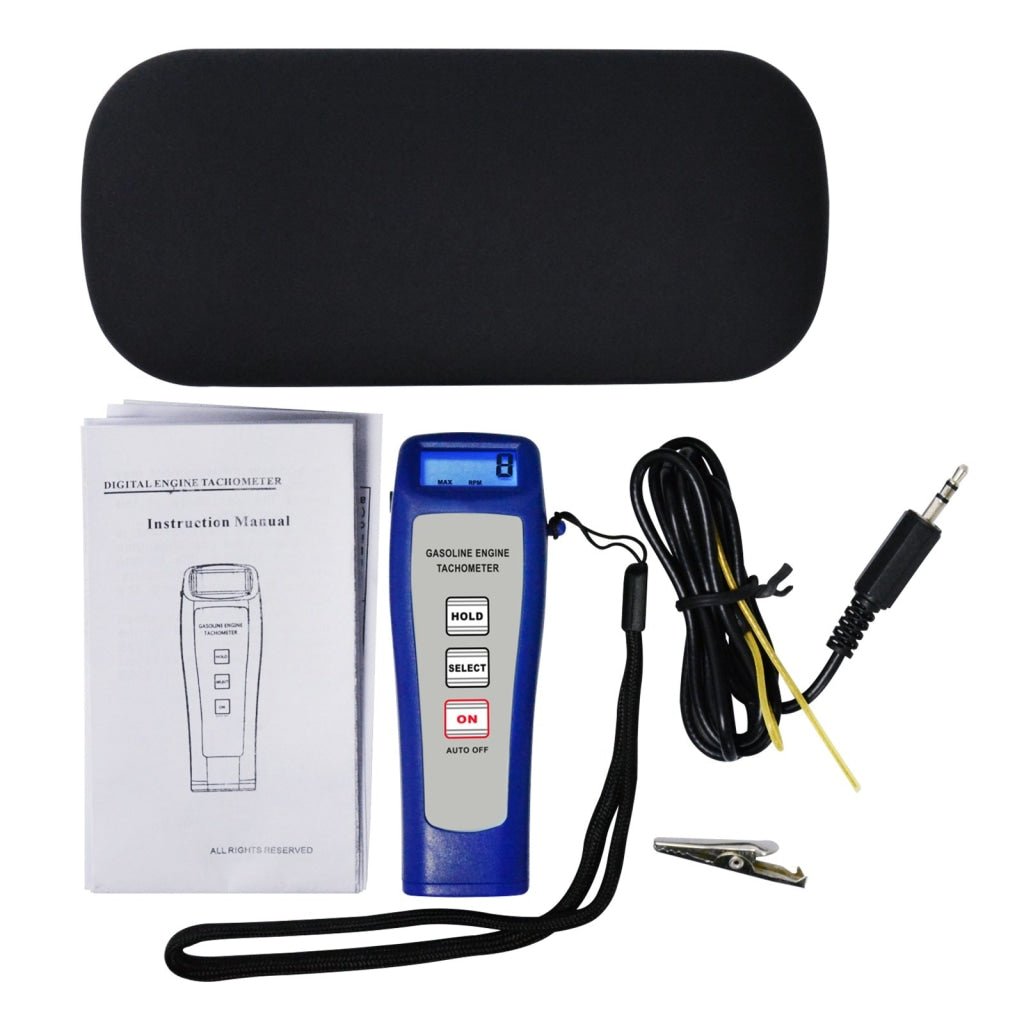

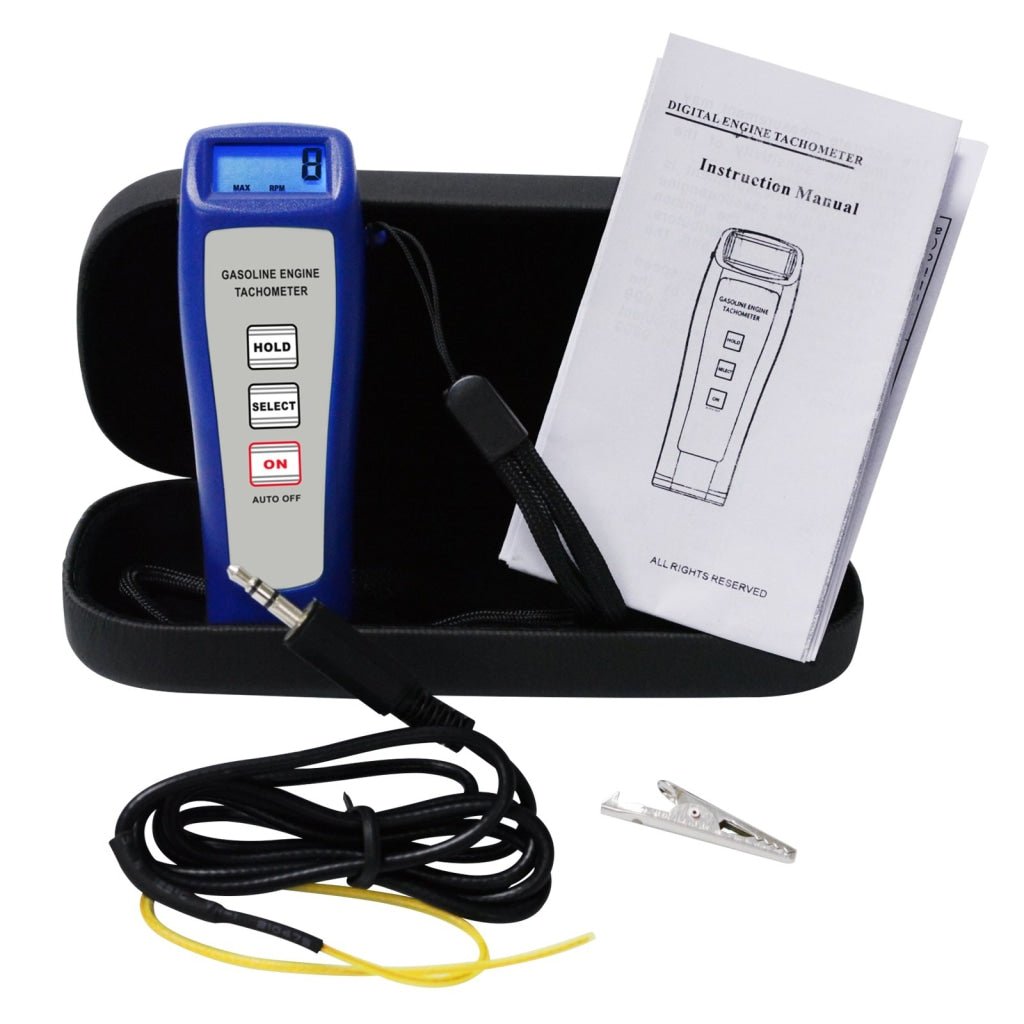

Set Includes:

  • 1 x Digital Engine Tachometer

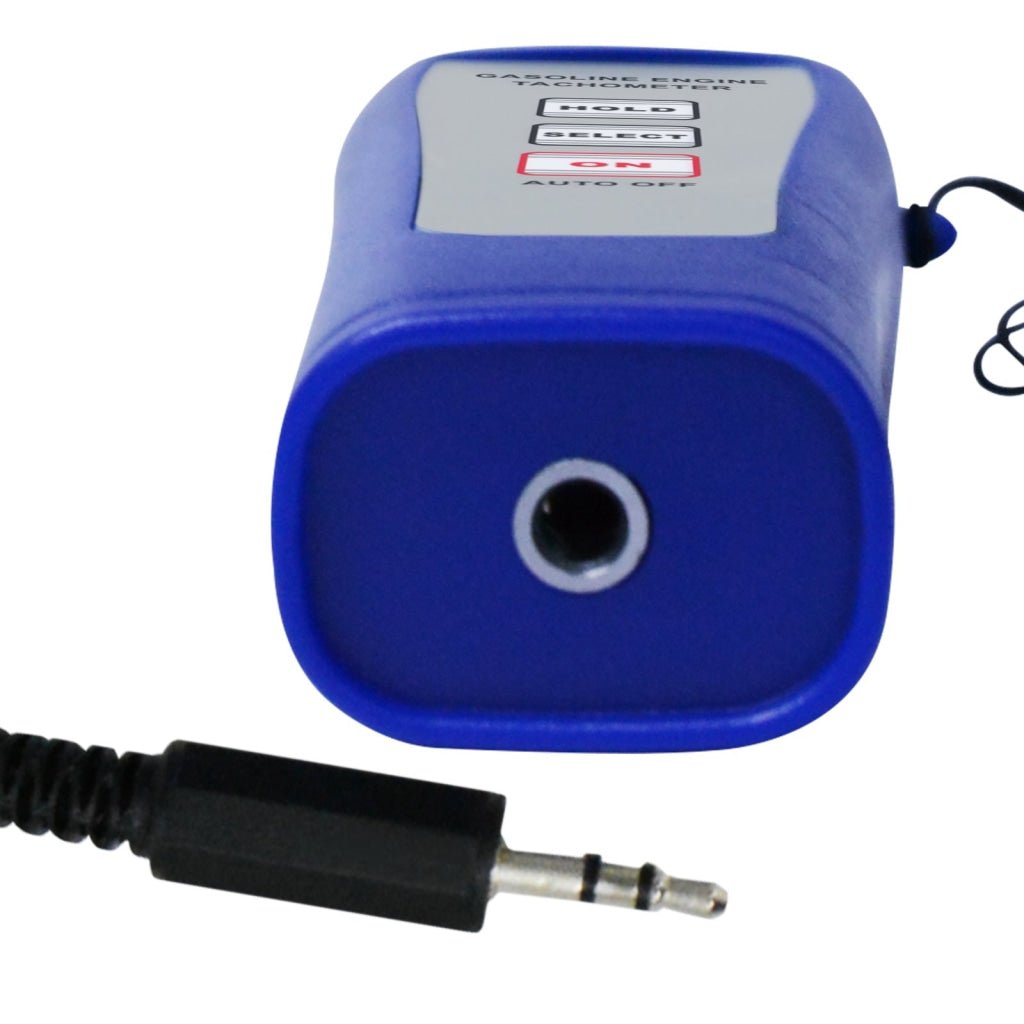

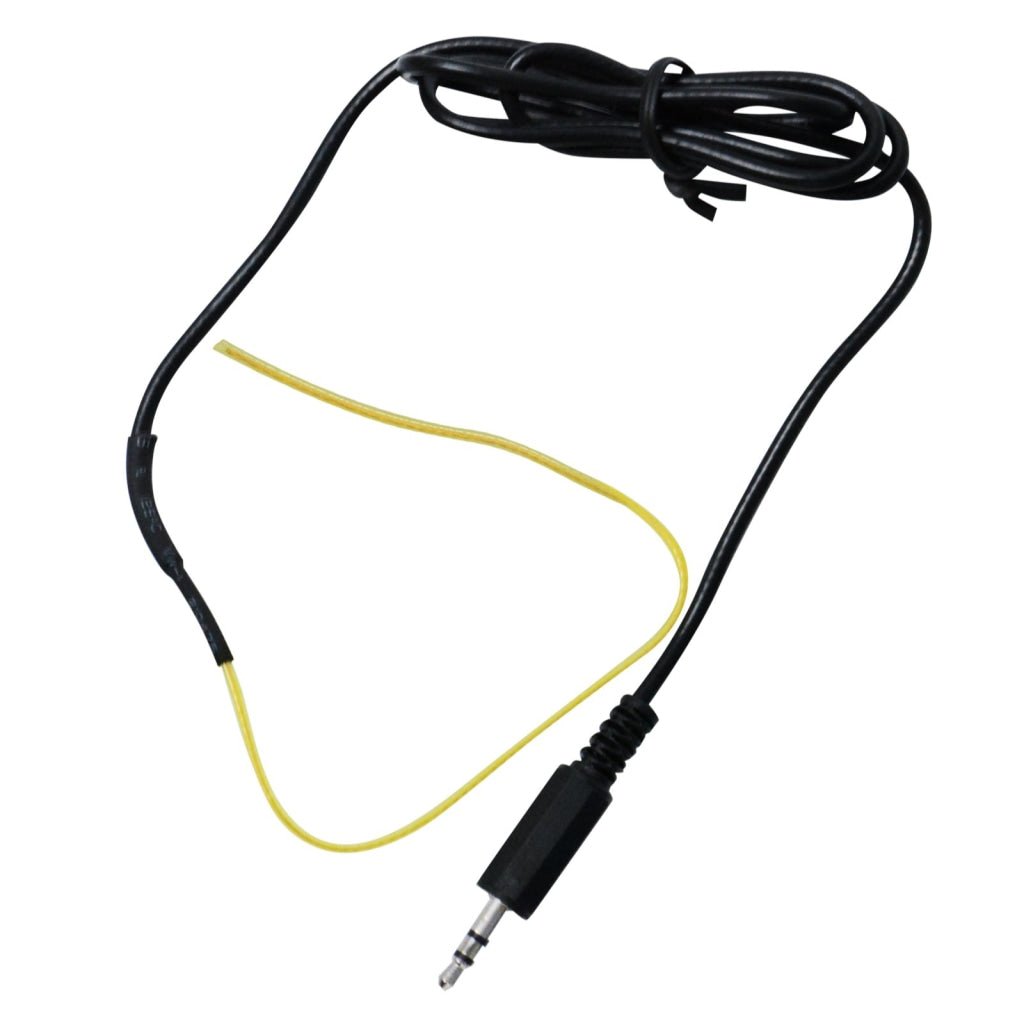

  • 1 x External antenna
  • English User Manual
  • Carrying case
