E04-023 Automotive Multimeter AC DC Voltage Current Resistance Continuity Tester Manual / Auto Range CE Marking

This product is currently sold out. Please contact us if will order in bulk.


Model : E04-023

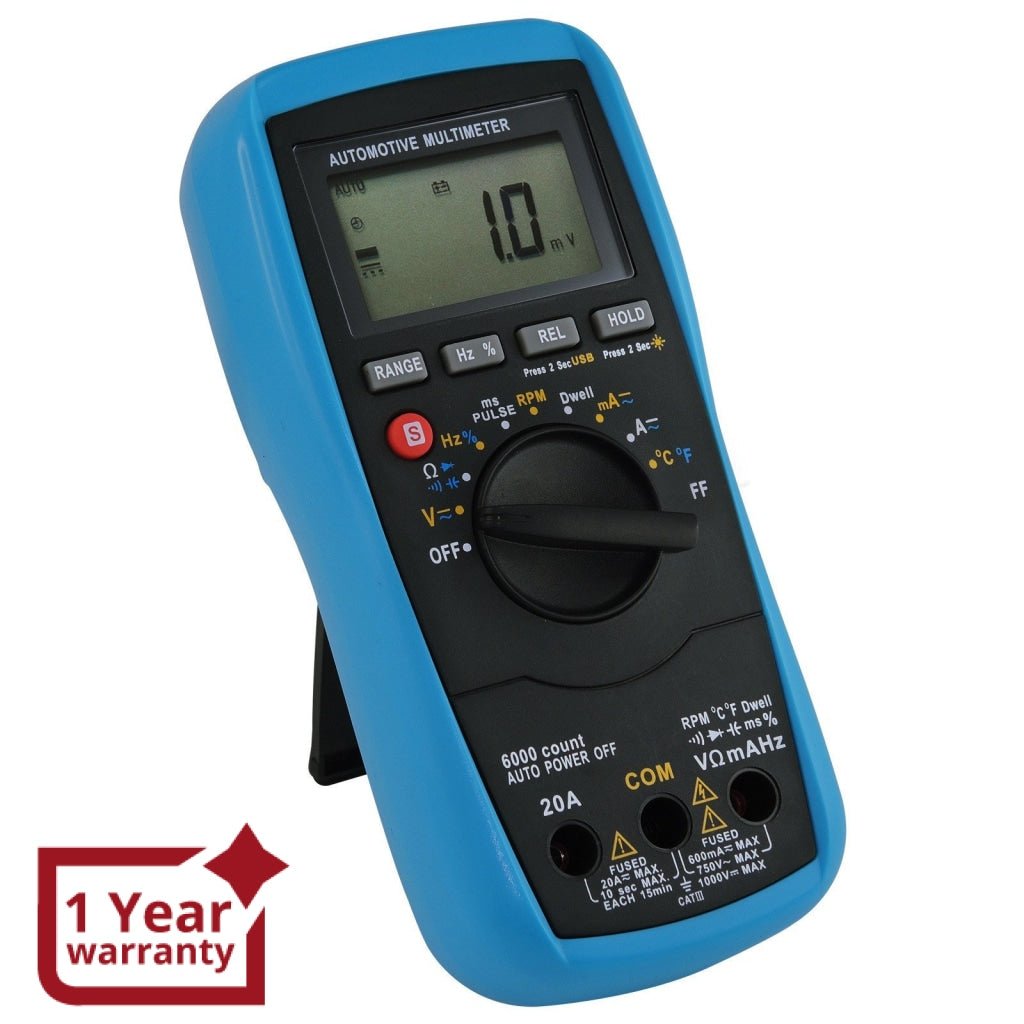

This meter is a high-performance 3 5/6-digit autorange Automotive Multimeter. Besides AC and DC voltage, AC and DC current, resistancecontinuitydiodecapacitance, temperature (°C/°F)frequencyduty cycle measurement functions, this meter can also measure dwell angle and pulse width.

It is an ideal measurement tool for automotive repair and service personnel.

It has an CE Marking approval from European Directives for complying with the essential health and safety requirements.



Features:

  • Digital Auto range Automative Multimeter Tester
  • Meter-to-PC communication

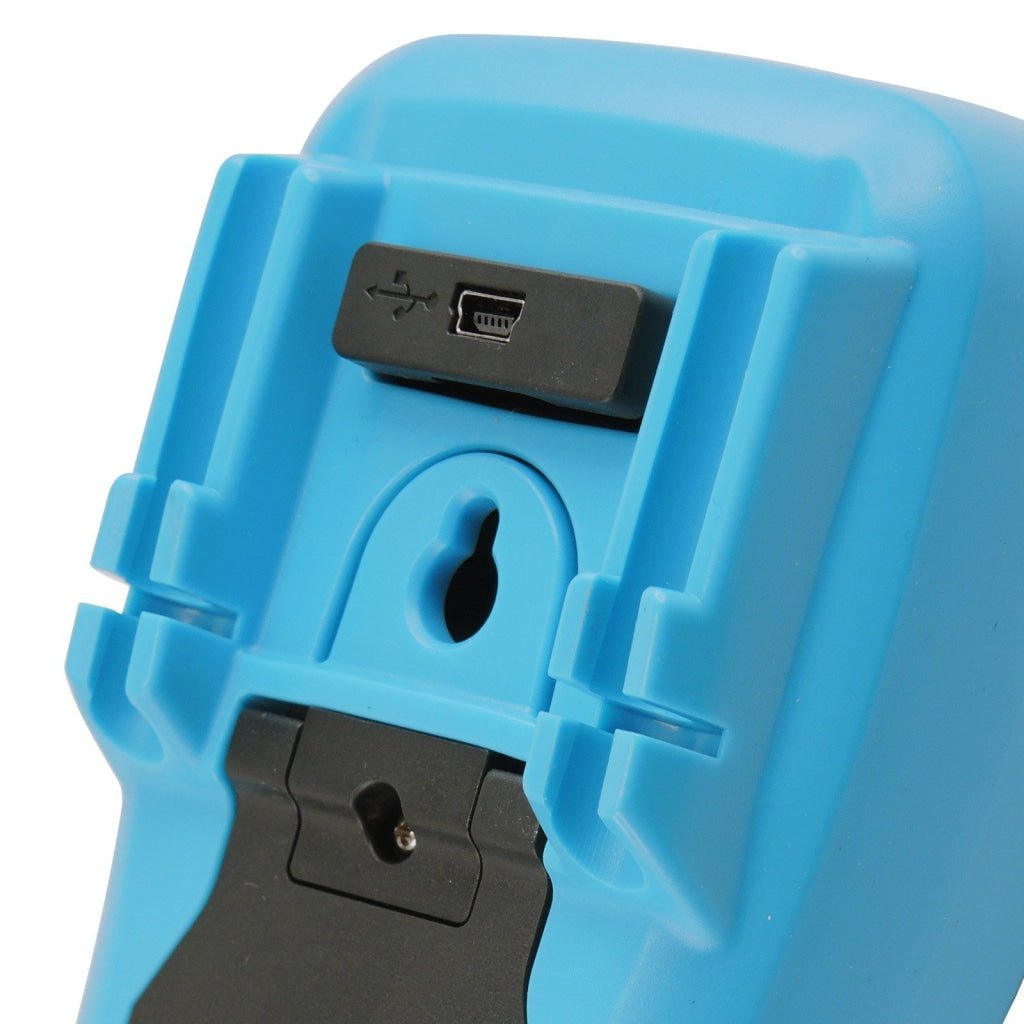

  • It also has USB Communication Mode that allows you to transfer readings of the meter to a computer via the USB cable and its interface
  • It can be manual ranging or auto ranging
  • Relative Measurement
  • Data hold function
  • LCD backlight
  • Low battery indication
  • Overrange indication
  • Auto power off
  • With built-in buzzer

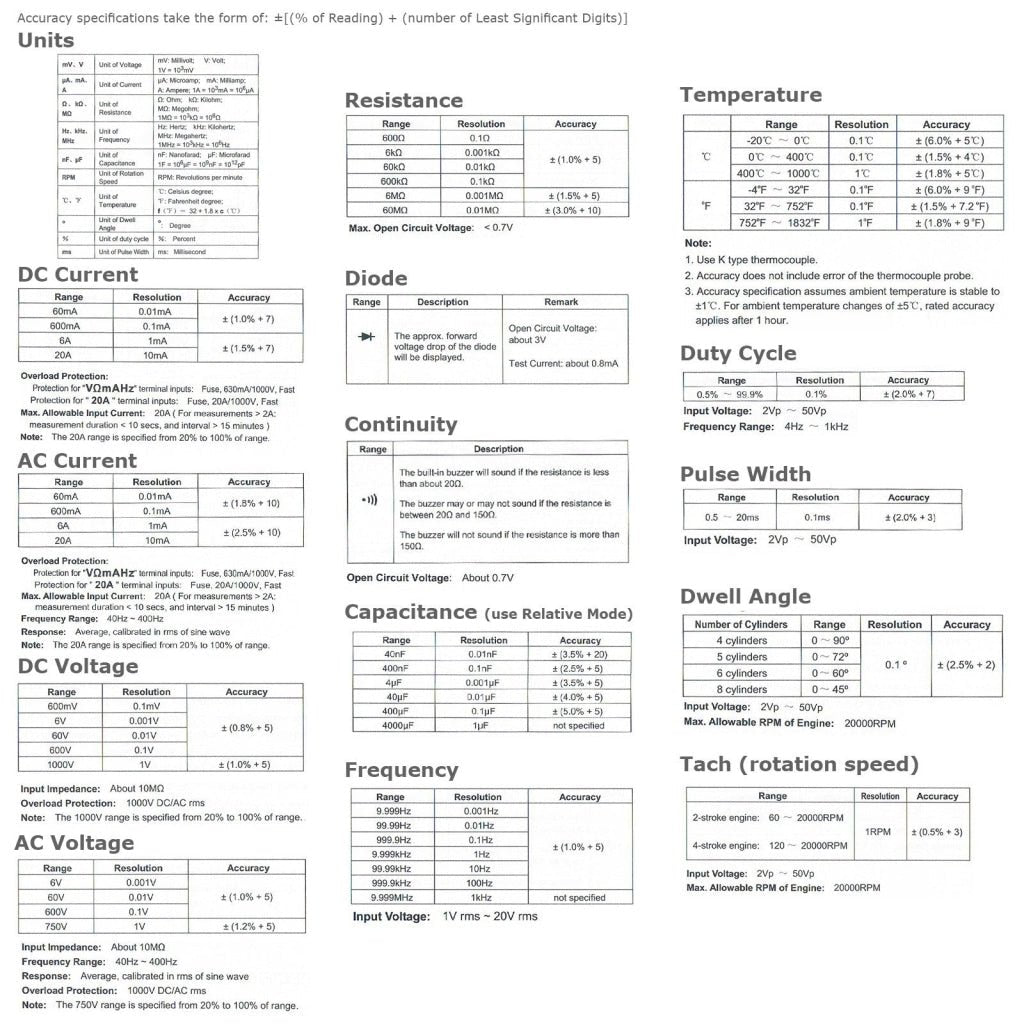

Specifications:

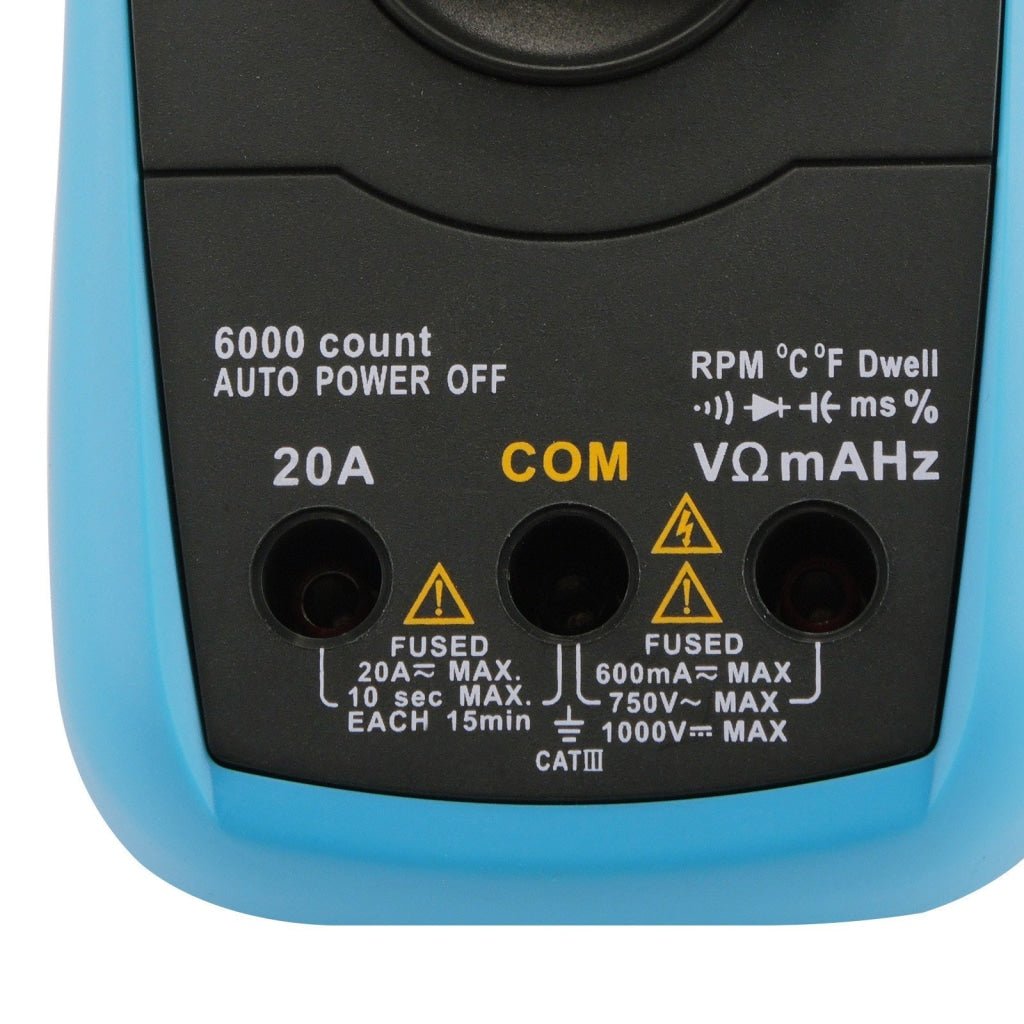

  • Fuse Protection for "VΩmAHz" Terminal Inputs : 630mA, 1000V, FAST, Min. Interrupt Rating 20000A
  • Fuse Protection for "20A" Terminal Inputs: 20A, 1000V,FAST, Min.Interrupt Rating 20000A
  • Display : 3 5/6-digit,with a max.reading of 5999

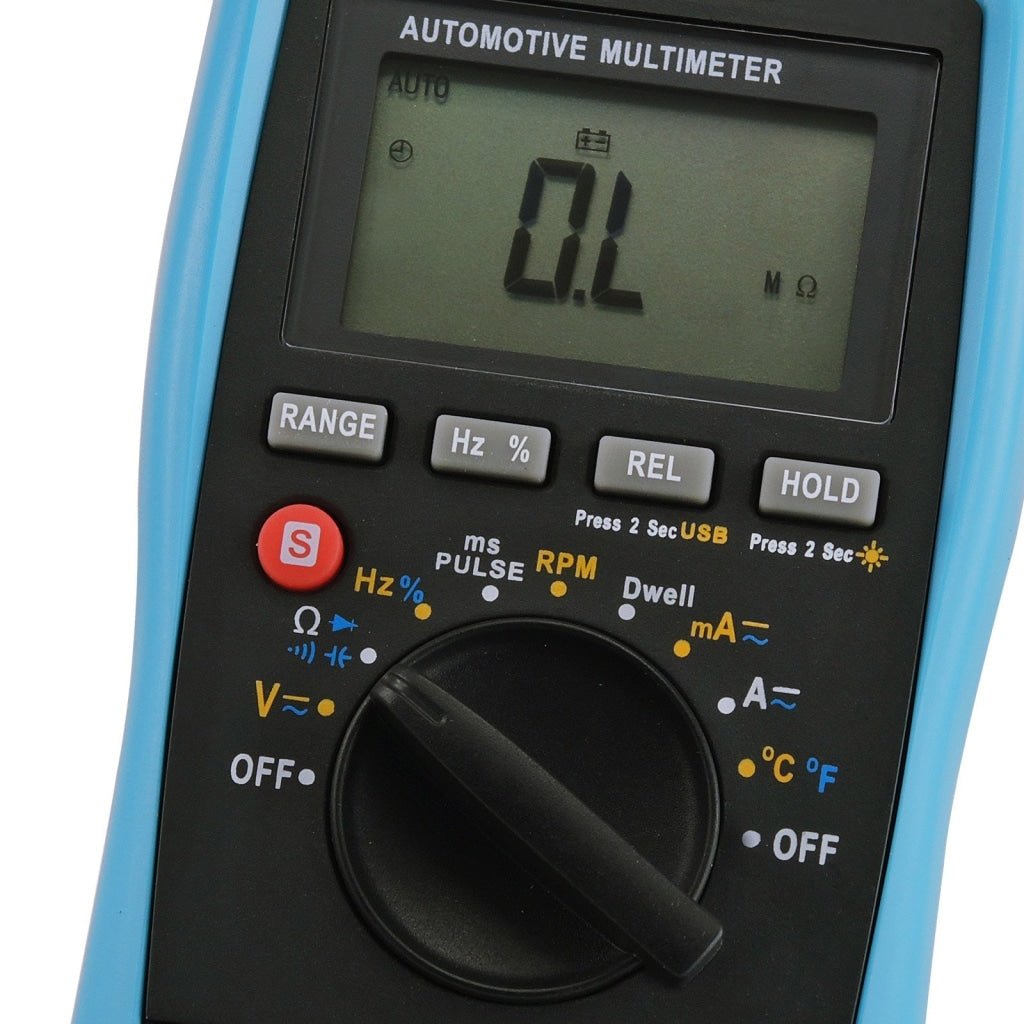

  • Overrange Indication : "OL" shown on the screen
  • Negative Polarity Indication : Negative sign "-" shown on the screen automatically

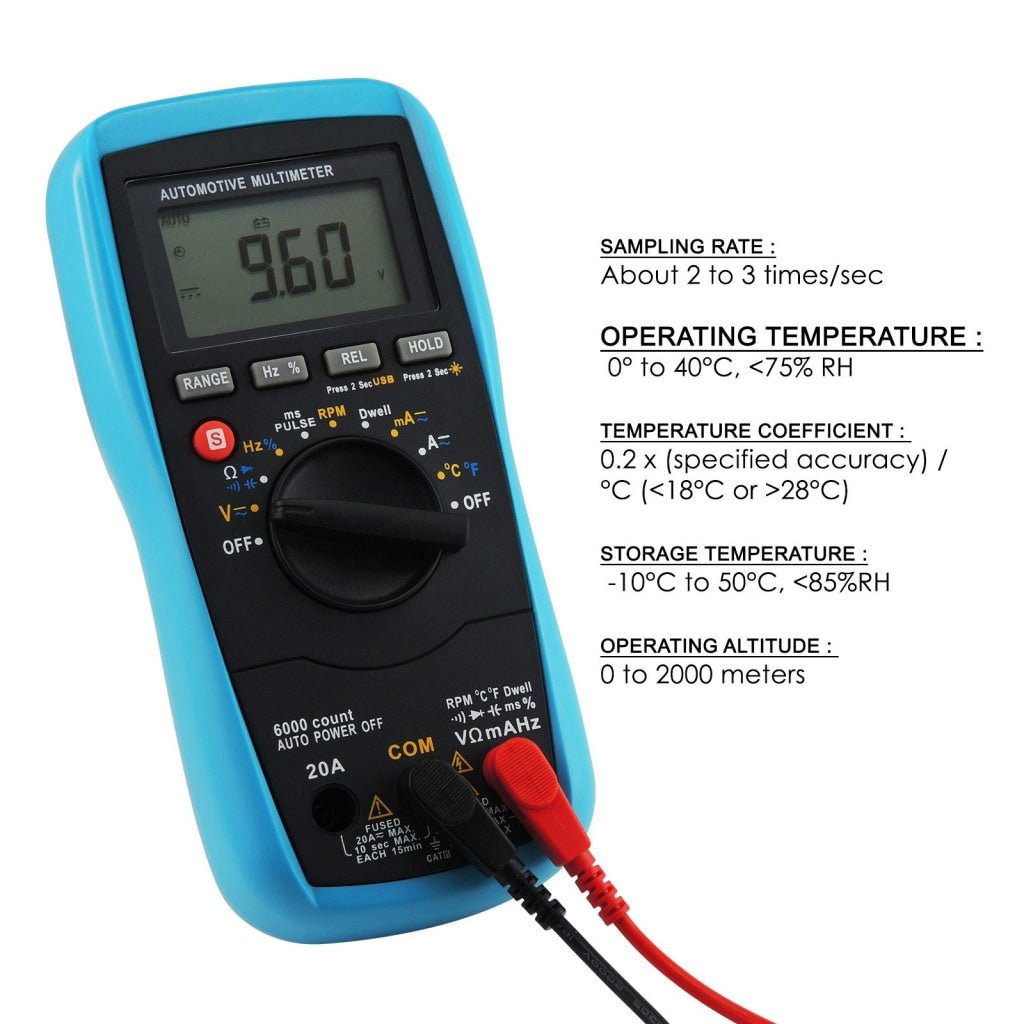

  • Sampling Rate : About 2 to 3 times/sec
  • Operating Temperature : 0° to 40°C, <75% RH
  • Temperature Coefficient : 0.2 x (specified accuracy) / °C (<18°C or >28°C)
  • Storage Temperature : -10°C to 50°C, <85%RH
  • Operating Altitude : 0 to 2000 meters

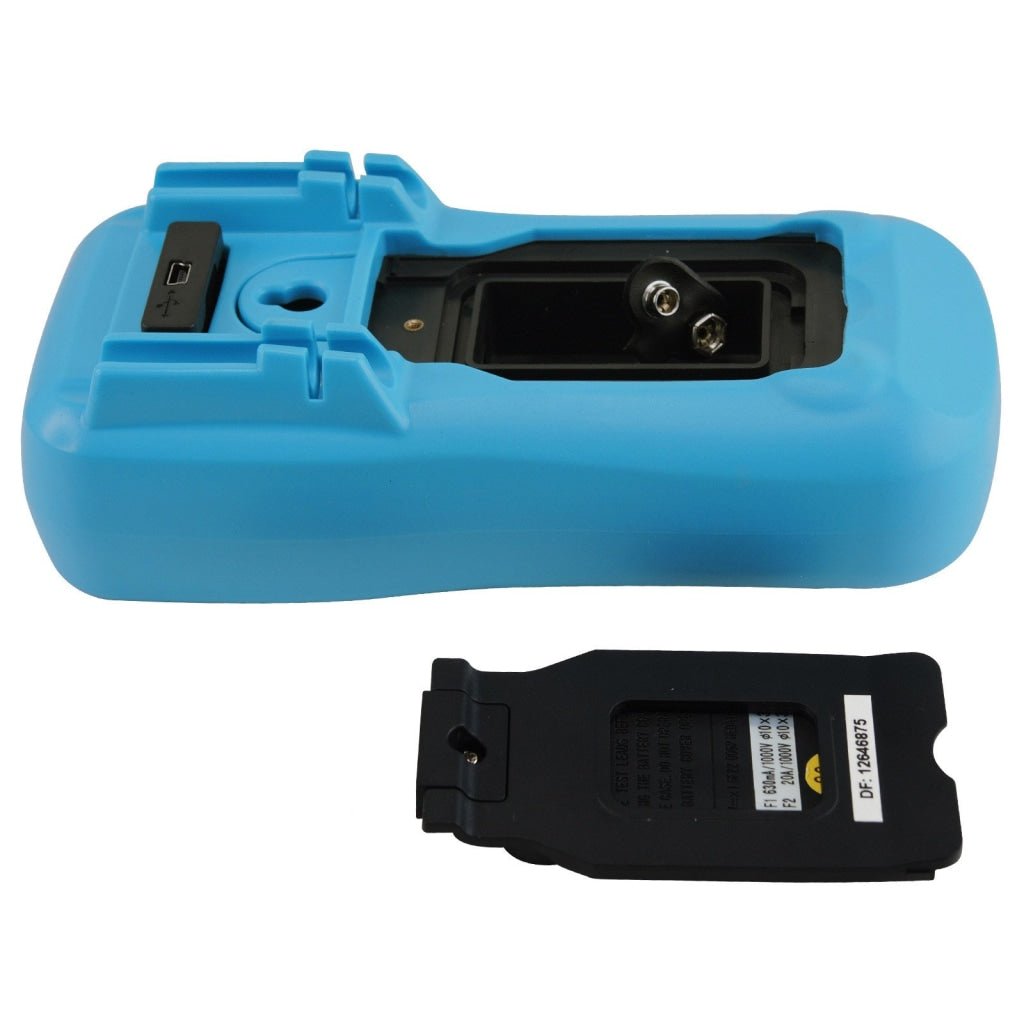

  • Battery : 1 x 9V battery ,6F22 or equivalent
  • Low Battery Indication : shown on the display

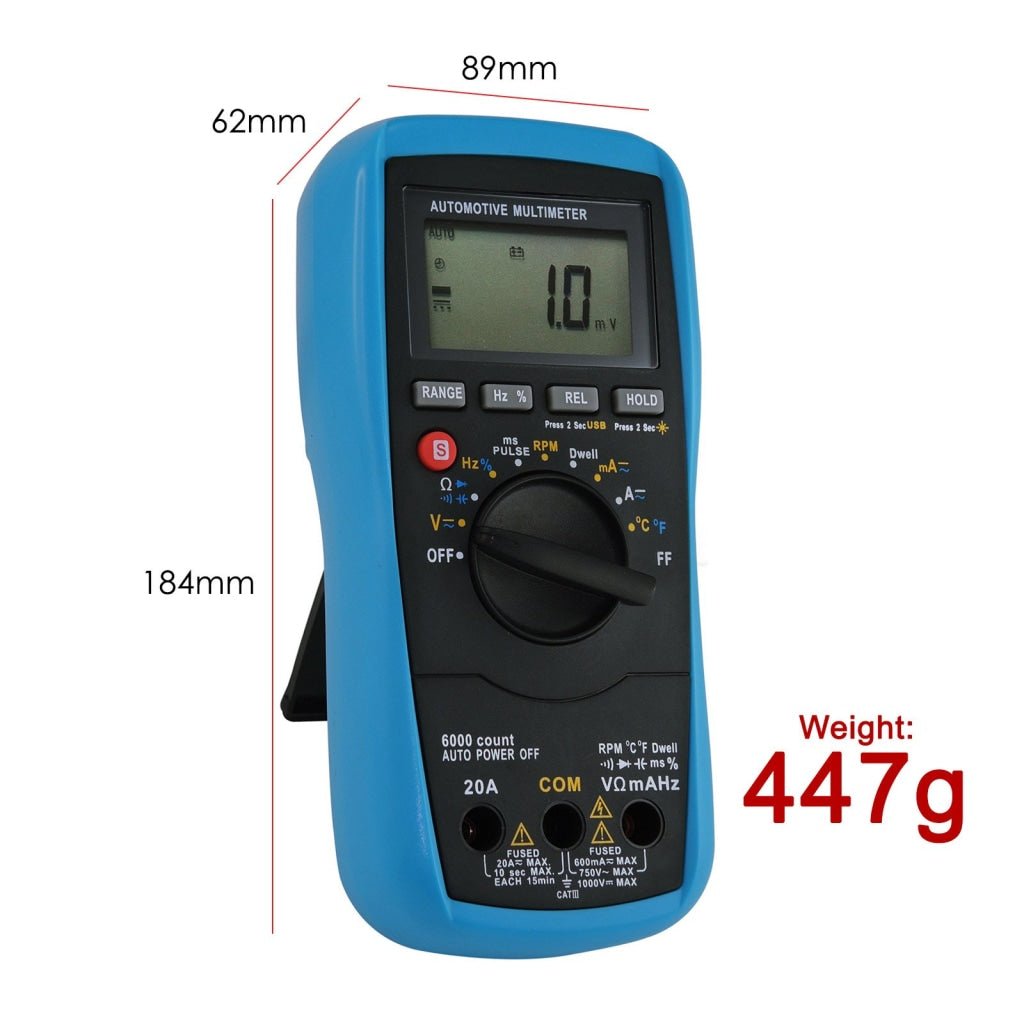

  • Dimension : 184 x 89 x 62mm
  • Weight : About 447g (including battery and holster)

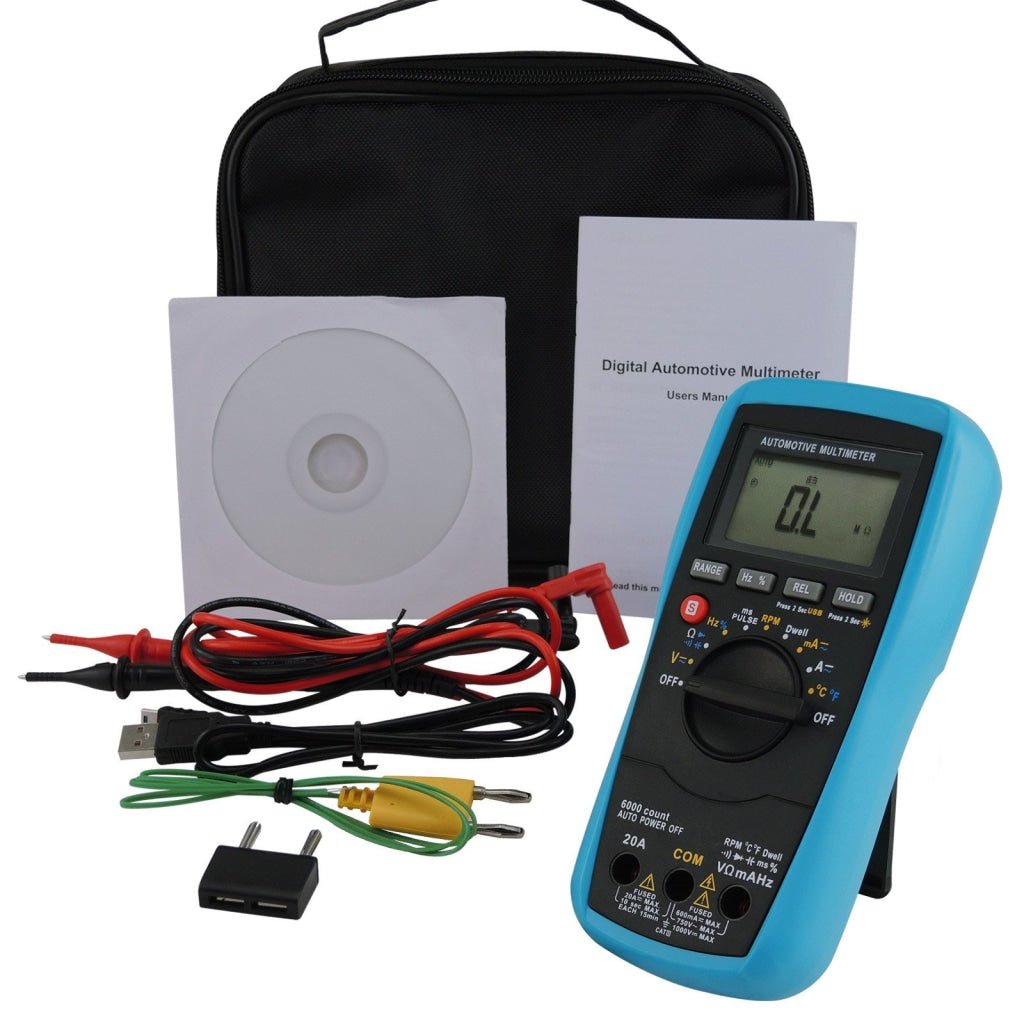

Set Includes:

  • 1 x Digital Automotive Multimeter

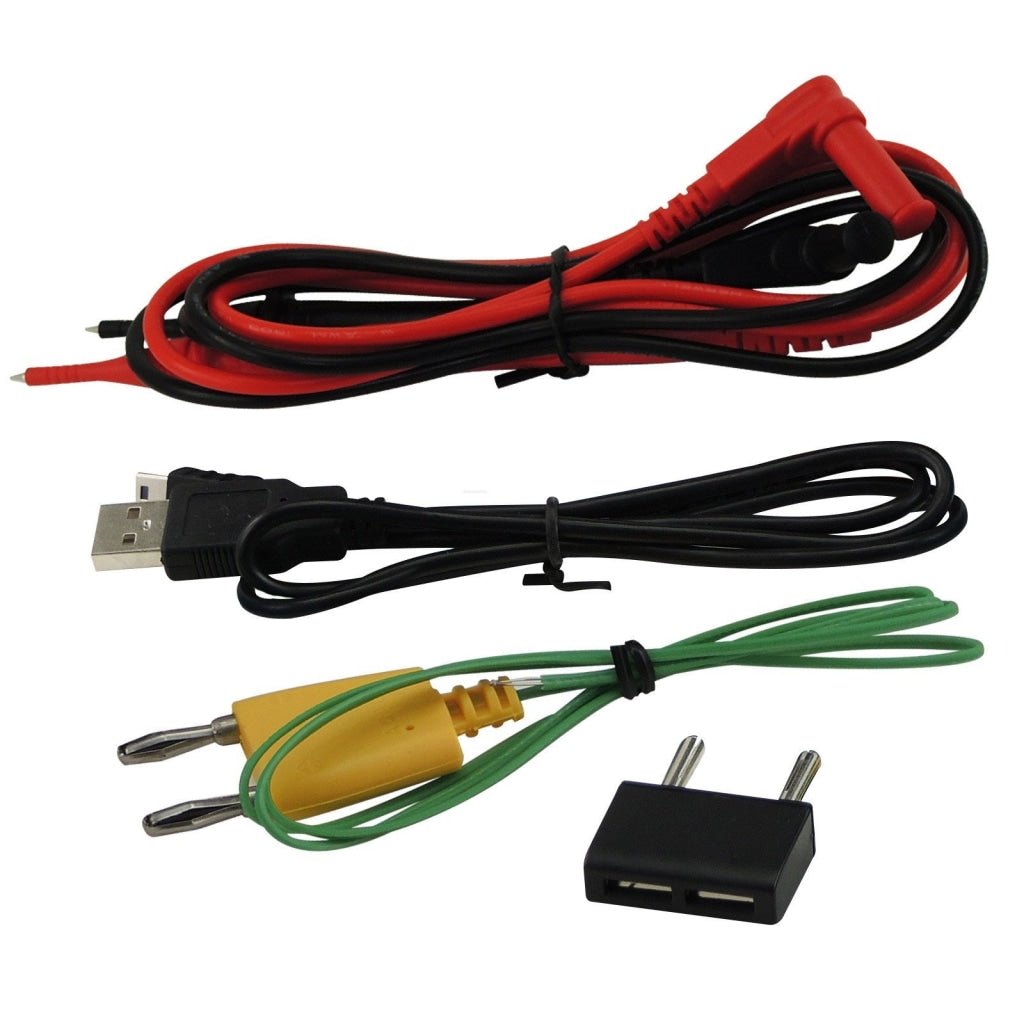

  • 2 x Test Lead (Black & Red)
  • 1 x K-Type Thermocouple
  • 1 x USB Data Cable
  • 1 x CD Software
  • 1 x Adapter
  • 1 x 9V Battery (FREE)
  • 1 x English Manual
  • 1 x Carrying Pouch
  • Stadard Packaging Box
