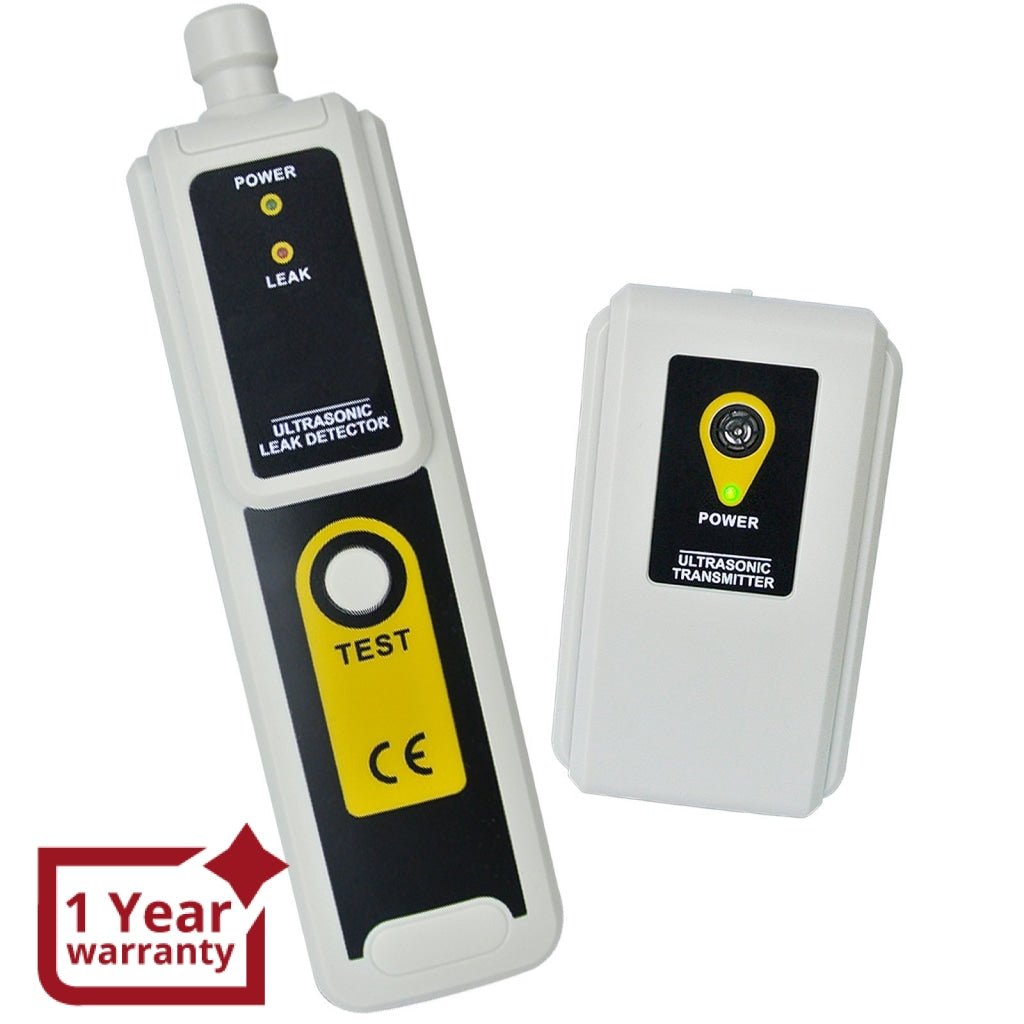

E04-003 Ultrasonic Leak detector & Transmitter Detects Air Water Dust LED Indicator w/ Earphone


Quantity
  OR


Model : E04-003

This Ultrasonic Leak detector is design to locate leaks in pressure and vaccum systems. It can be used to detect and locate the source of ultrasonic emission generated by gas or liquid flowing through a small restrictive opening. It uses the advanced ultrasonic sensing technique and features small size, light weight, reliable detection, easy use and utility.

In conjunction with Ultrasonic Transmitter,can also be used for tightness check in sealed compartments such as container, tank, car, etc.



Features:

  • Design to locate leaks in pressure and vaccum systems
  • Locate leaks pressure and vaccum systems
  • Quick location of air, water, dust leaks

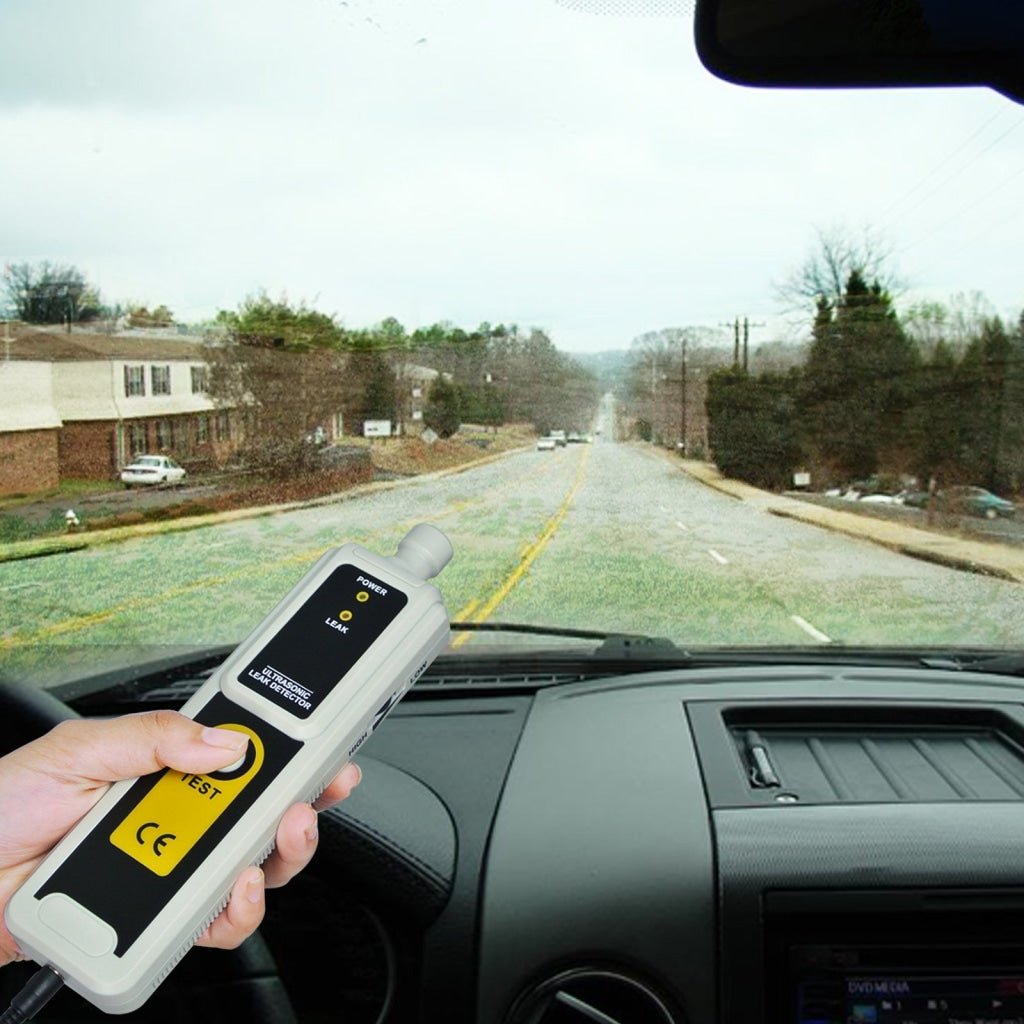

  • Place the transmitter in the vehicle and close the doors and windows
  • Trace the detector around outside of the screen, windows and door seals to locate the leak

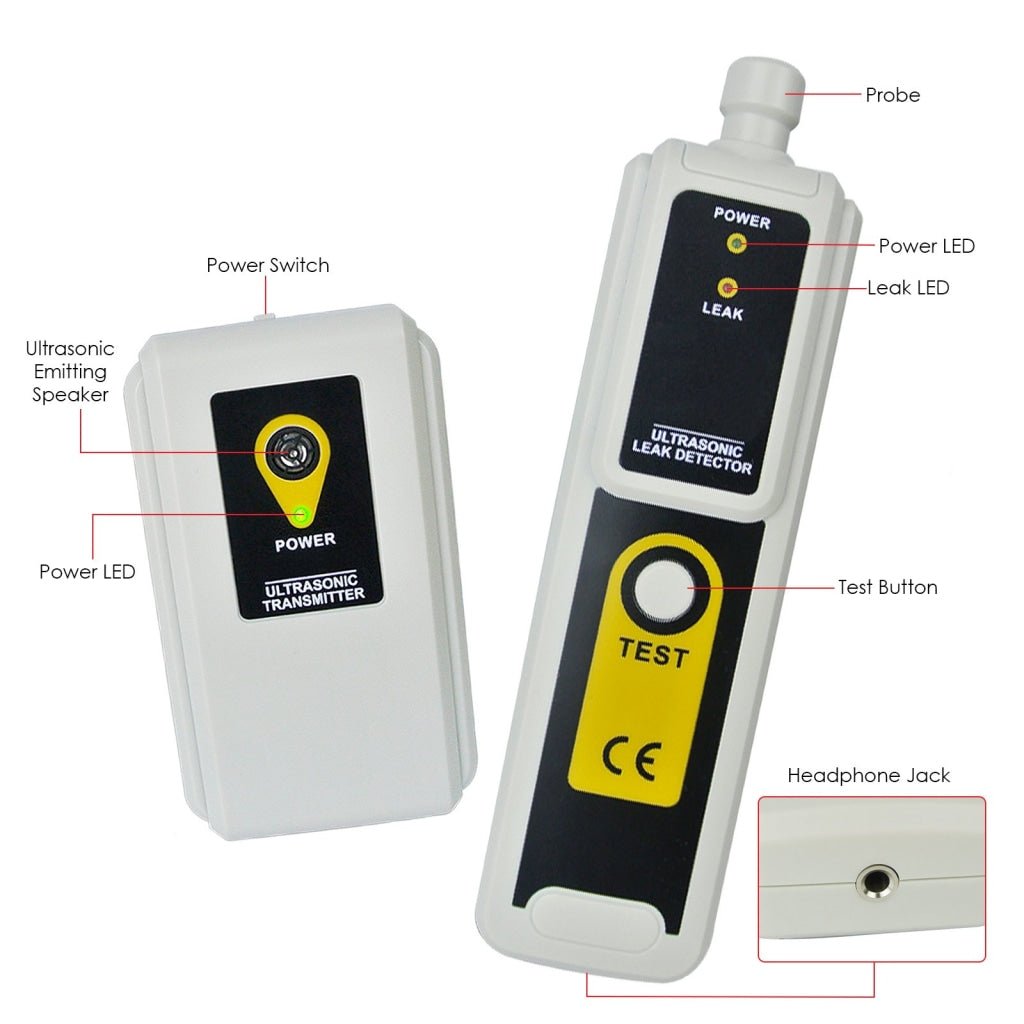

  • 2 LED lights
    • Red : Leak
    • Green : Power

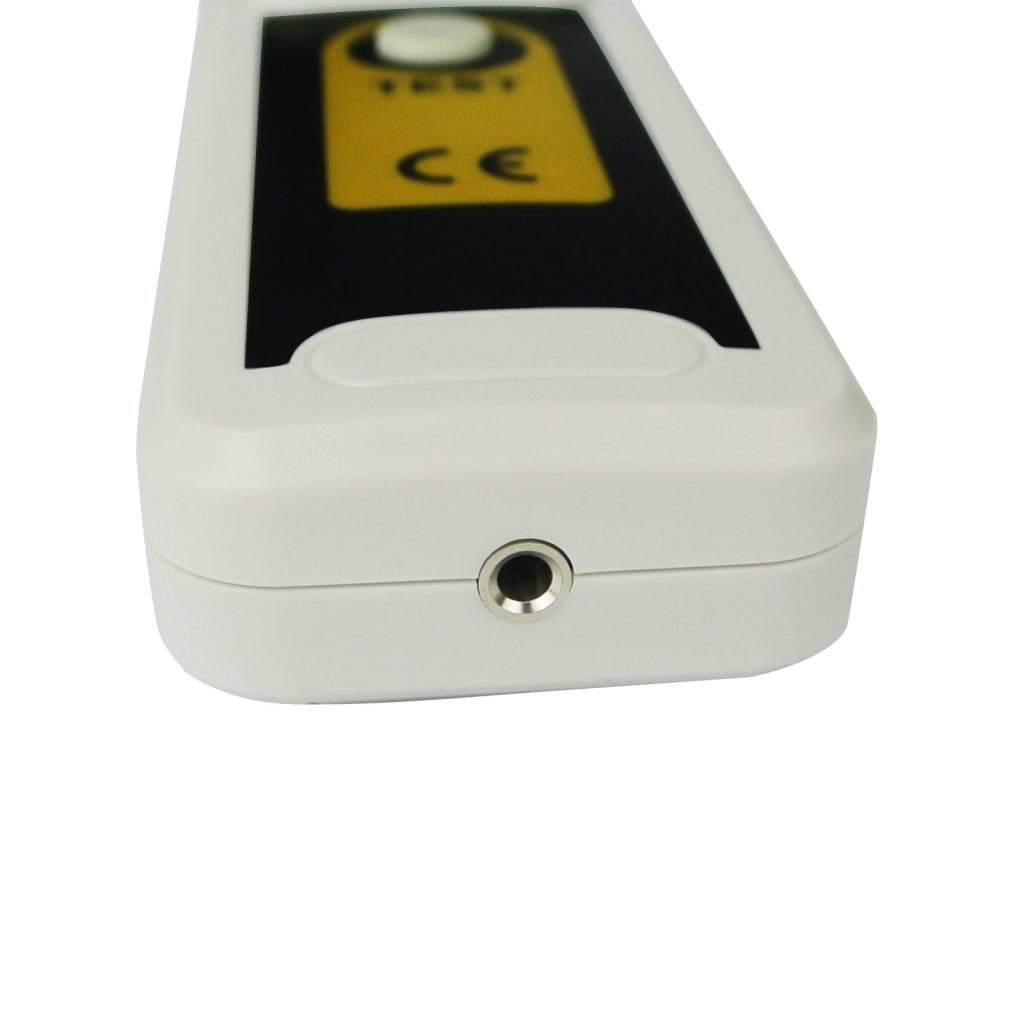

  • Comes with earphone and carrying bag



Specifications:

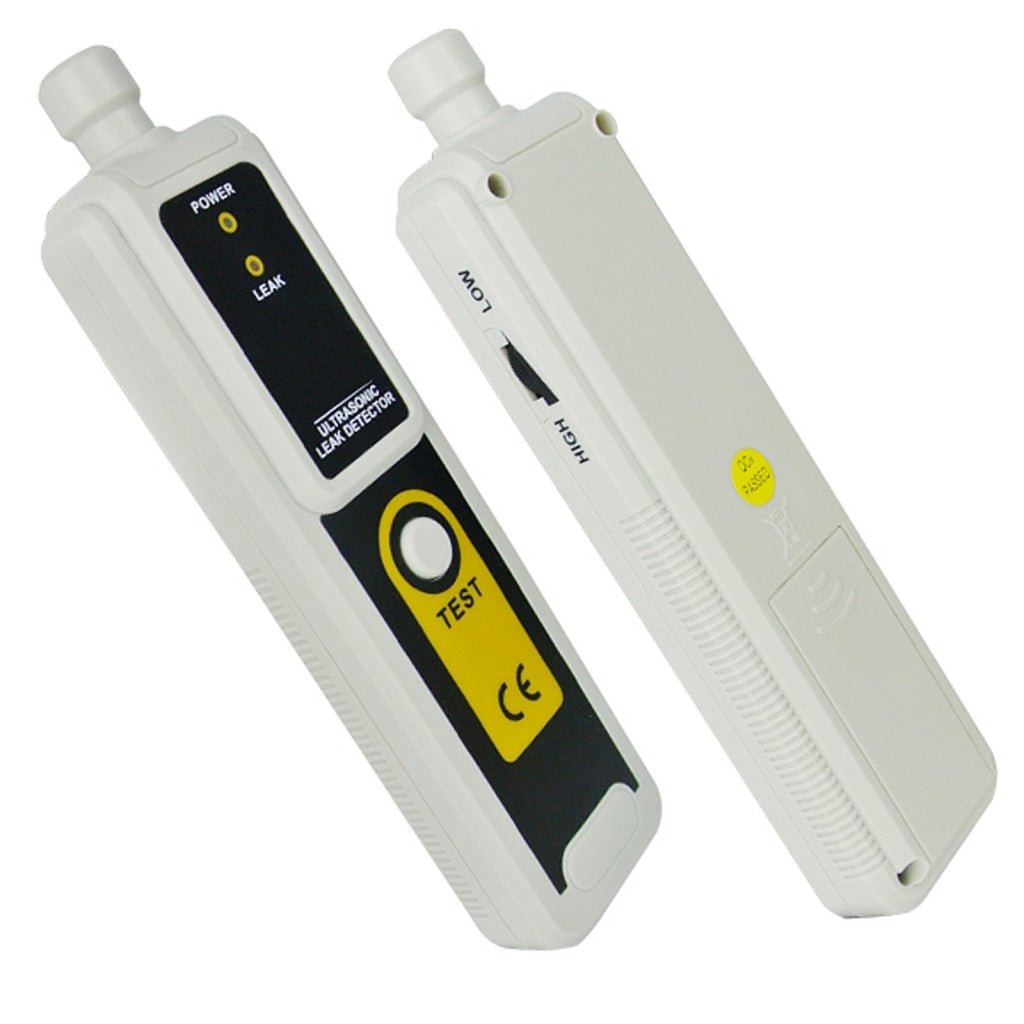

  • Receiver
    • Alarm Indication : The "LEAK" LED lights and the "ticking tone" increases in frequency

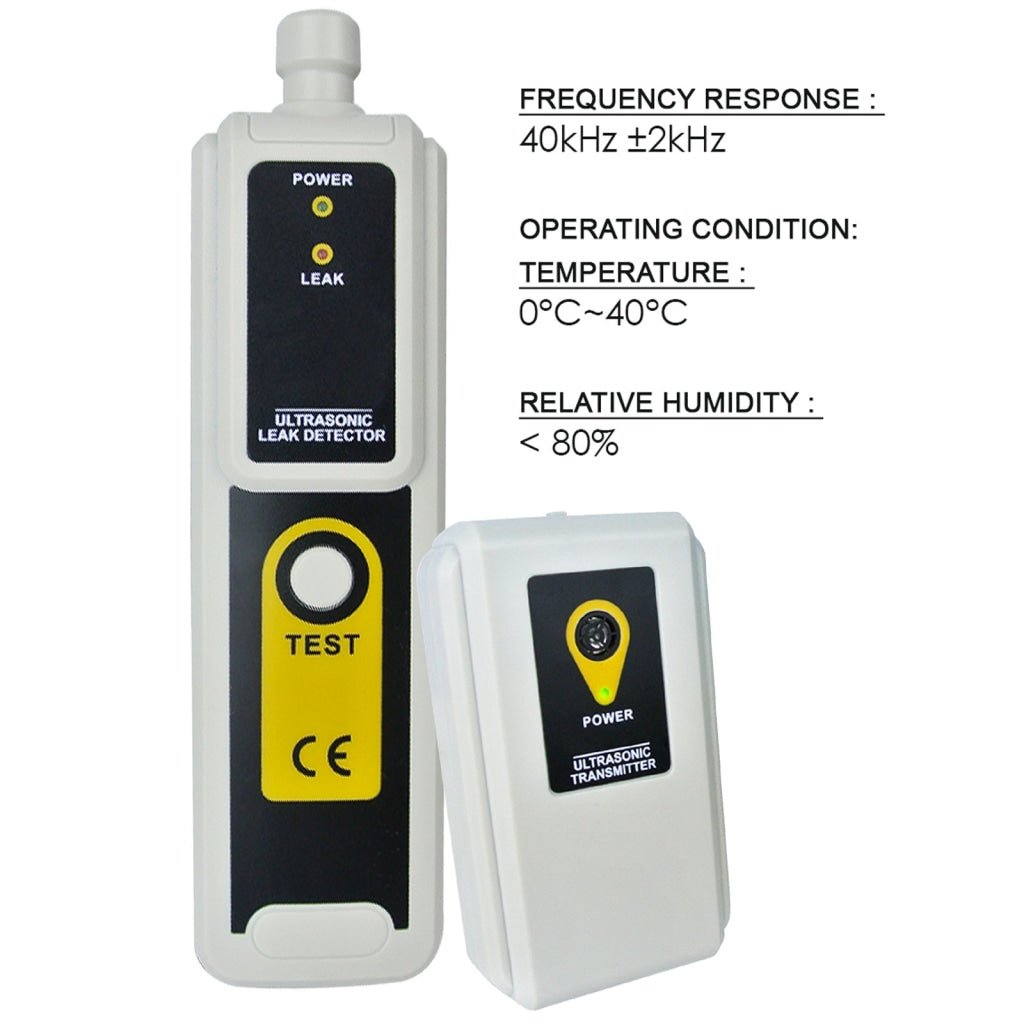

    • Frequency Response : 40kHz ±2kHz
    • Operating Condition:
      • Temperature : 0°C~40°C
      • Relative humidity : <80%

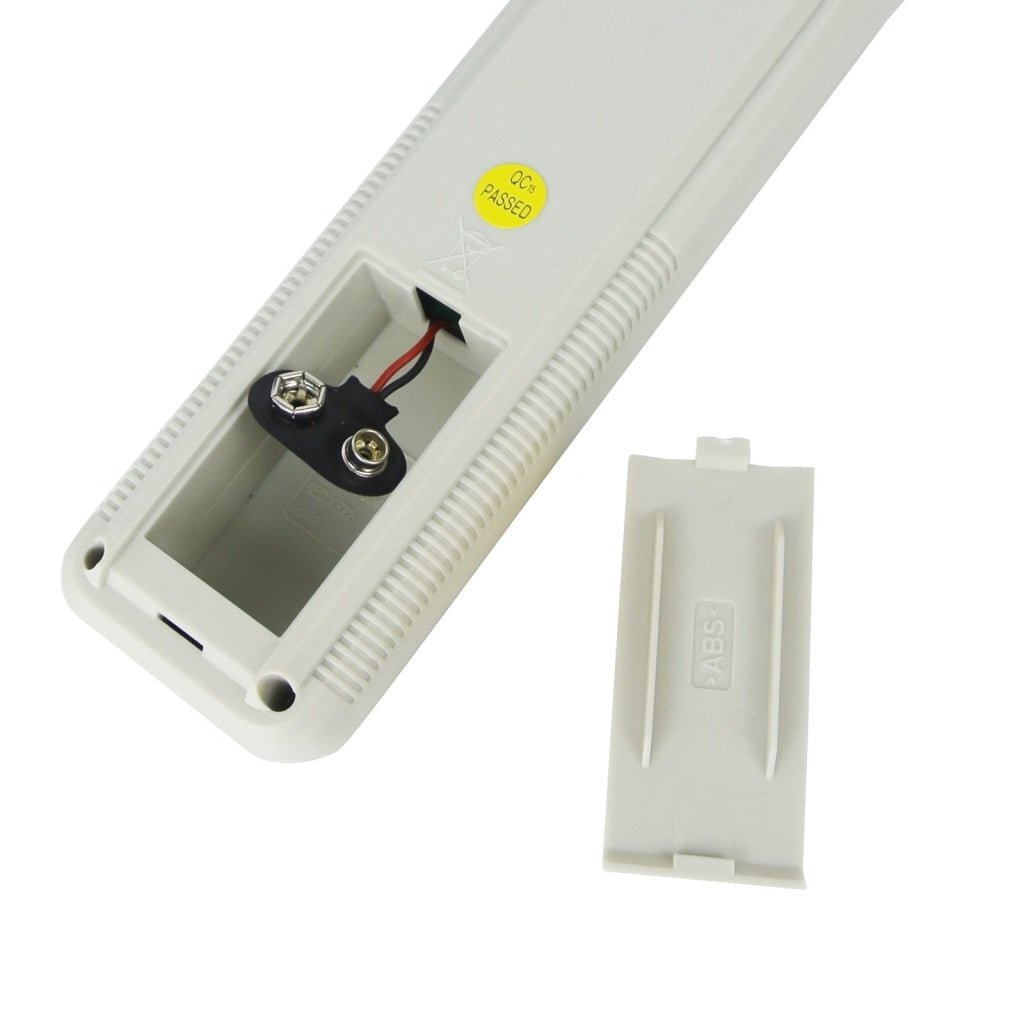

    • Battery : 9V,6F22 or equivalent

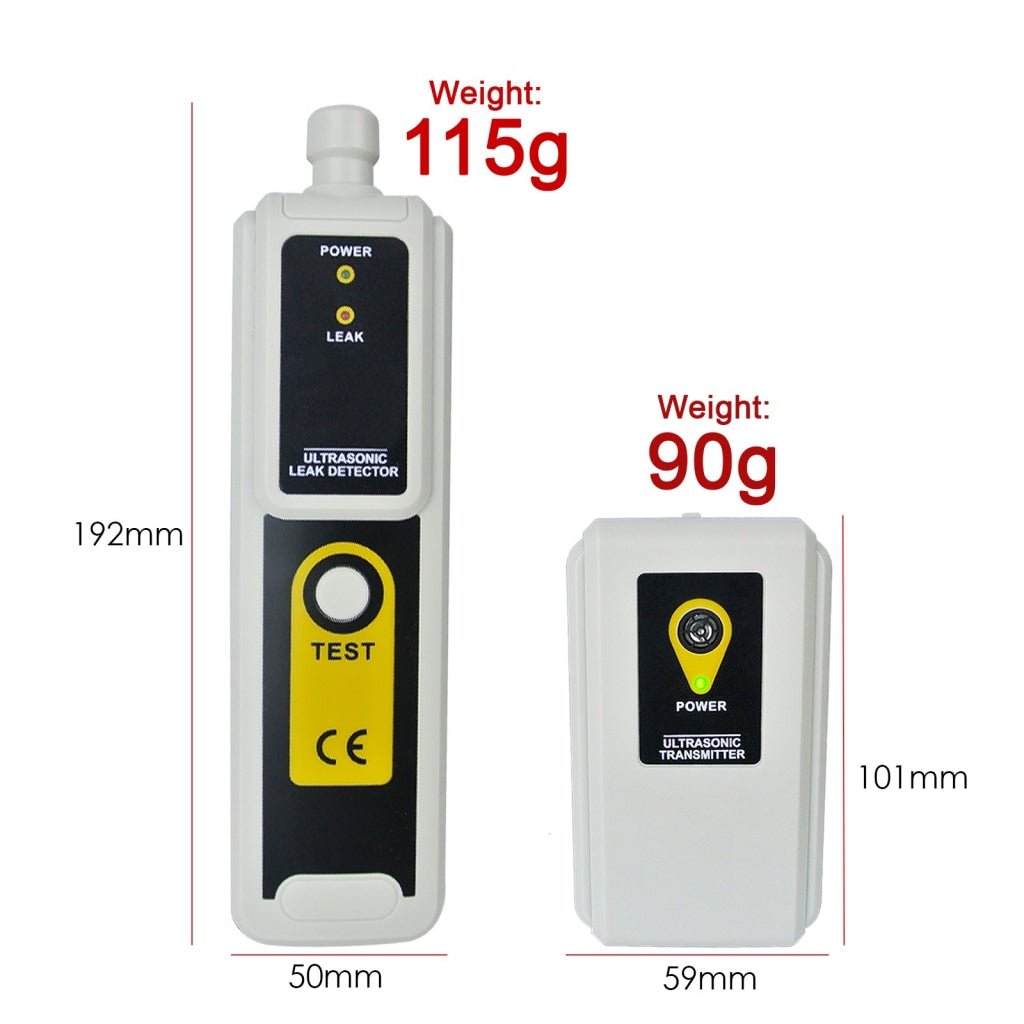

    • Size : 192 x 50 x 30mm
    • Weight : about 115g (including battery)

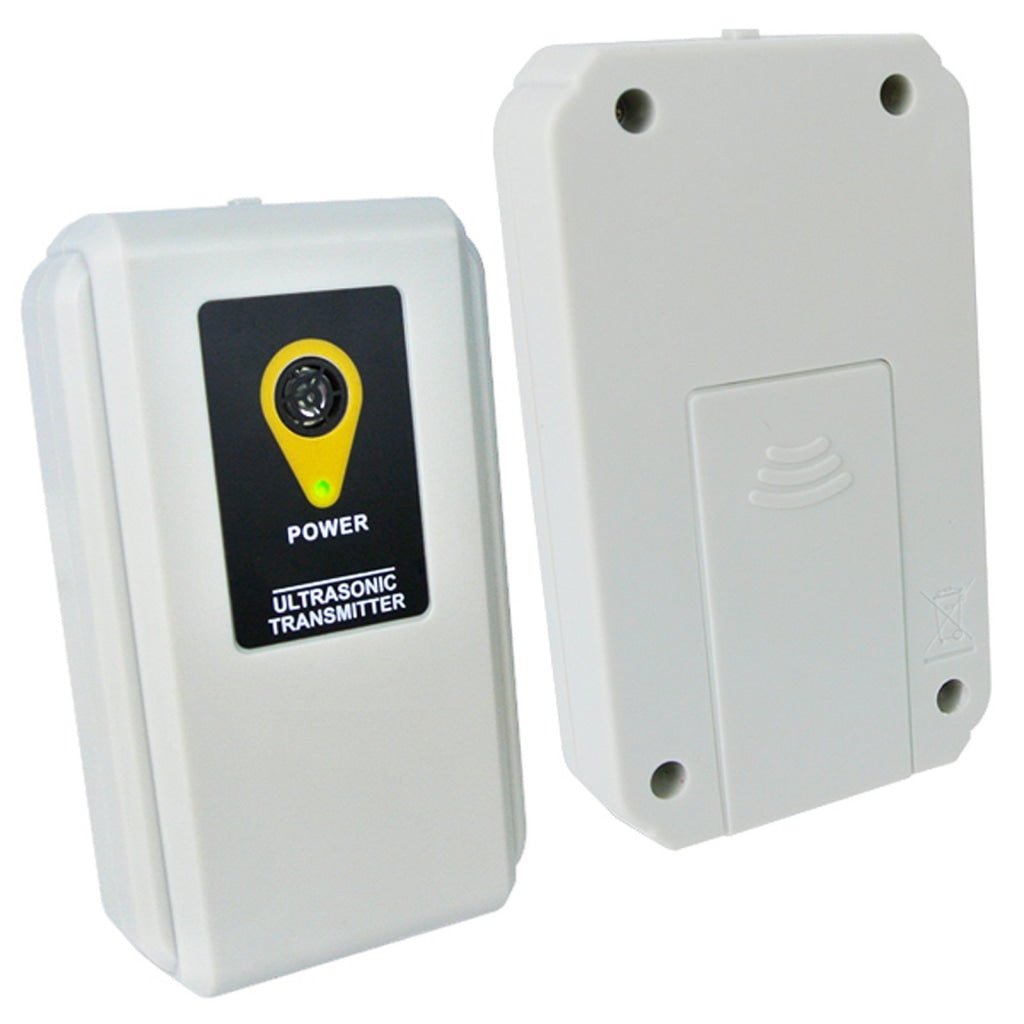

  • Transmitter
    • Indicator : LED
    • Operating Condition :
      • Temperature : 0°C ~ 40°C
      • Relative humidity : <80%
    • Output Frequency : 40kHz
    • Battery : 9V,6F22 or equivalent
    • Low battery Indication : "POWER"LED can't light
    • Size : 101 x 59 x 28mm
    • Weight : about 90g (including battery)

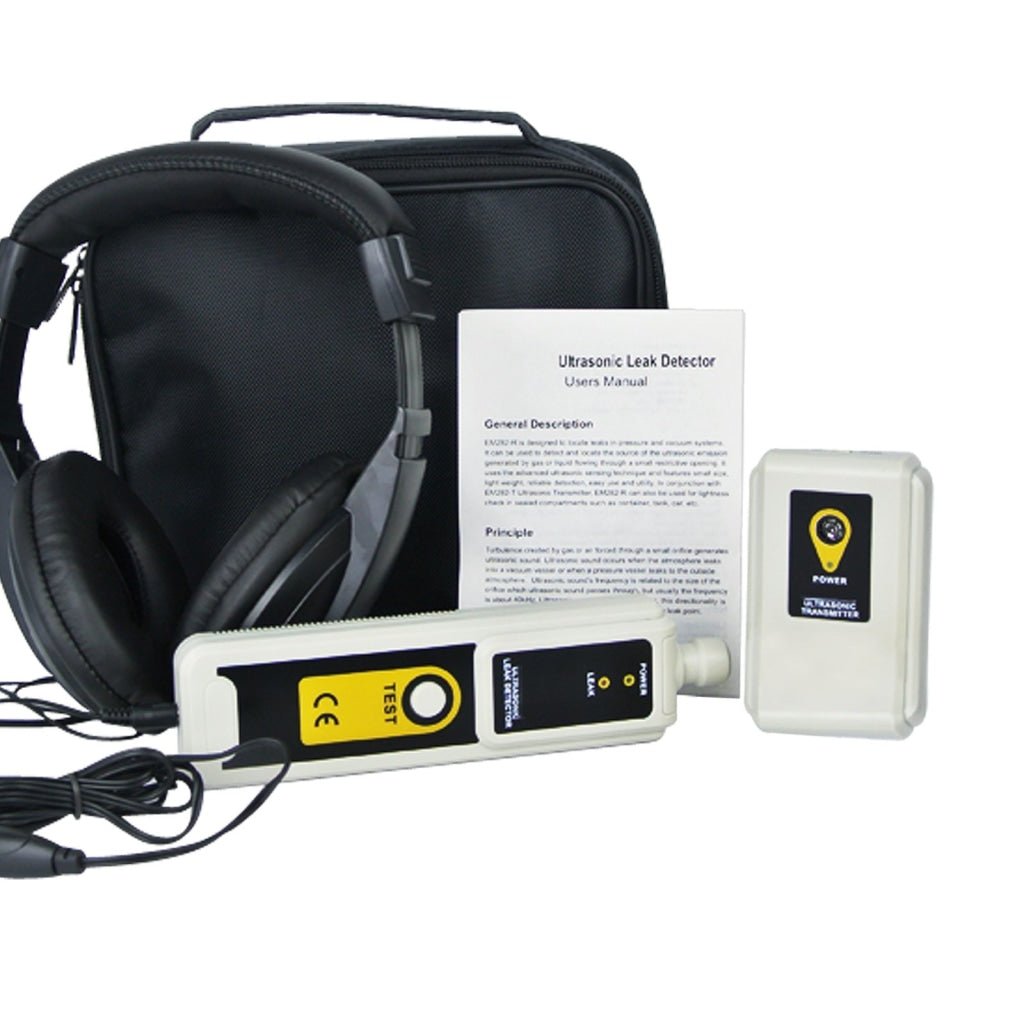

Set includes:

  • 1 x Receiver
  • 1 x Transmitter
  • 2 x 9V Battery (FREE)

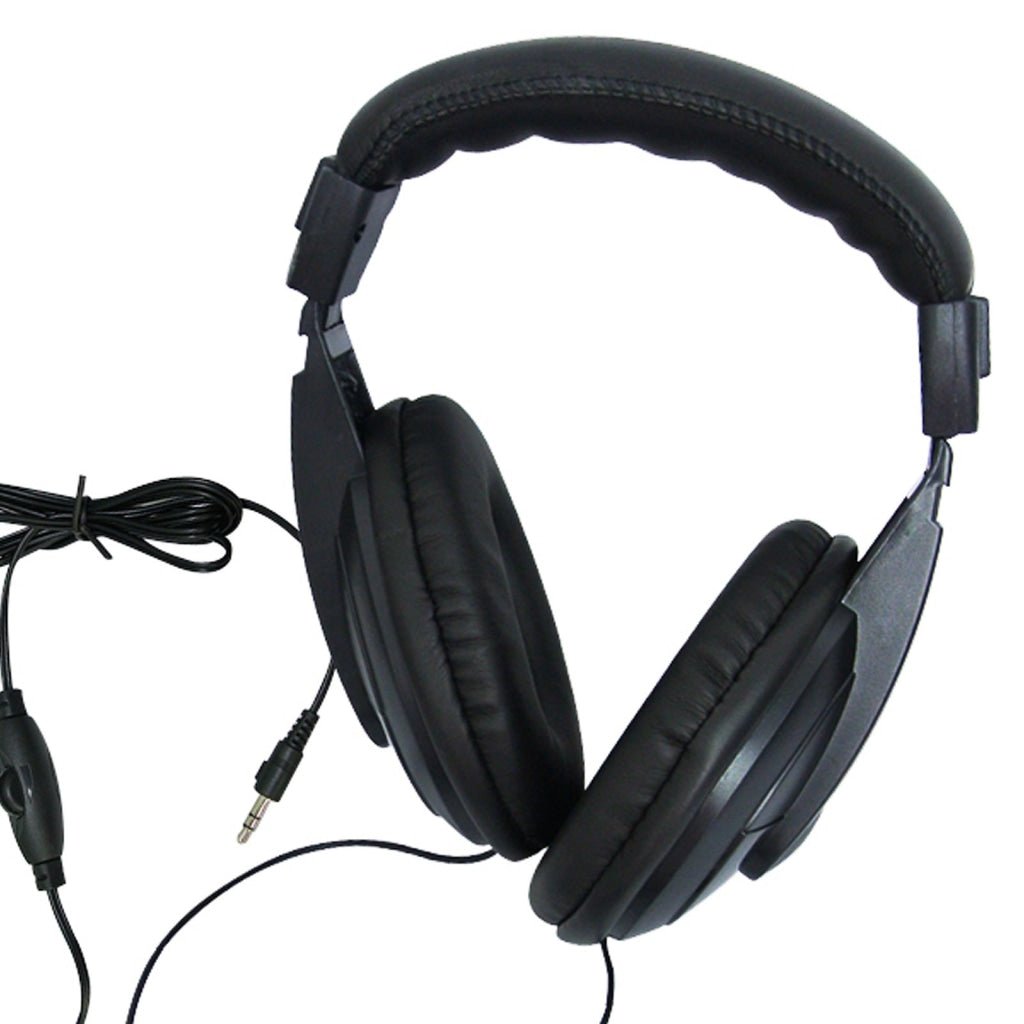

  • 1 x Earphone
  • 1 x English Instruction Manual
  • 1 x Carrying bag
  • Standard Packaging Box

    EM282
