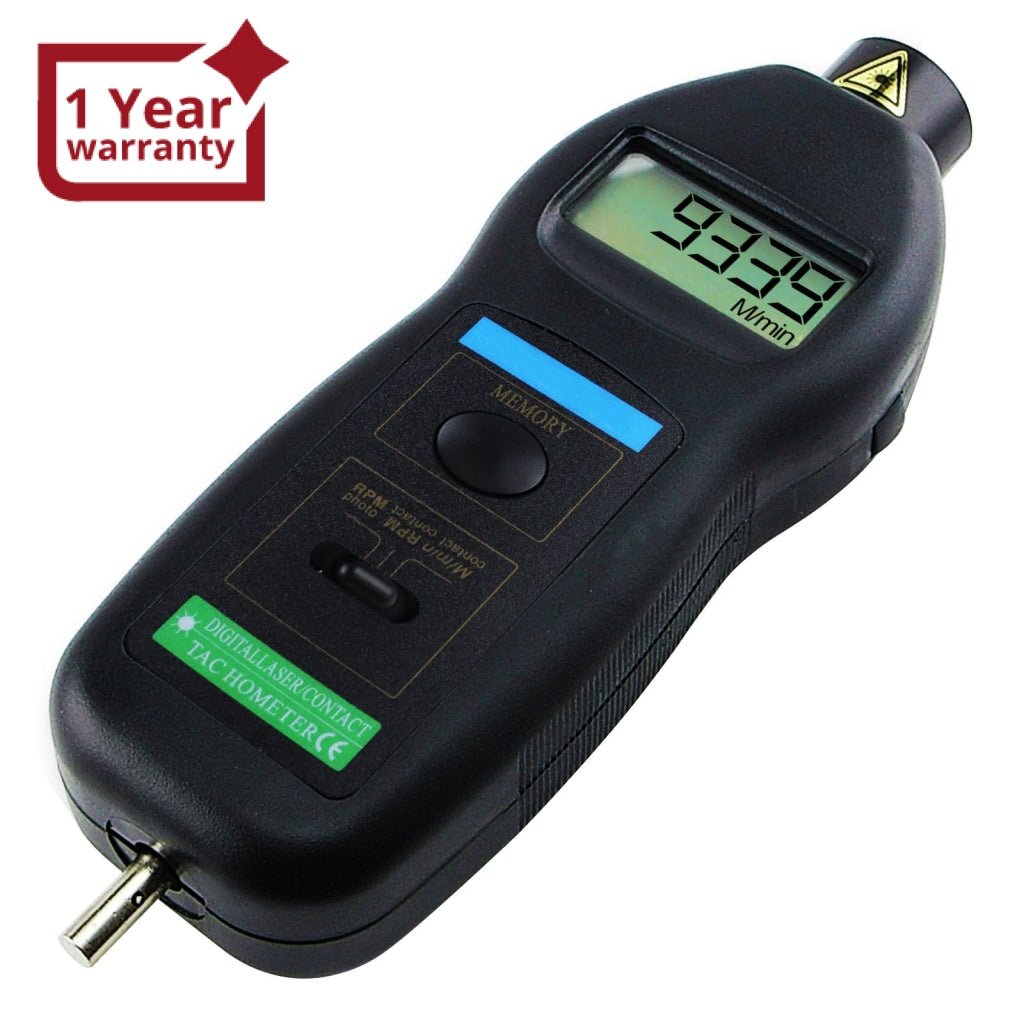

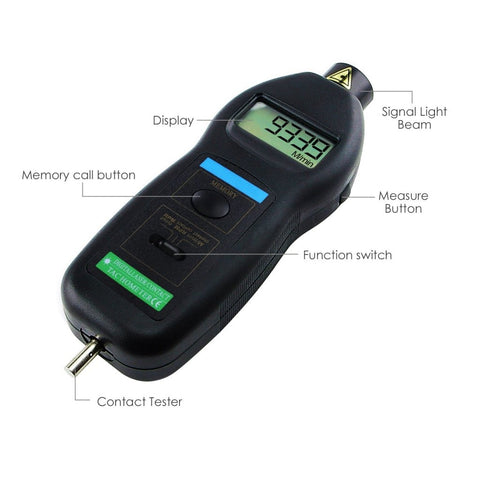

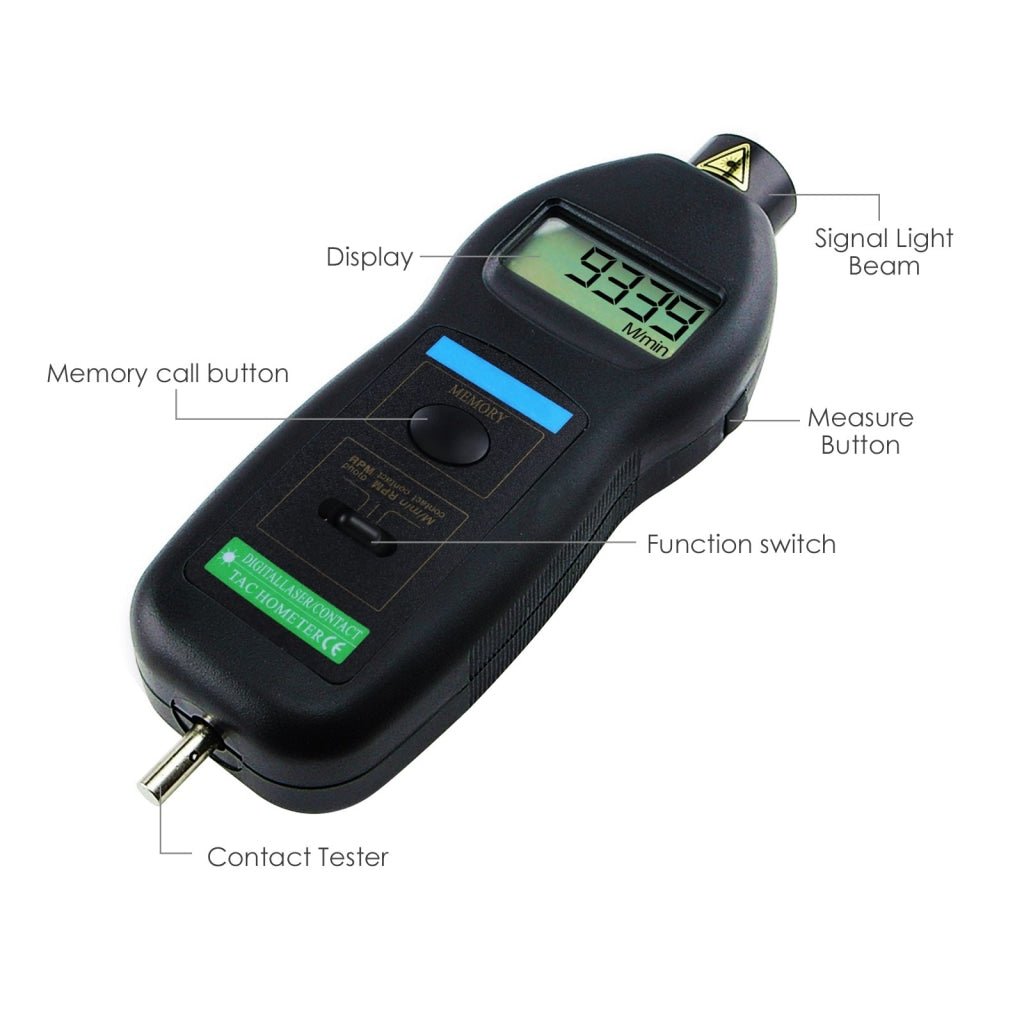

DT-2236C 2in1 Digital Contact and Non-Contact Tachometer Laser / Photo m/min RPM Auto Ranging

  • 0% OFF
  • Regular Price

    $47.90



Add to Wishlist


Check shipping / delivery time for your country | Free Shipping Worldwide Request for Quotation

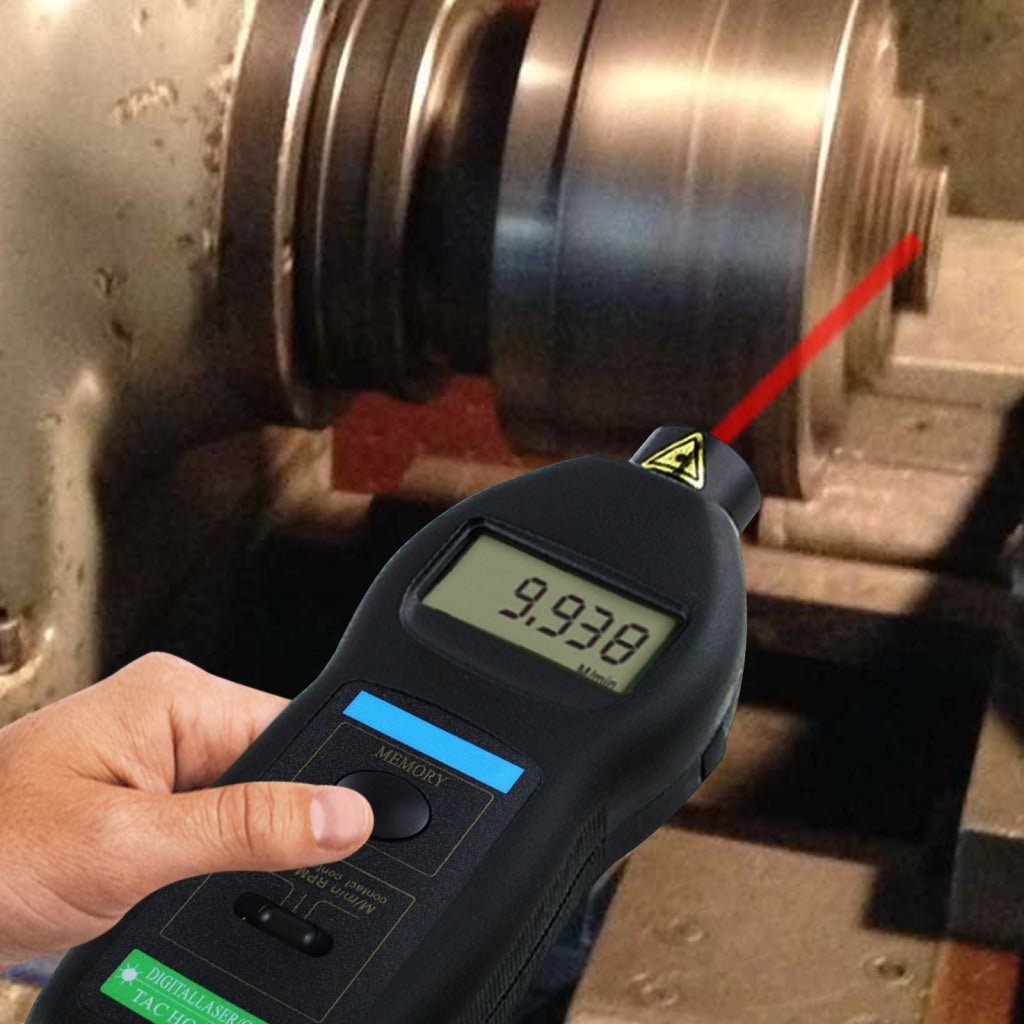

This meter is a contact and non-contact tachometer. It combines the accuracy & quick measurements and high RPM measurement of a modern laser tachometer. It provides measuring range of 2.5~99,999RPM (laser)0.5~19,999RPM (contact) and surface speed is displayed in both m/min. It has Auto Ranging, detecting distance of up to 500mm or 20inch and accuracy of ±(0.05% +1digit).

With this it produce consistent accurate readings in seconds with no guessing or error. Plus, it automatically store Last, Maximum and Minimum values and can be recall anytime. Safe & accurate measuring of RPM & rotational speed without inflicting any damage to the target object.

Features:

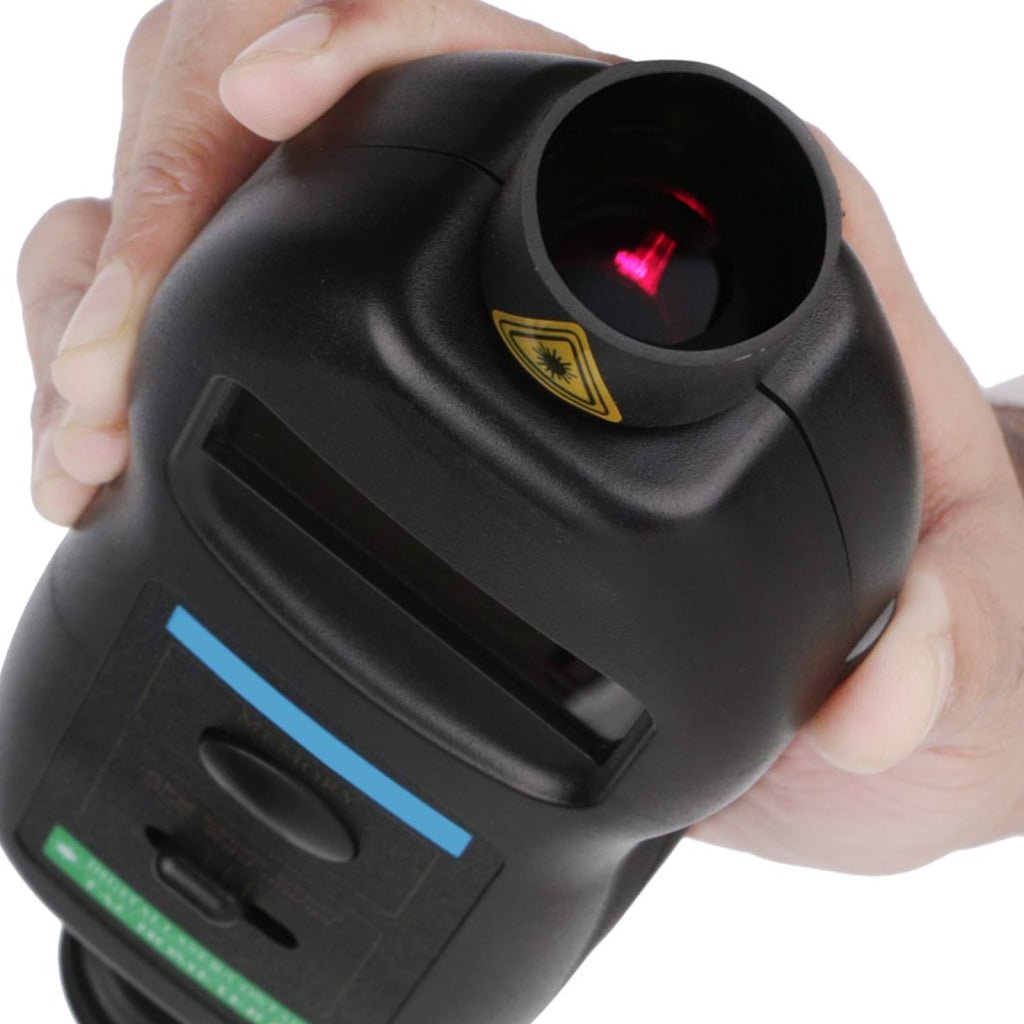

  • Laser photo & surface contact measurements60)
  • Wide Measuring Range
  • With Auto Ranging and automatic low power indication
  • LSI-circuit and crystal time base mechanism for high accuracy & fast measuring time
  • Last value, maximum value and minimum value
  • Insignificant zero suppression
  • Durable & light weight
  • Tested according to European international guidelines and standards(CE Marking)



Specifications:
  • Measure in m/min

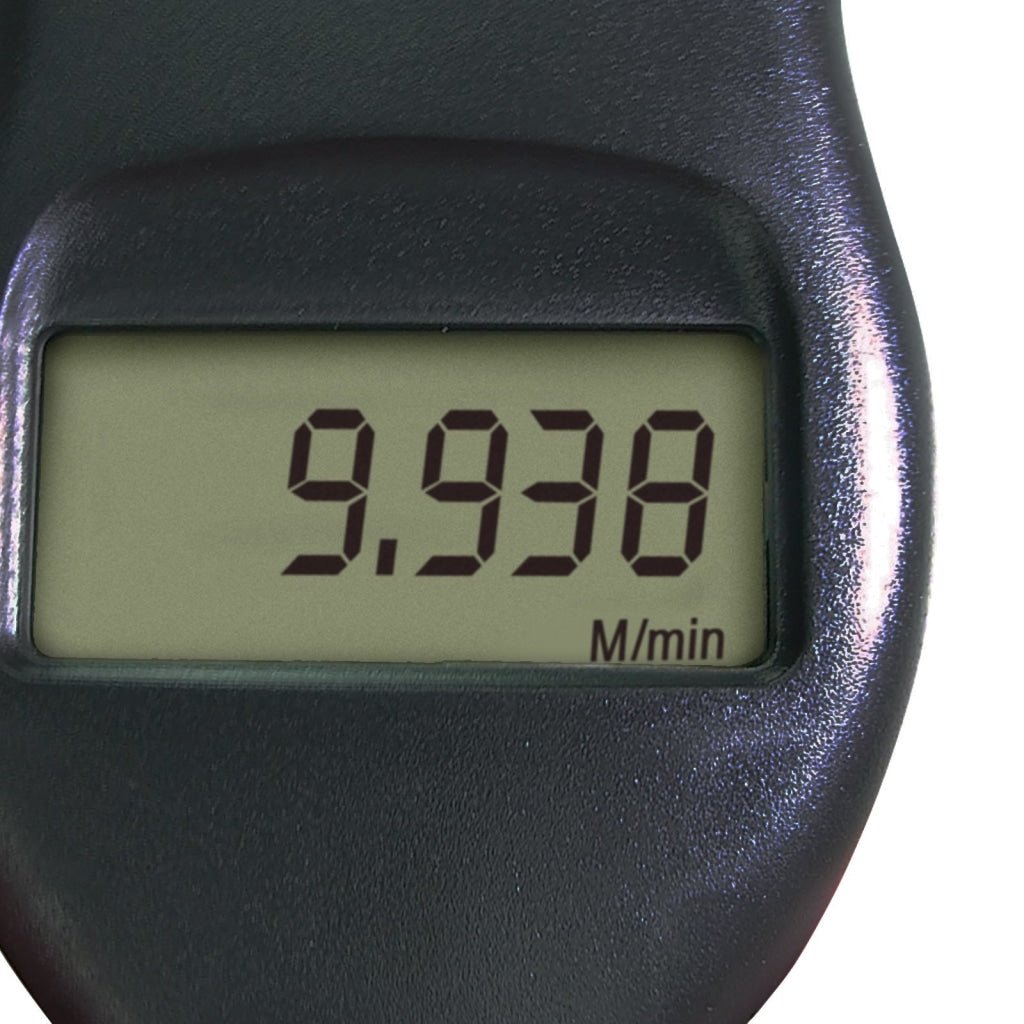

  • Display : 5 digits, 10mm LCD with function annunciation

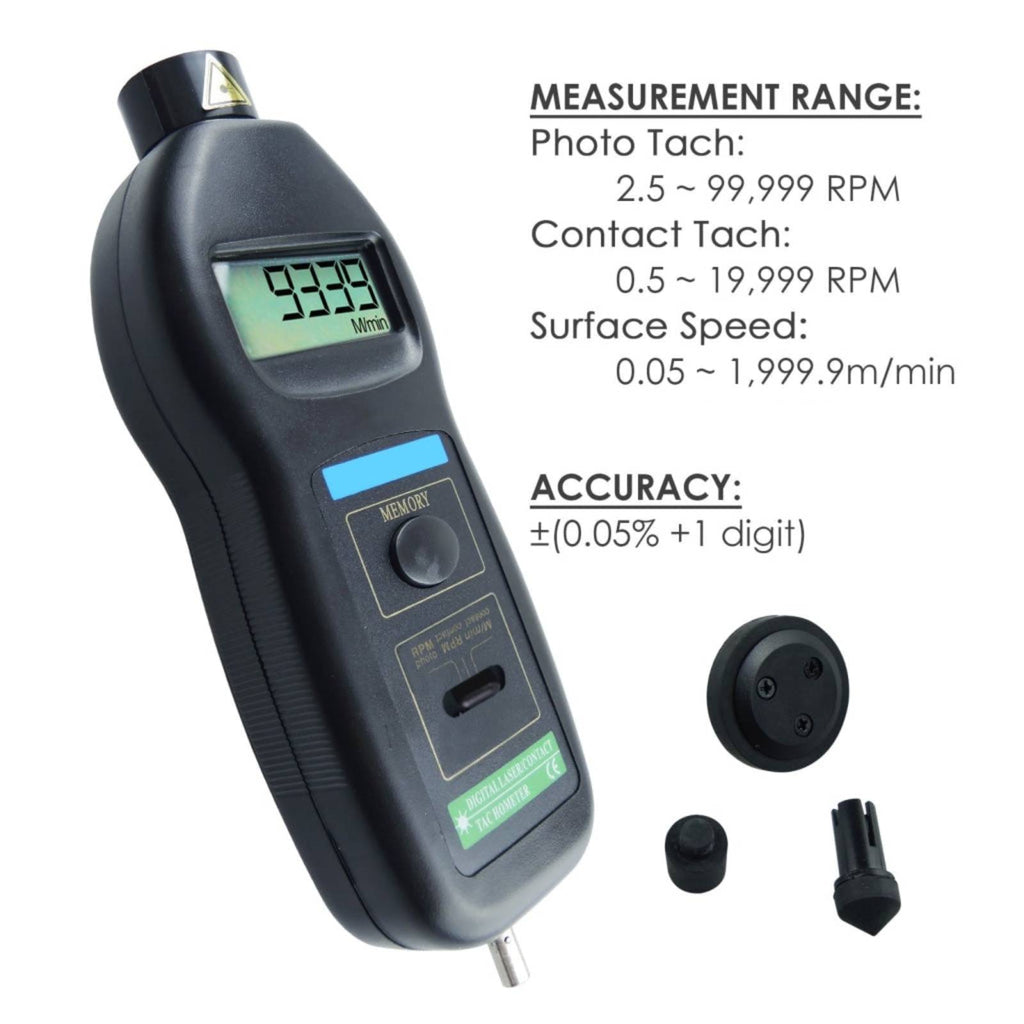

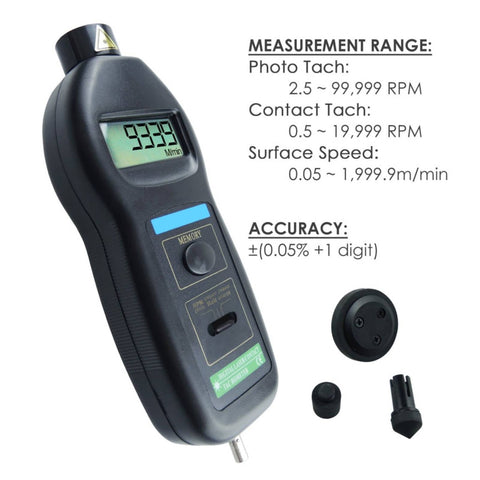

  • Measurement
    • Photo Tach : 2.5 ~ 99,999 RPM
    • Contact Tach : 0.5 ~ 19,999 RPM
    • Surface Speed : 0.05 ~ 1,999.9m/min
  • Resolution:
    • Photo Tach : 0.1RPM (2.5 ~ 999.9 RPM)
                          1 RPM(over 1,000 RPM)
    • Contact Tach : 0.1 RPM (0.5 ~999.9 RPM)
                              1 RPM(over 1,000 RPM)
    • Surface Speed : 0.01 m/ min.(0.05~99.99 m/min)
                                0.1m/ min.(over 100 m/min)
  • Accuracy : ±(0.05% +1 digit)
  • Sampling Time : 0.8 sec (over 60 RPM)

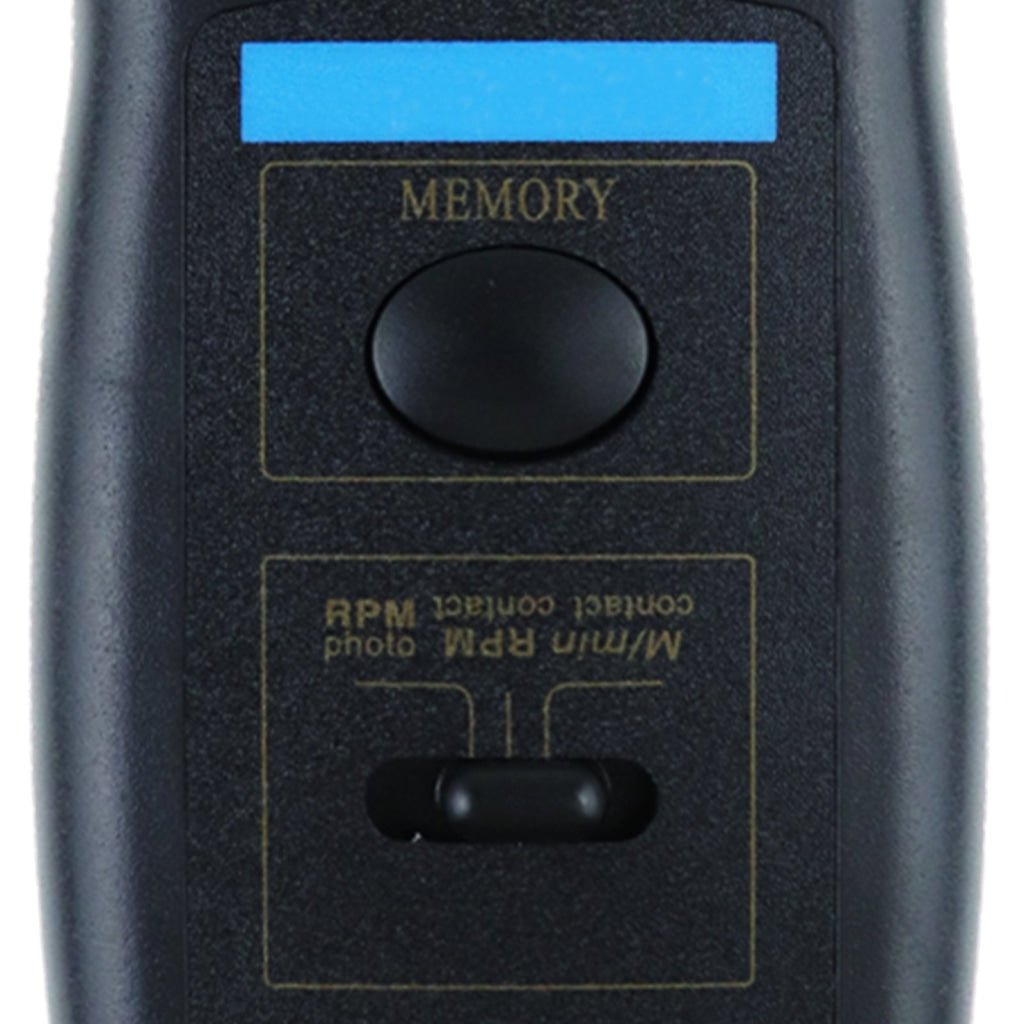

  • Memory : Last value, Max. value, Min. value
  • Test Range Select : Automation
  • Time Base: Quartz crystal
  • Circuit : Exclusive one chip of microcomputer LSI circuit

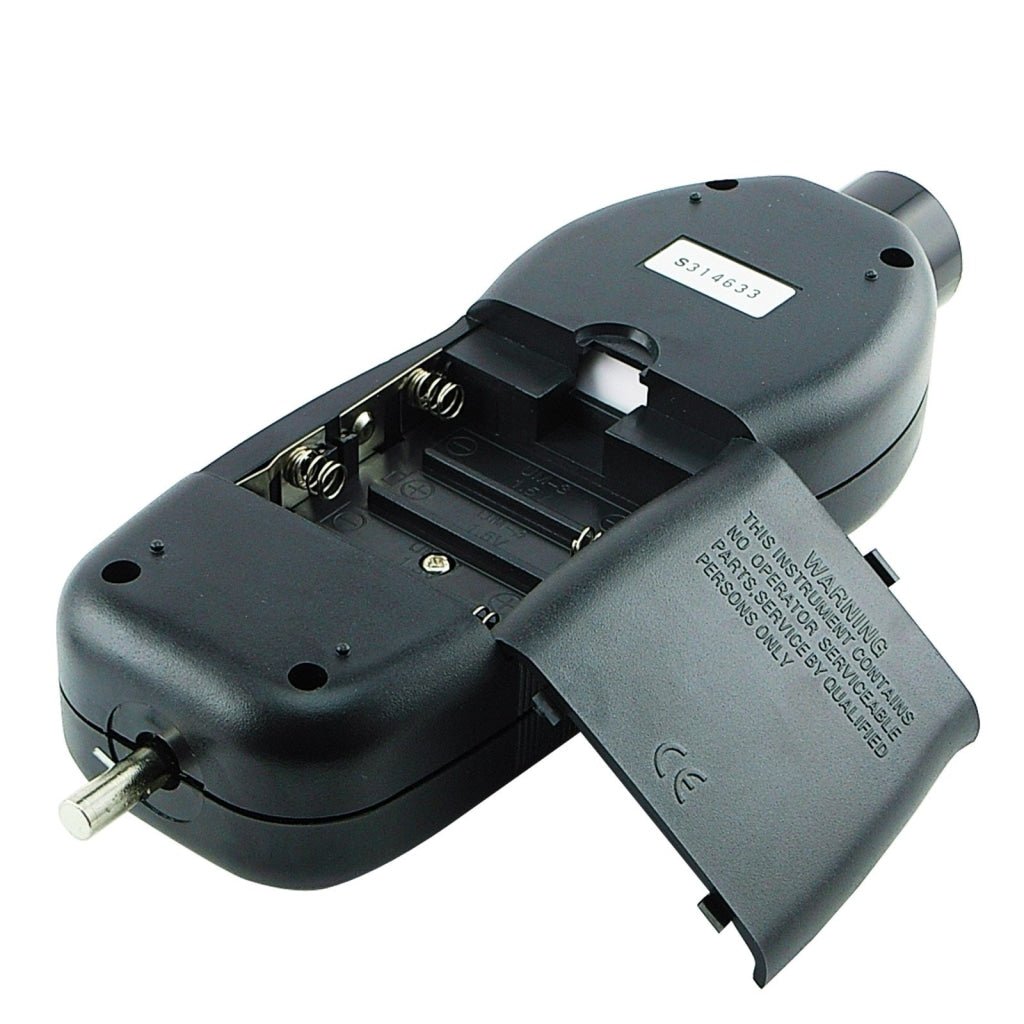

  • Battery: 4 x 1.5AA Battery
  • Operation Temperature : 0~50°C(32~122°F)

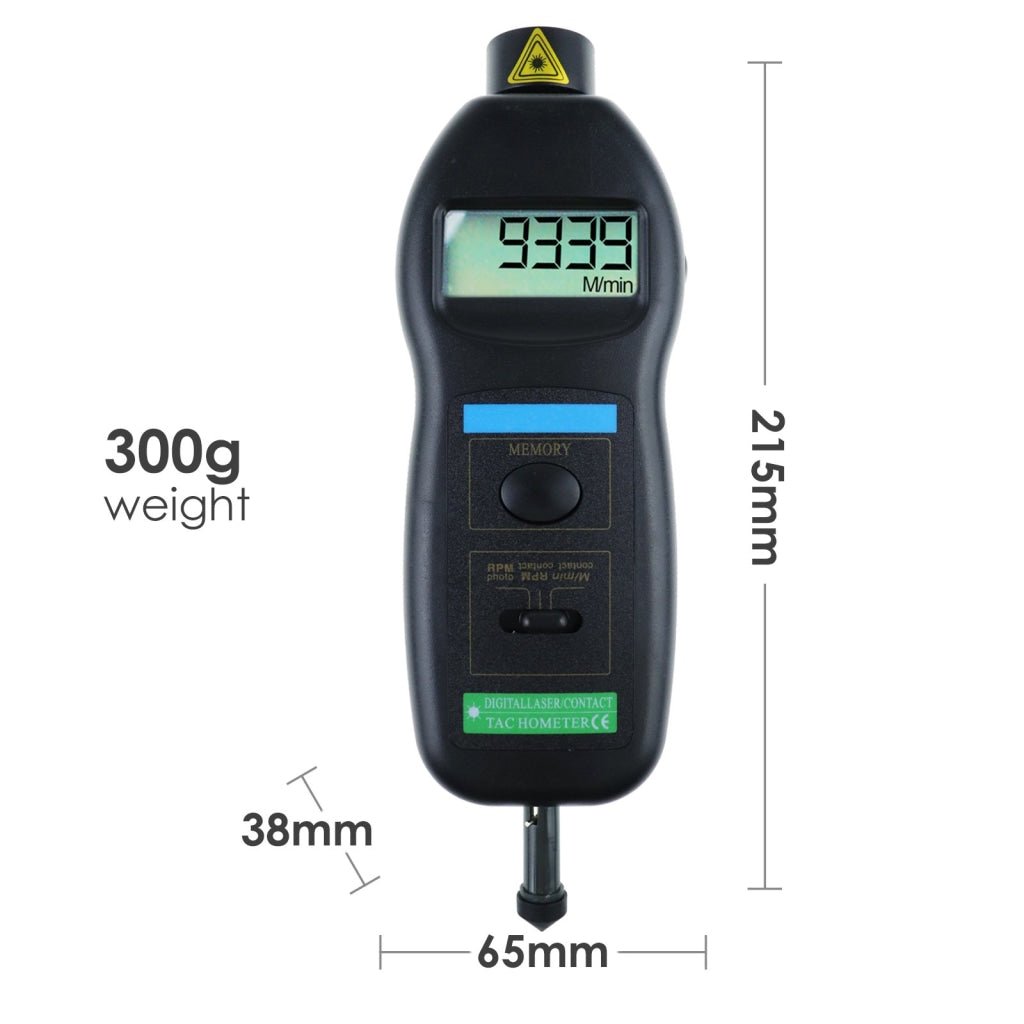

  • Size : 215 x 65 x 38mm
  • Weight: 300g including battery

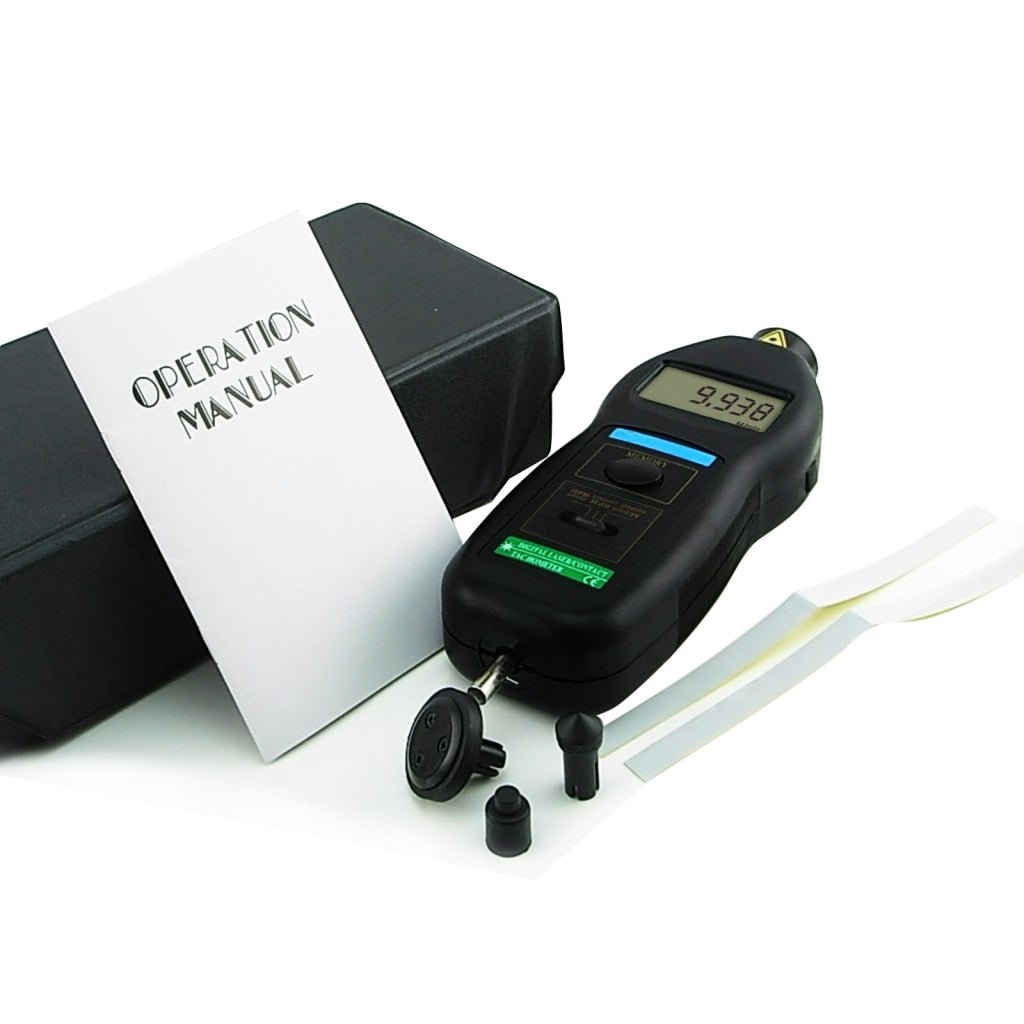

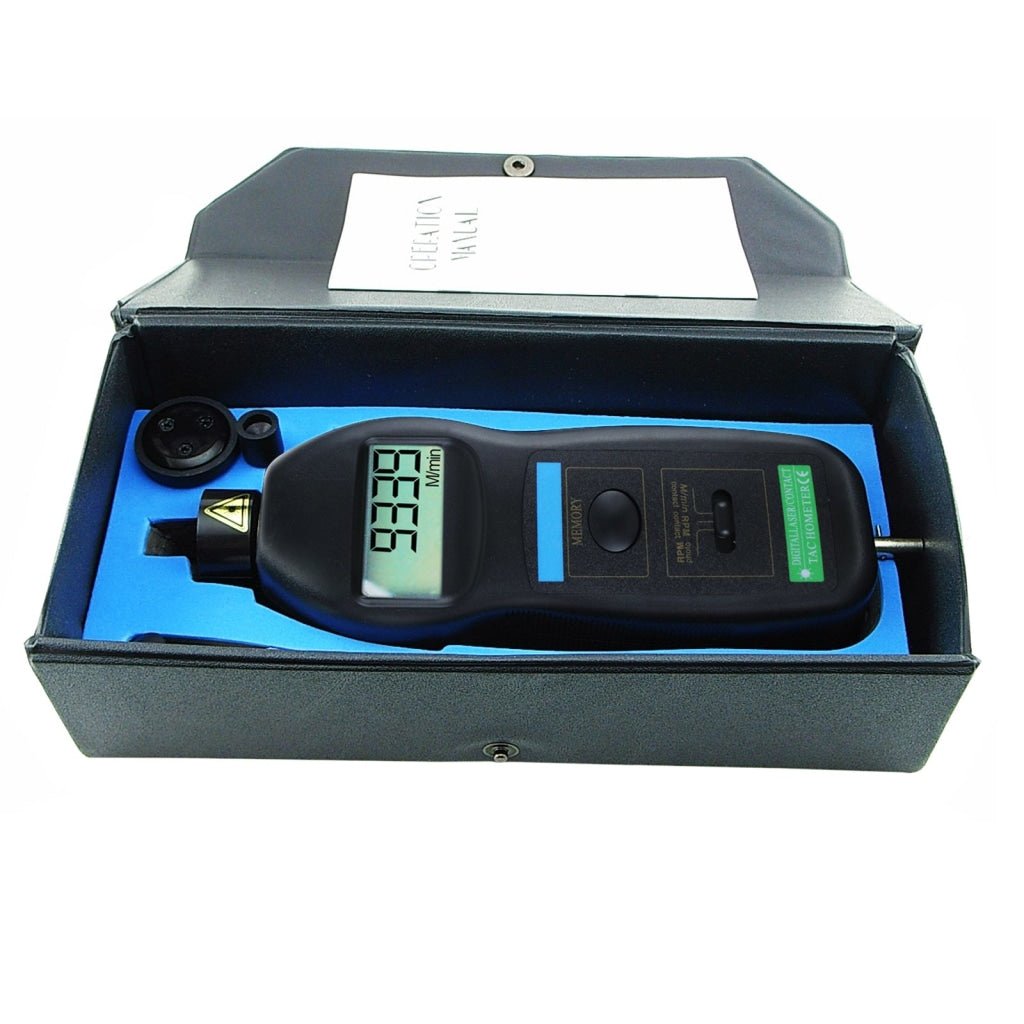

Set Includes:
  • 1 x Digital Tachometer
  • 2 x Reflecting tape marks (350mm)

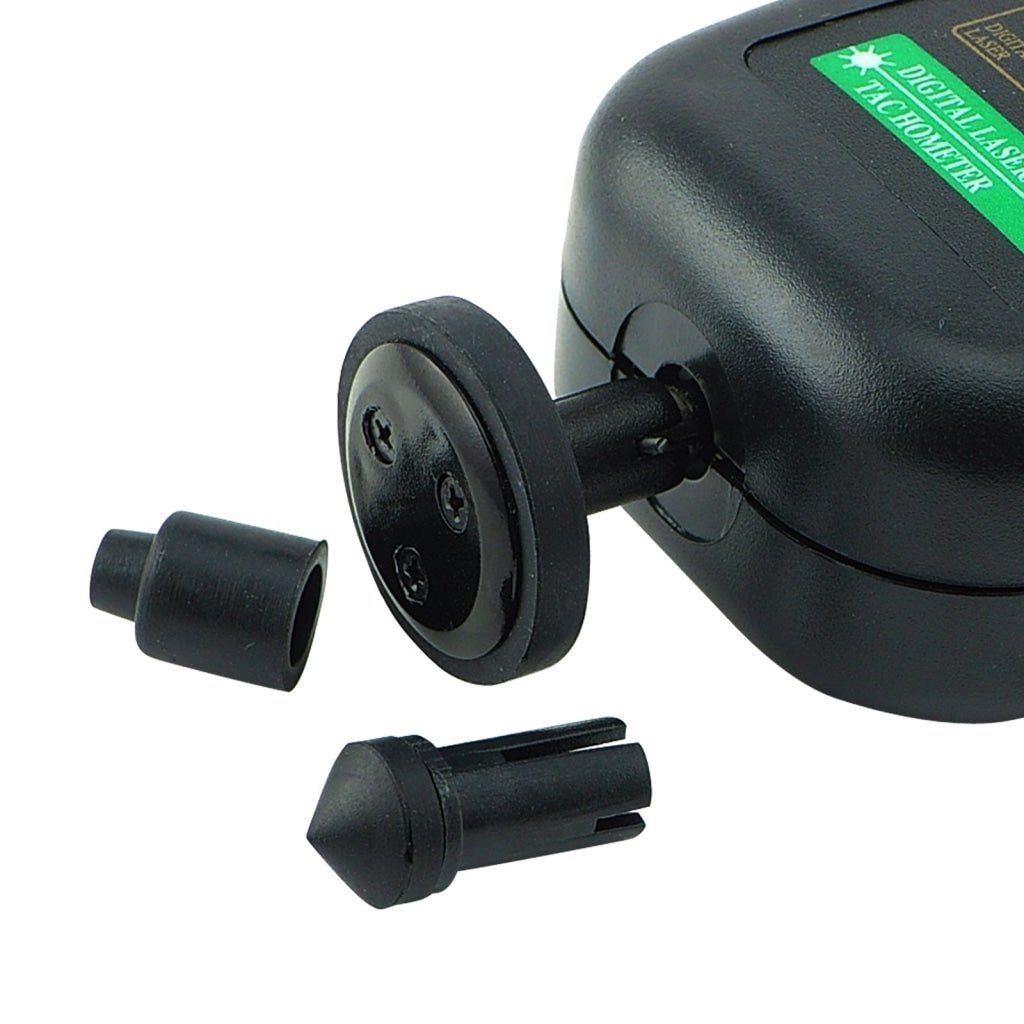

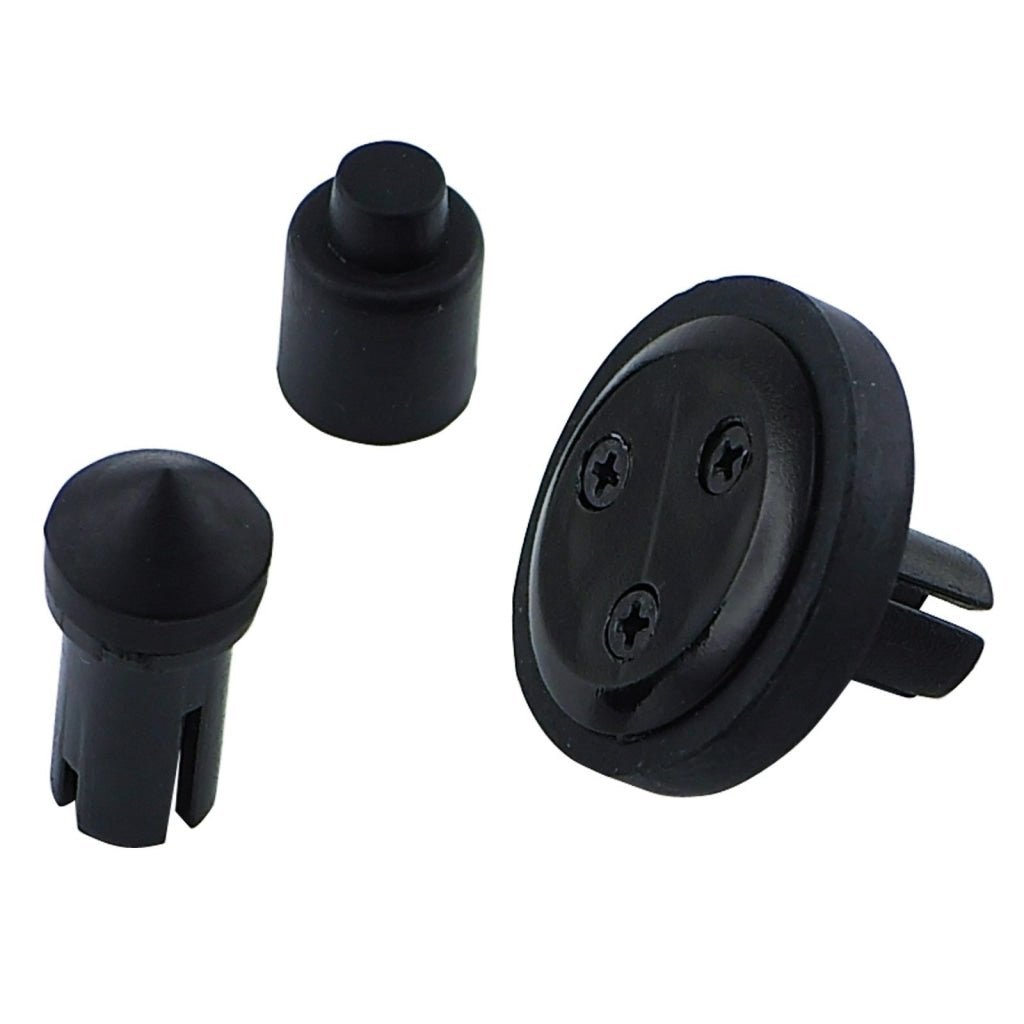

  • 1 x Surface speed wheel
  • 1 x Funnel tip
  • 1 x Cone tip
  • English Quick Start Guide
  • Black Protective Carrying Case
