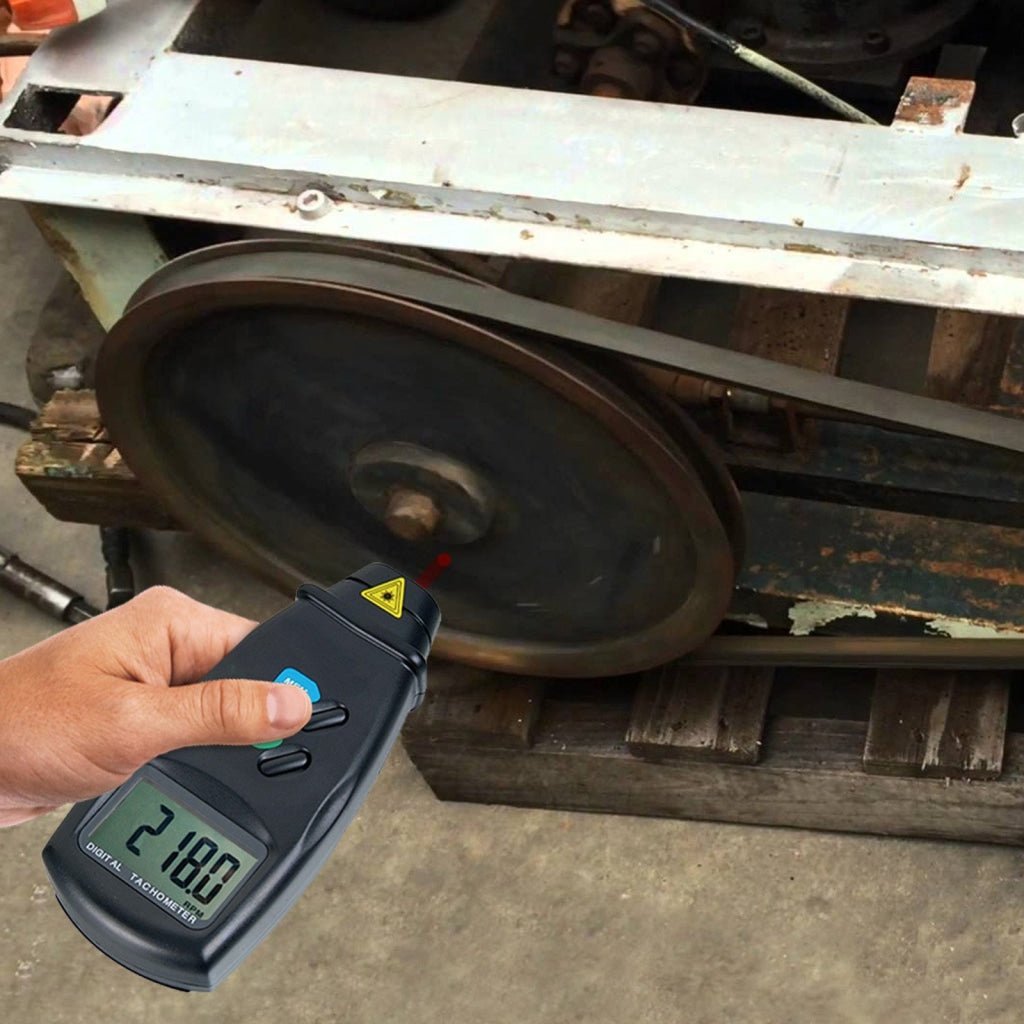

DM-6234P is a high quality electronics That tool can measure the rotational speed (RPM) icts with wide measuring range and high resolution. It is applicable for measuring: speed of rotating machinery, motors, wheels, lathe for metal or wood cutting works and others.
Applications & Uses : This speed sensing device can be used in automobiles, trucks, tractors, aircraft, trains, light rail vehicles, and automotive.
Features

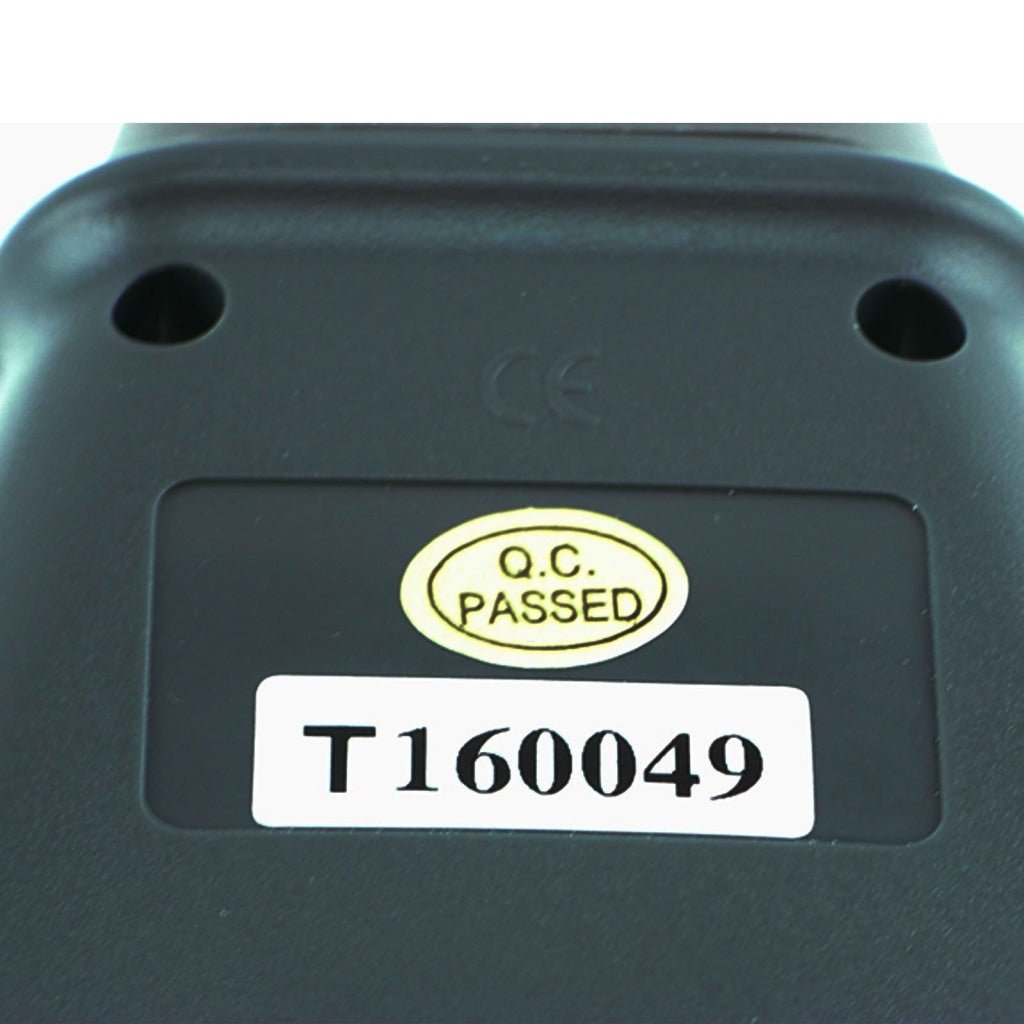

- Tested according to European international guidelines and standards (CE Marking)
- Wide measuring range, high Accuracy and Resolution

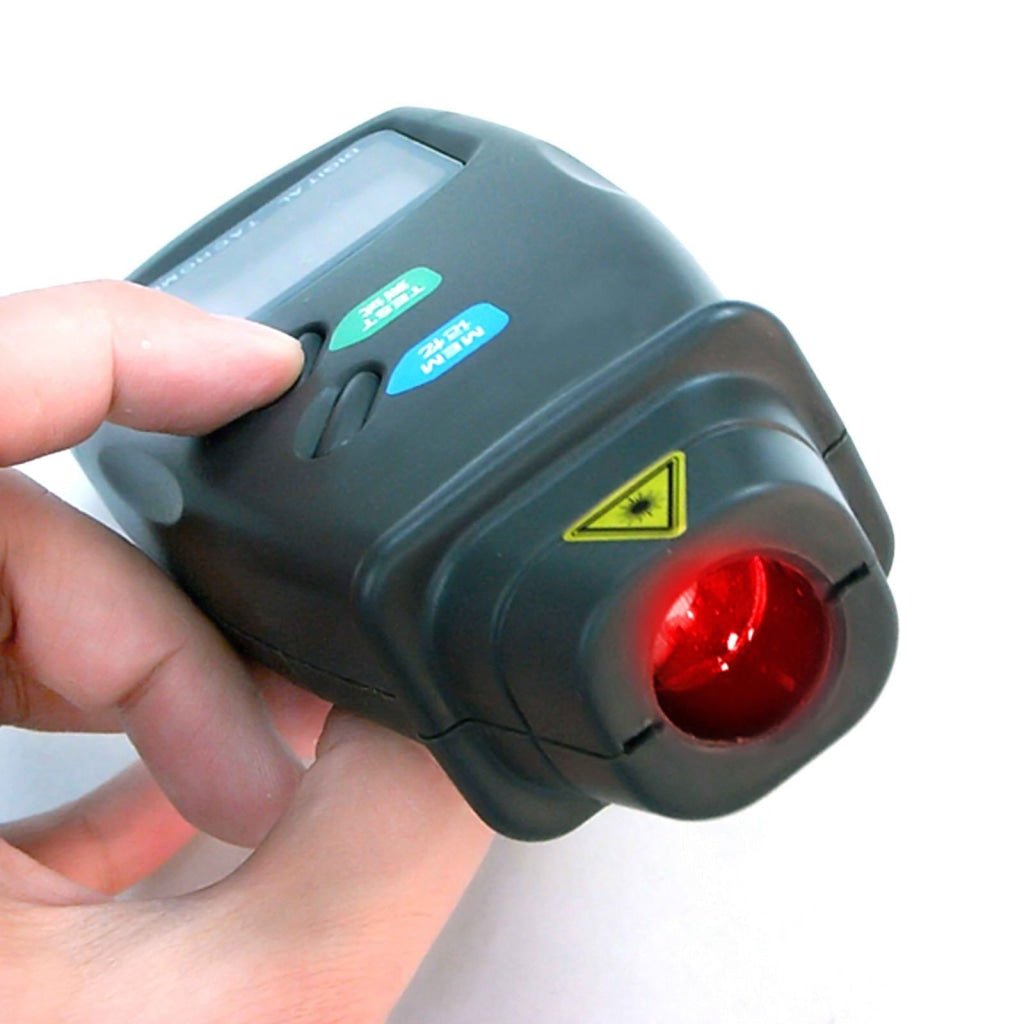

- Long detecting distance up to 500mm(20 inch) with Laser
- Large 5 digits LCD Display
- Auto test range select
- Use Microcomputer LSI circuit and crystal time base offering high accuracy and quick measurement time
- Highly accurate, displays exact RPM with no guessing errors
- With fraction of minute sampling time(0.8 sec)
- Maximum, Minimum and Last Measured value
- Wide Detecting distance
- Carefully shaped to fit comfortably in hand Either
- Low battery indication
-
Durable & Reliable
Specifications
- LCD Display: 5 digits, 18mm (0.7")LCD with Function Annunciation

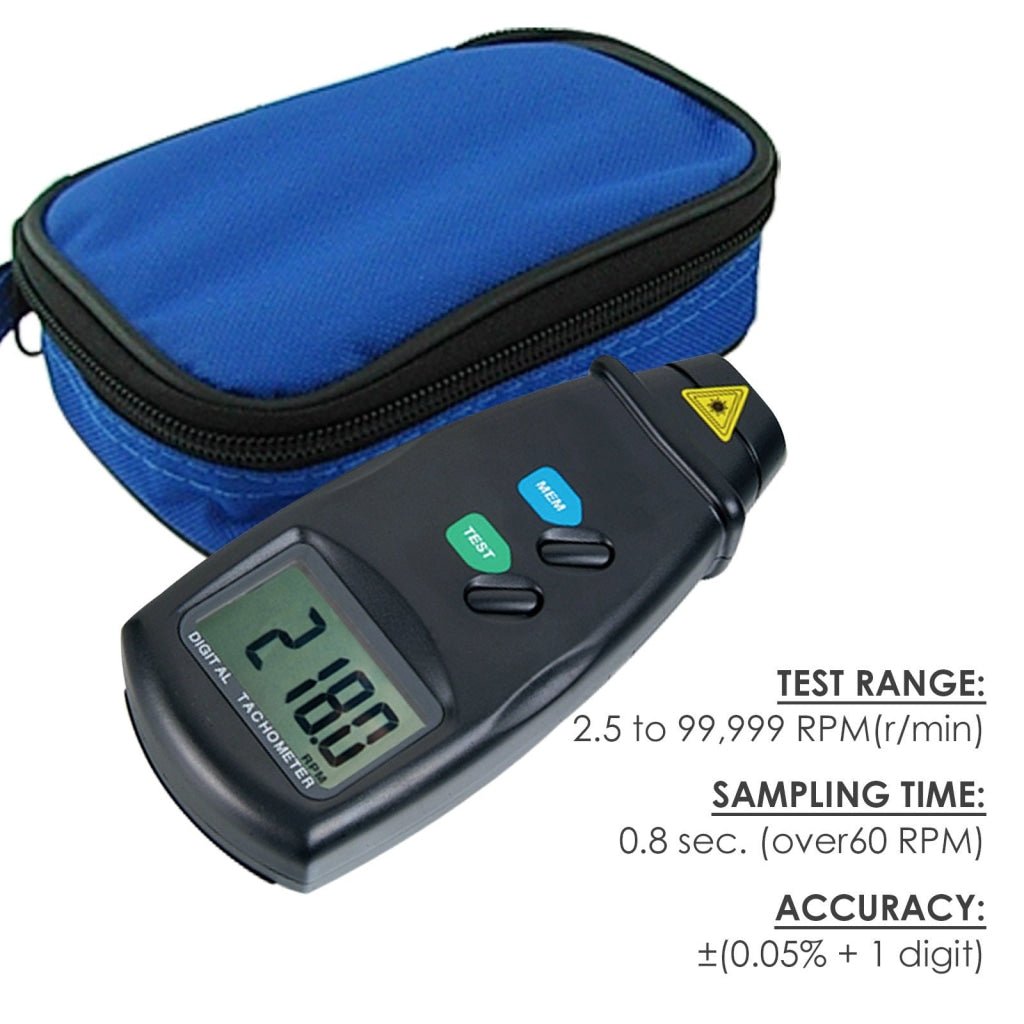

- Test Range: 2.5 to 99,999 RPM(r/min)
-
Resolution: 0.1 RPM (2.5 to 999.9RPM)
1 RPM (over 1,000 RPM) - Accuracy: ±(0.05% + 1 digit)
- Sampling Time: 0.8 sec. (over60 RPM)
- Test range selection: Automatic
- Memory : Max. value, Min. value and Last value
-
Detecting Distance:
- 50~200mm / 2~10 inches (LED)
- 50~500mm / 2~20 inches (Laser)
- Time Base : Quartz Crystal
- Circuit: Exclusive one-chip of micro computer LSI Circuit

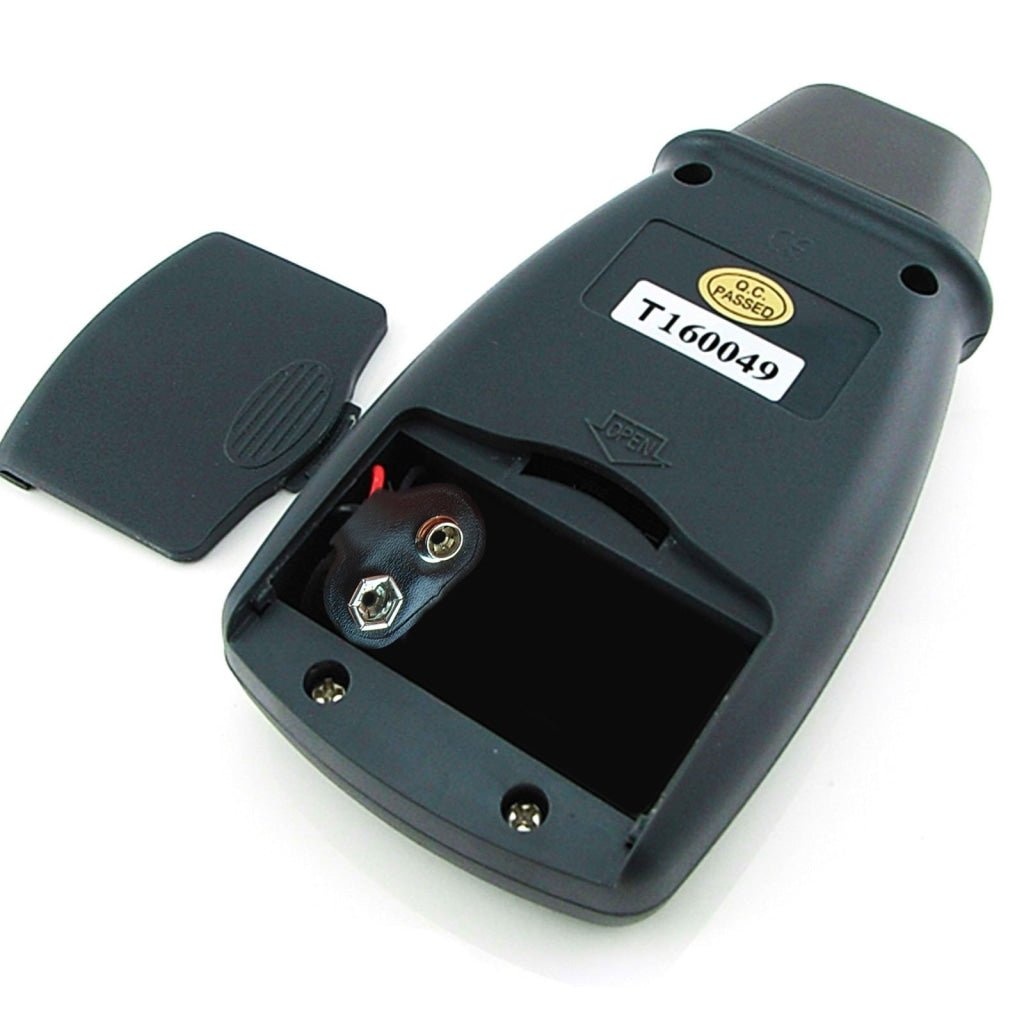

- Power Supply: 9V Battery (included)
-
Power Consumption:
- Approx. 35mA (LED)
- Approx. 30mA (LED)
- Operating Temperature: 0~50°C (32~122°F)

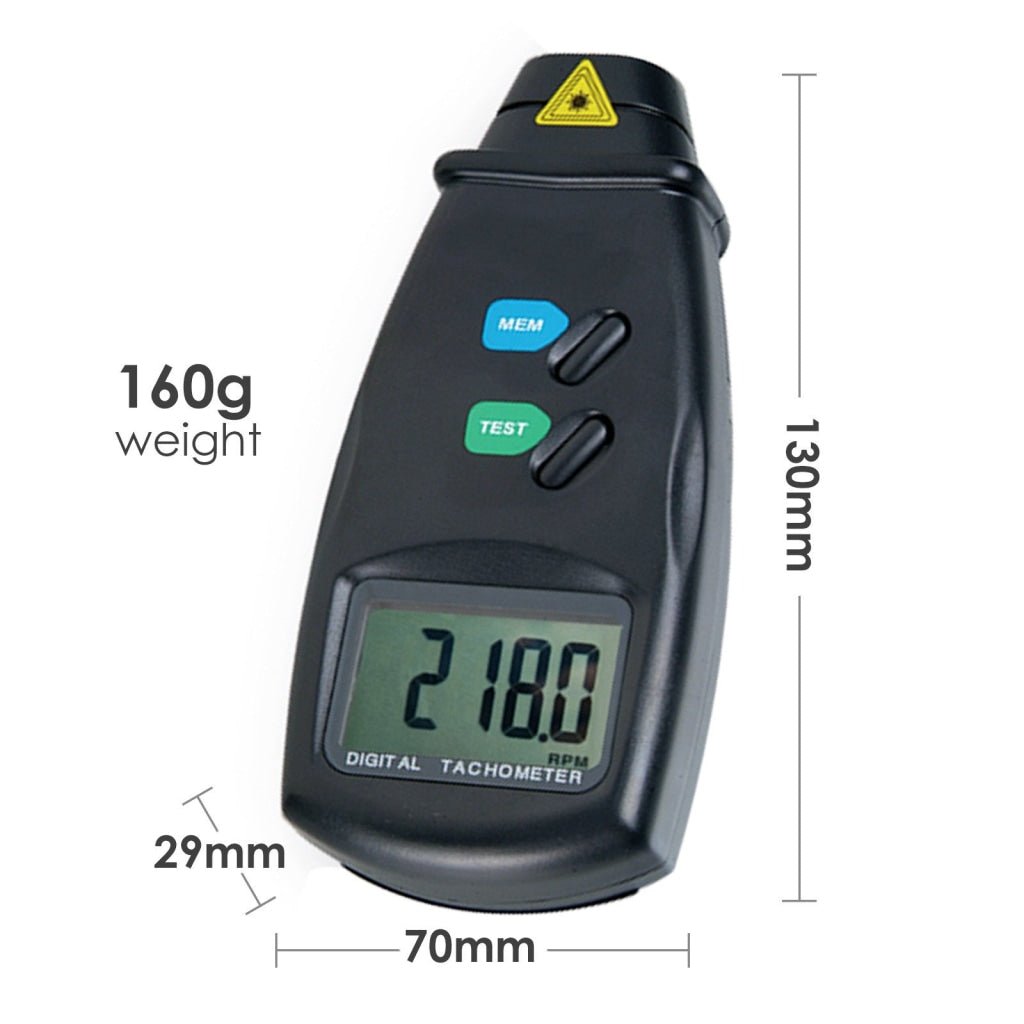

- Size: 131 x 70 x 29 mm
-
Weight: 160g (including batteries)

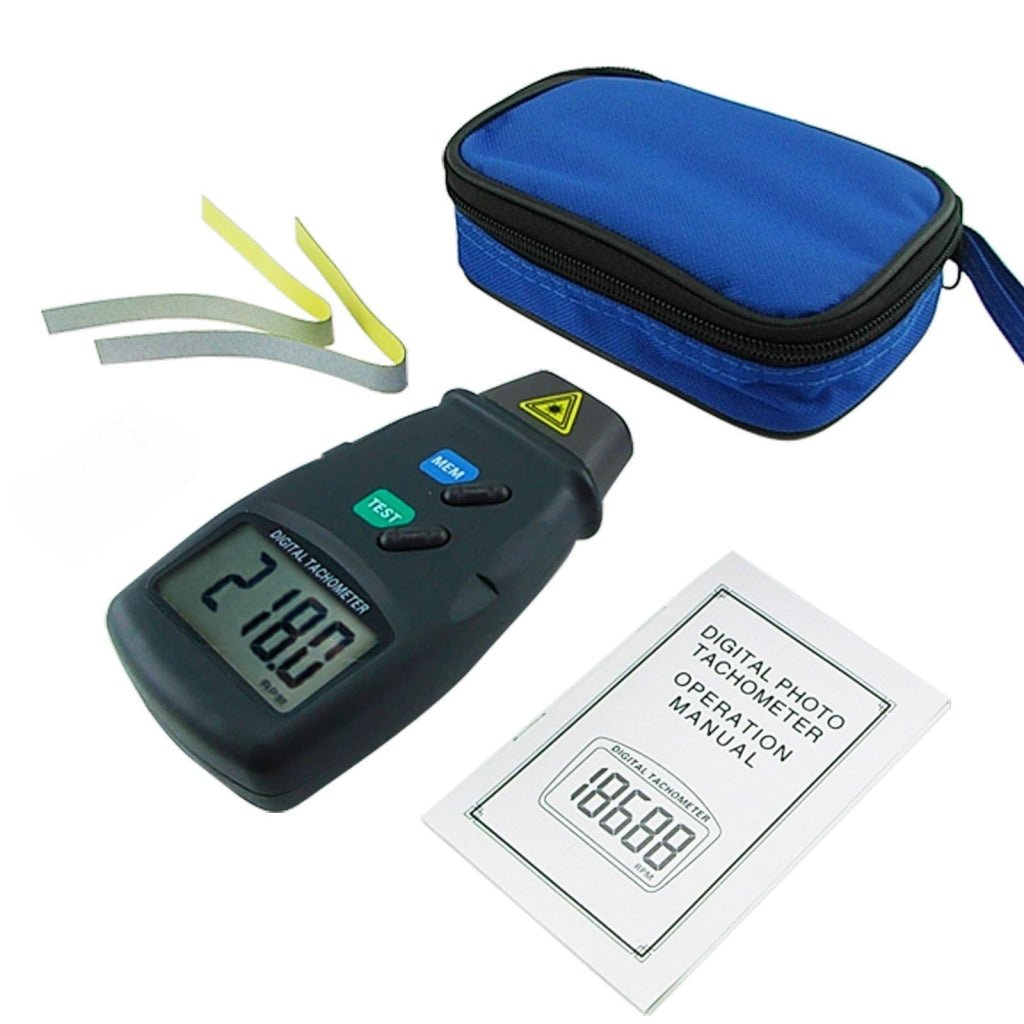

Set Includes
- 1 x Digital Tachometer
- 2 x 600mm Reflective Tape Mark
- 1 x 9V Battery
- 1 x Protective Carrying Case
- English Quick Start Guide
- Standard Factory Package
