CM-8826FN Digital Paint Coating Thickness Meter Gauge with F & NF Probes CE Marking Automotive Tester


Quantity
  OR


Model : CM-8826FN

A coating thickness meter that conquers the difficulties of non-destructive measuring of coating thickness on both magnetic and non-magnetic base that can be used on many applications even on applications that require greater precision. It is the most advanced and top quality rugged meter that uses magnetic induction and eddy current principle to measure thickness of magnetic coating on non-magnetic base. Lightweight and equipped with F & NF probes it carries out high-speed and accurate results on either single or continuous measuring mode and covering a wide range of
0~1250um or 0~50milThe F & NF probes cable is long enough to measure the thickness of the coating of hard-to-reach areas.



Features:

  • Capable to measure magnetic & nonmagnetic materials in high resolution and wide measuring range of 0~1250umor 0~50mil
  • Has CE marking, conforms with the essential health and safety requirements set out by the European Directives
  • Conforms and passed the standards of international standards including ASTM,DIN,BS and ISO-2178 as well as ISO-2360
  • With automatic substrate recognition
  • Provides single & continuous measurement mode
  • With manual and automatic shut down
  • With Zero Calibration for both F & NF probes
  • Lightweight and provides single-handed menu navigation


Specification:

  • Operating principle: magnetic induction/eddy current (F/NF)
  • Display: 4 digits, 10mm LCD
  • Measuring Range: 0-1250um/0-50mil
  • Resolution: 0.1um (0~99.9um), 1um (over 100um)
  • Accuracy: ±1-3%n or ±2.5um or 0.1mil(which ever is greater)
  • Power supply: 4 x 1.5V AAA (UM-4) battery
  • Operating Conditions: 0~50°C (32°F-104°F) Temperature, <80% Humidity
  • With 2 separate probe(s)
  • Automatic substrate recognition without guessing / choosing the probes
  • Dimensions: 126 x 65 x 27mm
  • Weight: 81g (not including battery)

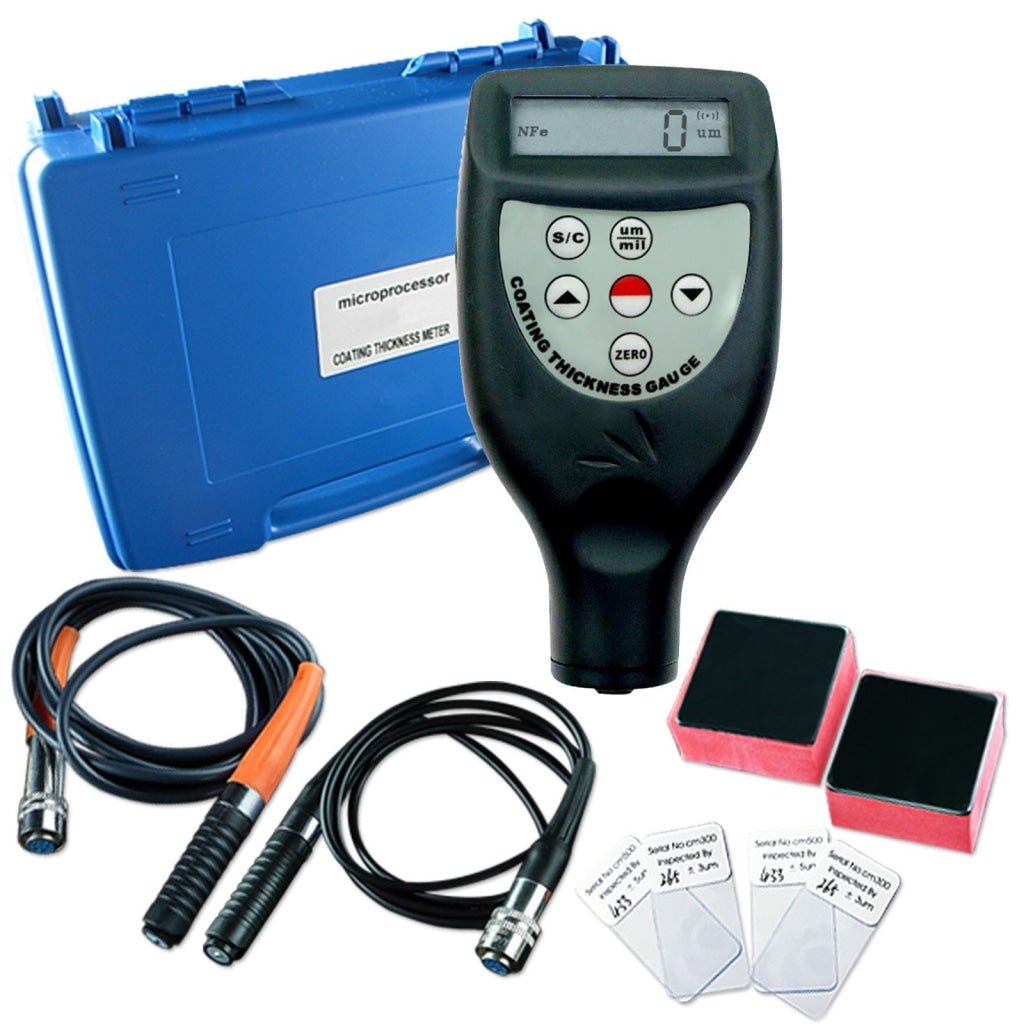

Set Includes:

  • 1 x Paint Coating Thickness Meter
  • 4 Calibration foils
  • 1 x F Probe
  • 1 x NF Probe
  • 1 x Aluminum & Iron substrates
  • 1 x English Operations Manual
  • 1 x Protective Carrying Case with Shock absorbent contoured rubber inside
