CM-8822 Digital Coating Thickness Meter 0~1000um/0~40mil + F & FN Probes Automotive Tool Iron Aluminum Substrate

  • 0% OFF
  • Regular Price


Add to Wishlist

Check shipping / delivery time for your country | Free Shipping Worldwide Request for Quotation

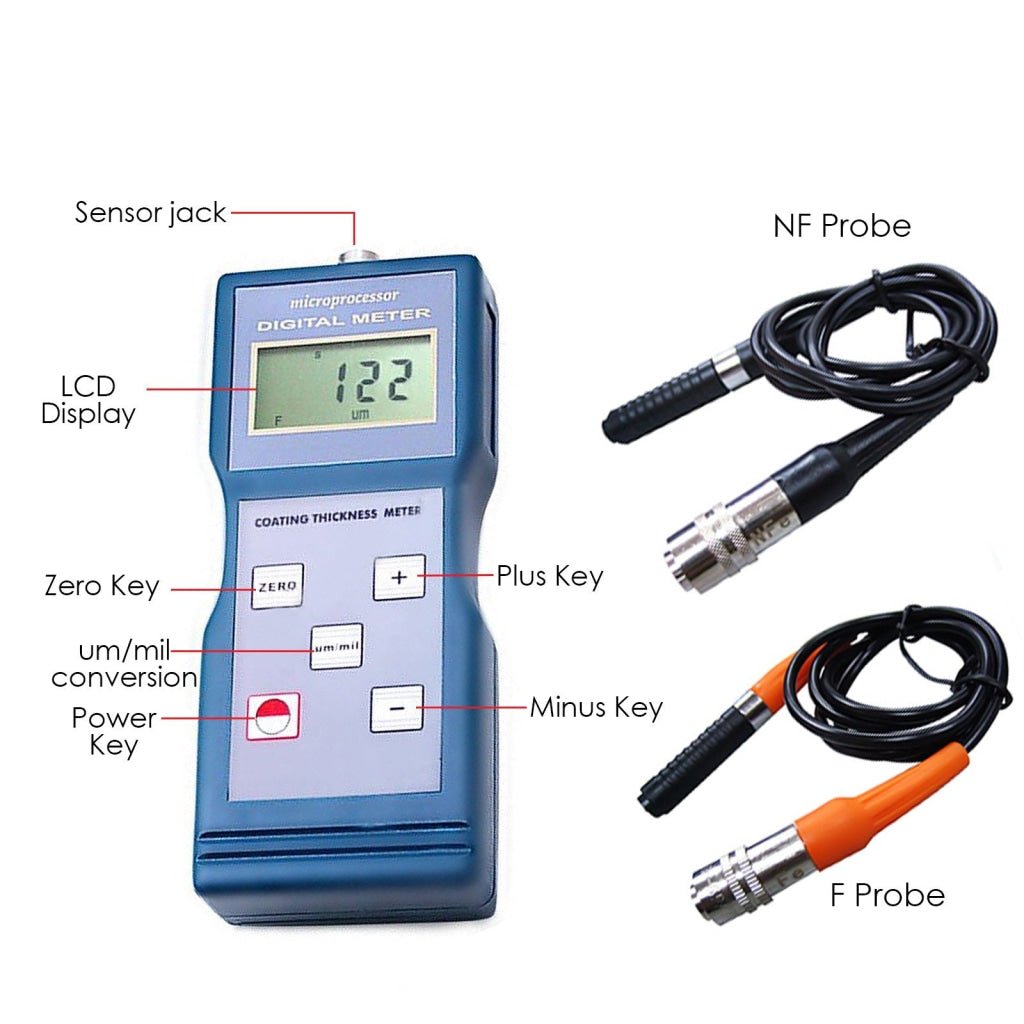

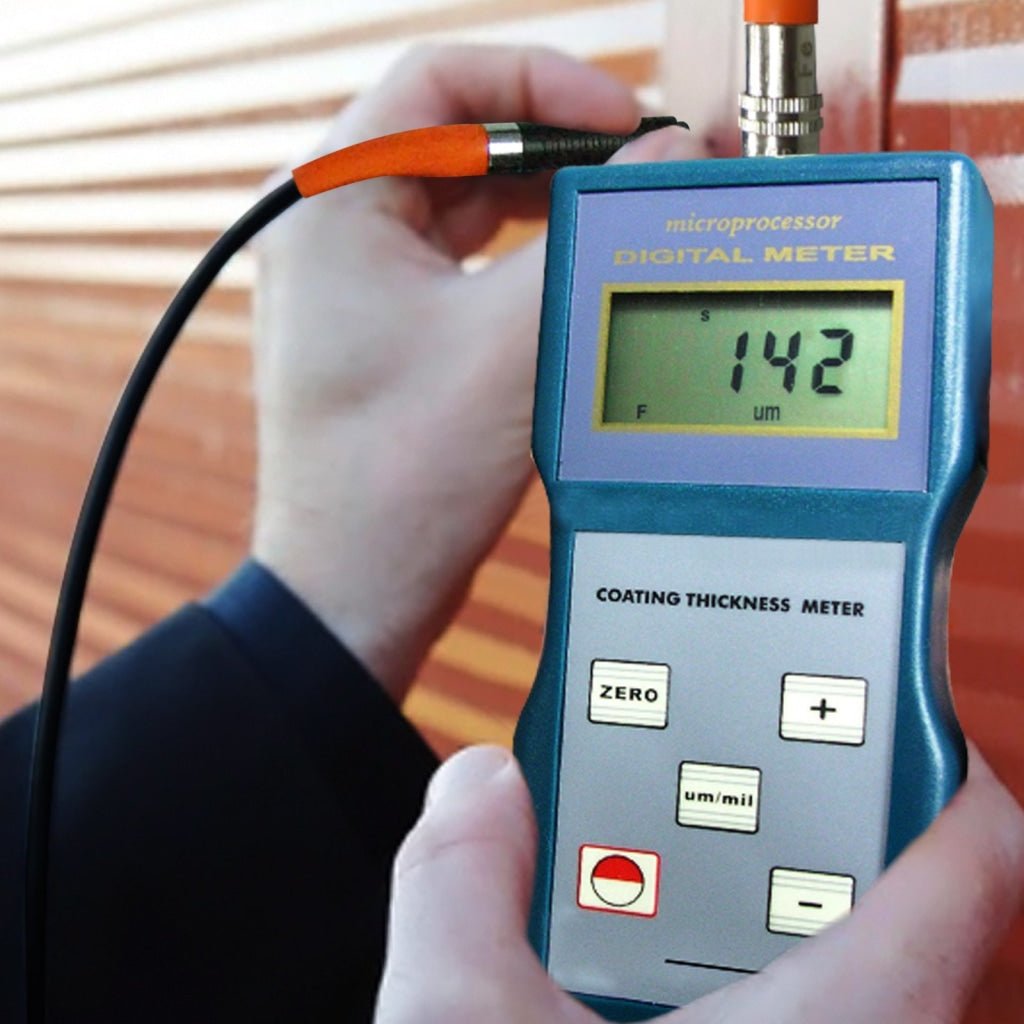

The new Coating Thickness Meter for automotive and painting applications that require greater precision. A top quality meter that uses magnetic induction and eddy current principle to measure thickness of magnetic and non-magnetic surface and detect the thickness of nonmagnetic coating on a magnetic substrate (ferrous) or an insulating coating on a non-magnetic conductive substrate (non-ferrous). Equipped with NF (NFe) probe used in procedure turbulence current test and F (Fe) that uses magnet inductive. It carries out high-speed and accurate results and covering a range of 0~1000um or 0~40mil.

It's usage of Microcomputer LSI circuit advanced microprocessor technology and crystal time base guarantees that measurement has highest level of accuracy with fast measuring & response time.


  • The F probes measure the thickness of non-magnetic materials such as paintplastic porcelain enamelcopperzincaluminumchrome, etc. on magnetic materials such as ironnickel and etc. It is often used to measure the thickness of galvanizing layer, lacquer layer, porcelain enamel layer, phosphide layer, copper tile, aluminum tile, some alloy tile, and paper, etc.
  • The NF probes measure the thickness of non-magnetic coatings on non-magnetic metals. It is used on anodizingvarnishpaintenamelplastic coatingspowder applied to aluminumbrass and non-magnetic stainless steel, etc.
  • Used the exclusive Micro-computer LSI circuit and crystal time base to offer high accuracy measurement & fast measuring time.
  • Wide measuring range and high resolution.
  • Digital display gives exact reading with no guessing errors.
  • Shaped to fit comfortably for right or left-handed person.

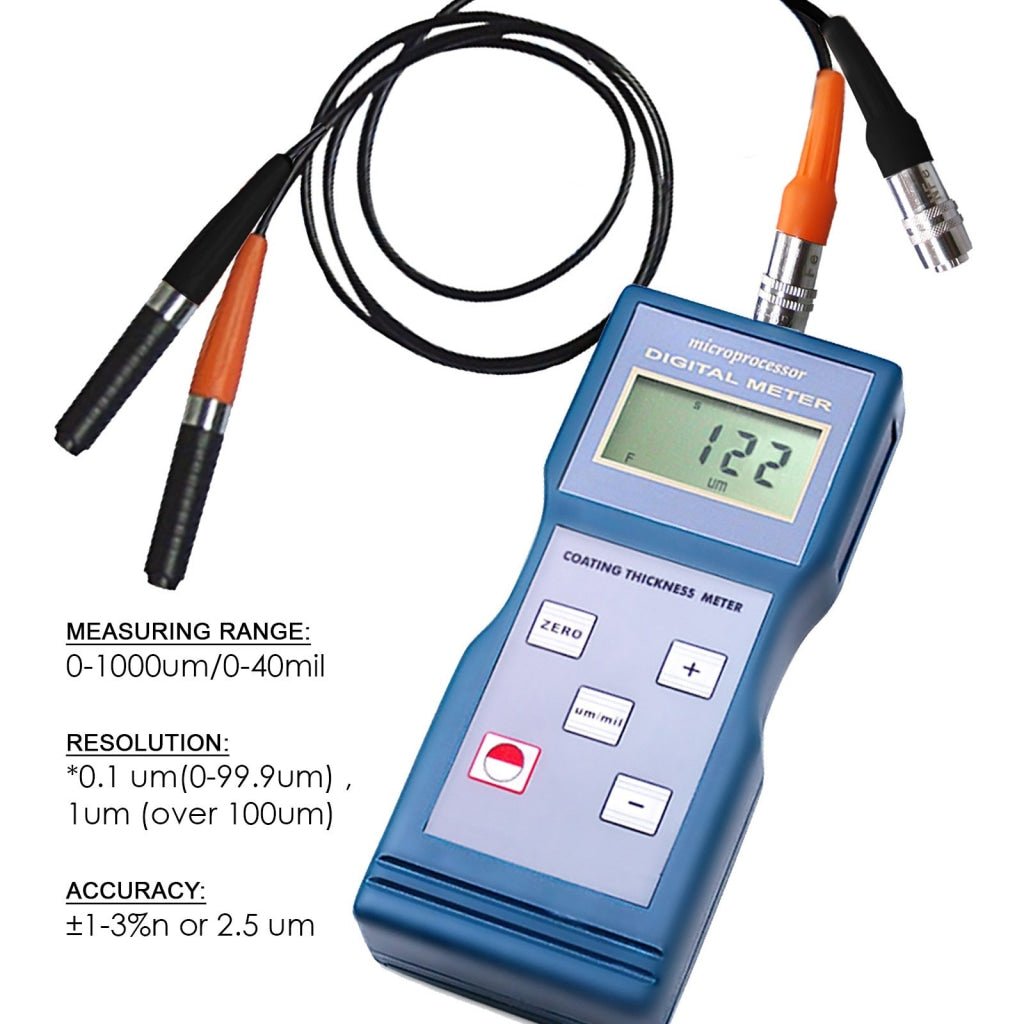

  • Measuring range:0~1000um/0~40mil
  • Operating Principle: magnetic induction & eddy current (F & NF)
  • Resolution:*0.1 um(0~99.9um) , 1um (over 100um)
  • Accuracy: ±1~3%n or 2.5 um (Whichever is the greater)
  • Battery indicator: low battery indicator
  • With Metric/Imperial readings, mils, and microns
  • Automatic or Manual shut down (power off)
  • Display: 4 digits, 10mm LCD
  • Power supply: 4 x 1.5V AA battery (UM3) (not included)
  • Operating conditions: 0-50°C Temperature, <80%RH Humidity

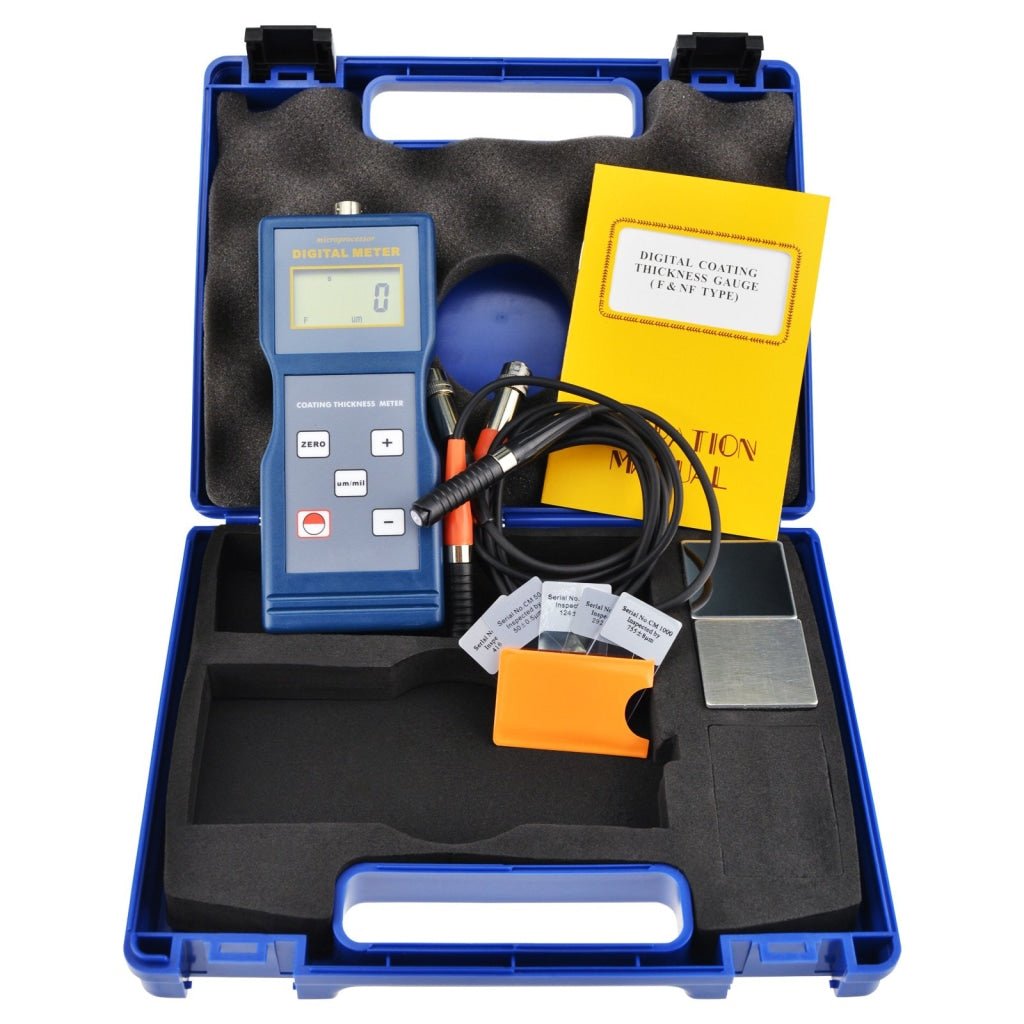

Set Includes:

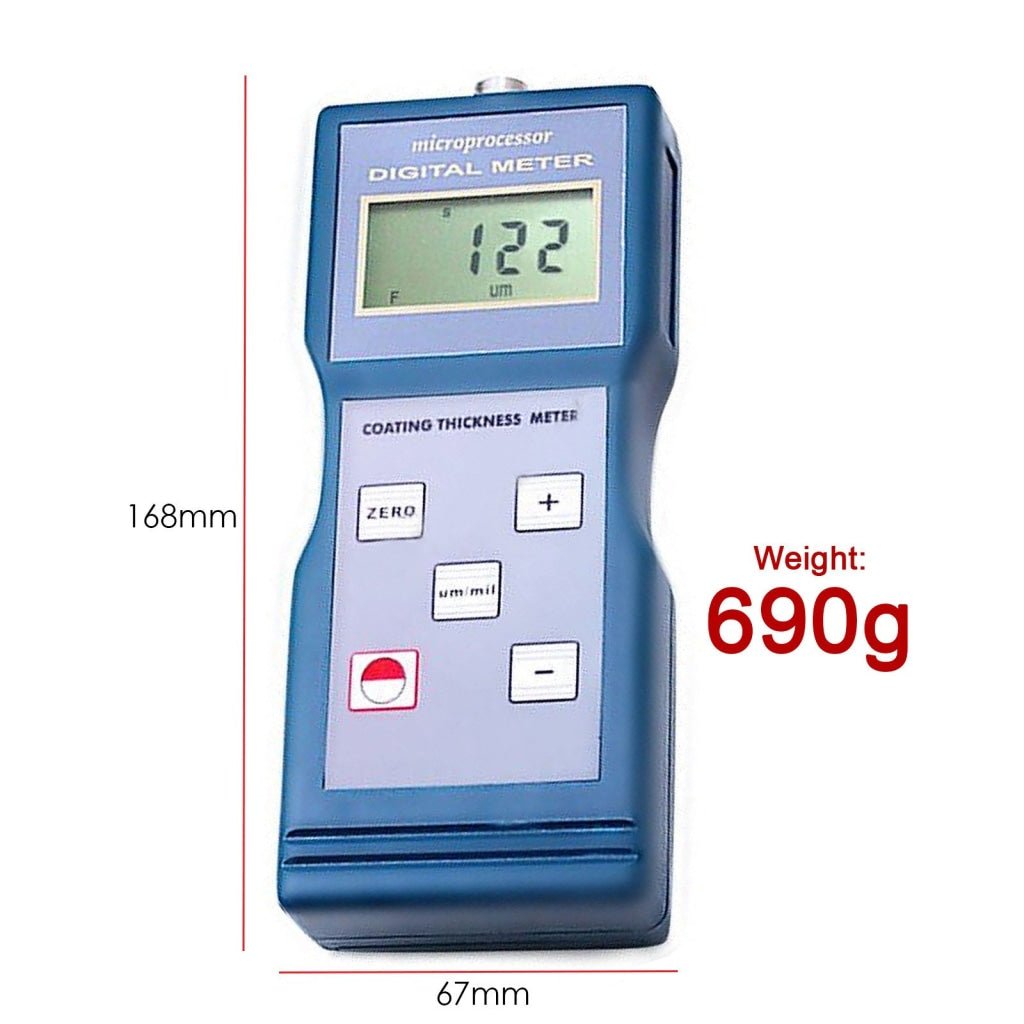

  • 1 x Coating Thickness Gauge (main unit)

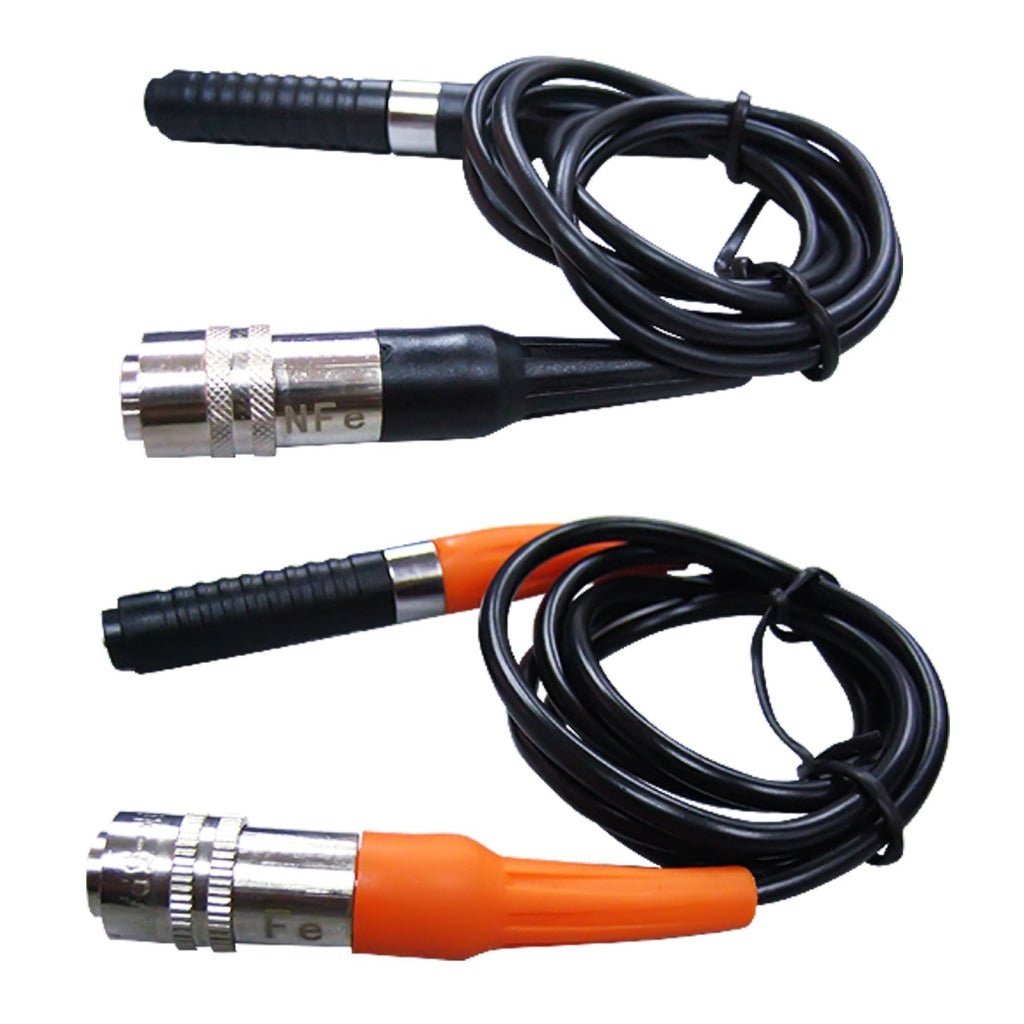

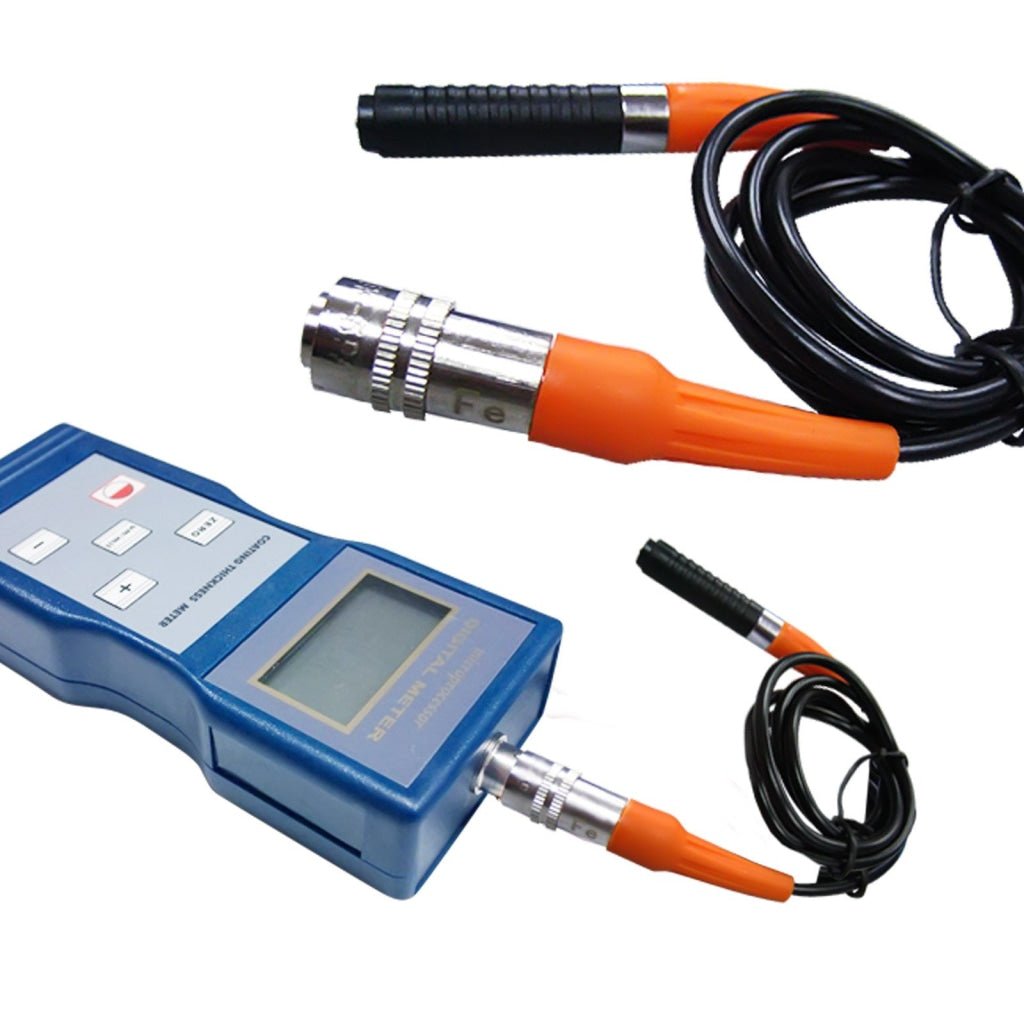

  • 1 x F Probe

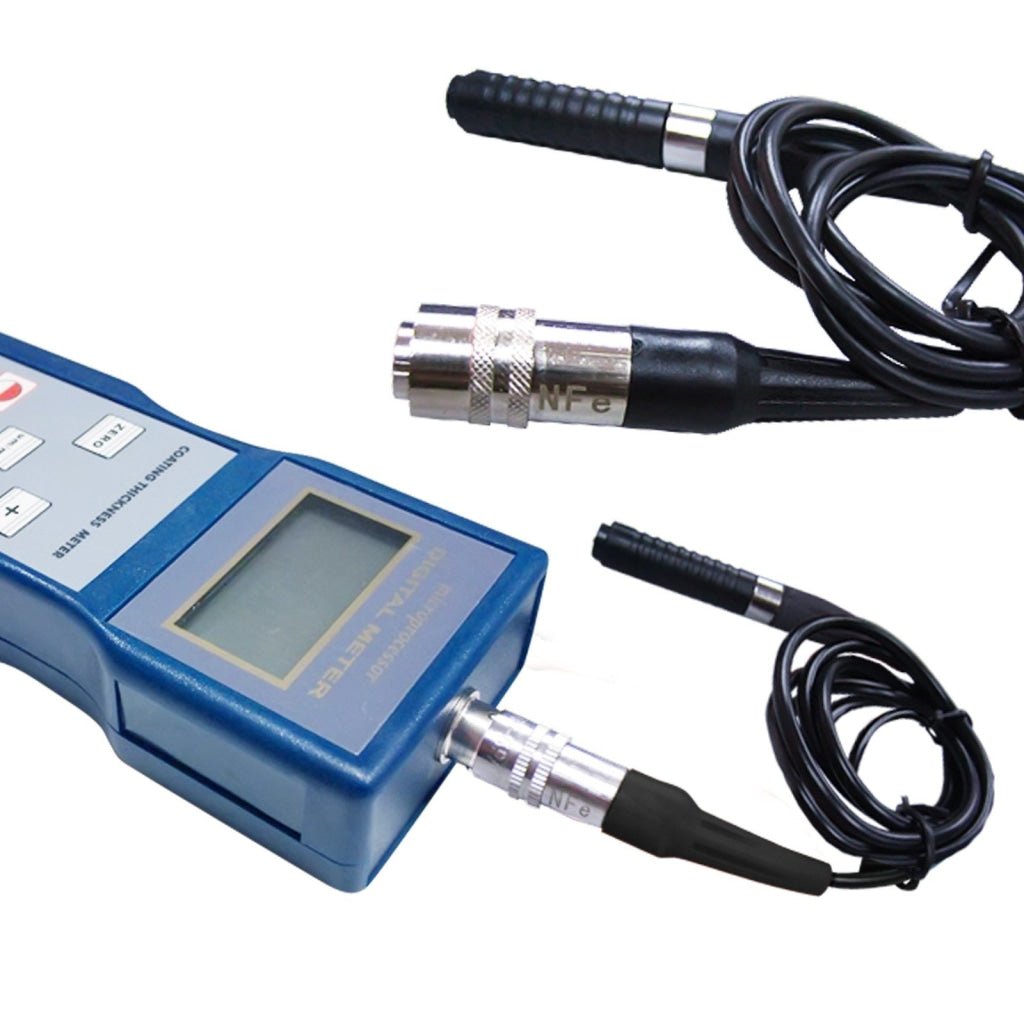

  • 1 x NF Probe

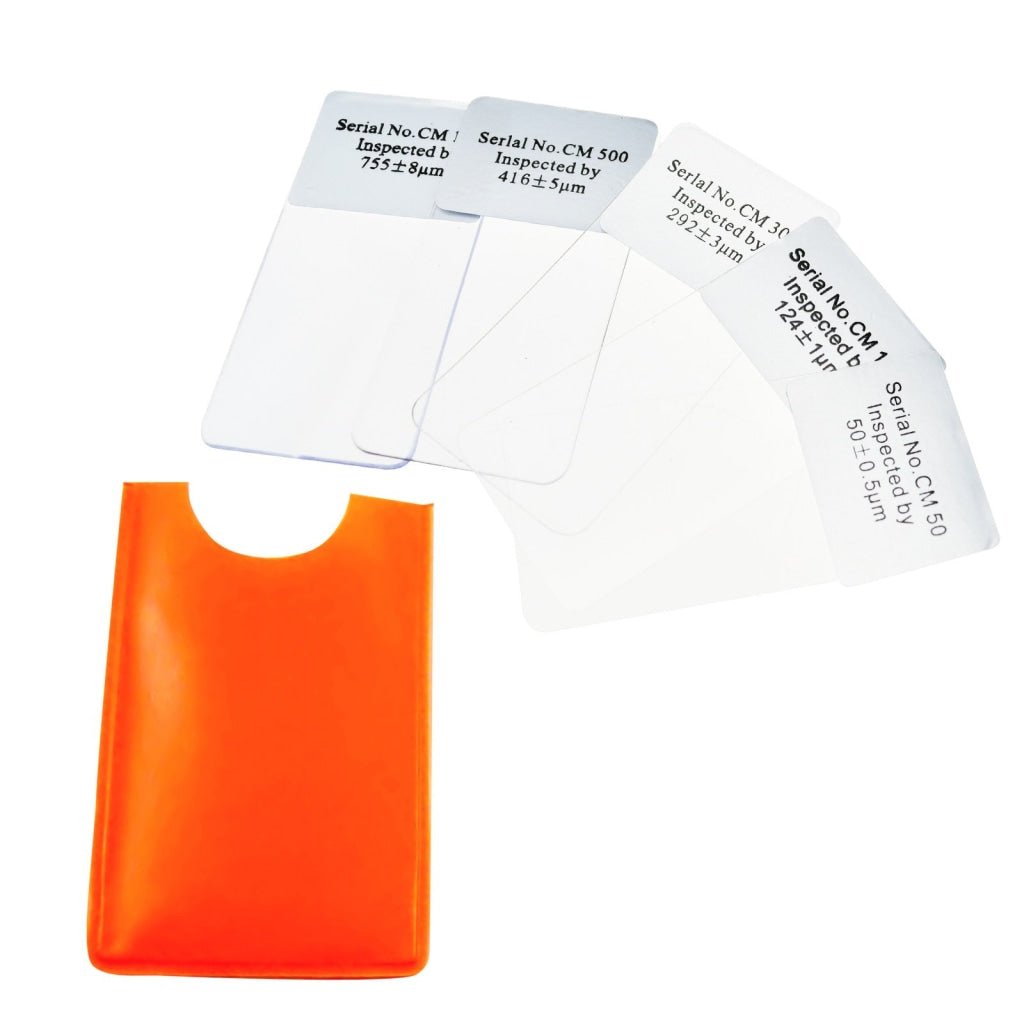

  • Calibration Foils

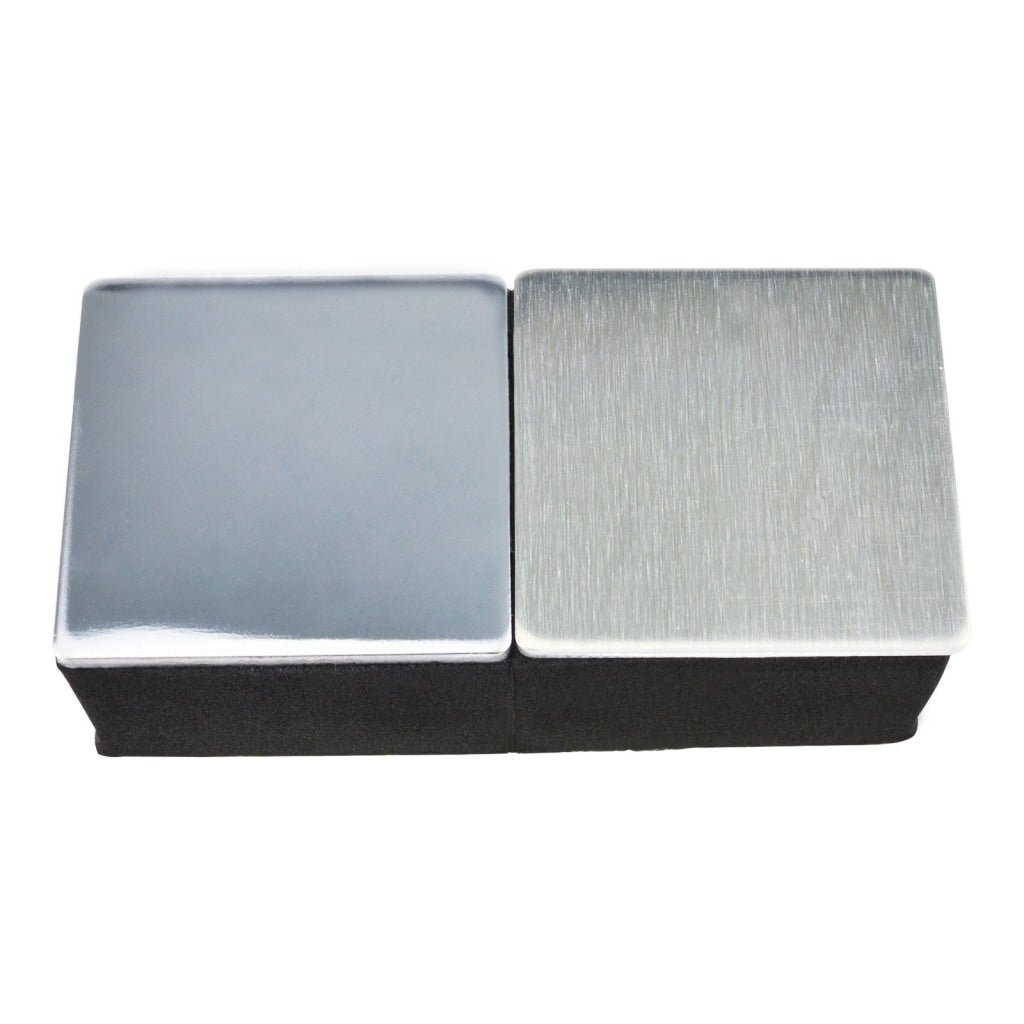

  • Iron Substrate
  • Aluminum Substrate
  • 1 x English User's Manual
  • Carrying Case with maximum shock-absorbent rubber
