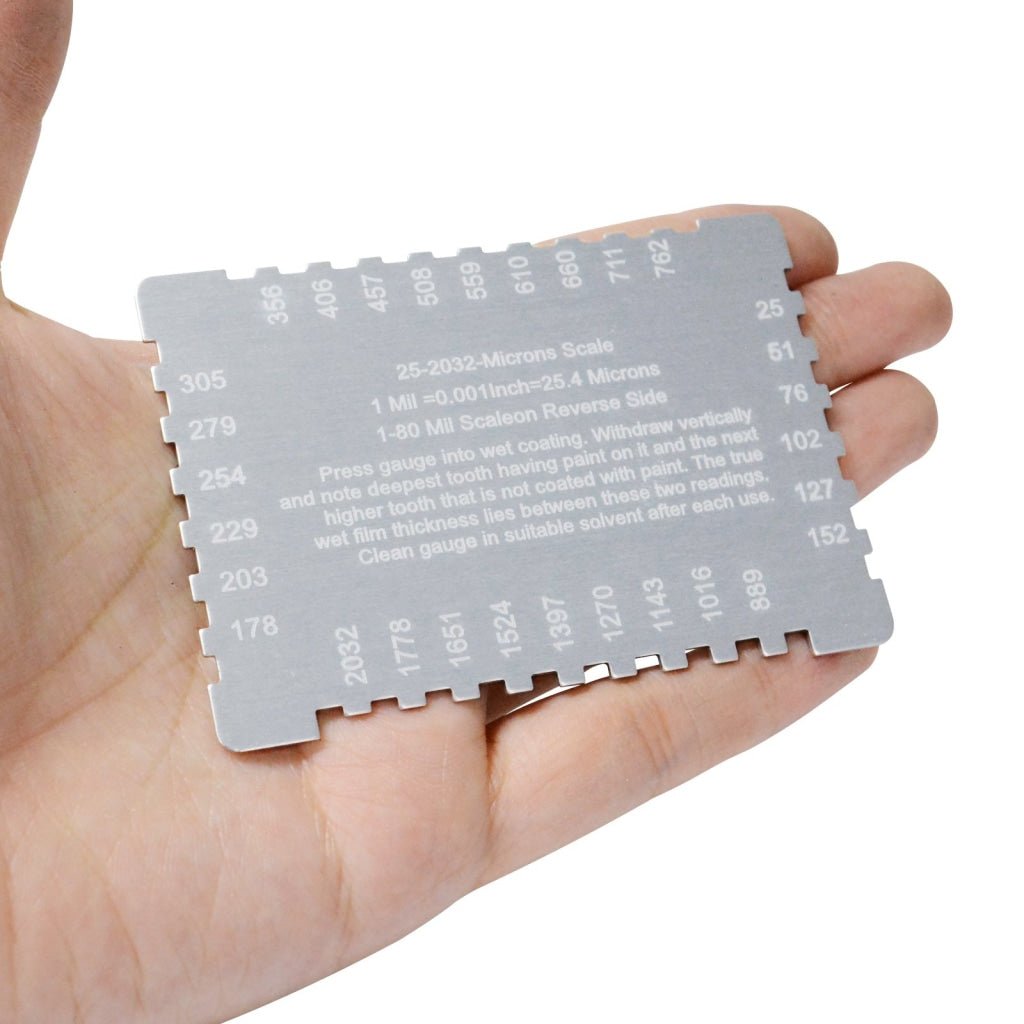

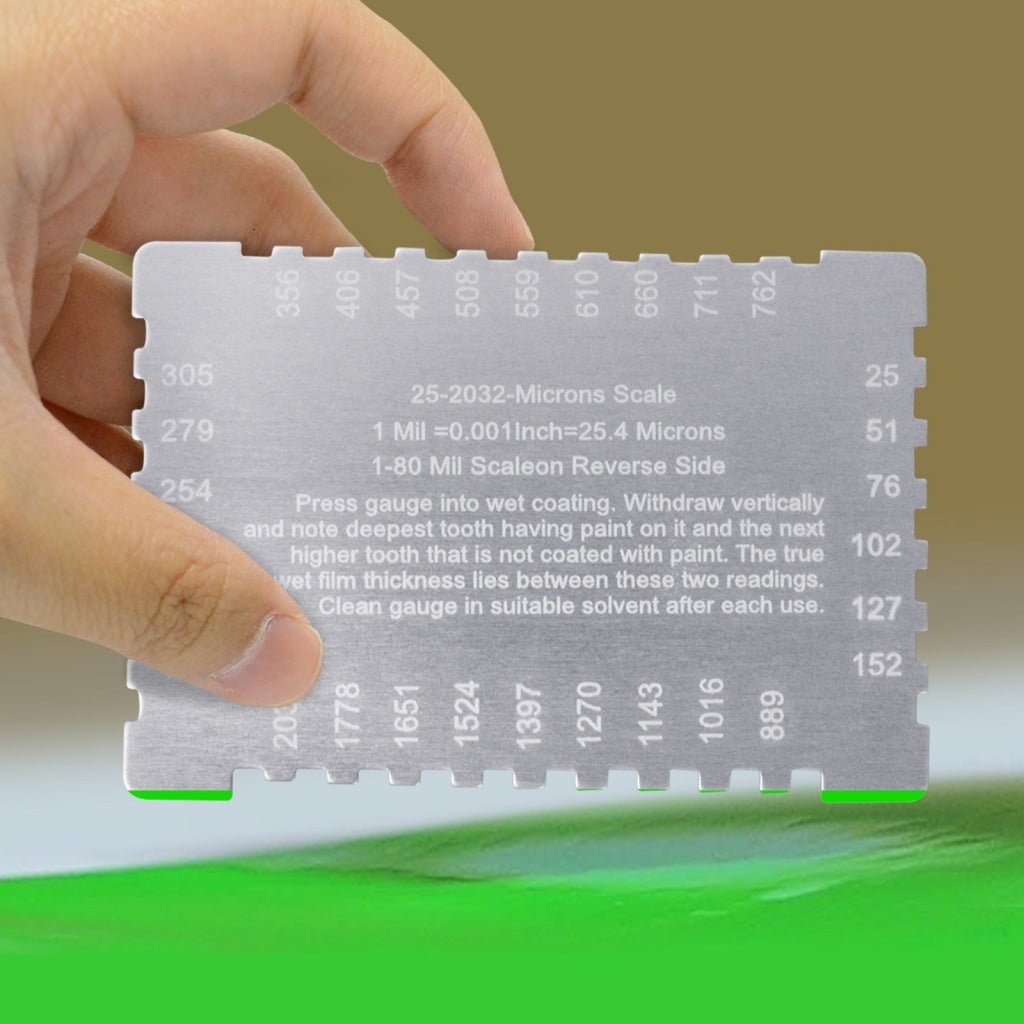

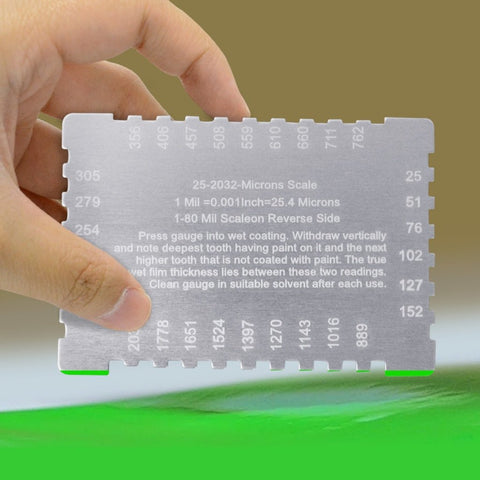

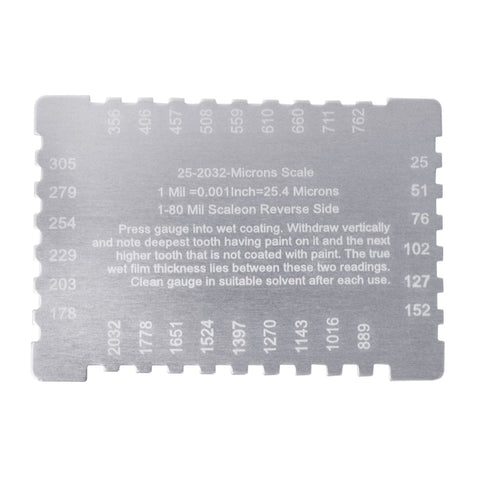

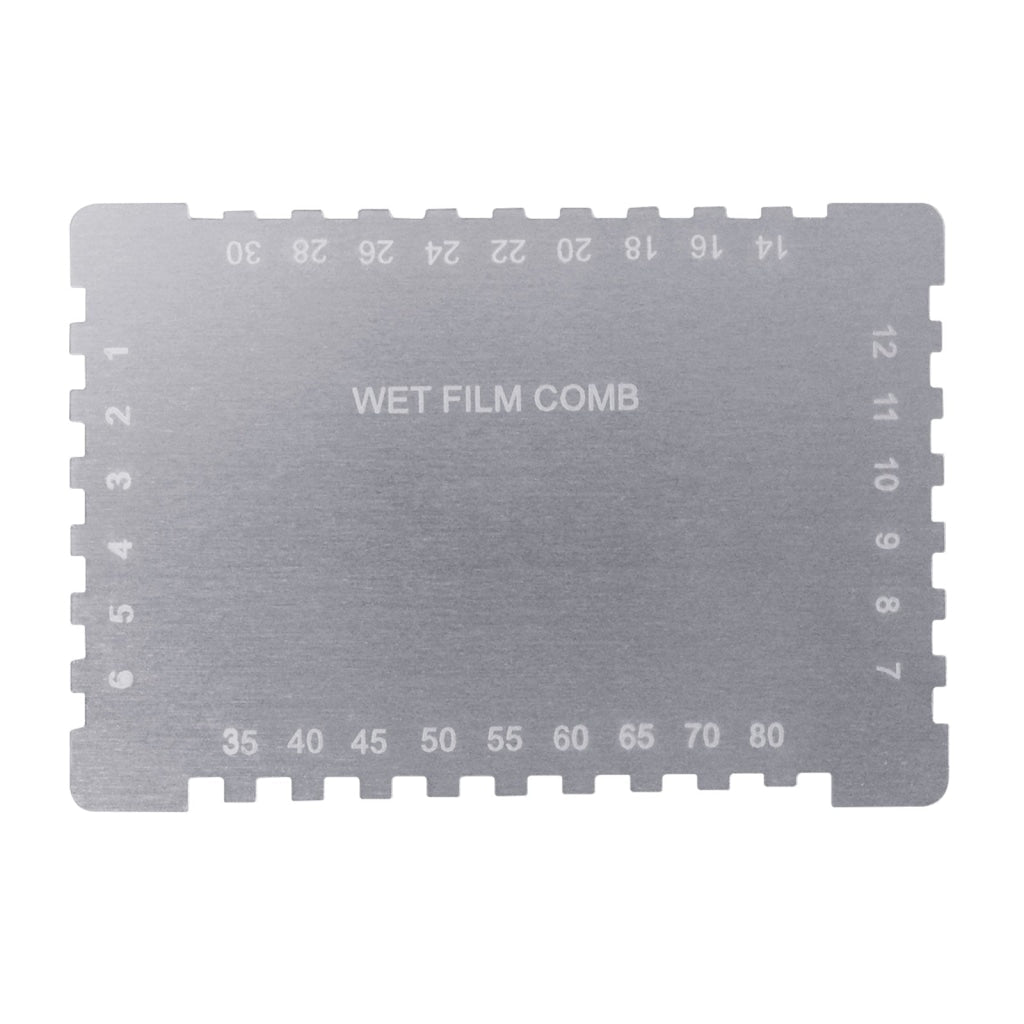

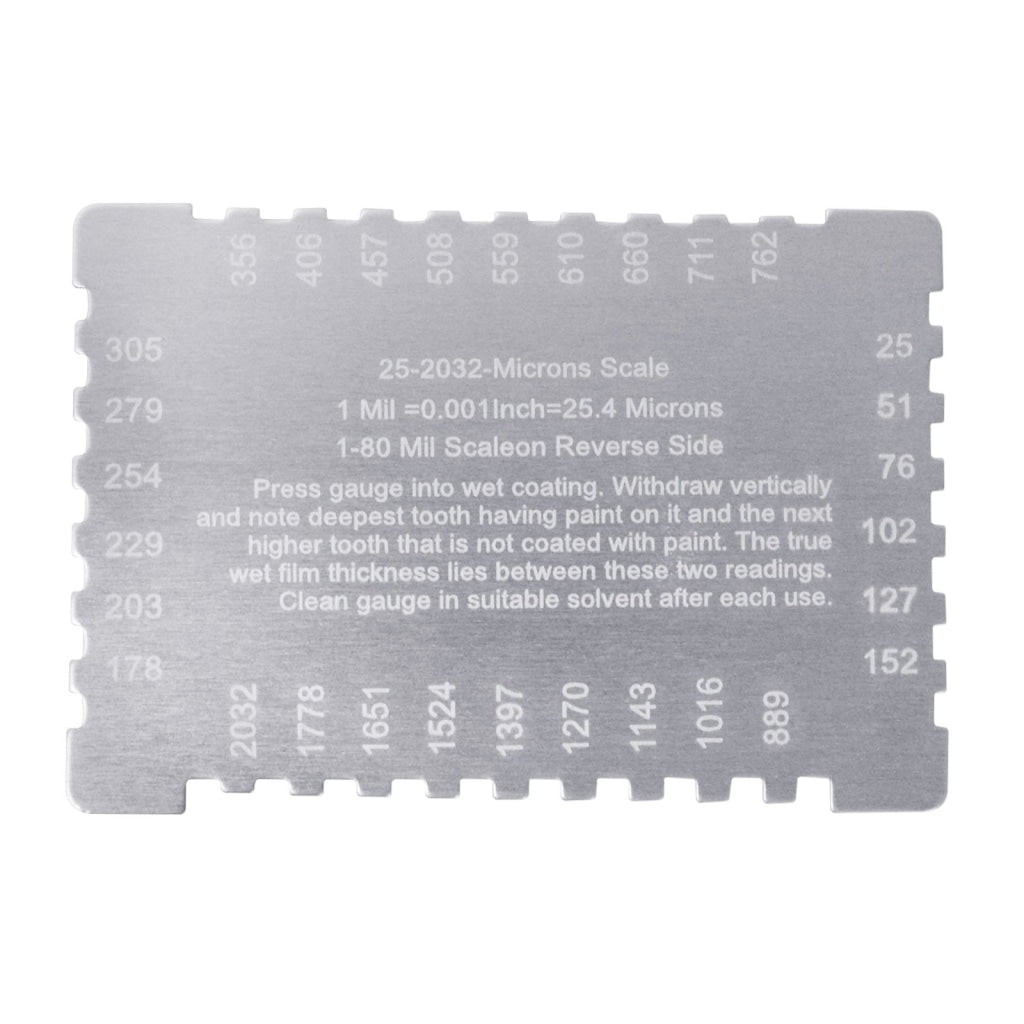

CM-2000 Wet Film Combs 25~2032µm Microns Micrometer / 1~80 Mil Dual Scale, Wet Paint Coating Thickness Step Notched Gauge, Rectangular Style

  • 0% OFF
  • Regular Price

    $21.90



Add to Wishlist


Check shipping / delivery time for your country | Free Shipping Worldwide Request for Quotation

Used for checking the coating thickness of wet paint, enamel lacquer, adhensive, architectural coating, color coating, varnish, chemical industry, or other coatings that have been applied to a smooth surface.

  • Standards: GB/T1764-79 GB/T134522-92 ISO2808-74
  • Measuring Range: 25~2032µm (1~80mil)
  • Values:
    • 25, 51, 75, 102, 127, 152, 178, 203, 229, 254, 279, 305, 356, 406, 457, 508, 559, 610, 660, 711, 762, 889, 1016, 1143, 1270, 1397, 1524, 1651, 1778, 2032µm
    • 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 14, 16, 18, 20, 22, 24, 26, 28, 30, 35, 40, 45, 50, 55, 60, 65, 70, 80mil


Measuring Procedure:

  1. Select appropriate comb according to approximate known thickness.
  2. Hold comb perpendicular to surface coating to be measured.
  3. Press into coating until the comb stands square on substrate.
  4. Wet film thickness is between the highest step which is coated and the next (higher) step which remains uncoated.
  5. Wipe & clean the combs after use.

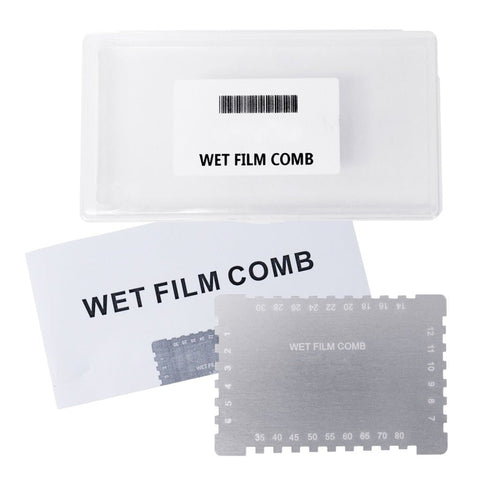

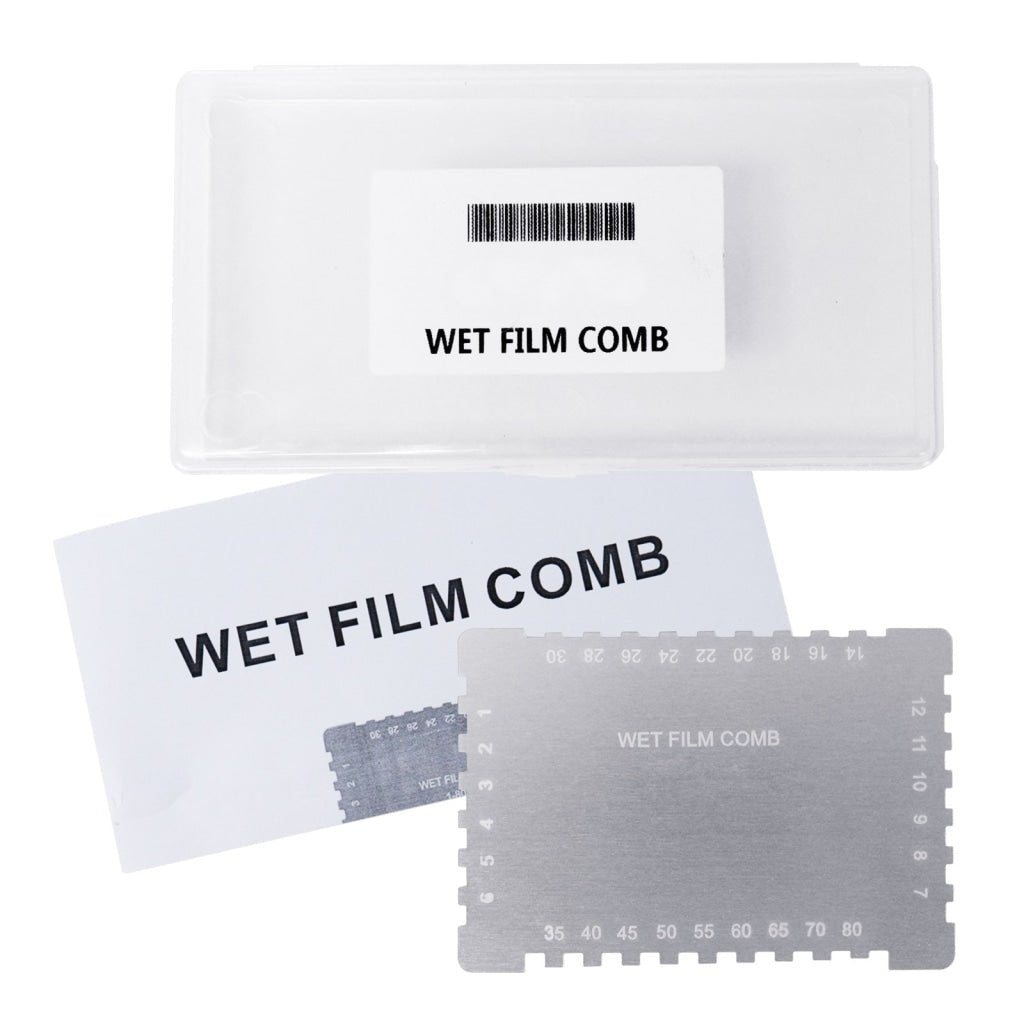

Set Includes:

  • 1 x Wet Film Combs
  • 1 x English Instruction Manual
  • Standard packaging
