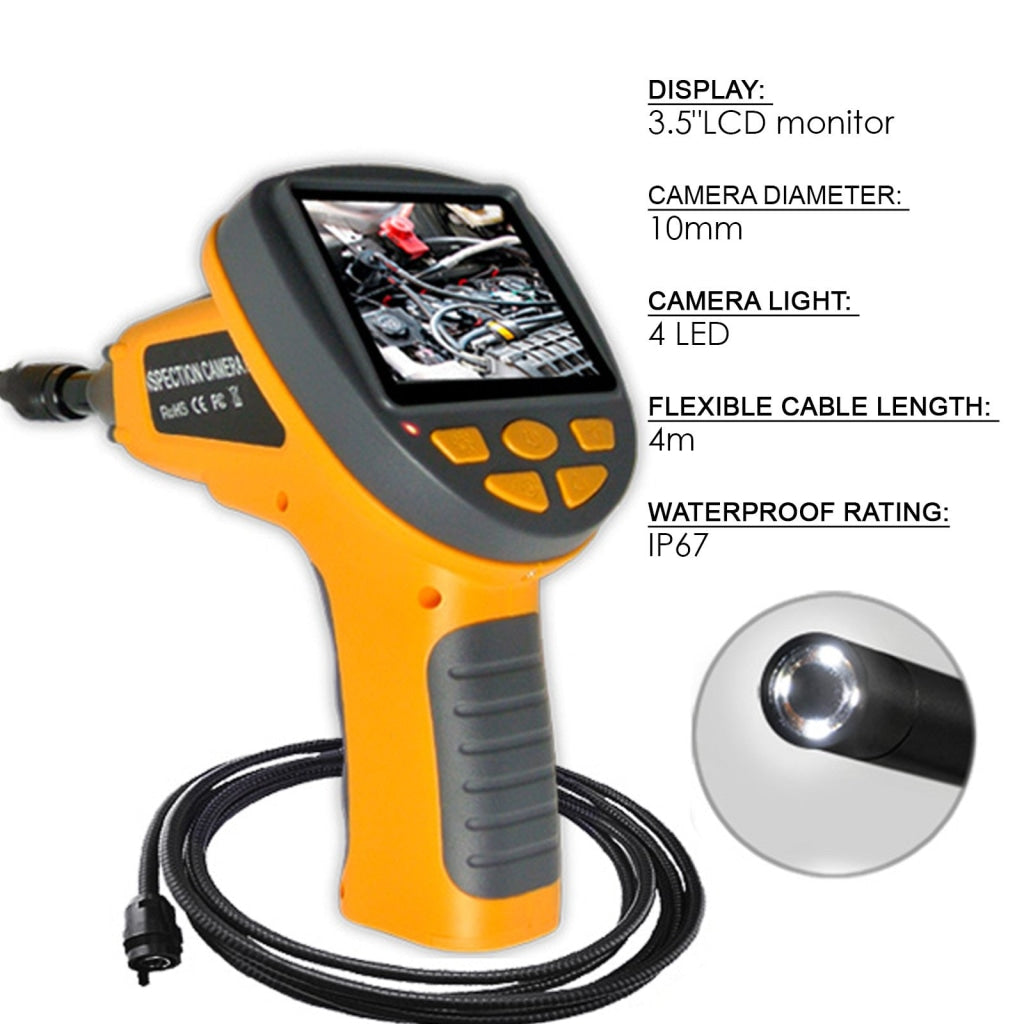

C0599H_4M Industrial 4M Cable Camera Borescope Endoscope 10mm LED 3.5" TFT LCD


Quantity
  OR


Model : C0599H_4M

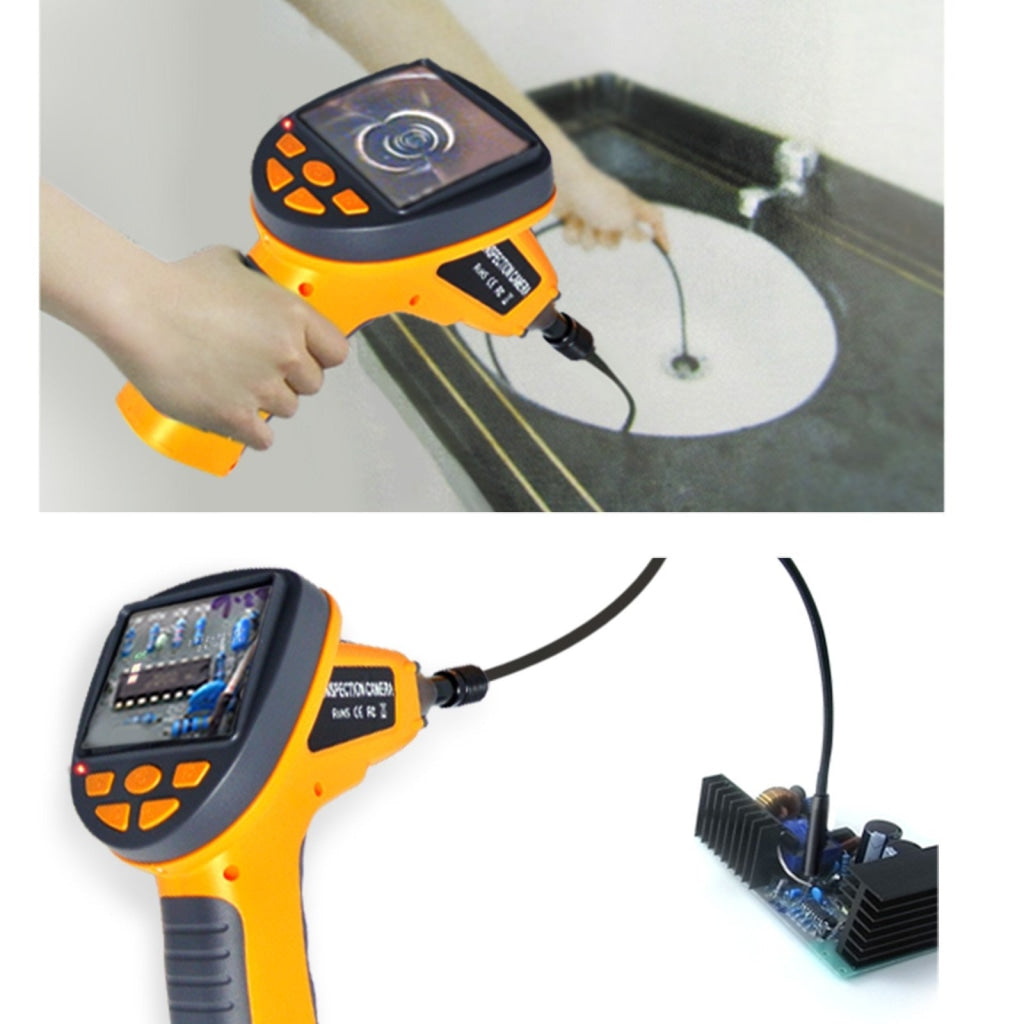

This 3.5" TFT LCD Industrial Endoscope comes with 10mm camera head.Image on the screen can be flip and rotated by 180°.It has horizontal viewing angle of the camera 54°.In addition, you can inspect area under water,gaps and holes effortlessly with the IP67 rate waterproof level metal tube and camera head.



The Standard Flexible 1m(3.3ft) cable allows you explore and discover conveniently.The set also includes additional 3m(9.9ft) Extension Cable,so you have 4m cable in total that allows you to extend the vision of inspection point.

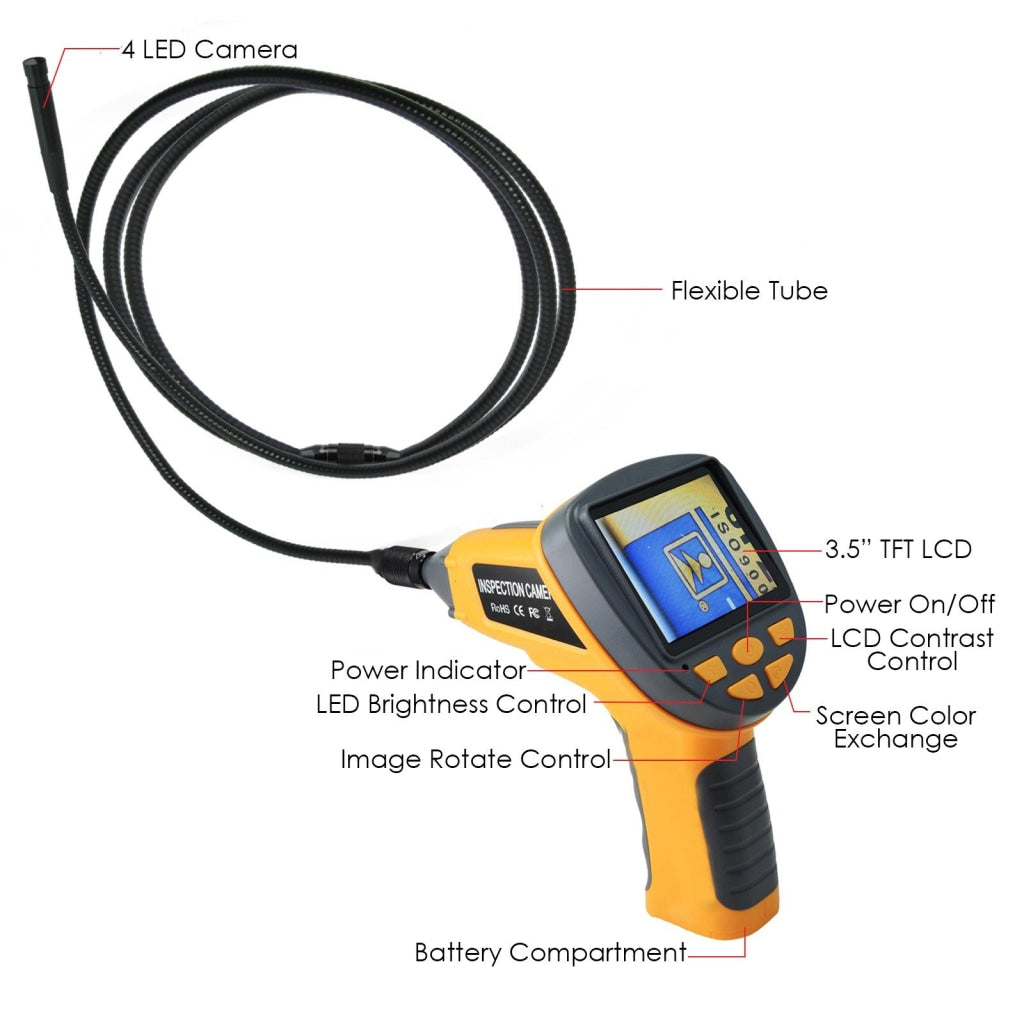

Features

  • Allows visual inspection specially in areas that are hard to reach

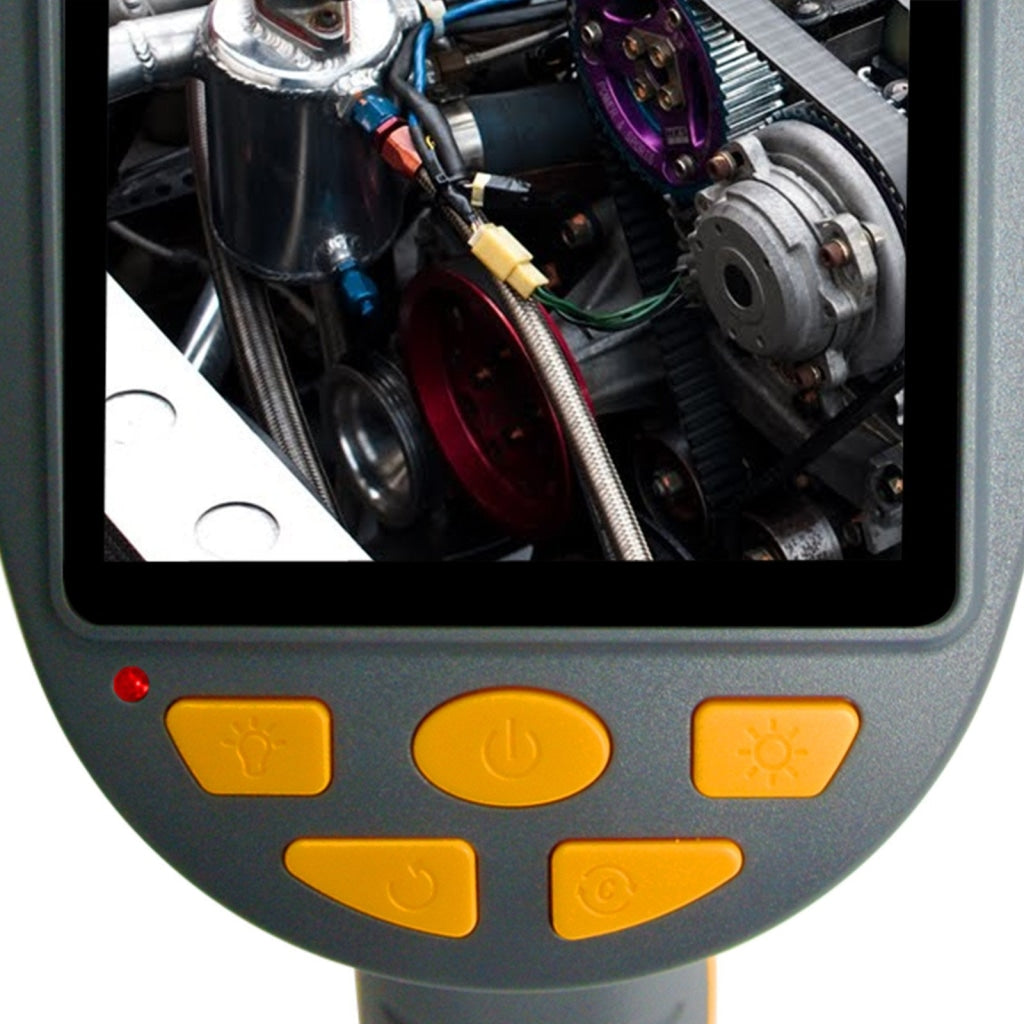

  • 3.5"TFT LCD Monitor
  • Camera Lens Diameter : 10mm

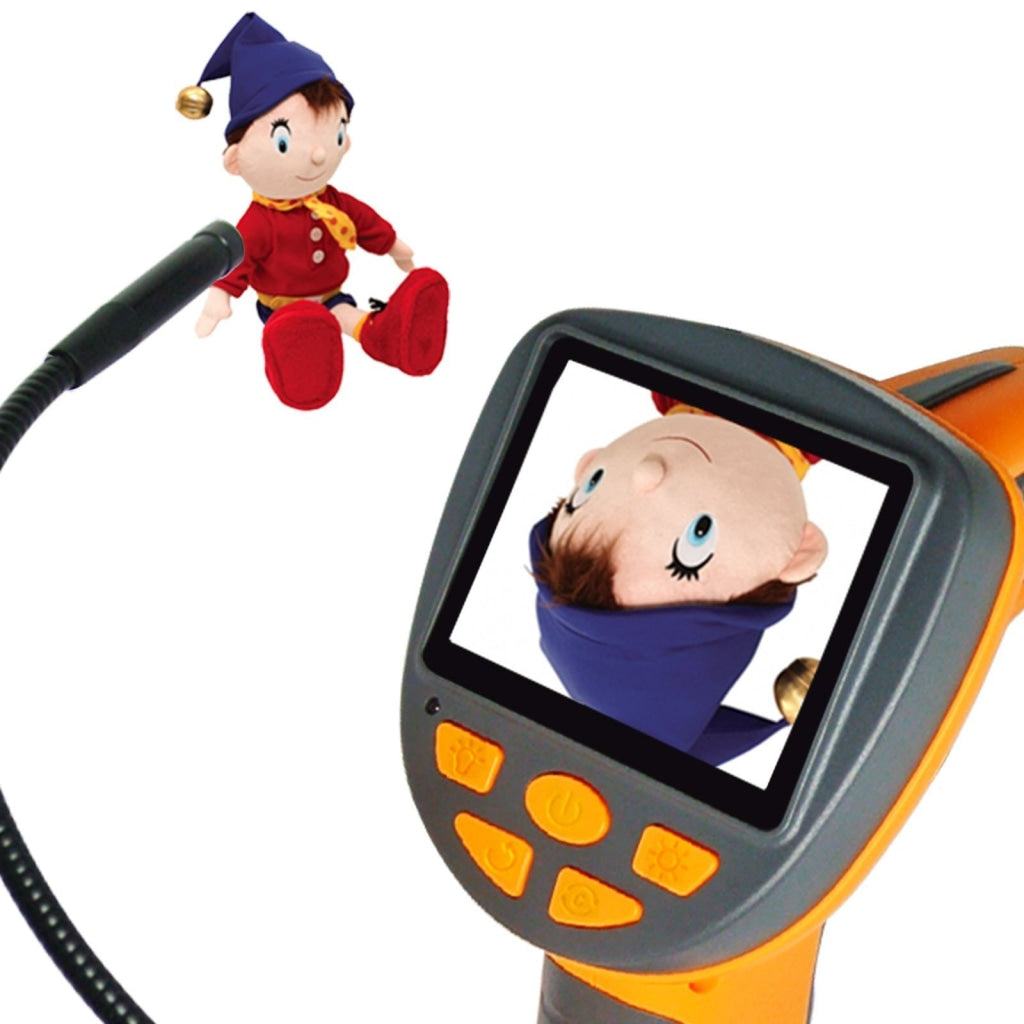

  • Allows 180° image rotation and flip.
  • Allows for easy surveying of small , hard-to-reach places
  • Ergonomic advanced design,flexible and convenient to use
  • Display resolution : 320 x 240 pixels
  • Adjustable LCD screen brightness and contrast control

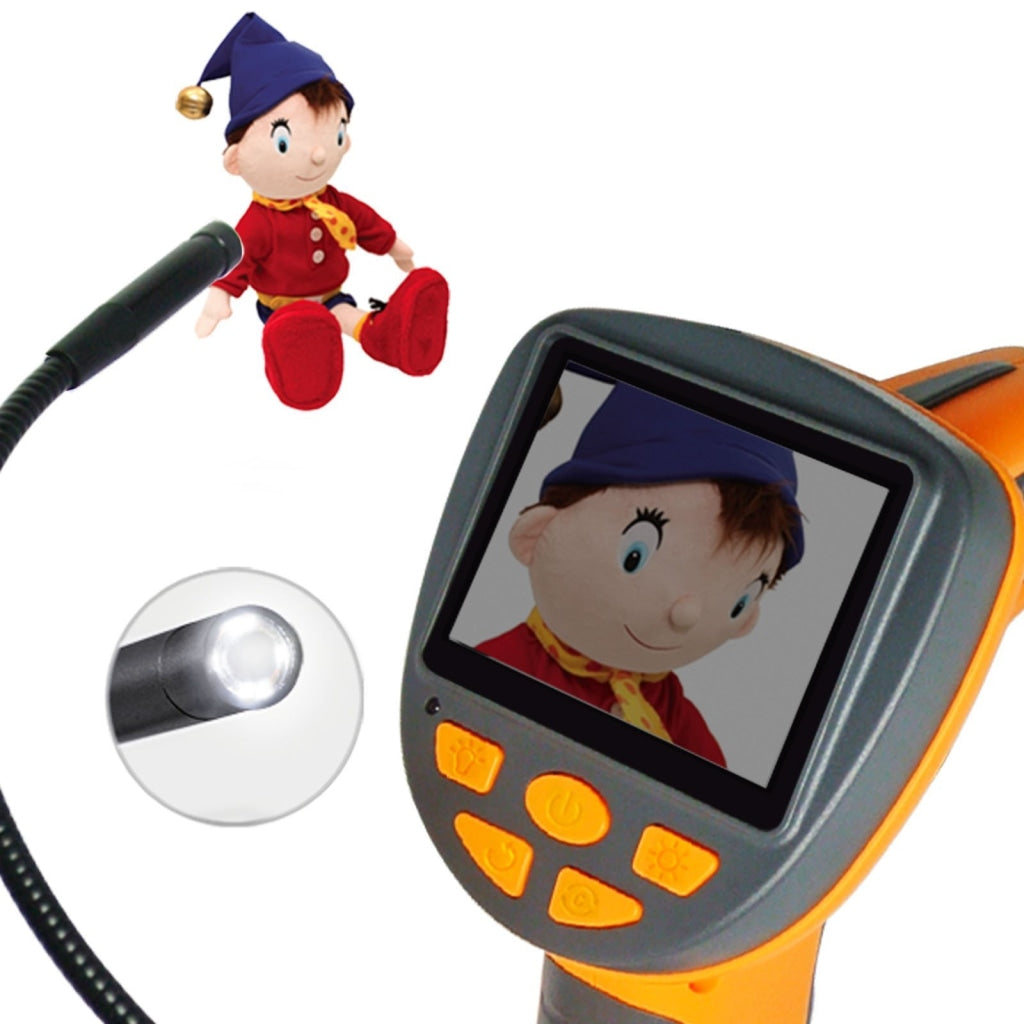

  • Adjustable camera head brightness
  • Allows color exchange , screen can be transformed to black and white
  • With IP67 waterproof level rating

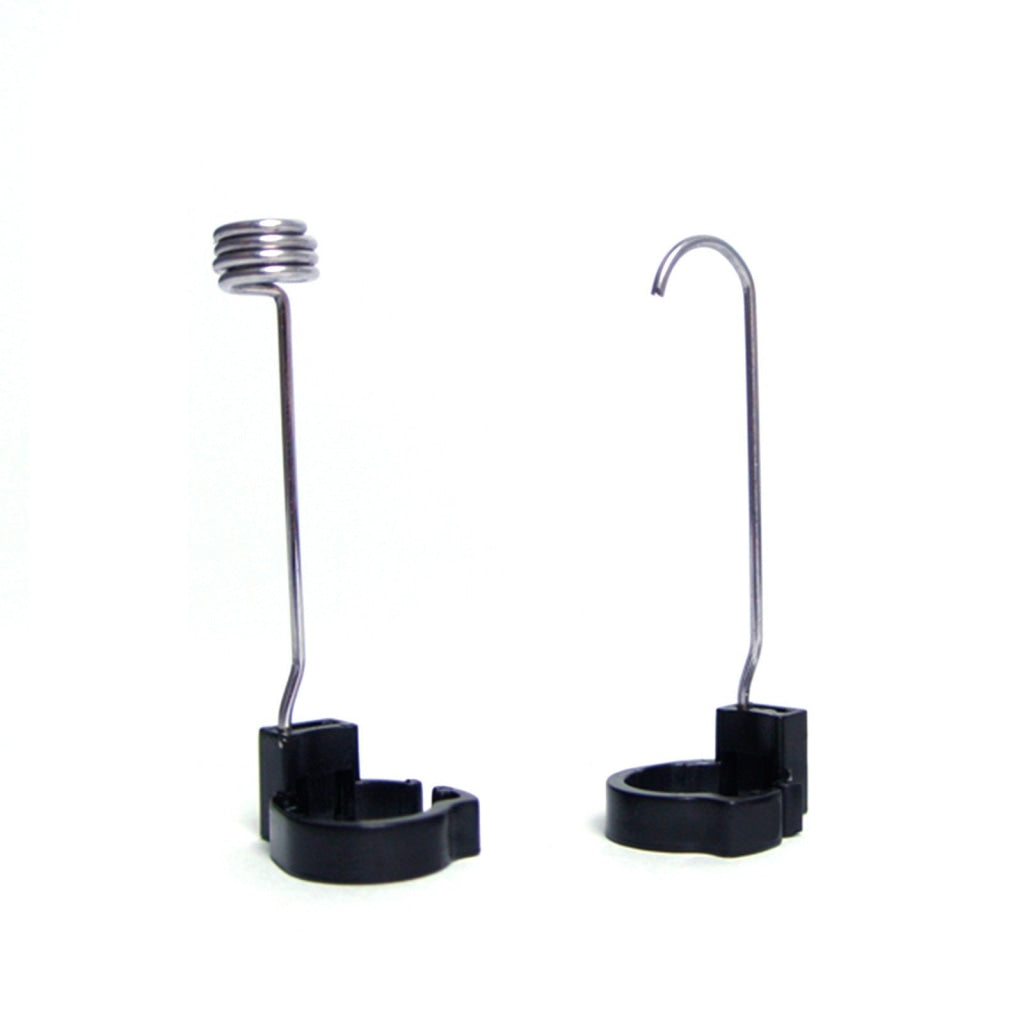

  • Comes with hook and magnet tips
  • Low battery & power indicator
  • Additional 3m (9.9ft) Extension Cable is included in set



Specifications

  • 3.5"LCD monitor
    • Display screen : 320 x 240 pixels
    • Display contrast adjustable (6 levels)
    • Image Rotation Control : 180° and flip
  • Video Format : RGB
  • Cable Camera
    • Diameter : 10mm
    • Pixel : 640*480
    • Sensor : Optical format CMOS image sensor
    • Focus distance : 30 ~ 80mm
    • White Balance : Automatic
    • Distortion : <3.7%
    • Power Consumption : 1.8 ~ 2.2.6W
    • Housing Material : Aluminum
    • Field of View (FOV) : 54°
    • Light
      • built-in 4 x LED
      • adjustable brightness (6 levels)
      • 0 Lux
      • 8000hrs. lamp life
  • Flexible Cable Length : 1 meter cable length + 3M Extension Cable
  • Min.Bending Radius : 10cm in diameter
  • Operating Temperature : -20 ~ 60°C (-4 ~ 140°F)
  • Storage Temperature : -20 ~ 70°C (-4 ~ 158°F)
  • Relative Humidity : 15 ~ 85%RH
  • Waterproof Rating : IP67 (insertion tube and tip)
  • Hazardous Environments : Not rated for use in hazardous environments
  • Working Temperature Range : -10 ~ 50°C
  • Storage Temperature Range : 0 ~ 40°C

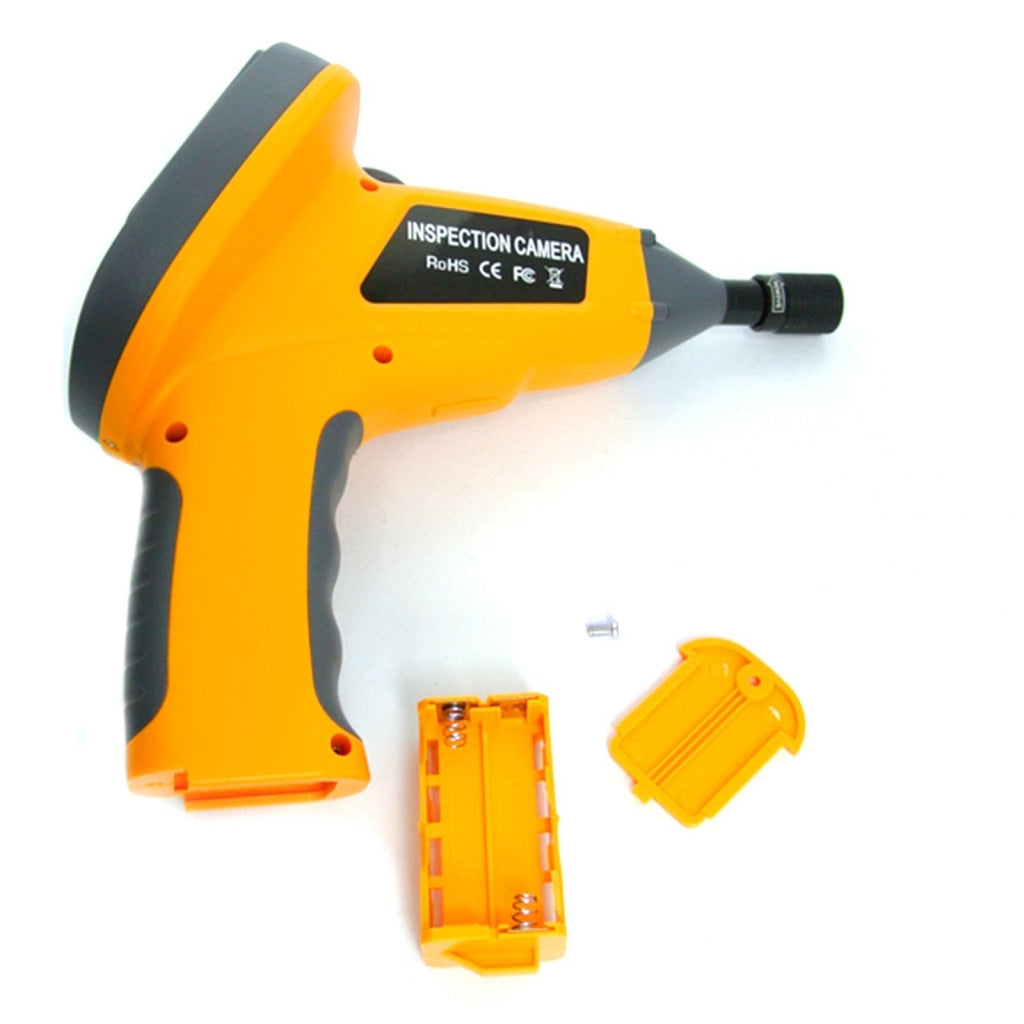

  • Power Supplay : 4 x 1.5 AA Battery (not included)

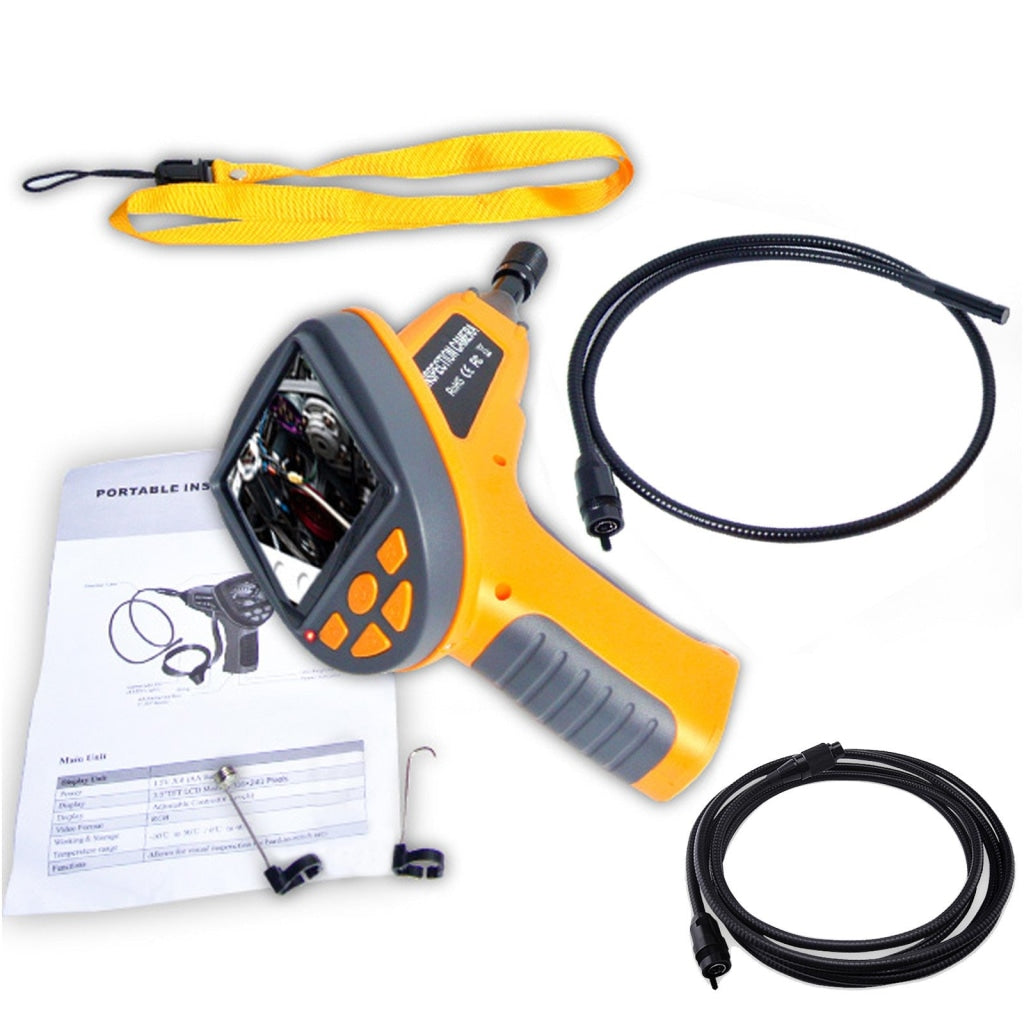

Set includes

  • 1 x 3.5" TFT LCD Endoscope / Borescope
  • 1 x Standard 1M Cable w/ 10mm diameter
  • 1 x 3M Extension Cable

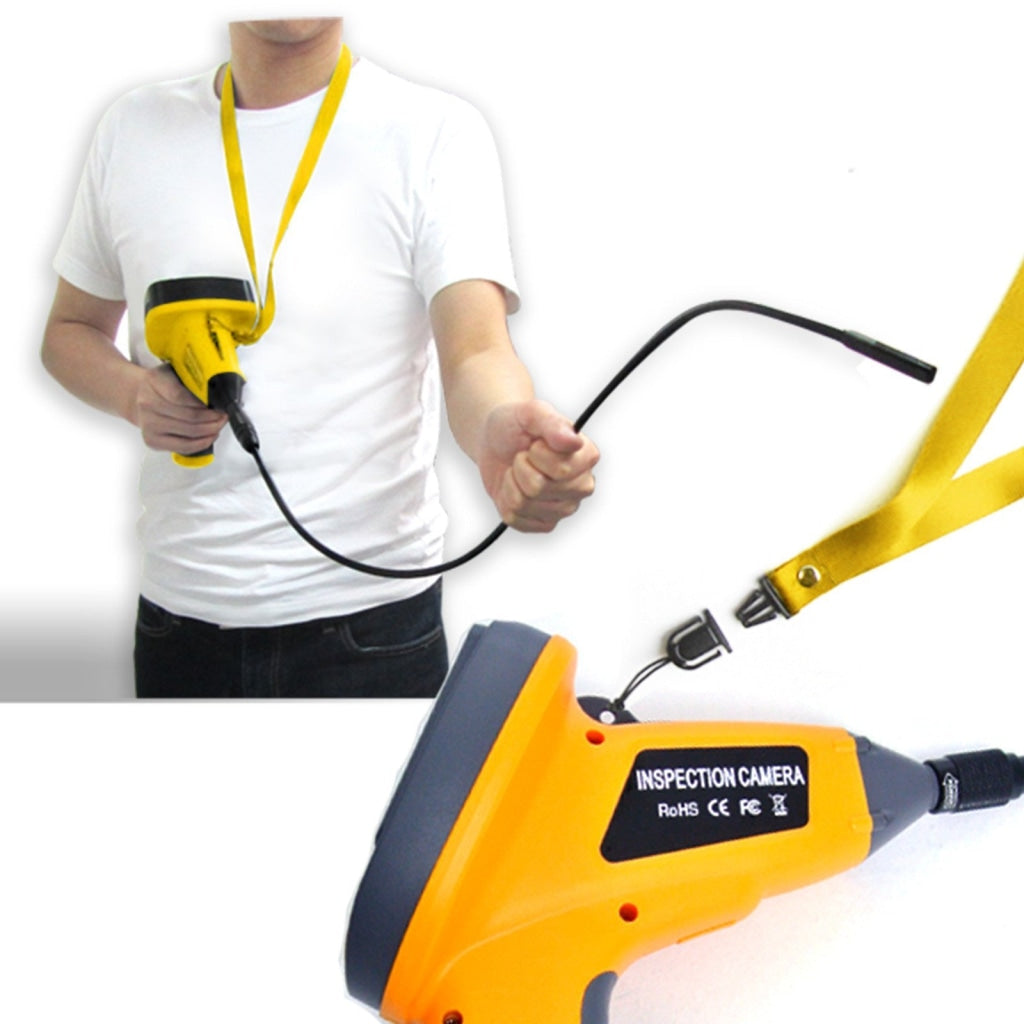

  • 1 x Hand-strap
  • 1 x Magnet Tip
  • 1 x Hook Tip
  • 1 x User's Manual
  • Standard Packaging Box



 (Recommended length of extension cables that can be attached to this item  is 10 meters long)
