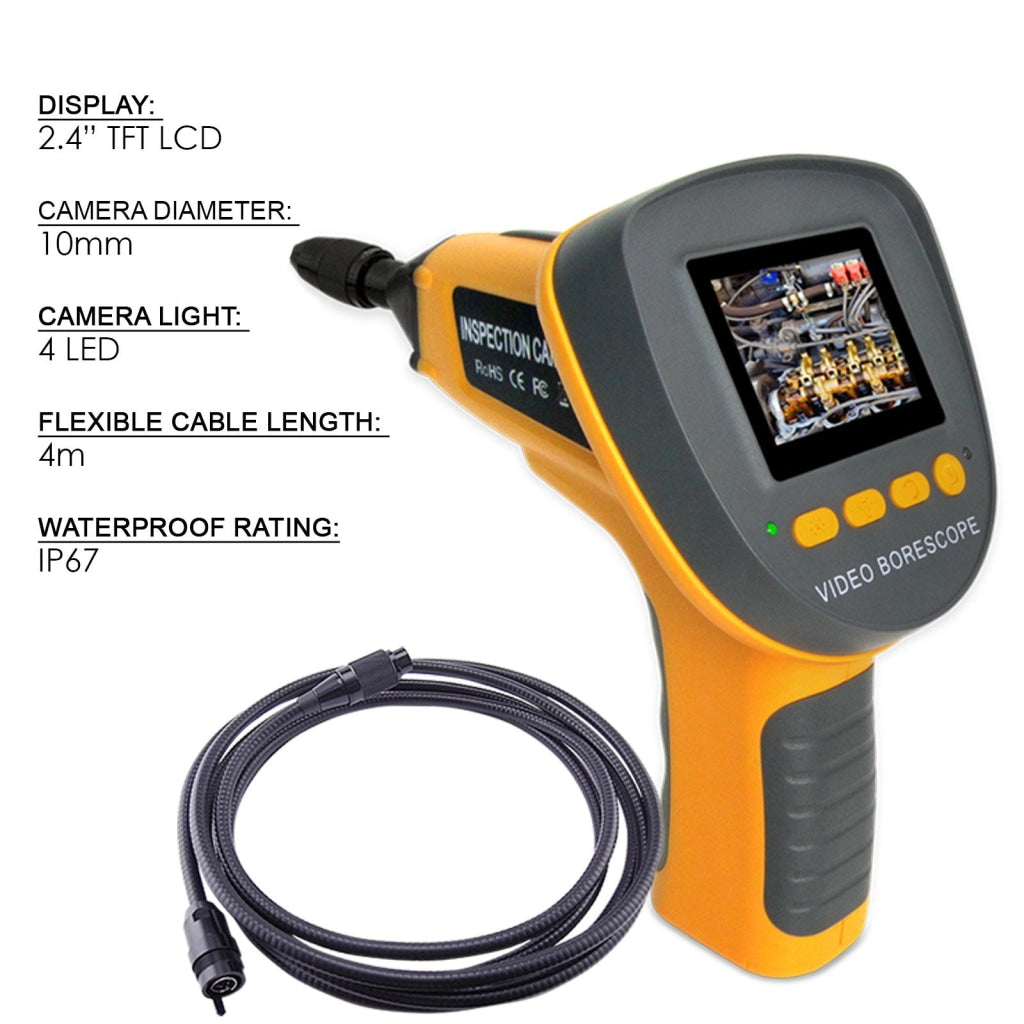

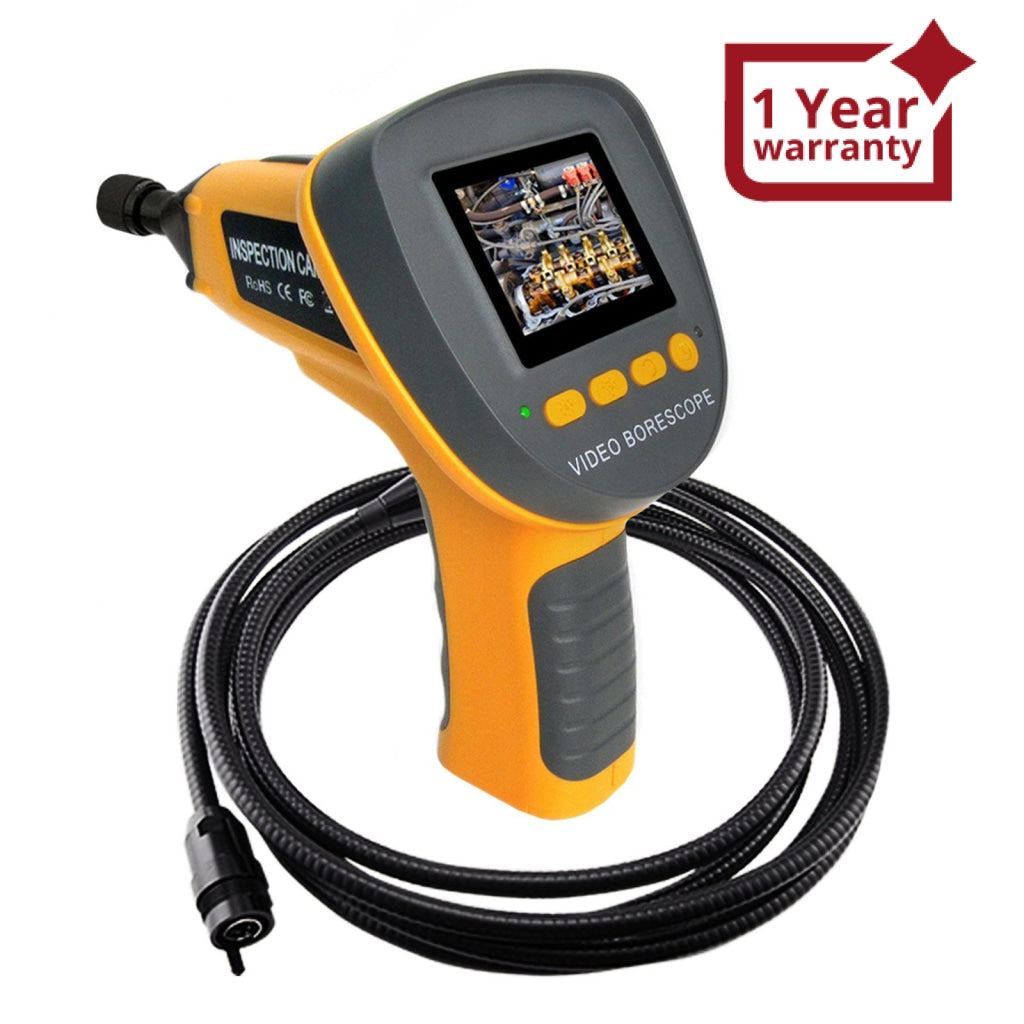

C0599F_4M Handheld 2.4 Industrial Visual Inspection Endoscope up to 360°Rotation Borescope + 4m Cable


Quantity
  OR


Model : C0599F_4M

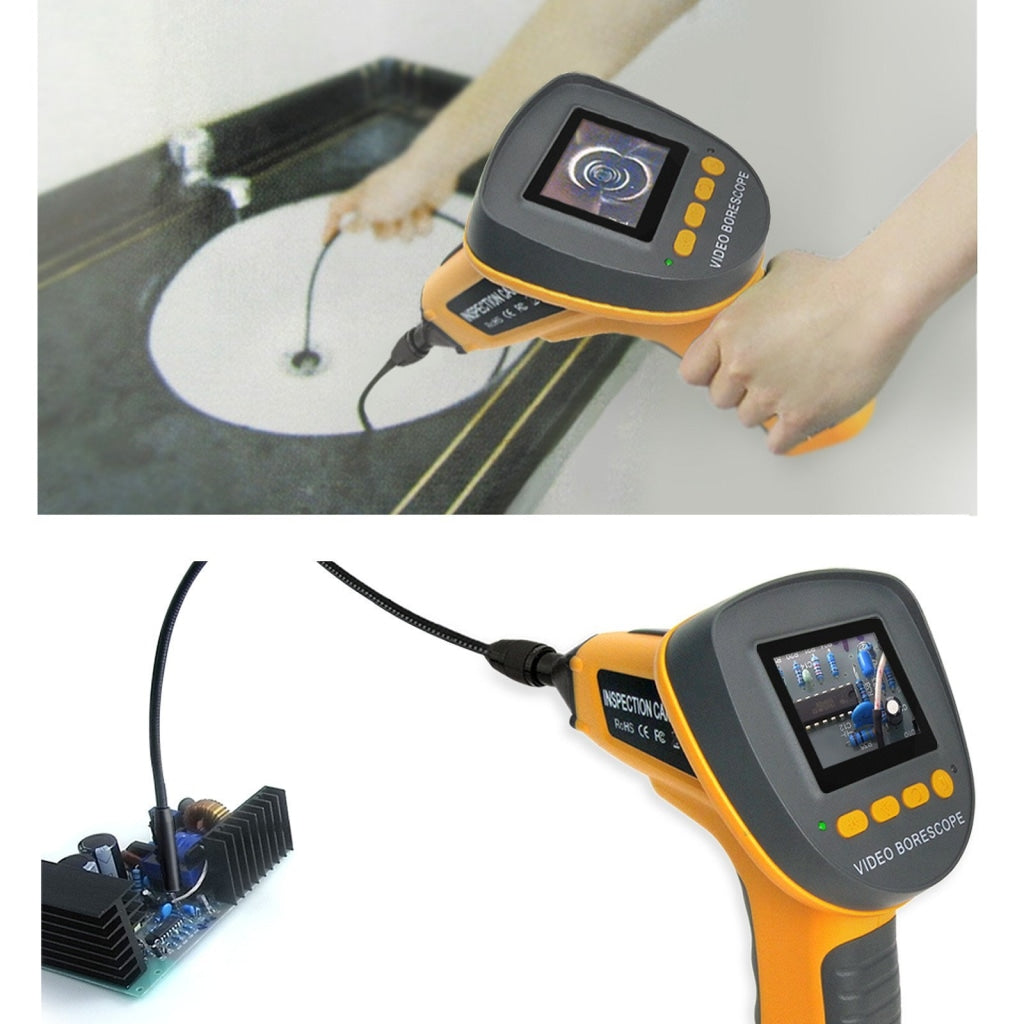

This 2.4" TFT LCD Industrial Endoscope (Visual Inspection Device) comes with 10mm camera head. It allows to investigate into a smaller & slimmer hard-to-reach area to help in diagnosing broken part, weld point and other work that would otherwise not easily accessible for direct inspection. The LCD screen can be rotated by 360° to adjust the angle of observation making the process more convenient and easy.

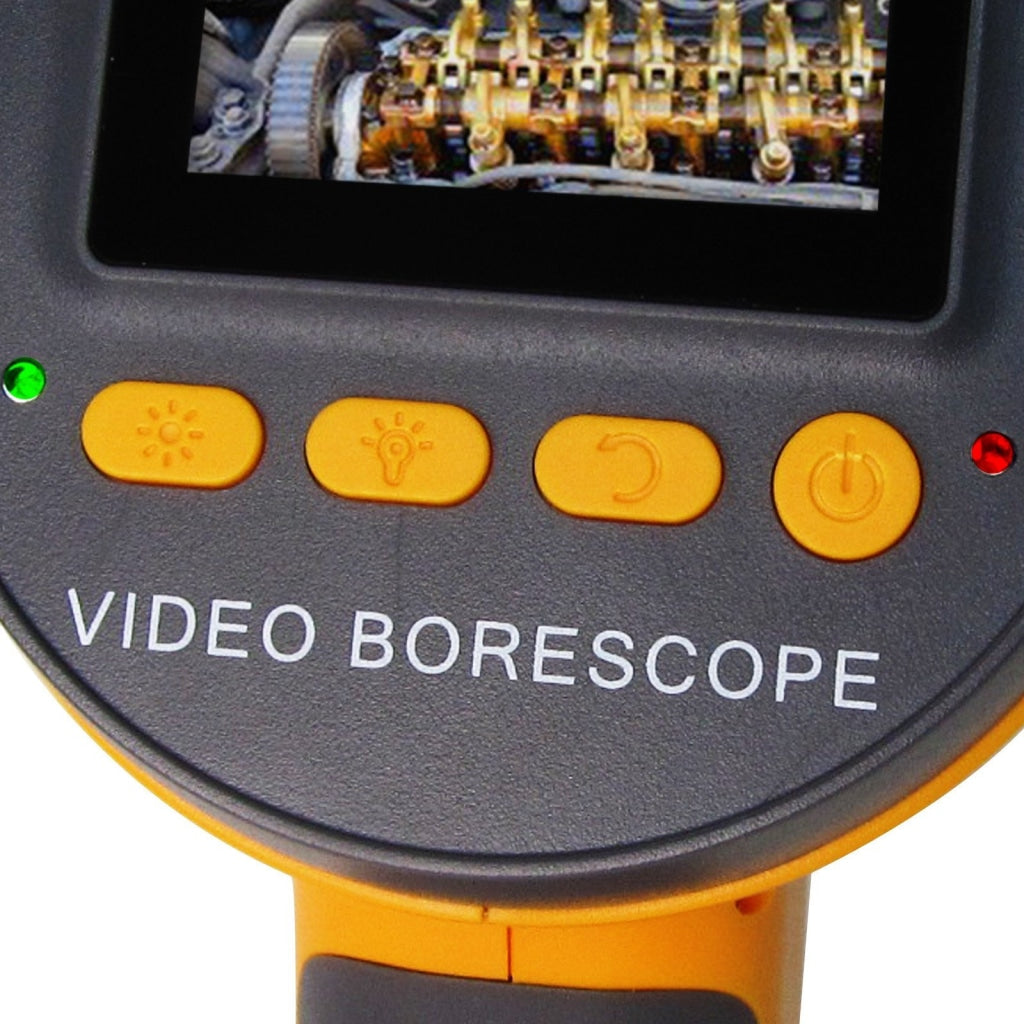

Main features includes image on the screen can be rotated in 90°, 180°, 270° and 360°.

The standard 1m Flexible & removable tube have a waterproof level IP67 camera head with optimized Focal Length of 6cm, you can inspect area under water, gaps and holes effortlessly. Plus, it comes with 3M (9.9ft) extension cable so you have 4M cable in total length that allows you to extend the vision of inspection point.

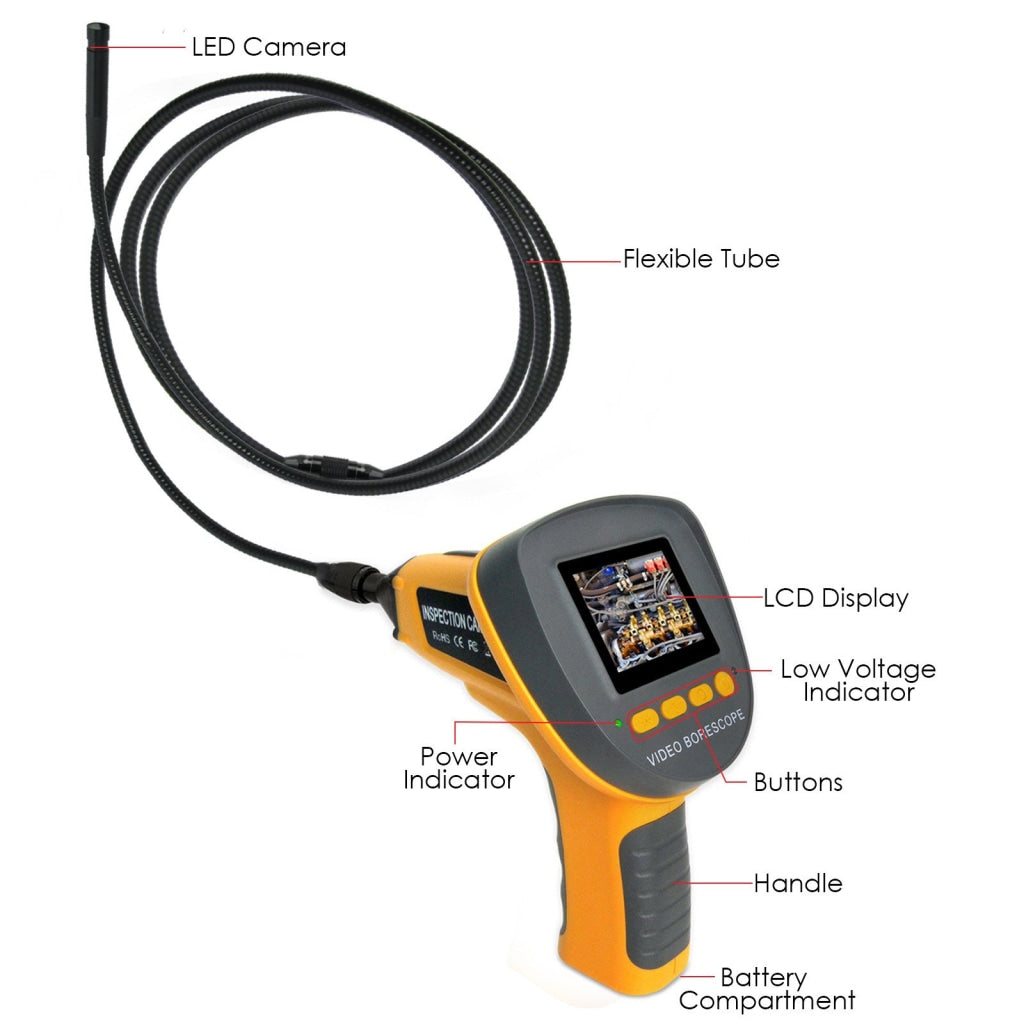

Features

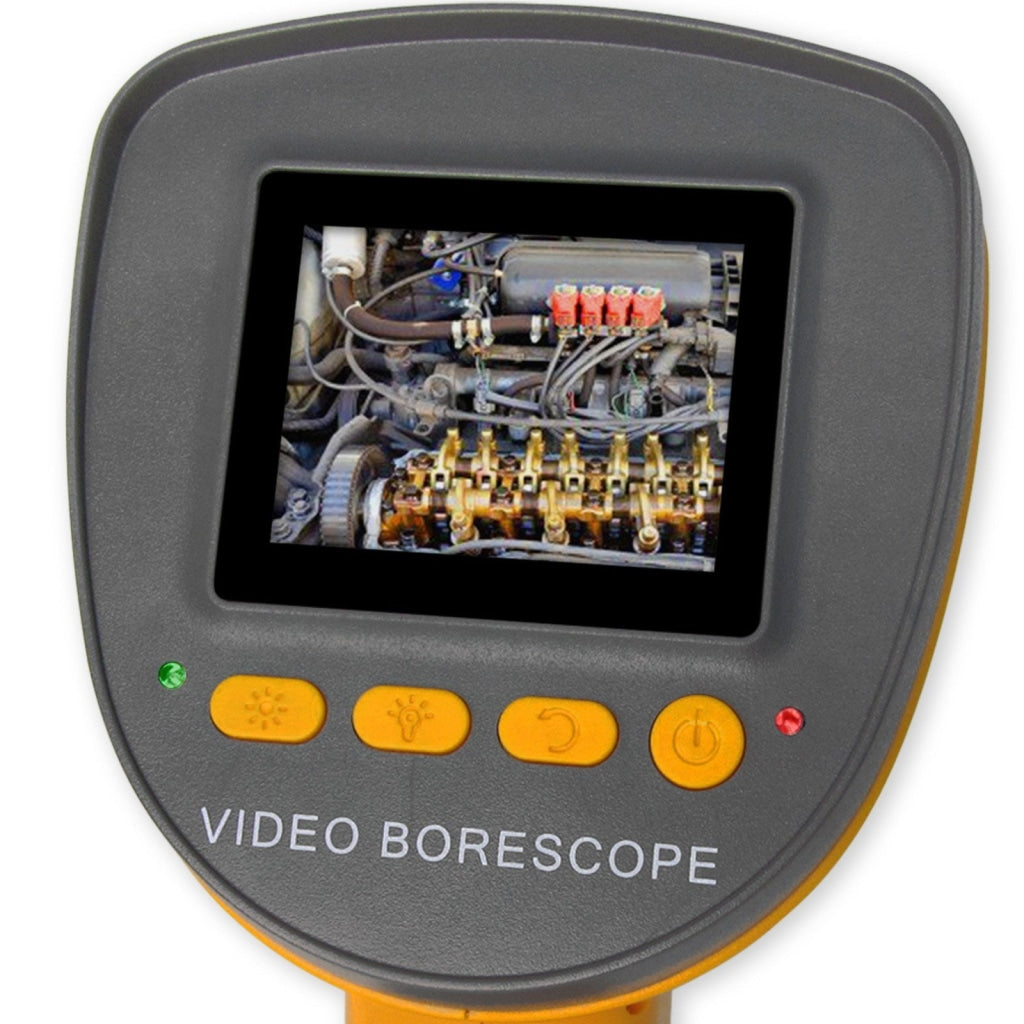

  • 2.4" TFT LCD Monitor
  • Camera Lens Diameter: 10mm
  • Allows for easy surveying of small, hard-to-reach places
  • Ergonomic advanced design, flexible and convenient to use
  • Display resolution: 320 x 240 pixels
  • Adjustable LCD screen brightness
  • Adjustable camera head brightness
  • With IP67 waterproof level rating

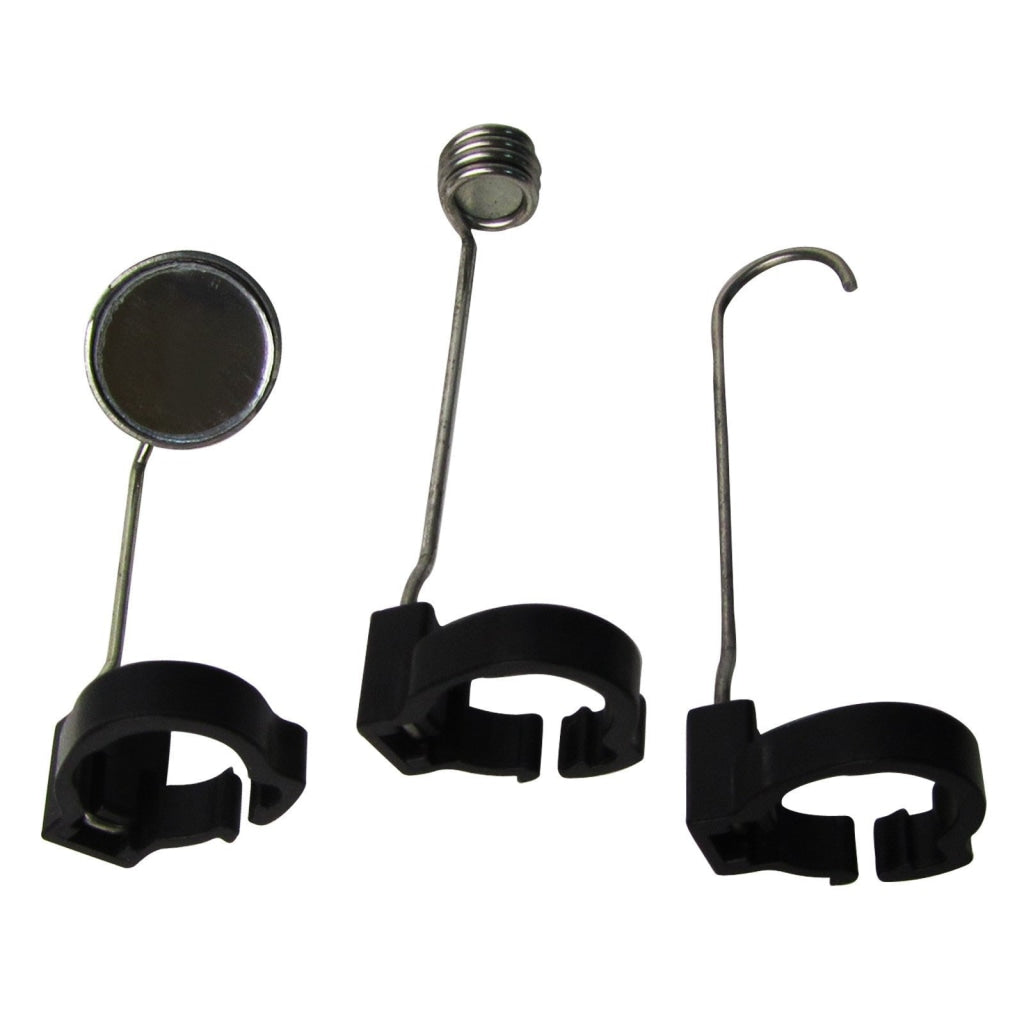

  • Comes with mirror, hook and magnet tips
  • Low battery & power indicator
  • Additional 3m extension cable (included in the set)

Specifications

  • Display : 2.4" TFT LCD Screen 320 x 240 pixels with adjustable brightness
  • Functions : Allows for visual inspection for hard-to-reach area
  • Camera Head:
    • Lens Diameter: 10mm
    • Image Sensor: optical format 1/9 CMOS
    • Pixel Count: 320 x 240
    • Exposure: 30 ~ 80mm
    • Auto White Balance
    • Distortion: <3.7%
    • Power Consumption 3~5W
    • Housing: Aluminum
    • Field of View (FOV): 54°
    • Water Splash Resistance (IP67)
  • Flexible Tube
    • Tube length: 4M Cable (1m Camera Tube + 3m Extension Cable)
    • Diameter: 6.8mm
    • Water Splash Resistance (IP67)
    • Removeable
  • Light Source
    • Lamps: 4pcs LED with 0Lux
    • Manual Brightness Control
    • Life Span: 8000hrs median
    • Weight: 8g
  • Operating Environment
    • Tip Operating Temperature: -20 ~ 60°C (-4 ~ 140°F)
    • Storage Temperature: -20 ~ 70°C (-4 ~ 158°F)
    • Relative Humidity: 15 ~ 85%RH
  • Hazardous Environments: Not rated for use in hazardous environments

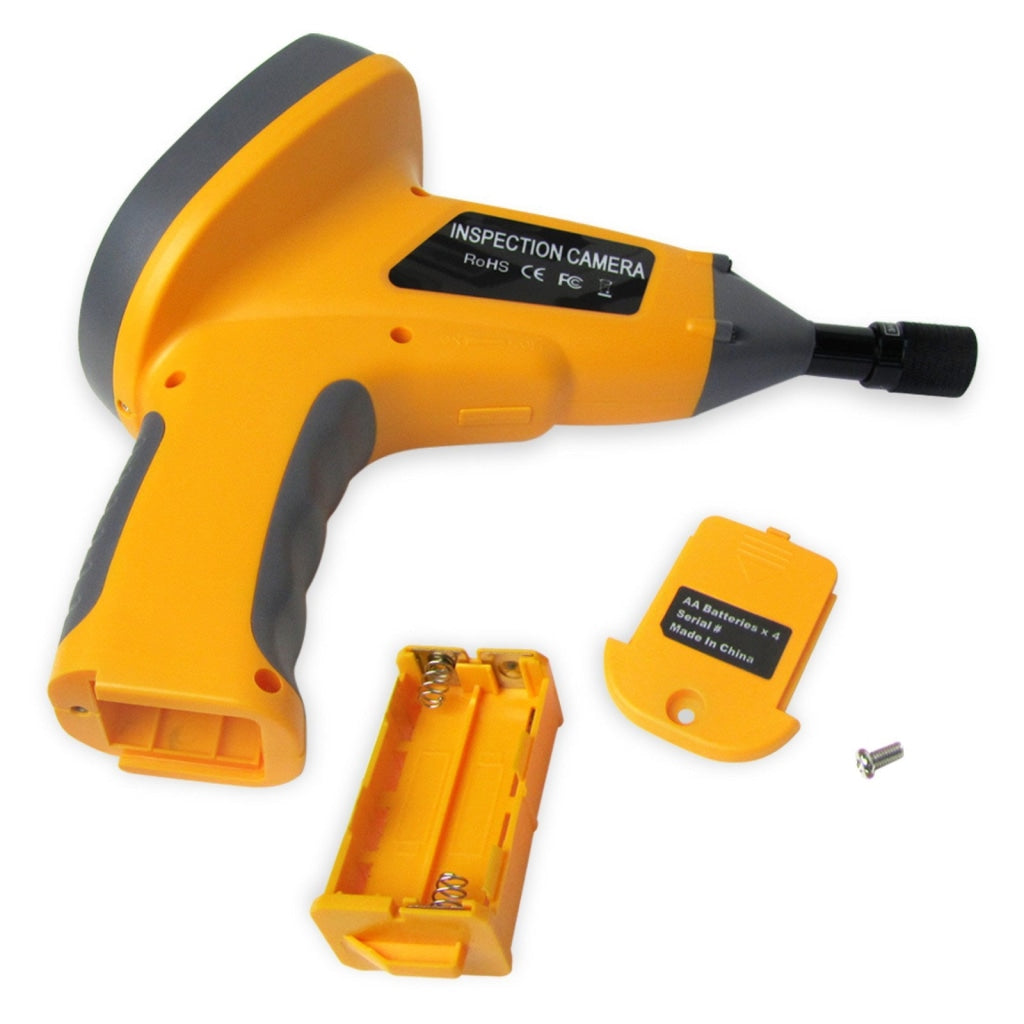

  • Battery: 4 x 1.5 AA type Alkaline Batteries (not included)
  • Weight (main unit): 245g (battery excluded)

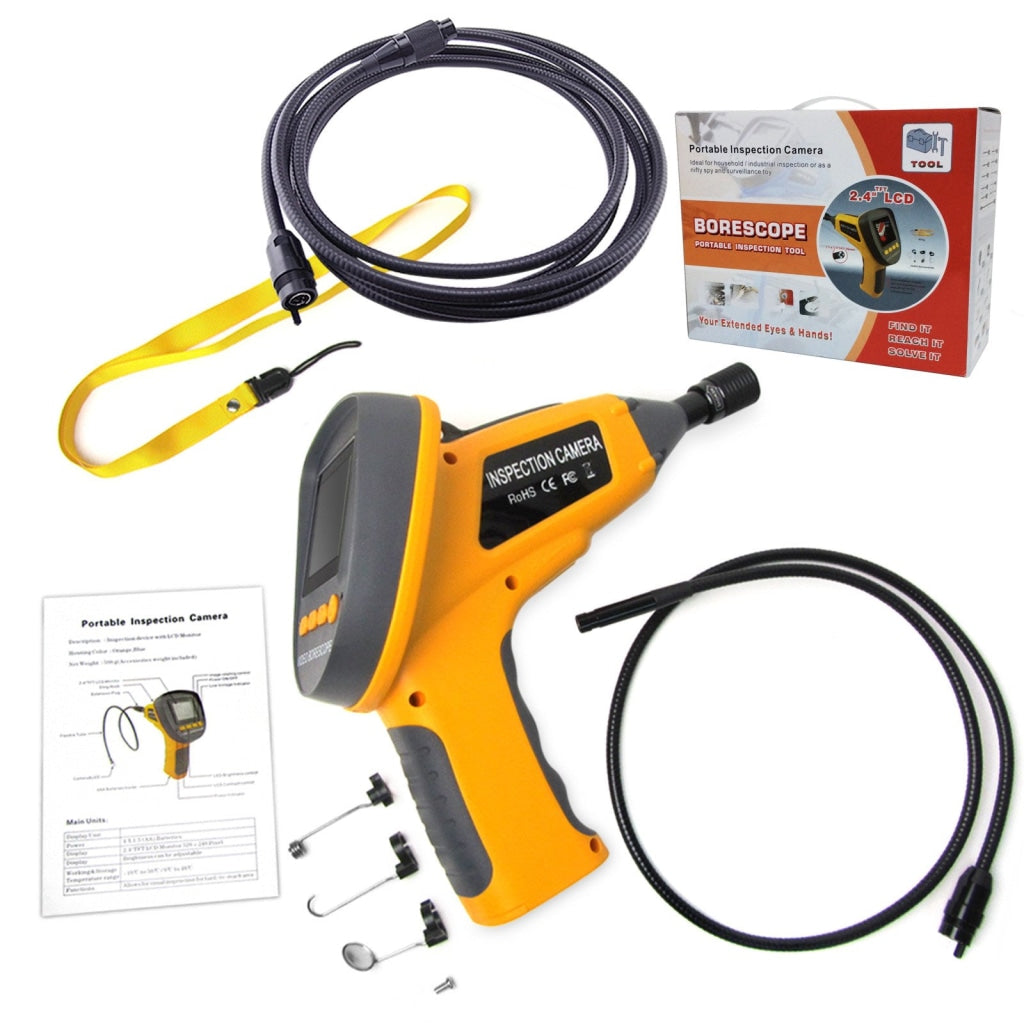

Set includes

  • 1 x Handheld Industrial Endoscope
  • 1 x Standard 1m Flexible Tube w/ 10mm dia. Waterproof Camera Head
  • 1 x 3m (9.9 ft) Extension Cable (FREE)

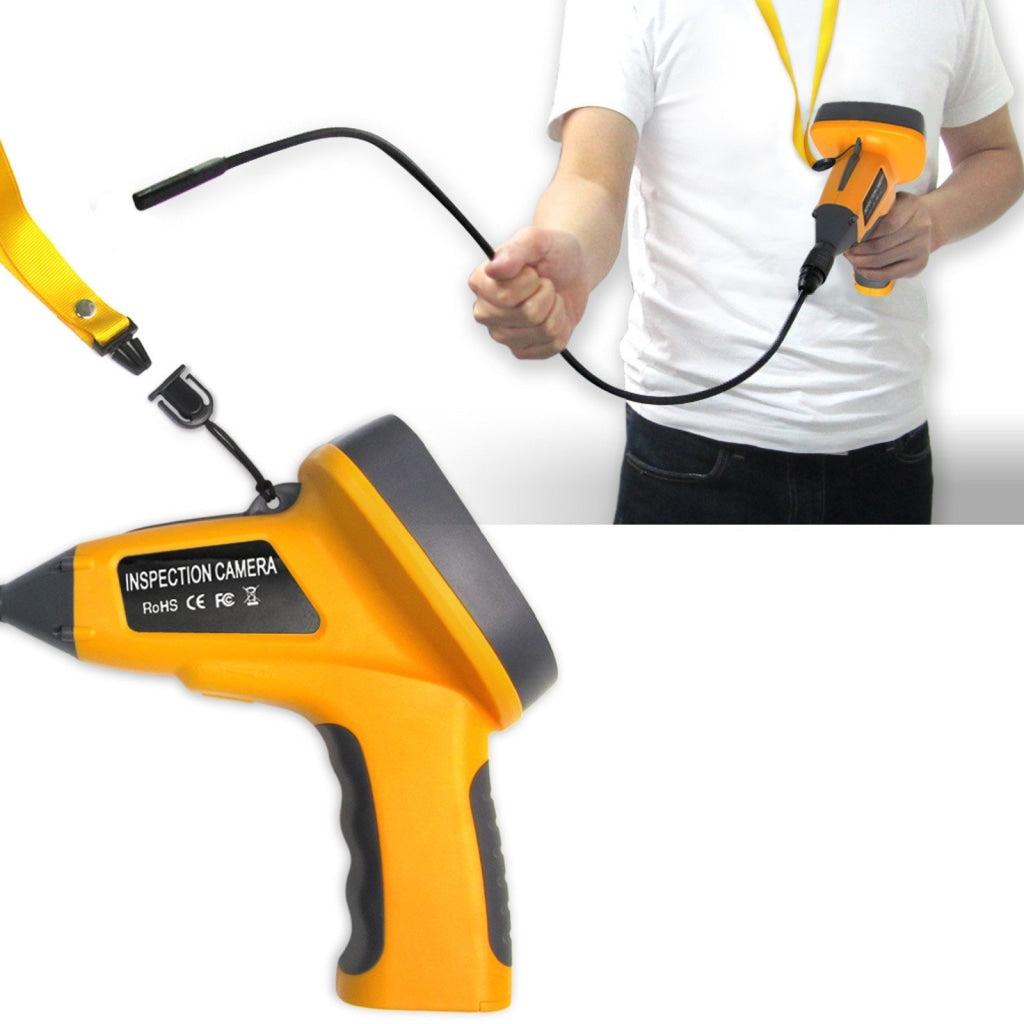

  • 1 x Hand-strap
  • 1 x Mirror Tip
  • 1 x Magnet Tip
  • 1 x Hook Tip
  • 1 x Tiny Screw
  • 1 x English User's Manual
  • 1 x Colored Paper Box
