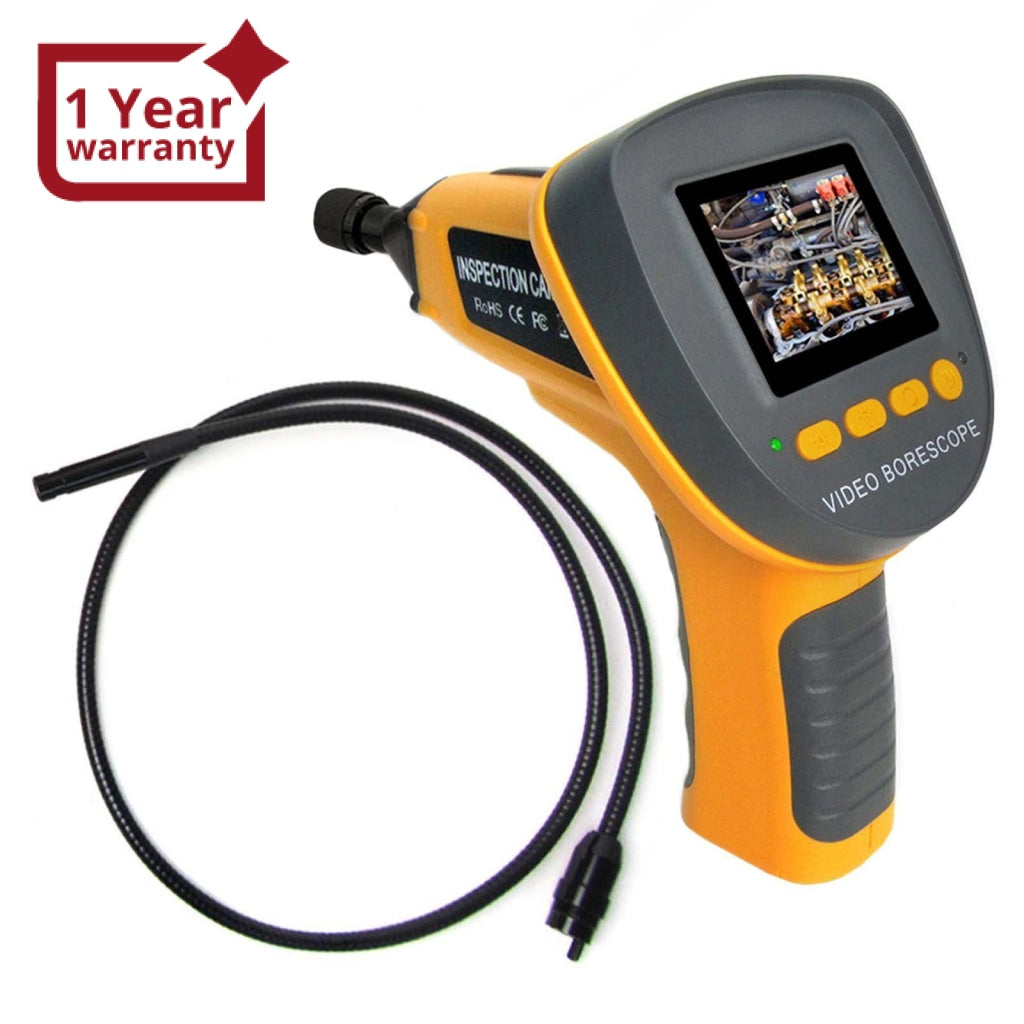

C0599F_1M Handheld Industrial Endoscope w/ 2.4" LCD & 360° Rotation Borescope Visual Inspection Camera

  • 0% OFF
  • Regular price

    $ 79.90 USD



Add to Wishlist

Check shipping / delivery time for your country | Free Shipping Worldwide Request for Quotation

Model : C0599F_1M

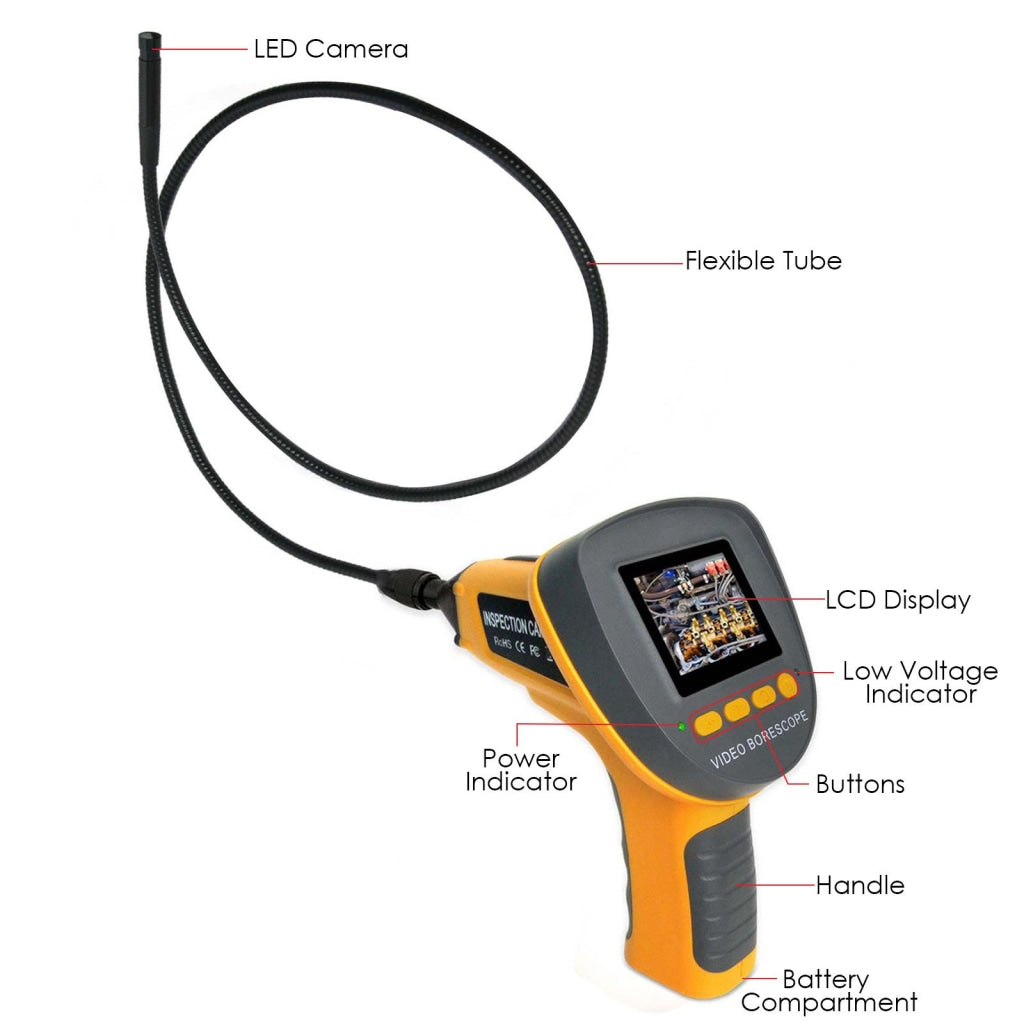

This 2.4" TFT LCD Industrial Endoscope (Visual Inspection Device) comes with

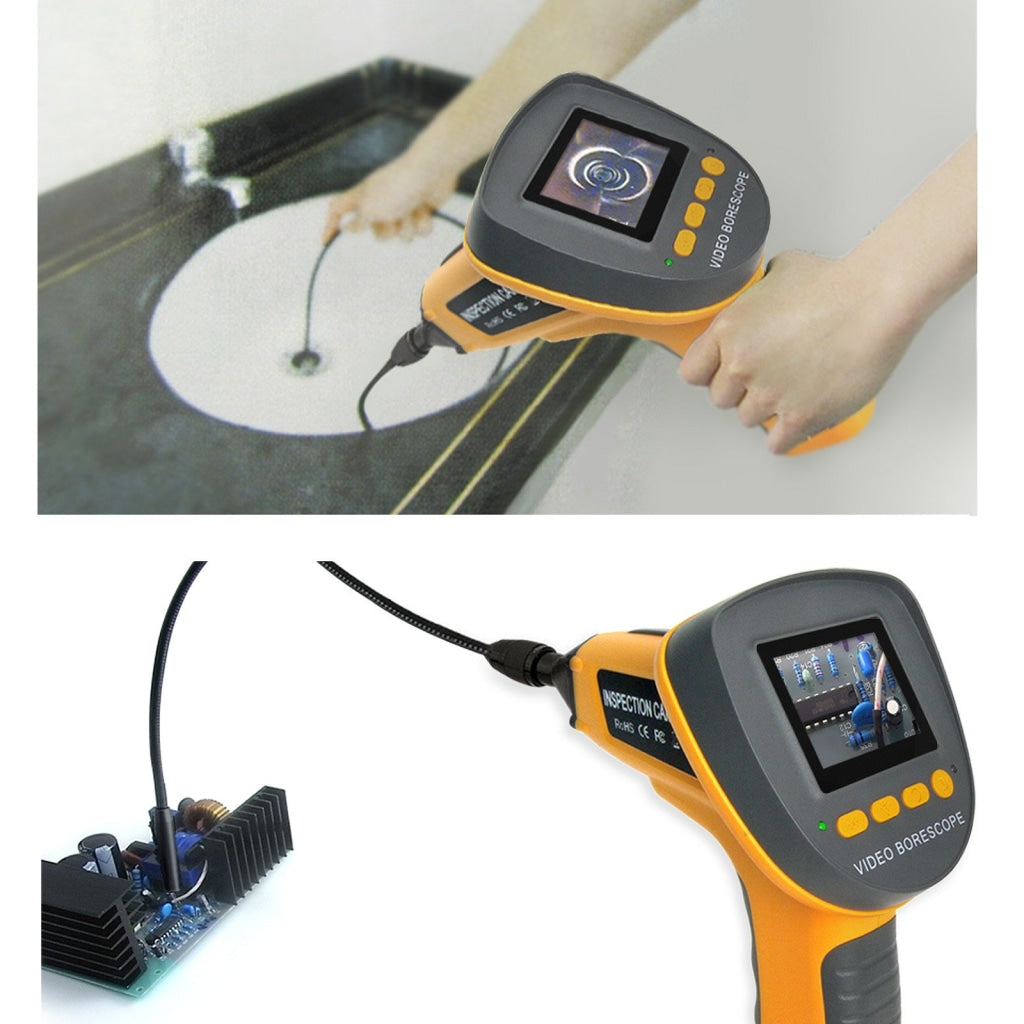

10mm camera head. It allows to investigate into a smaller & slimmer hard-to-reach area to help in diagnosing broken part, weld point and other work that would otherwise not easily accessible for direct inspection. The LCD screen can be rotated by 360° to adjust the angle of observation making the process more convenient and easy.

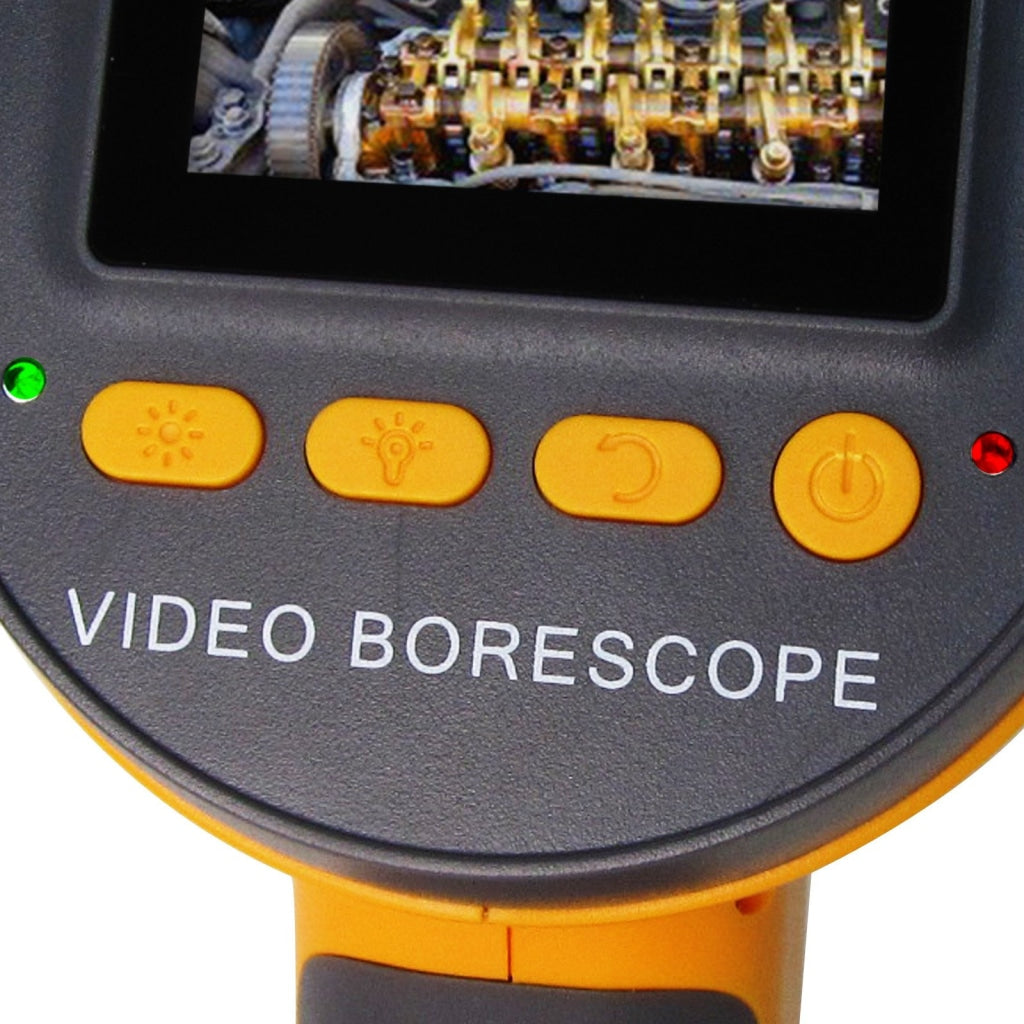

Main features includes image on the screen can be rotated in 90°180°270° and 360°.

The standard 1m Flexible & removable tube have a waterproof level IP67 camera head with optimized Focal Length of 6cm, you can inspect area under water, gaps and holes effortlessly.


Features

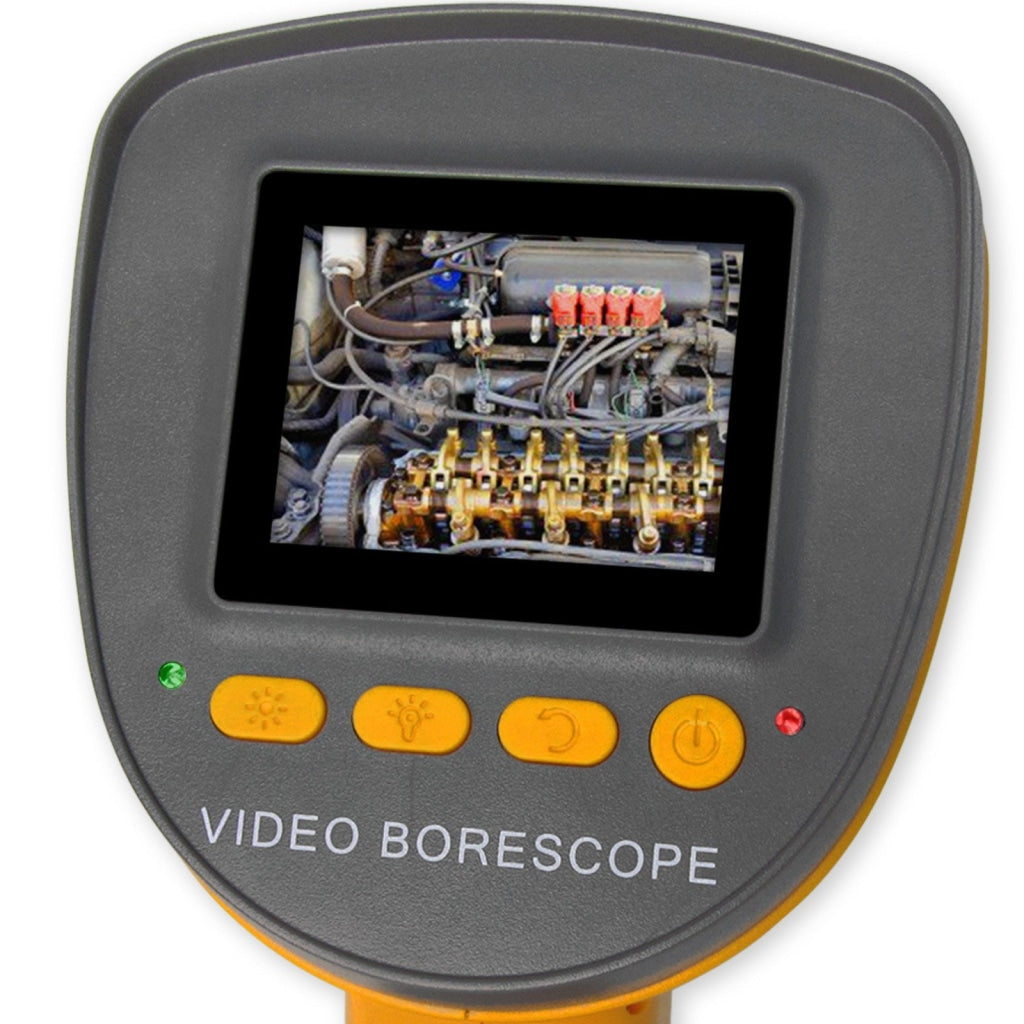

  • 2.4" TFT LCD Monitor
  • Camera Lens Diameter: 10mm
  • Allows for easy surveying of small, hard-to-reach places
  • Ergonomic advanced design, flexible and convenient to use
  • Display resolution: 320 x 240 pixels
  • Adjustable LCD screen brightness
  • Adjustable camera head brightness
  • With IP67 waterproof level rating

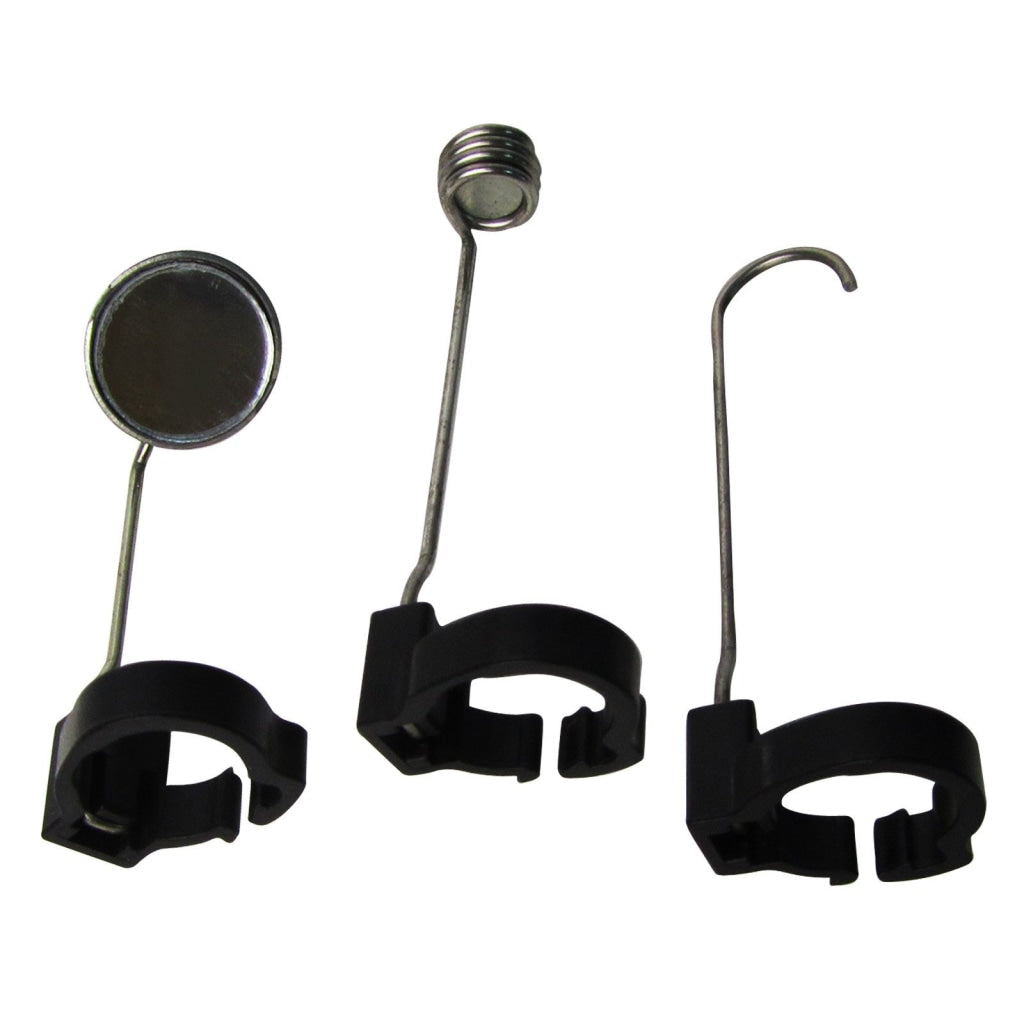

  • Comes with mirror, hook and magnet tips
  • Low battery & power indicator

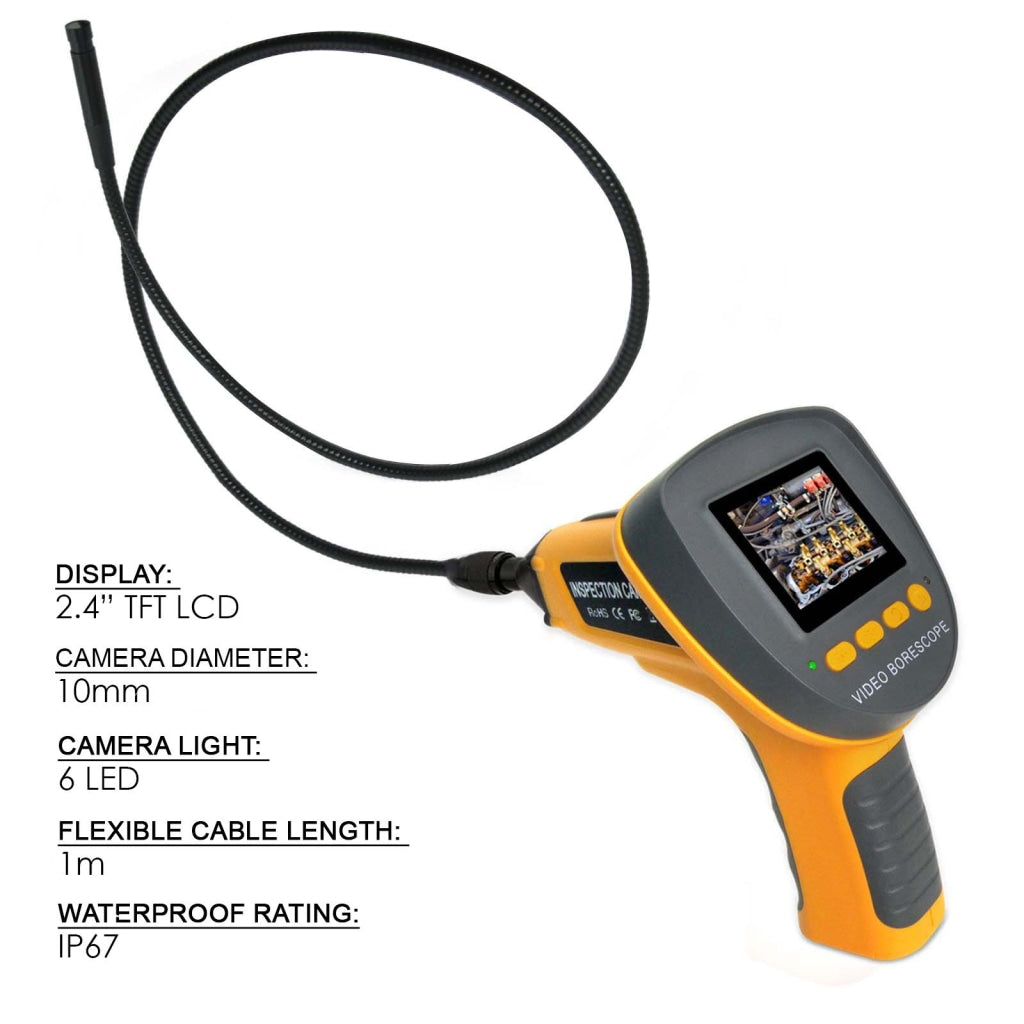

Specifications

  • Display :2.4" TFT LCD Screen 320 x 240 pixels with adjustable brightness
  • Functions: Allows for visual inspection for hard-to-reach area
  • Camera Head:
    • Lens Diameter: 10mm
    • Image Sensor: optical format 1/9 CMOS
    • Pixel Count: 320 x 240
    • Exposure: 30 ~ 80mm
    • Auto White Balance
    • Distortion: <3.7%
    • Power Consumption 3~5W
    • Housing: Aluminum
    • Field of View (FOV): 54°
    • Water Splash Resistance (IP67)
  • Flexible Tube
    • Length: 1M Cable
    • Diameter: 6.8mm
    • Water Splash Resistance (IP67)
    • Removable
  • Light Source
    • Lamps: 6pcs LED with 0Lux
    • Manual Brightness Control
    • Life Span: 8000hrs median
    • Weight: 8g
  • Operating Environment
    • Tip Operating Temperature: -20 ~ 60°C (-4 ~ 140°F)
    • Storage Temperature: -20 ~ 70°C (-4 ~ 158°F)
    • Relative Humidity: 15 ~ 85%RH
  • Hazardous Environments: Not rated for use in hazardous environments

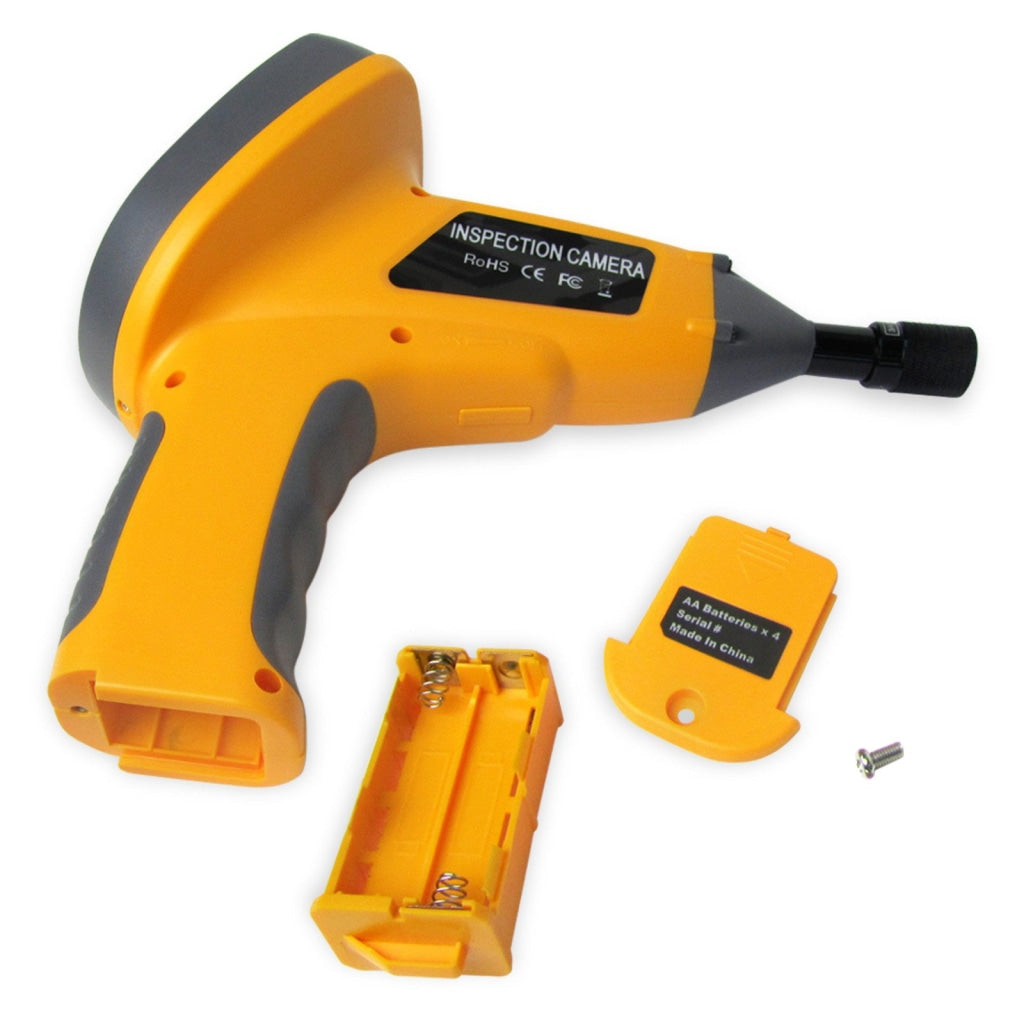

  • Battery: 4 x 1.5 AAA type Alkaline Batteries (not included)
  • Weight (main unit): 245g (battery excluded)

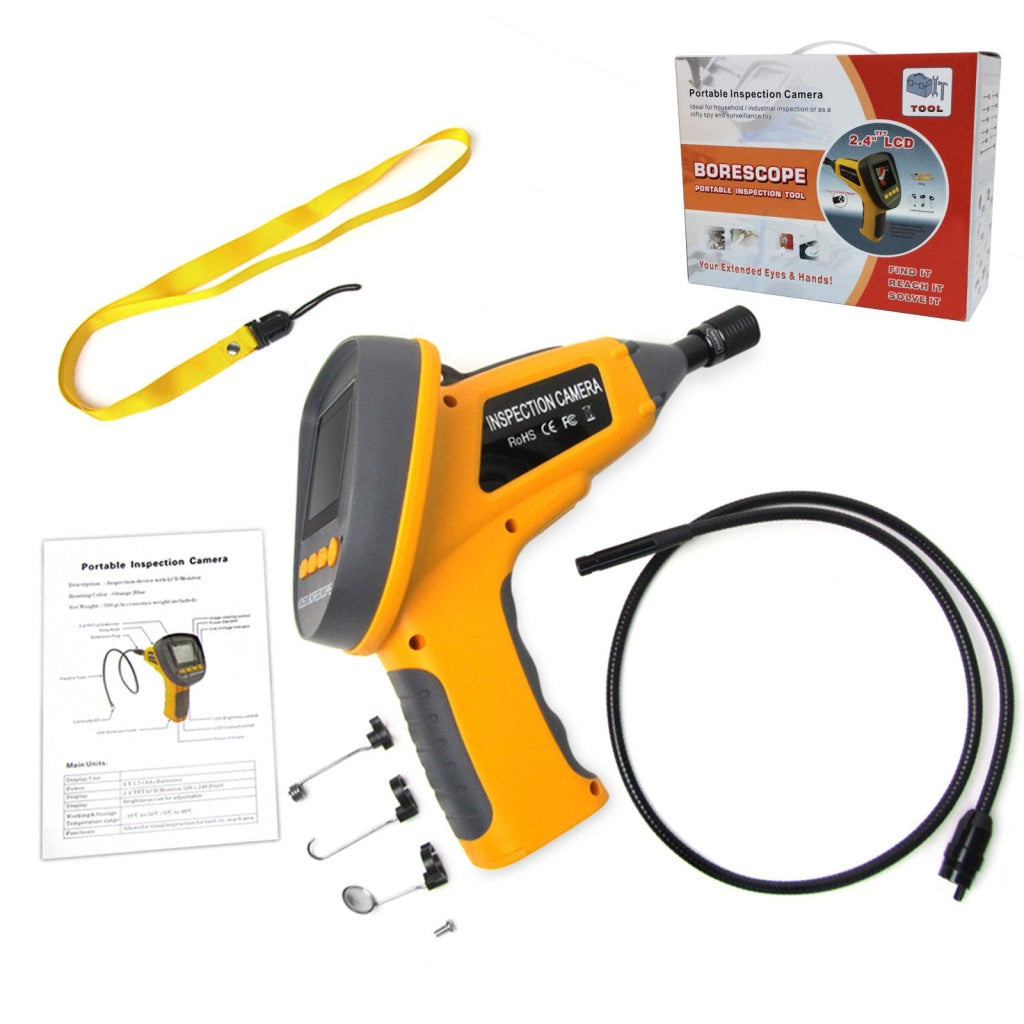

Set includes

  • 1 x Handheld Industrial Endoscope
  • 1 x Standard 1m Flexible Tube w/ 10mm dia. Waterproof Camera Head

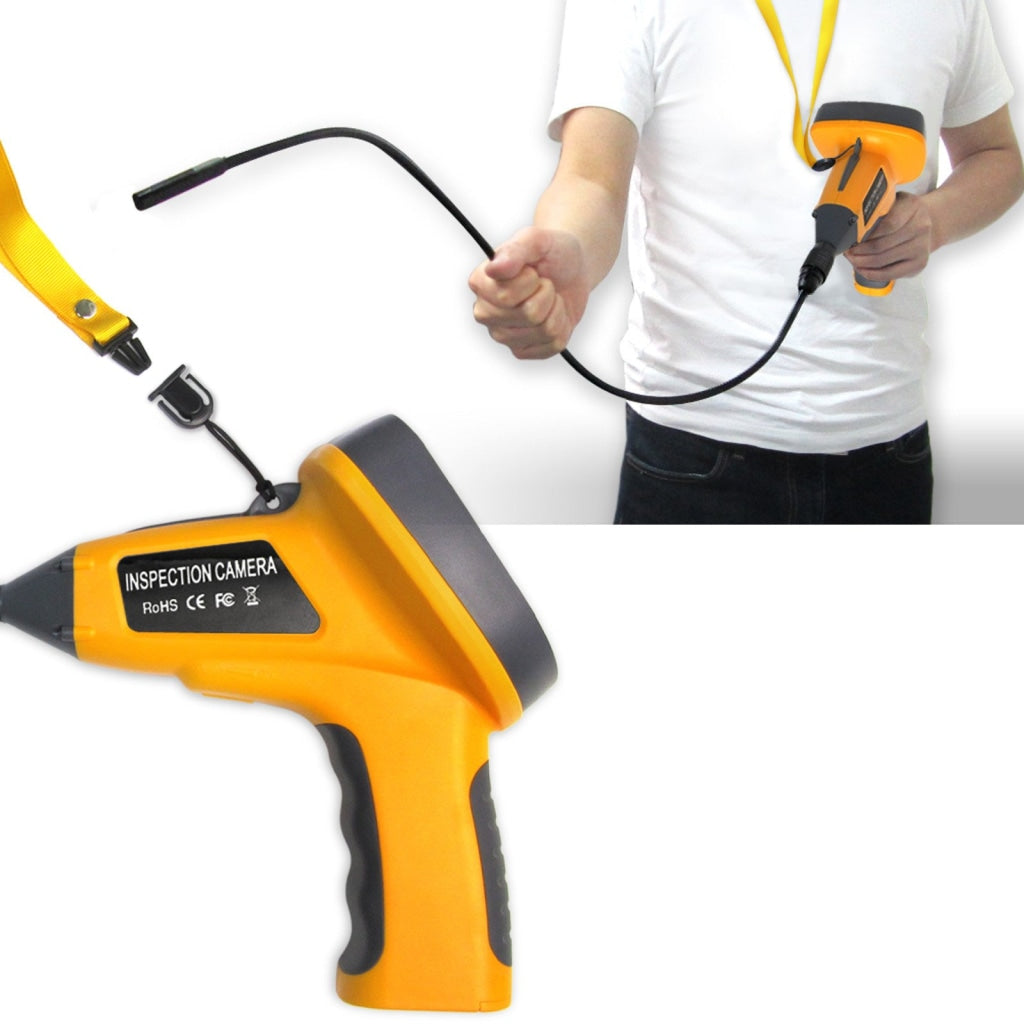

  • 1 x Hand-strap
  • 1 x Mirror Tip
  • 1 x Magnet Tip
  • 1 x Hook Tip
  • 1 x Tiny Screw
  • 1 x English User's Manual
  • 1 x Colored Paper Box



Optional Item(s): (not included in set):

          Please click here to buy this optional item   3m (9.9ft) extension cable

or you may contact us at sales(at)gainexpress.com if you want an optional items to be included in your order.
