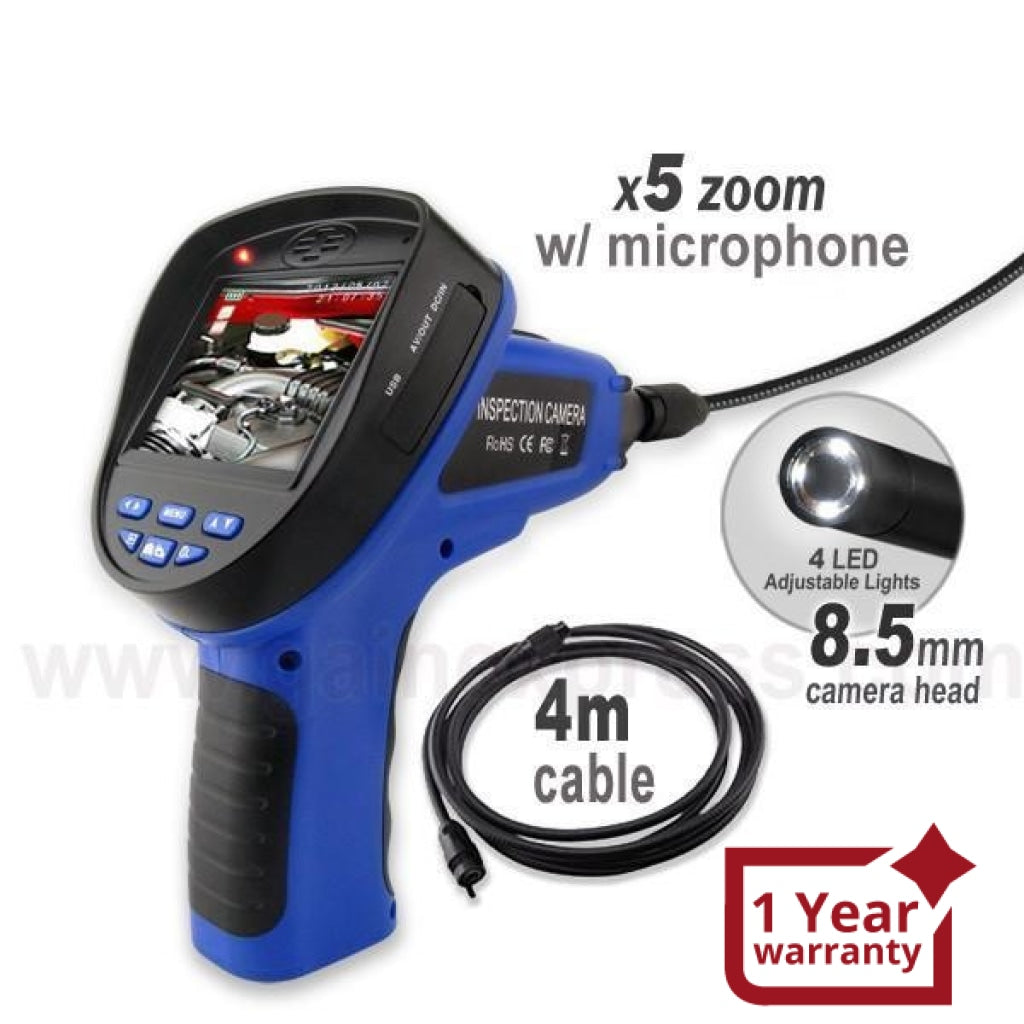

C0599E_4M_8.5mm Industrial 3.5 Endoscope 8.5mm dia. Video & Sound Recording Borescope w/ 4M cable

This product is currently sold out. Please contact us if will order in bulk.


Model : C0599E_4M_8.5mm

This 3.5" TFT LCD Industrial Endoscope (Visual Inspection Device) allows to investigate hard to reach area. It helps in diagnosing broken part, weld point and other work that would otherwise not easily accessible for direct inspection. The LCD screen can be rotated by 180° to adjust the angle of observation with increased visibility up to 5x magnification capacity making the process more convenient and easy.



Main features includes voice recording via built-in Mic, 720x480dpi still photo & Video D1 (AVI movie file output) and display resolution of  320 x 240 pixel . It also has an SD card Slot that supports up to 32GB and selectable NTSC & PAL format.



The standard 1m Flexible & removable tube have a waterproof level IP67 camera head with optimized Focal Length of 6cm, you can inspect area under water, gaps and holes effortlessly. Plus, it comes with 3M (9.9ft) extension cable so you have 4M cable in total length that allows you to extend the vision of inspection point.




Features

  • 3.5" TFT LCD Monitor 16.7M colors
  • Camera Lens Diameter : 8.5mm
  • Ergonomic advanced design, flexible and convenient to use

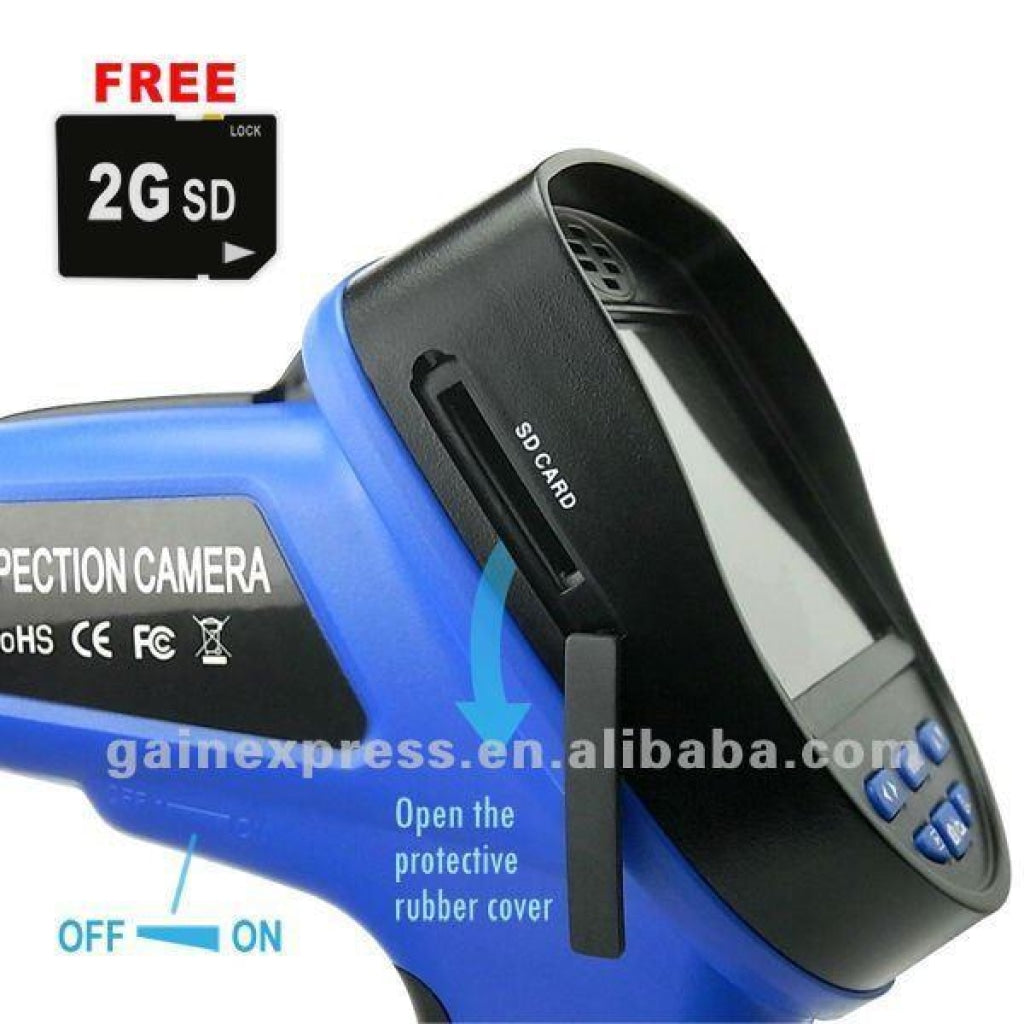

  • SD card slot (support up to 32GB)
  • Screen Display resolution:  320*240 pixels
  • Camera Head resolution:  640*480 pixels
  • Photo zoom in/zoom out: 5 times max capacity
  • With Composite TV Out with NTSC & PAL Format (Selectable)
  • Video with audio up to 720*480 pixels
  • Photo: Still shot and 3-Sequence Shots
  • Video: 1min auto stop recording & manual stop recording

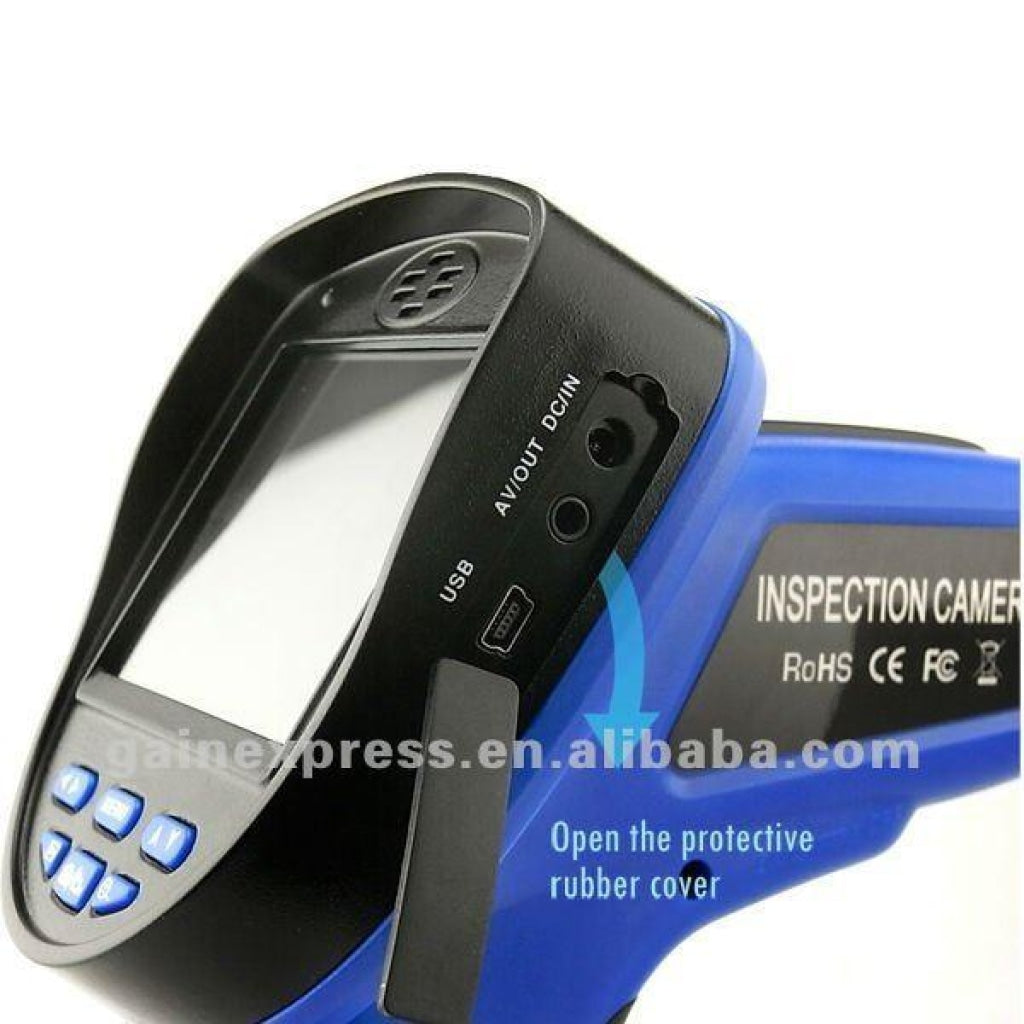

  • With USB Port for direct transfer of file to PC/Laptop
  • LCD Screen can be rotated up to 180°

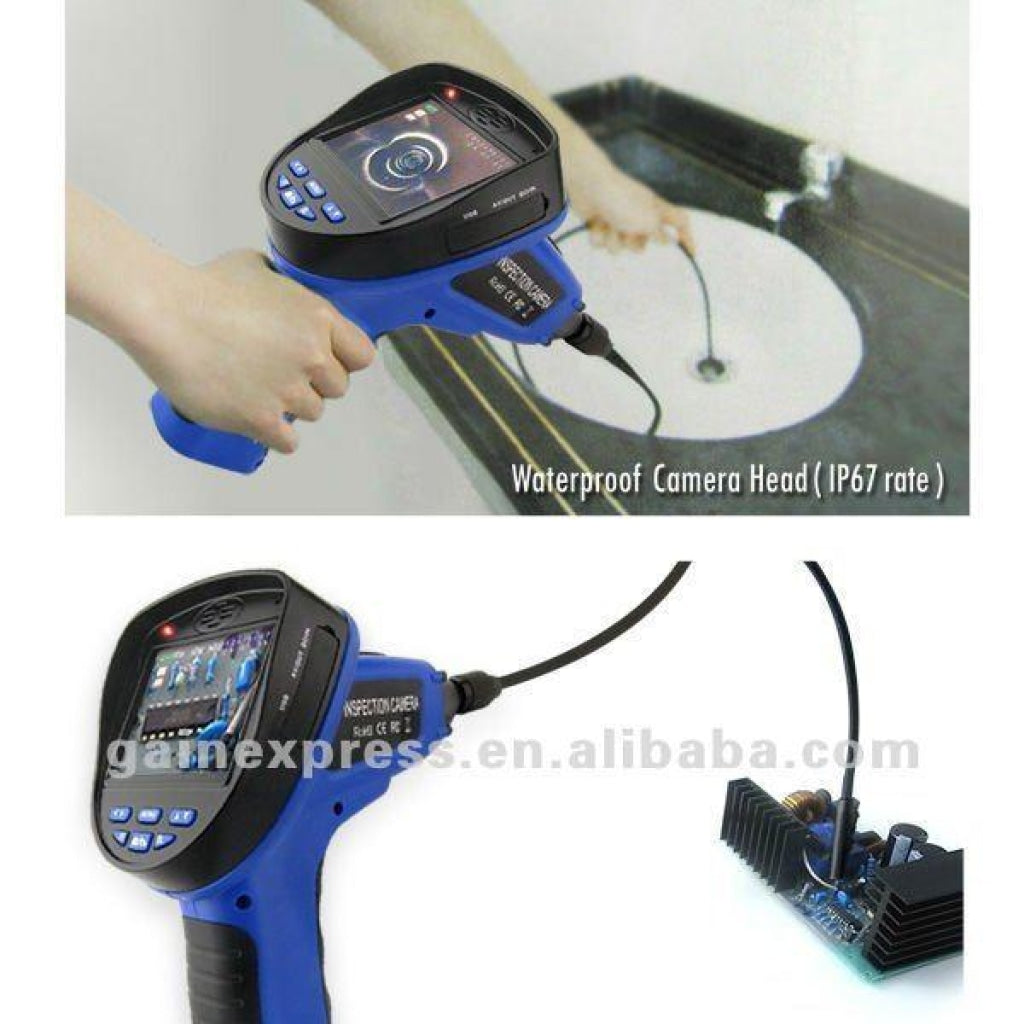

  • With IP67 waterproof level rating
  • Language Selection: English, German, Chinese
  • SD card indicators: lock, unlock or disk full
  • Battery life indicator
  • Real-Time stamp for video & photo
  • With Built-in Microphone for recording analysis via voice
  • With Playback Mode
  • Additional 3m extension cable (included in the set)





Specifications

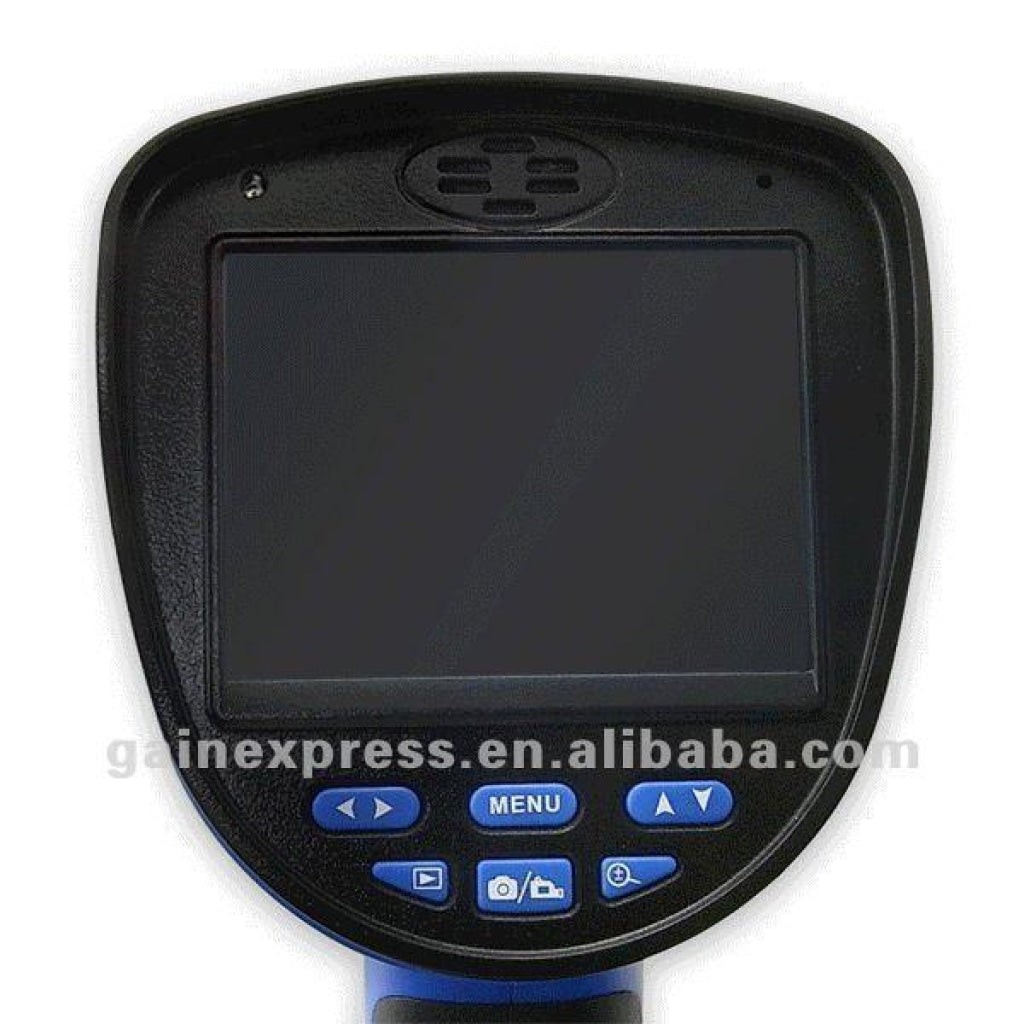

  • 3.5" TFT LCD Screen
  • Camera unit: Water Splash Resistance (IP67)
  • Camera Head:
    • Lens Diameter: 8.5mm
    • Removable Tube Diameter: 6.5mm
    • Tube length: 4M Cable (1m Camera Tube + 3m Extension Cable)
    • Image Sensor: 1/9" VGA CMOS
    • Resolution:  640*480; 0.32M pixels
    • Max. Image Transfer Rate: 30fps for VGA
    • Sensitivity: 1.3V/(Lux. sec)
    • Focal point is from 2~15cm but the best image quality is at 6cm
  • File Format :
    • Photo : JPEG
    • Video : JPEG AVI
  • Resolution:
    • Image -  720 x 480 pixel
    • Video (w/audio) - up to D1 720 x 480 pixels resolution @ 30fps
  • Zoom In/Out (Max. 5X)
  • 4 dimmable LED lights
  • Interface:
    • SD Card (up to 32GB SDHC)
    • USB 1.1 (compatible to USB 2.0)
    • Composite Video out
  • NTSC/PAL Video Out changeable
  • OSD Language : English (Default), German and Chinese

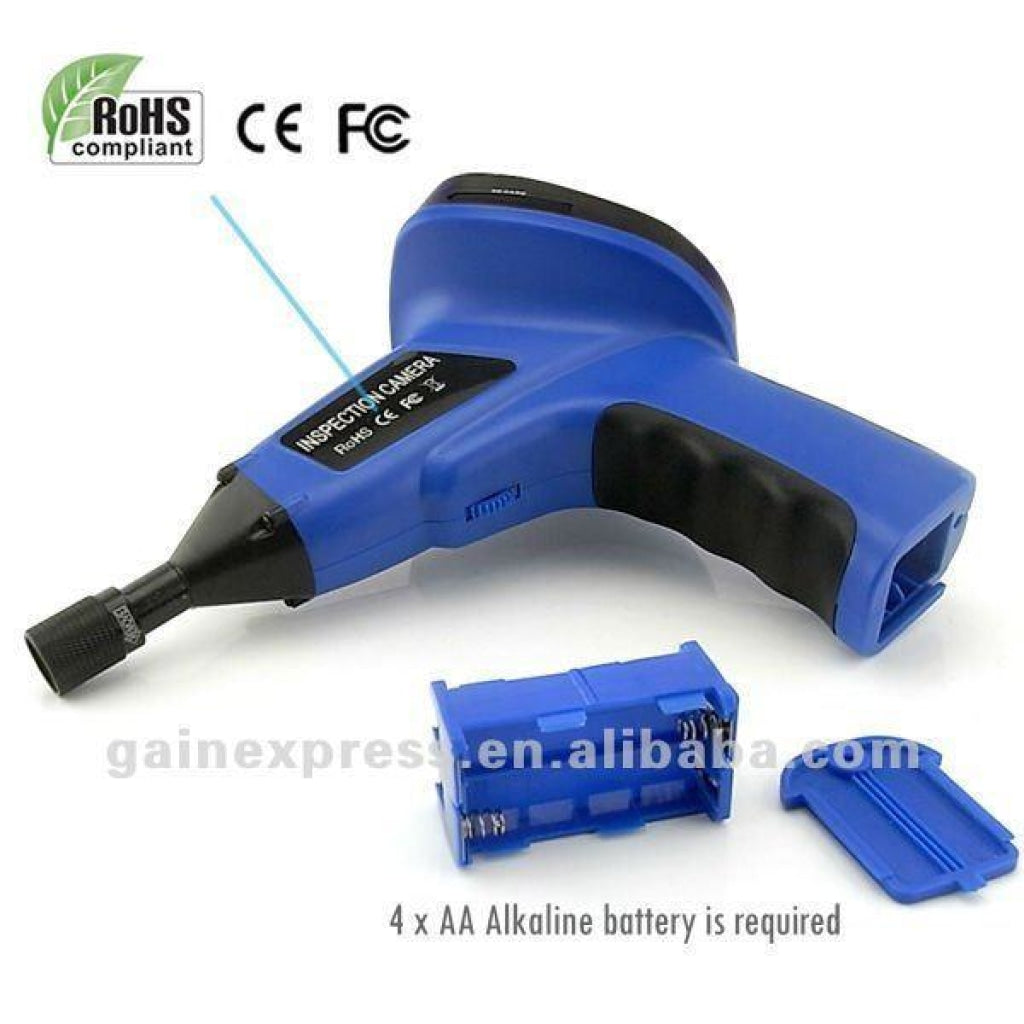

  • Battery: 4 x 1.5 AA type Alkaline Batteries (not included)

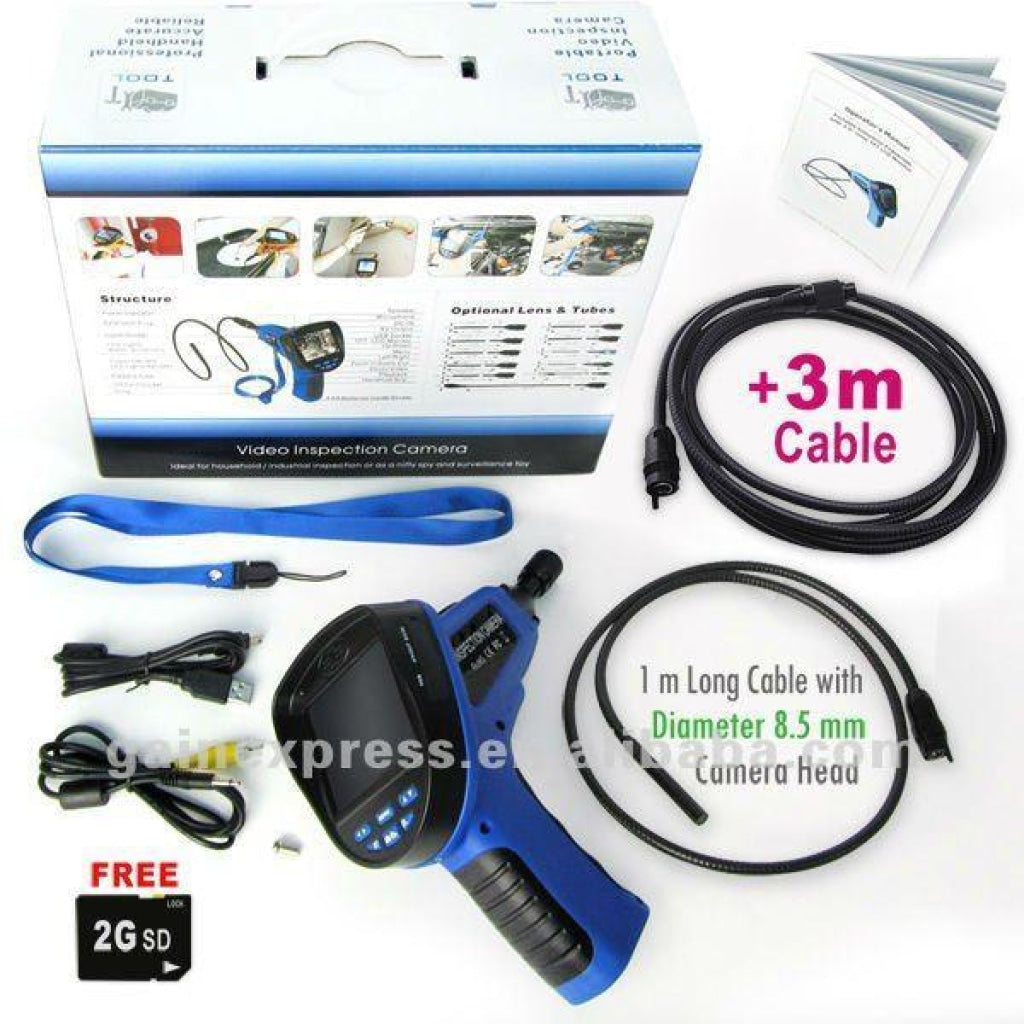

Set includes

  • 1 x Handheld Industrial Recording Endoscope with Mic & Speaker
  • 1 x Standard 1m Flexible Tube w/ 8.5mm dia. Waterproof Camera Head

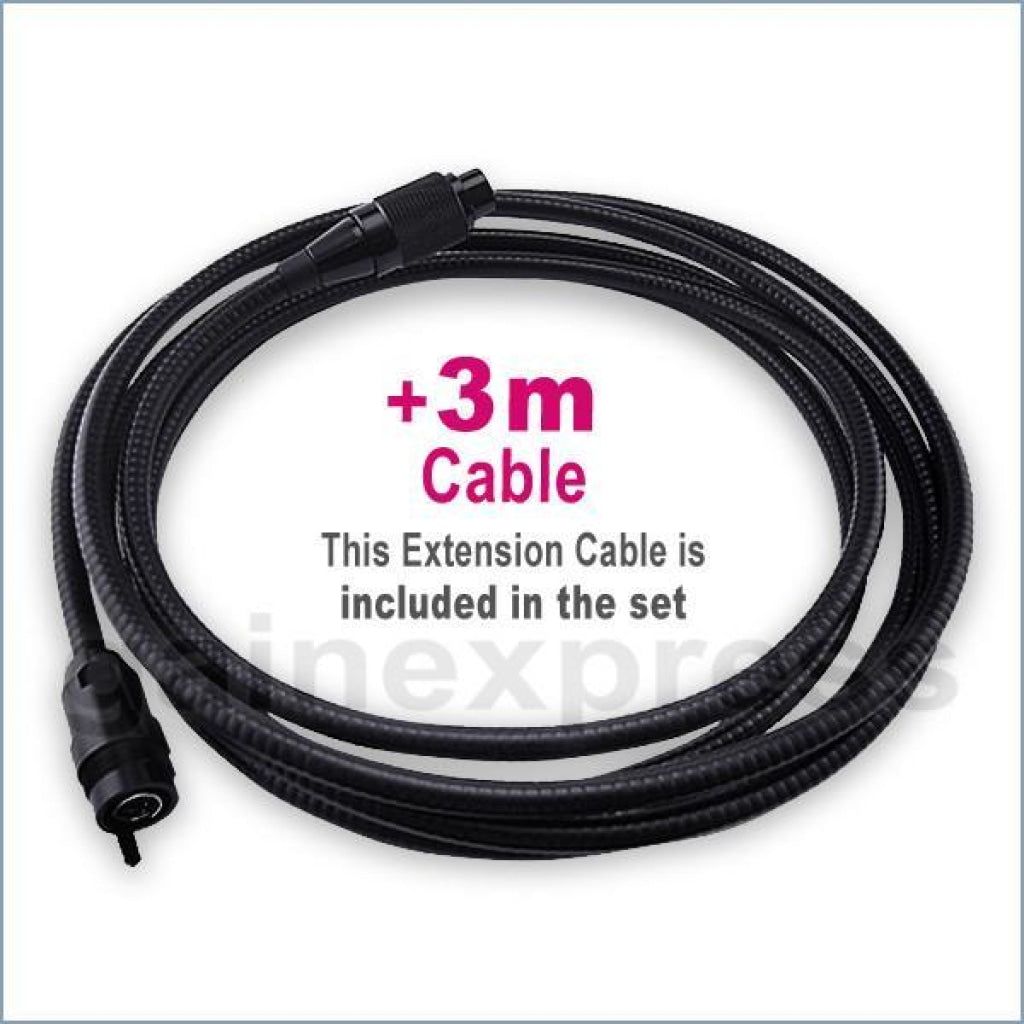

  • 1 x 3m (9.9 ft) Extension Cable (FREE)
  • 1 x 2GB memory SD card (FREE)
  • 1 x AV out / Video Cable
  • 1 x USB Cable

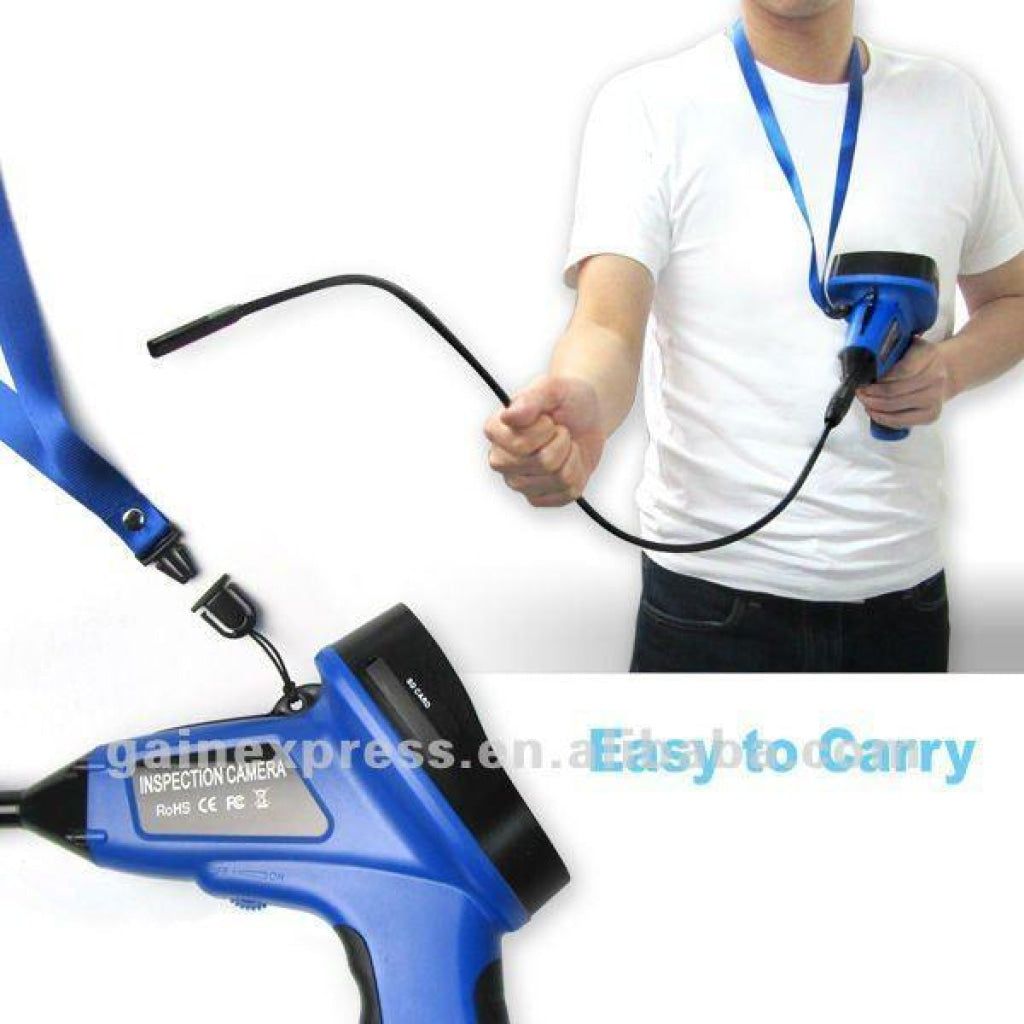

  • 1 x Hand-strap
  • 1 x Tiny Screw
  • 1 x User's Manual
  • 1 x Standard Paper Gift Box
