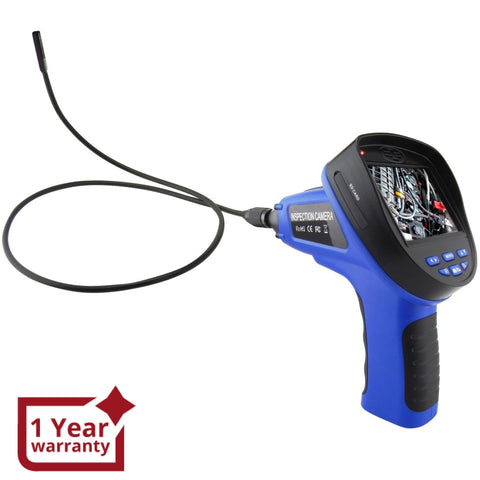

C0599E_1M_8.5mm Industrial Endoscope 3.5" LCD Monitor, 1M 8.5mm Inspection Camera 4 LED Light 2GB Card, Video Recording Borescope

Save 30%

Quantity
  OR


Model : C0599E_1M_8.5mm

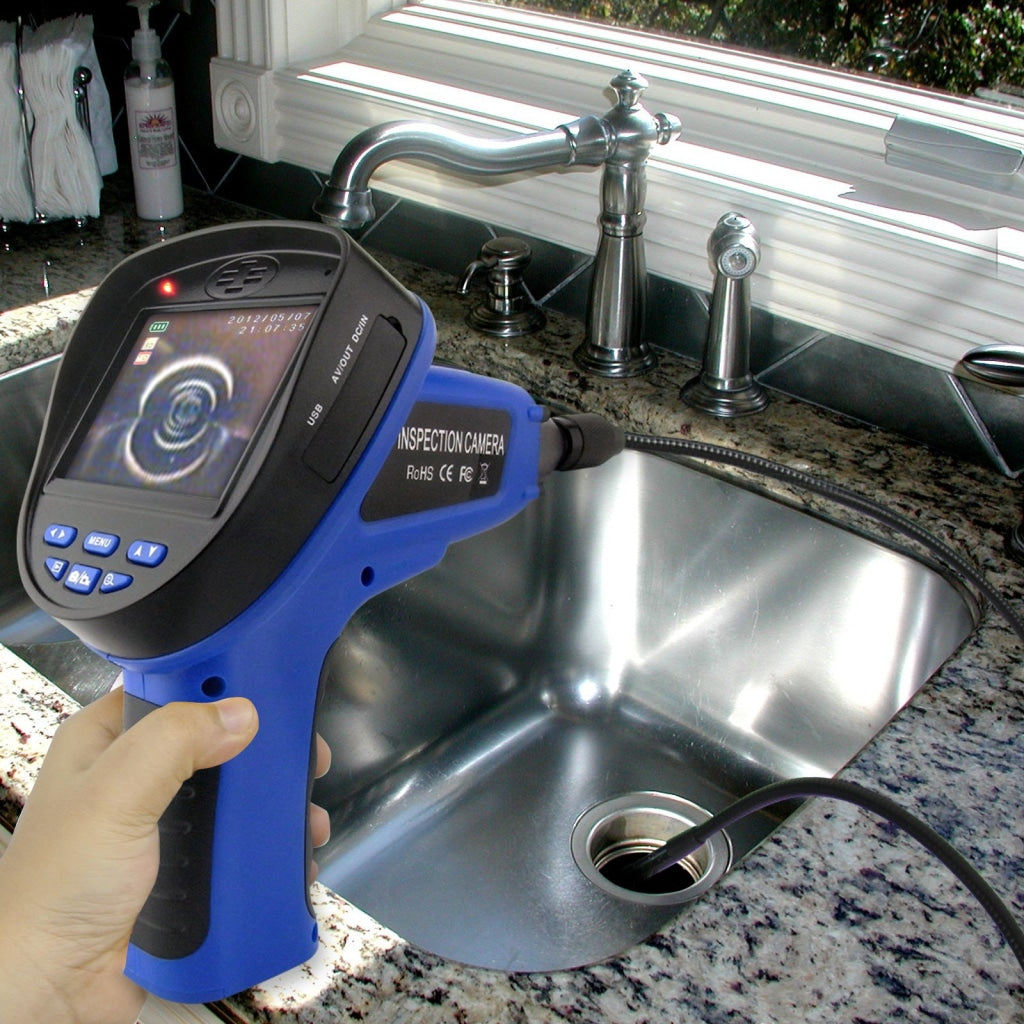

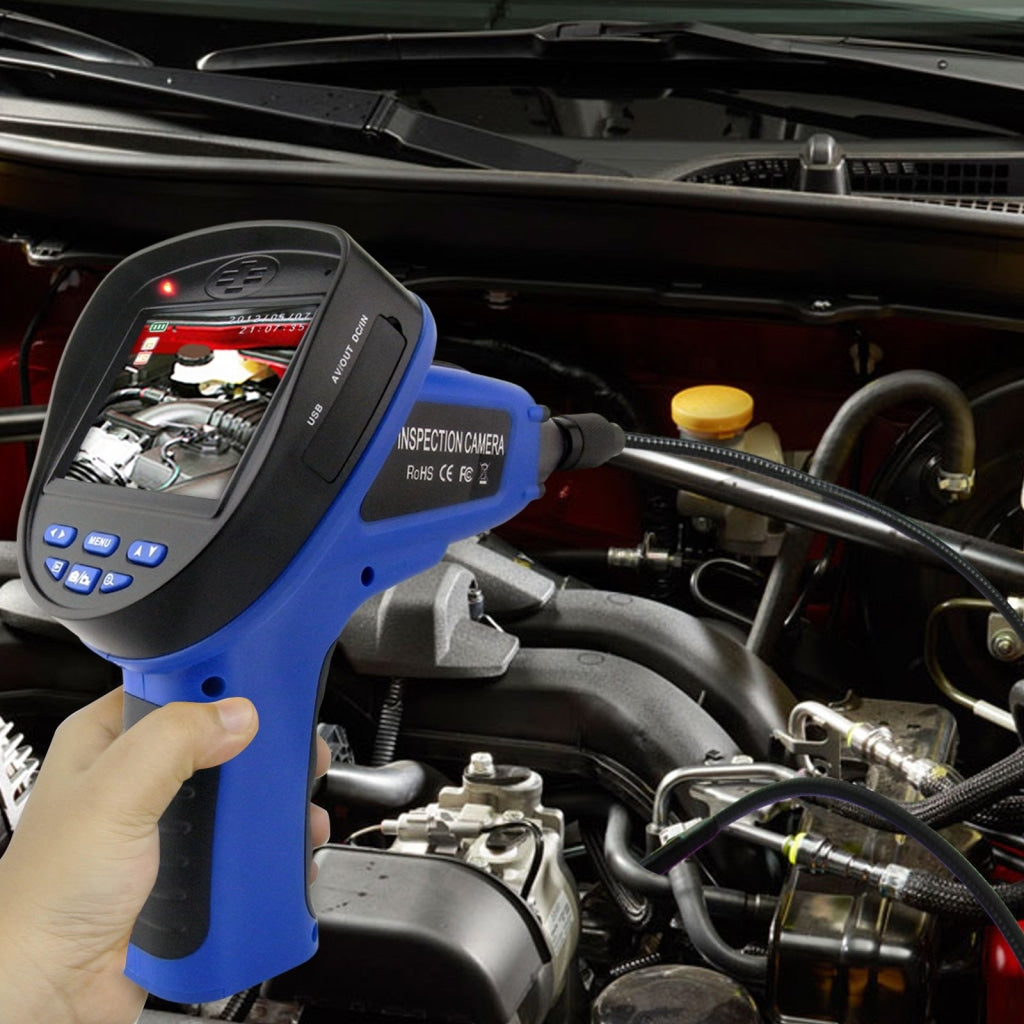

This 3.5" TFT LCD Industrial Endoscope (Visual Inspection Device) allows to investigate hard to reach area. It helps in diagnosing broken part, weld point and other work that would otherwise not easily accessible for direct inspection. The LCD screen can be rotated by 180° to adjust the angle of observation with increased visibility up to 5x magnification capacity making the process more convenient and easy.

Features:

  • Ergonomic advanced design
  • Screen Display resolution :   320*240 pixels
  • Photo : Still shot and 3-Sequence Shots
  • Video : 1min auto stop recording & manual stop recording

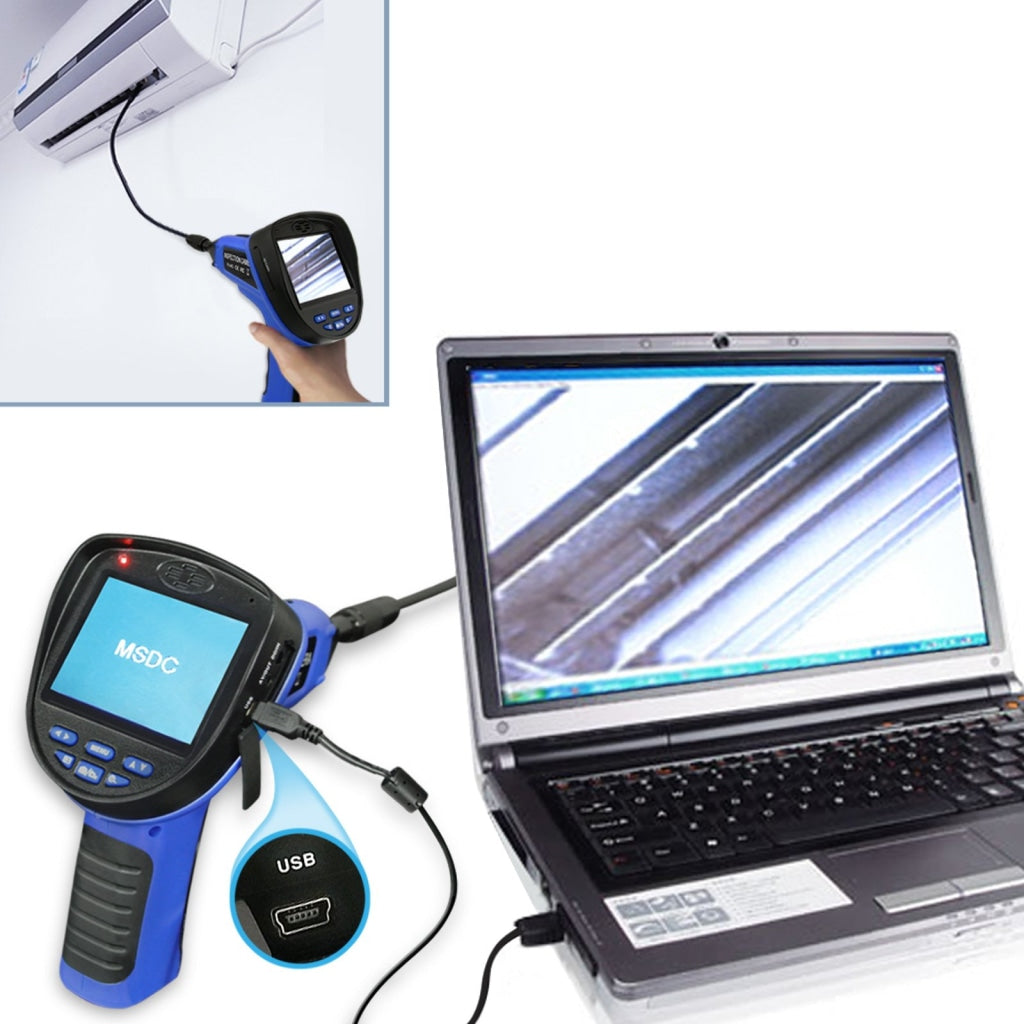

  • With USB Port for direct transfer of file to PC/Laptop
  • With IP67 waterproof level rating
  • Battery life indicator
  • Real-Time stamp for video & photo
  • With Built-in Microphone
  • With Playback Mode

Specifications

  • 3.5" TFT LCD Screen
  • Camera unit: Water Splash Resistance (IP67)
  • Camera Head :
    • Lens Diameter : 8.5mm
    • Removable Tube Diameter : 6.5mm
    • Tube lenght : 1M Cable
    • Image Sensor : 1/9" VGA CMOS
    • Resolution :  640*480; 0.32M pixels
    • Max. Image Transfer Rate : 30fps for VGA
    • Sensitivity : 1.3V/(Lux. sec)
    • Focal point is from 2~15cm but the best image quality if at 6cm
  • File Format :
    • Image : JPEG
    • Video : JPEG AVI
  • Resolution :
    • Image - 720 x 480 pixel
    • Video (w/audio) - up to D1 720 x 480 pixels resolution @ 30fps
  • Zoom In/Out (Max. 5X)
  • 4 dimmable LED lights

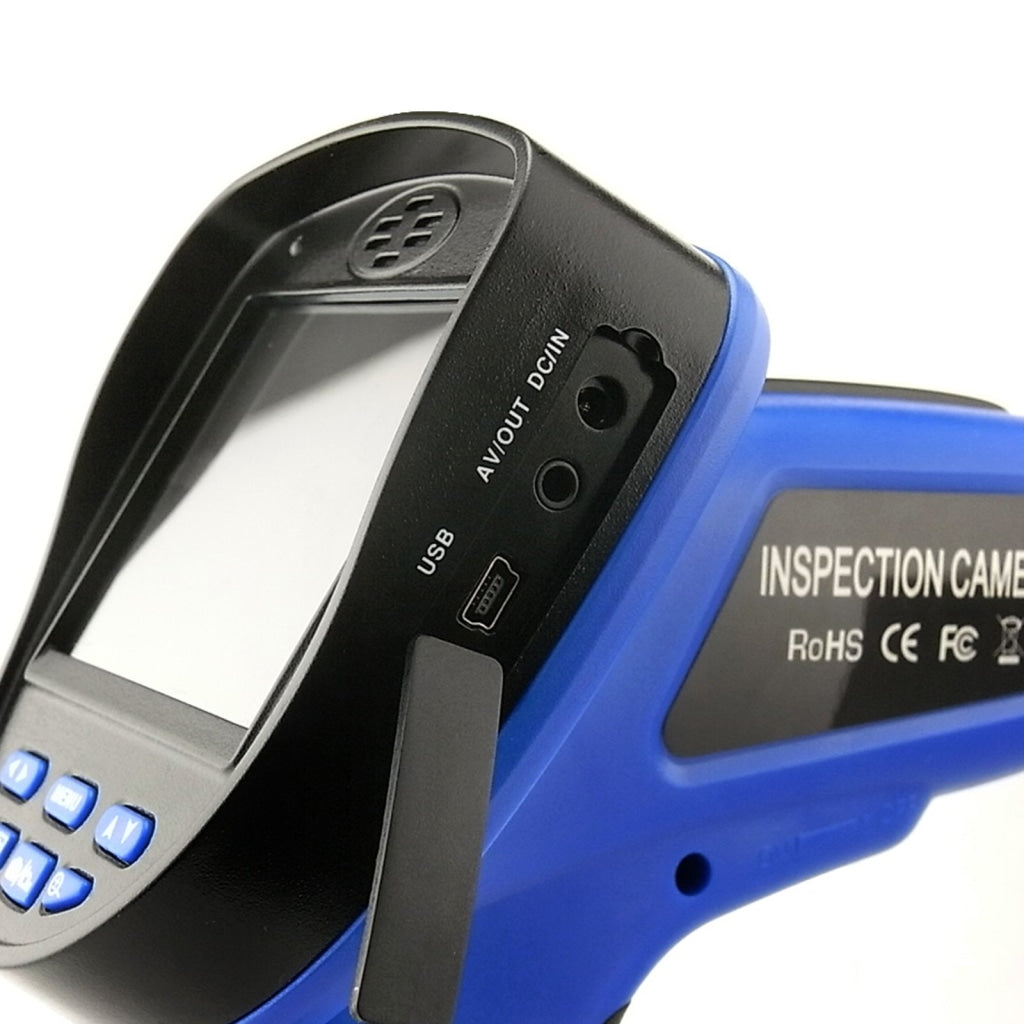

  • Interface :

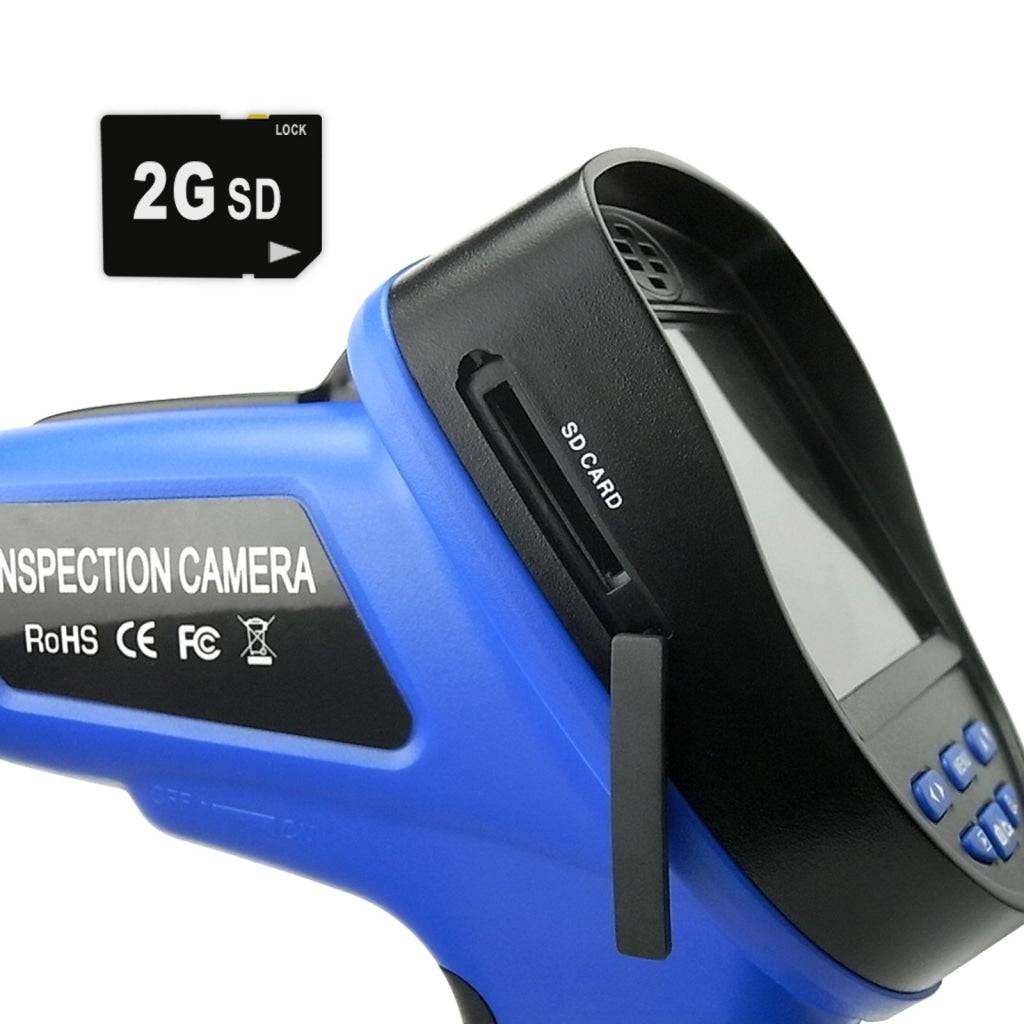

    • SD Card (up to 32GB SDHC)
    • USB 1.1 (compatible to USB 2.0),
    • Composite Video out
  • NTSC/PAL Video Out changeable
  • OSD Language : English (Default), German and Chinese

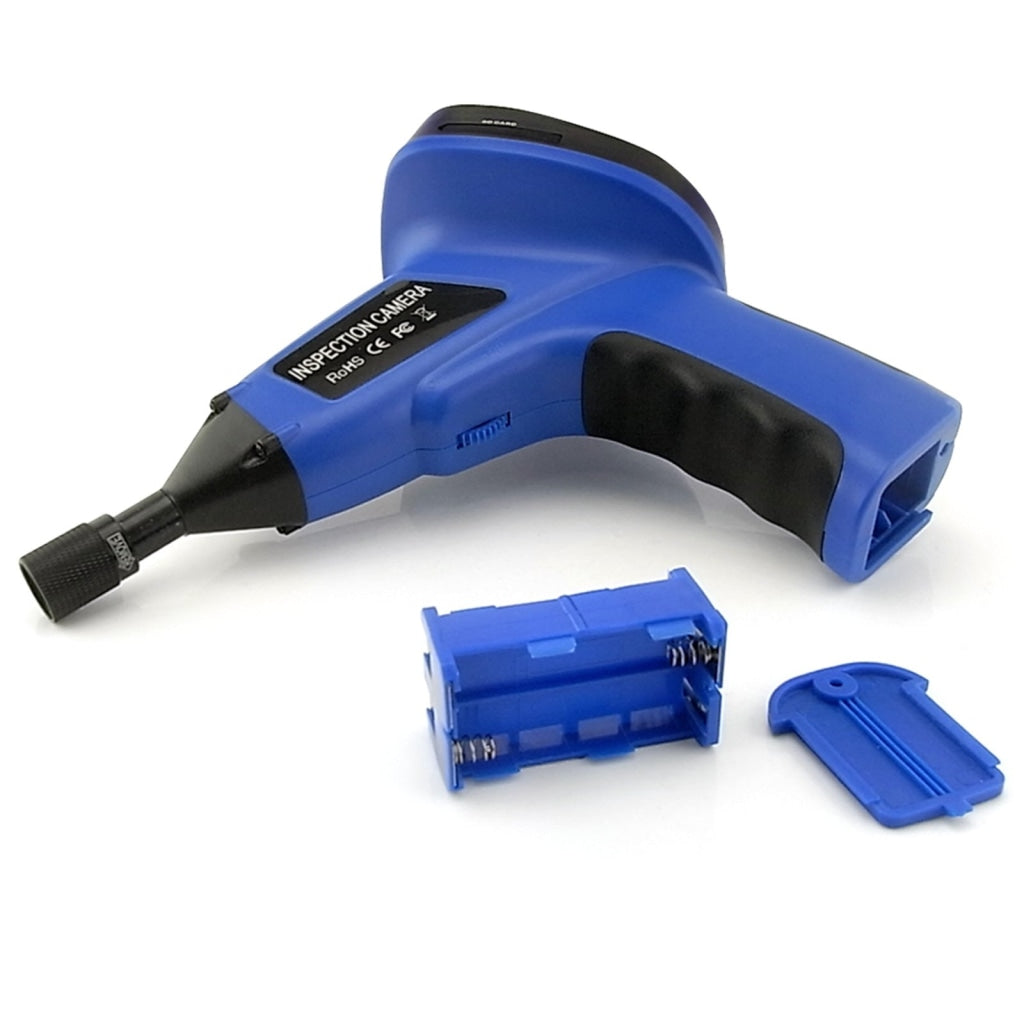

  • Battery : 4 x 1.5 AA type Alkaline Batteries (not included)

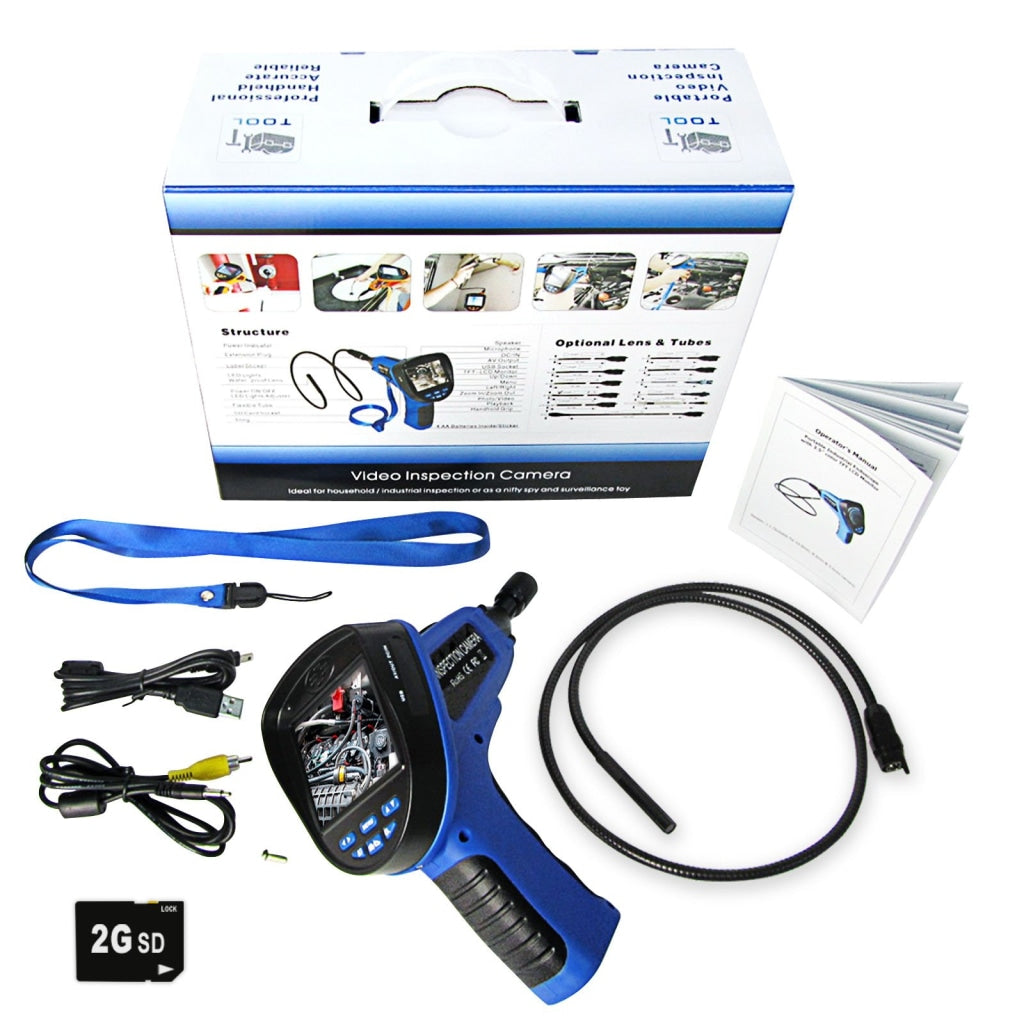

Set Includes

  • 1 x Industrial Recording Endoscope with Mic & Speaker
  • 1 x Standard 1m Flexible Tube w/ 8.5mm dia.
  • 1 x 2GB memory SD card (FREE)
  • 1 x AV out / Video Cable
  • 1 x USB Cable

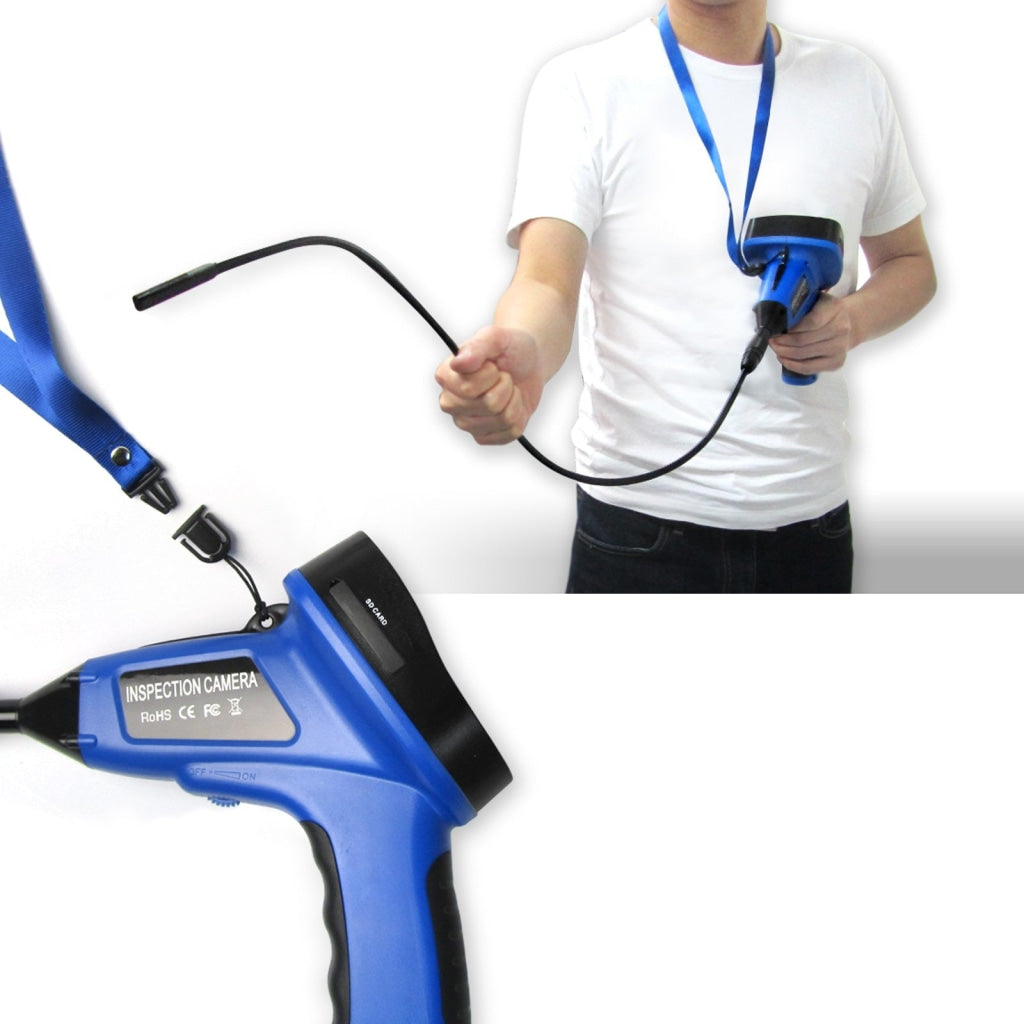

  • 1 x Hand-strap
  • 1 x Tiny Screw
  • 1 x English User's Manual
