C0599E_1M_5.5mm Industrial 3.5 Endoscope 5.5mm Camera Video & Sound Recording Borescope w/ Mic

This product is currently sold out. Please contact us if will order in bulk.


Model : C0599E_1M_5.5mm

This 3.5" TFT LCD Industrial Endoscope (Visual Inspection Device) comes with a much smaller & thinner 5.5mm camera head. It allows to investigate into a smaller & slimmer hard-to-reach area to help in diagnosing broken part, weld point and other work that would otherwise not easily accessible for direct inspection. The LCD screen can be rotated by 180° to adjust the angle of observation with increased visibility up to 5x magnification capacity making the process more convenient and easy.

Main features includes voice recording via built-in Mic720x480dpi still photo & Video D1 (AVI movie file output) and display resolution of  320 x 240 pixel . It also has an SD card Slot that supports up to 32GB and selectable NTSC & PAL format.

The standard 1m Flexible & removable tube have a waterproof level IP67 camera head with optimized Focal Length of 6cm, you can inspect area under water, gaps and holes effortlessly.




Features

  • 3.5" TFT LCD Monitor 16.7M colors
  • Camera Lens Diameter : 5.5mm
  • Allows for easy surveying of small,hard-to-reach places
  • Ergonomic advanced design, flexible and convenient to use

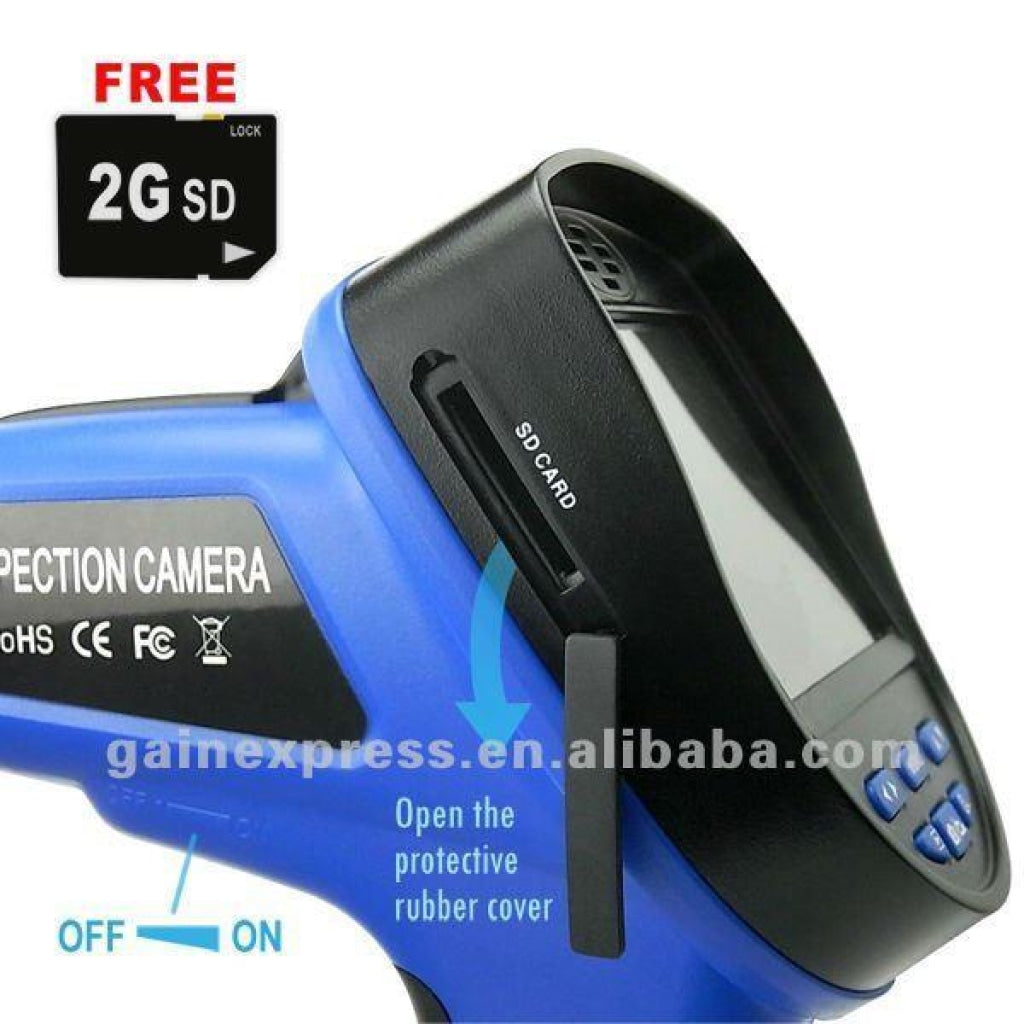

  • SD card slot (support up to 32GB)
  • Display resolution :  320*240 pixels
  • Camera Head resolution :  640*480 pixels
  • Photo zoom in/zoom out: 5 times max capacity
  • With Composite TV Out with NTSC & PAL Format (Selectable)
  • Video with audio up to 720*480 pixels
  • Photo: Still shot and 3-Sequence Shots
  • Video: 1min auto stop recording & manual stop recording

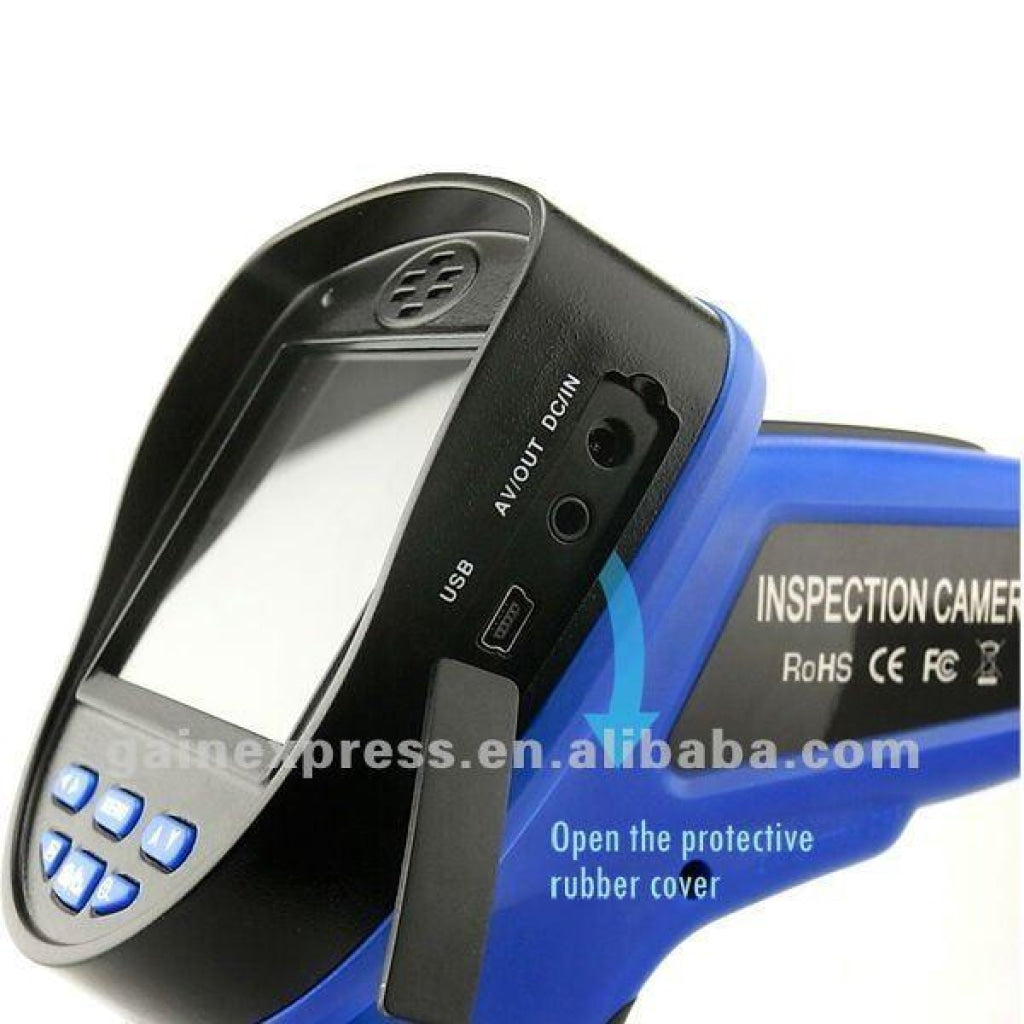

  • With USB Port for direct transfer of file to PC/Laptop
  • LCD Screen can be rotated up to 180°

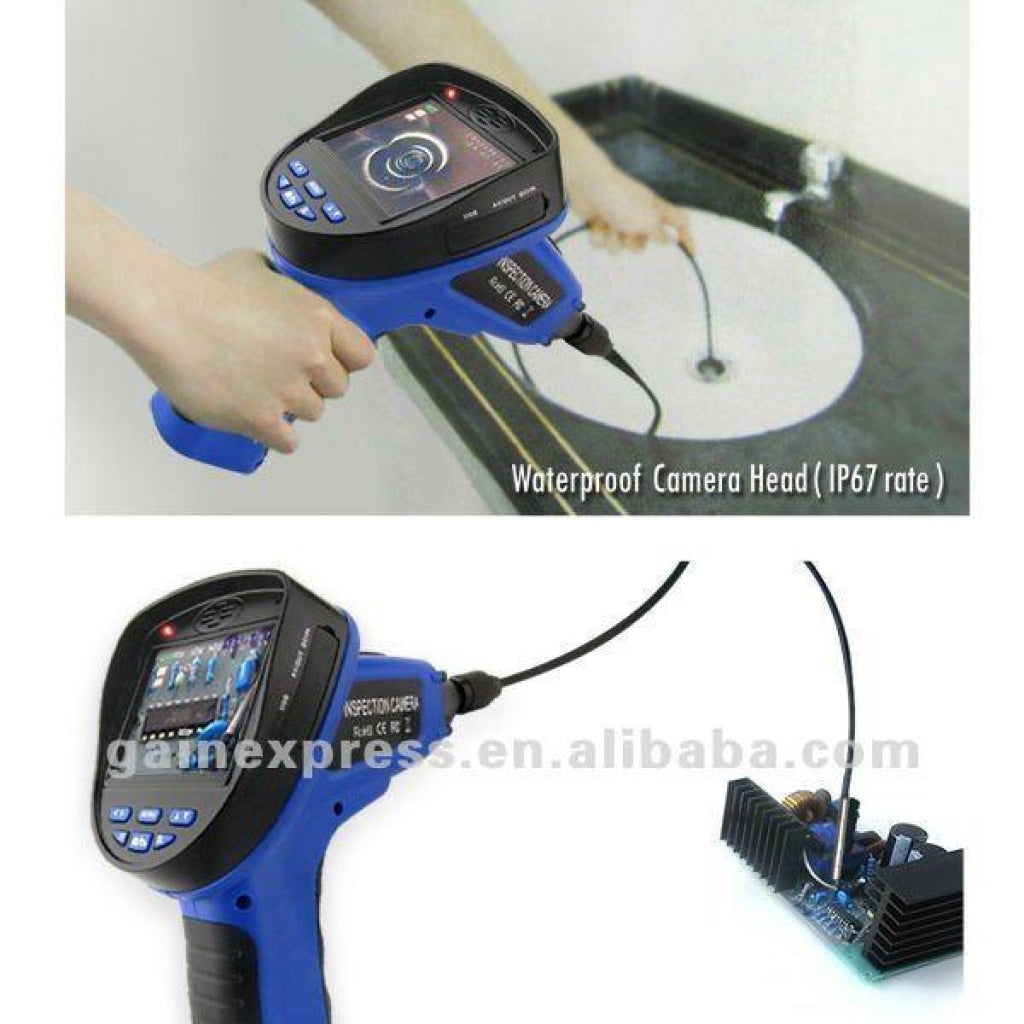

  • With IP67 waterproof level rating
  • Language Selection: English, German, Chinese
  • SD card indicators: lock, unlock or disk full
  • Battery life indicator
  • Real-Time stamp for video & photo
  • With Built-in Microphone for recording analysis via voice
  • With Playback Mode


Specifications

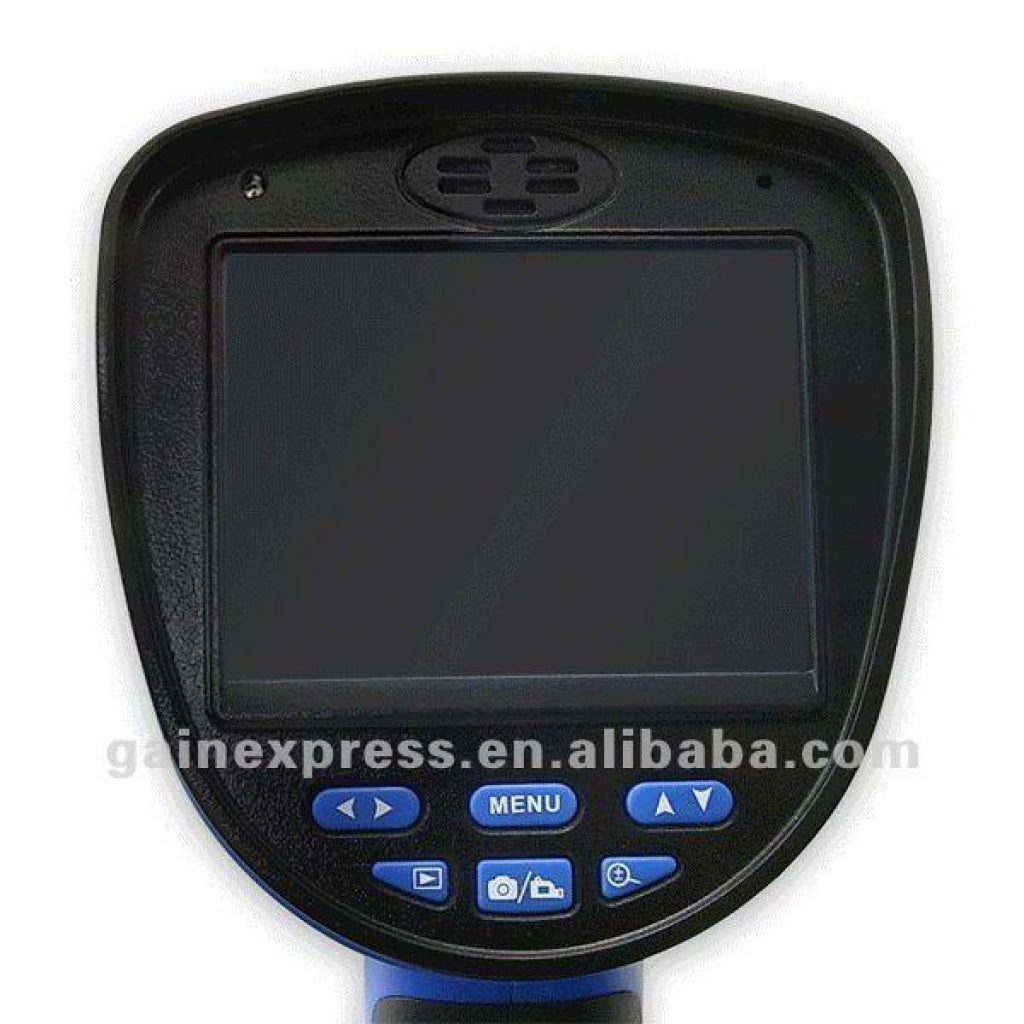

  • 3.5" TFT LCD Screen
  • Camera unit: Water Splash Resistance (IP67)
  • Camera Head :
    • Lens Diameter : 5.5mm
    • Removable Tube Diameter: 5mm
    • Tube length : 1M Cable
    • Image Sensor :  1/12" VGA CMOS
    • Resolution :  640*480; 0.32M pixels
    • Max. Image Transfer Rate : 30fps for VGA
    • Sensitivity : 1.3V/(Lux. sec)
    • Focal point is from 2~15cm but the best image quality is at 6cm
  • File Format :
    • Photo : JPEG
    • Video : JPEG AVI
  • Resolution :
    • Image -  720 x 480 pixel
    • Video (w/audio) - up to D1 720 x 480 pixels resolution @ 30fps
  • Zoom In/Out ( 5x Maximum )
  • 4 LED lights (adjustable brightness)
  • Interface :
    • SD Card (up to 32GB SDHC)
    • USB 1.1 (compatible to USB 2.0)
    • Composite Video out
  • NTSC/PAL Video Out changeable
  • OSD Language : English (Default), German and Chinese

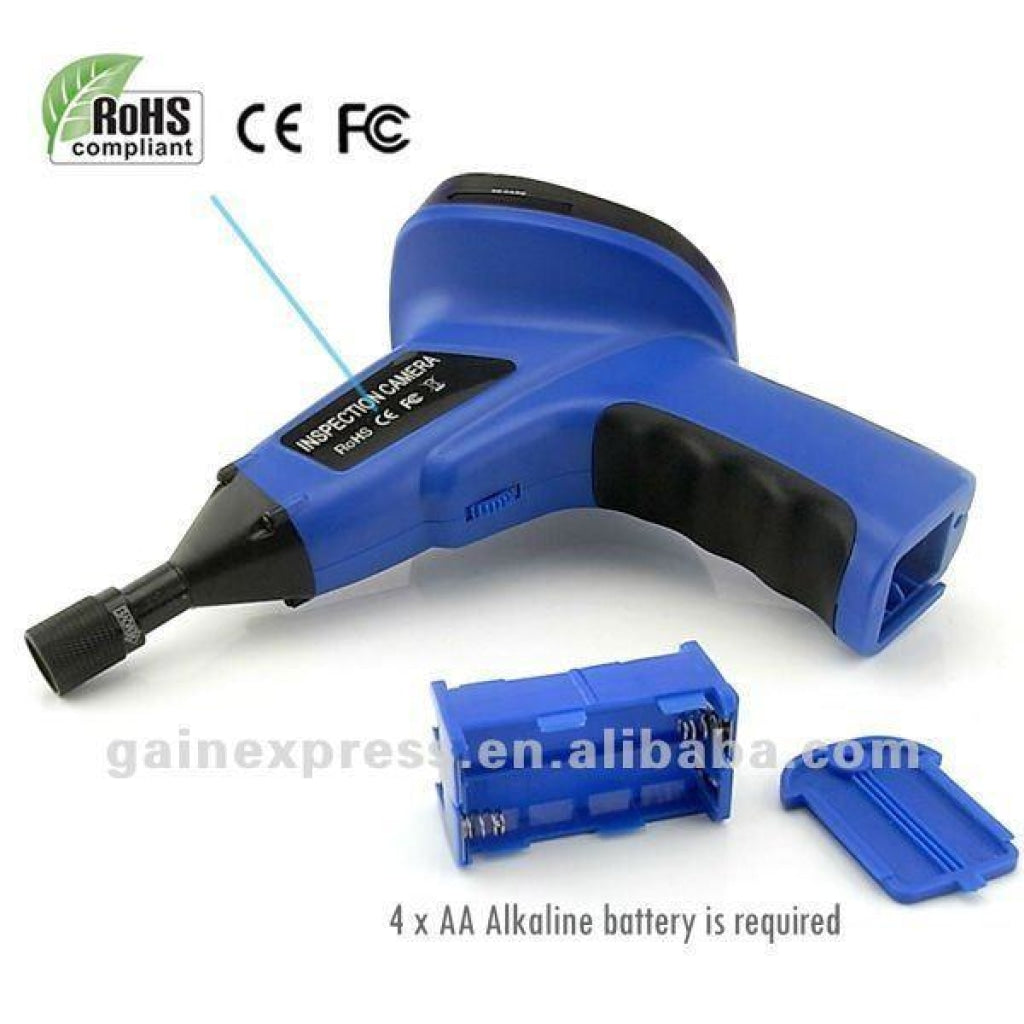

  • Battery : 4 x 1.5 AA type Alkaline Batteries (not included)

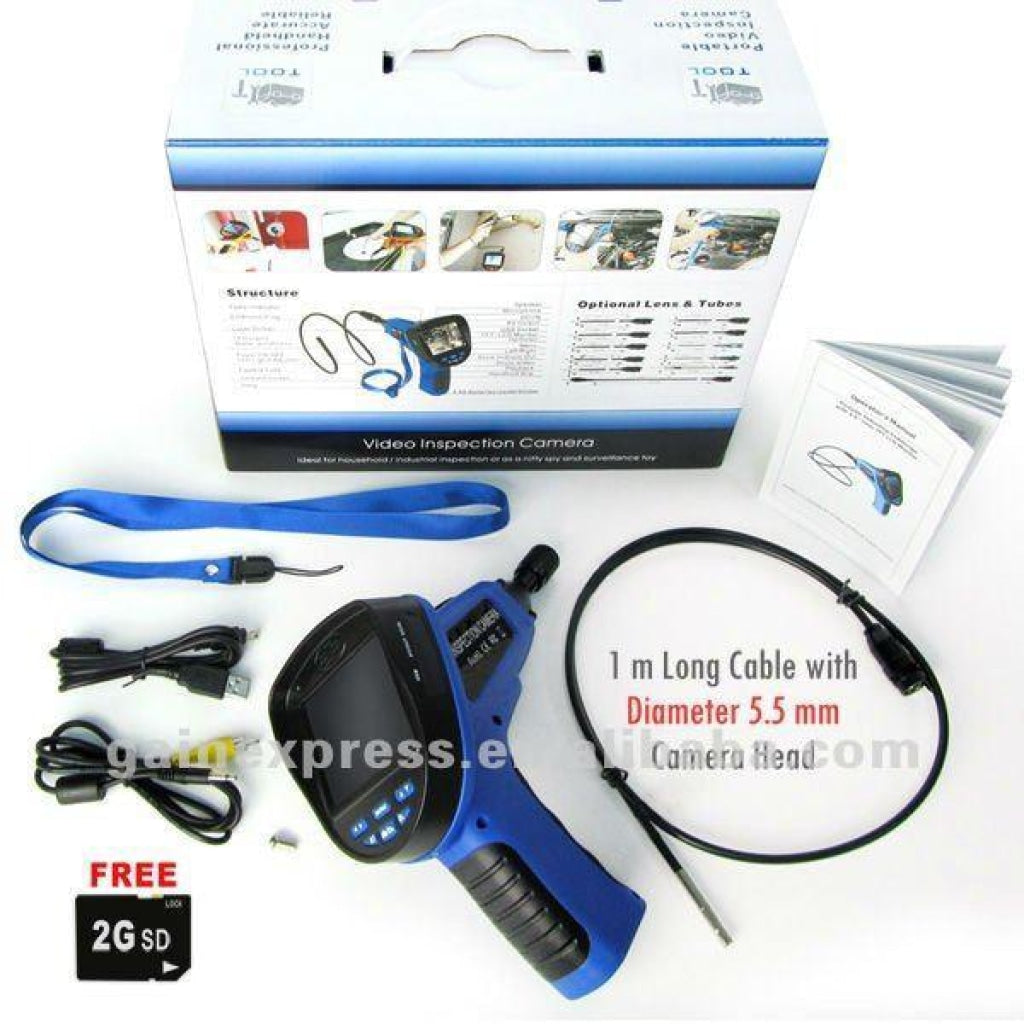

Set Includes

  • 1 x Handheld Industrial Recording Endoscope with Mic & Speaker
  • 1 x Standard 1m Flexible Tube w/ 5.5mm dia. Waterproof Camera Head
  • 1 x 2GB memory SD card (FREE)
  • 1 x AV out / Video Cable
  • 1 x USB Cable

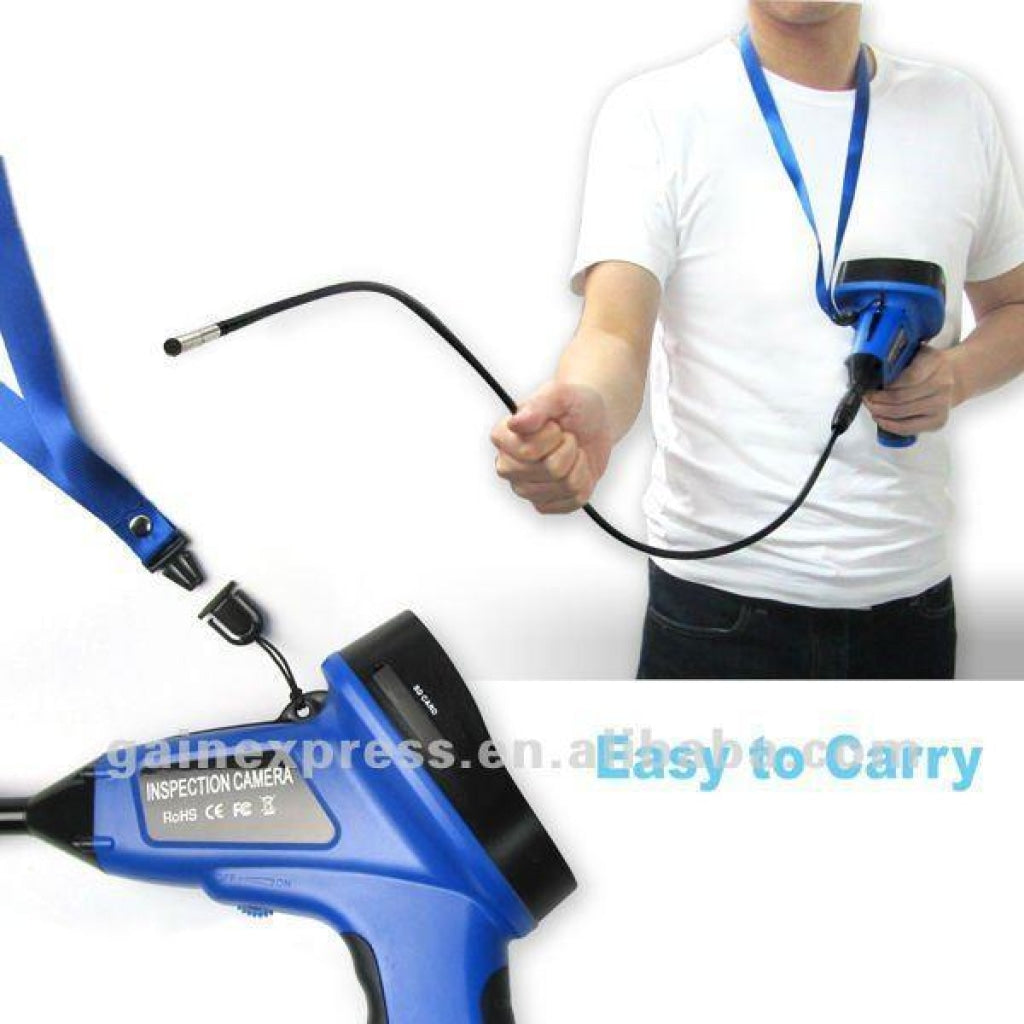

  • 1 x Hand-strap
  • 1 x Tiny Screw
  • 1 x User's Manual
  • 1 x Standard Paper Gift Box
