C0599D-5530L1 Handheld 2.4 inch Video Inspection 5.5mm Camera Endoscope 1M Cable 3 LED Borescope


Quantity
  OR


Model : C0599D-5530L1

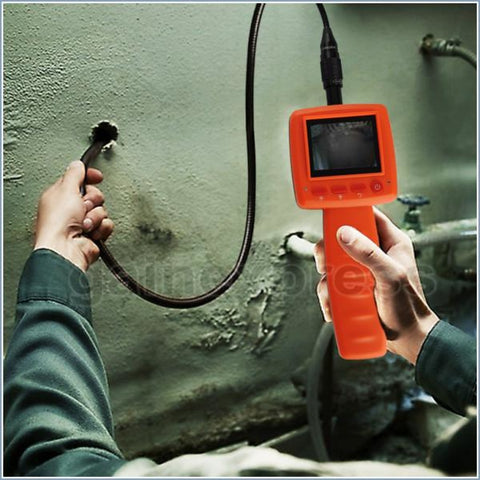

This Inspection Camera allows you to inspect hard-to-reach areas. It comes with a 2.4-inch TFT LCD monitor for easy reading. The LED light source allows adjustable illumination for easy finding and diagnosis. It has 90°, 180°, 270°, and 360° rotation capabilities and LCD screen can be brighten according to user's preference.

It has horizontal viewing angle of the camera 54°. In addition, you can inspect under water with the waterproof 5.5mm camera head (IP67 rate waterproof level).



Features:

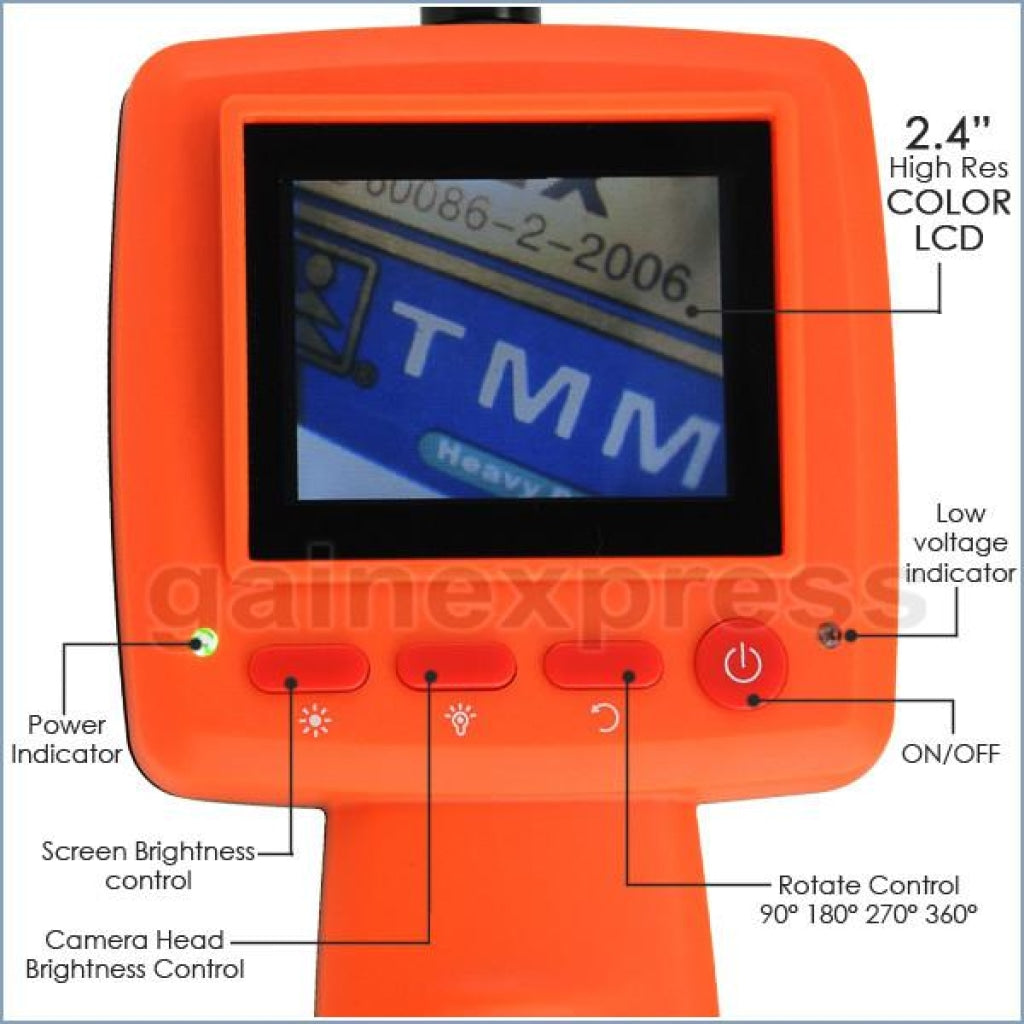

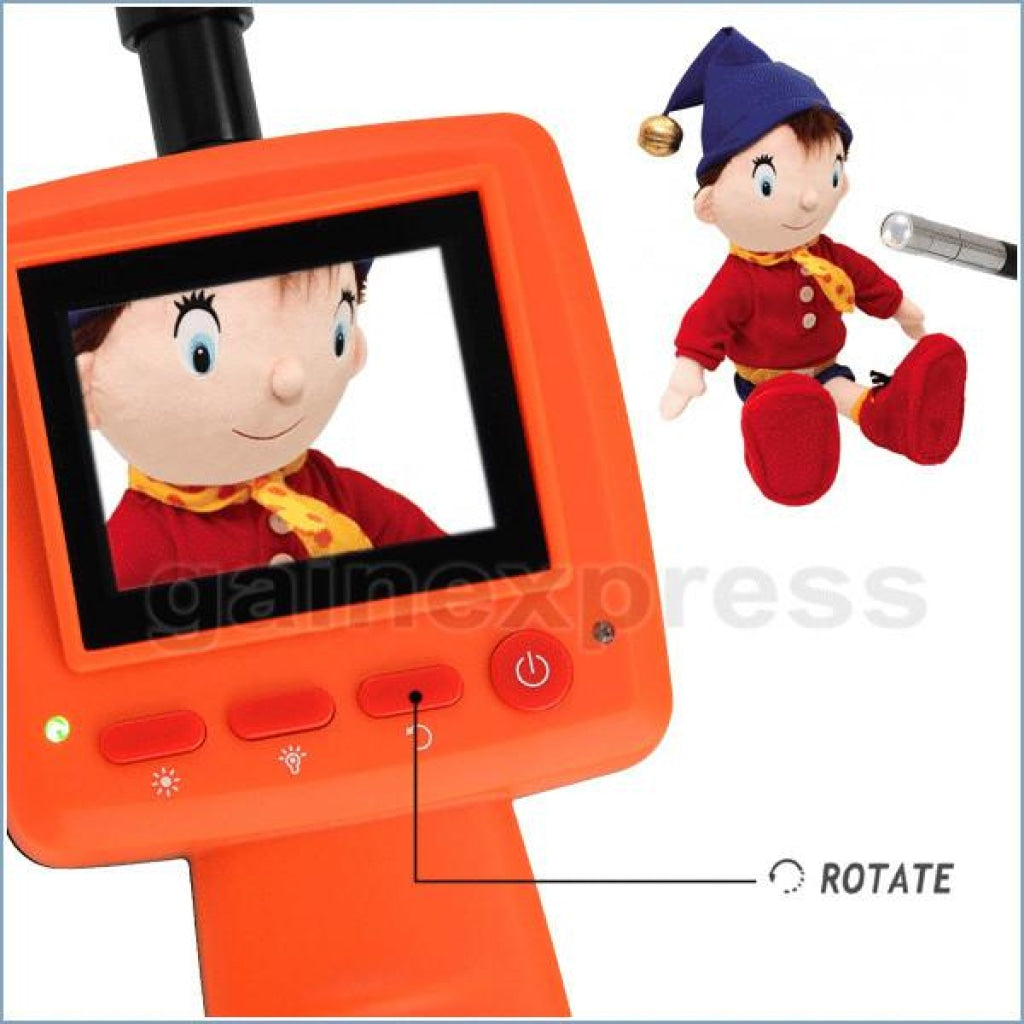

  • Image can be rotated to 90°, 180°, 270° and 360°

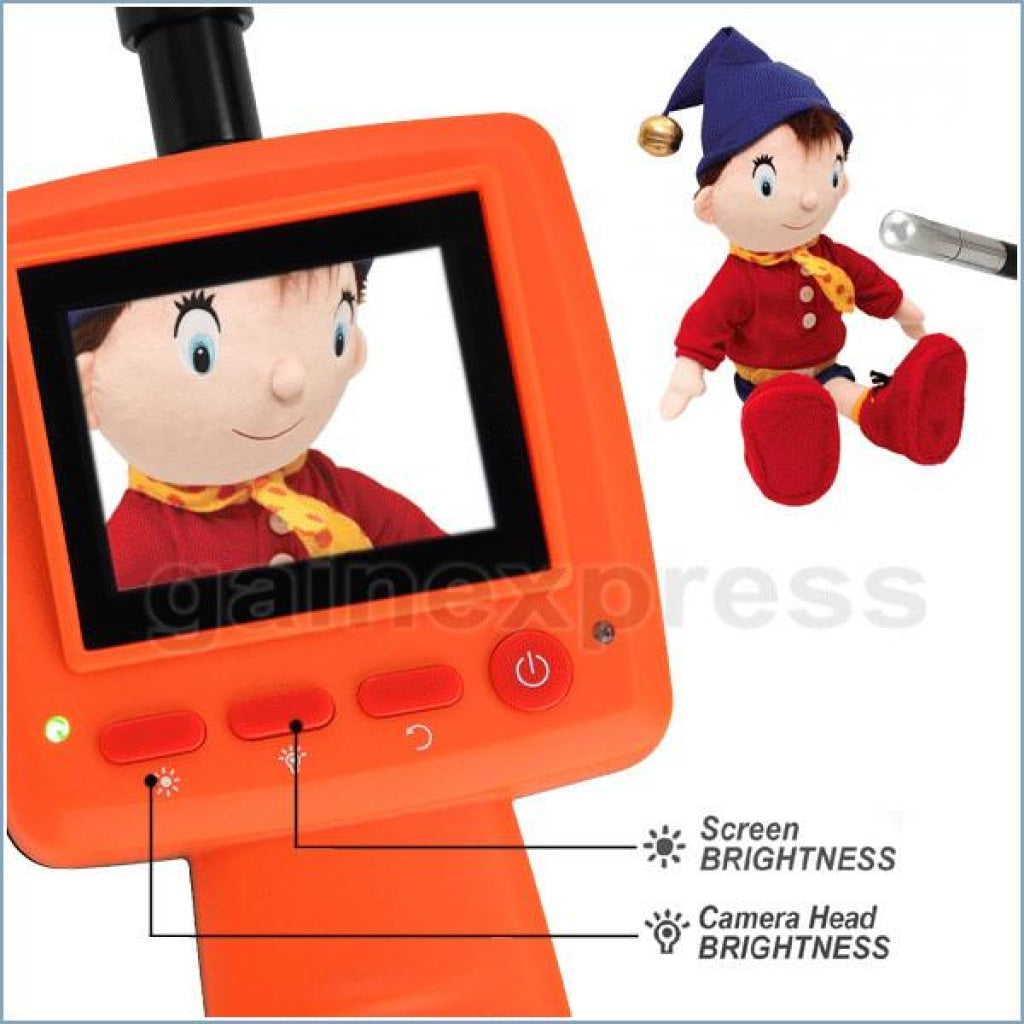

  • LCD brightness can be controlled

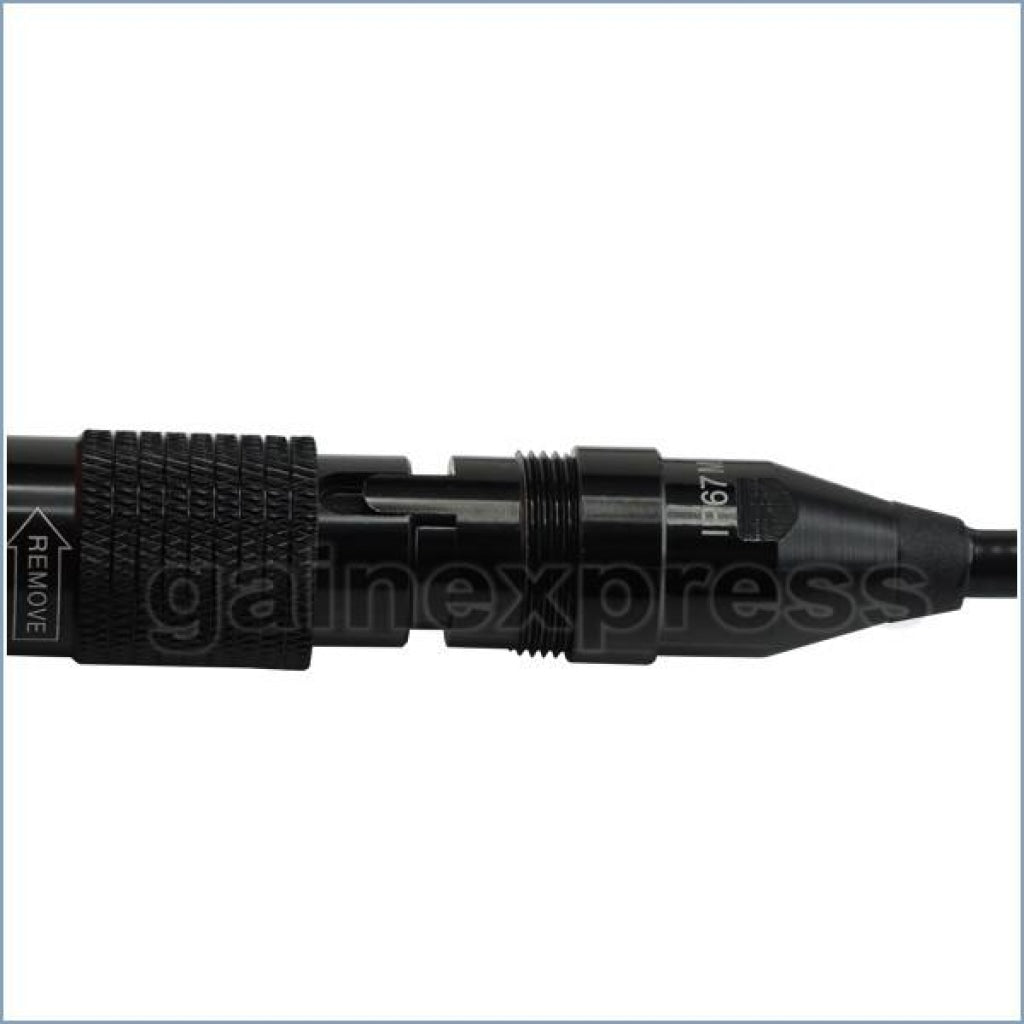

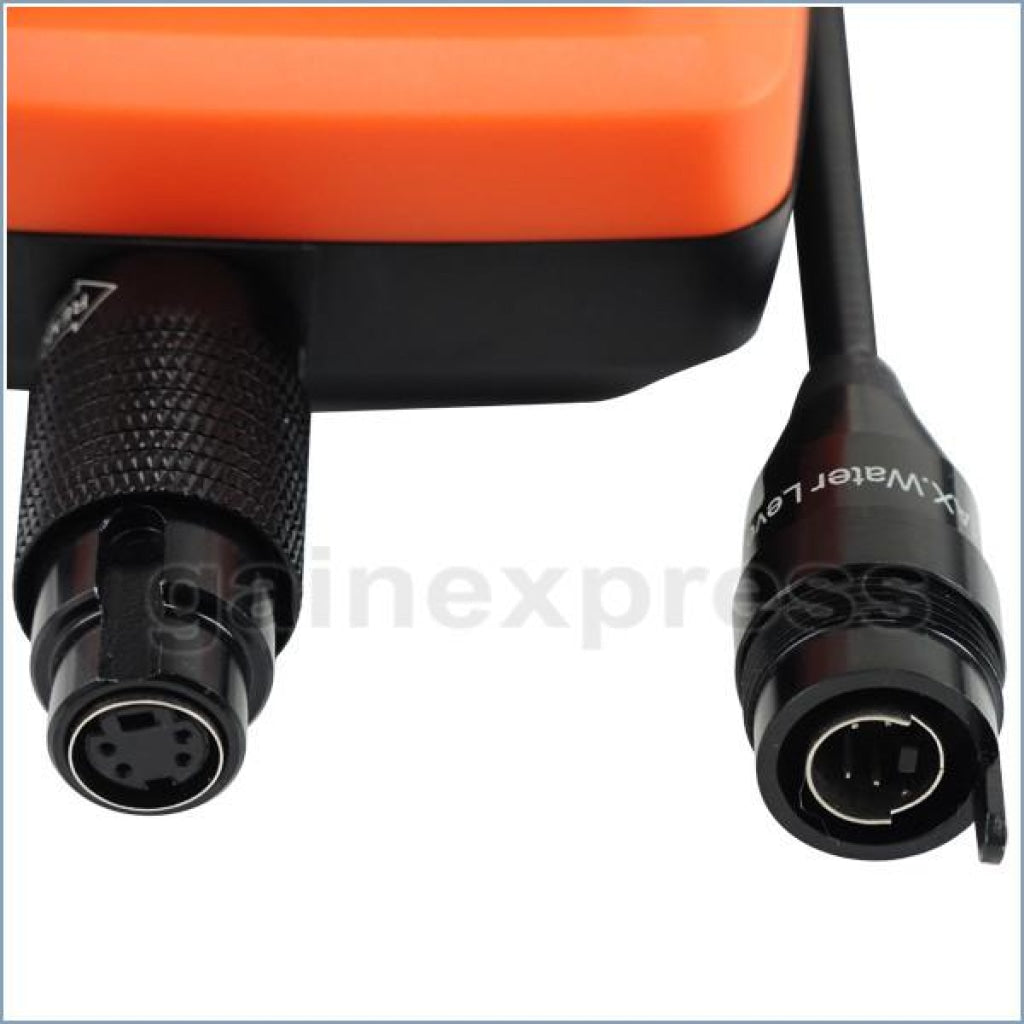

  • Flexible tube is removable
  • Adjustable LED brightness

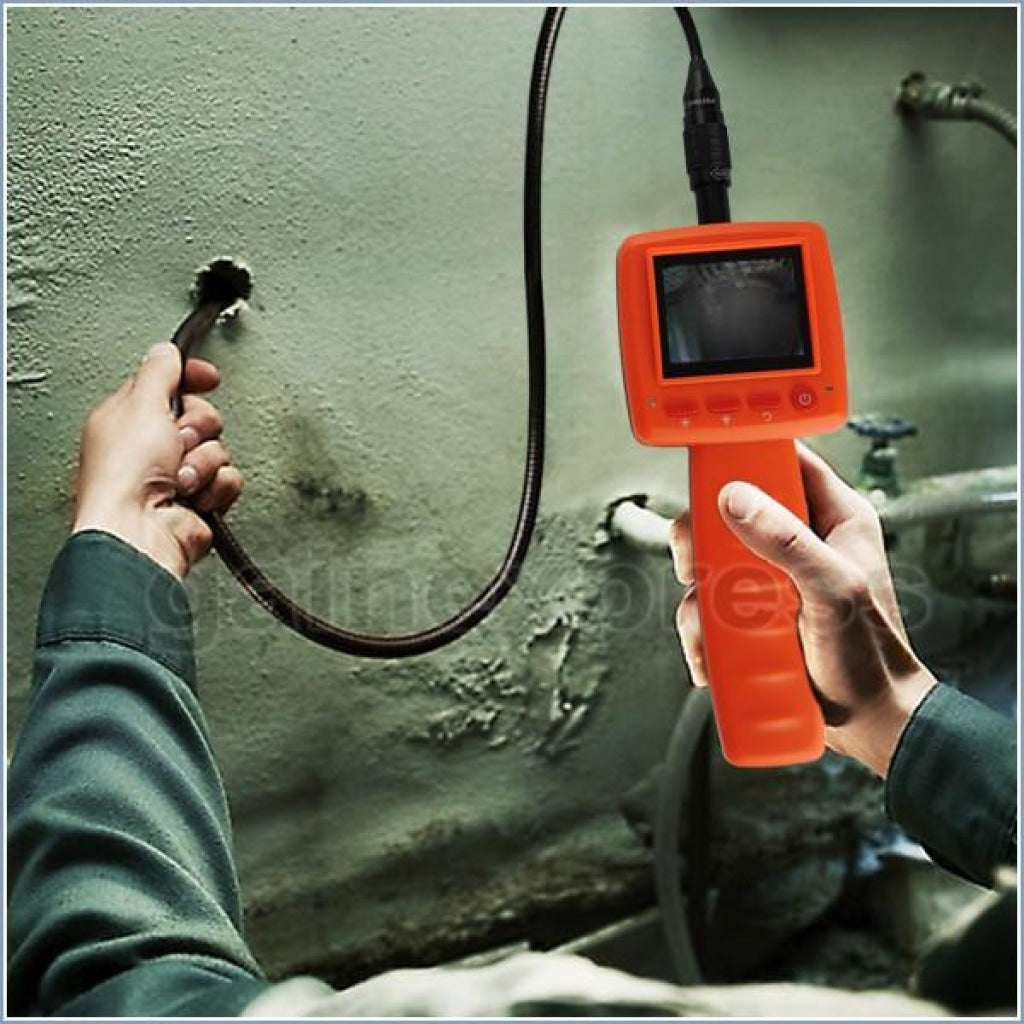

  • Function: Allows visual inspection on hard-to-reach areas

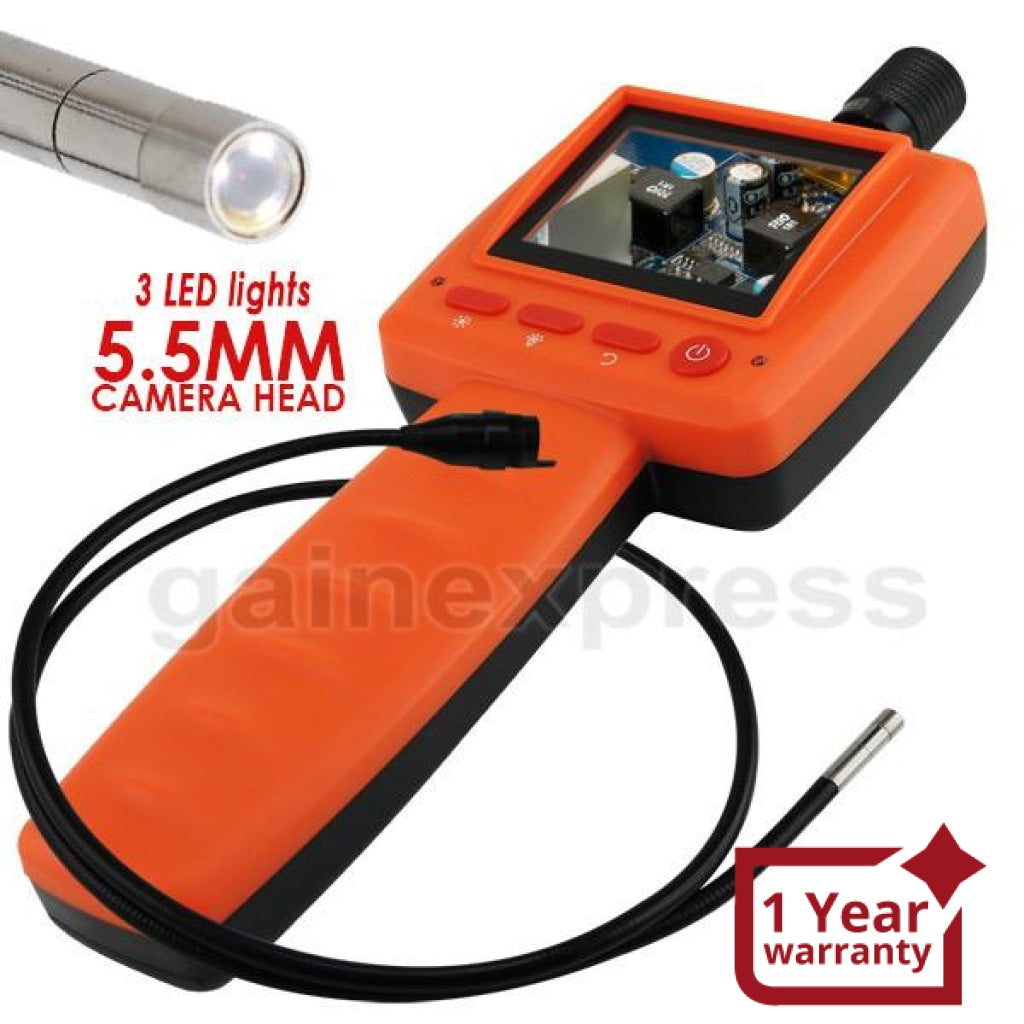

  • 3 adjustable LED design for easily find, diagnose
  • Lens and flexible tube with waterproof and IP67 design
  • 5.5mm camera head diameter
  • With View angle is 54°
  • With 320 x 240 Total Pixels
  • Tube Length: 880mm ± 20mm
  • Total Length: 970mm ± 20mm
  • 6.8mm outer tube diameter
  • Small but very useful, handle design fit for fingers
  • Lightweight design





Specifications:

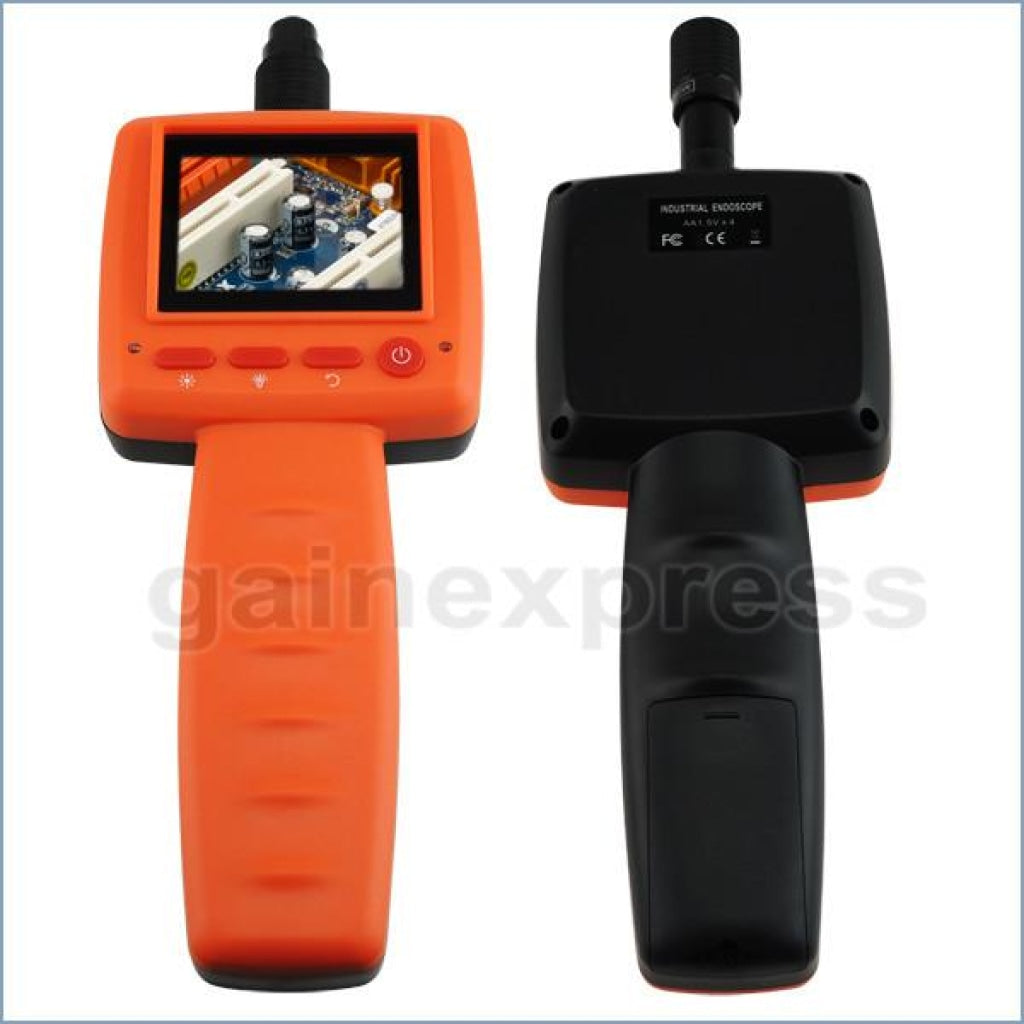

  • Main Unit:
    • Display: 2.4" TFT LCD monitor with adjustable brightness
    • Photo Format: JPEG
    • Working Temperature Range: -20 ~ 60°C
    • Storage Temperature Range: 0 ~ 40°C

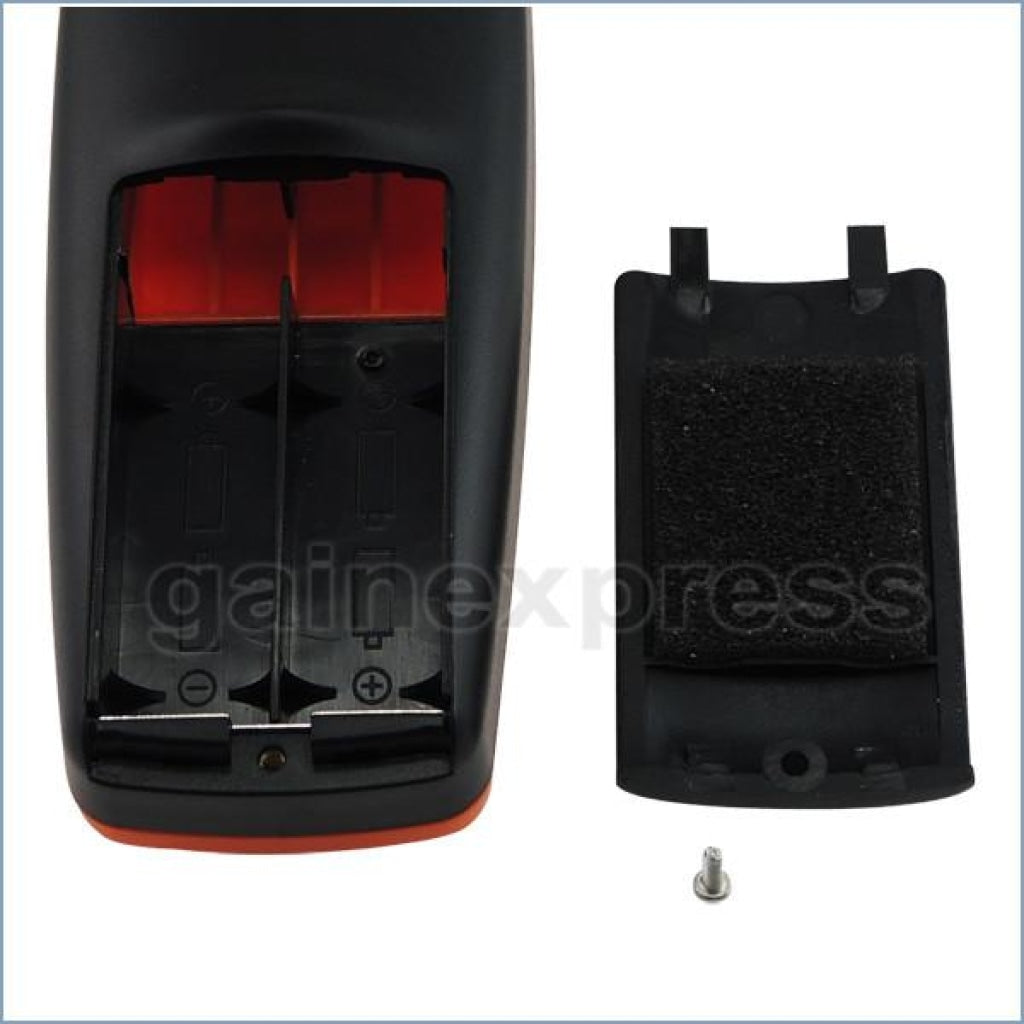

    • Power Supply: 4 x AA 1.5 Batteries (not included)
    • Dimension: 85 x 251x 38mm (W x H x Thickness)
    • Weight
      • Main Unit: 160g (battery excluded)
      • Main Unit with 1m Cable: 320g (battery excluded)
  • Camera
    • Camera Head Diameter: 5.5mm
    • Imaging Sensor: Optical format CMOS
    • Total Pixels: 320 x 240
    • Exposure: 30 ~ 80mm
    • Auto White Balance: automatic
    • Distortion: < 3.7%
    • Power Consumption: 3~5W (active)
    • Housing Material: Aluminum
    • Field of View: 54°
    • Tube
      • Outer Diameter : 6.8mm
      • Length: 1m
      • Waterproof Capacity: IP67 (camera head & tube only)

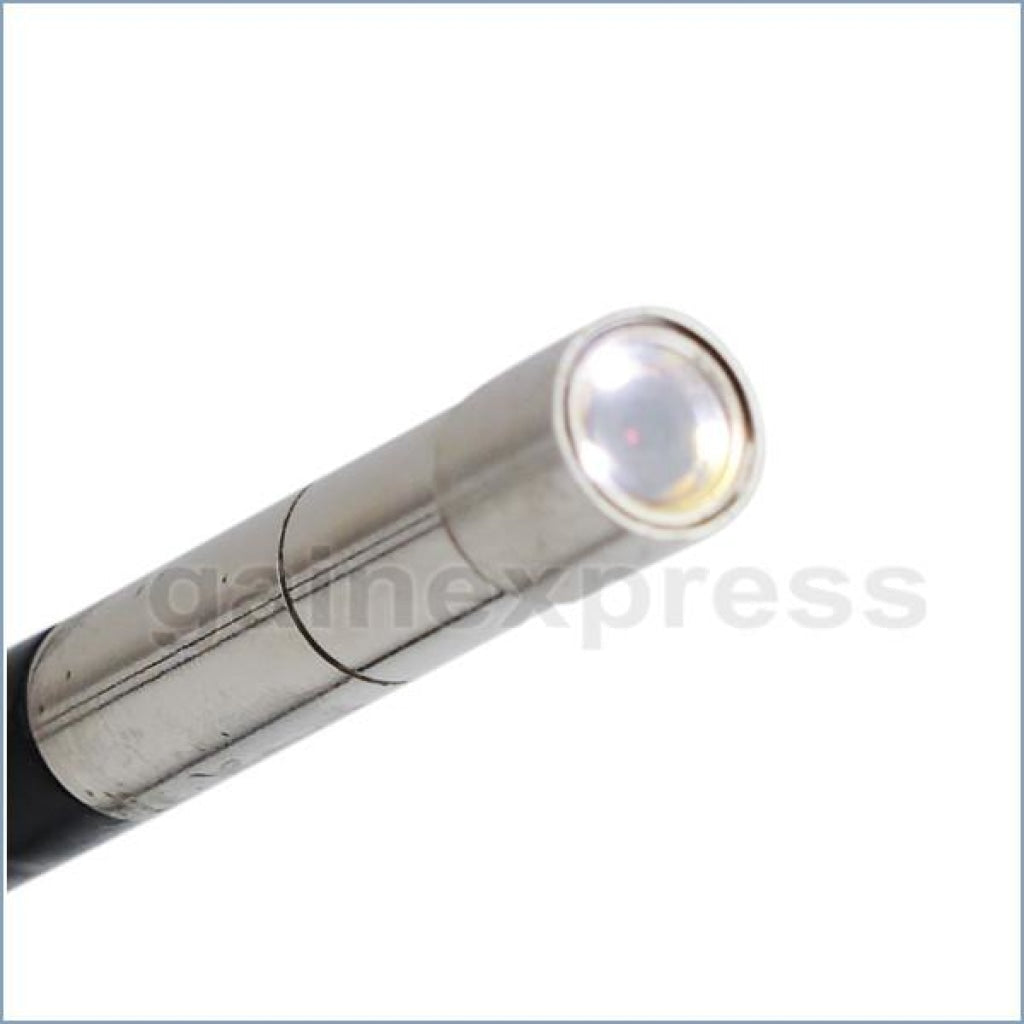

    • Light Source
      • Number of Lamps: 3
      • Weight: 8g
      • Brightness Control: Manual
      • Lamp Type: LED
      • Minimum Illumination: 0 Lux
      • Lamp Life: 8000hrs., median
  • Operating Environment
    • Tip Operating Temperature: -20~60°C (-4~140°F)
    • Storage Temperature: -20~70°C (-4~158°F)
    • Relative Humidity: 95%RH max
    • Hazardous Environment: Not rated for use in hazardous environments

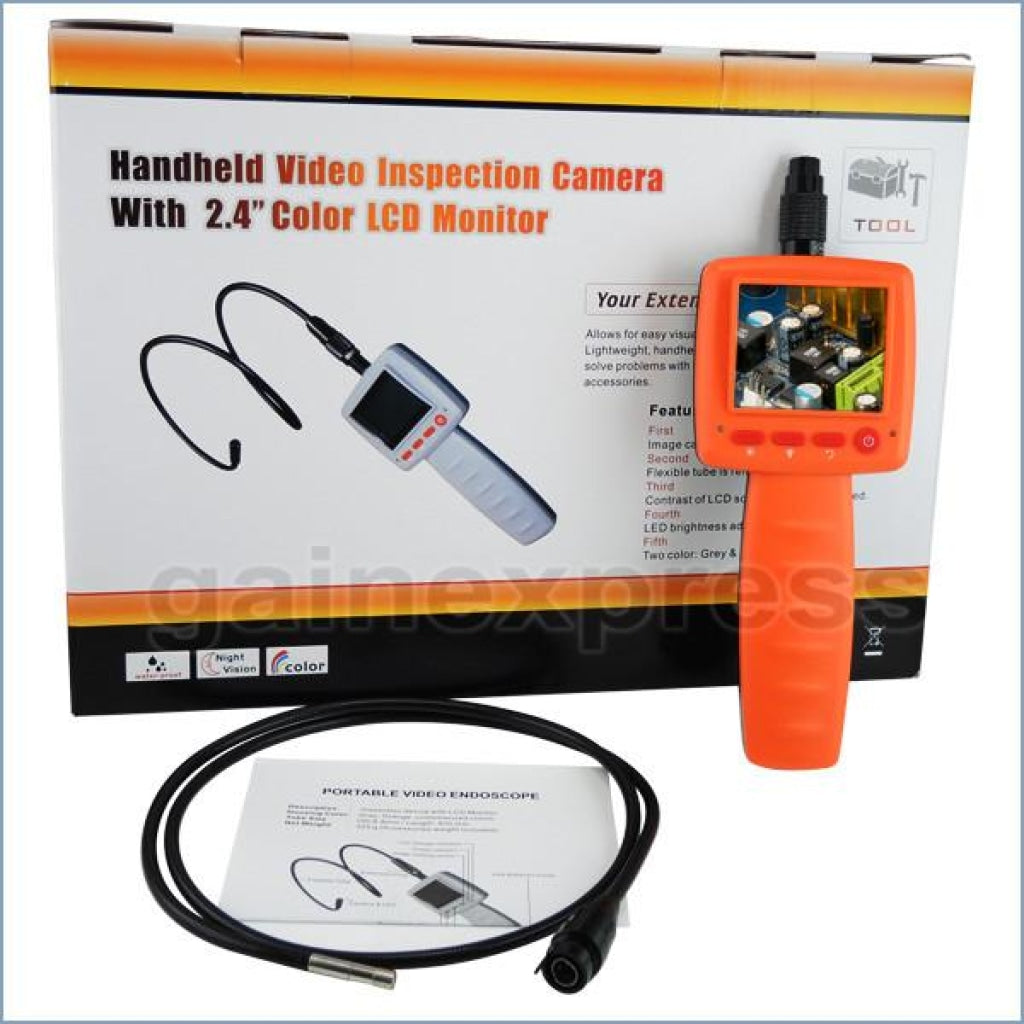

Set Included:

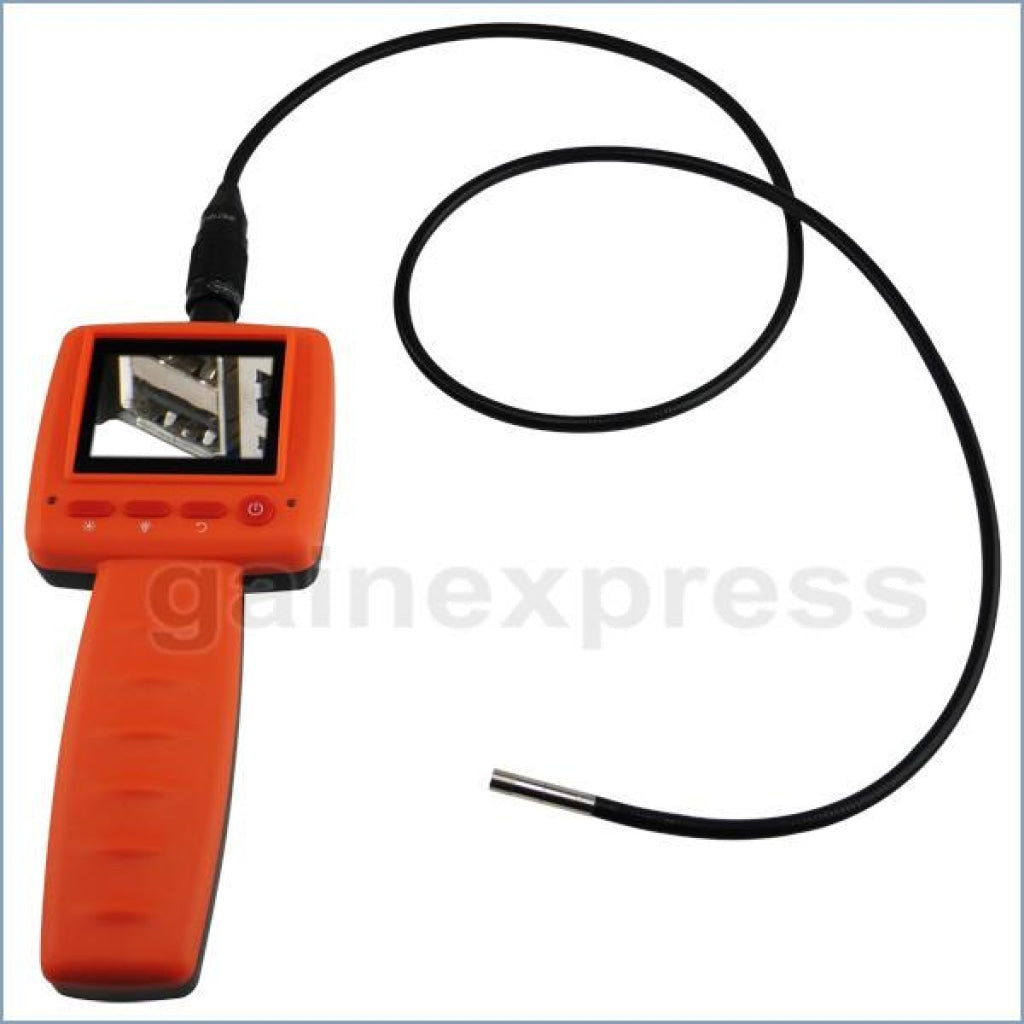

  • 1 x 2.4" TFT Colored LCD Inspection Camera

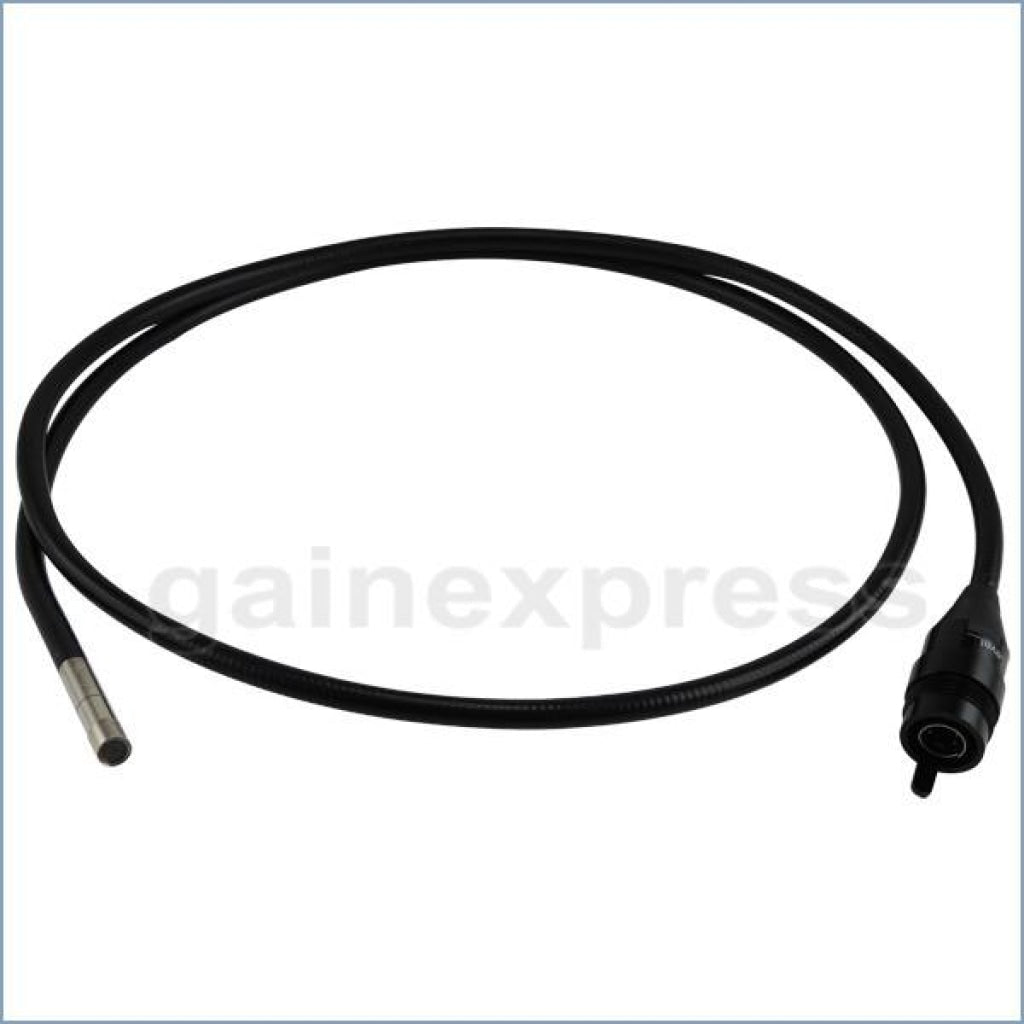

  • 1 x Standard 1m Flexible Tube w/ 5.5mm dia. Waterproof Camera Head
  • 1 x English Instruction Manual
  • 1 x Standard Packaging Box
