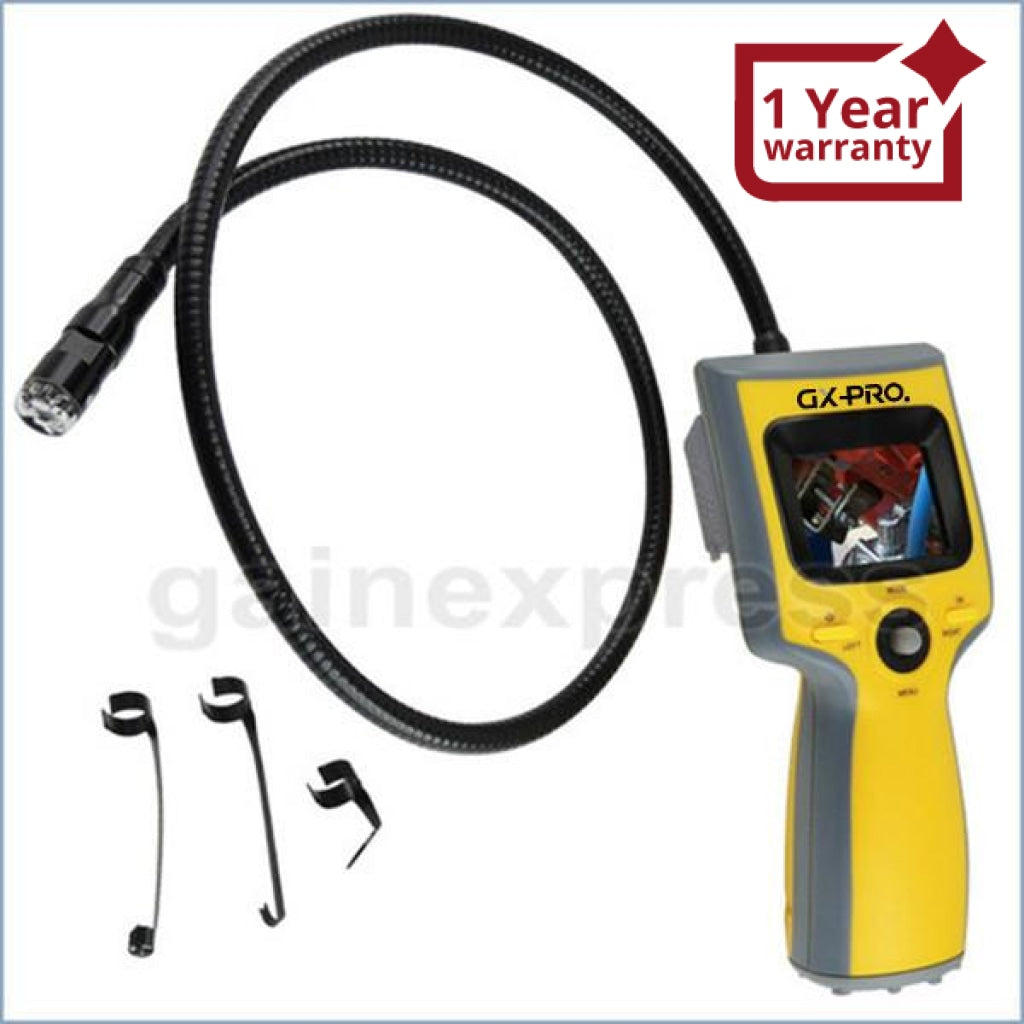

C0588B Portable 2.4"Video Inspection Endoscope 12mm Camera with Built-in 36" Cable
- Description
- Return, Refund, & Warranty Policy
- Reviews
Model : C0588B

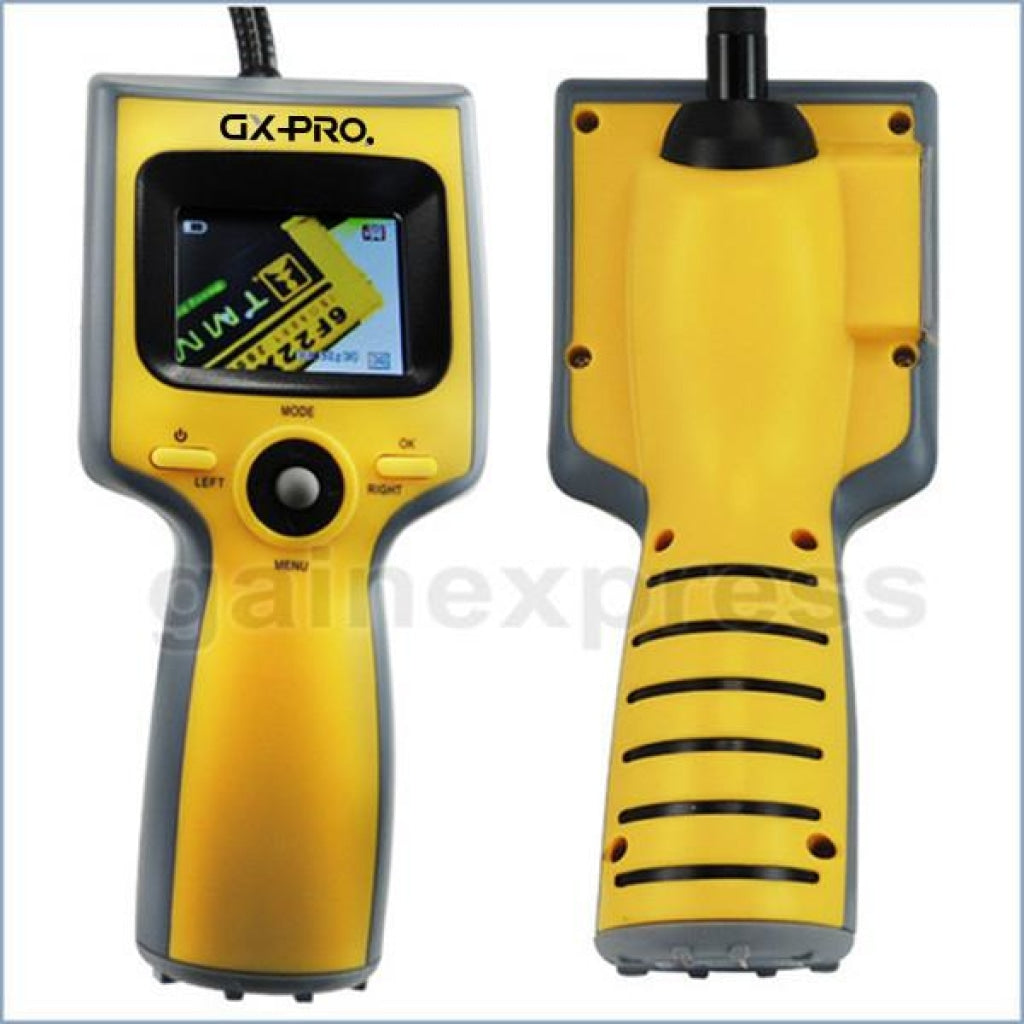

This Portable Video Inspection Borescope allows you to inspect hard-to-reach areas. It comes with a 2.4-inch TFT LCD screen with 320 x 240 resolution for easy viewing. It has 2 white LED light source with adjustable light intensity for easy finding and diagnosis. Can save images and video via the bult-in memory or SD card (not included in the set). It can also be connected to PC for still image and video transfer.
In addition, you can inspect under water with the 12mm waterproof probe head (IPX7 rate waterproof level) and splash resistant camera unit.
The Standard built-in 36 inches (3 ft) cable allows you explore and discover conveniently.
Features:
- High quality live viewing
- Smaller built-in water-proof flexible tube
- LED light's or LCD screen's brightness is adjustable
- Can save still picture and video clips on the SD memory card (not included in the set)
- Light weight, handheld design for easily find, diagnose and solve problems with the flexible extended tube & useful accessories

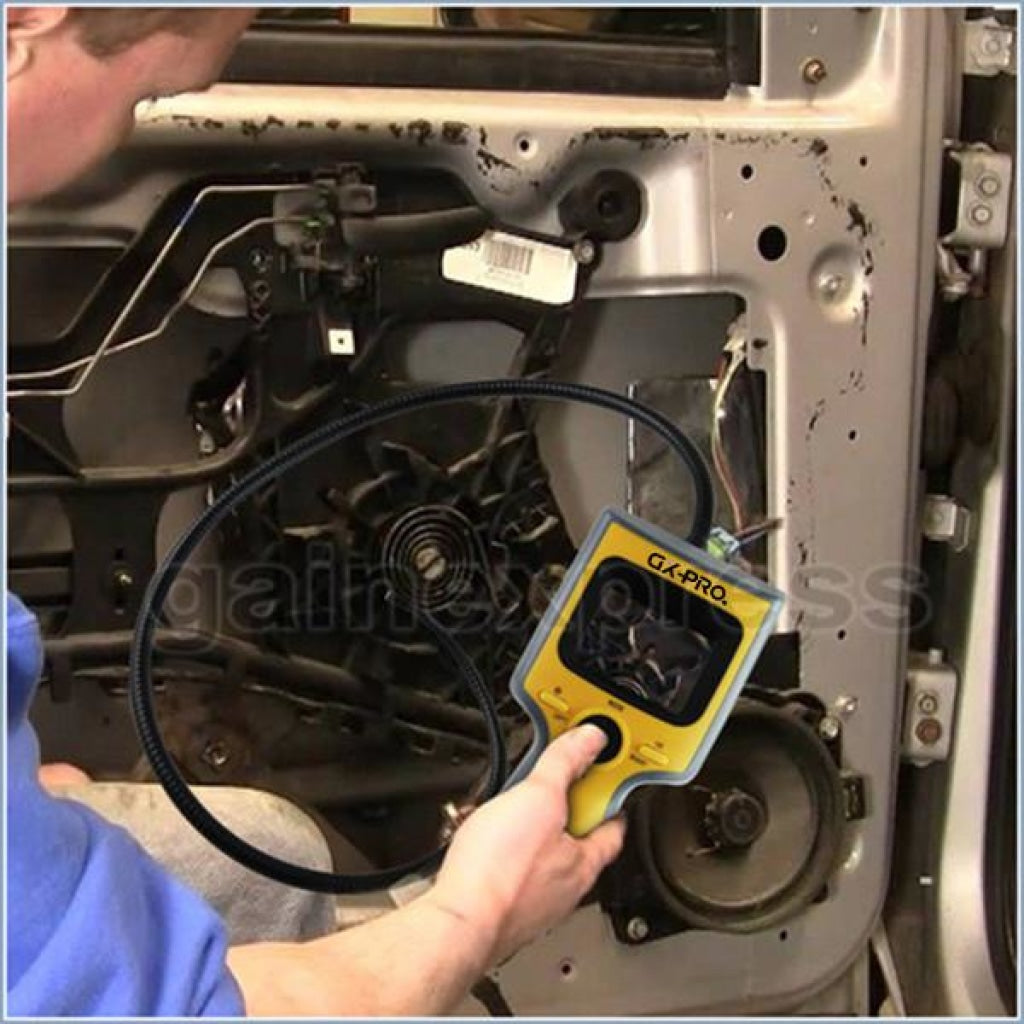

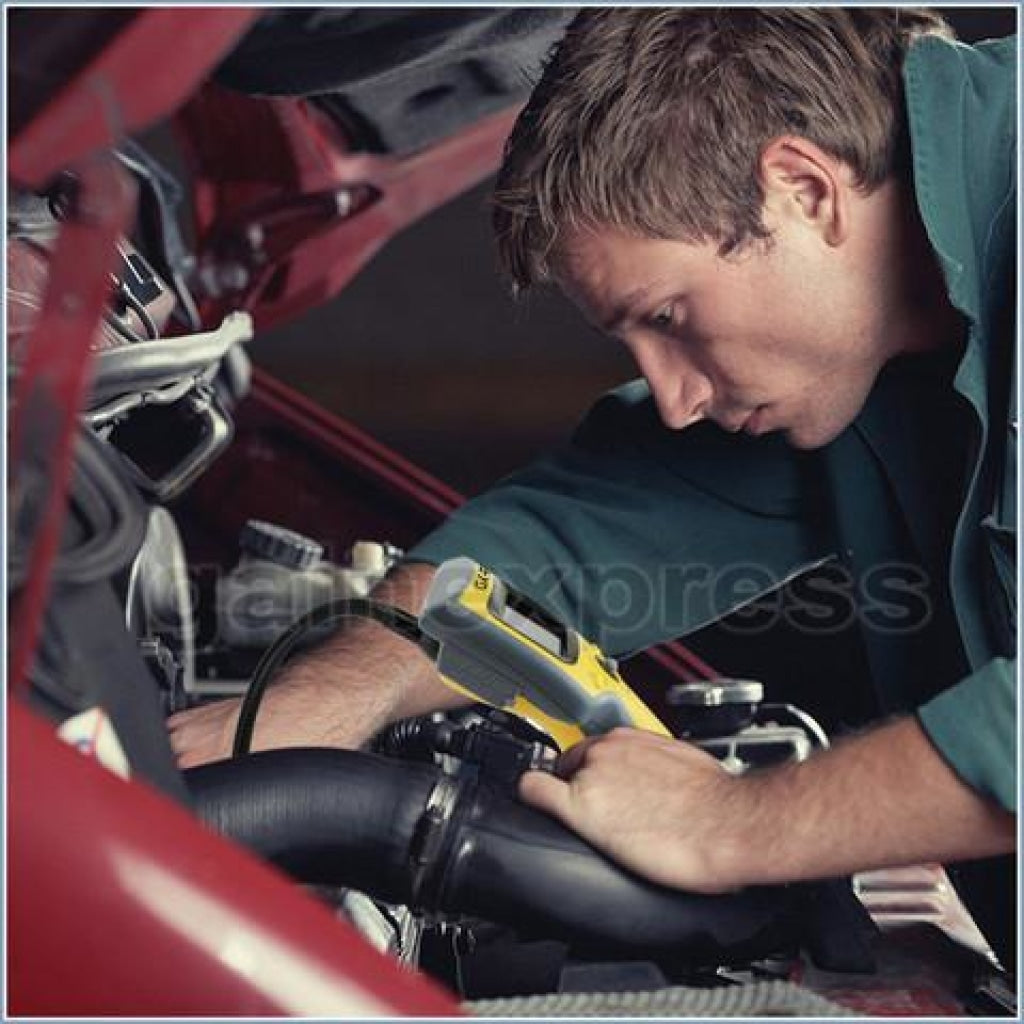

- Allows for easy visual inspection or recording the hard -to-reach areas
- Auto off function can be set by 1min, 3min, 5min or off (user's choice)
- NTSC or PAL TV output format
- Date can be set and to be save with the image
Specifications:
- Image Sensor: VGA CMOS sensor
- Lens Specification: F 2.8, f-2.73mm, View angle 56°
- Visual Distance Range: 20mm~280mm (recommend 100mm)

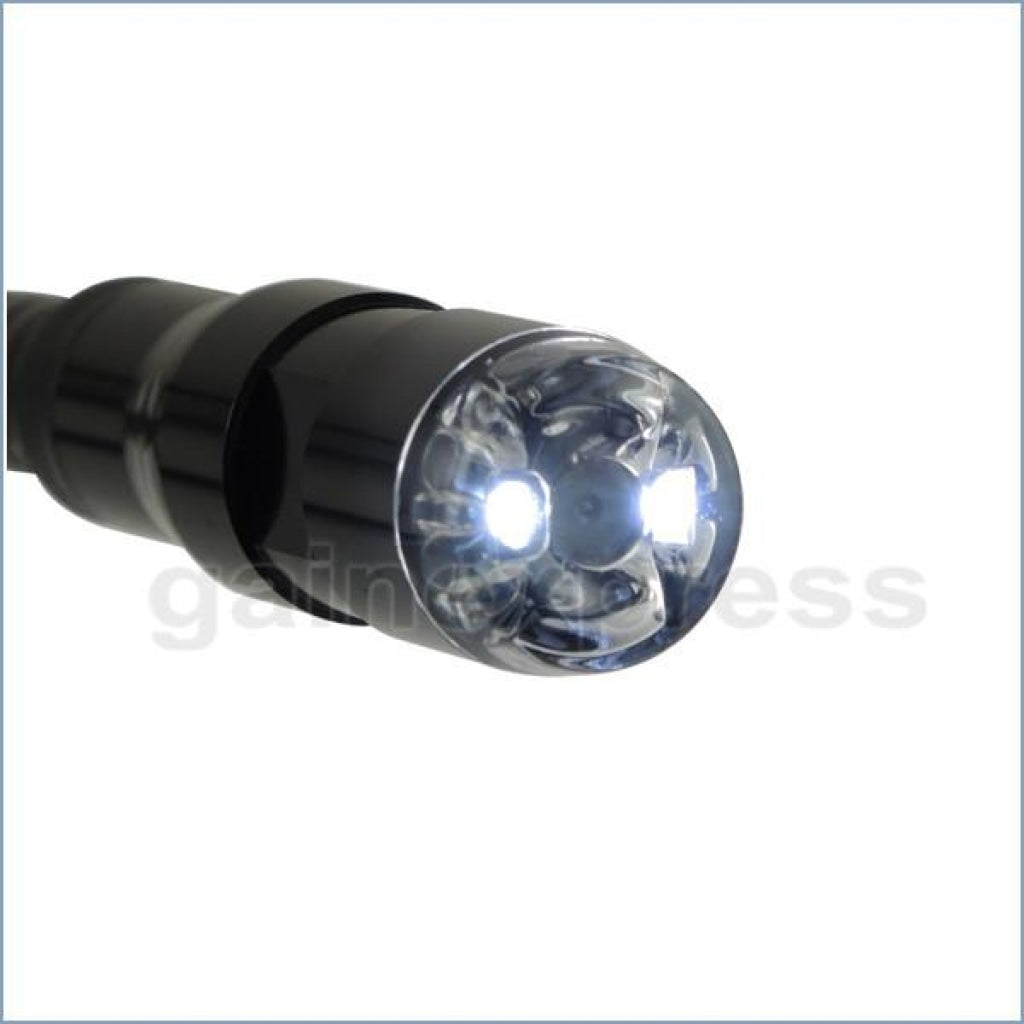

- Light Source: 2 white LED light with adjustable light intensity
- Camera diameter: 12mm
- Waterproof level
- Camera Unit: Water splash resistant (IPX4)
- Probe head: 1 meter deep waterproof (IPX7)

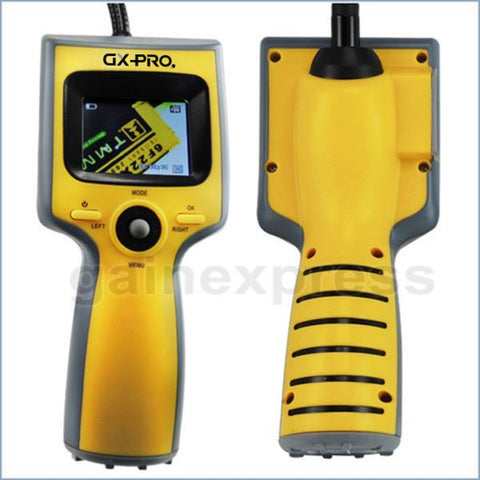

- Display: 2.4" TFT LCD Screen
- Resolution: 320 x 240 pixels

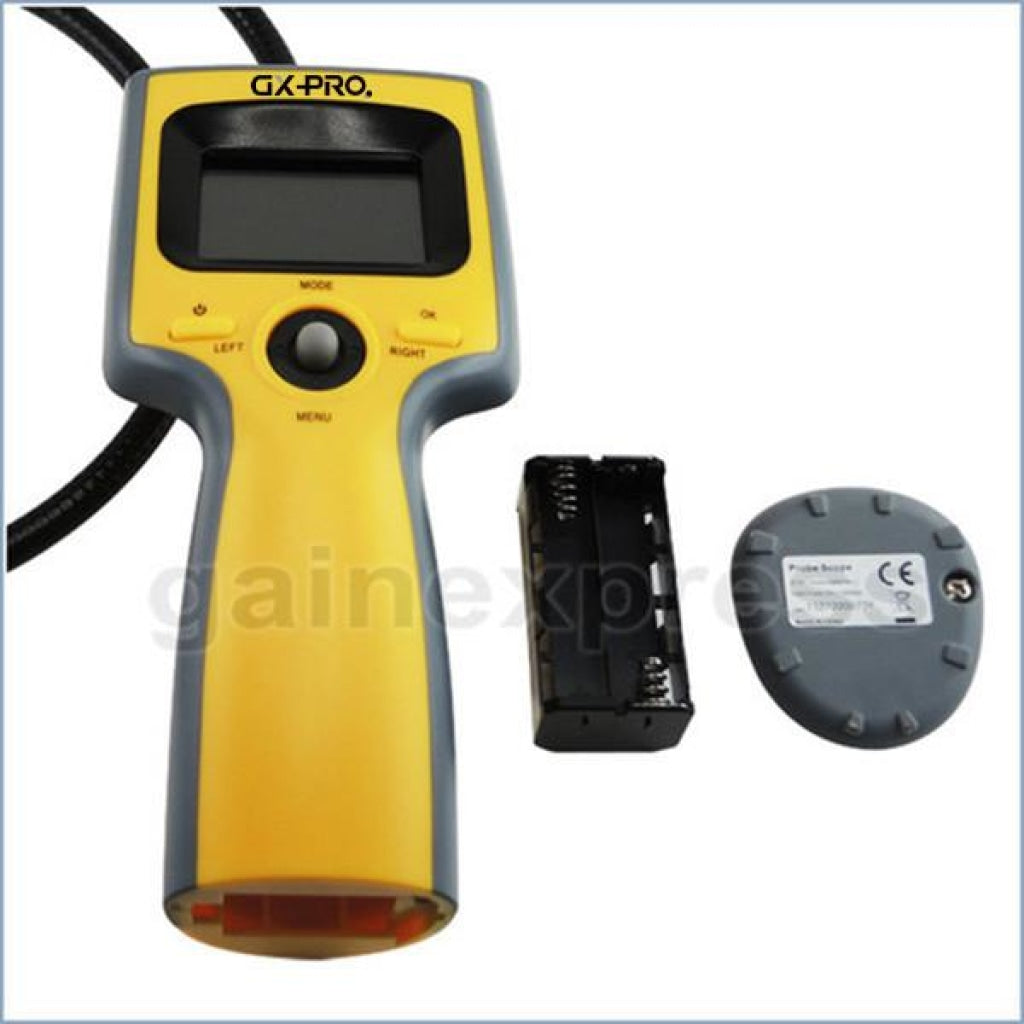

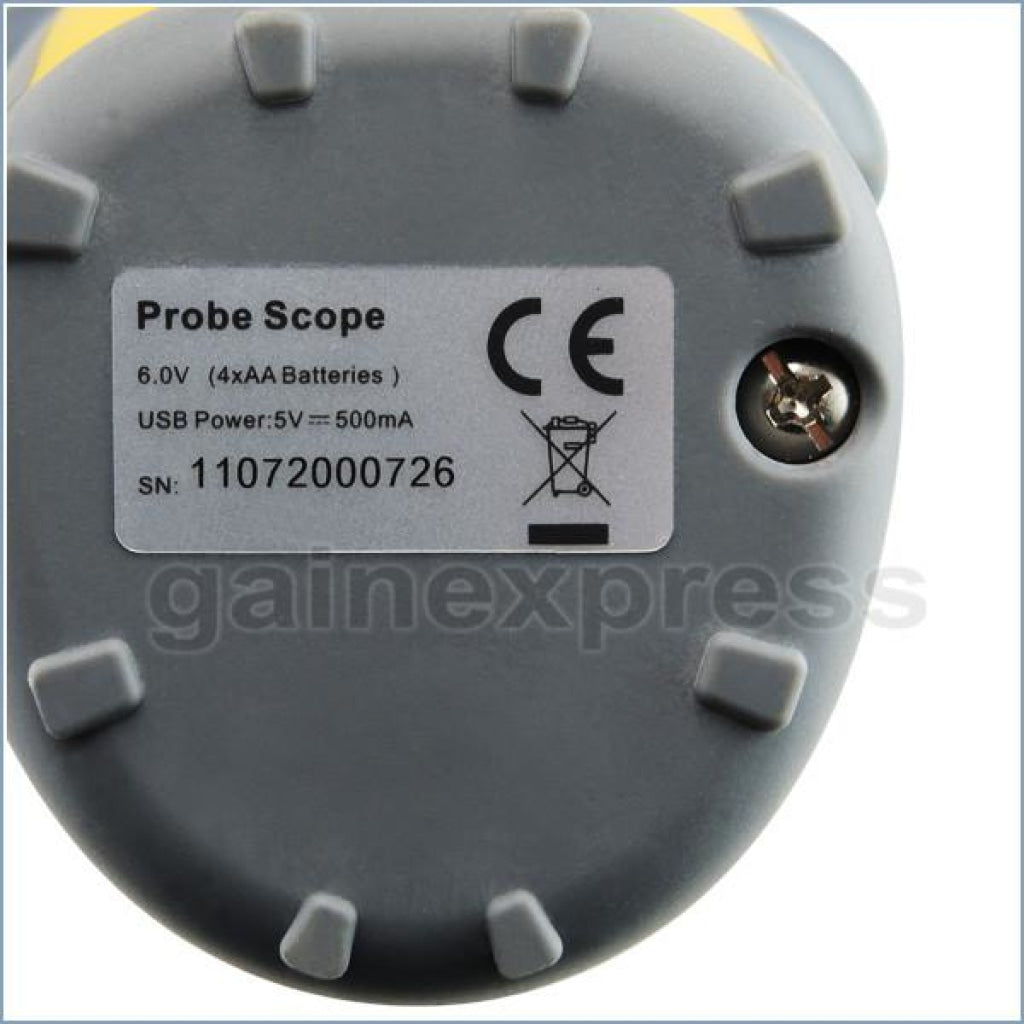

- Power Supply: 4 x 1.5V AA Battery
- Image Mode: 640 x 480 pixels
- Video Mode (non-audio): VGA 640 x 480 pixels (20fps)
- PC Cam Mode: USB 1.1 interface
- Compression: JPEG file (still), AVI file (video)
- Storage
- Built-in 32MB and flash
- SD card (not included in the set)

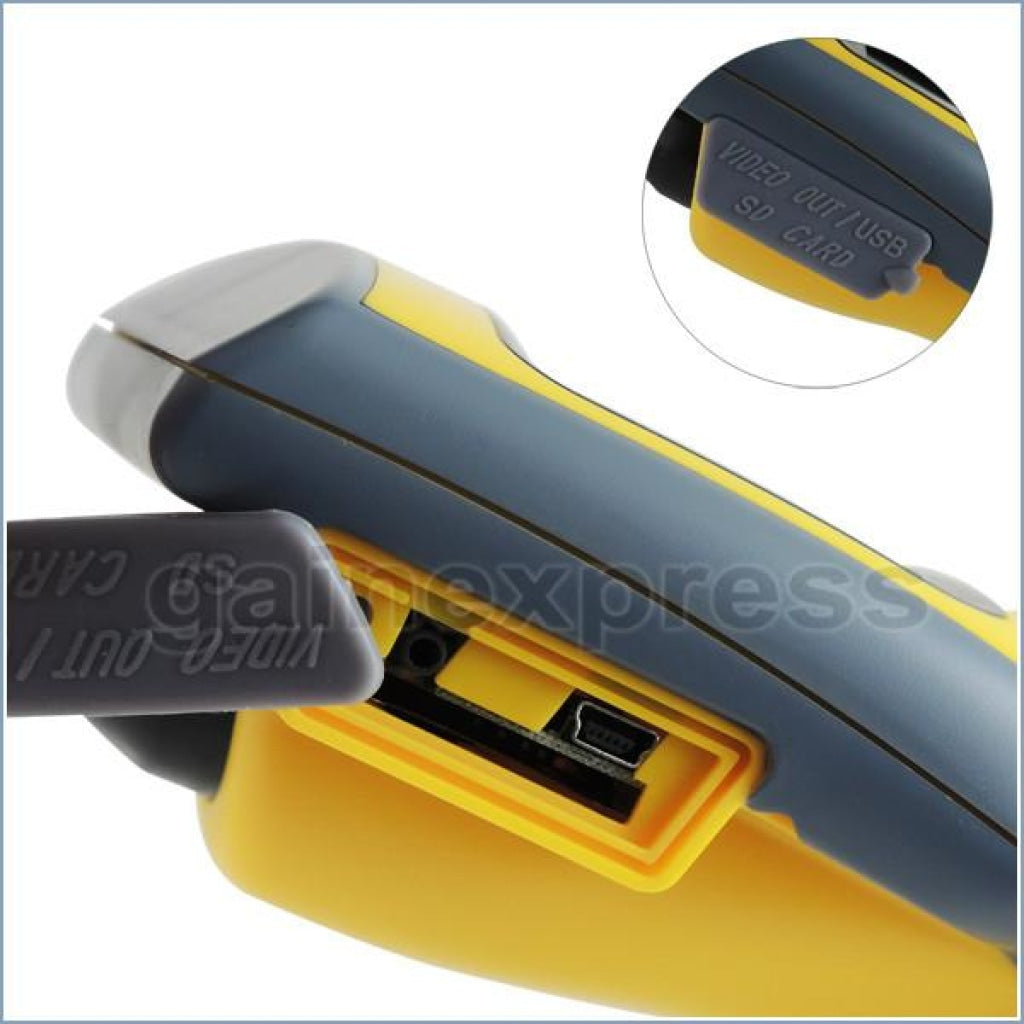

- TV output : TV out and mini USB (B type) Output for NTSC / PAL
- Output: TV out and mini USB (B type)

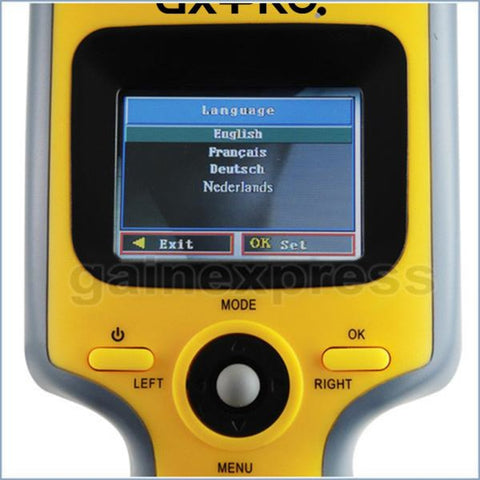

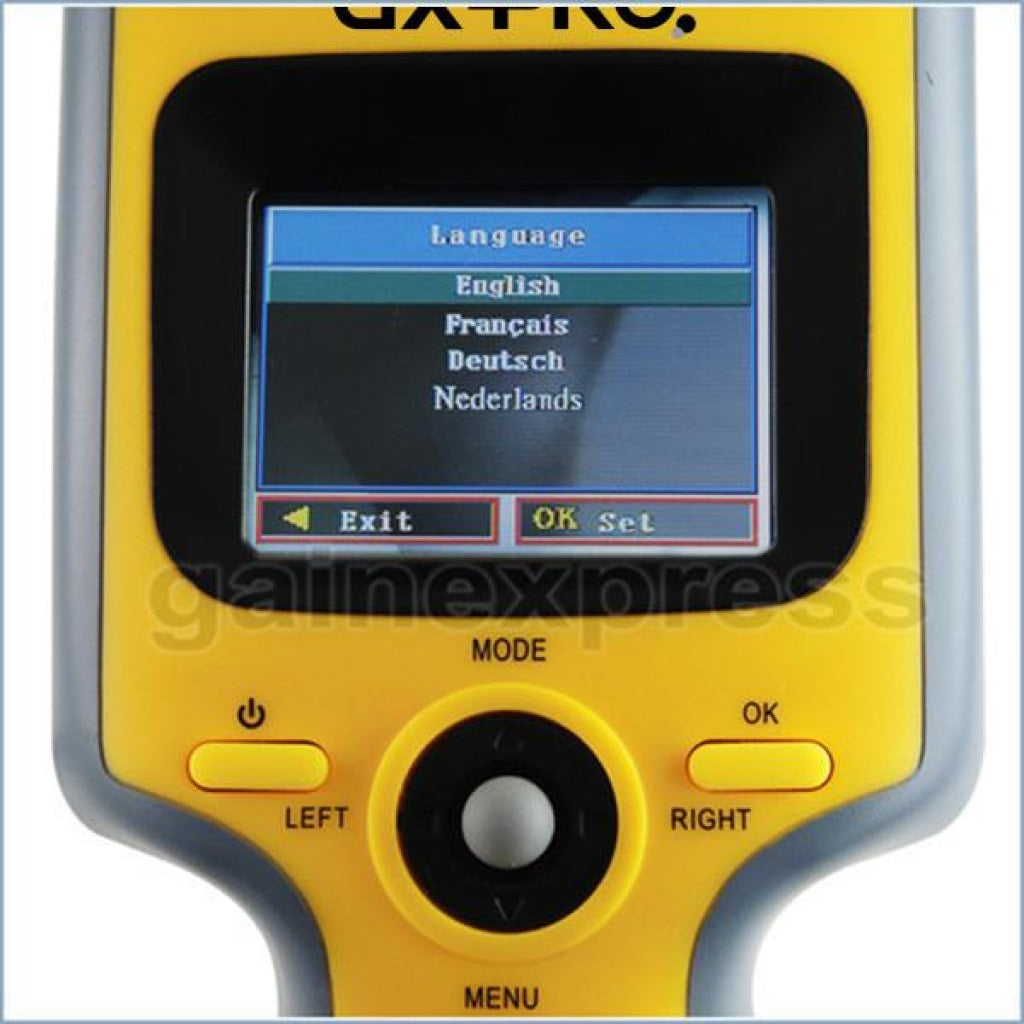

- Language Available: English, Francais, Deutsch and Nederlands
- Dimension: 1140 x 95 x 150mm (L x W x H)
- Tube length: 36 inches
- Weight (g): about 753g
- Bundled Software: Magix Video Easy SW, PC cam driver
- O/S: Microsoft Windows 98 SE / 2000 / ME / XP / Vista / 7

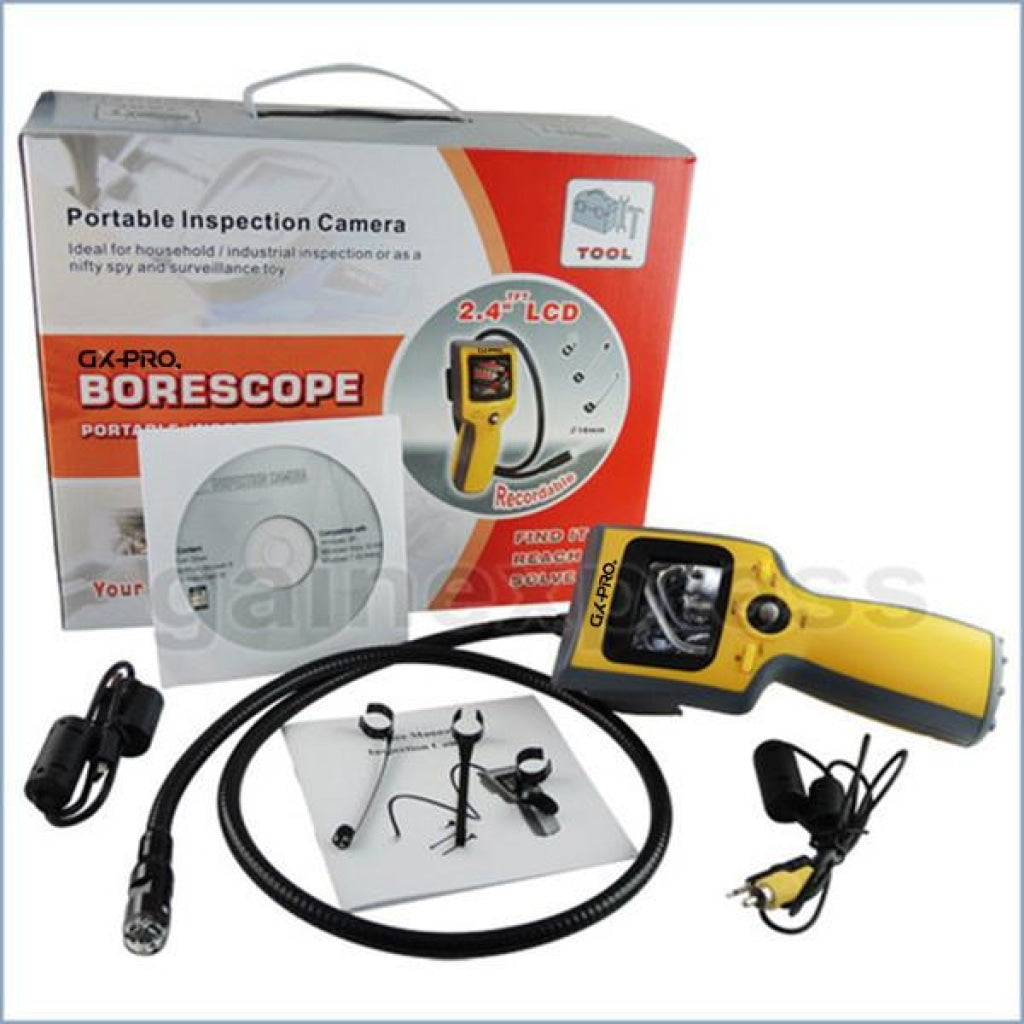

Set Includes:
- 1 x Inspection Camera

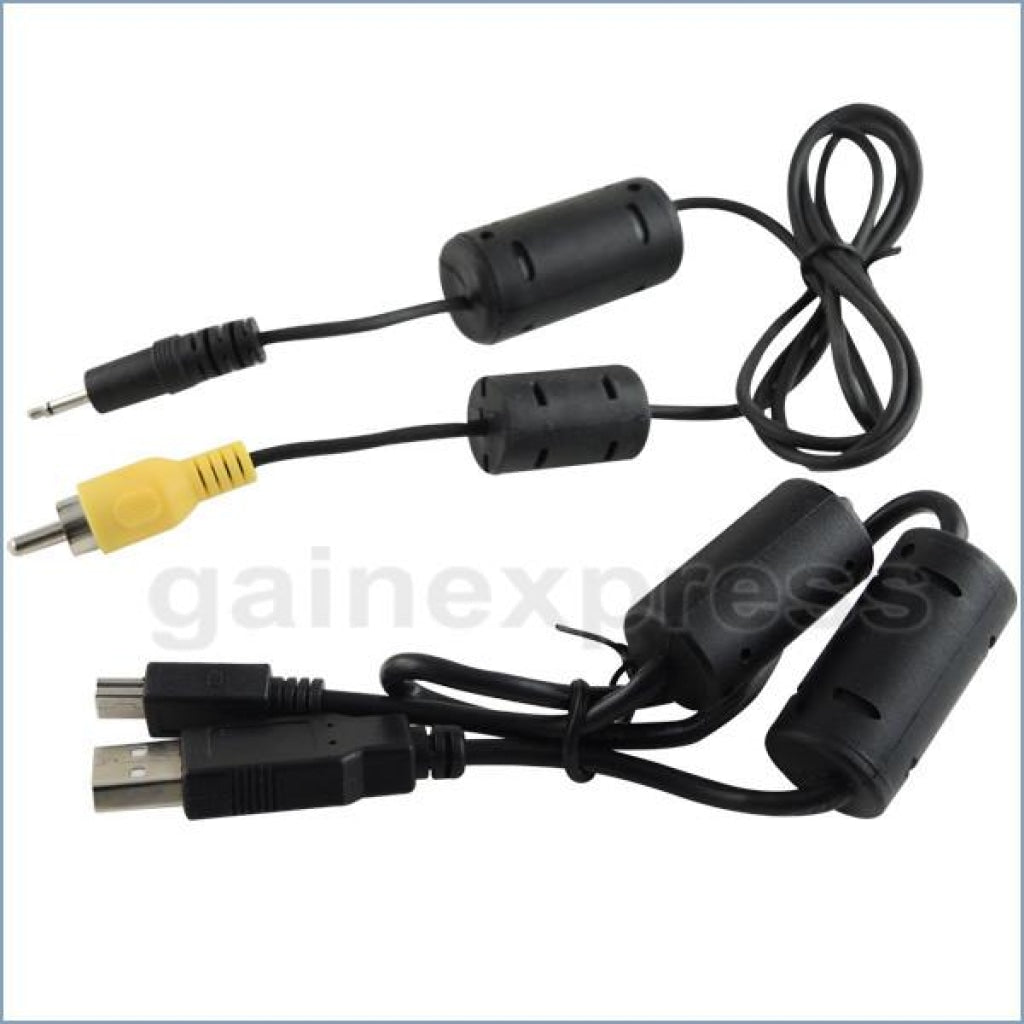

- 1 x USB Cable
- 1 x Video Cable

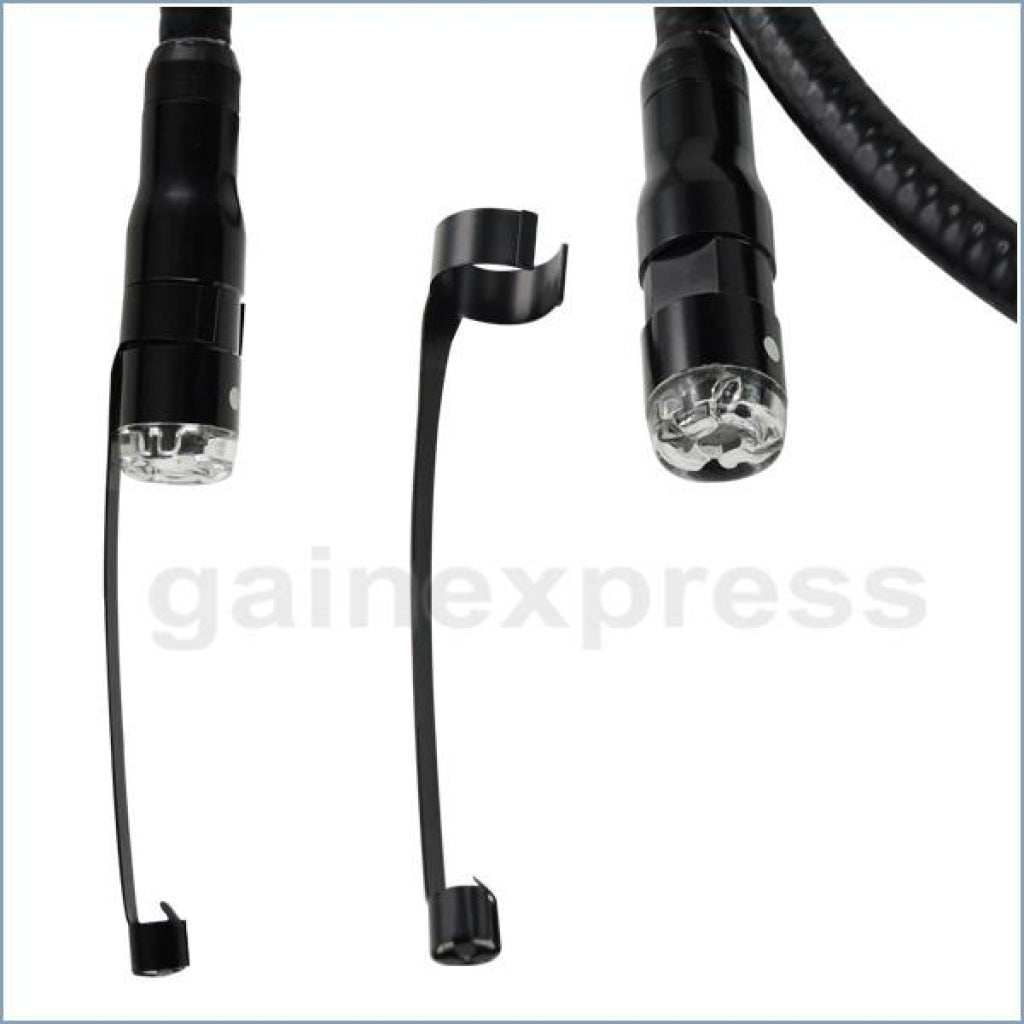

- 1 x Mirror Tip
- 1 x Hook Tip
- 1 x Magnet Tip
- 1 x Installer CD
- 1 x English Instruction Manual
- 1 x Standard Packaging Box
