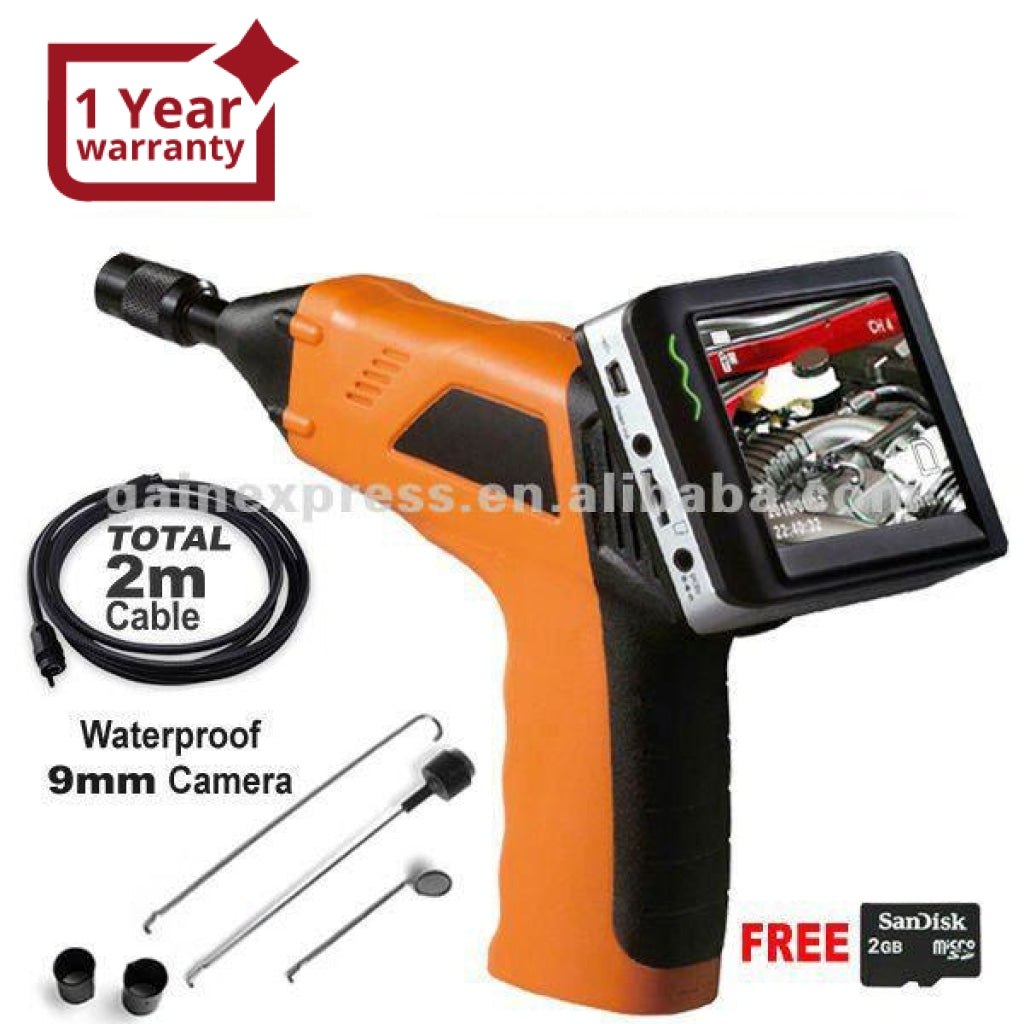

8803AL_2M 3.5" Wireless/Wired Inspection Borescope Waterproof Camera 9mm Flexible Tube Endoscope + 2M Cable

  • 0% OFF
  • Regular Price

    $ 199.00 USD



Add to Wishlist


Check shipping / delivery time for your country | Free Shipping Worldwide Request for Quotation

Model : 8803AL_2M

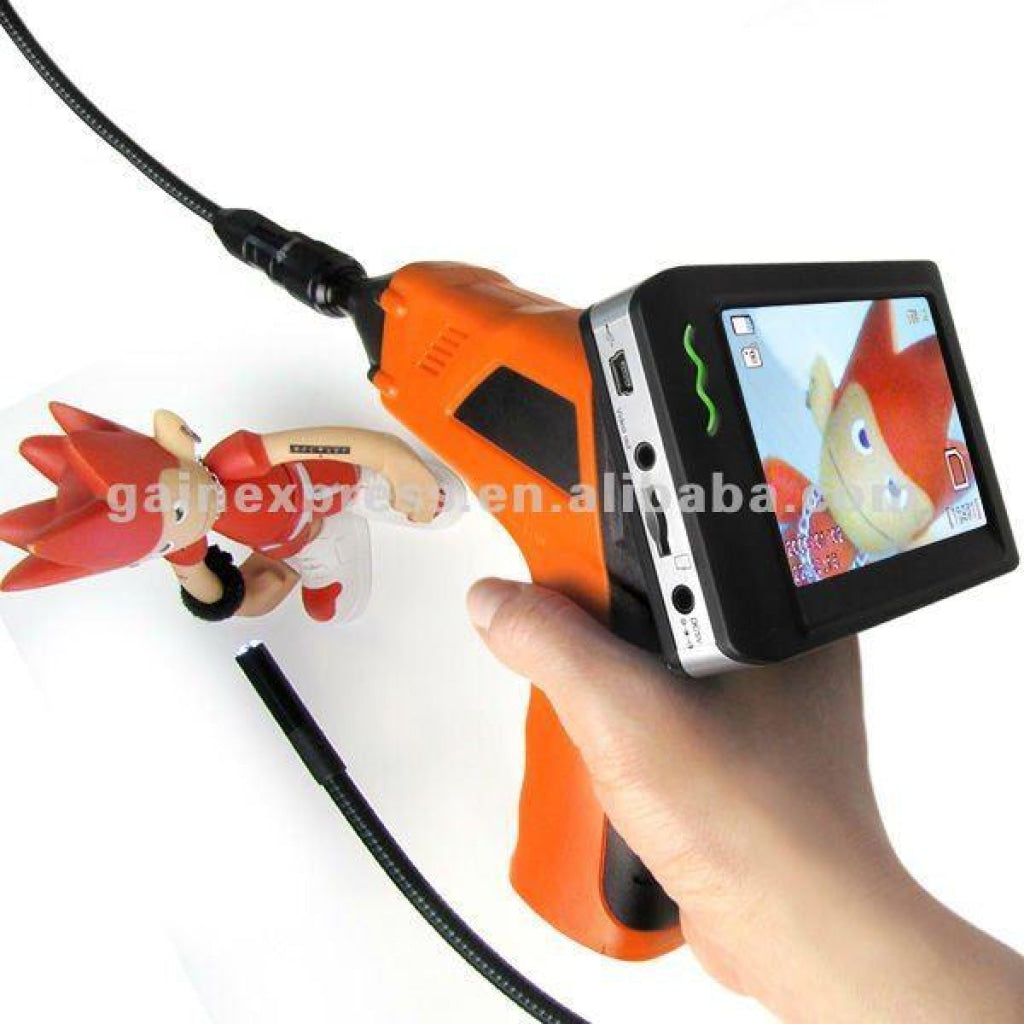

This new Wireless Inspection Camera allows you to inspect hard-to-reach areas. It has a

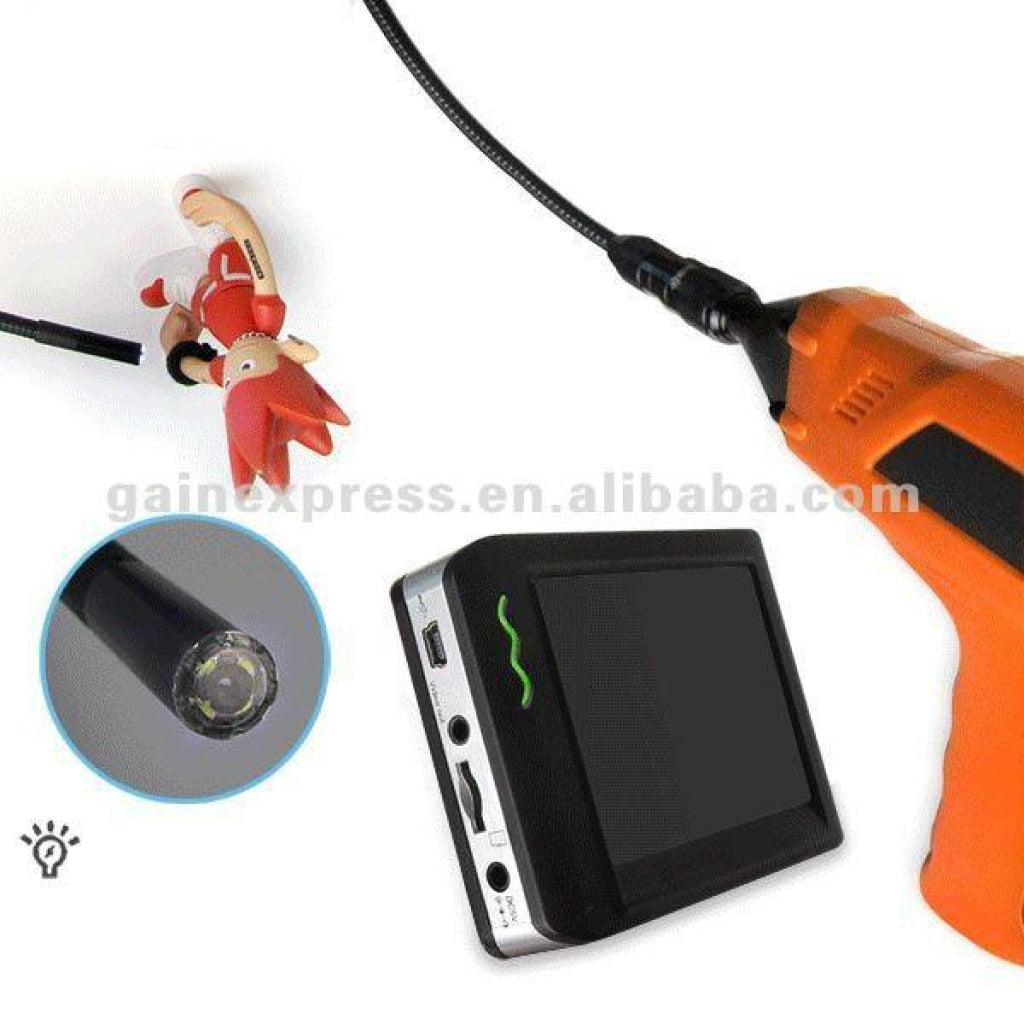

Glare-free close-ups and wide range field of view. Unlike with traditional inspection camera, its 3.5" huge colored LCD receiver can be detached from the main unit for use in remote viewing.

It has horizontal viewing angle of the camera 36°. In addition, you can inspect at 25cm (10 inch) under water with the waterproof mini 9mm camera.

The Standard Flexible 1 metre (3.3 feet) Cable allows you explore and discover conveniently.The set also include 1m (3.3 feet) Extension Cable, so totally you have 2m (6.56 feet) for inspection. Plus, an optional Extension Cable (1m / 3.3 ft) allows you to extend the vision of inspection point.



Features:

  • Waterproof camera with level IP67

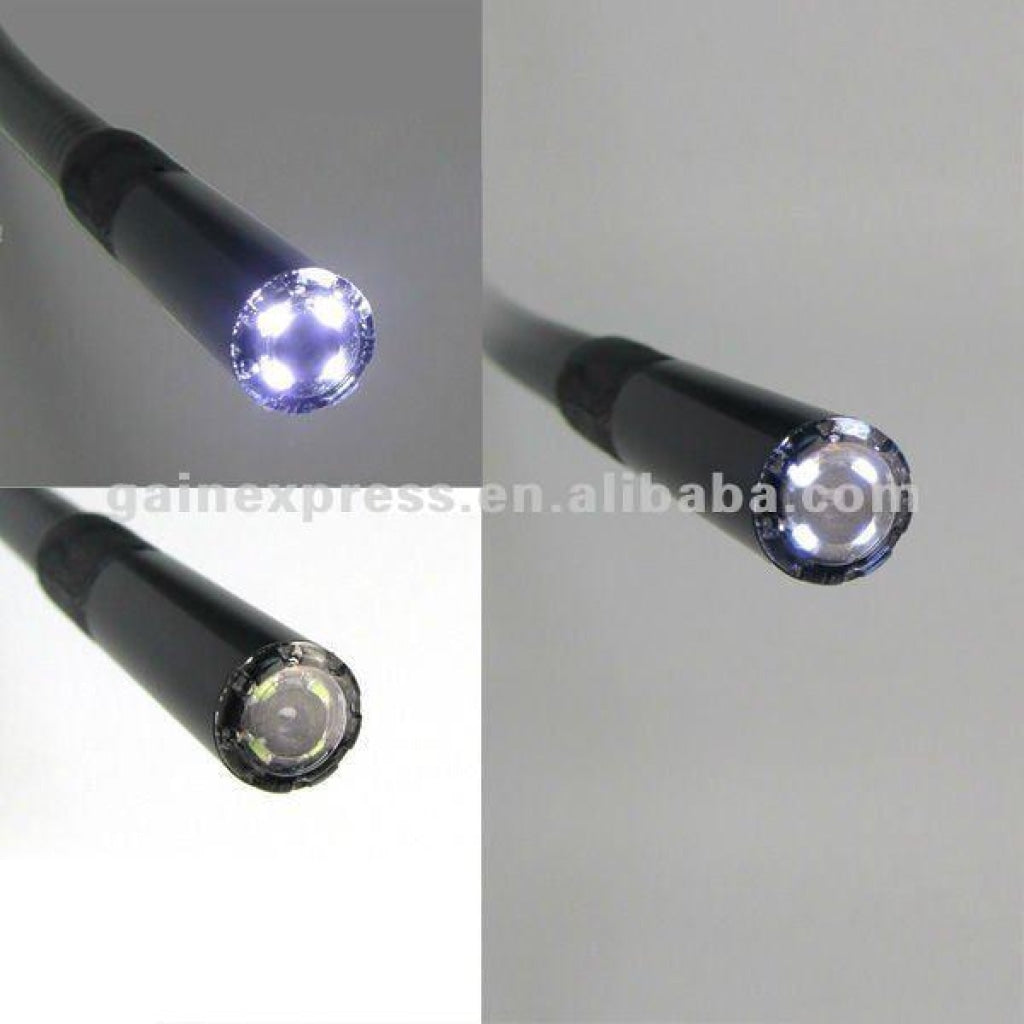

  • 9mm diameter camera with 4 LED lights

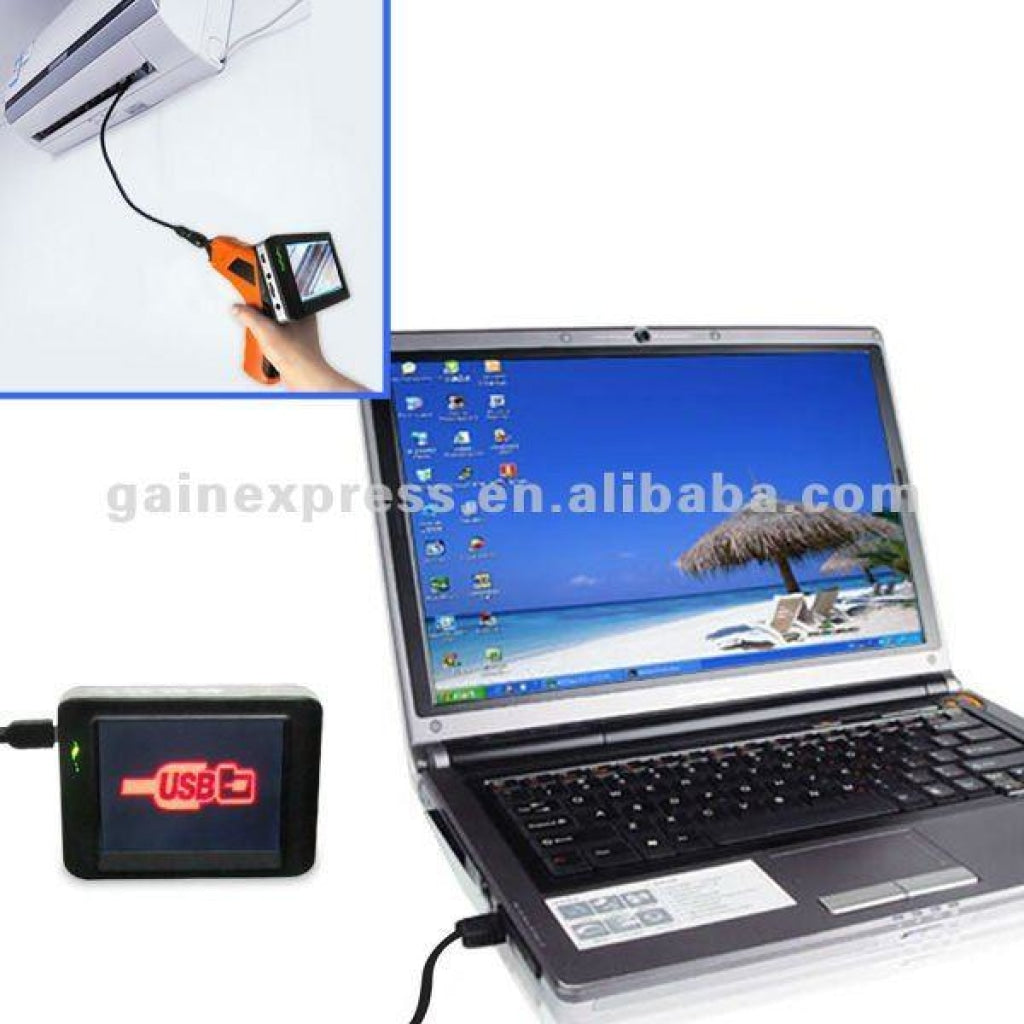

  • PC Connection via USB cable
  • Adjustable brightness on lens-mounted LED light
  • Video output to TV (Selectable between PAL/NTSC)
  • Video record & photo snap with Playback function
  • 3.5: color TFT LCD monitor, built-in rechargable Li-battery
  • Real-time Date and Time Stamp + Twist and Lock Attachment
  • 10 Language Setting: English, French, German, Italian, Spanish, Potuguese, Russian, Dutch, Japanese & Chinese
  • Comfort Grip Housing lightweight, handheld design, flexible & very convenient to use

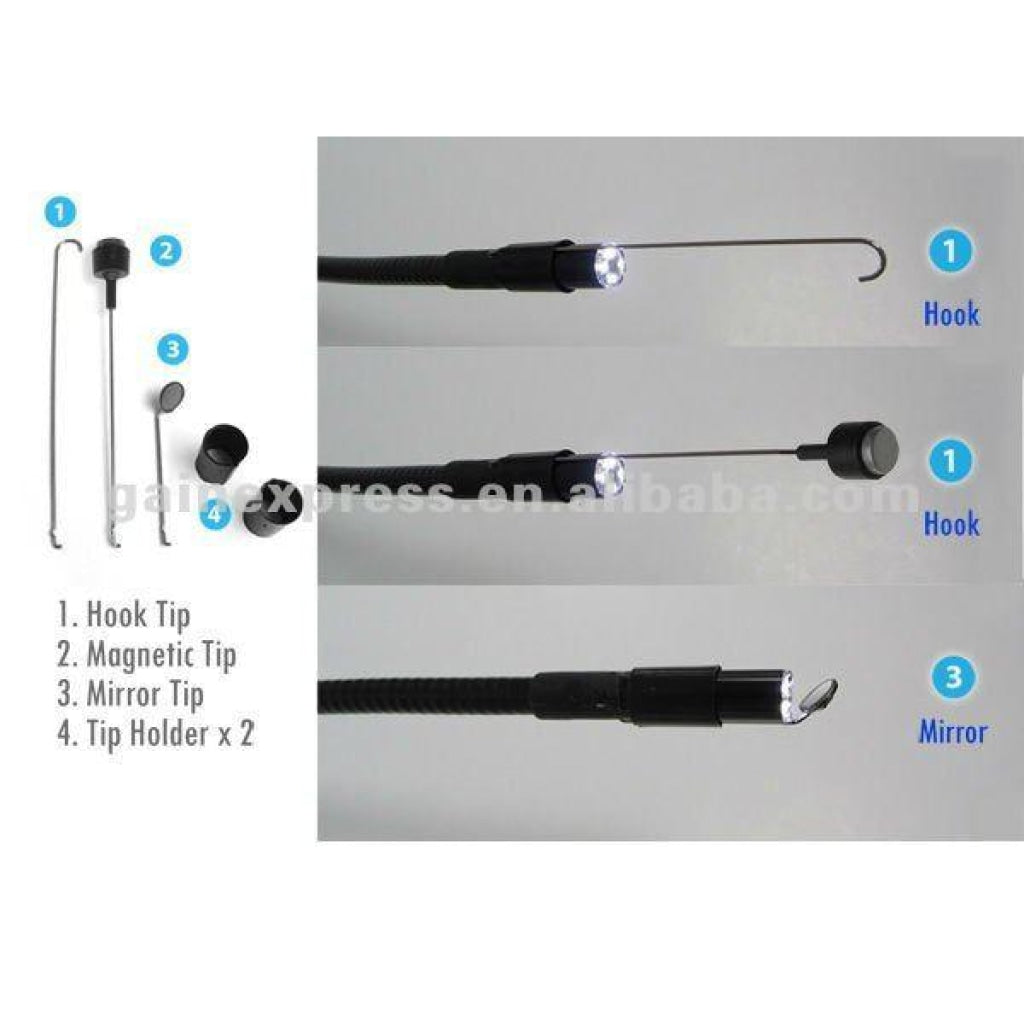

  • With useful accessories: Hook, Mirror and Magnet
  • 2 meter cable



Specifications:

  • Camera
    • Imaging Sensor: CMOS
    • Total Pixels: 640 x 480 (PAL/NTSC)
    • Horizontal View Angle: 36°
    • Transmission Frequency: 2468 MHz
    • Minimum Illumination: 0 Lux
    • Modulation Type: FM (Frequency Modulation)
    • Bandwidth: 18 MHz
    • Unobstructed Effective Range: 5m max.
    • Waterproof Capacity: IP67 (camera head & tube only)
    • Camera Head Diameter: 9mm (0.35 inch)

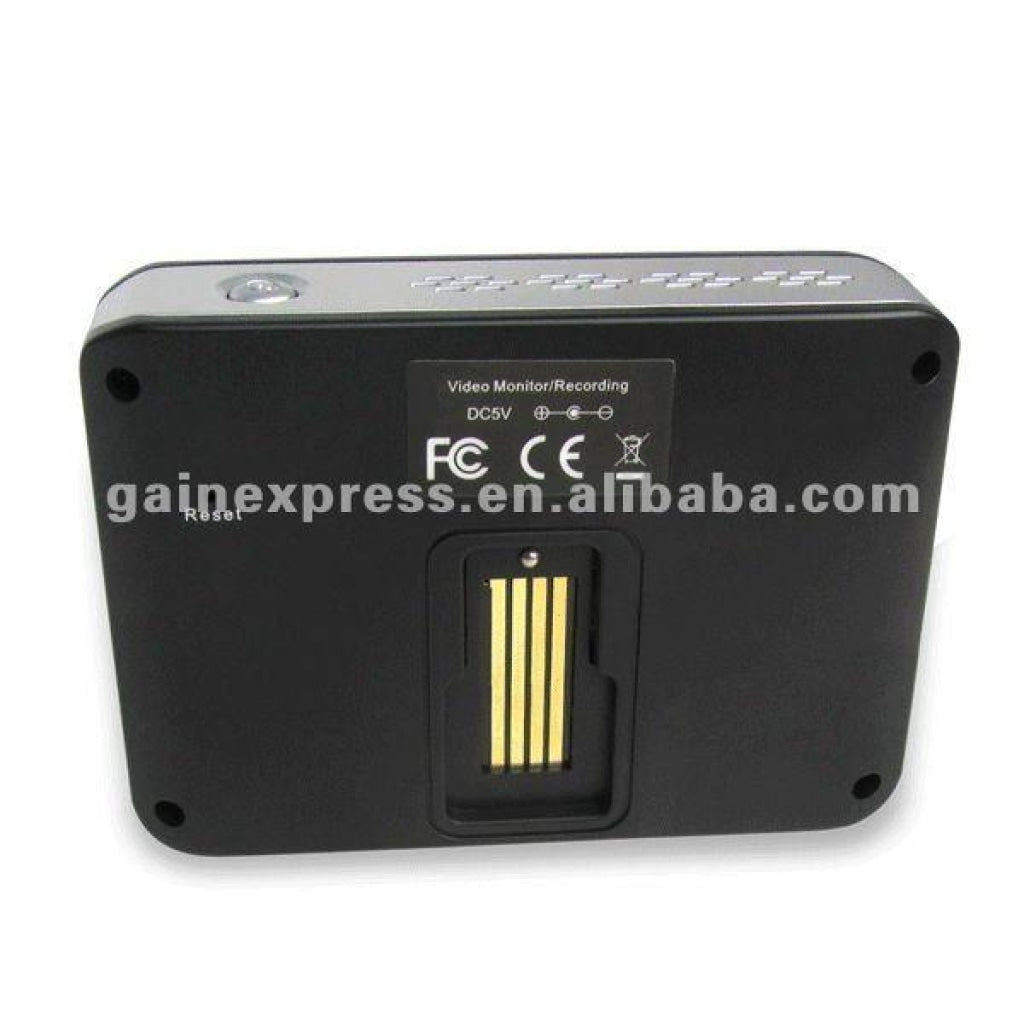

  • Receiver

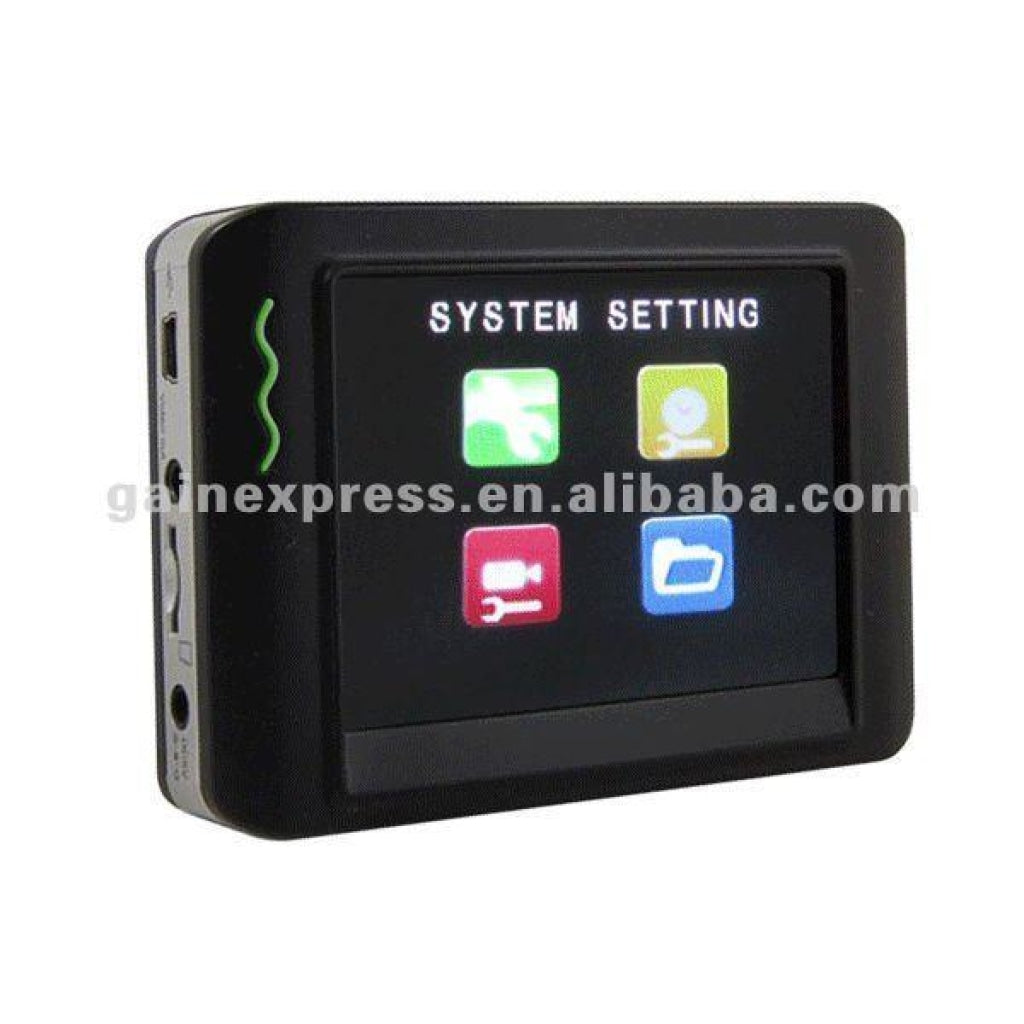

    • LCD Screen Type: 3.5 inch (8.9 cm) TFT-LCD
    • Effective Pixels: 960 x 240
    • Video System: PAL / NTSC
    • Transmission Frequency: 2414 MHz, 2432 MHz, 2450 MHz, 2468 MHz
    • Exterior Supply Voltage: DC 5V
    • Consumption Current (Maximum): 700mA
    • Picture/Video Pixels: 640 x 480
    • Video Size: 27m byte/minute
    • Frame Rate: 30 frame/second
    • Receiving Sensitivity: = -85 dBm
    • Video Output Level: 0.9 ~ 1.3V at 75 ohm
    • Memory Card: MicroSD (FREE)
    • Dimensions: 100 x 70 x 25mm
    • Weight: approx. 150g
    • Operating Environment
      • Temperature: -10~50° / 14~122°F
      • Humidity: 15~85%RH
  • Main Unit:
    • Dimension: 186 x 140 x 41mm [W x H x Thickness] (Main unit excluded Flexible Tube)
    • Weight: ( Main unit excluded Flexible Tube ) 180 g
    • Power Supply: 4 x AA Alkaline Batteries (not included)

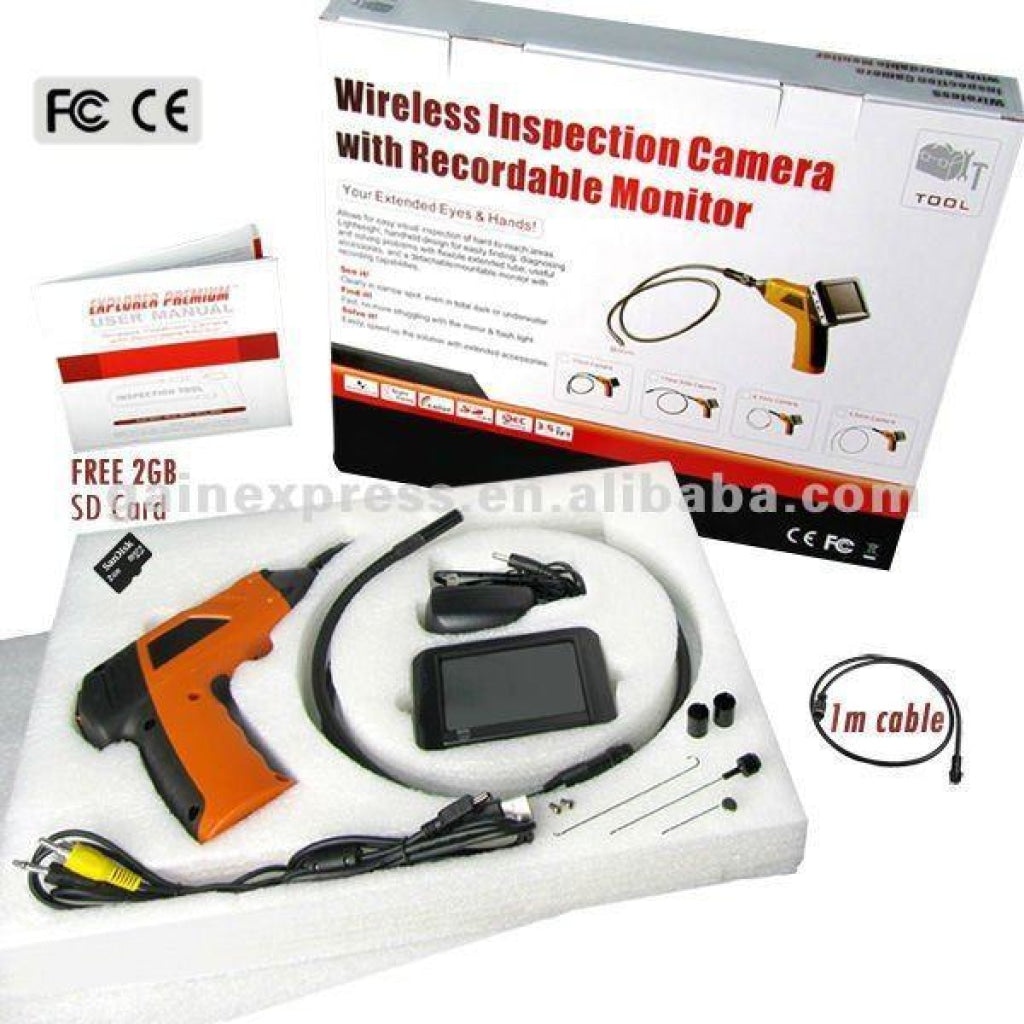

Set Includes:

  • 1 x 3.5" LCD Monitor (Receiver)
  • 1 x 1 meter Flexible Tube with 9mm Diameter Waterproof Camera Head
  • 1 x 1 meter / 3.3 feet Extension Cable (FREE)
  • 1 x Magnet Tip
  • 1 x Hook Tip
  • 1 x Mirror Tip
  • 2 x Rubber Rings
  • 1 x Video Cable
  • 1 x USB cable
  • 1 x Tiny Screw
  • 1 x 2 GB SD Card (FREE)
  • 1 x Instruction Manual
  • 1 x Standard Packaging Box
  • 1 x Power Adapter (EU / UK / AU / US plug with 100 ~ 240V AC)



Optional Item:(not included in set):

          Please click here to buy this optional item   1m (3.3ft) Extension Cable

or you may contact us at sales(at)gainexpress.com if you want an optional items to be included in your order.
