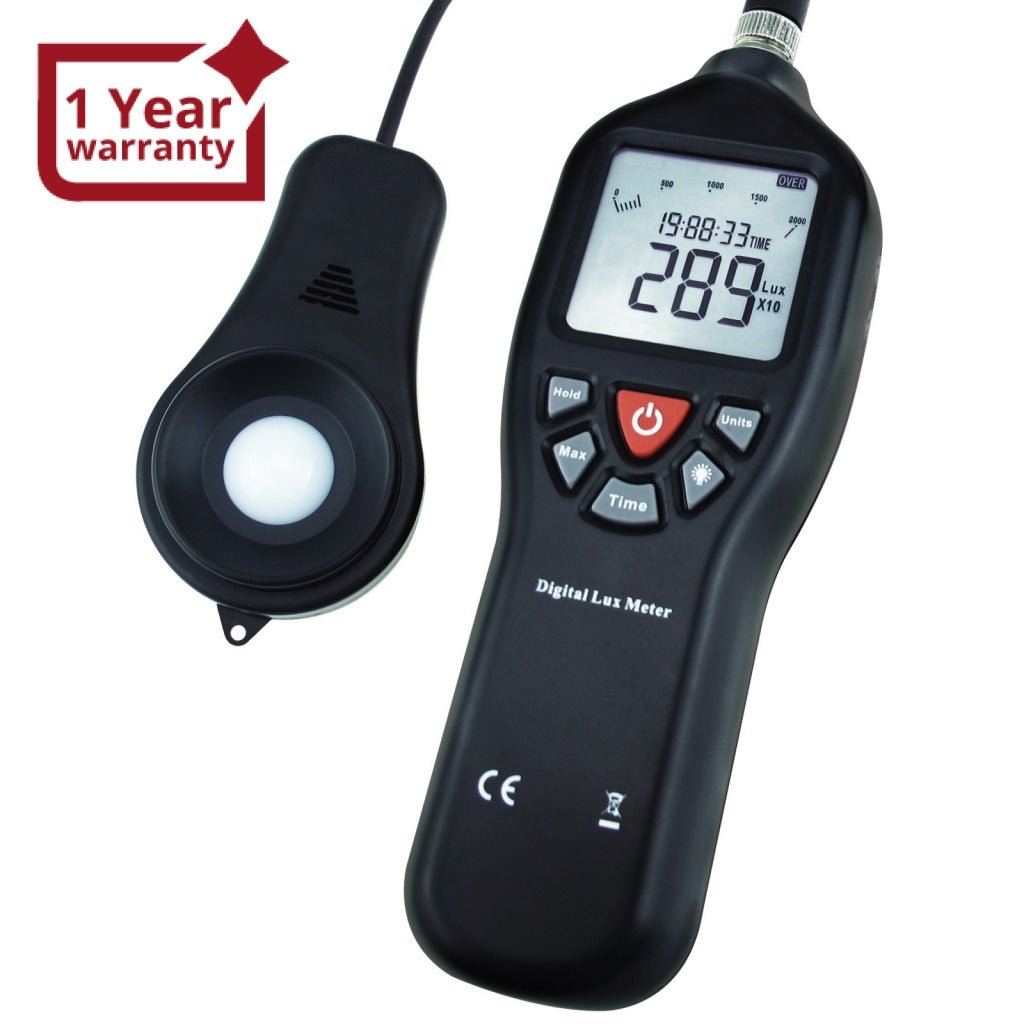

LUX-28 Digital Light Lux Meter Instrument Measurement Range 0 to 200,000 Lux Portable Auto Ranging Tool

  • 0% OFF
  • Regular price

    $40.90


Qty Price
1 - 4 $40.90
5 - 9 $38.90
10 - 19 $37.60
20 - + $36.00

Add to Wishlist


Check shipping / delivery time for your country | Free Shipping Worldwide Request for Quotation

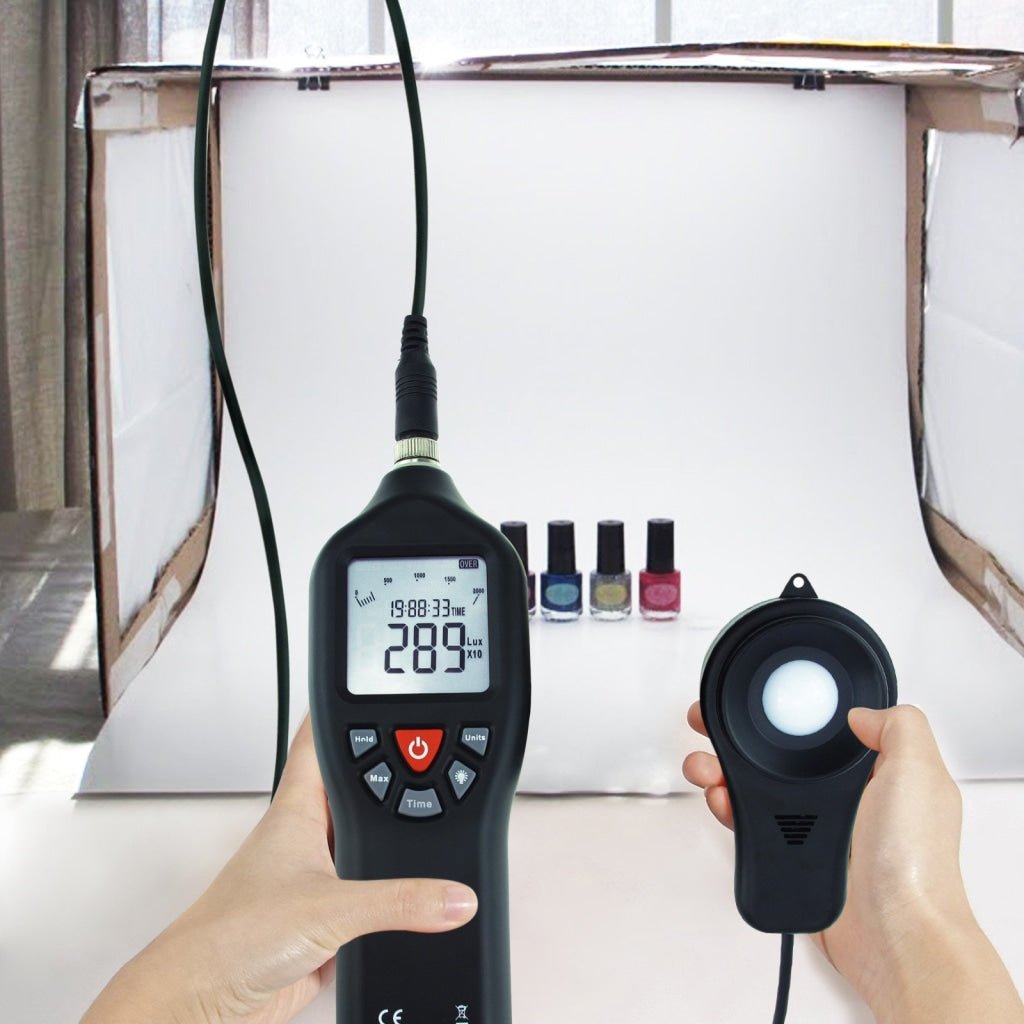

This digital lux meter can measure up to 200,000 lux. It is used for checking the level of luminance, the measure of the amount of light falling on a given surface. It applied in the fields of cinematography and scenic design, in order to determine the optimum light level for a scene, where they can help to reduce the amount of waste light used in the home, light pollution outdoors, and plant growing to ensure proper light levels.

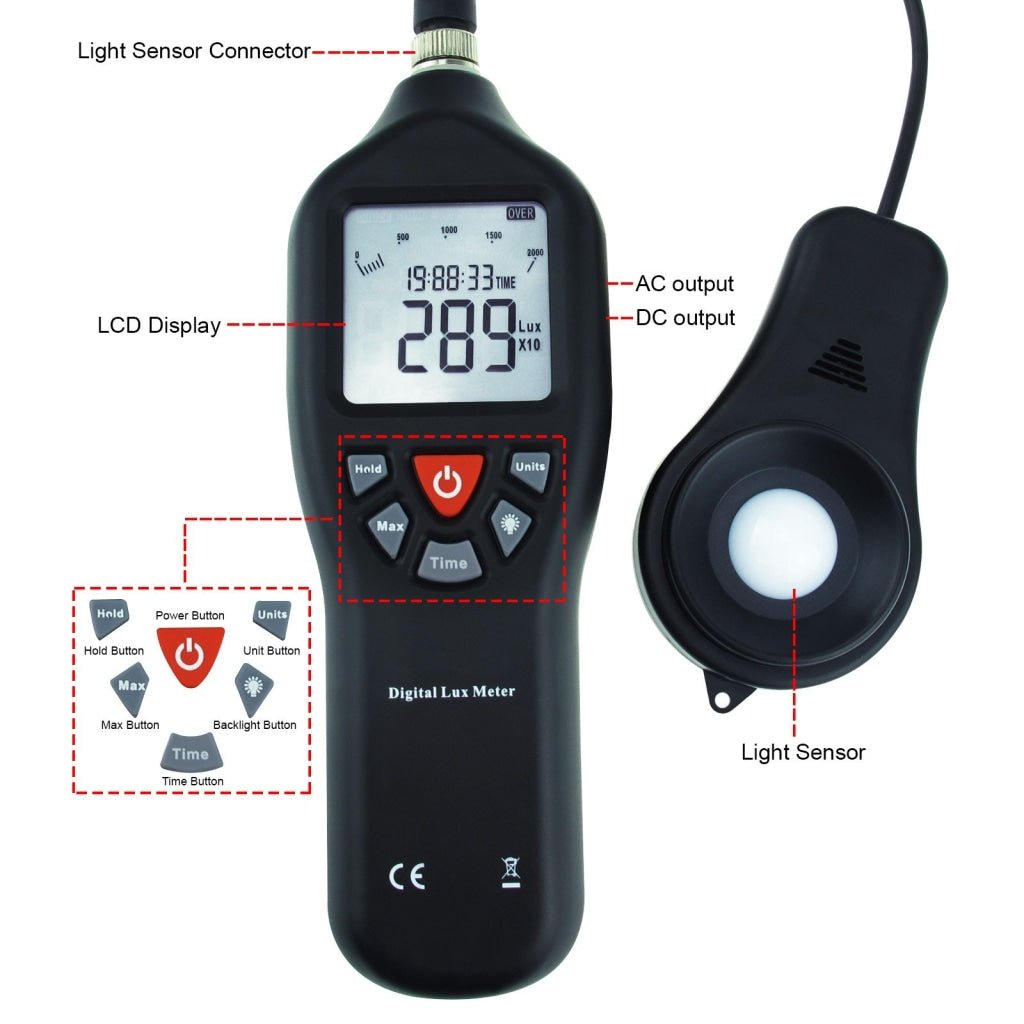

Features

  • Auto ranging

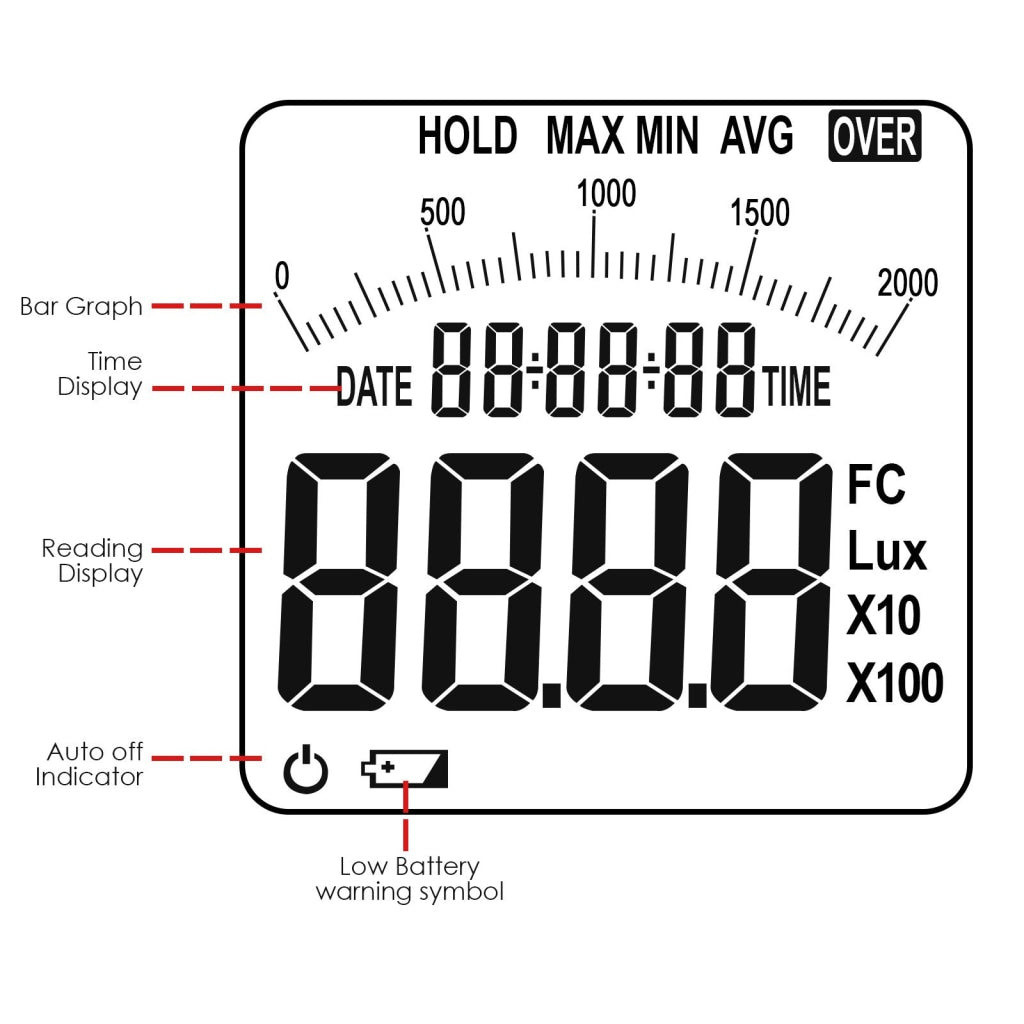

  • Large Display with backlight
  • Lux and Fc switchable
  • Data hold function
  • Min/Max/Avg function

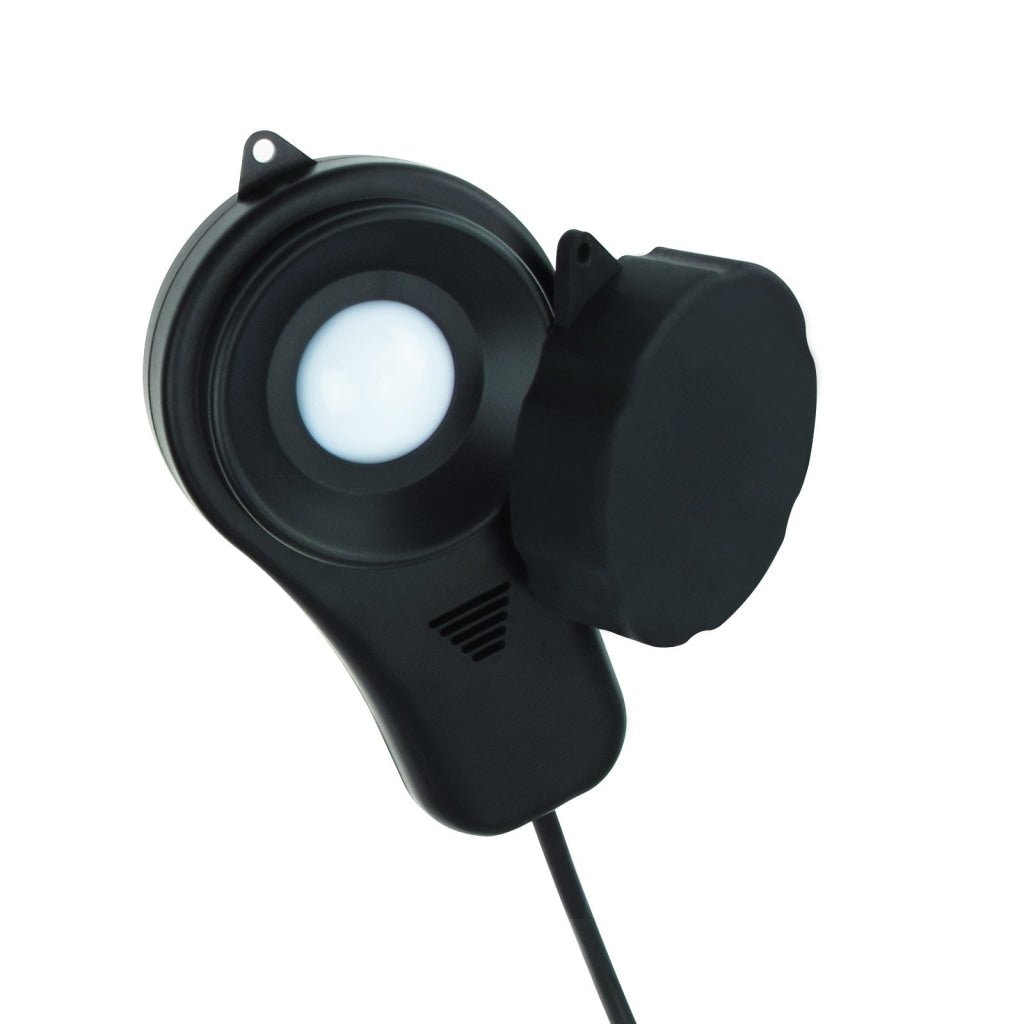

  • Detachable sensor
  • Time and date display
  • Bar graph display
  • Low power indicator
  • Auto OFF function
  • Hi/Low Alarm setting

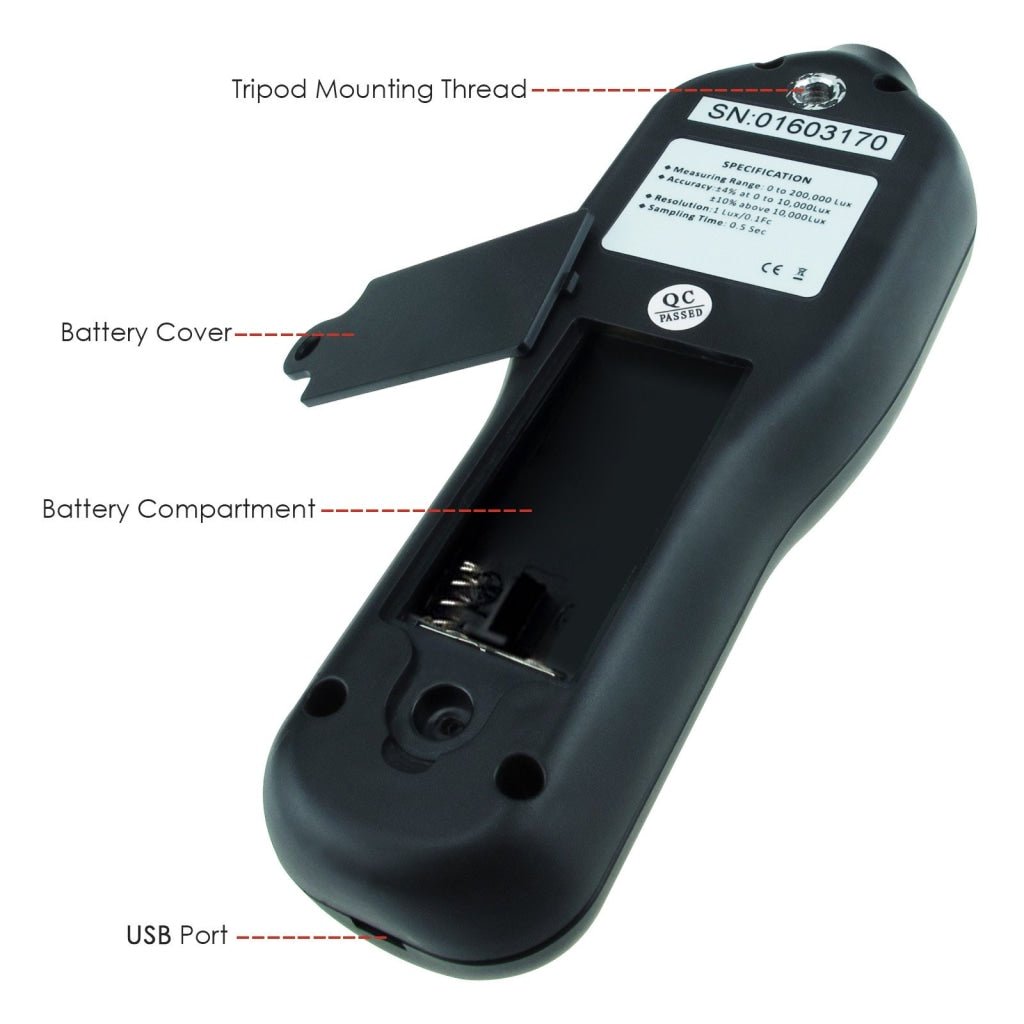

  • Tripod Mount thread (Tripod not included)

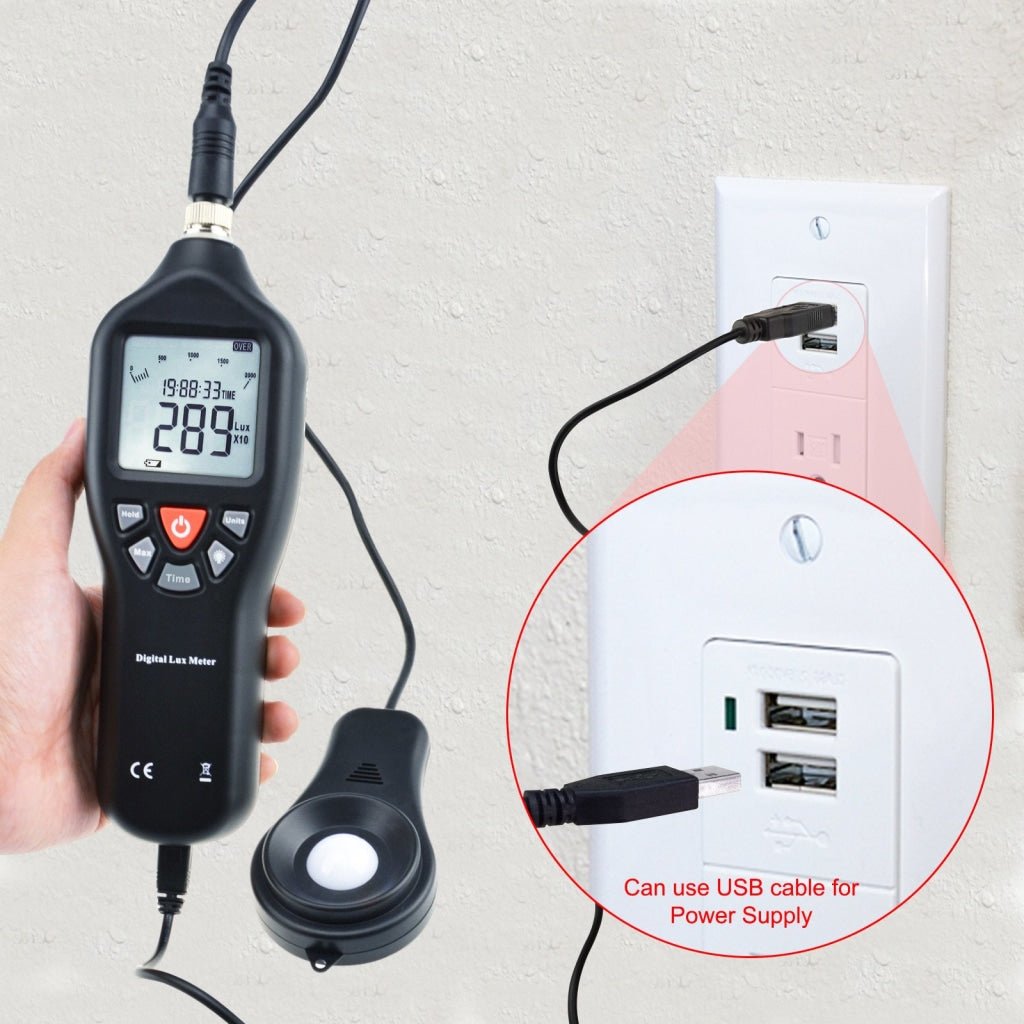

  • With USB cable for power supply
  • CE Certified & RoHS Compliant


Specifications

  • Standard Applied: CIE standard & CNS 5119-1988

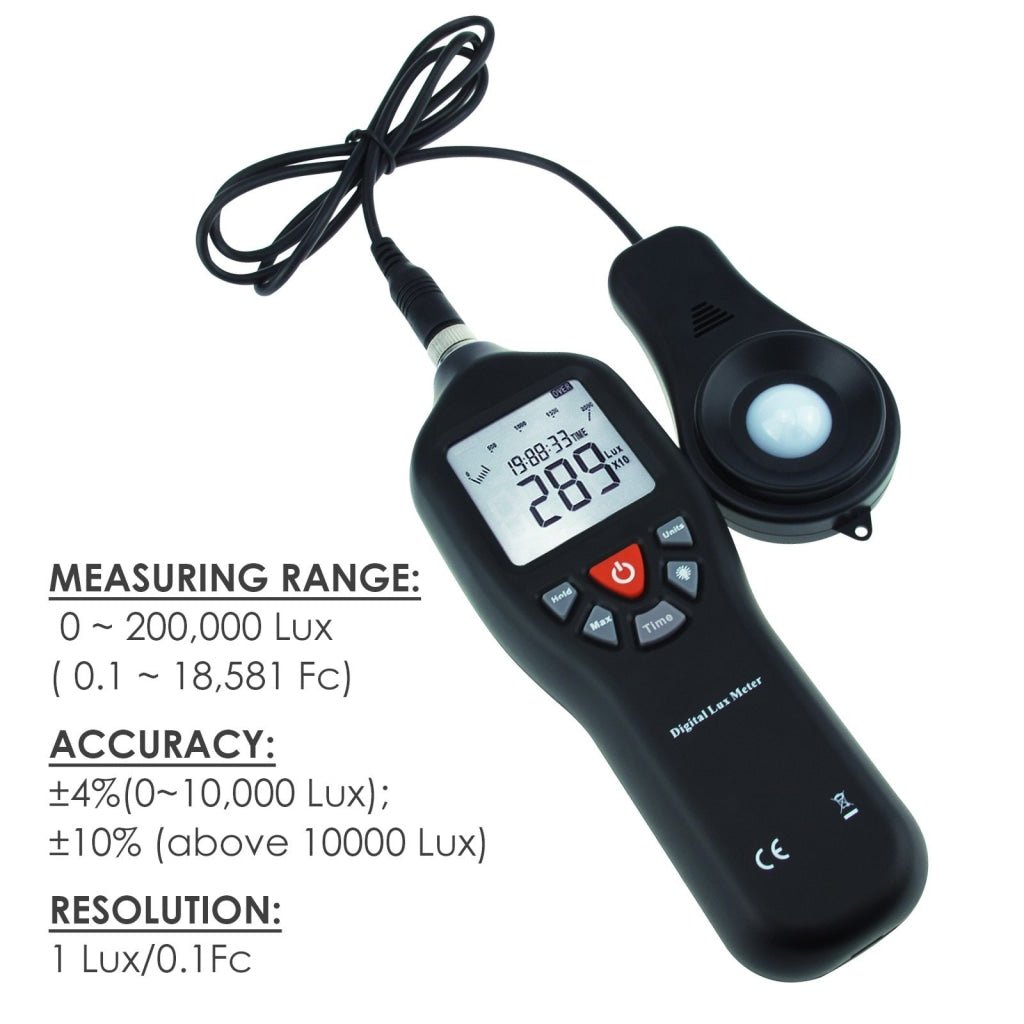

  • Measure Range: 0 ~ 200,000 Lux ( 0.1 ~ 18,581 Fc) switchable
  • Accuracy: ±4%(0~10,000 Lux); ±10% (above 10000 Lux)
  • Resolution: 1 Lux/0.1Fc
  • Sampling Time: 0.5 Second
  • Analogy Bar Graph: 0~2000 (x 10 or x 100)
  • AC signal output: 4Vrms / full barograph, output impedance is approx. 600 ohm
  • DC signal output: 33mV/dB
  • Operating Environment
    • Temperature: 0 ~ 50 °C(32 ~ 122 °F)
    • Humidity:10 ~ 90%RH
  • Storage Environment
    • Temperature: -10 ~ 60 °C(14 ~ 140 °F)
    • Humidity:10 ~ 75%RH
  • Power Supply: 4 x AA Size 1.5V Battery or USB Power Cable
  • Item Weight: 290 gms (battery included)
  • Product Dimensions: 24 x 6.5 x 3.5 cm (with 1 meter extended detachable sensor)

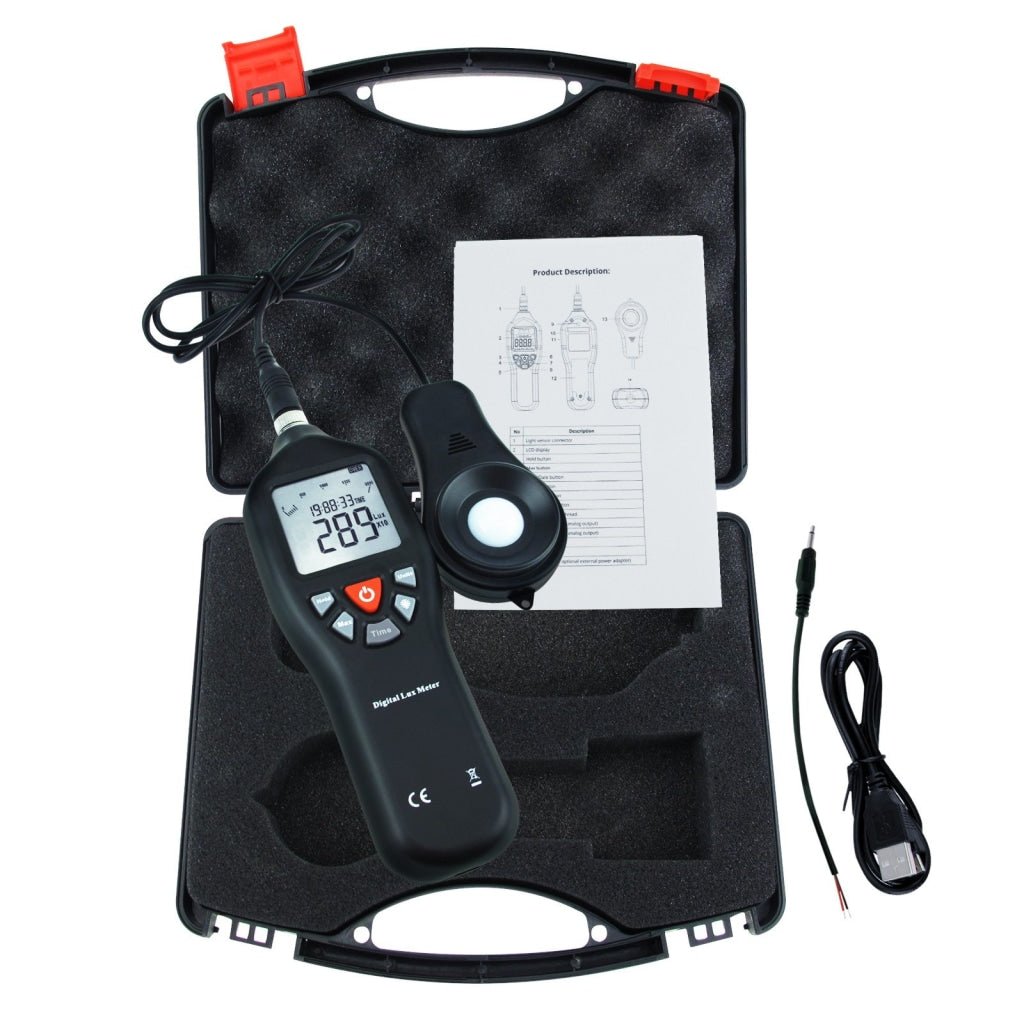

Set Includes

  • 1 x Digital Lux Meter
  • 1 x Light Sensor

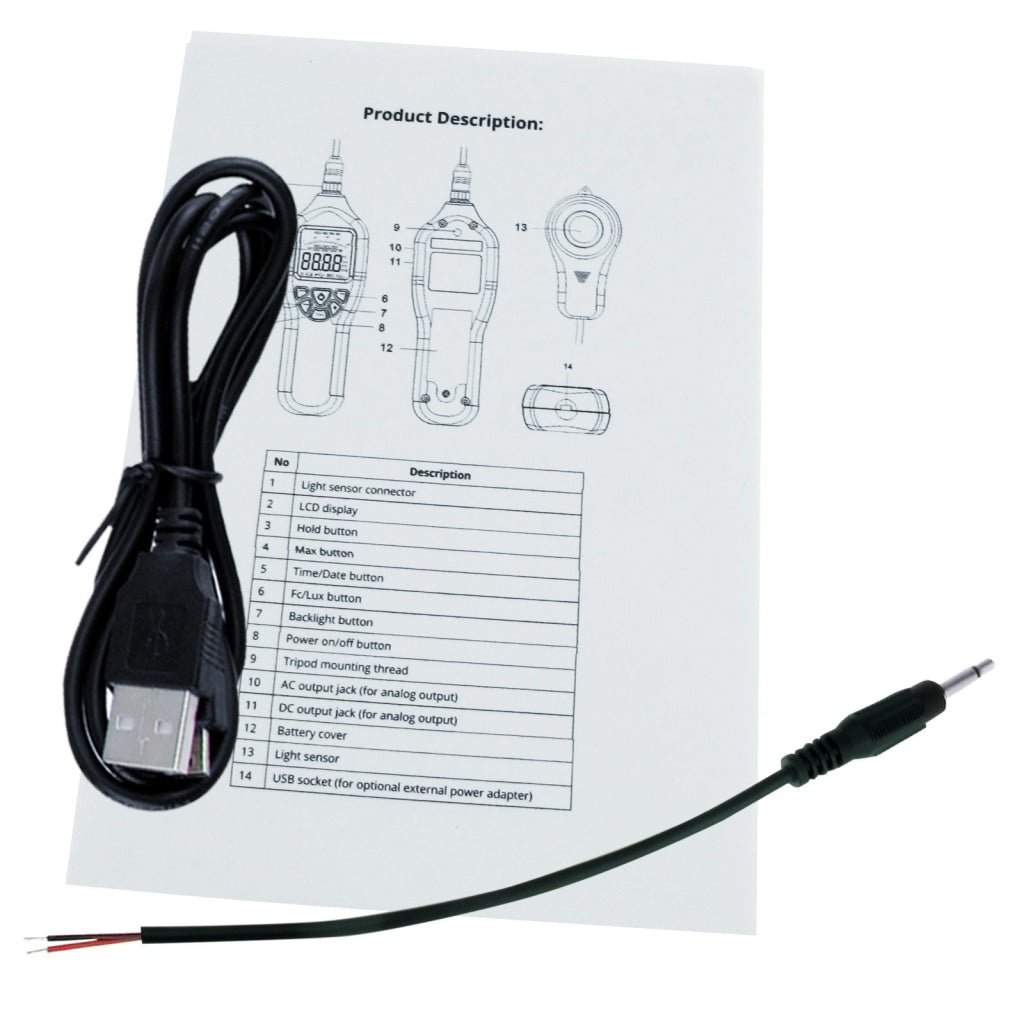

  • 1 x English User Manual
  • 1 x USB Power cable
  • 1 x AC/DC Cable
  • 4 x AA Size Battery
  • Carrying case
