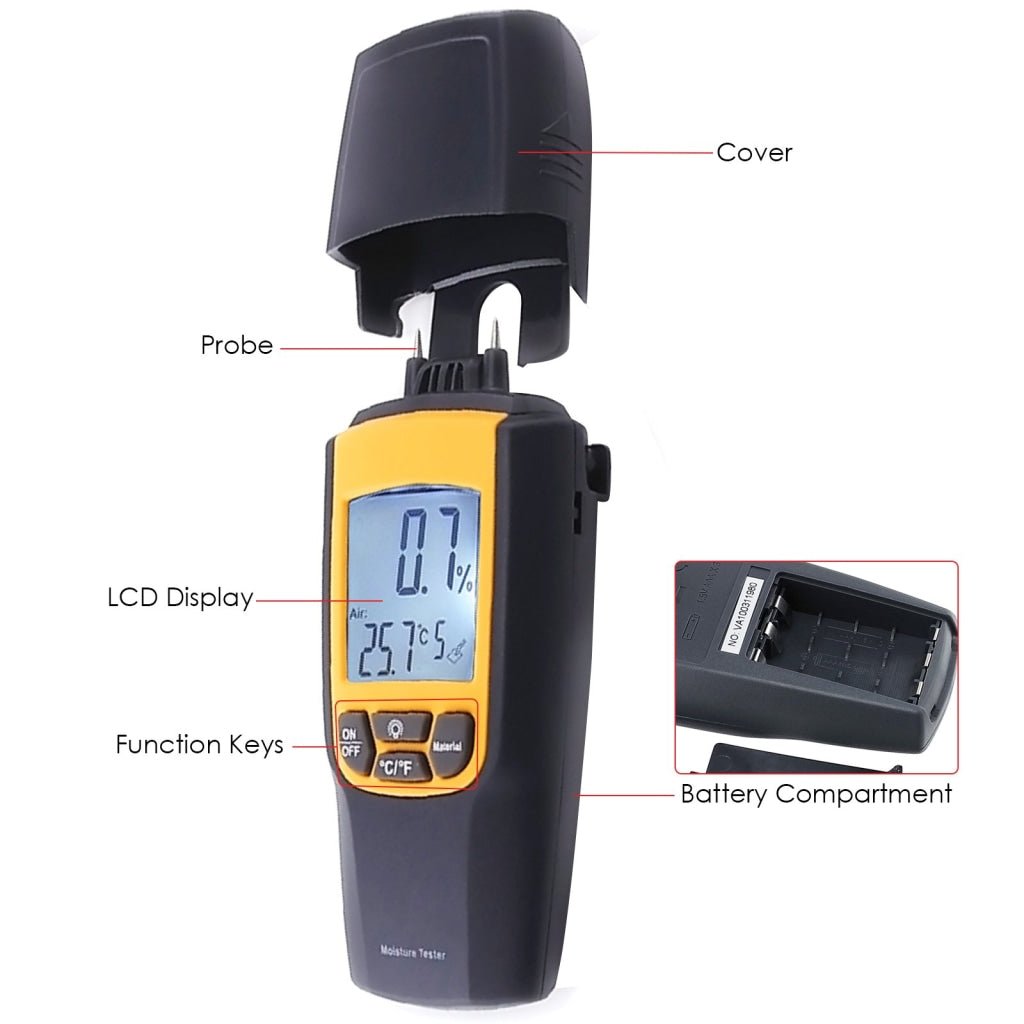

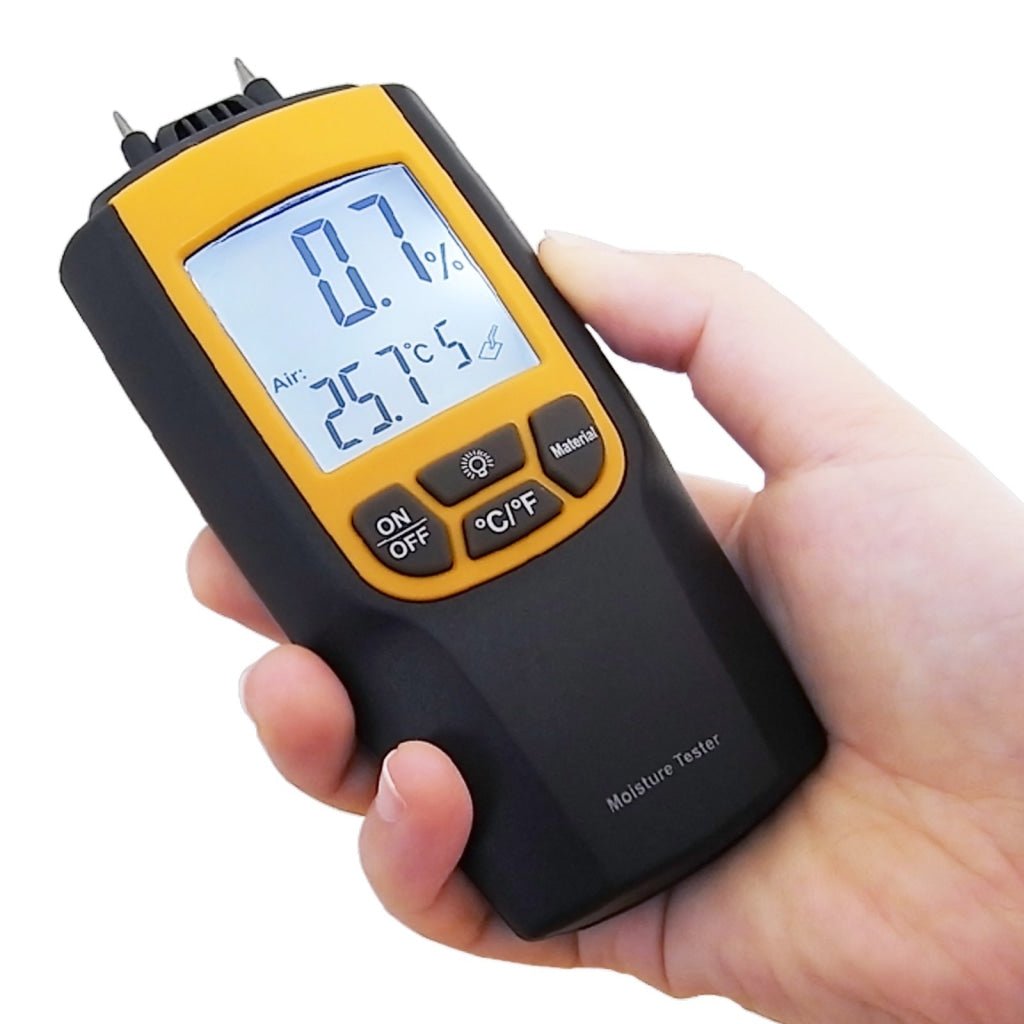

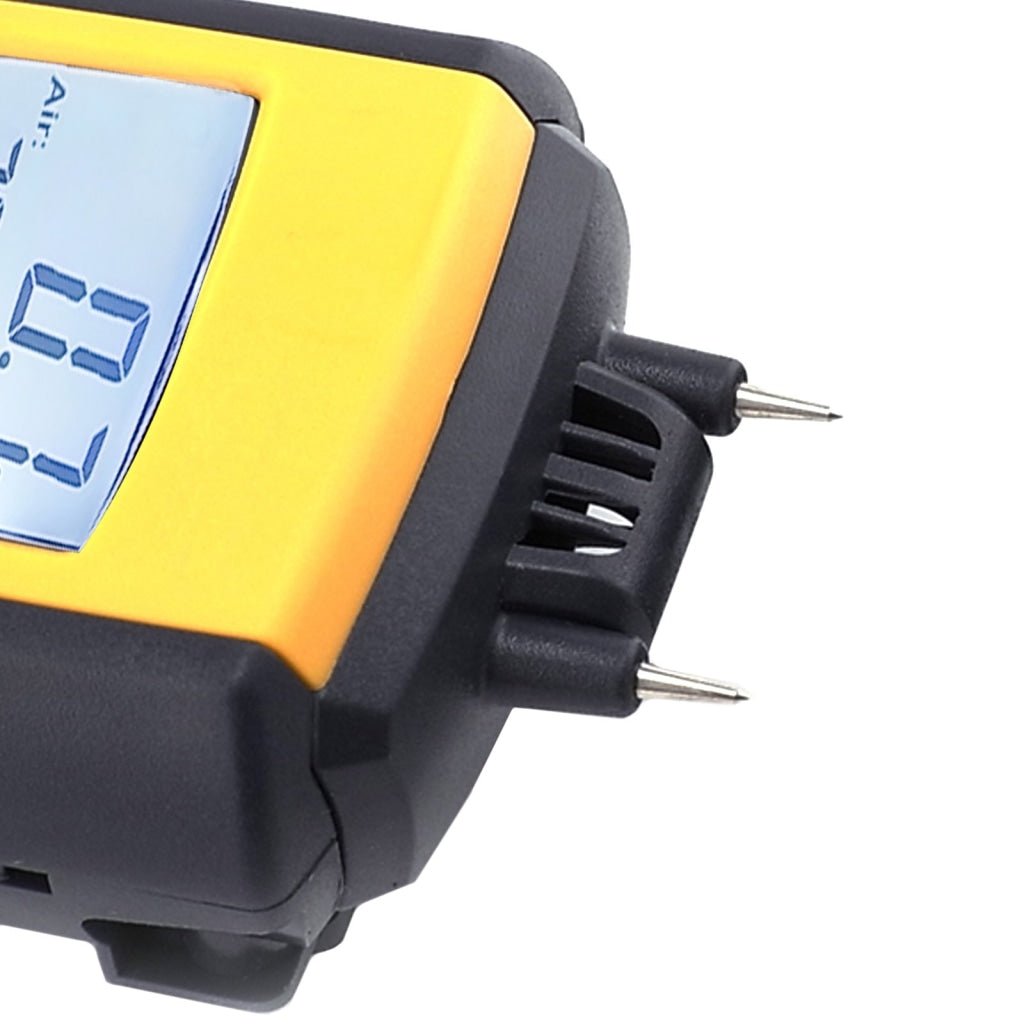

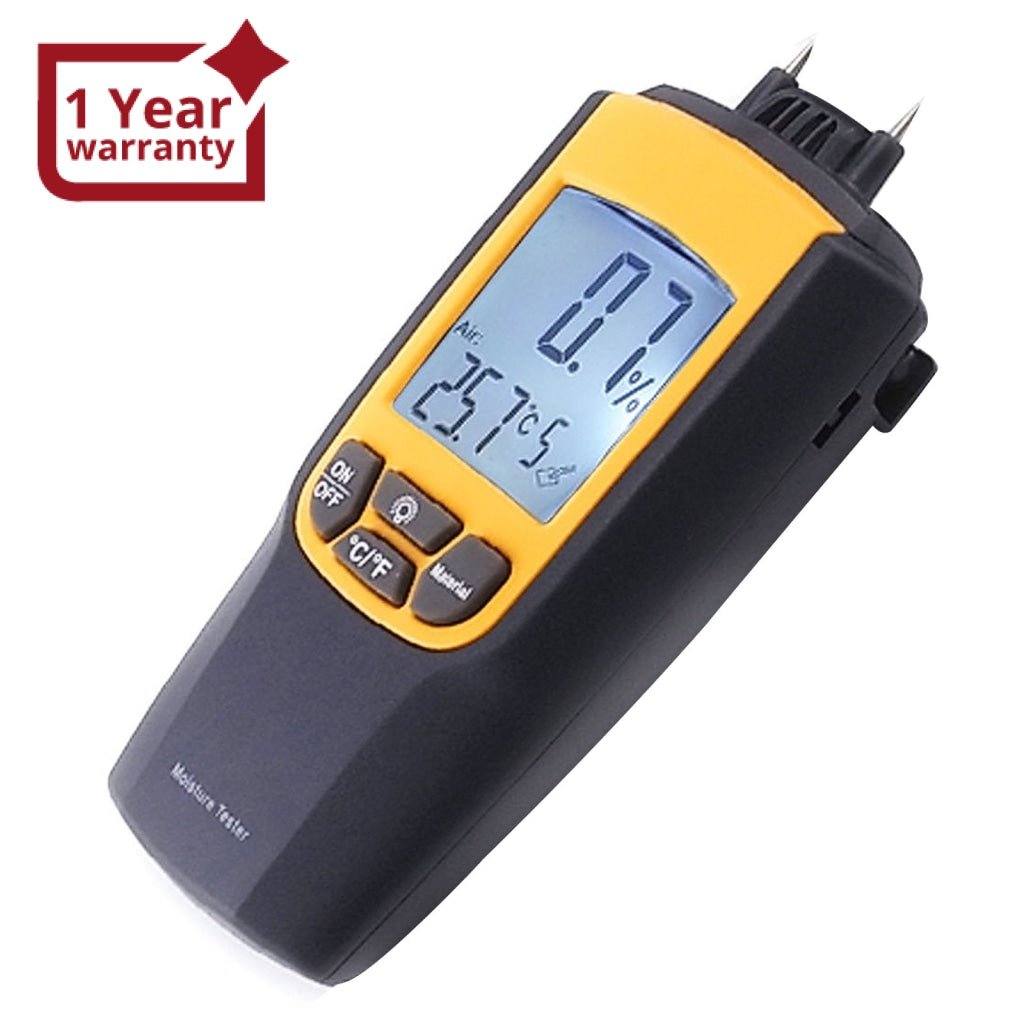

This meter is designed to measure & display both moisture and temperature simultaneously. It can quickly measure 7 different materials including hardwoods, softwoods, cement mortars, lime mortars, and bricks and other building materials. It offers both Auto Range and Manual Material Selection. The insulated pins measure moisture content at varying depths -- you can tell whether the moisture content near the bottom of a board is higher than near the top.
A moisture meter is a sure way to help minimize moisture problems in lumber production, drying, and in all phases of furniture manufacturing and woodworking. In concrete, it assesses water damage and determines when subsequent coats of finish can be applied.
An essential instrument for every professional floor mechanic, DIY, in building and engineering projects, etc.
Features

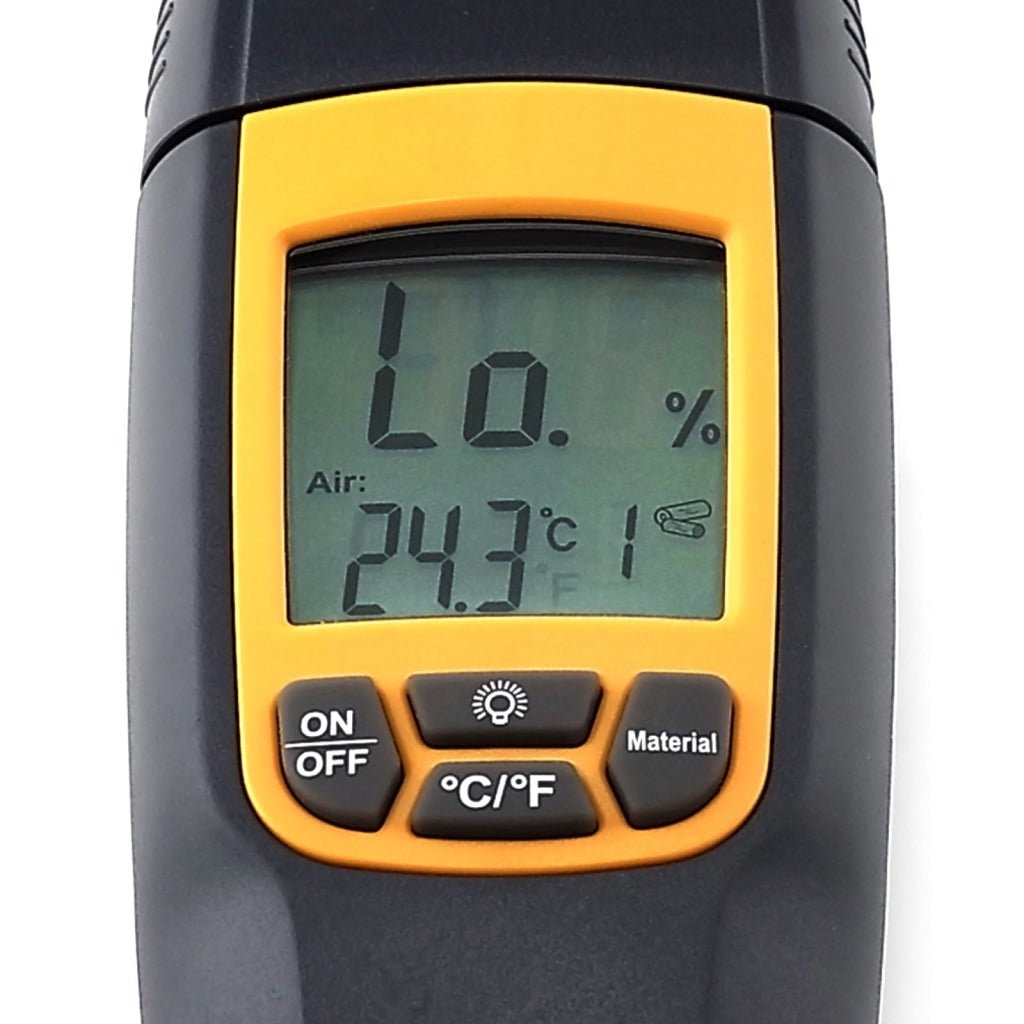

- Measure & display both humidity & temperature simultaneously
- Wide range: 0~95.7% moisture & -10~50°C(14~122°F) temperature
- Automatic range selection
- Manual material selection
- Durable & stable humidity sensor
- Instantaneous precise measurement
- 7 different materials (Hardwood, Softwood, Cement mortar, Lime mortar, Bricks)
- Selectable °C or °F
- Auto & Manual power off
- Continuous working mode
- Low battery indicator
- Good circuitry design uses power efficiently
- Over range indicator for moisture
- Backlight function
- Tested according to European international guidelines and standards (CE Marking)
Specifications
- Protection Class: IP20
- Digital display: 3 digits
- Designed according to CE directive: 2004/108/EC
- Parameters: % material moisture contents, temperature °C, °F
-

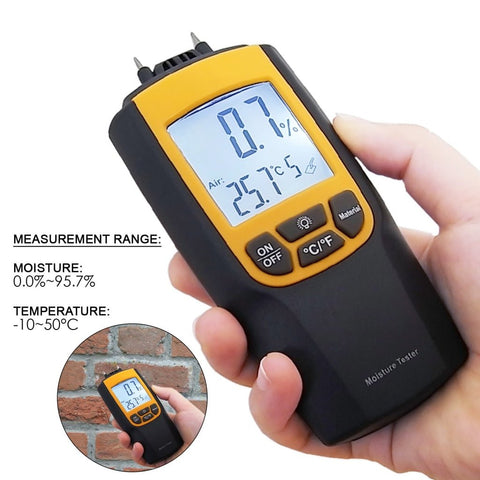

Measurement range:
- Moisture: 0.0%~95.7%
- Temperature: -10~50°C
-
Accuracy:
- Conductivity measurement: ±%2
- Temperature: ±1°C
-
Resolution:
- Moisture: 0.1%
- Temperature: 0.1°C (0.1°F)
-
Response time:
- Moisture: 1s
- Temperature: 125ms
-
Measurement selection:
-
Material 1: 8.9~95.7%
(Hardwood such as Beech, Spruce, Larch, Birch, Cherry, Walnut and so on) -
Material 2: 7.1~80.0%
(Softwood such as Oak, Pine, Maple, Ash-tree, Douglas fir, Meranti and so on) -
Material 3: 1.0~2.5%
(Cement or Concrete plane, Plaster produce) -
Material 4: 0.0~3.3%
(Anhydrite plane) -
Material 5: 0.7~3.8%
(Cement mortar) -
Material 6: 0.5~7.4%
(Lime mortar) -

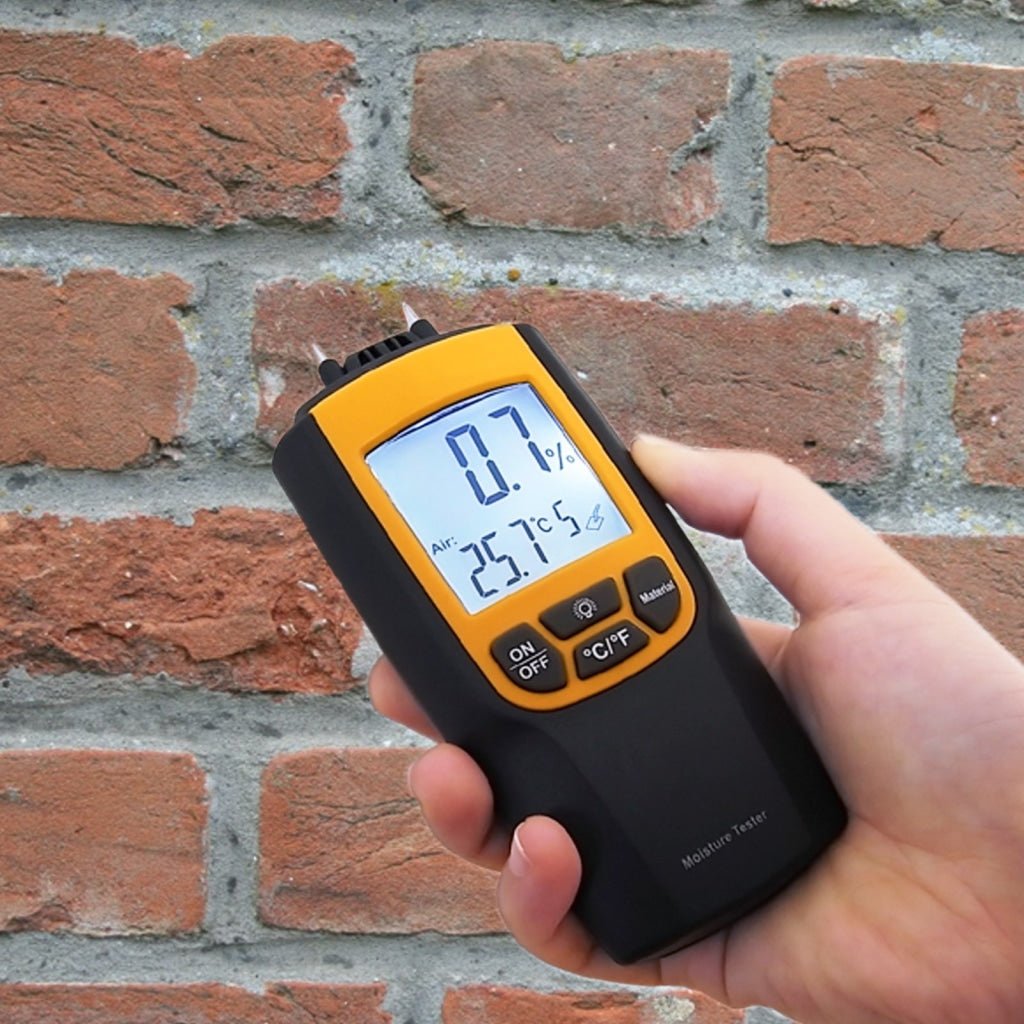

Material7: 0.0~23.4%
(Bricks)
-
Material 1: 8.9~95.7%
- Automatic & Manual shutdown / Continuous working mode

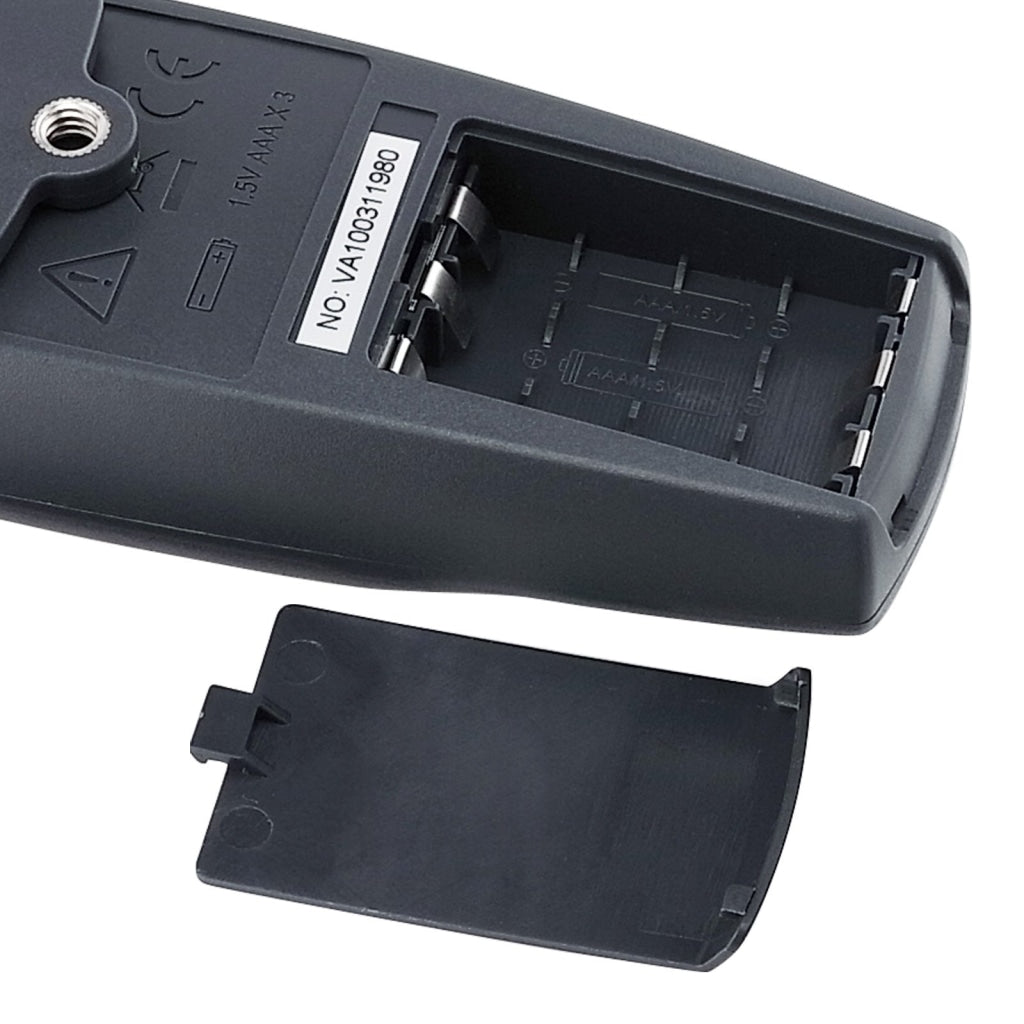

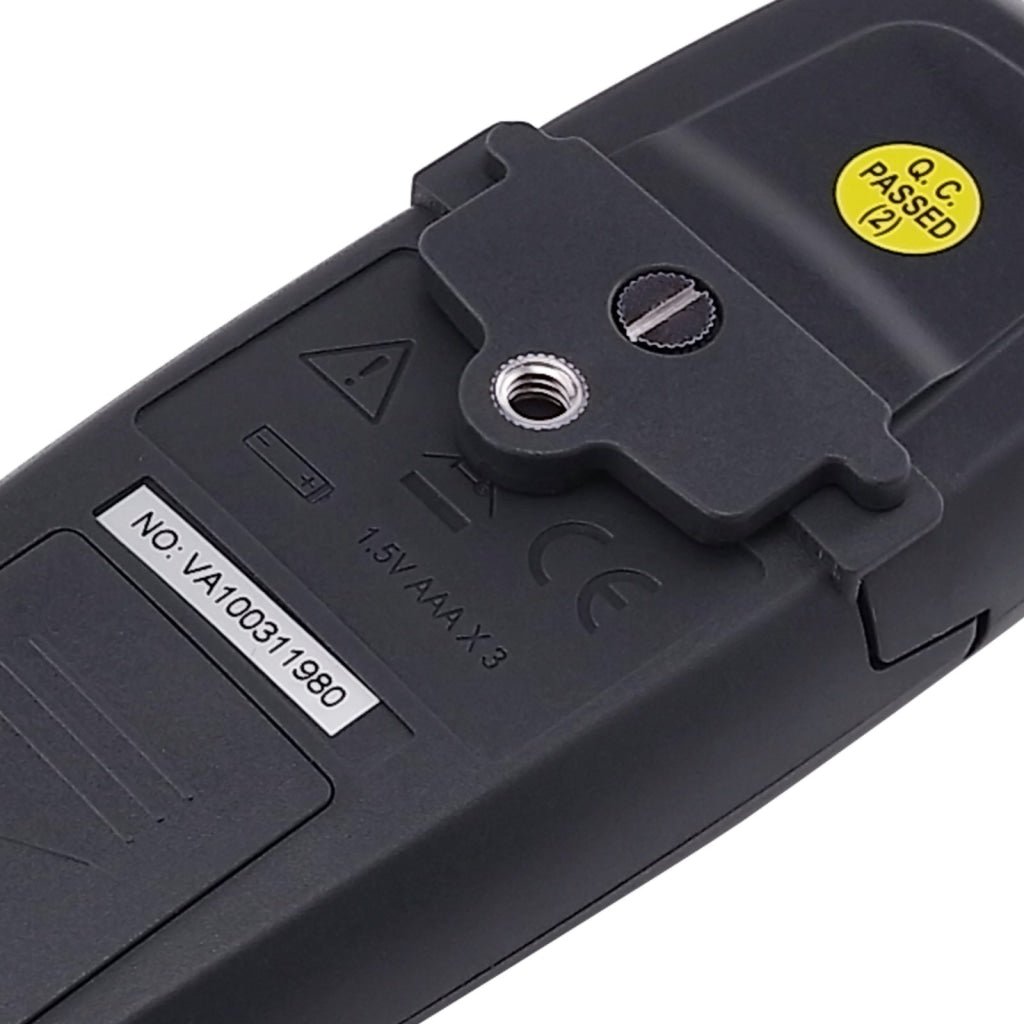

- Power supply: 3 x AAA DC1.5V
- Operating temperature: -10~50°C
- Storage temperature: -40~70°C (-40~158°F)
- Size: 121 x 60 x 30mm
- Weight: approx. 180g (including battery)

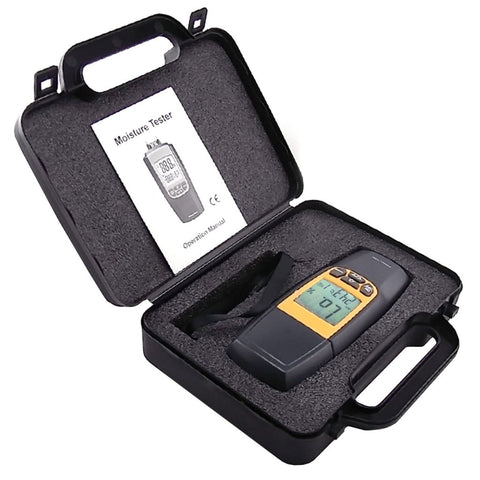

Set Includes
- 1 x Moisture & Temperature Meter
- 3 x 1.5V AAA Battery (FREE)

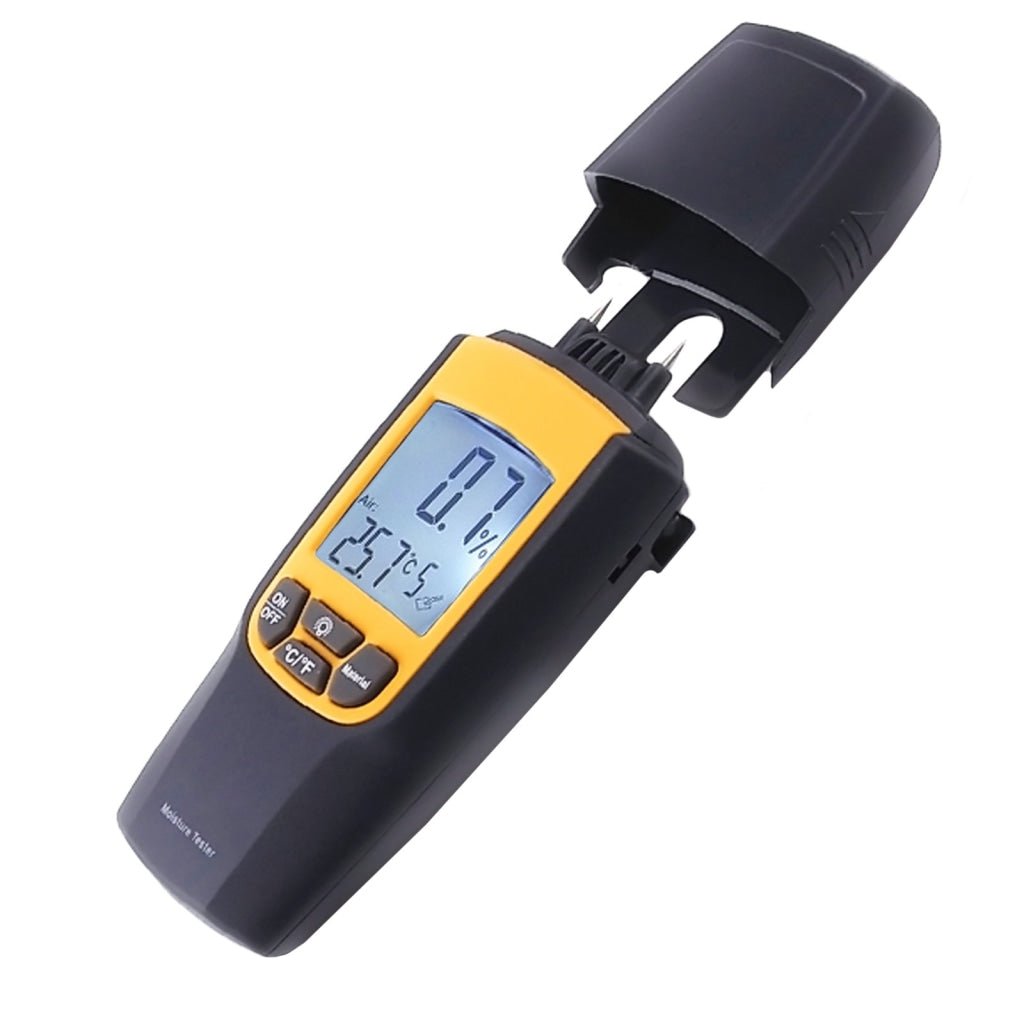

- 1 x Protective Cover
- 1 x Hard Protective Plastic Carrying Case (FREE)
- 1 x Wrist Lanyard/Strap (FREE)
- Quick Start Manual
