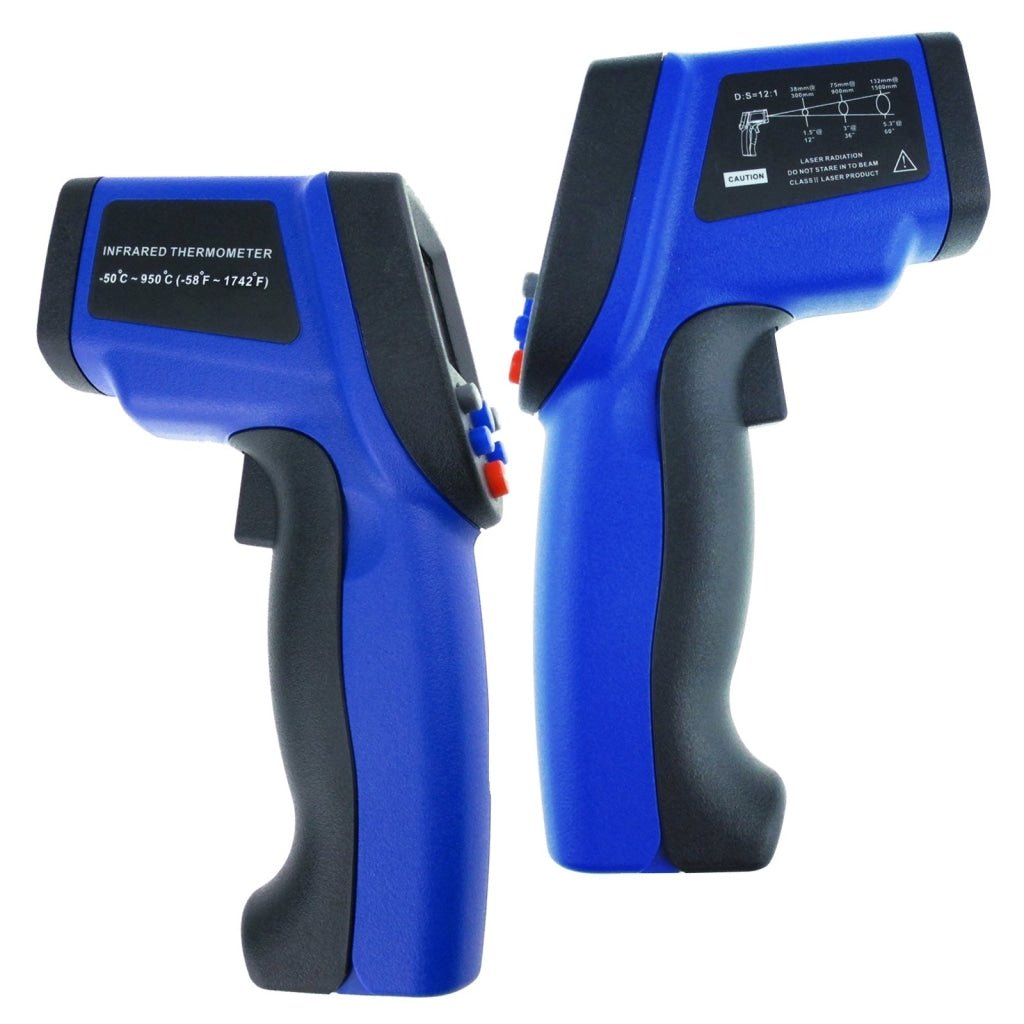

THE-35 Instrument Infrared Thermometer Instant-read Measuring Range -50~950°C(-58~1742°F), Industrial Chemicals Machinery Cooking Household Used


Model: THE-35

* This Infrared Laser Thermometer is used for measuring the temperature of the object's surface, which is applicable for various hot, hazardous or hard to reach objects without contact safely and quickly.

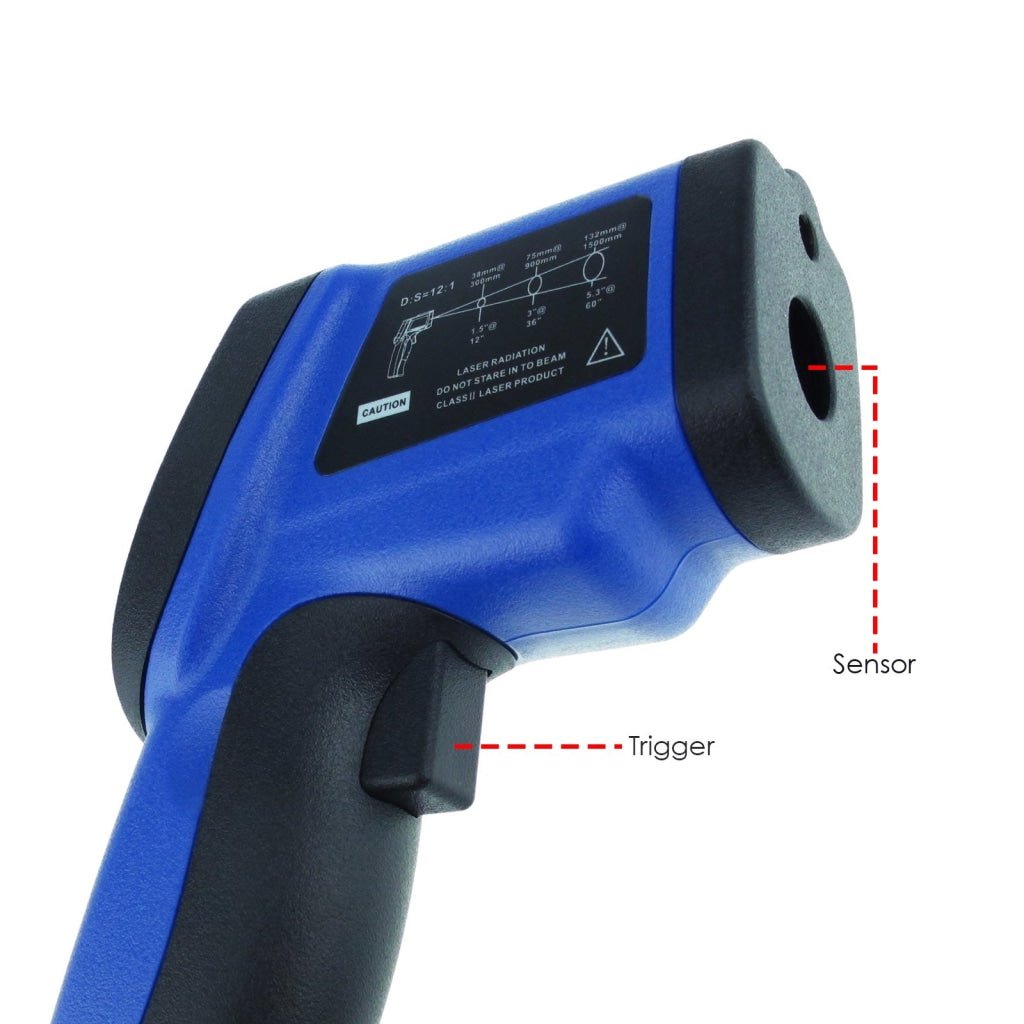

* This unit consist of optics, temperature sensor signal amplifier, processing circuit and LCD display. The optics collected the infrared energy emitted by object and focus onto the sensor. Then the sensor translates the energy into an electricity signal. This signal will be turned out to be digital shown on the LCD after the signal amplifier and processing circuit.

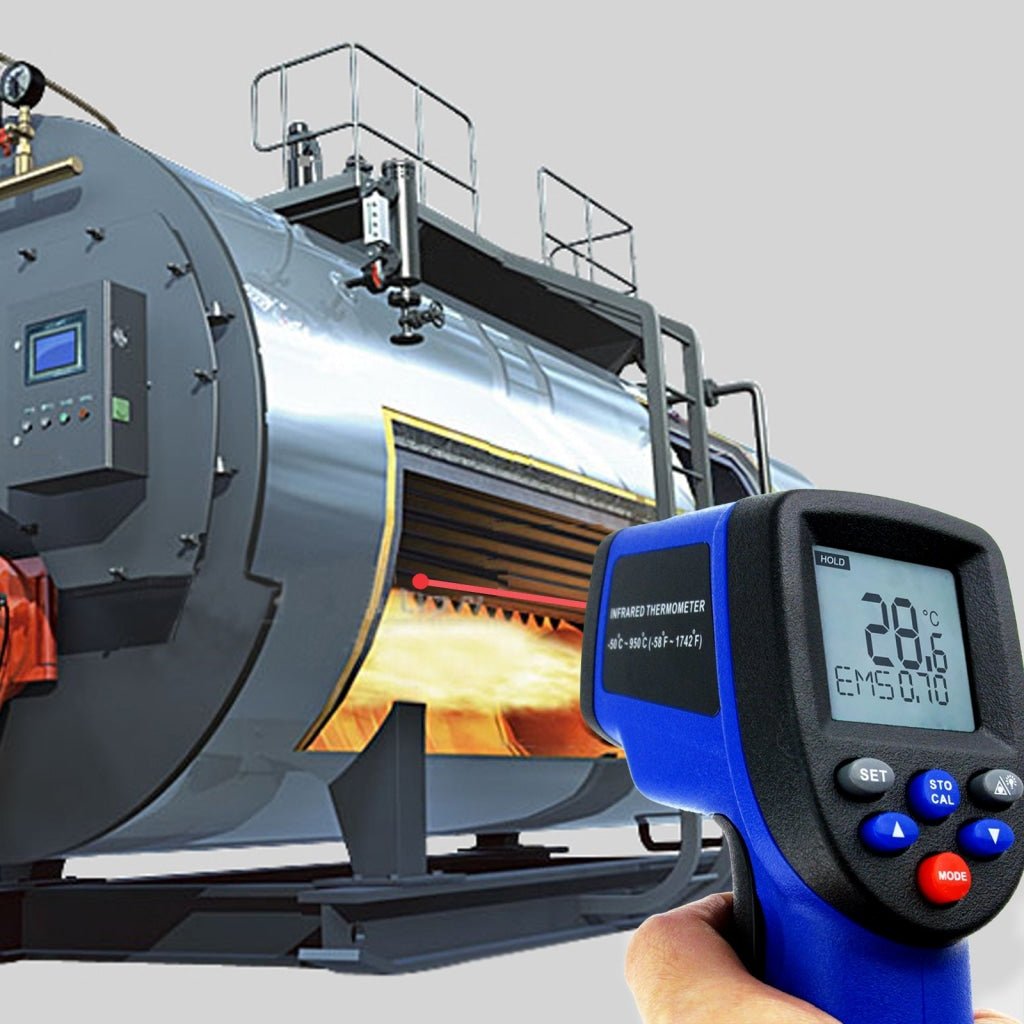

Application: Widely applied in fields of labs, chemicals, machinery, environment check, heating and cooling system and non-injure testing.

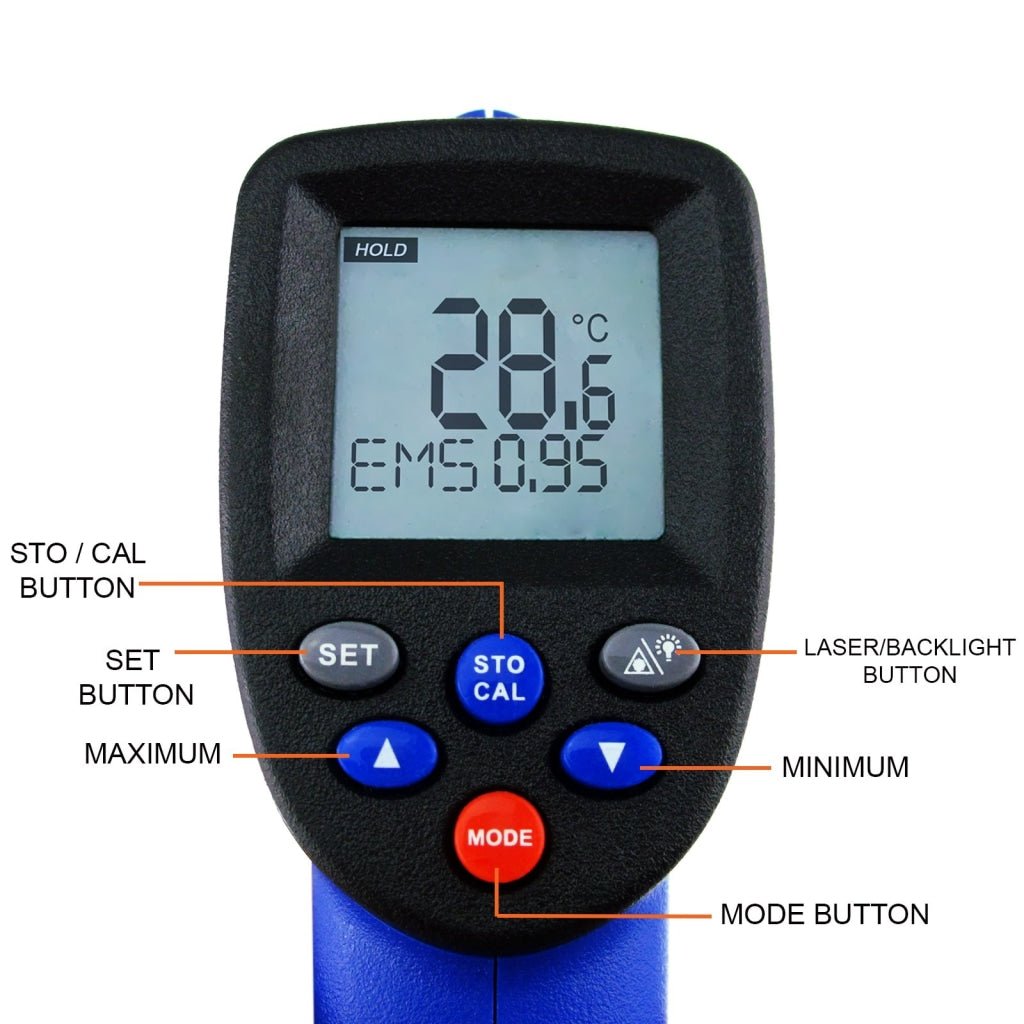

  • Handheld Thermometer
  • Fast & instantaneous temperature measurement

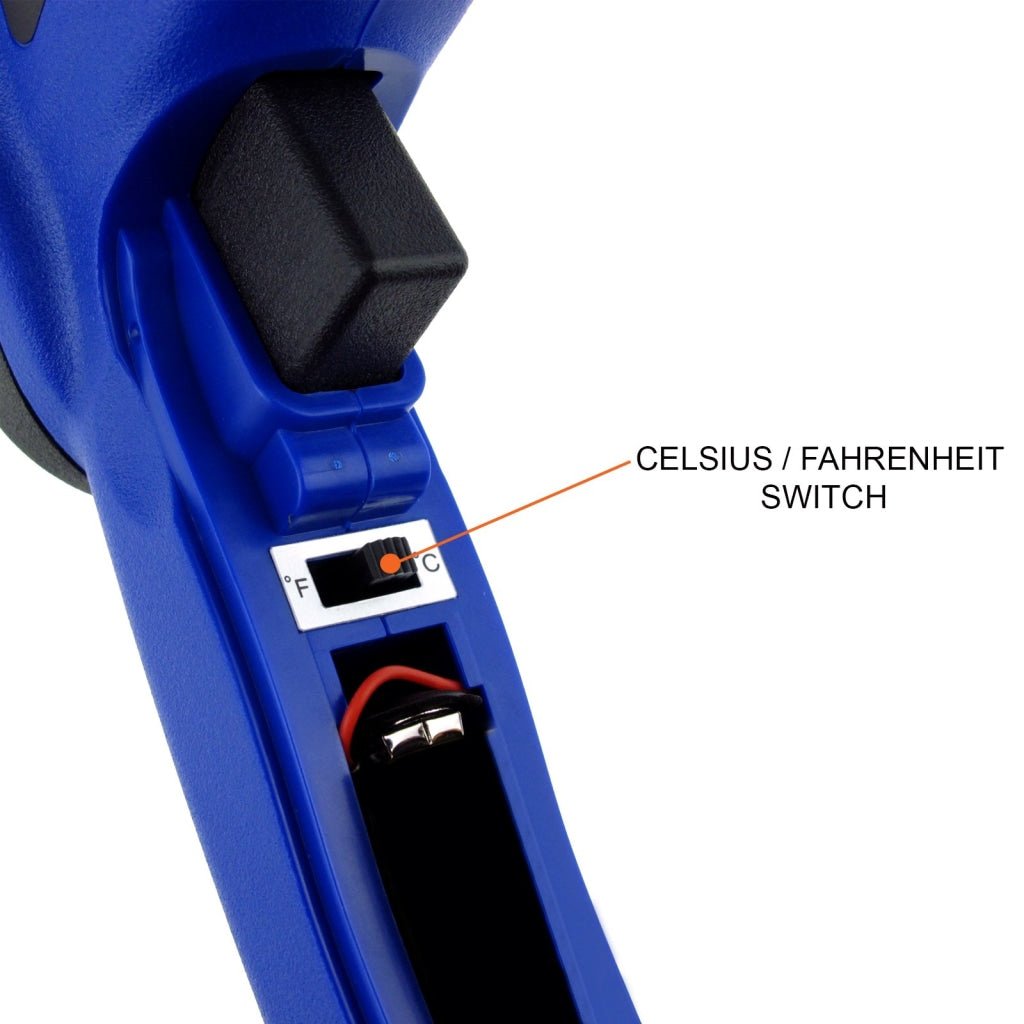

  • Selectable °C/°F temperature unit
  • Auto power off function
  • Data HOLD
  • MAX/MIN/DIF/AVG Display
  • Laser ON/OFF
  • ON/OFF Backlight
  • HI / LOW temperature audio alert
  • 30 data storage
  • Low battery indicator
  • With CE marking


  • Temperature Range: -50~950°C(-58~1742°F)
  • Accuracy: 0~950°C (32~1742°F): ±1.5°C (±2.7°F) or ±1.5%
                    : -50~0°C (-58~32°F): ±3°C (±5°F) whichever is greater
  • Resolution: 0.1°C/0.1°F
  • Repeatability: 1% of reading or 1°C
  • Response Time: 500mSec, 95% response
  • Spectral response: 5~14um
  • Emissivity: 0.10~1.00 Adjustable (0.95 Preset)
  • Distance to Spot Size: 12:1
  • Laser Power: 1mW
  • Laser Class: Class II

  • Operating Temperature: 0~40°C (32~104°F)
  • Operating Humidity: 10~95%RH non-condensing, up to 30°C(86°F)
  • Storage Temperature: -20~60°C(-4~140°F)
  • Power supply: 1 x 9V Battery
  • Typical battery life (Alkaline)
    • Non-lase mode: 22hrs
    • Laser Mode: 12hrs
  • Item Weight: approx. 222.2 gms

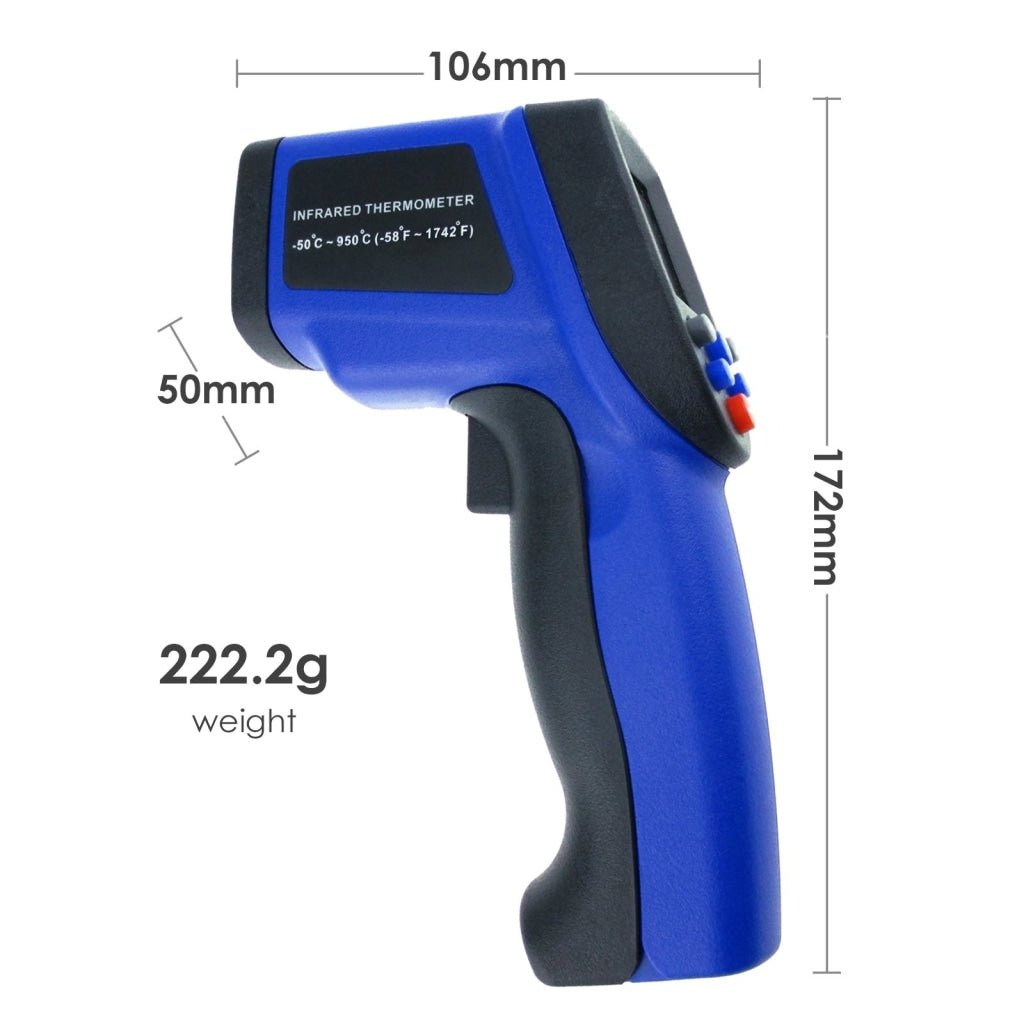

  • Product Dimensions: approx. 10.6 x 17.2 x 5.0 cm

Set Includes:

  • 1 x Infrared Thermometer
  • 1 x English User Manual
  • 1 x 9V Battery
  • Carrying Case
  • Standard Factory Package
