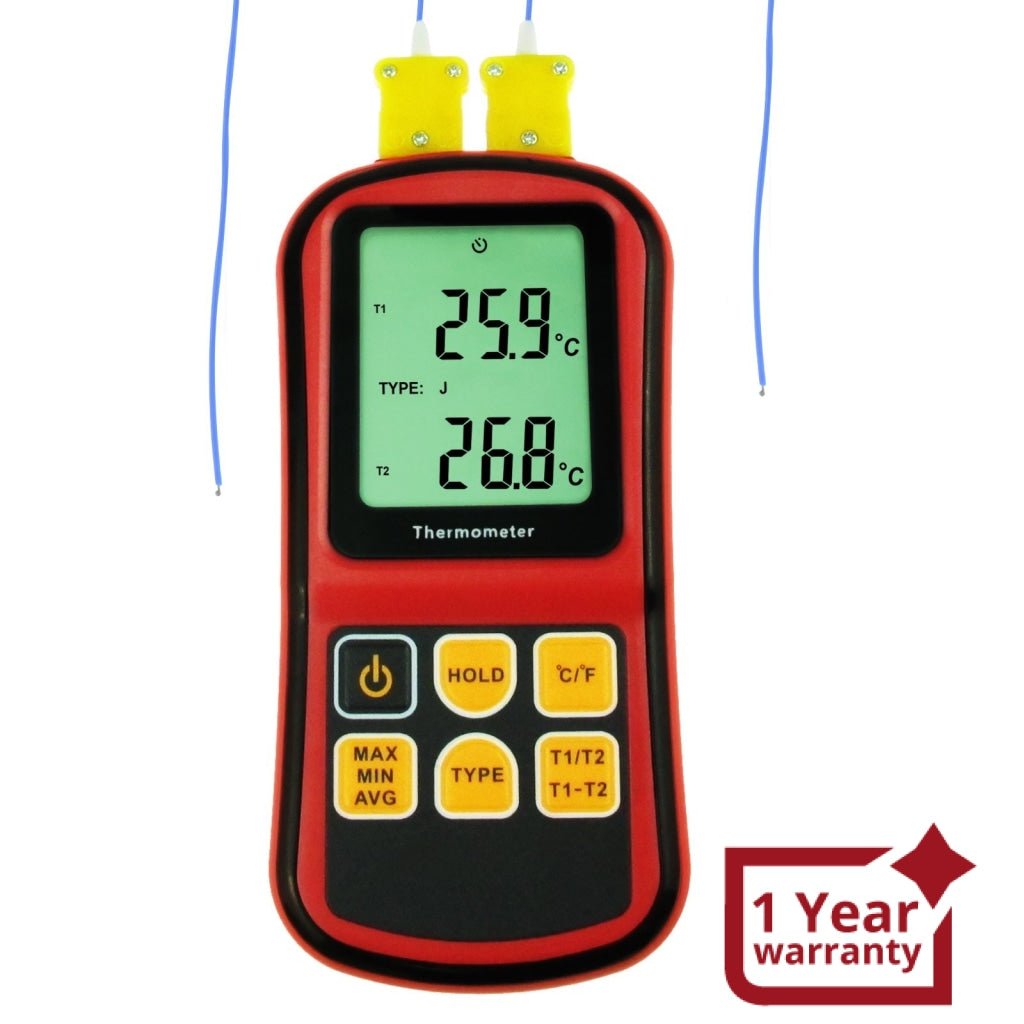

THE-32 Digital Thermometer Dual Channel Temperature Meter Tester for K/J/T/E/R/S/N Thermocouple Bead Probe Instrument with Backlight


Quantity
  OR


Model: THE-32

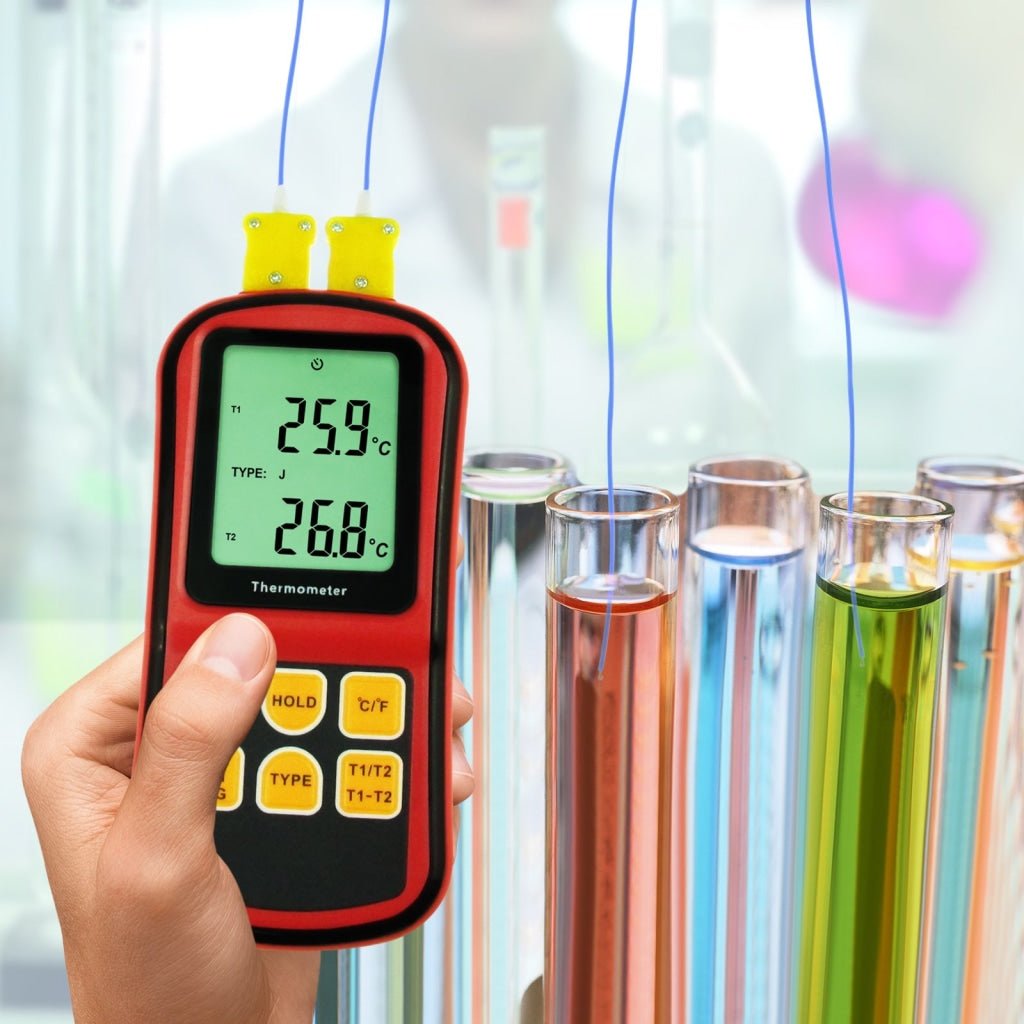

* The device is able to measure the temperature of the liquid/vapors and surface temperature of a solid object, wider measuring range than mercury thermometer and alcoholometer.

* It is suitable to be used both in the high temperature fields of blast furnace and cookery and the low temperature measuring for liquefied hydrogen and liquefied nitrogen etc.

* The electrical compensation function provide the automatic compensation to the thermocouple error so as to improve the overall precision.

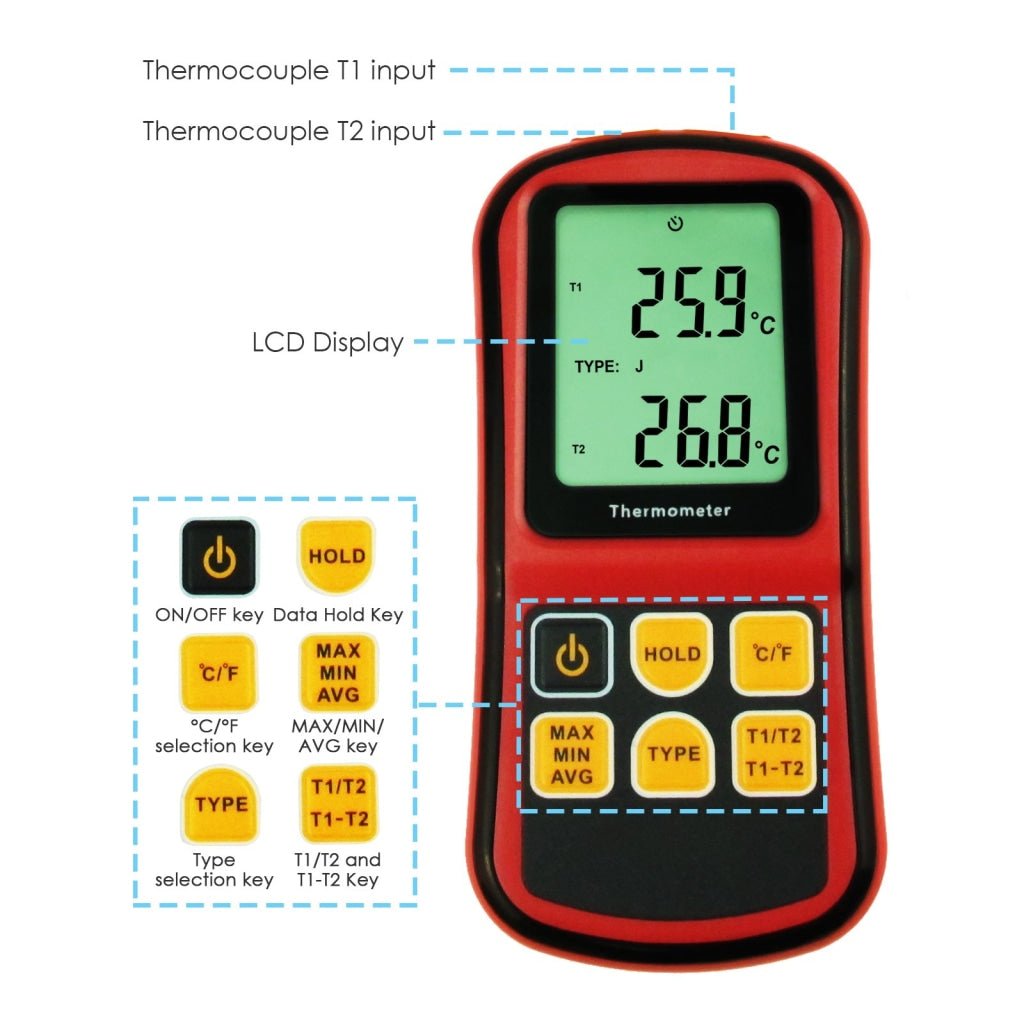

Features

  • High accuracy
  • Convenient operation
  • Selectable temperature unit °C / °F
  • Data HOLD Function
  • MAX/MIN/AVG display

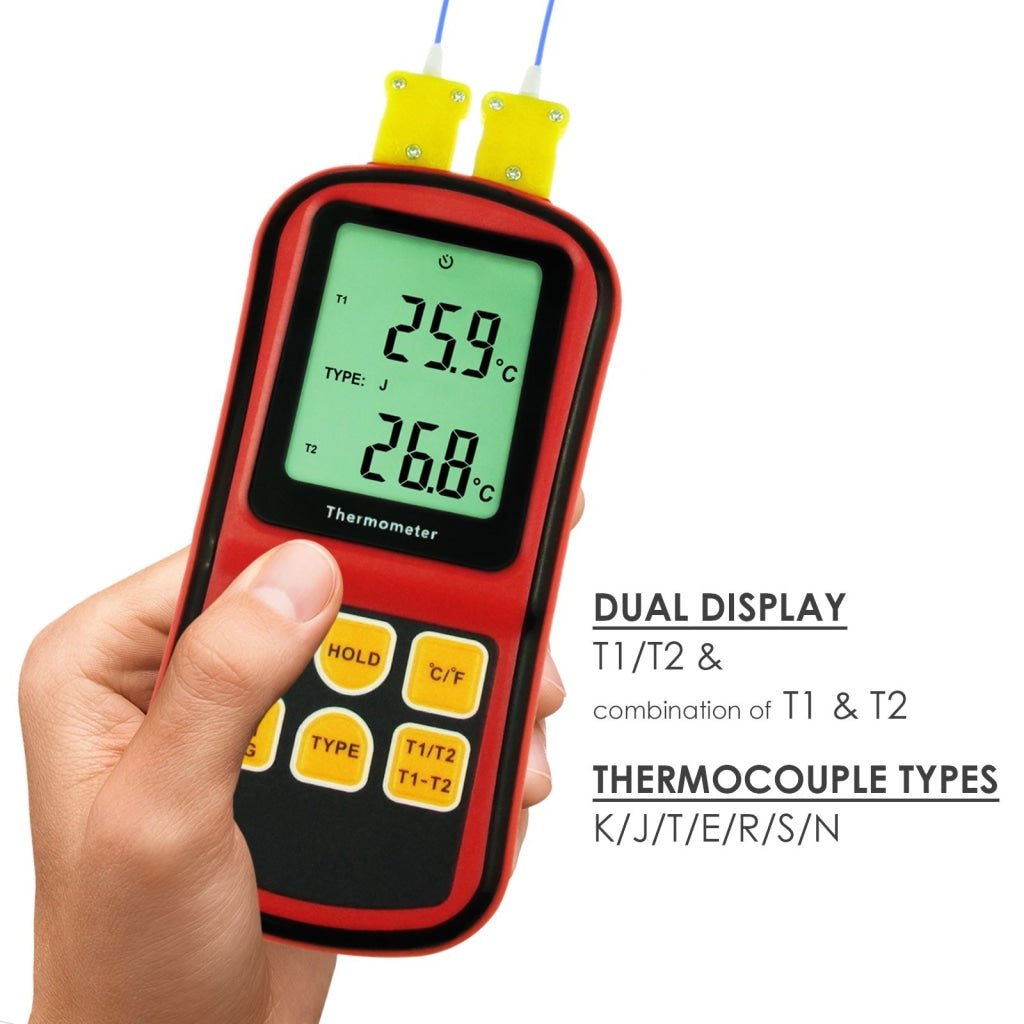

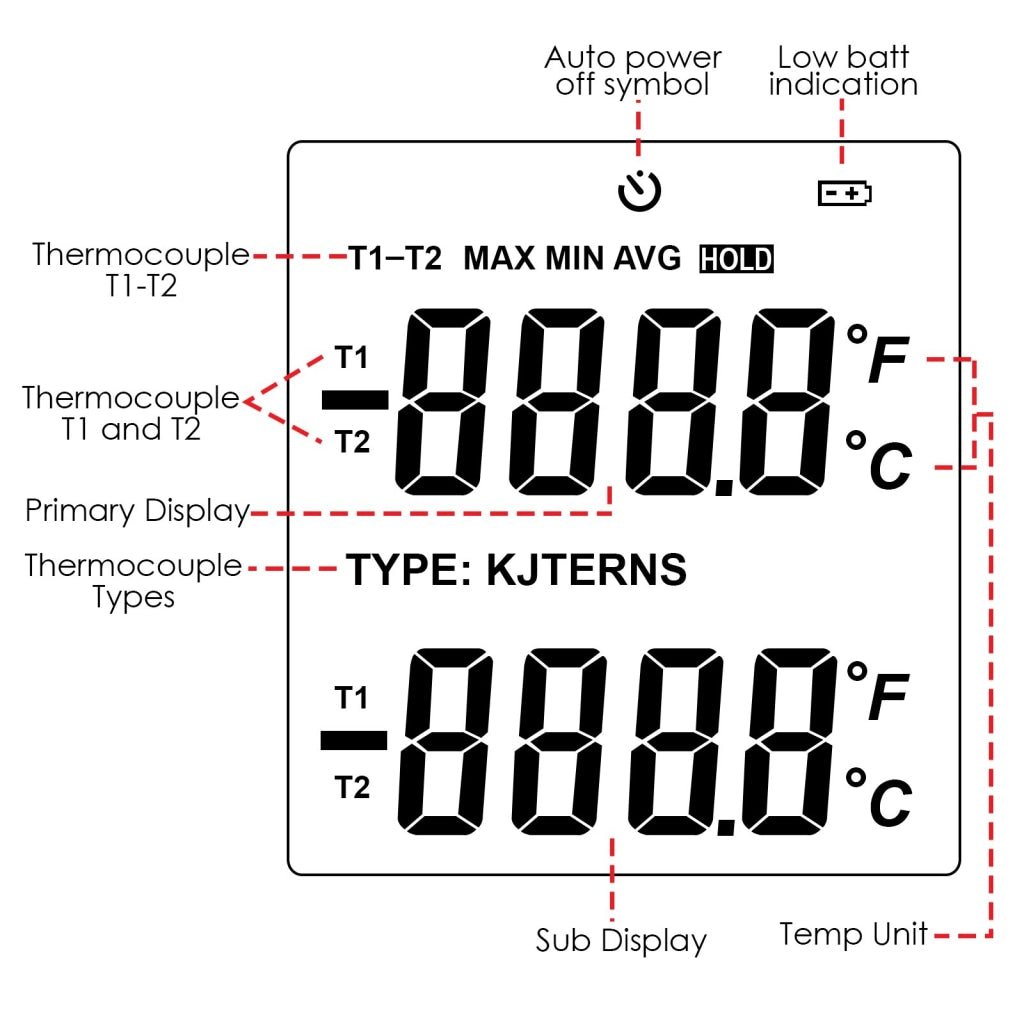

  • Double display with backlight (T1/T2 and combination of T1 and T2)
  • Measure temperature using J,K,T,E,N, R and S type thermocouple
  • Auto / Manual Shut off
  • Low battery indication



Specifications

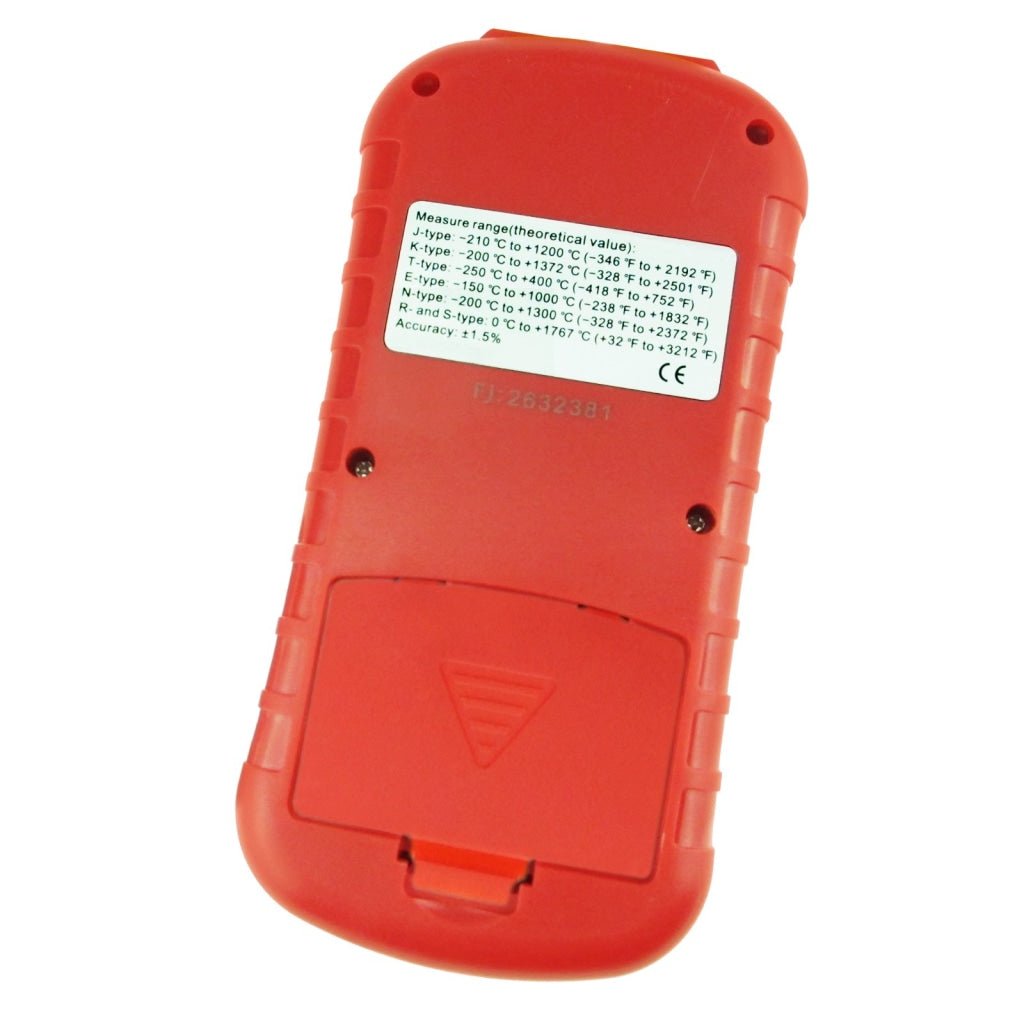

  • Measuring range
    • Main unit
      • J-type: -210 ~ 1200°C (-346 ~ 2192°F)
      • K-type: -200 ~ 1372°C (-328 ~ 2501°F)
      • T-type: -250 ~ 400°C (-418 ~ 752°F)
      • E-type: -150 ~ 1000°C (-238 ~ 1832°F)
      • N-type: -200 ~ 1300°C (-328 ~ 2372°F)
      • R-and S-type: 0 ~ 1767°C(32 ~ 3212°F)
    • Included K-TYPE THERMOCOUPLE
      • -50 ~ 300°C / -58 ~ 572°F
  • Accuracy:
    • Main unit:  ±0.1%+0.6°C
    • Included K-TYPE THERMOCOUPLE: ±1.5%
  • Resolution: 0.1°C/°F<1000° ; 1.0°C/°F≥1000°
  • Input: Bi-channel input
  • Operating Temperature: 0 ~ 40°C (32 ~ 104°F)
  • Storage Temperature: -10 ~ 50°C (14 ~ 122°F)
  • Storage Humidity: 20~90%
  • Power supply: 3 x 1.5V AAA Battery
  • Item Weight: 5.6 ounces

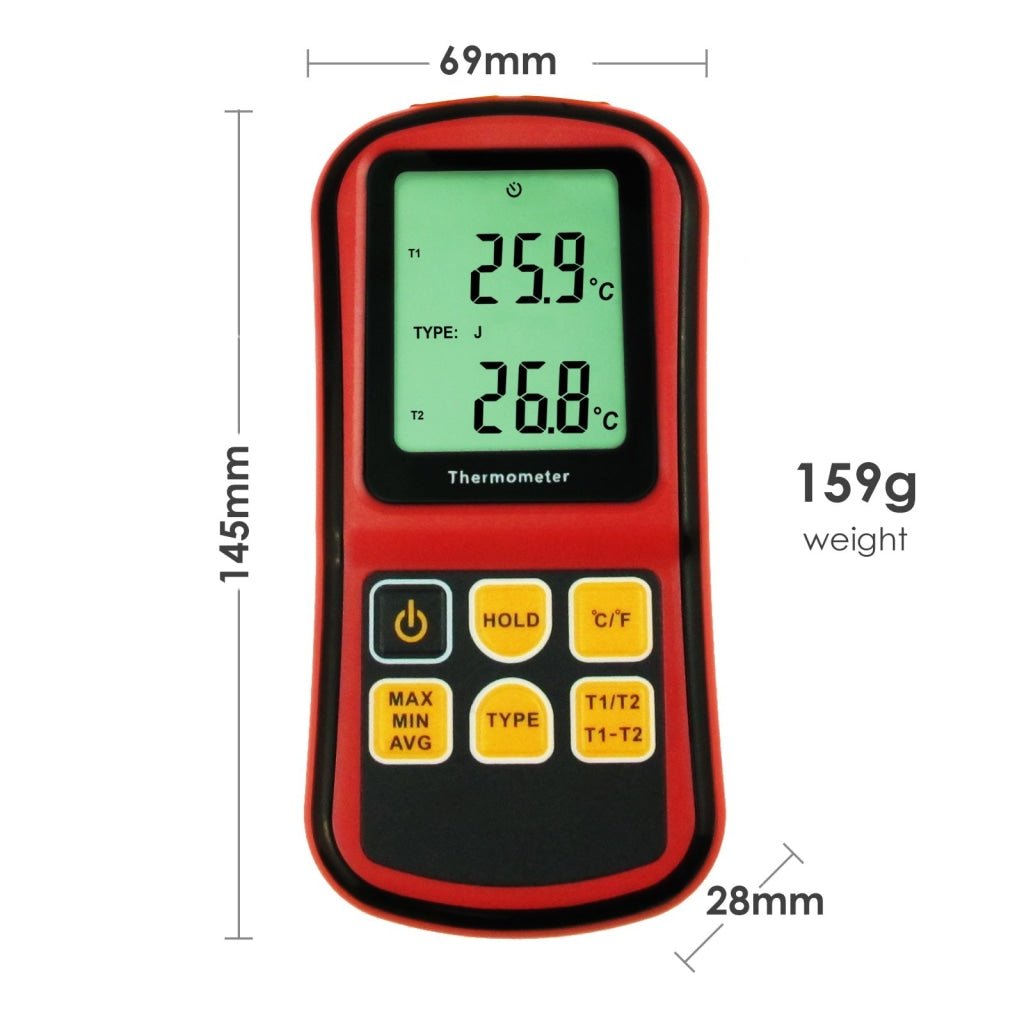

  • Product Dimensions: 5.7 x 2.7 x 1.1 inches
  • Shipping Weight: 8.8 ounces
  • Shipping Dimensions: 7 x 4.2 x 1.5 inches

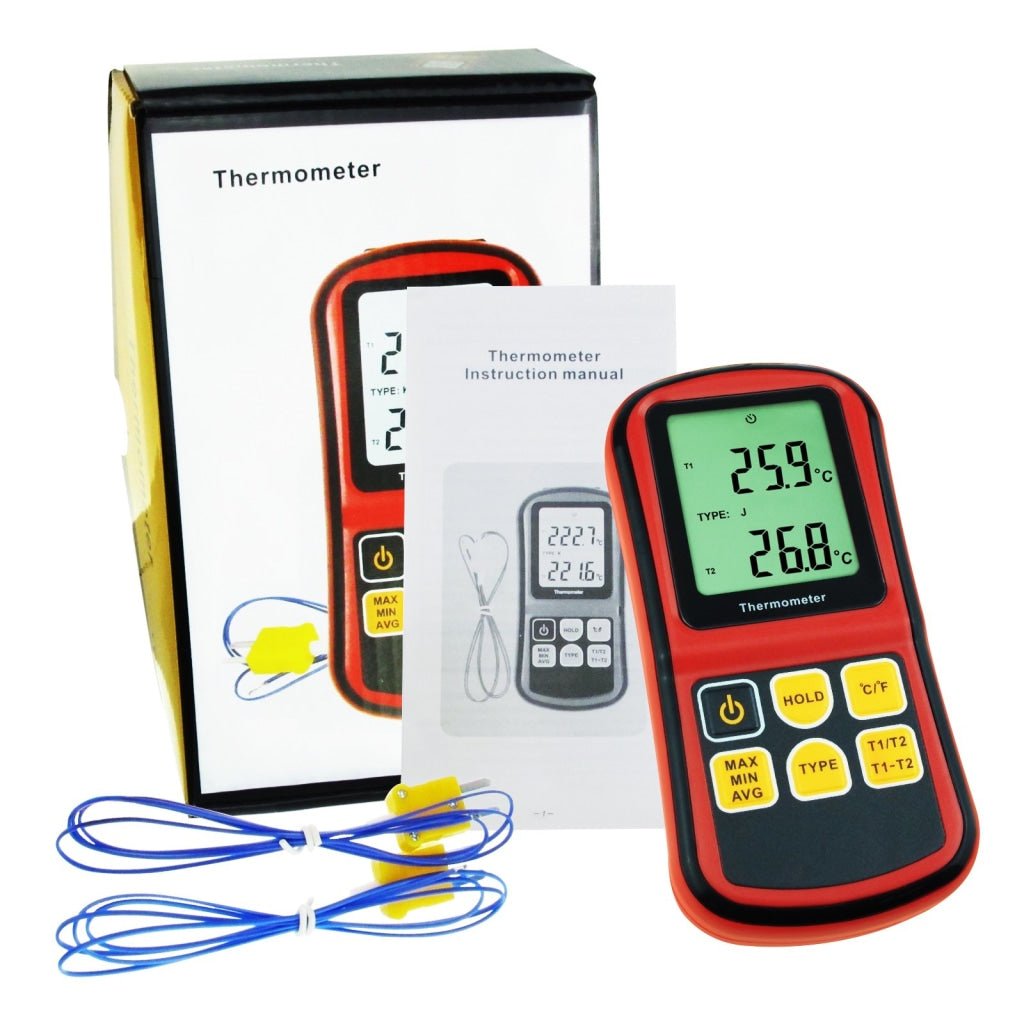

Set Includes:
  • 1 x Thermometer
  • 1 x English User Manual

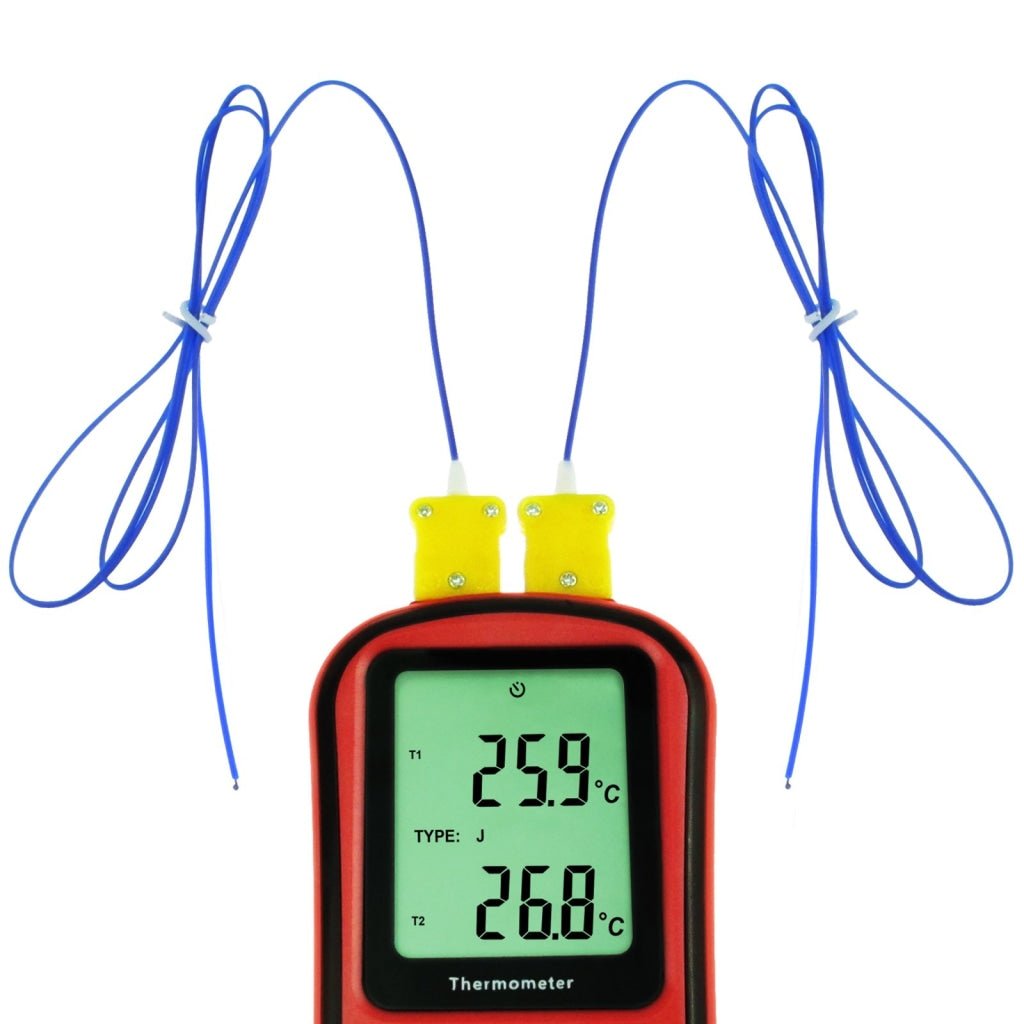

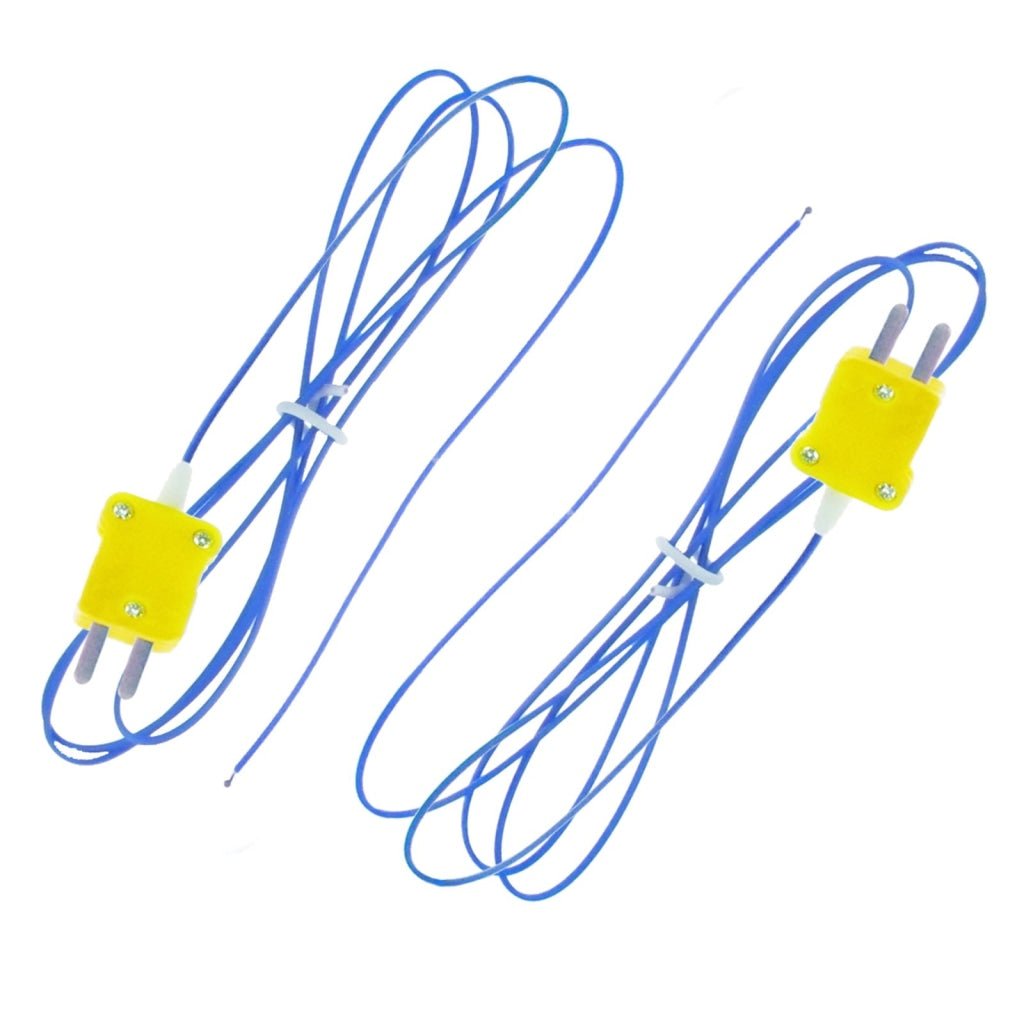

  • 2 x K-Type Thermocouple Bead Probe
  • 3 x AAA Battery
