MUL-211 Digital DMM Multimeter Meter Tester with USB/ Software CD and Data Output Function, AC DC voltage, AC DC current, Auto Range, Capacitance, Resistance, Frequency, Diode and Continuity Test, Duty Cycle
Model: MUL-211

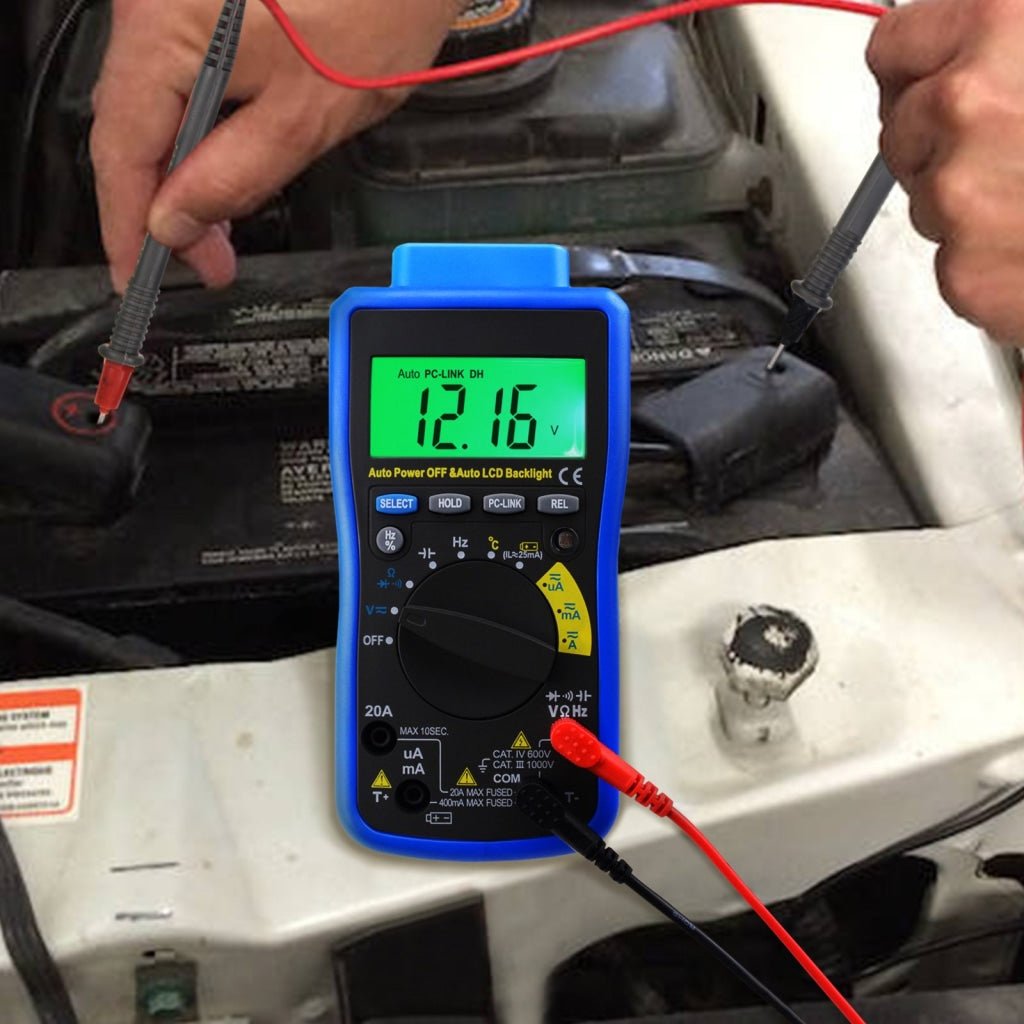

It's a portable, stable performance and with anti-dropping capacity multimeter. Has 4000 counts digit LCD monitor with 22mm digit height. With circuitry design centring on large-scale IC A/D converters in conjunction and over-load protection circuit, providing excellent performance making it a perfect utility tool.
This multimeter comes with PC Link function. Data can be recorded, processed, analyzed, and printed by connecting to a computer via USB cable (included in the set).
It measure DC & AC voltage, DC & AC current, resistance, capacitance, frequency, duty cycle, temperature, battery test, diode test and continuity buzzer.
FEATURES:
- Data hold function
- PC link via USB: Record, analyze, processed and print data via computer
- Relative Value
- CDS light sensor for auto backlight
- Designed according to IEC-1010 with over-voltage category 600V (CAT IV) and pollution 2
- Double insulation (protection Class II)
- Over-range indication, display "OL"
- Auto negative polarity display
- Low battery indication
- Auto-Range
- Auto power off
- 400mA/250V PPTC Resettable Fuse
- 1000V 20A Test Leads electric rating
SPECIFICATIONS:
- CAT III 1000V, CAT IV 600V
- DC Voltage: 400mV～1000V
- AC Voltage: 4V～750V
- AC & DC Current: 400μA～20A
- Resistance: 400Ω～40MΩ
- Capacitance: 51.2nF～100μF
- Temperature: -20～1000℃
- Frequency: 5.12Hz～5.12MHz
- Duty Cycle: 0.1%～99.9%
- Display: 3999
- Max Voltage between input terminal and Earth Ground: CAT IV 600V
- Fuse Protection: 400mA/250V PPTC Resettable Fuse / F-20A/250V Fuse (Ø5x20mm)
- Power Supply: 9V battery
- Operating Temperature: 0~40°C (<85%RH)
- Storage Temperature: -10~50°C (<85%RH)
- Size: 180 x 88 x 51mm
- Weight: approx. 320g (including battery)
(see pictures for deatailed Technical Specifications)
Set Includes
- 1 x Digital Multimeter
- 1 x pair Test Leads
- 1 x K-Type Thermocouple Sensor Probe
- 1 x PC-link CD software
- 1 x USB Cable
- 1 x Nylon Carrying Pouch
- 1 x 9V battery
- 1 x English User Manual
