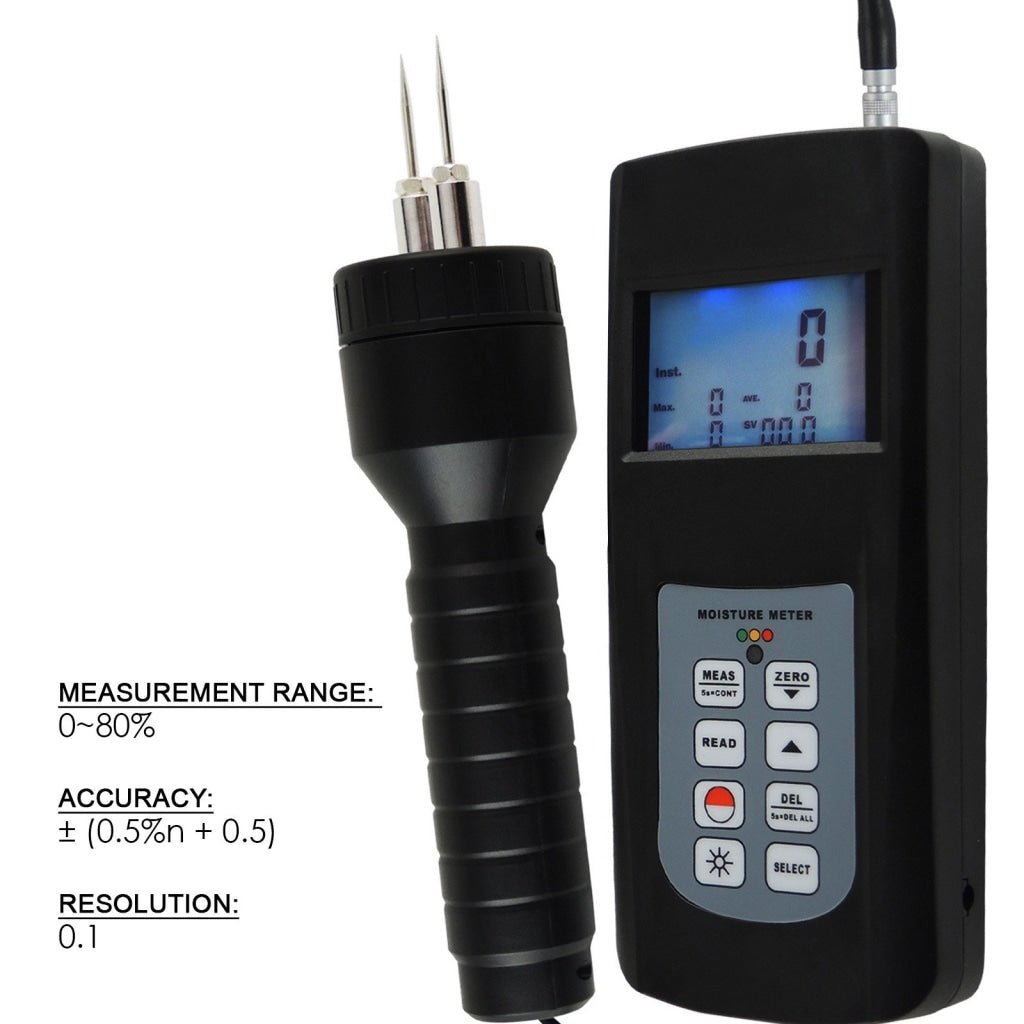

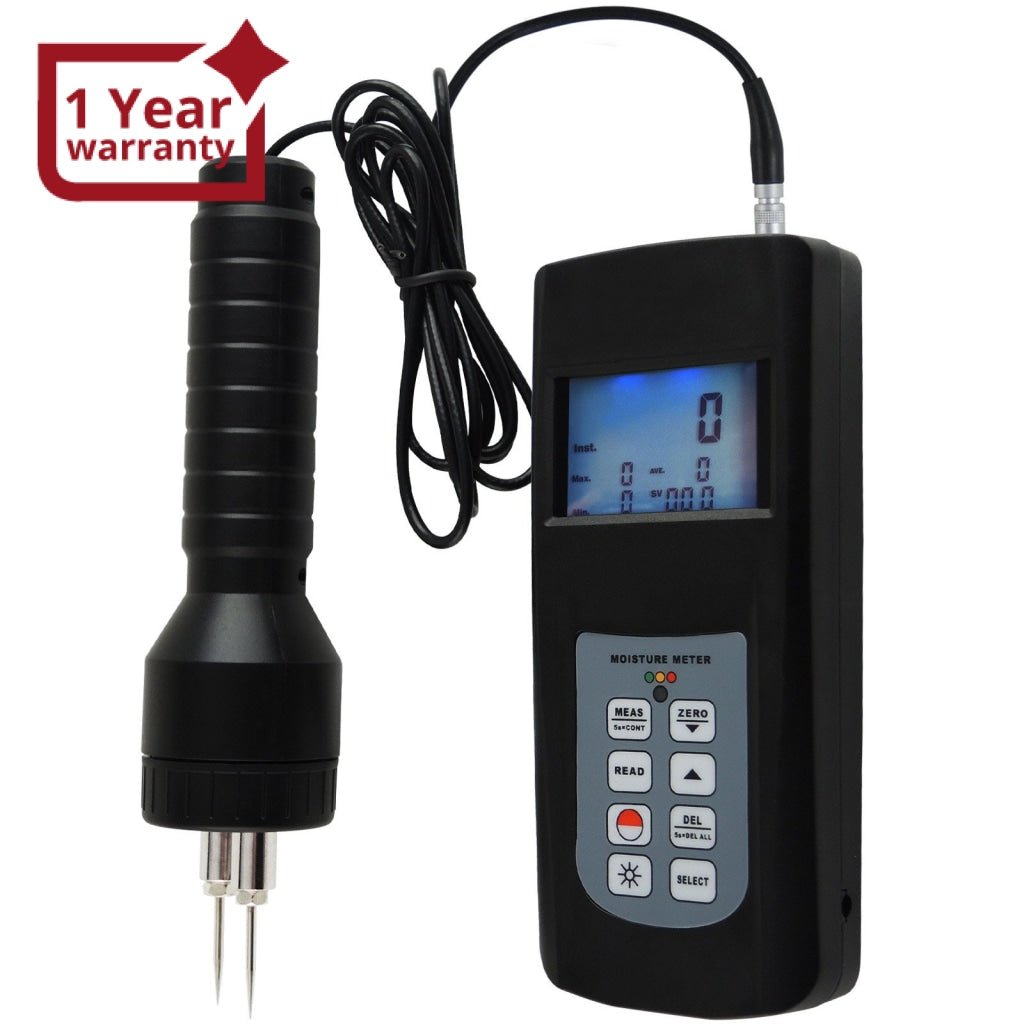

Model : MC-7828PP



This moisture meter is small in size, light in weight and easy to carry. Convenient to use and operate with complex and advance features. It enables building surveyors and other practitioners to measure moisture levels of building elements such as walls, floors and other building materials.



Applicable of wood fiber materials, wooden articles, Chinese traditional medicine, tobacco, cotton paper, building, soil and other fiber materials.





Features:

  • Digital display gives exact readings with no guessing or errors
  • Two presentations, digital display and color coded LED indication.

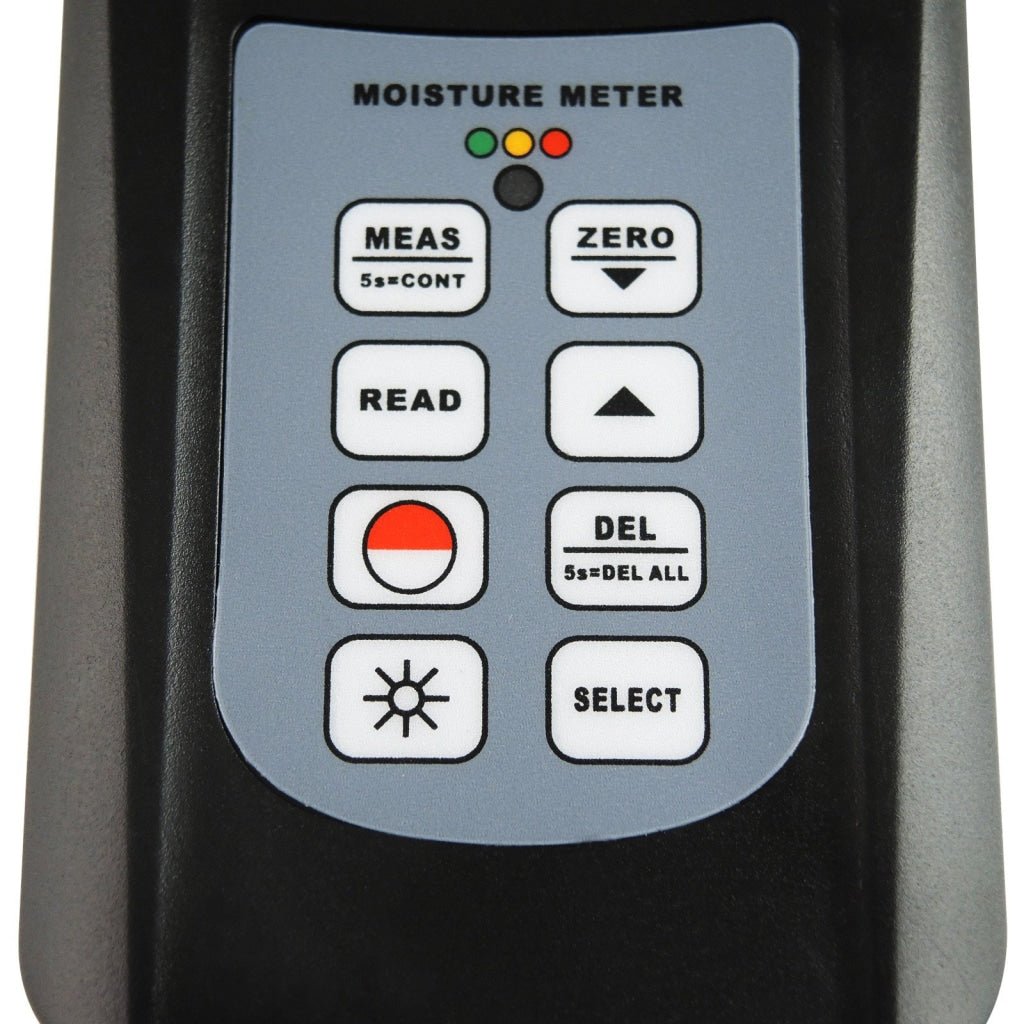

  • Color coded LED lights indicates the moisture condition of the material
  • Use the exclusive Micro-computer LSI circuit and crystal time base to offer high accuracy measurement
  • Alarm values can be set by users
  • Automatic power off to conserve power.
  • Can communicate with PC computer for statistics and printing by the optional cable and the software for RS232C interface (not included in the set)



Specifications:

  • Meaning: Pin Type
  • Display: 4 digit 10mm LCD with color coded LED Indicator
  • LED Indicator
    • Green LED: safe, air-dry state
    • Yellow LED: borderline state
    • Red LED: damp state
  • Calibration: Automatic
  • Battery Indicator: Low Battery Indicator
  • Measurement Range: 0~80% (when code=cd00 in a Pin mode)
  • Measurement code: 10 codes for up to 150 species of materials
  • Accuracy: ± (0.5%n + 0.5)
  • Resolution: 0.1

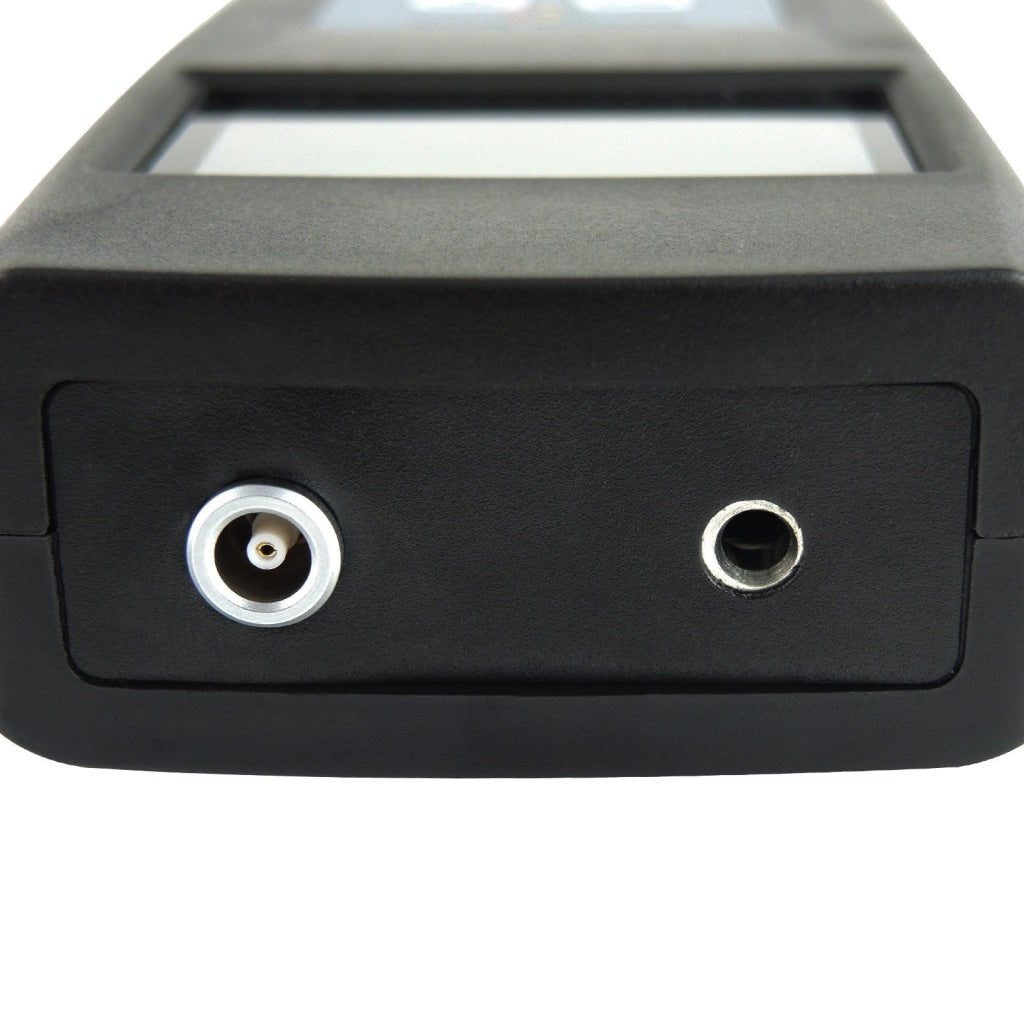

  • PC interface: RS232C interface ( cd software and cable not included in the set)
  • Power Supply: 4 x 1.5AAA size battery
  • Operating Conditions:
    • Temperature: 0~50°C
    • Humidity: below 90% RH

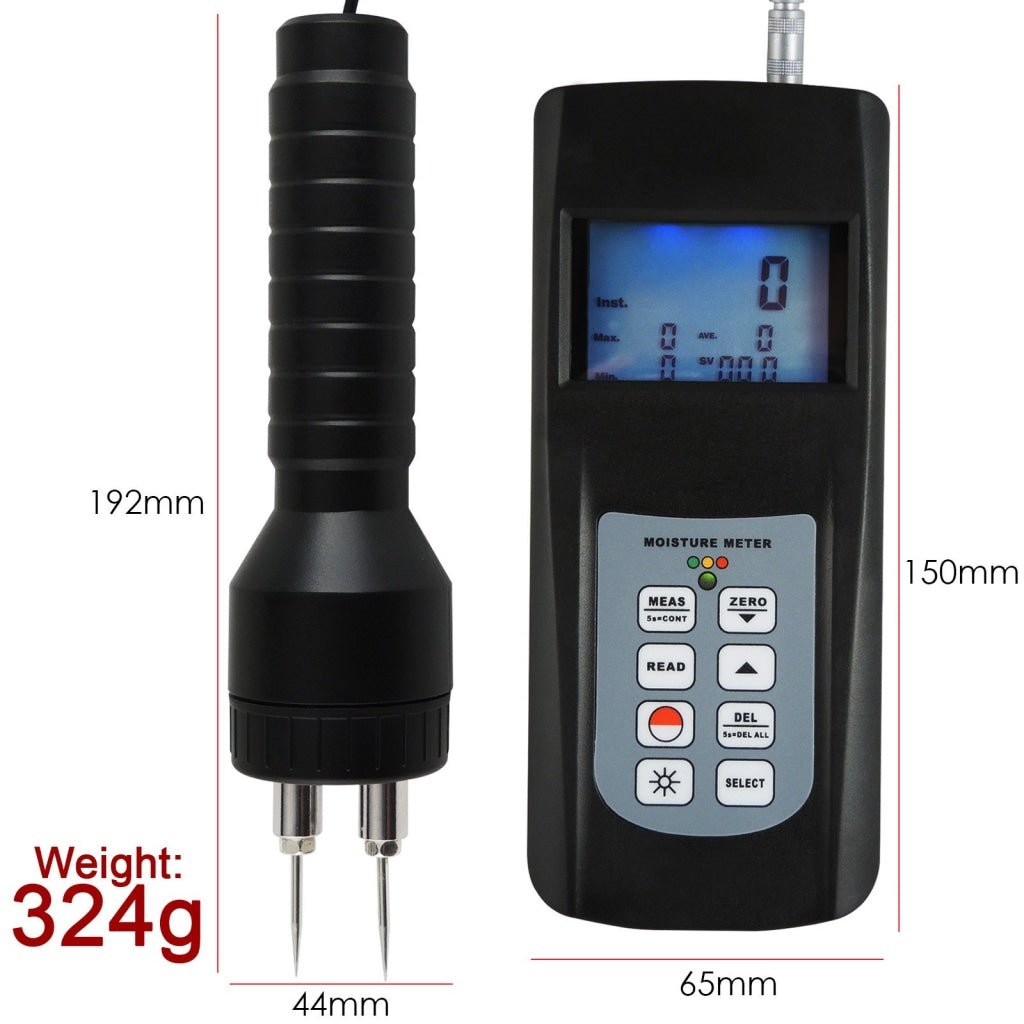

  • Dimensions:
    • Main Unit: 150 x 65 x 30mm
    • Measuring Pin: 192 x 44 x 44mm
  • Weight: 324g (excluding battery)

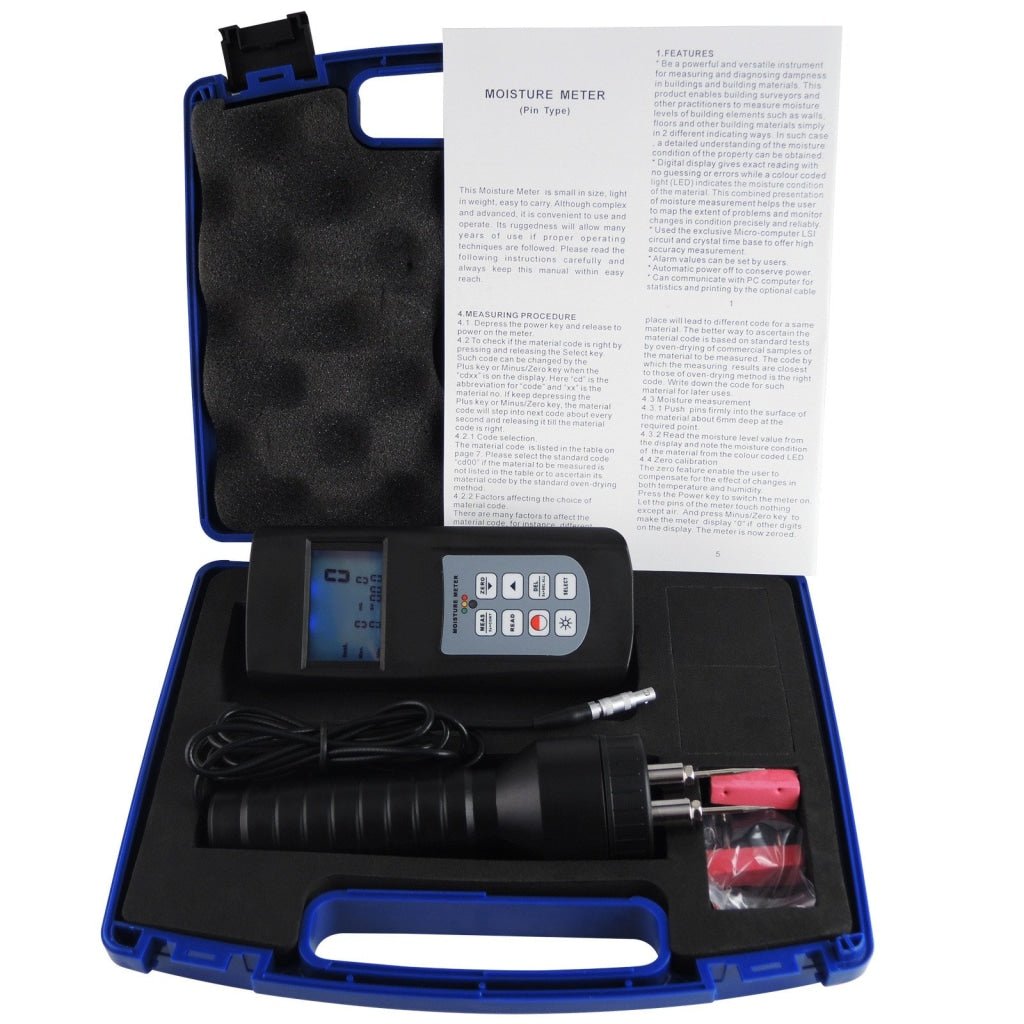

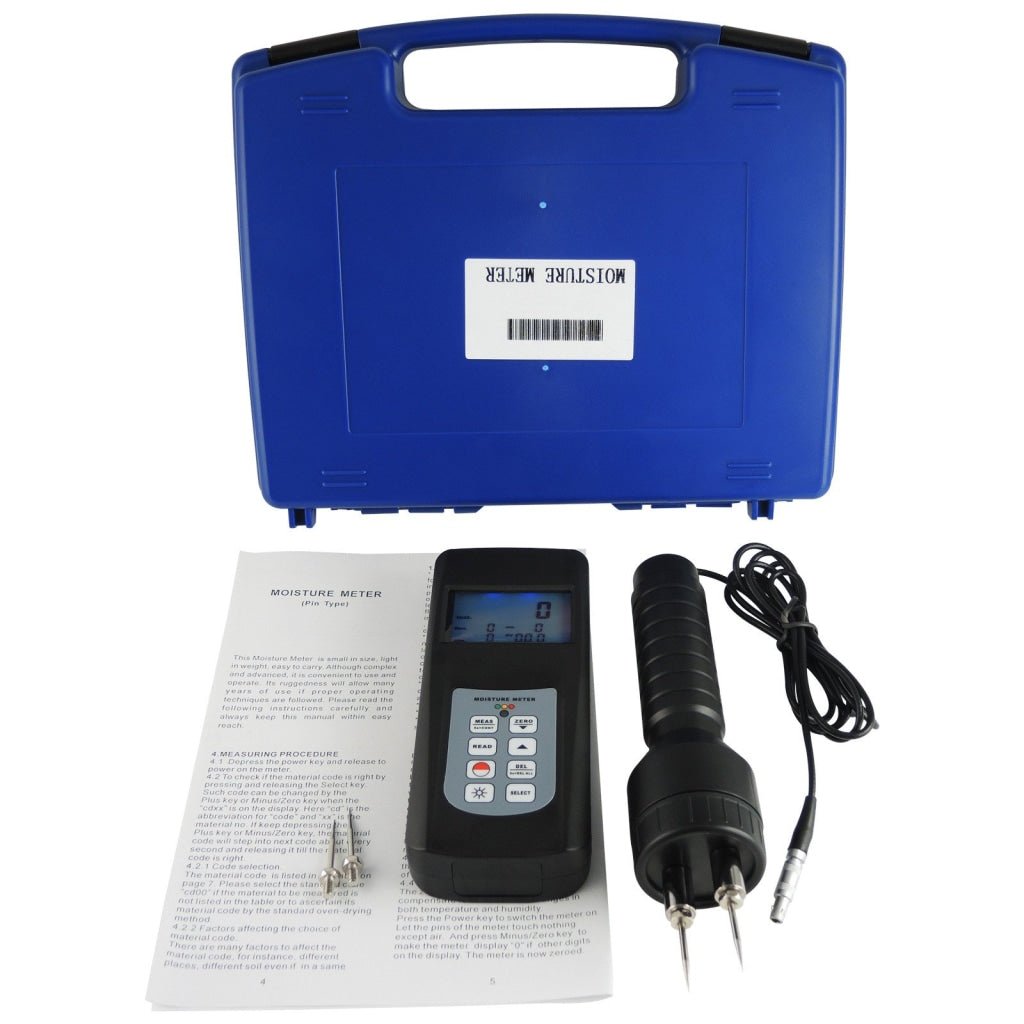

Set Includes:

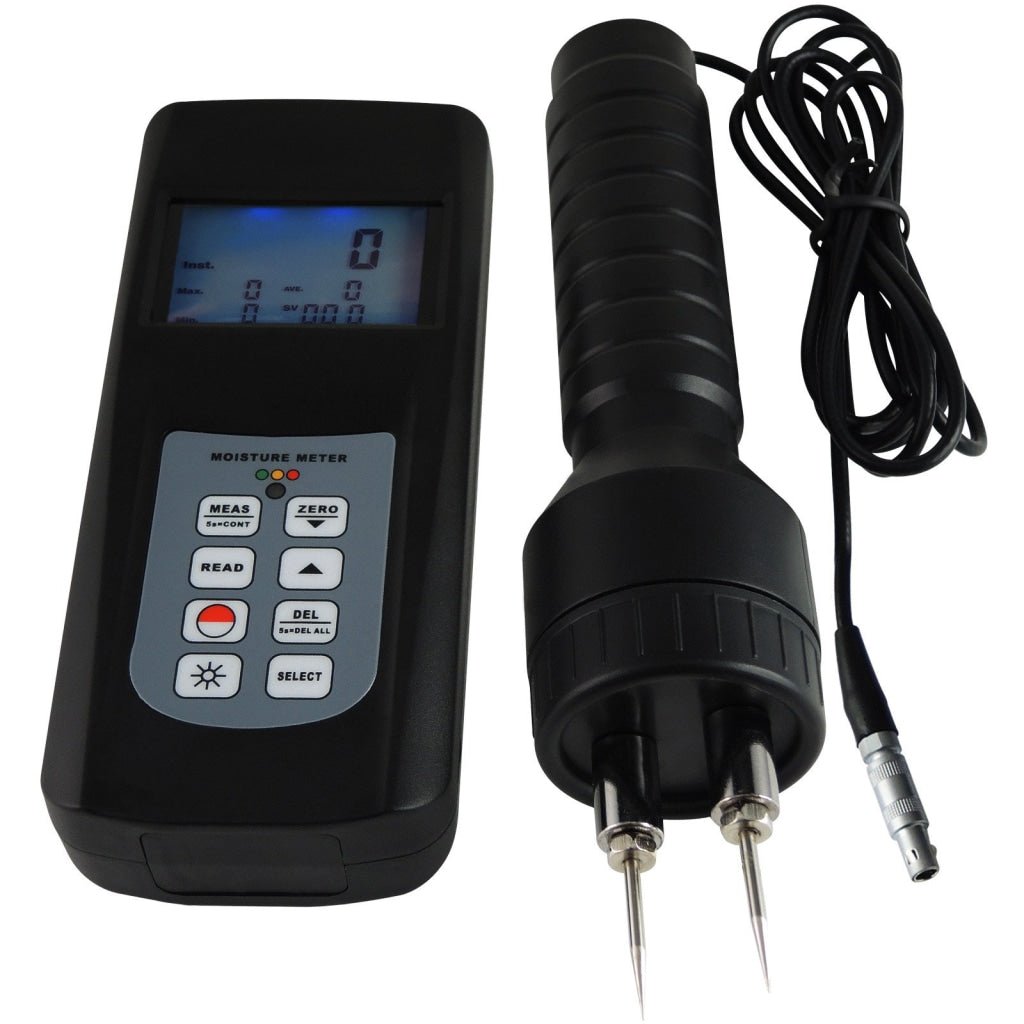

  • 1 x Digital Moisture Meter

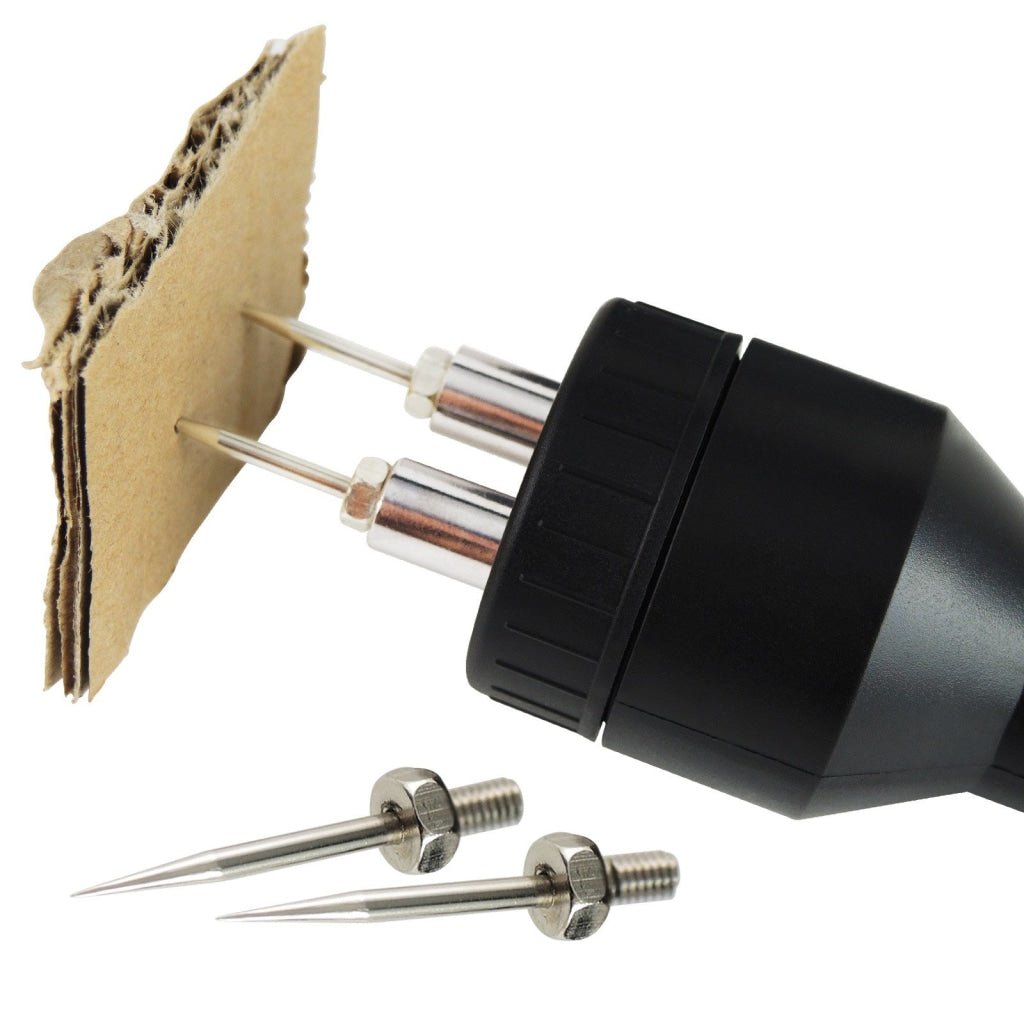

  • 1 x Measuring Pin
  • 1 x English Operation Manual
  • Carrying Case
  • Standard Factory Packaging



Optional Item (not included in set)
          Please click here to buy this optional item   RS-232 Software & Cables
or you may contact us at sales(at)gainexpress.com if you want an optional items to be included in your order
