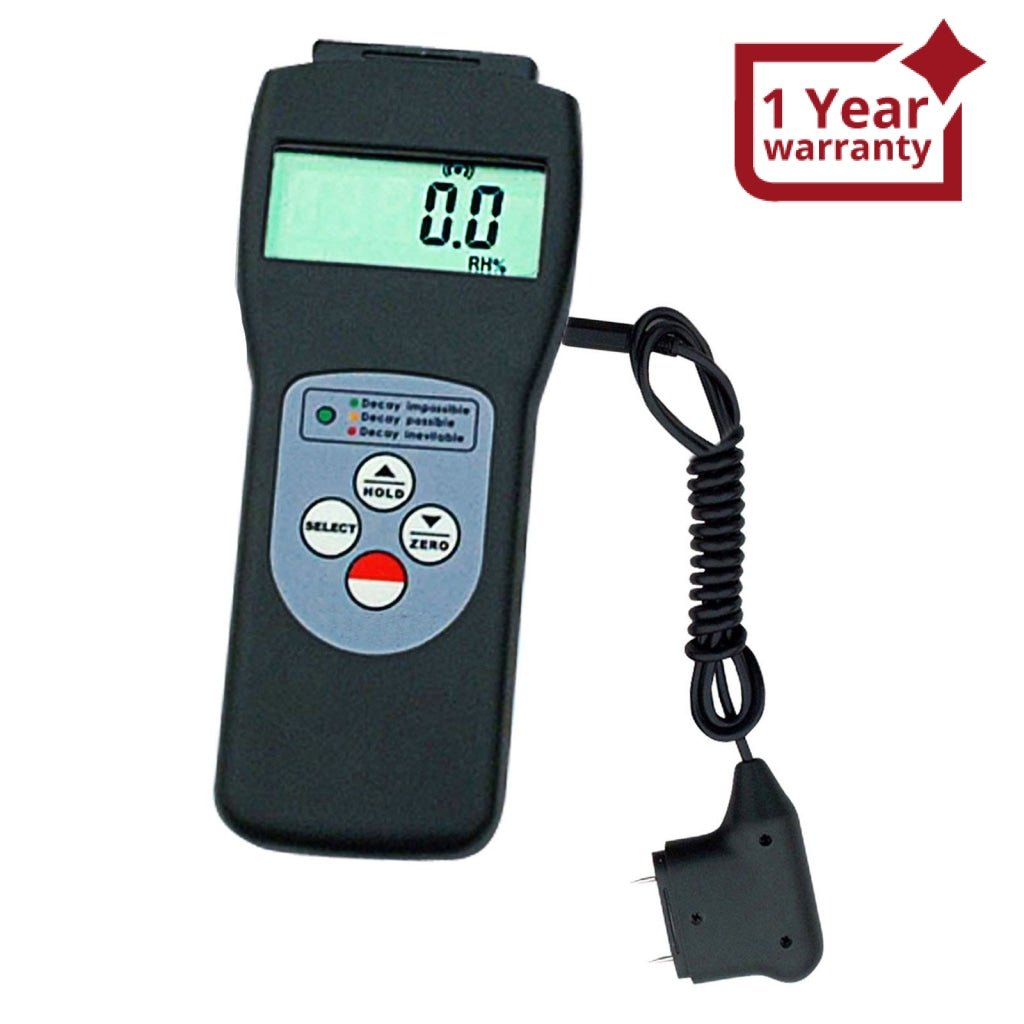

MC-7825PS 2-in-1 Scanner & Pin Type Moisture Meter

  • 0% OFF
  • Regular Price


Add to Wishlist

Check shipping / delivery time for your country | Free Shipping Worldwide Request for Quotation

MC-7825PS is a new version of the moisture meter that incorporates a range of design refinements and advanced features. Multi-function meter that detects moisture not just in wood but also in concrete materials.

A non-destructive and high resistance instrument that accurately measures dampness in buildings and building materials even in hard-to-reach areas and diagnoses its moisture conditions to aid understanding of how and why damp conditions may prevail.


  • Has CE marking, conforms with the essential health and safety requirements set out by the European Directives

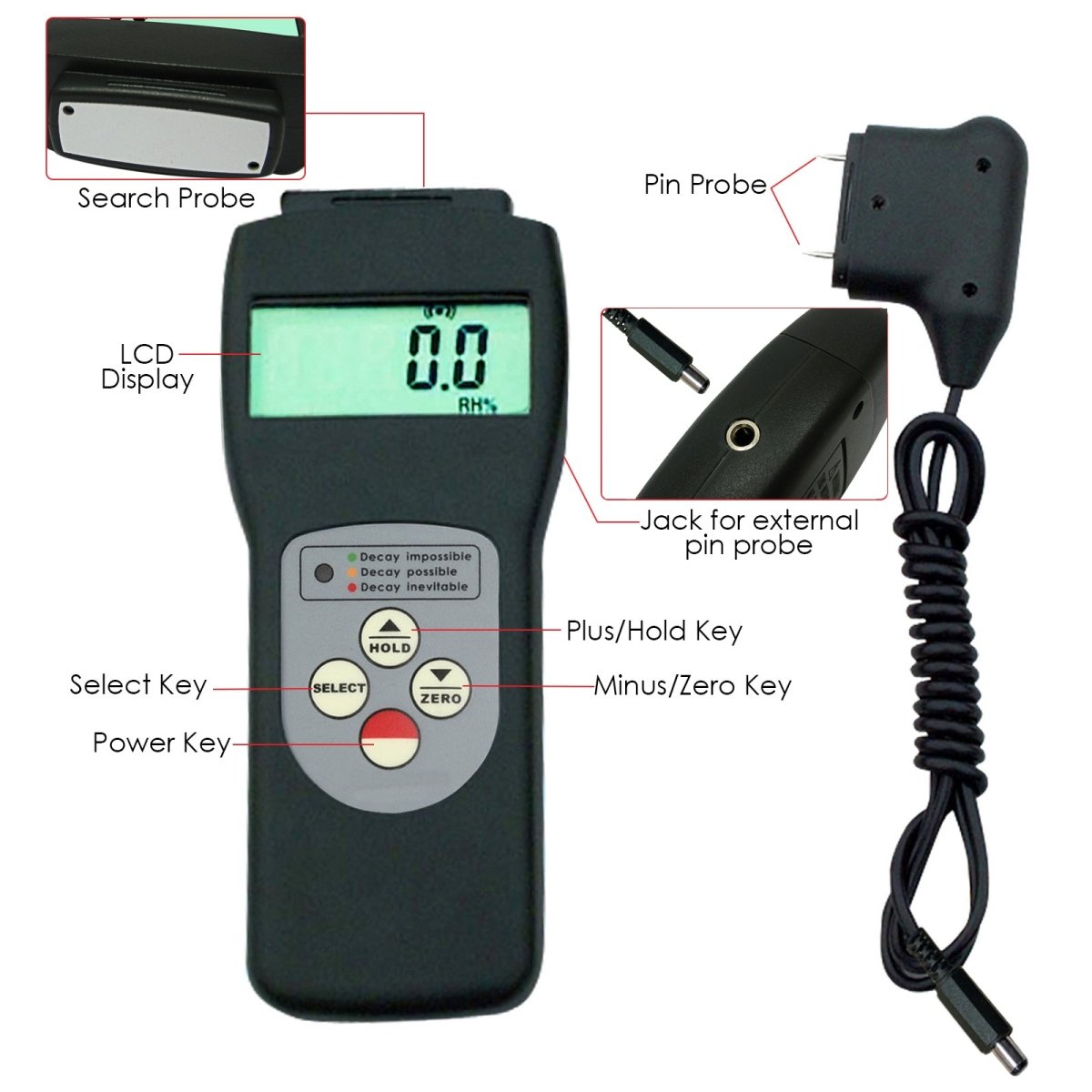

  • 2 different testing methods, scanner, and probes (SEARCH & PIN STEEL PROBES)

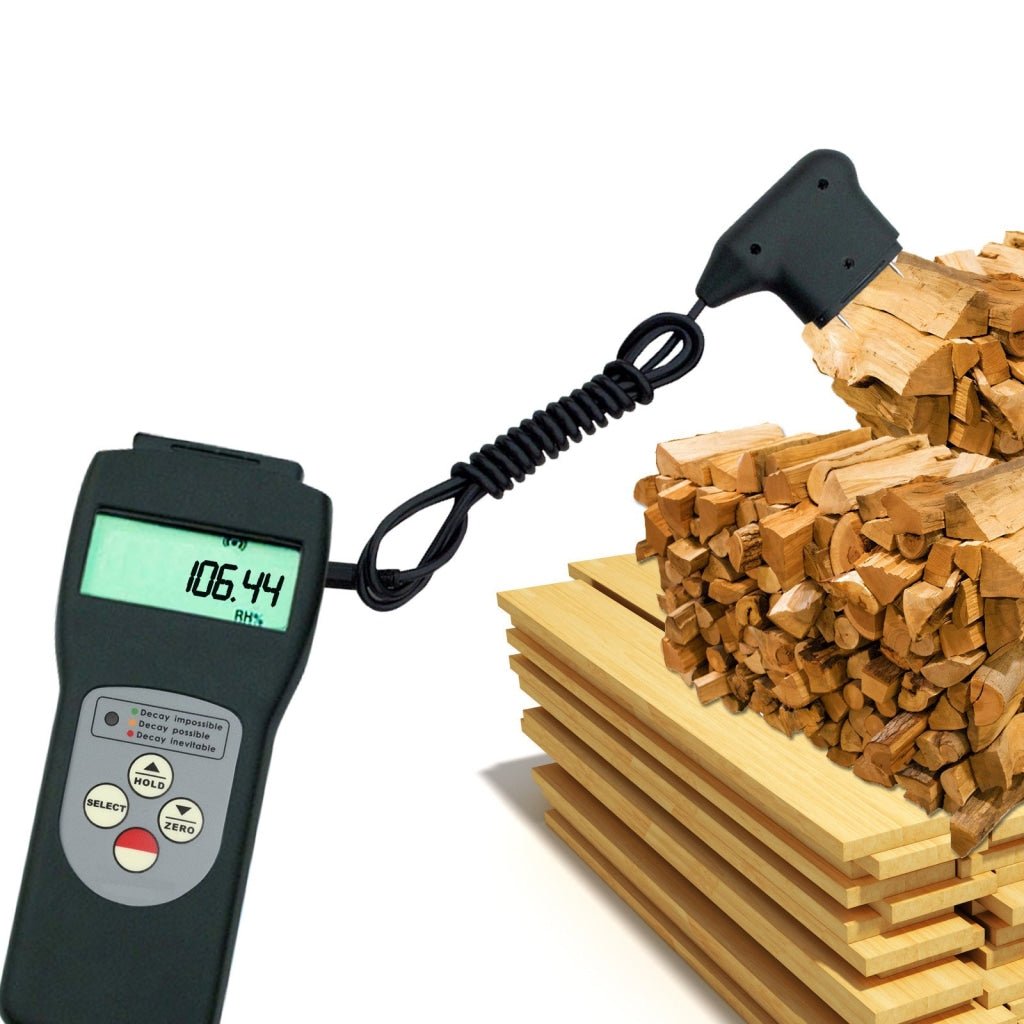

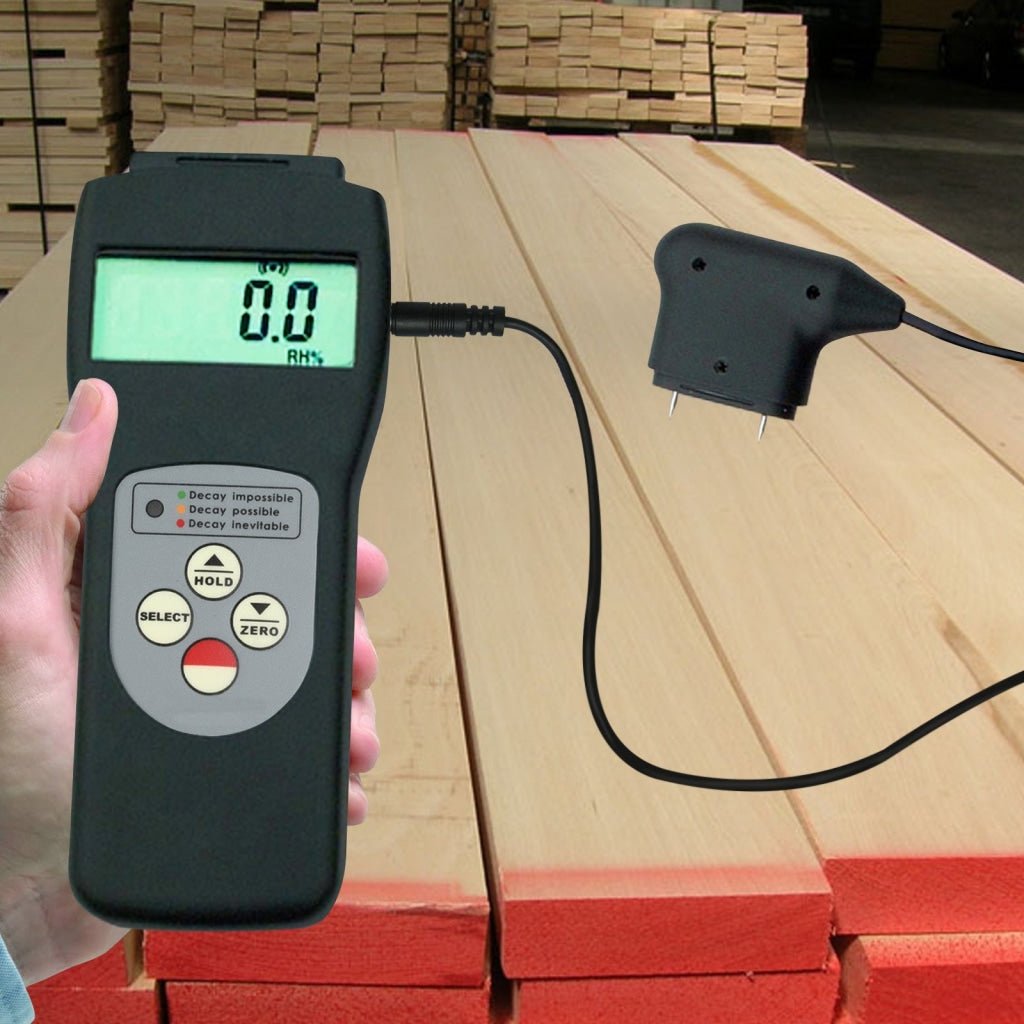

  • Measure both wood and concrete dampness level
  • Color-coded LED lights
  • Data Hold function to freeze the current value at the display
  • Alarm values that can be set by the user
  • Sleek design that fits snugly in the hand
  • Switches off automatically after five minutes or switches off manually

Types of materials can be measured
Can measure a very wide of materials covering the following ones:

    • Various kinds of woods
    • Marble, Granite, Magnetic
    • Glass
    • Peat
    • Concrete, Plaster
    • Sand (dry), Stone,
    • Leather, Slag, Kerosene, Alcohol
    • Brick, Firebrick, Asbestine board
    • Polyethylene
    • White Lime, Lime
    • Soft Coal
    • Bamboo
    • Paraffin
    • Veneer
    • Charcoal
    • Foam
    • Felt

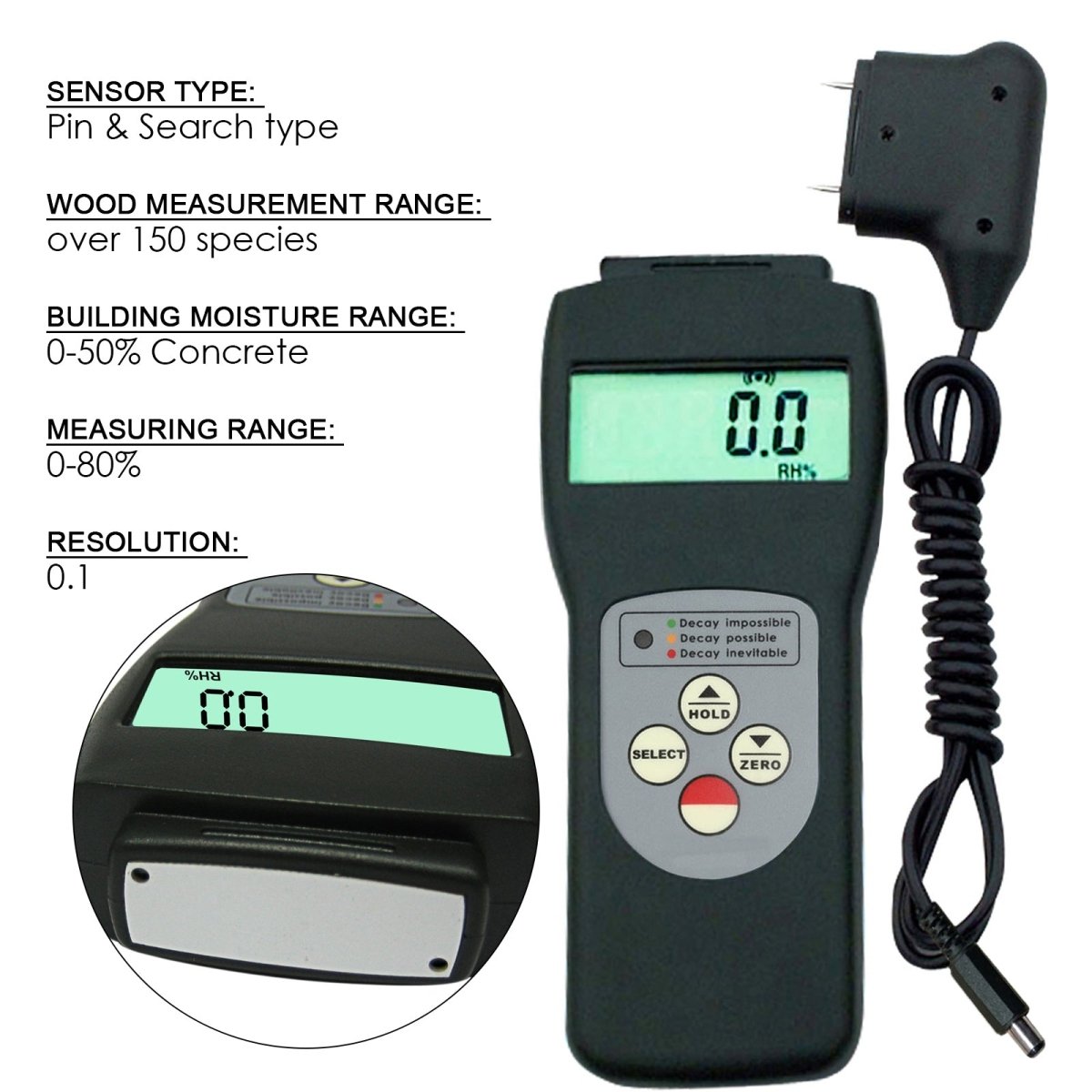

  • Sensor Type: Pin & Search type
  • Wood Measurement Range: over 150 species
  • Building Moisture Range: 0-50% Concrete
  • Measuring Range: 0-80%
  • Resolution: 0.1
  • Display: 4 digits, 10mm LCD screen
  • 3 Color Code LED light Indicator:
    • GREEN light- represents a safe & air-dry state
    • YELLOW light - represents the borderline state
    • RED light - represents the damp state
  • Accuracy: ±0.5%n or ±0.5% - whichever is higher
  • Measurement codes: 10 codes in pin mode and 20 codes in search mode

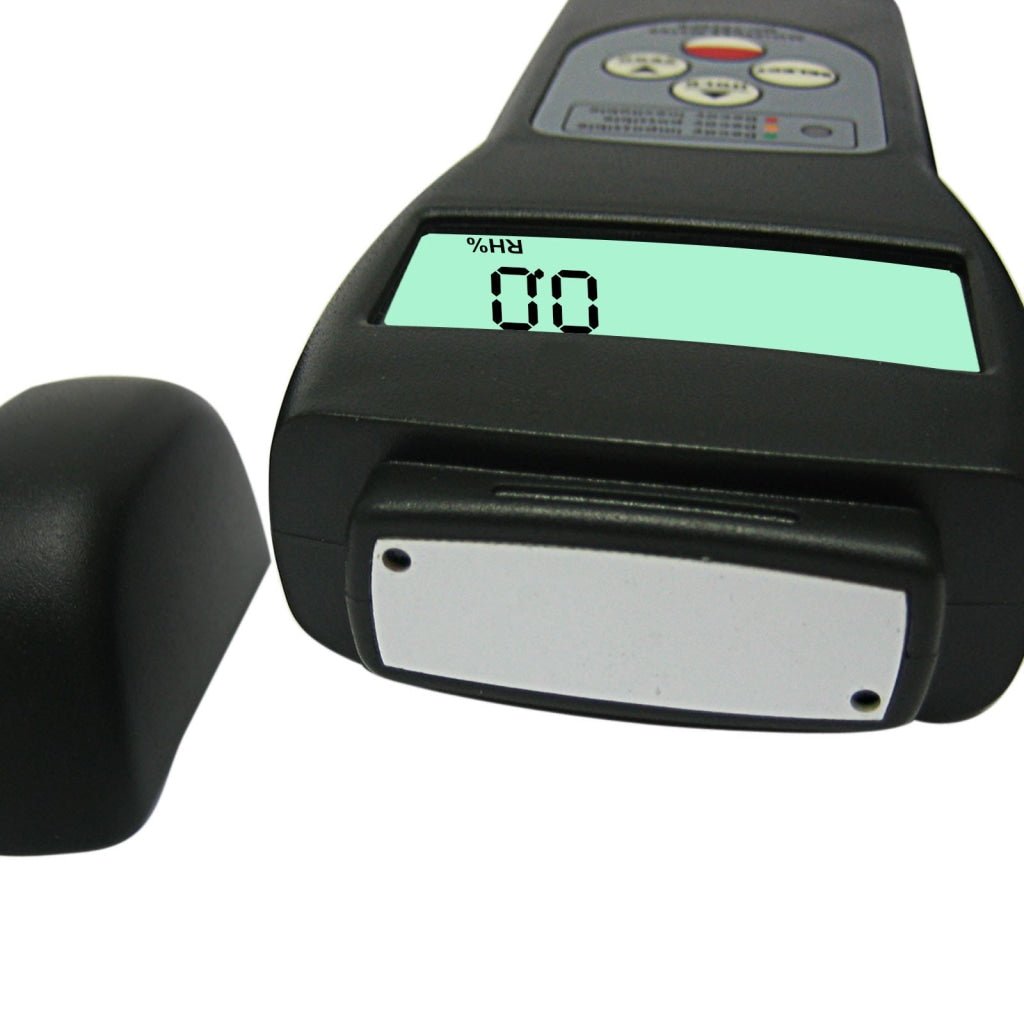

  • Search mode reads up to a depth of 50mm

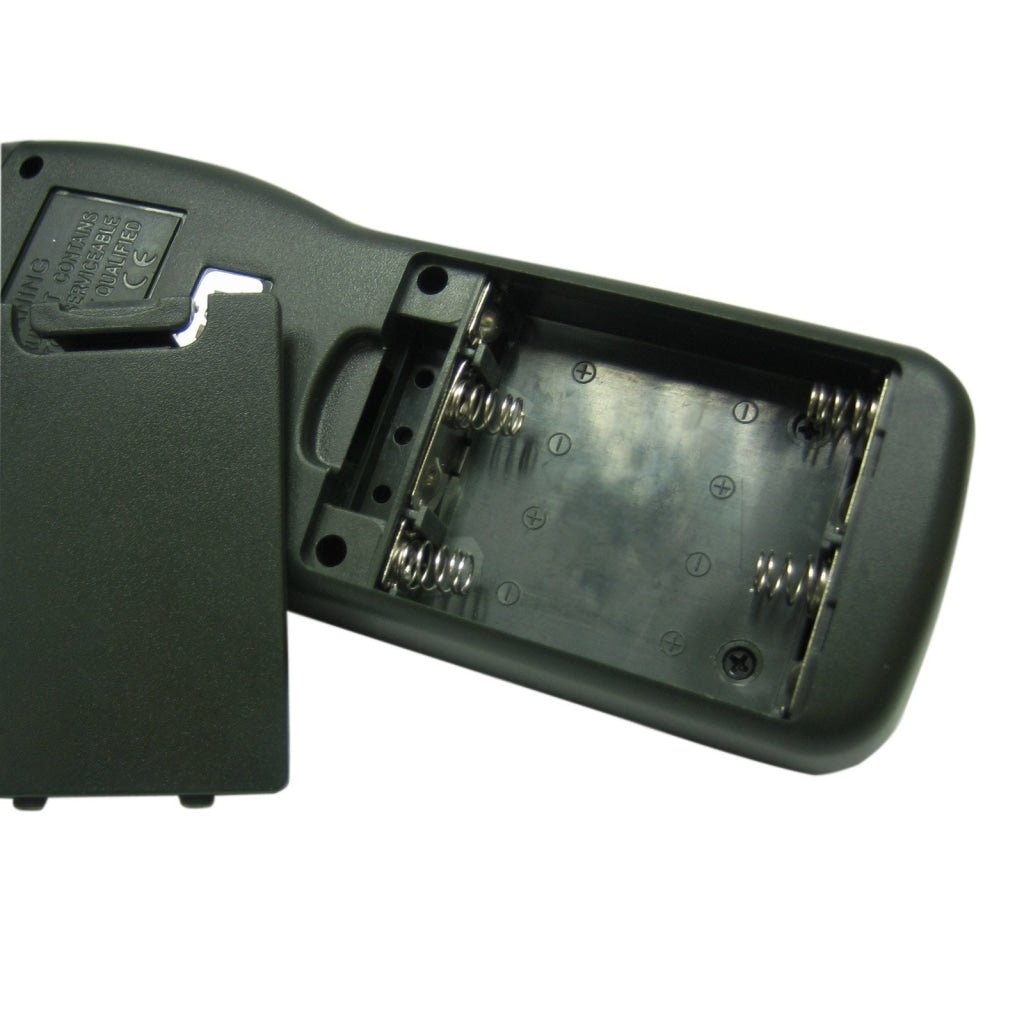

  • Power Supply: 4 x 1.5V AA battery
  • Power off: manual or 5-minute auto shutdown
  • Operating Temperature: 0 - 50°C, Humidity: below 90% RH
  • Battery Indicator: low battery indicator

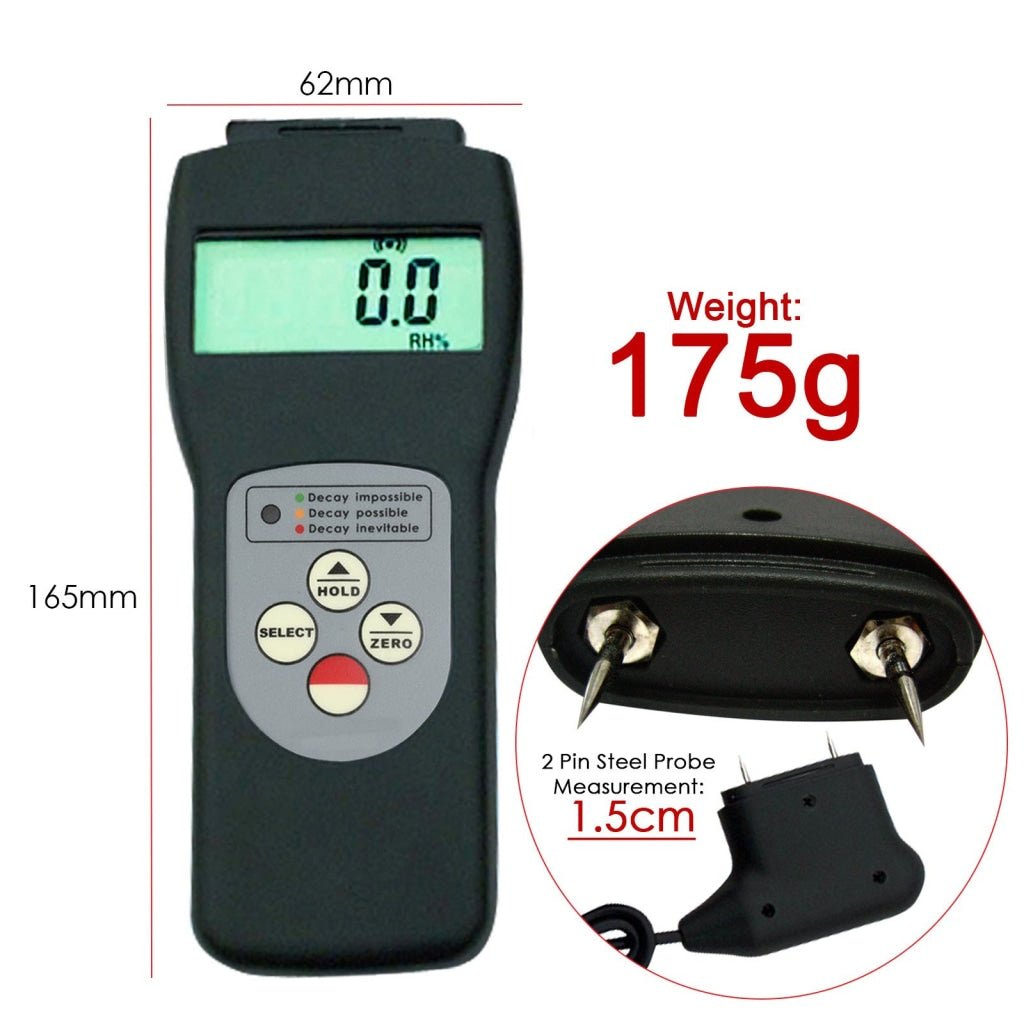

  • Dimensions: 165 x 62 x 26mm

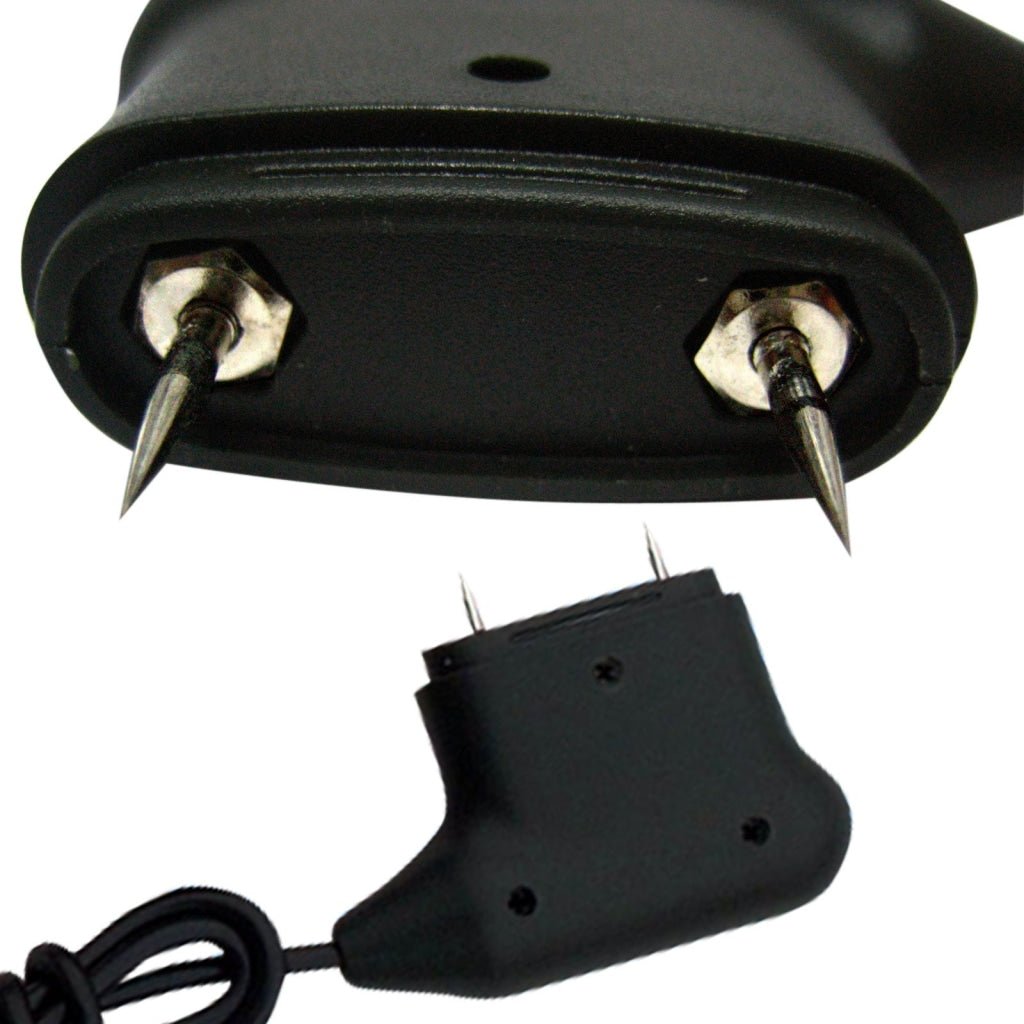

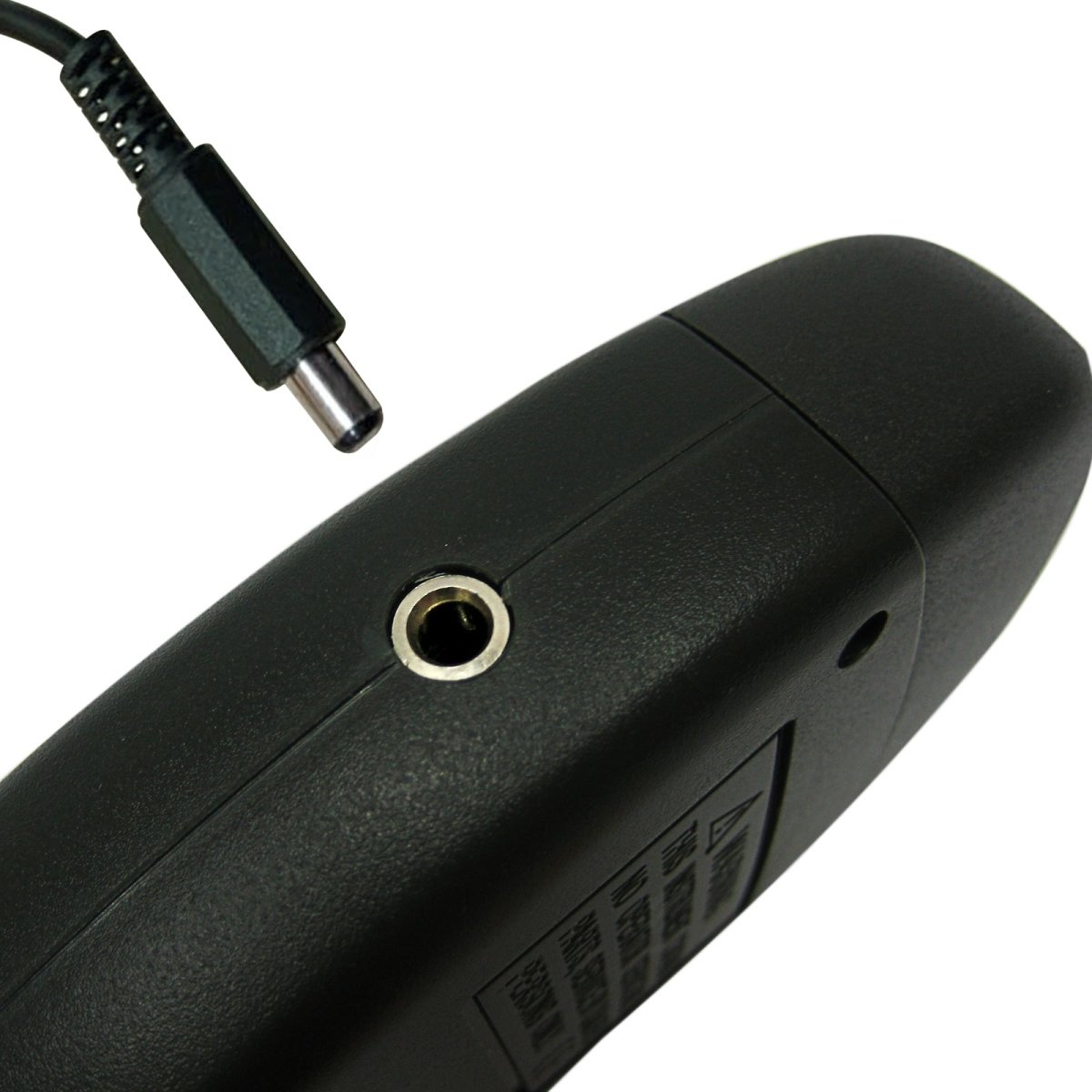

  • 2 Pin Steel Probe Measurement: 1.5cm (0.5")
  • Weight (not including battery):175g

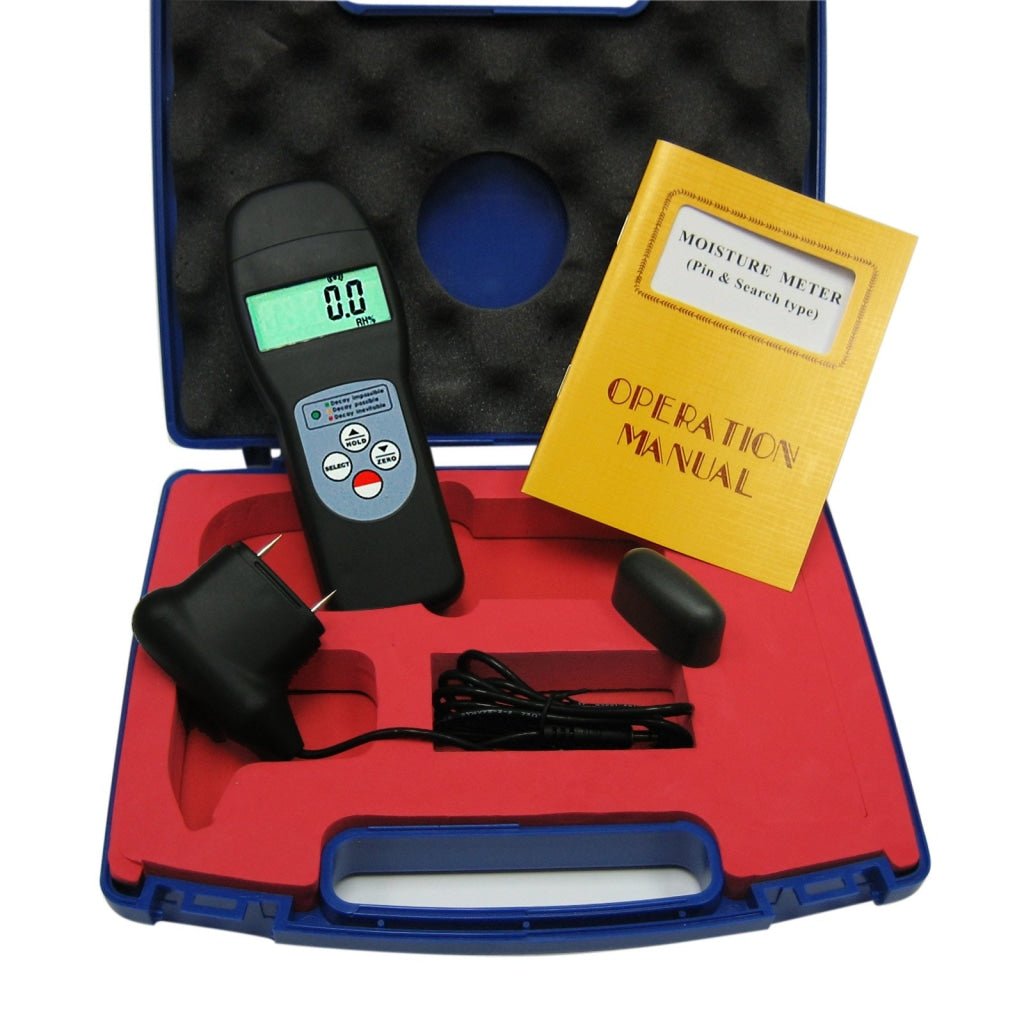

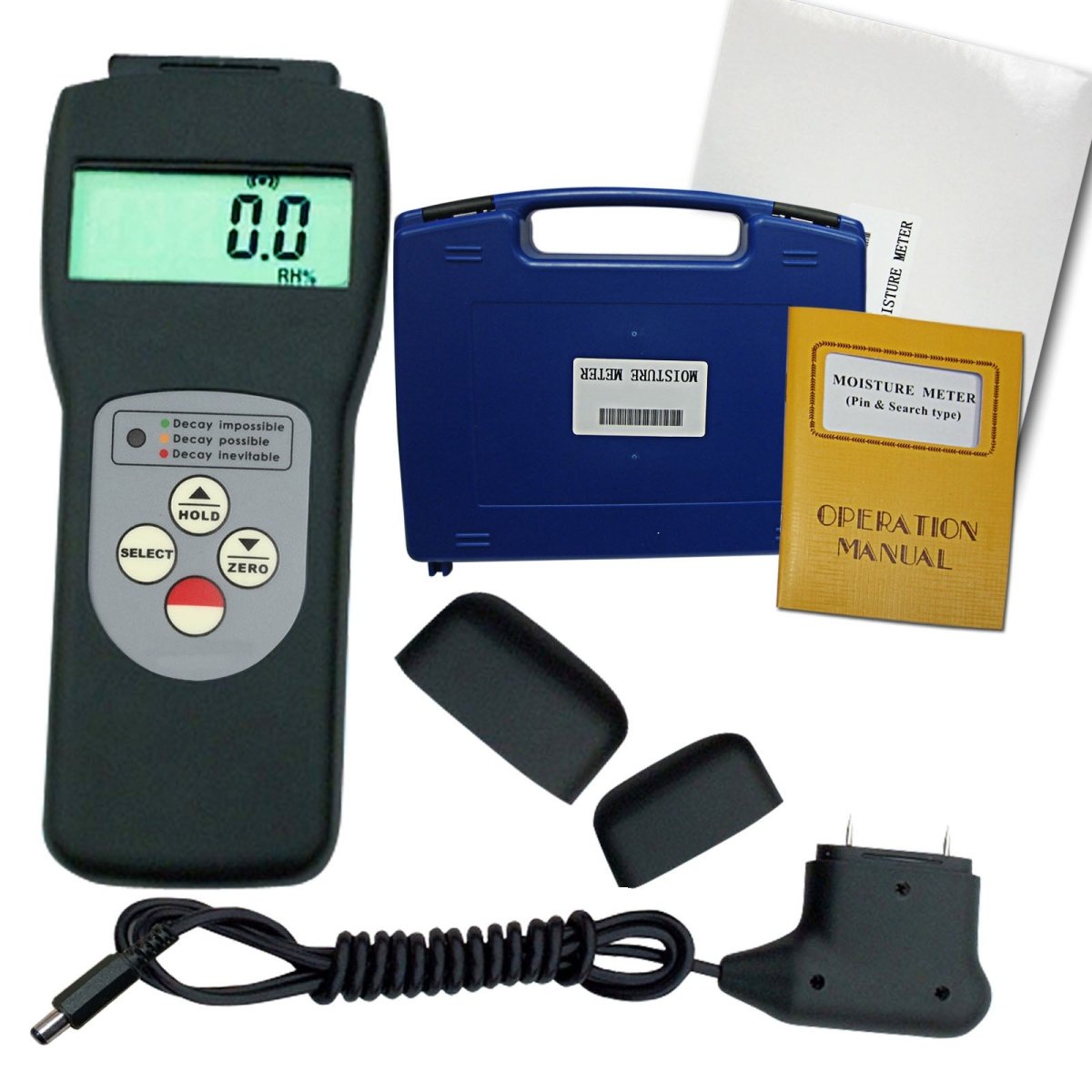

Set Includes:

  • 1 x Scanner and Probe Meter
  • 1 x 2-PIN Steel Probe
  • 1 x English User Manual
  • 1 x Protective Carrying Case
