M0198583 Patented Mini USB Temperature & Humidity Datalogger TAIWAN MADE

  • 0% OFF
  • Regular Price


Add to Wishlist

Check shipping / delivery time for your country | Free Shipping Worldwide Request for Quotation

Model : M0198583

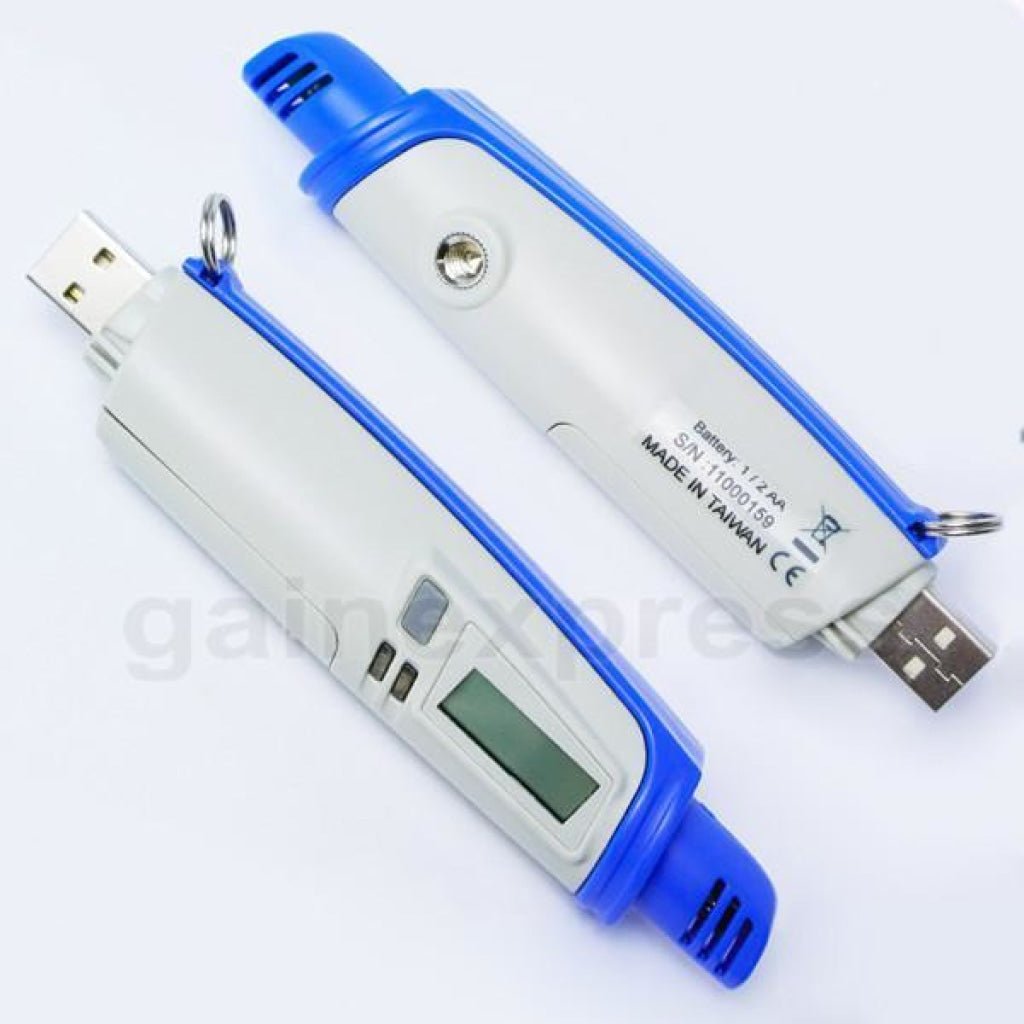

 Made in Taiwan USB Temp & RH datalogger with patented design and ultrasonic sealed housing. Comes with user-friendly software that performs much more functions than any other datalogger software in the market. Recording temperature and humidity measurements are easy and very convenient.

It has recording safe feature via the the specially design "not easy to be touched" button to avoid accidental button press that causes the logger to stop recording. This USB logger are cost effective, no need for an interface or a cradle not even a dock station to measure and record the gathered data. It can be set to 5 Starting modes.

One can start the measurement instantly via Immediate Start Mode (1), measure & record on a specific date via Schedule Start Mode(2), measure whenever the button is press via Key Start Mode(3), measure in real time via Real-time Start Mode(4) or get measurement continuously over and over again even if it reaches the maximum memory capacity via the Roll-over Start Mode(5). Both Key Start and Roll-over Start Modes needs no reset to go back or continue recording with the same datalogger.

Recorded data can be downloaded and save to a file for safekeeping or for later analysis. Memory capacity are selectable from 1,000 up to 32,000 points. Moreover, when battery runs out of power, a USB cable can be use to power-up the logger.


  • USB datalogger shape with NEW DESIGN patent
  • Ultrasonic sealed housing meets IP57 water resistant
  • Smart logger with tripod recepracle and wrist strip for long time recording or for fixing on wall

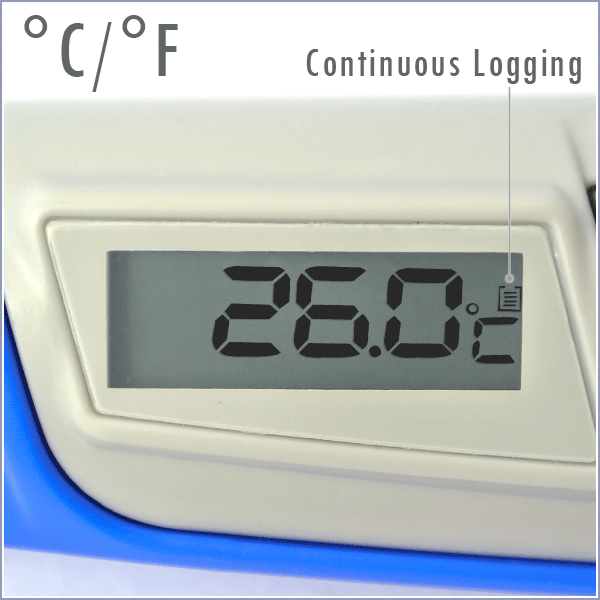

  • LCD display with ON / OFF setting
  • 5 selectable recording parameter
  • Smart and modern design and comes w/ sensor cap that prevents dirt
  • Red LED flashes when reading exceeds High or Low alarm threshold
  • Green LED indicates logger is recording measured data
  • Design with a "not so easy to press" button for safe and continuous recording even if button is accidentally press
  • Hi / Lo threshold setting
  • Cost effective
  • Software updates periodicallyand can be easily be downloaded
  • Made in Taiwan



  • Sample Interval: 1sec 6 hours (hh:mm:ss)
  • Logger mode: Key start/stop, Immediately, Schedule, Real-time
  • Temperature (°C/°F)
    • Range: -40 ~ 85°C / -40 ~ 185°F
    • Accuracy: ±0.6°C (-20 ~ 50°C), others ±1.2°C
  • Relative Humidity (%)
    • Range: 0.1 ~ 99.9% RH
    • Accuracy: ±3%RH (at 25°C, 10~90%RH, others ±5%RH
  • Memory Capacity: 32,000 points
    • Temperature: 16,000
    • Relative Humidity: 16000
      (NOTE: if chooses to log temperature or humidity only max memory is 32,000)

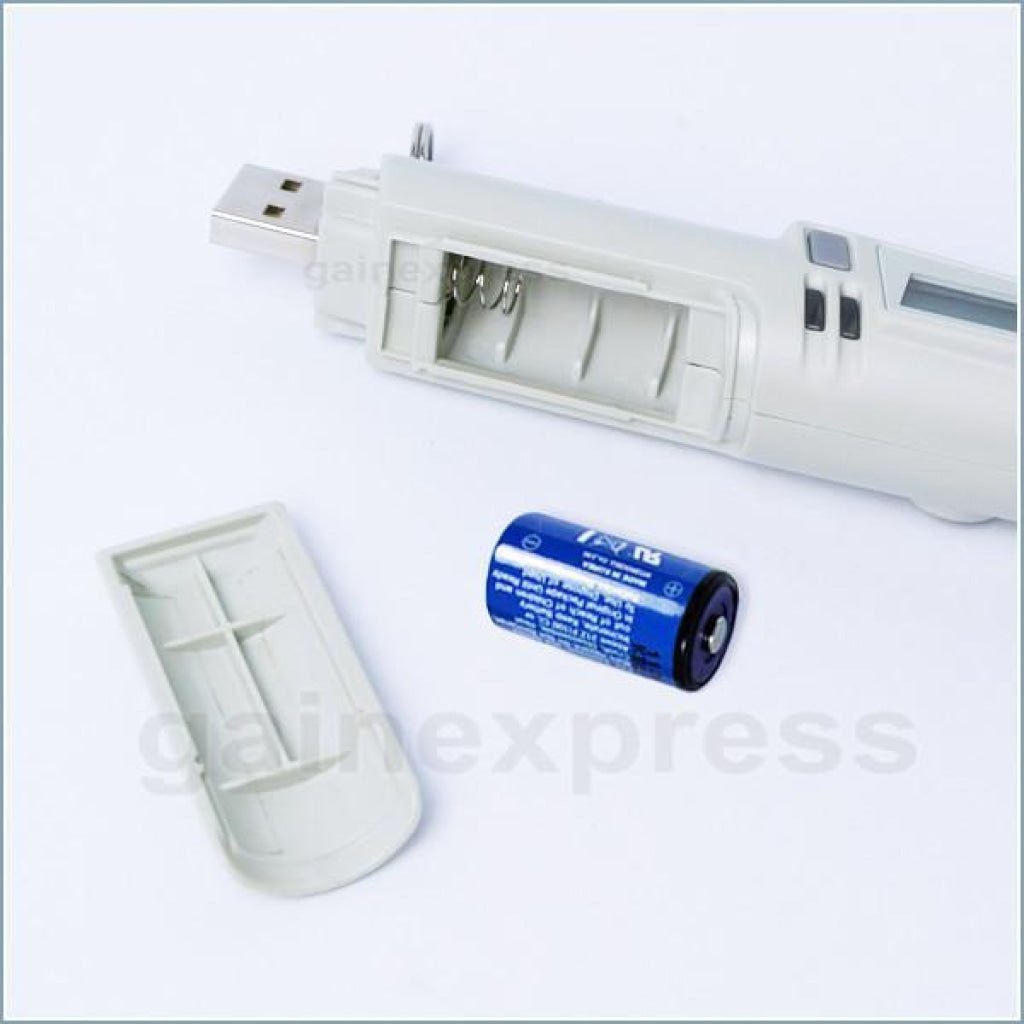

  • Power: 3.6V Lithium 1/2 size AA battery
  • Operating Temperature
    • Temperature: 0 ~ 50ºC (32 ~ 122ºF)
    • Humidity: <80% RH
  • Logger size: 135.7 x 28.5mm (including cap)

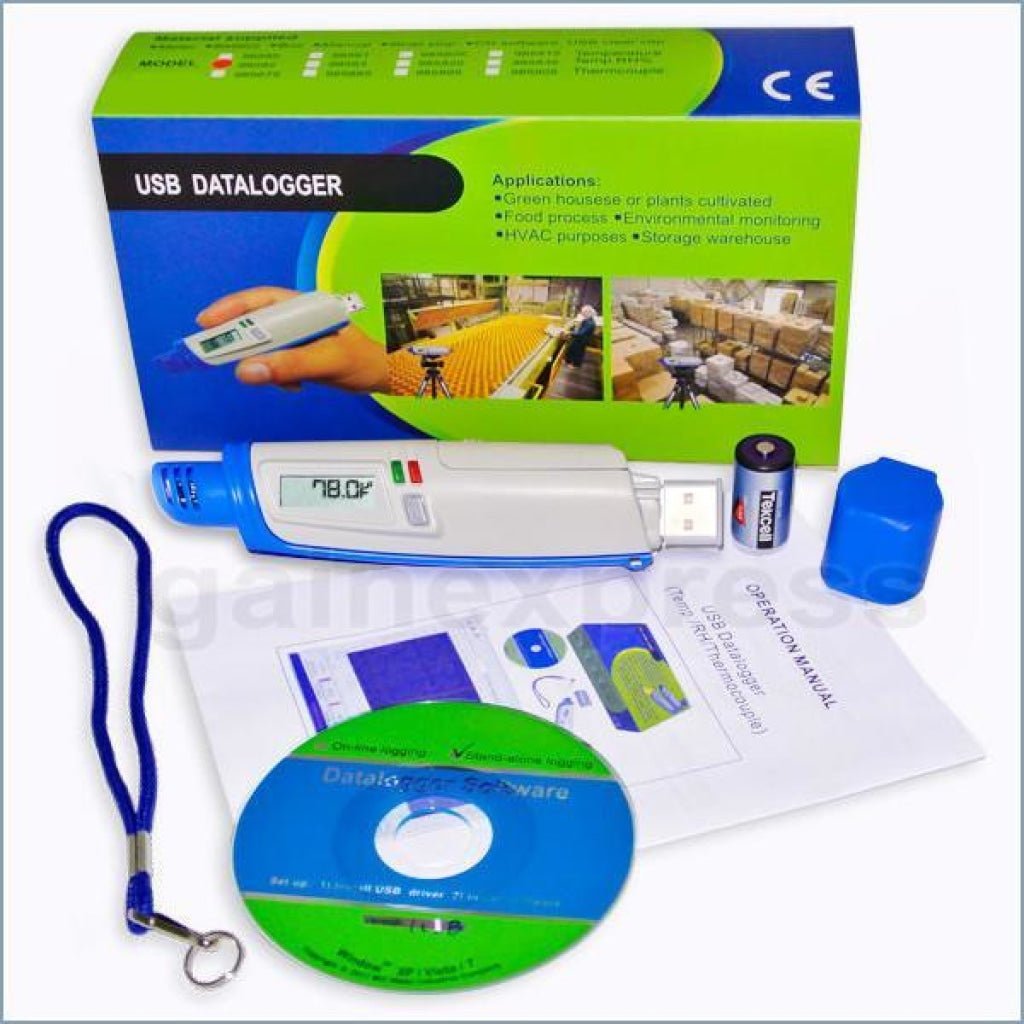

Set includes

  • 1 x USB Temperature & RH Datalogger
  • 1 x 1/2 size AA Battery
  • 1 x English Operation Manual
  • 1 x Wrist strap
  • 1 x CD software
  • 1 x Sensor cap
  • 1 x USB cap
