M0198158 Wallmount Smart LED Display VOC Carbon Dioxide (CO2) Temperature RH Monitor Made in Taiwan

  • 0% OFF
  • Regular price


Add to Wishlist

Check shipping / delivery time for your country | Free Shipping Worldwide Request for Quotation

Model : M0198158

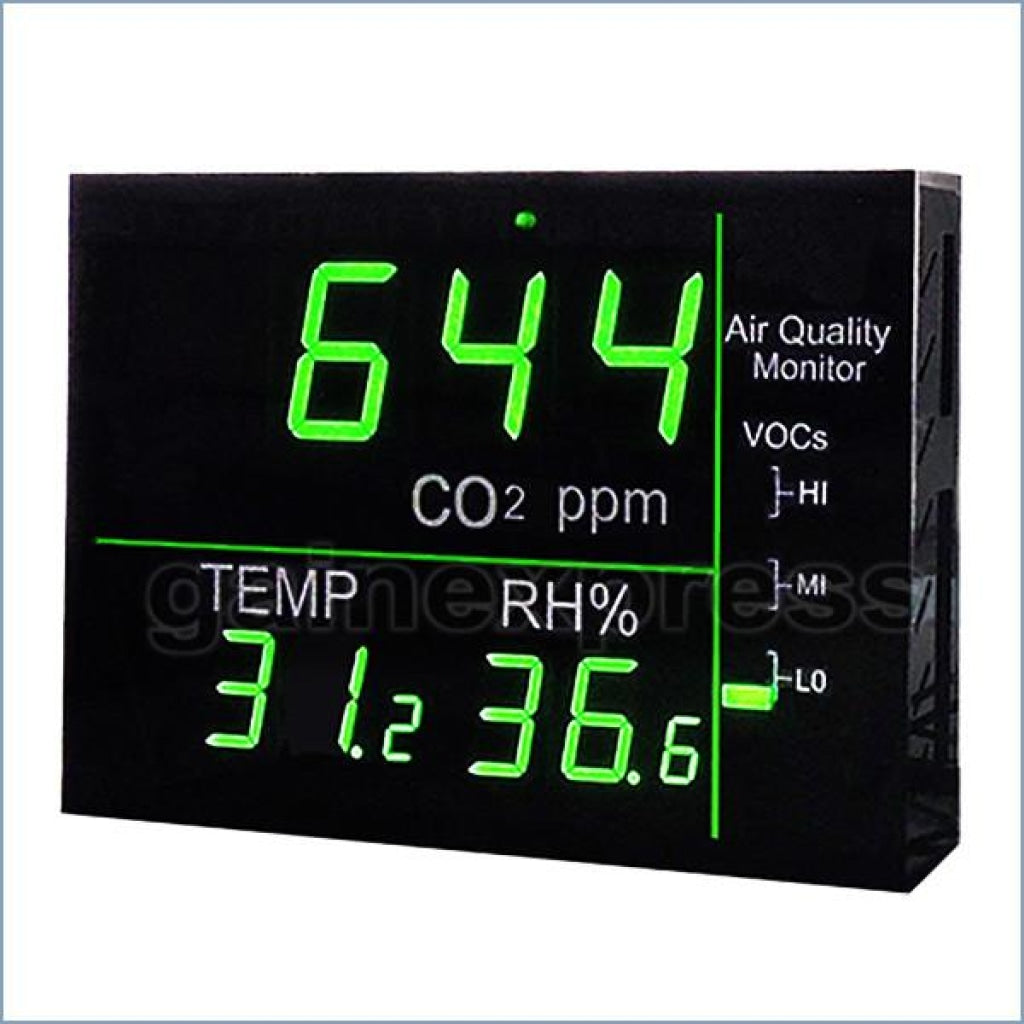

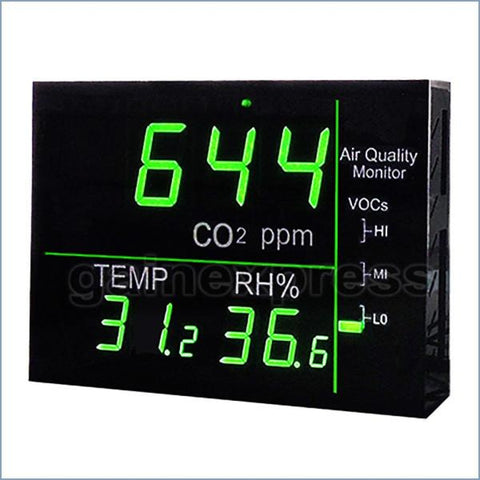

Wallmount LED CO2 VOC Temperature & Humidity Monitor. It is a fashion design with super large LED display CO2 in ppm, Temperature (°C / °F), Relative Humidity in % w/ high resolution 0.1 and indicates VOC concentration with color bar for good or poor air quality.

It complies with all essential health and safety requirements set out in European Directives (CE marking). Plus all parts are made in and manufactured in Taiwan.

For air cleaners, VOC monitors and Odor monitors, optimize ventilation and make necessary energy-saving arrangement, warehouse, chambers, incubator, laboratories, hospital, clean rooms, refrigerators and other critical areas.



  • The most modern and smart LED display measures CO2, VOC, Temperature and RH%
  • Easy and simple to used for indoor air quality in public such as schools, hospital, transportation places, library...etc.
  • Large LEDs simultaneously display CO2, Temp, RH or VOC condition w/ light bars fo easy to understand the air qaulity level
  • VOC : Lihght blue LEDs (GOOD), Yellow LEDs (FAIR), Red LEDs (POOR)
  • CO2: Green, Yellow, Red LEDs stand for good, fair and poor CO2 concentration
  • ABC (Automatic Baseline Correction) Co2 function is selectable with ON or OFF
  • Manually calibration CO2 reading in 12 hours available
  • Calibrate VOC under freash air
  • Switchable temperature unit (°C/°F)
  • Powered by 12V AC/DC adaptor
  • Made in Taiwan
  • Parameter : CO2, VOC, Temperature & Relative Humidity
  • Measurement Range
    • CO2 : 0~5,000ppm
    • VOC : 6 bars
  • Sensor:
    • CO2: NDIR
    • VOC: Semi-conductor metal dioxide
  • CO2 Resolution: 1 ppm
  • Alarm : Audible
  • Temperature Measurement
    • Range: 0~50°C (32~122°F)
    • Accuracy: ±1.0°C/2.0°F or ±1.5°C
  • Power: 12VAC adaptor
  • Dimension: 300 x 215 x 50mm
  • Weight: approx. 1.3kgs Meter only

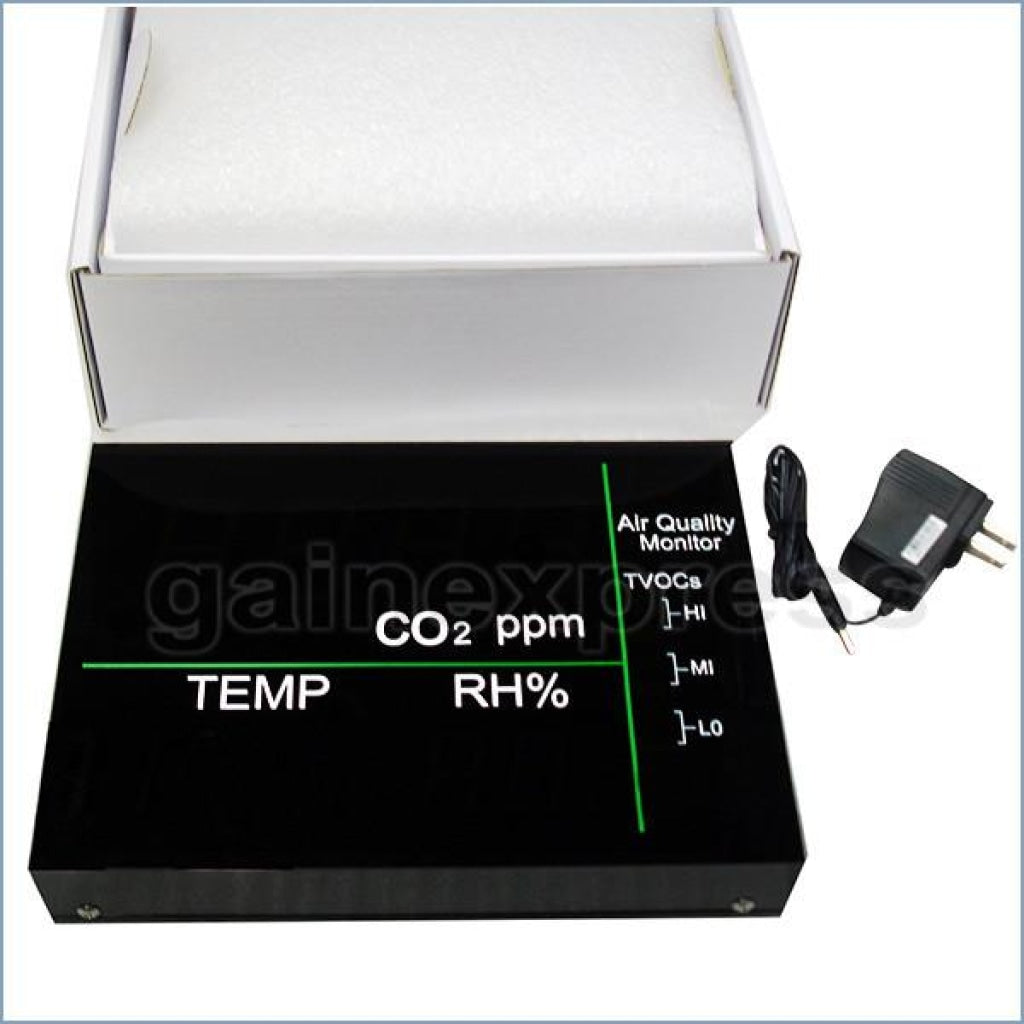

Set includes:

  • 1 x Wallmount LED CO2, VOC, Temp & RH Monitor
  • 1 x AC/DC adaptor
  • English Operation Manual
  • Standard factory Packaging
