Model : M0198113

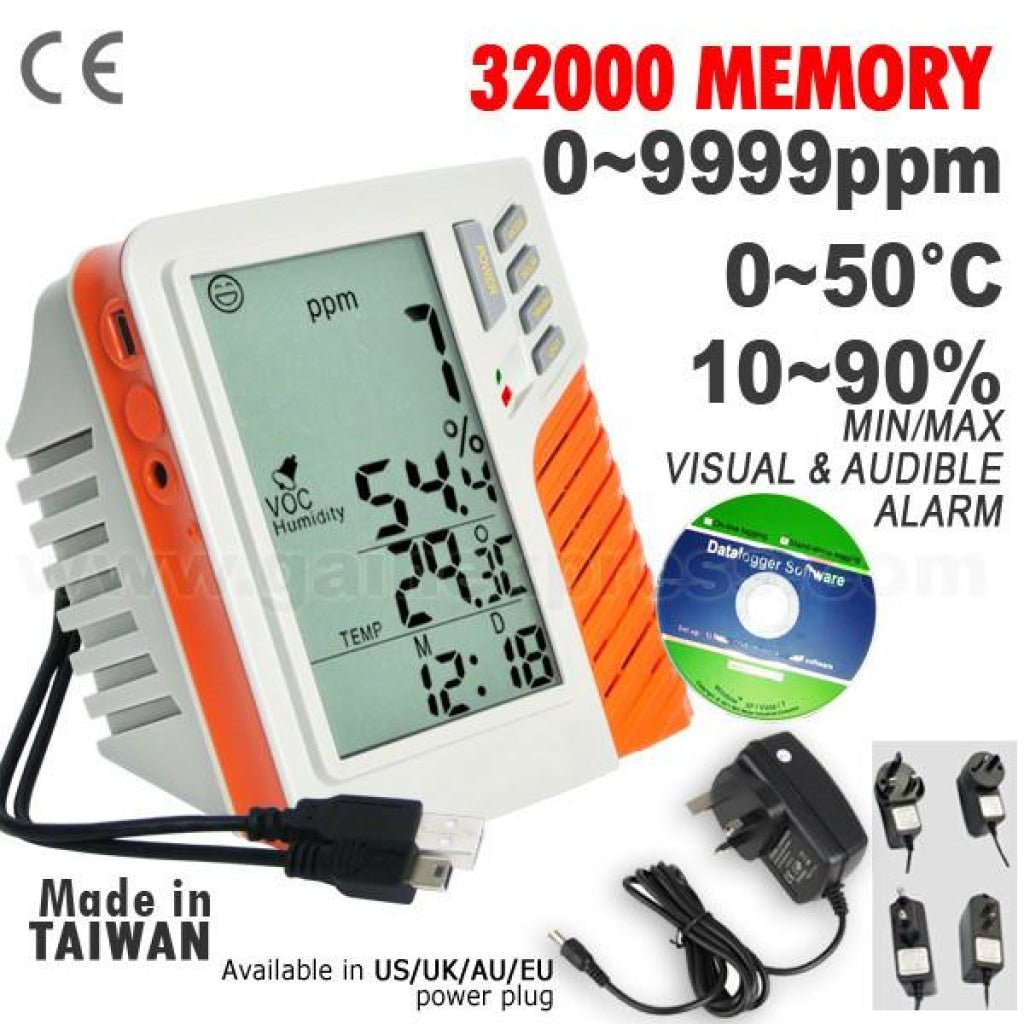

This VOC Monitor and Datalogger is used to log and detect air contaminants or Volatile Organic Compounds (VOC) like Hydrogen sulfide, Ammonia, ethanol, toluene, smoke and etc..Can be wall-mount or desktop with vented area shape for easy detection of VOC's and odorous gases. the memory datalogging capacity is up to 32,000 points with date and time. It also have a visible and audible alarm.
It has 5 selectable start mode: (1)Schedule mode - select a date and time for the meter to start recording, (2) Real-time start mode - after setting start mode meter will start logging, meter should be always connected with pc under this mode, (3) Key-start mode - press the button to start and stop logging, (4) Roll-over mode - continous datalogging, when the data is full it will cover the earliest memory, (5) Immediate - log and measure instantly.
It complies with all essential health and safety requirements set out in European Directives (CE marking). Plus, all parts are made in and manufactured in Taiwan.

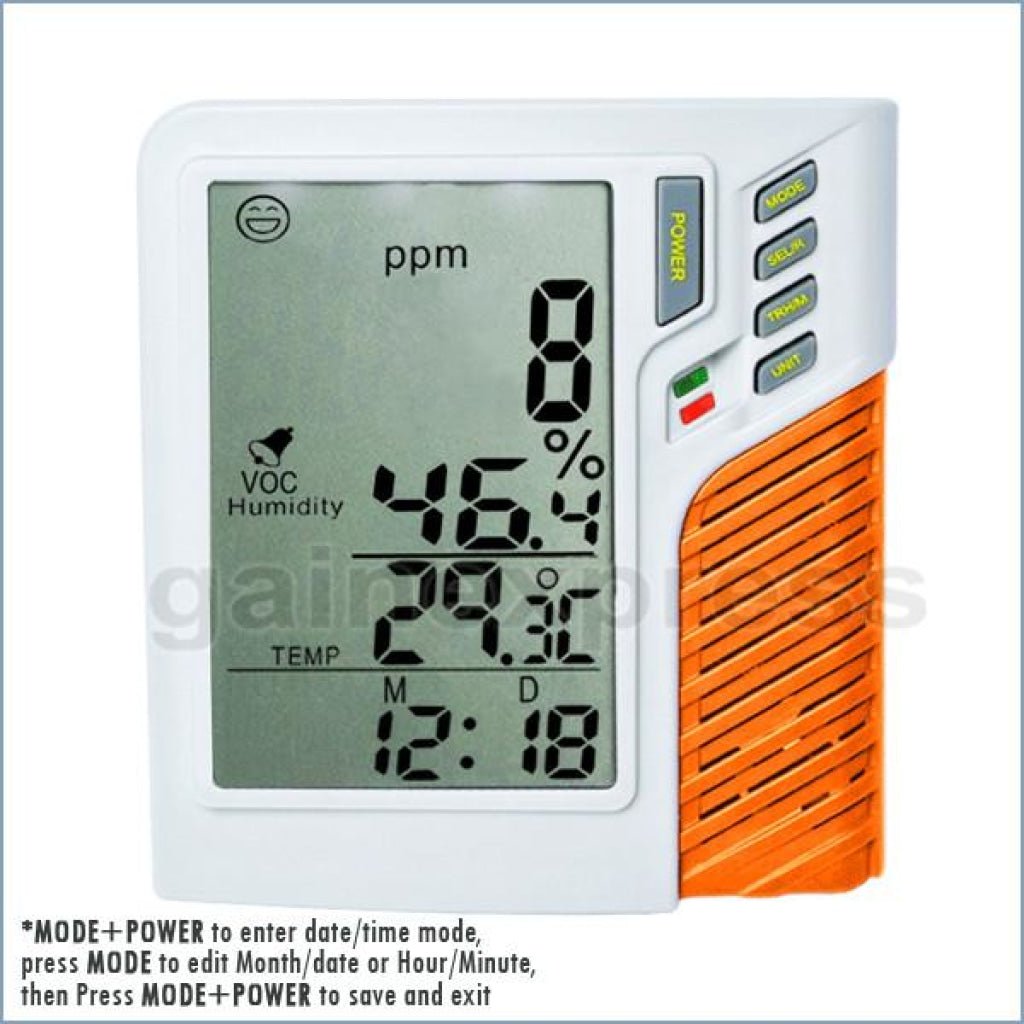

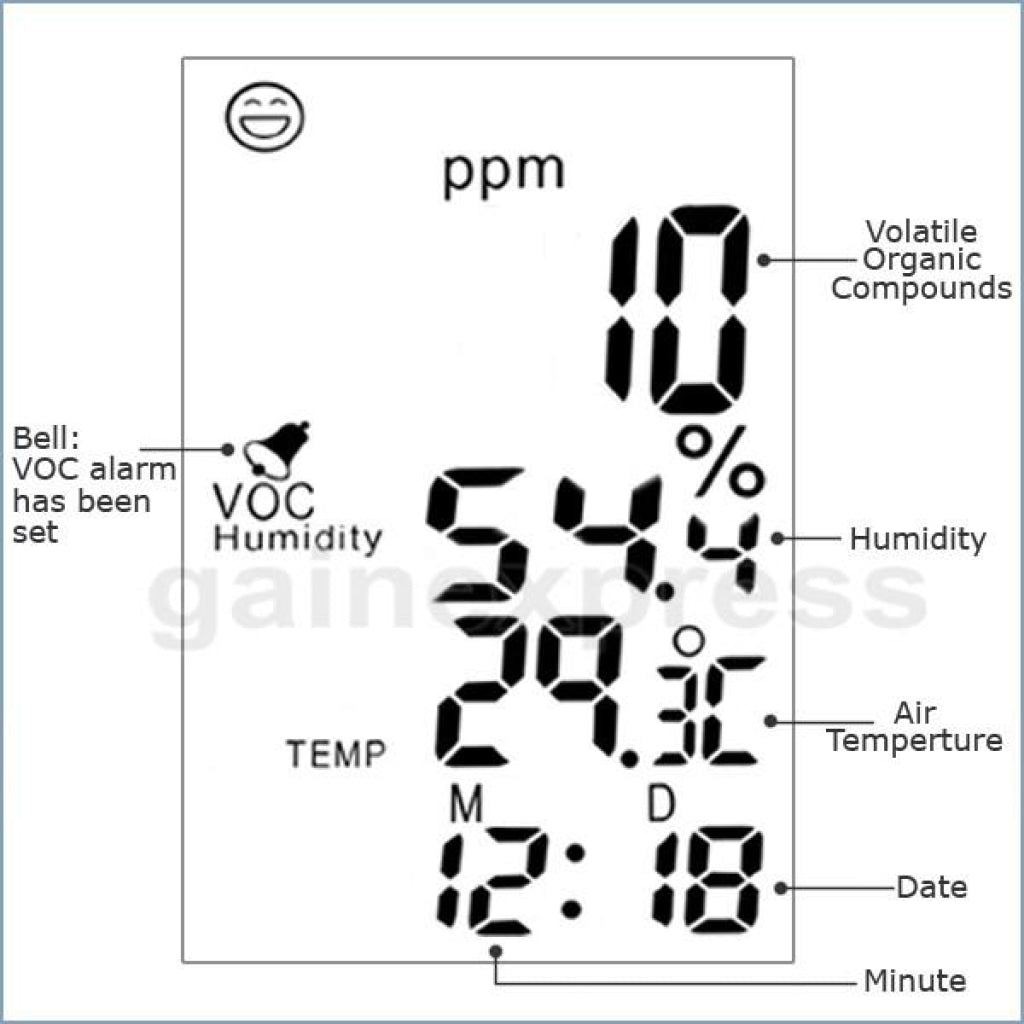

- Super large LCD display VOC,Temp,RH%,DPT, WBT, Heat Index, WGBT, Calendar (Y/M/D) and Time (clock)
- Three (3) smiley icons indicate ( 0~14ppm low pollution / 15~34ppm middle pollution / 35~50ppm high pollution) easy to understand VOC Range
- 32000 data logging memory
- Reliable metal oxide semiconductor sensor
- With visible and audible alarm

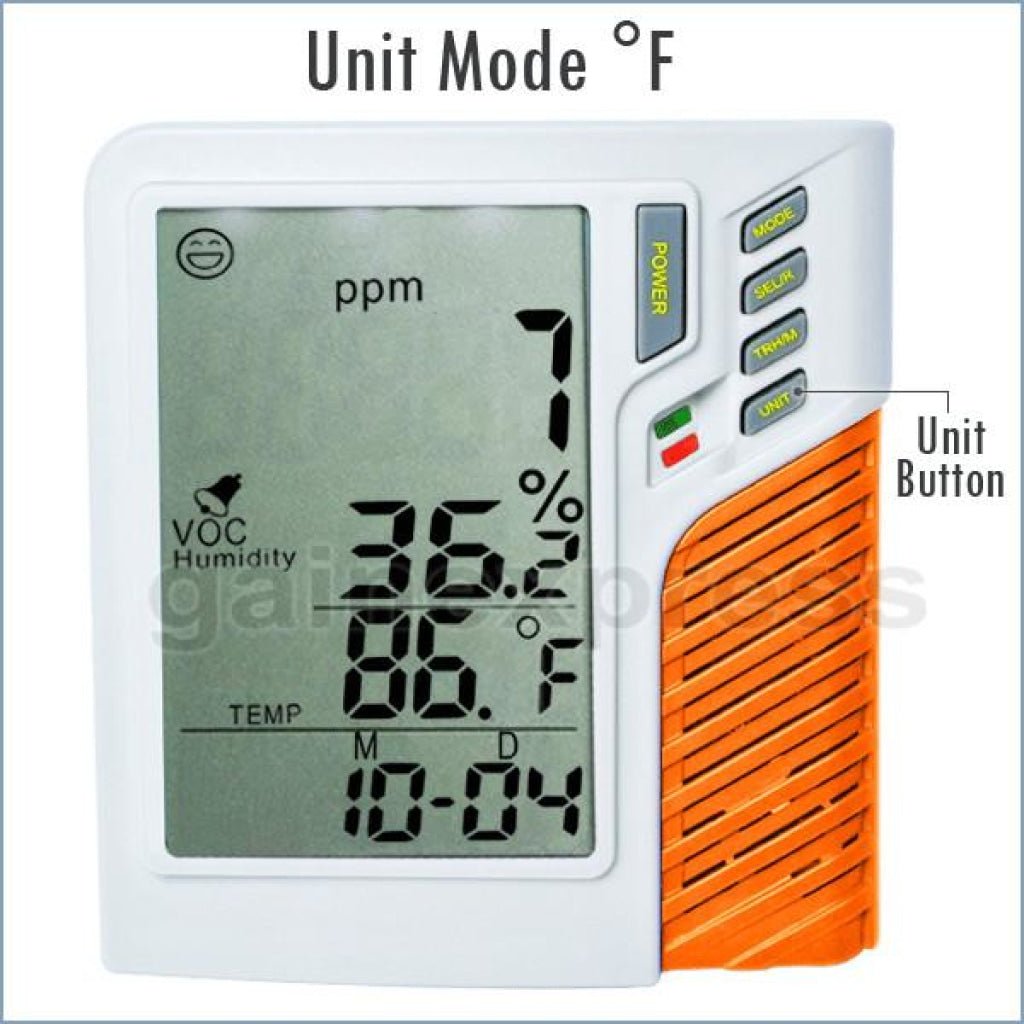

- Selectable °F and °C temperature unit

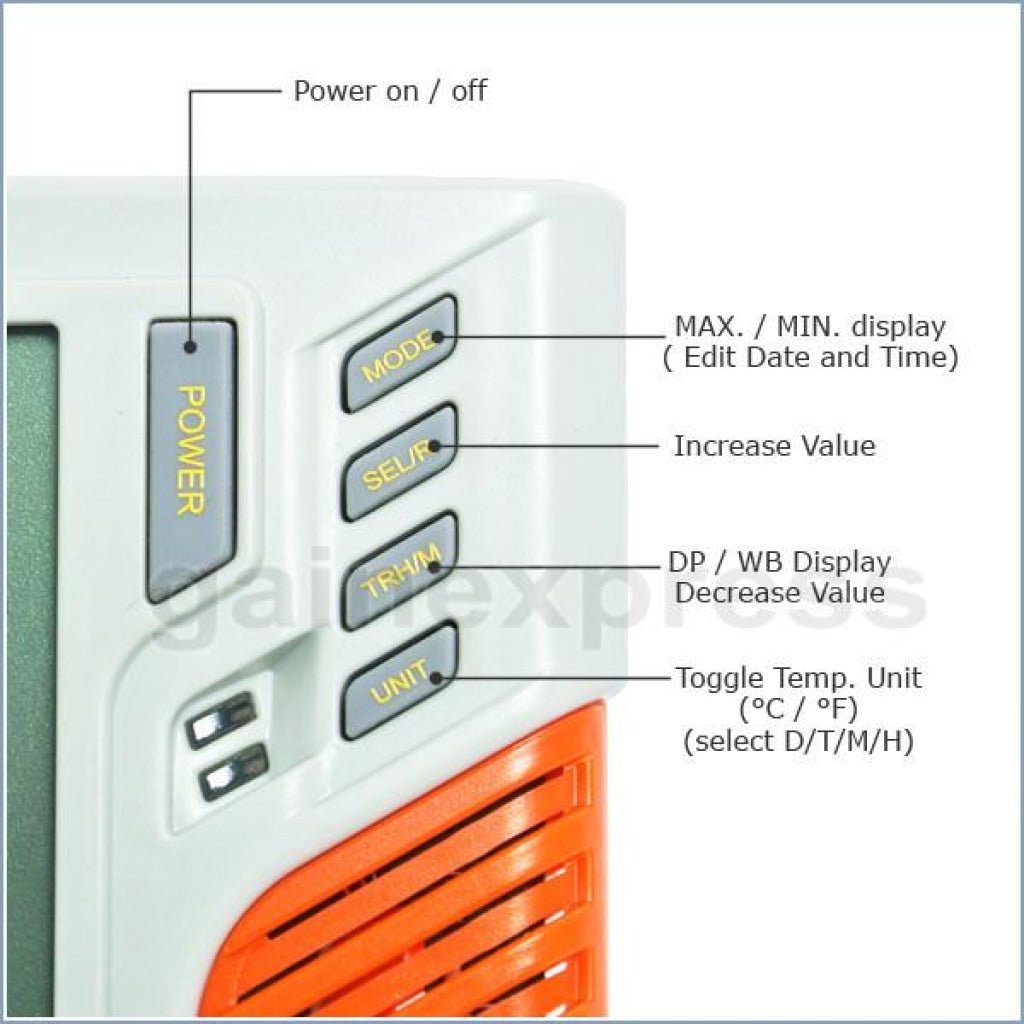

- Recall MAX and MIN reading

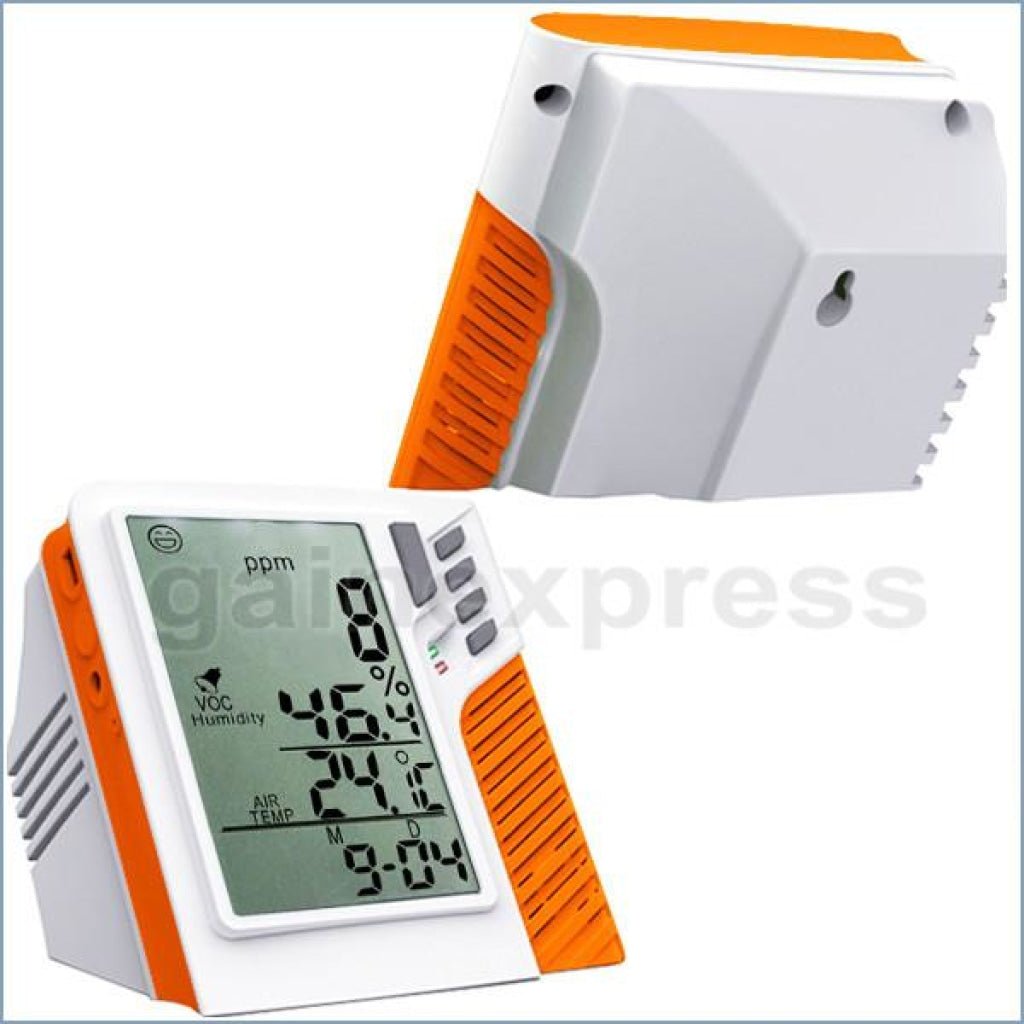

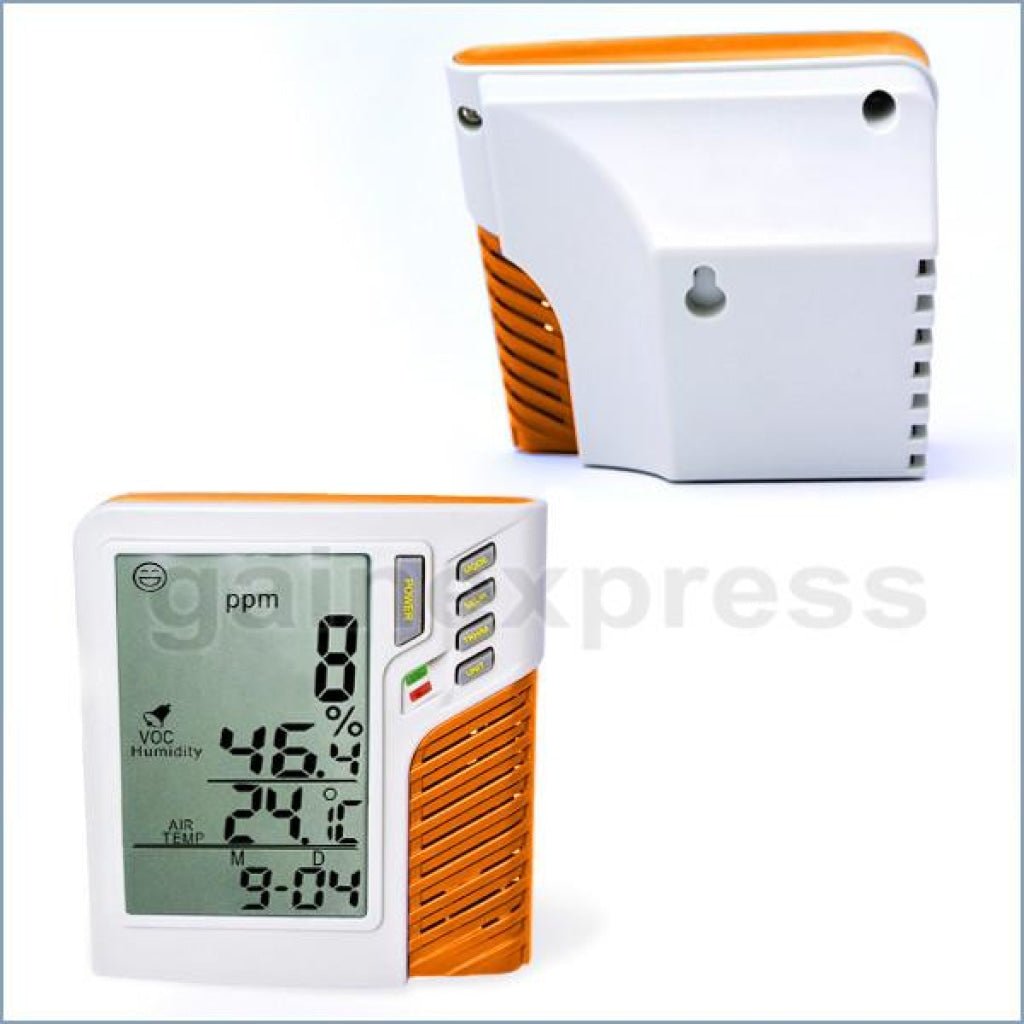

- Can be wall-mount or desktop position
- Sample interval can be selectable from 1 seconds up to 6 hours
- Comes with USB cable for data transmission and Power Adaptor (choose one from the availble plug US/ UK/ AU/ EU)
- Made in Taiwan
- Large LCD Display : 85 x 56mm jumbo size
- Display Content : VOC, Temperature, RH%, Date and Time
- Time interval selection : Hour (1~6), minute (0~59), second (0~59)
- Logger mode : Key start/stop, Immediately, Schedule, Real-time & Roll-over
- VOC Range : 0~50ppm
- Resolution : 1ppm
- Accuracy : @ 25C +/-1ppm
- Logging Memory : 32000

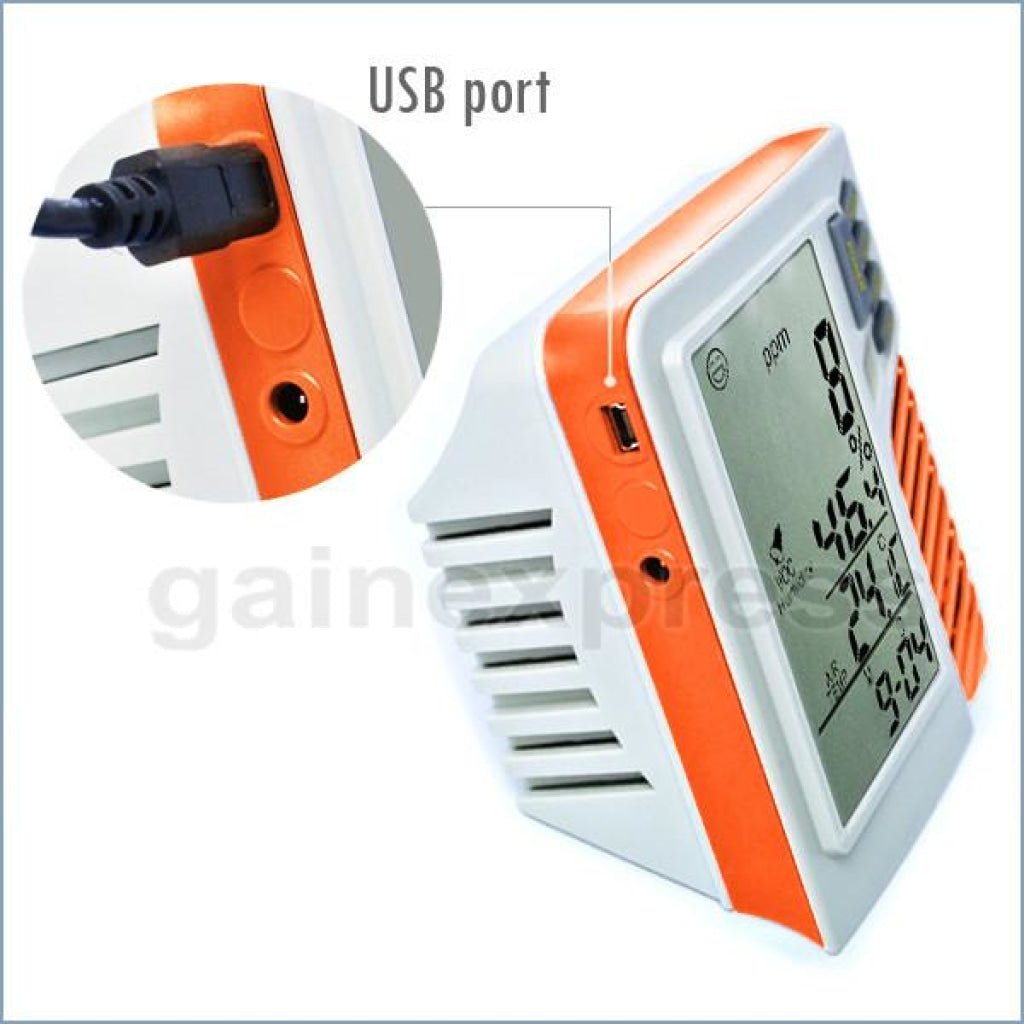

- Interface : USB
- Detect Air Contaminant : VOC (Hydrogen sulfide, Ammonia, Ethanol, Toluene, Smoke)

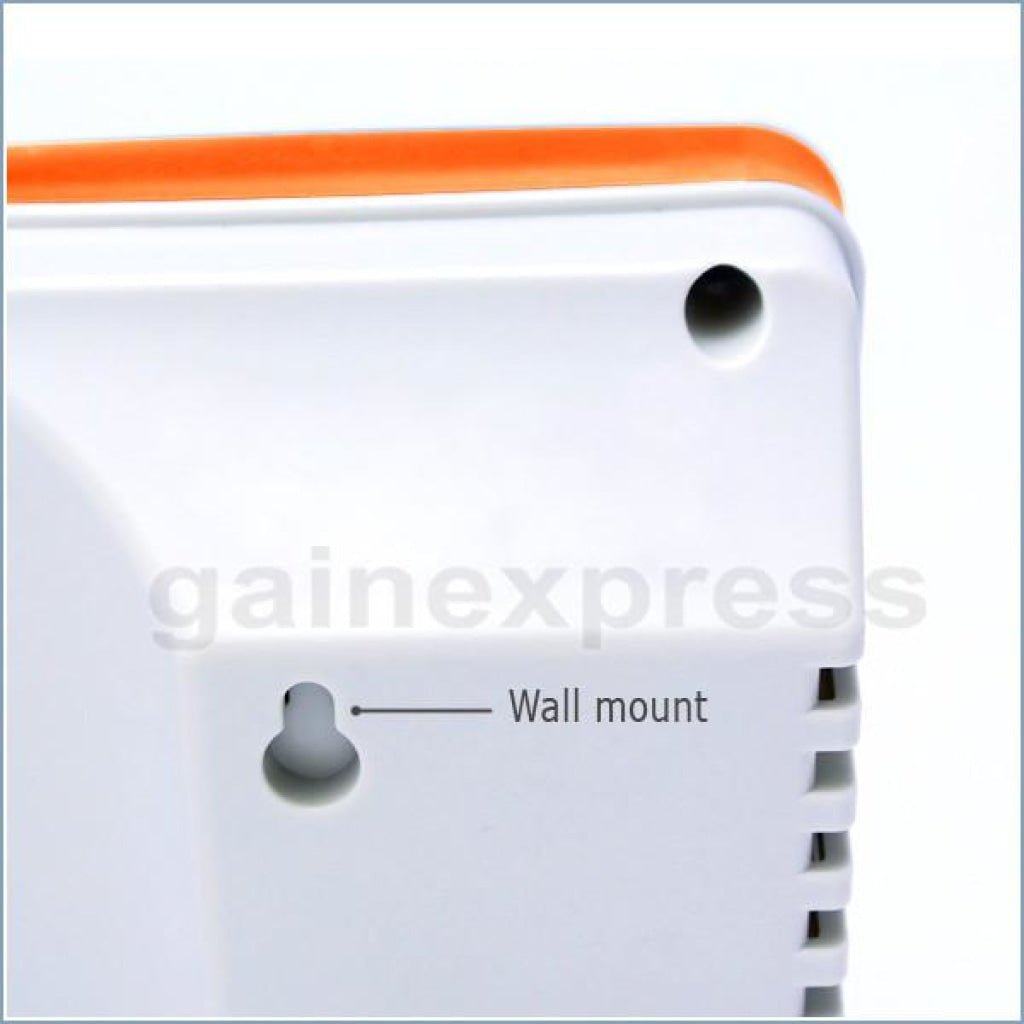

- Wall mount / Desktop : YES
- Temperature range : -0~50°C
- Temperature Accuracy : ±1°C (±2°F)
- RH Range : 10~90%
- RH Accuracy : ±5% at 25°C

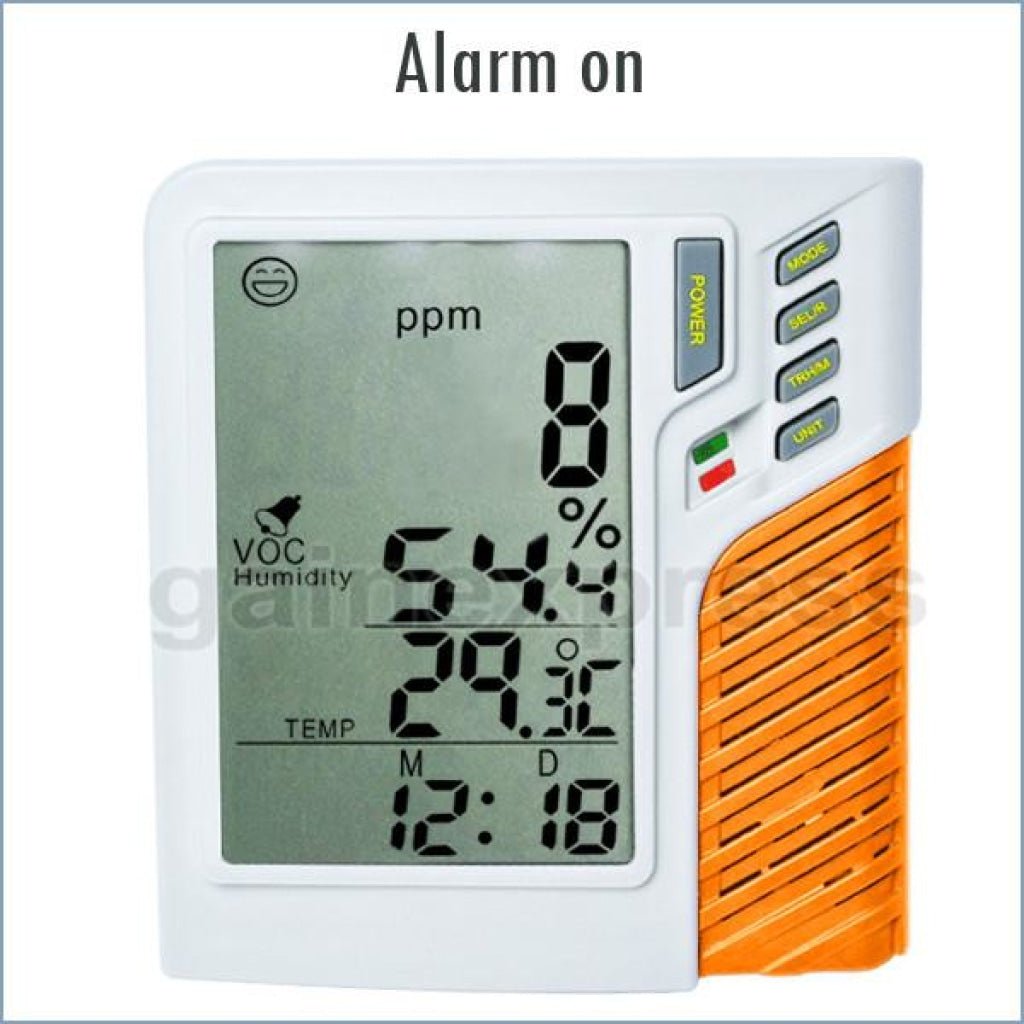

- Alarm : Visible and Audible
- Power: USB Cable or Power Adaptor (choose one from the availble plug US/ UK/ AU/ EU)

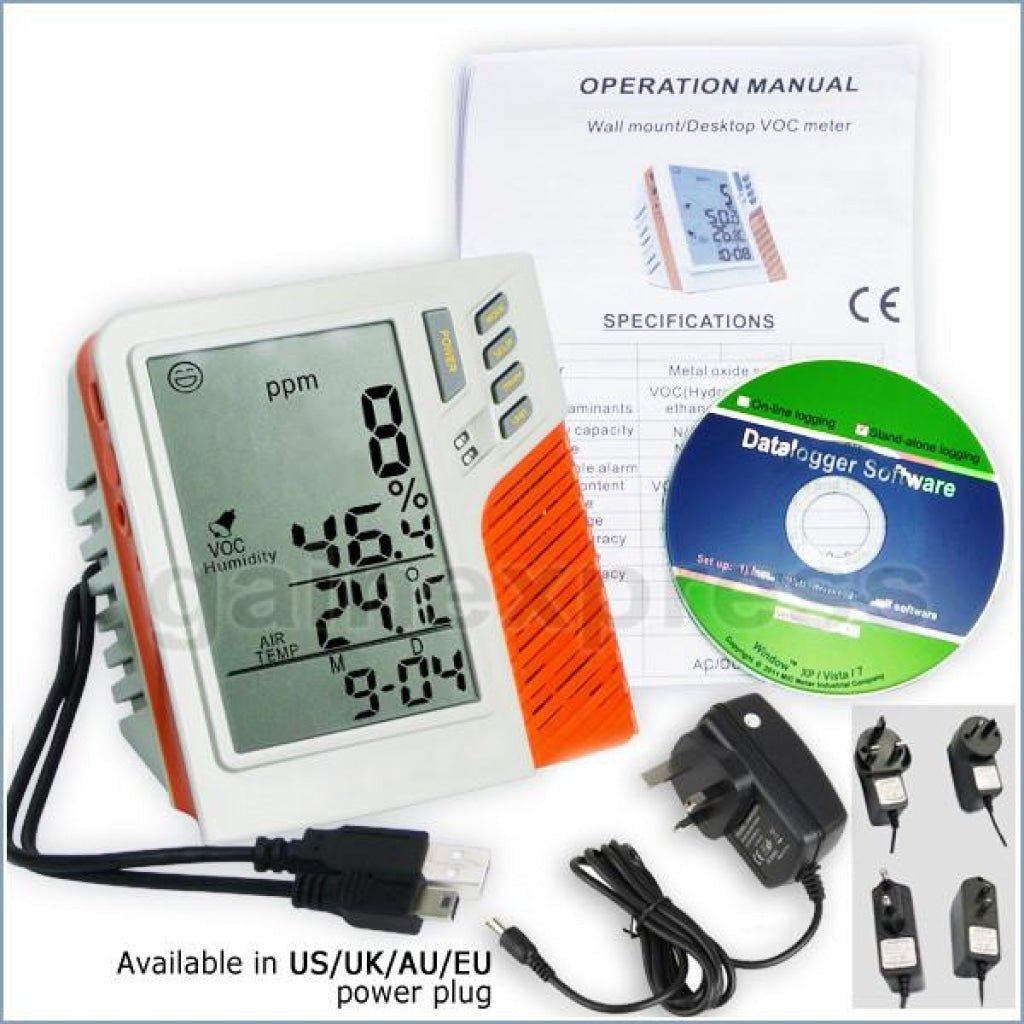

- 1 x VOC Datalogger Monitor
- 1 x Power Adaptor (choose one from the availble plug US/ UK/ AU/ EU)
- 1 x USB Cable
- 1 x CD software
- 1 x English Operation Manual
- 1 x Standard Packaging Box
