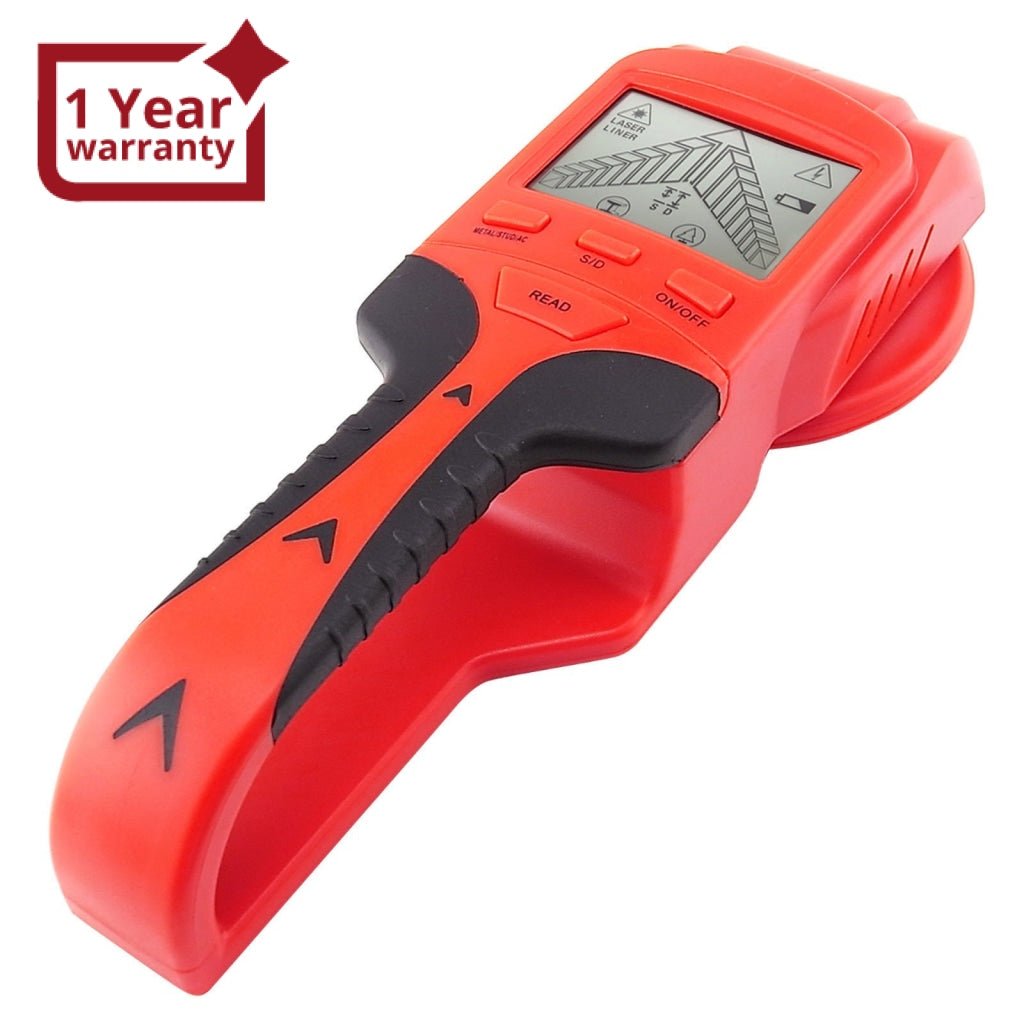

JDT-08 3in1 LCD Stud Detector Metal Voltage Cable Wood Finder

  • 0% OFF
  • Regular Price


Add to Wishlist

Check shipping / delivery time for your country | Free Shipping Worldwide Request for Quotation

Model : JDT-08

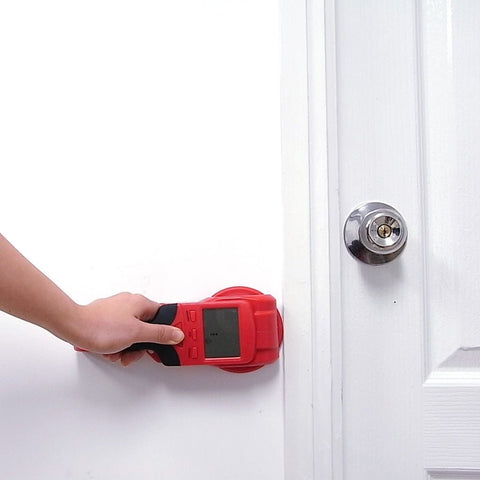

This Stud Scanner makes walls & ceiling scanning fast and simple. It locates the exact position of studs, ceiling joists AC wires and metals behind drywall, concrete and other common wall materials. Results are clearly displayed in its 2.3" LCD. The scanner is designed to detect 110 and 220 volts AC in live electrical wires and even live wires with more than 220 volts.


With the procedure of scanning and marking from 2 sides, this detector will automatically find the distance of 60 x 60 x 20mm stud (deep mode: ≥2cm, standard mode: ≥1.5cm) detect distance of 20 x 1500mm pipe (deep mode: ≥3cm, standard mode: ≥1.5cm) detect AC electrification 90~380V, 50~60Hz cable (deep mode: ≥3cm) As soon as the edge of a stud has been detected, an audio and visual signals (via LCD, displaying series of arrowheads) will be send out, thus, allowing you to easily pinpoint the center. As you begin to approach the stud, the LCD shows series of arrowheads, the closer to the stud the more arrowheads shows.


The ergonomic designed shape and quick calibration increases user comfort and safety during use. A timesaver and a life-saver specially when nailing, cutting or drilling in walls, ceilings and floor that may contain wiring or pipes near the surface.




  • 3-in-1 Multi Scanner

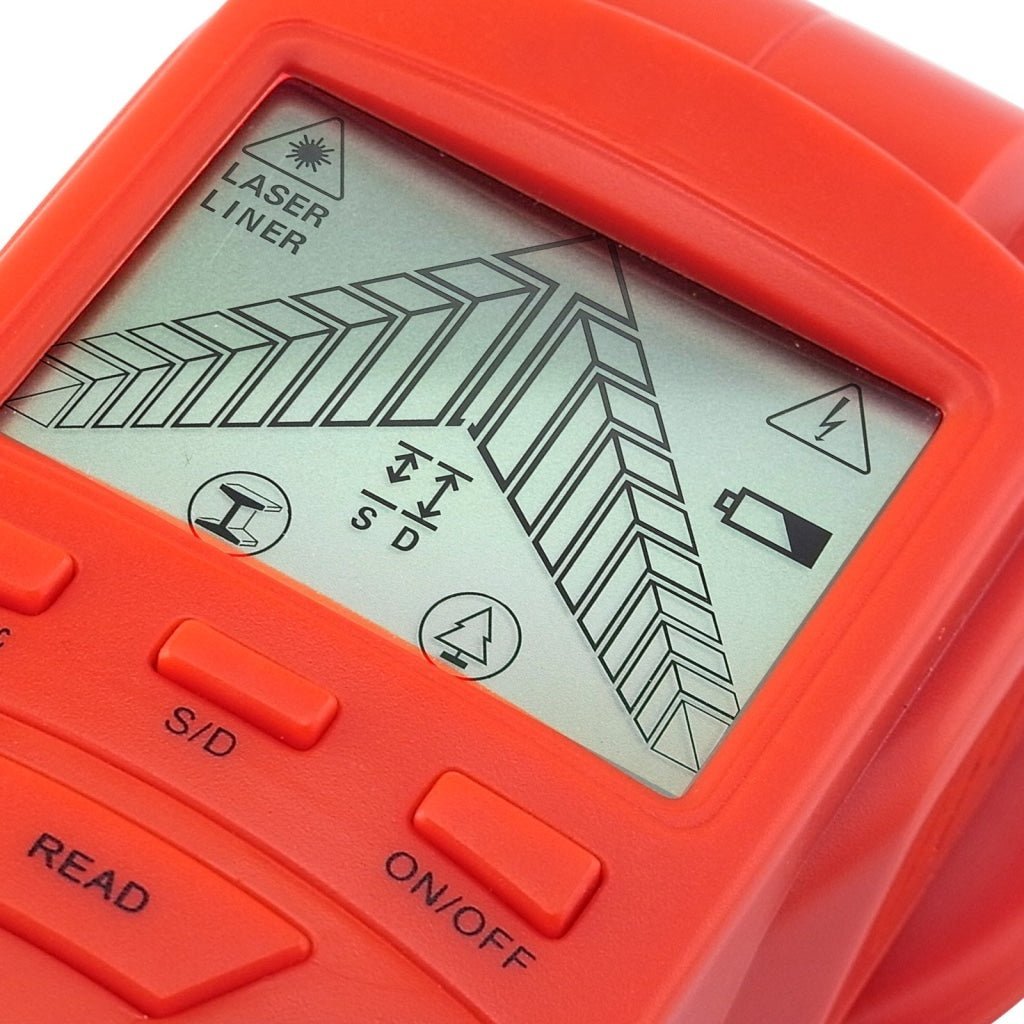

  • Clear and BIGGER 2.3 inch LCD Display
  • Wood Stud / Metal / Live Wire detector
  • With Standard and Deep Functions feature
  • High Sensitivity
  • Locates studs through drywall up to 20mm (3/4 inch) thick

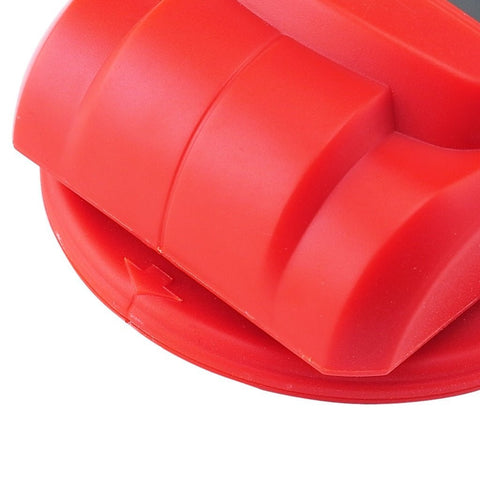

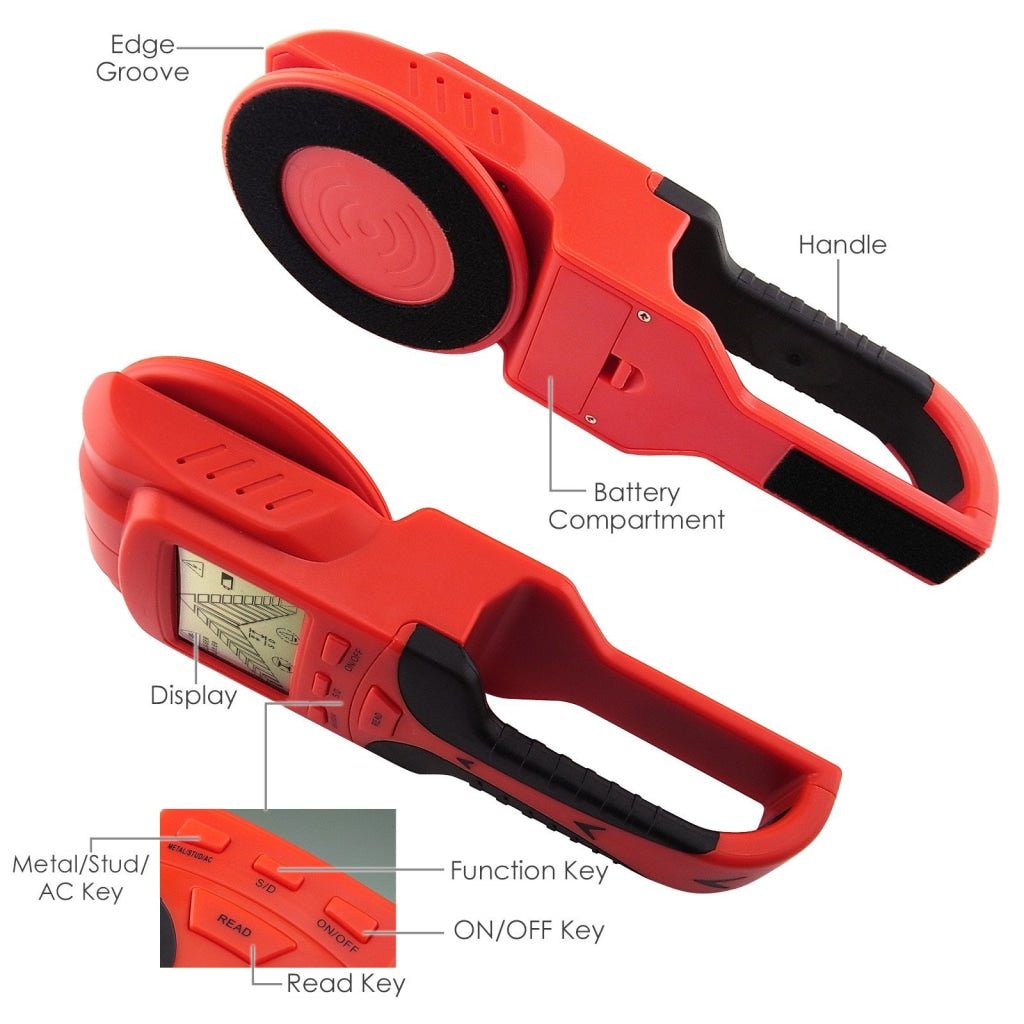

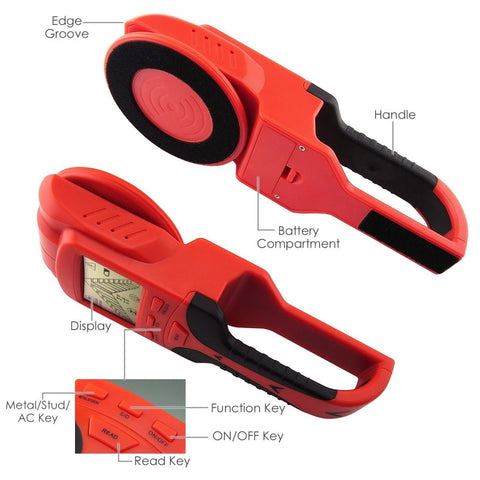

  • With V-Groove edge for easy marking
  • One hand operation with automarking
  • Visual (via LCD) and audio (buzzer) alerts
  • Water Resistant
  • With indicators like, power ON/OFF and low battery
  • Quick & easy calibration
  • Heavy-duty ABS construction






  • Detect Wood Stud, Metal and Voltage
  • Operating Temperature: 0~40°C (32~104°F)
  • Storage Temperature: -10 ~ 50°C (14~122°F)
  • Storage Humidity: 80% R.H. (Non-Condensing)

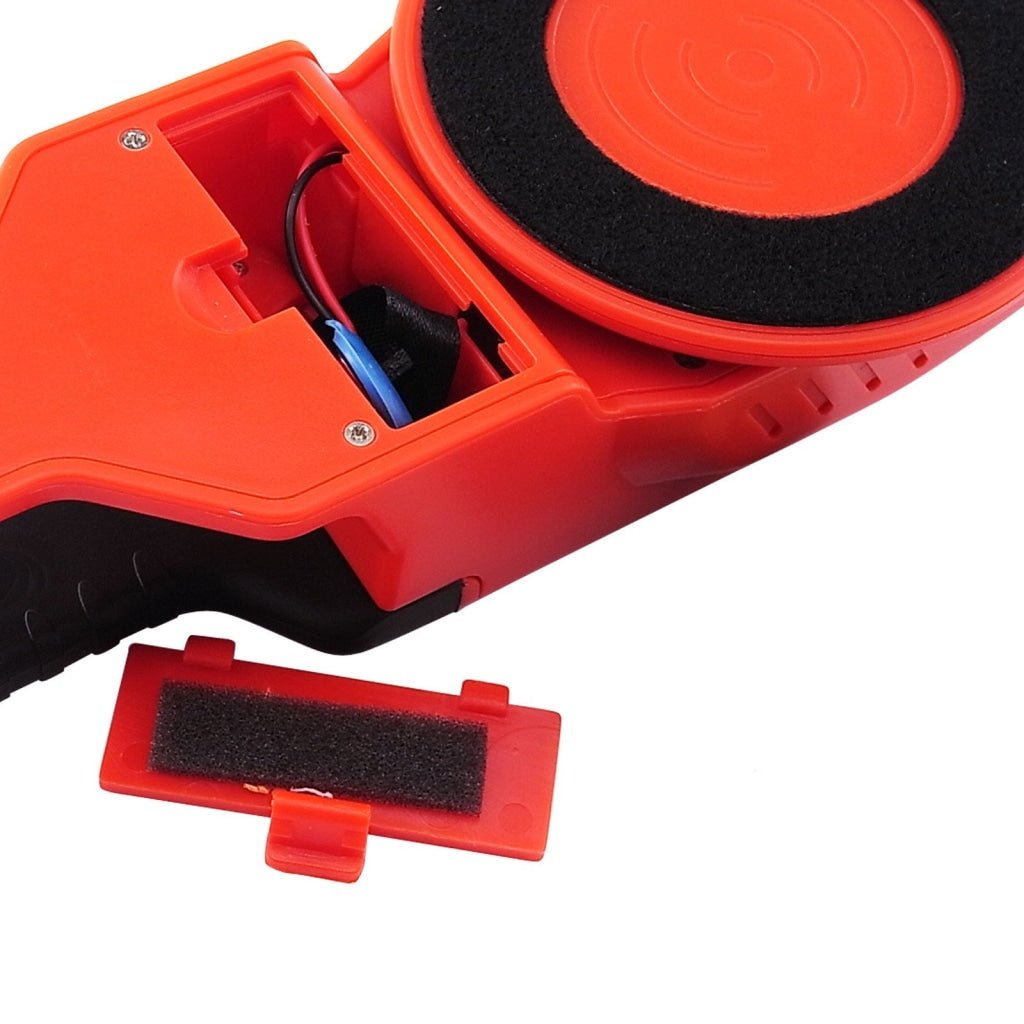

  • Power Supply: 1 x 9V Battery
  • Battery Life: 1 year with normal use

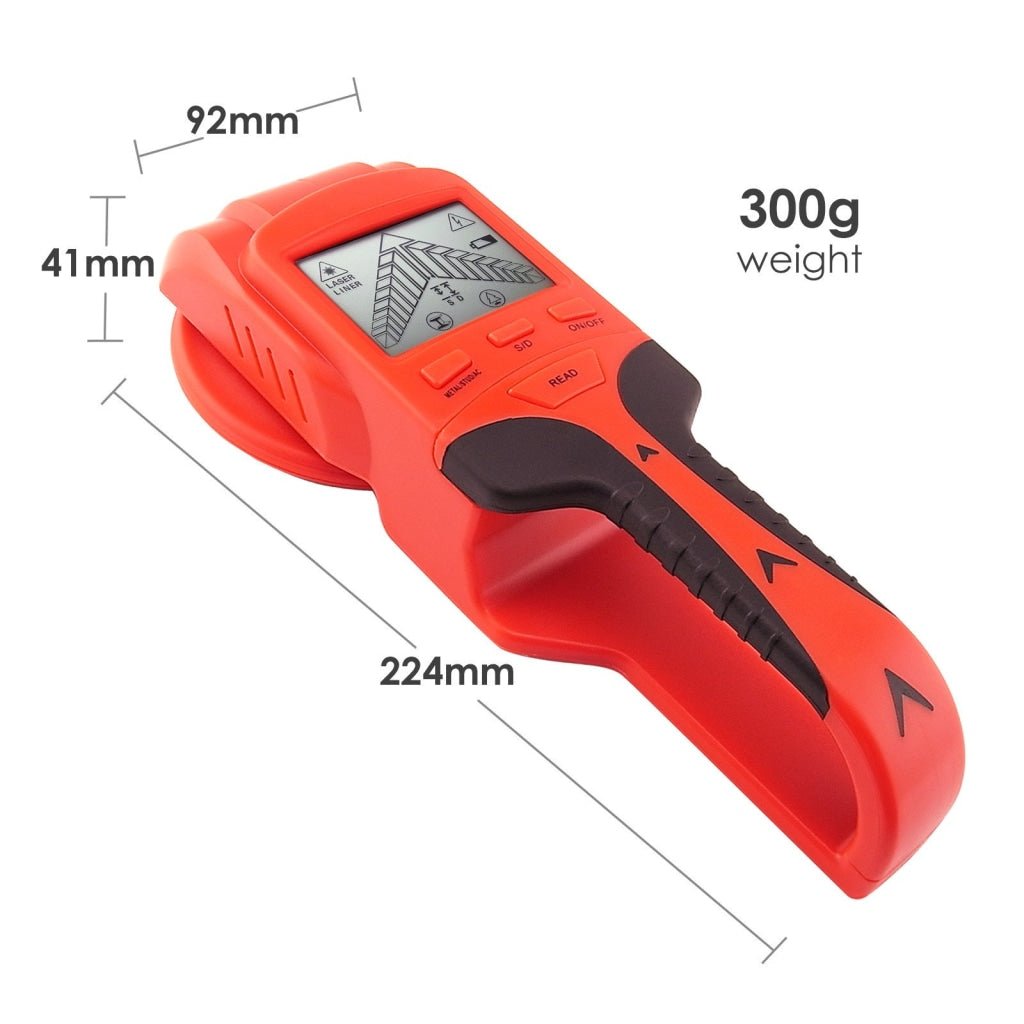

  • Dimensions: 224 x 92 x 41mm
  • Weight: approx. 300g (battery included)




Set includes :


  • 1 x  Wood Stud, Metal and Voltage Finder
  • 1 x 9V Battery

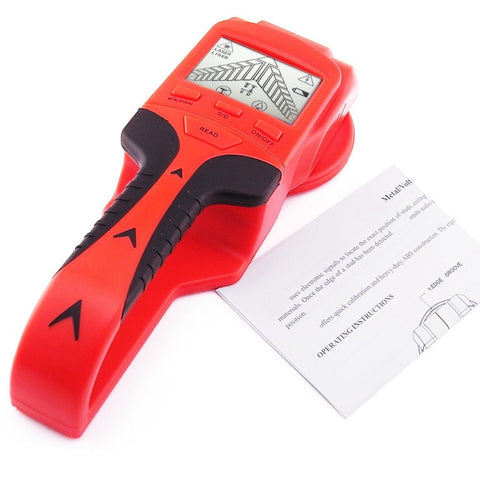

  • 1 x English Instruction Manual

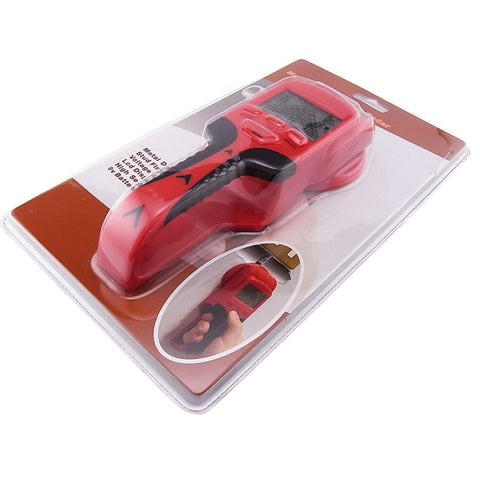

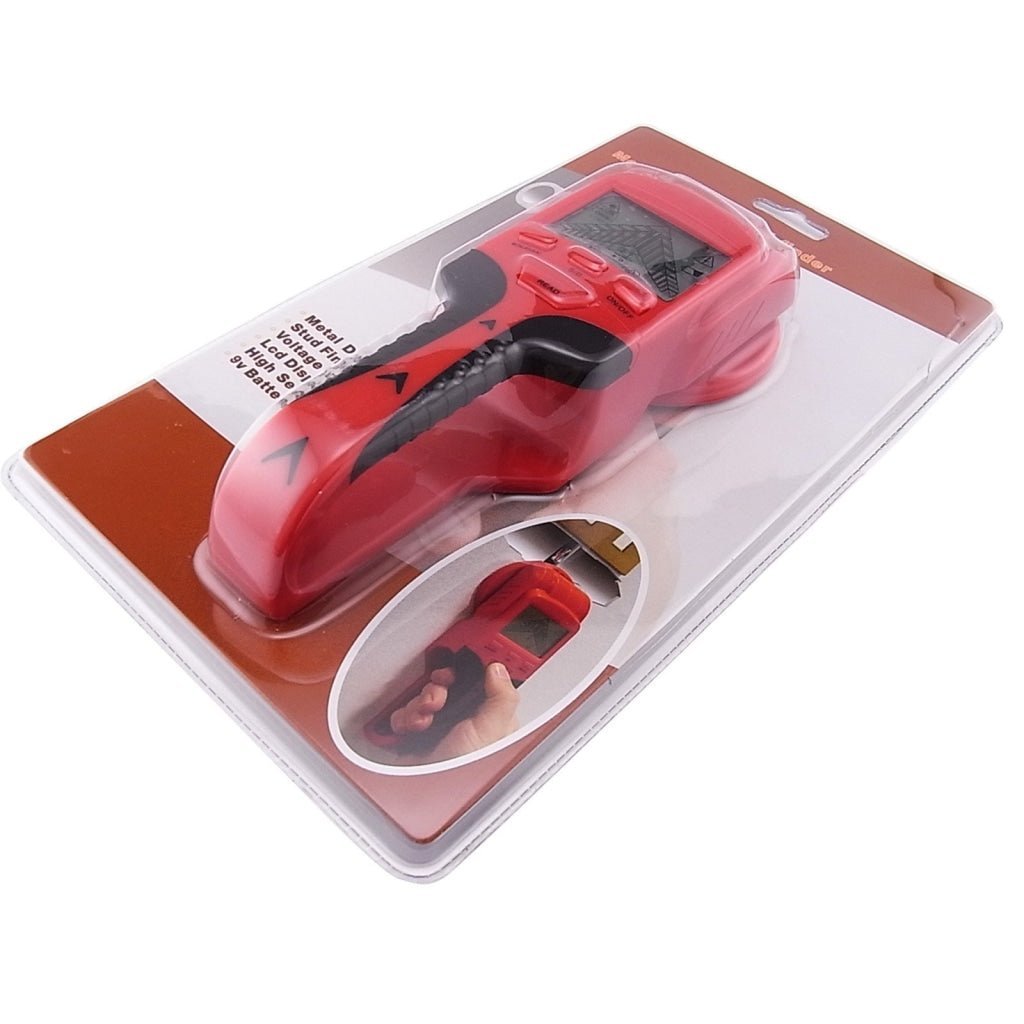

  • 1 x Standard Blister Packaging
