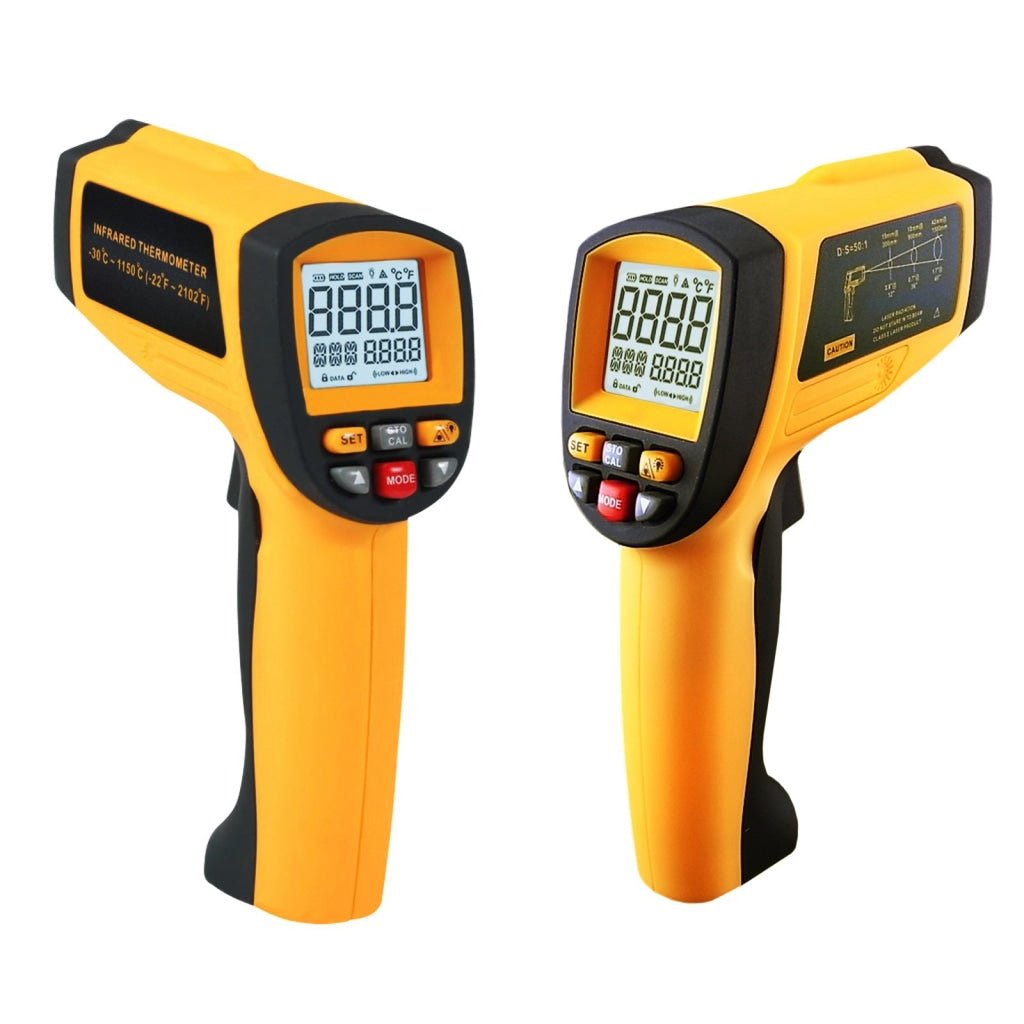

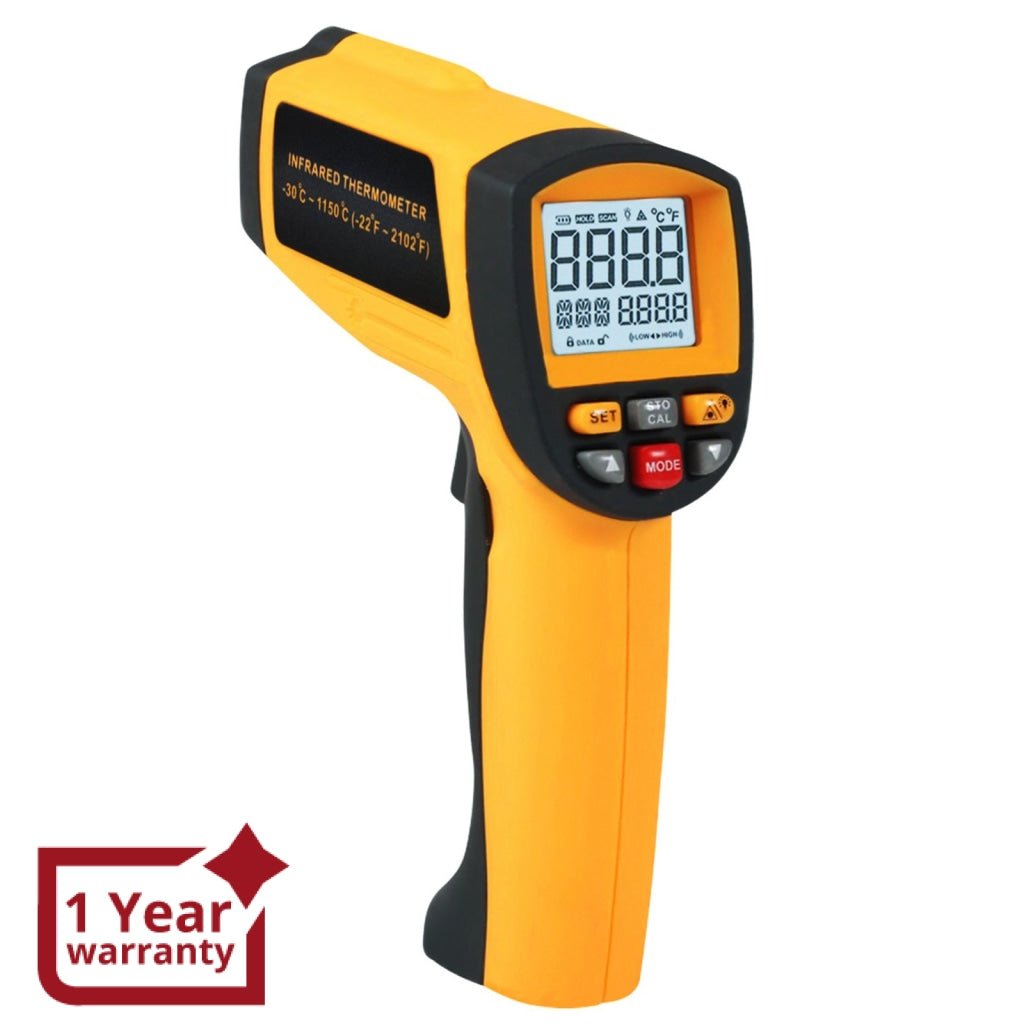

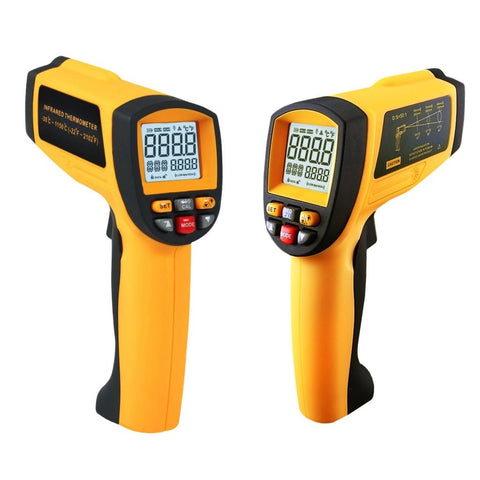

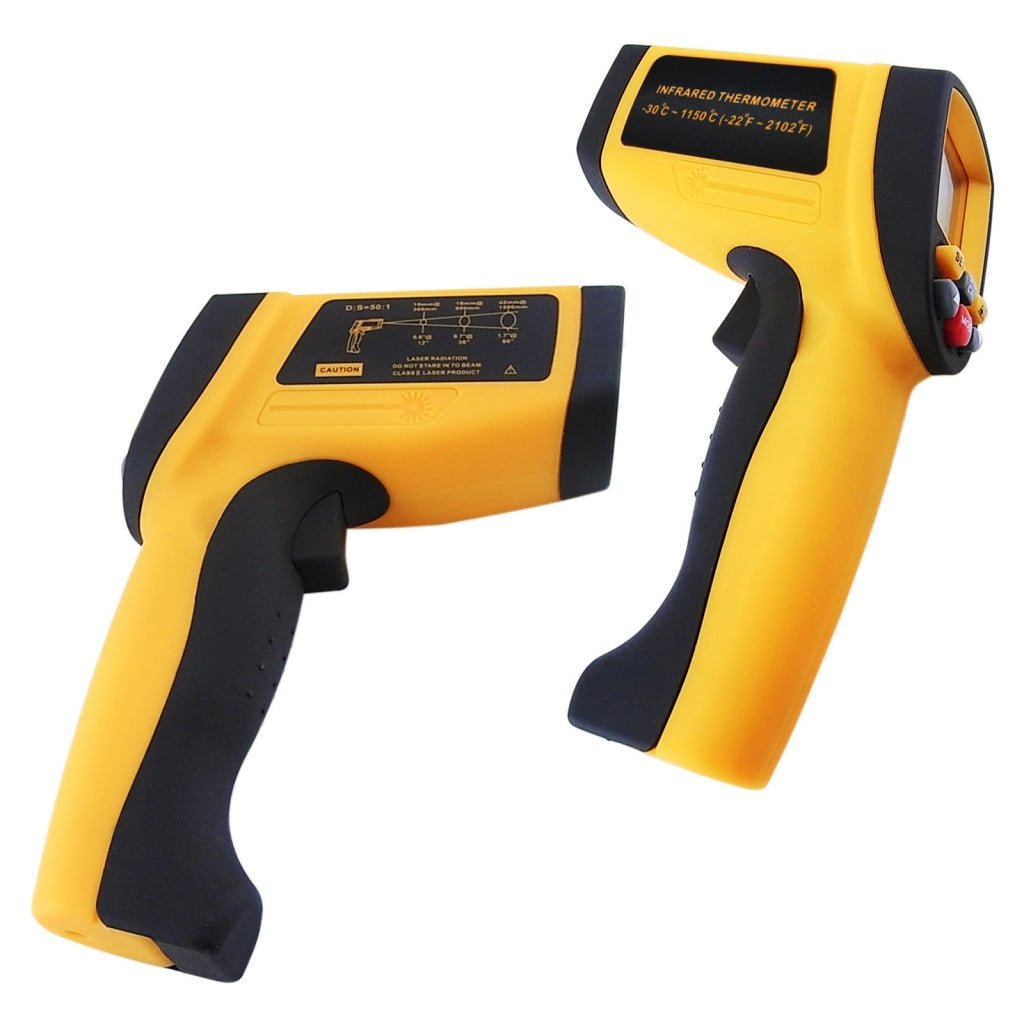

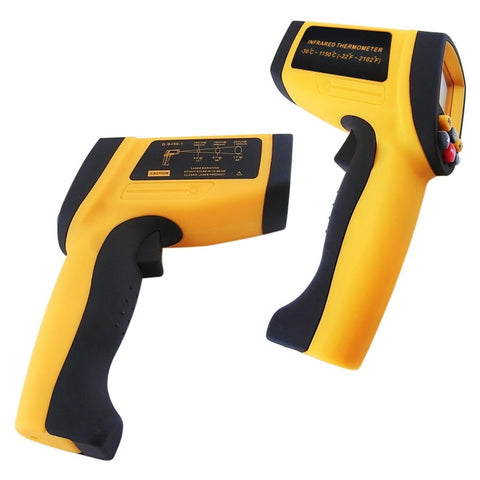

IR-G1150A Digital 50:1 Infrared Thermometer 0.1~1 EM Pyrometer 2102°F


Quantity
  OR


Model : IR-G1150A

The Professional Digital Infrared Thermometer is a reliable device used for measuring temperature of the object's surface, which is applicable for various hot, hazardous or hard-to-reach objects without contact safely and quickly. Just aim the Laser Point, press the button, and read the temperature in less than a second. It makes aiming even more precise.



It has Ultra High Distance to Spot Ratio (50:1). The thermometer also featured with BacklightLCD, High Accuracy, Fast Responding Time (0.5 seconds), User Adjustable Emissivity (Preset at 0.95) and Spectral Response from 8 to 14 µm.

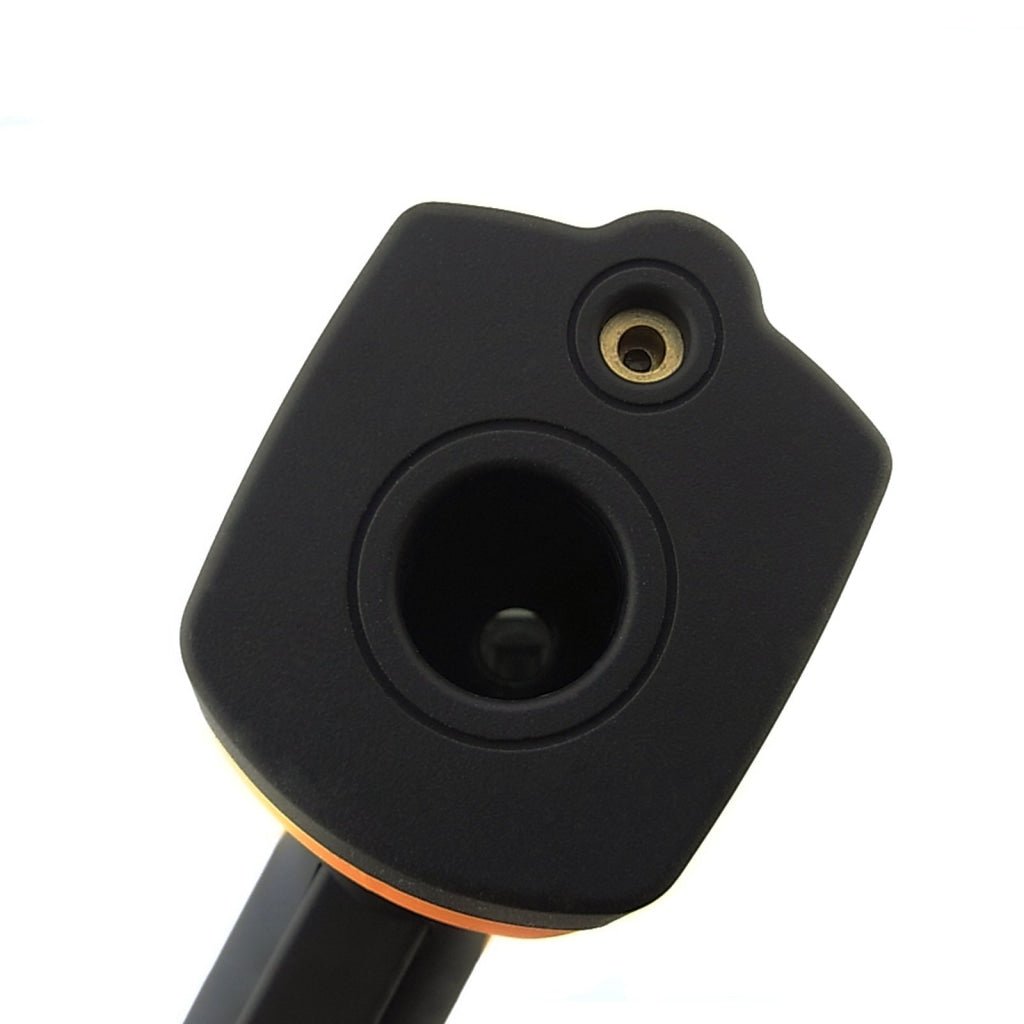

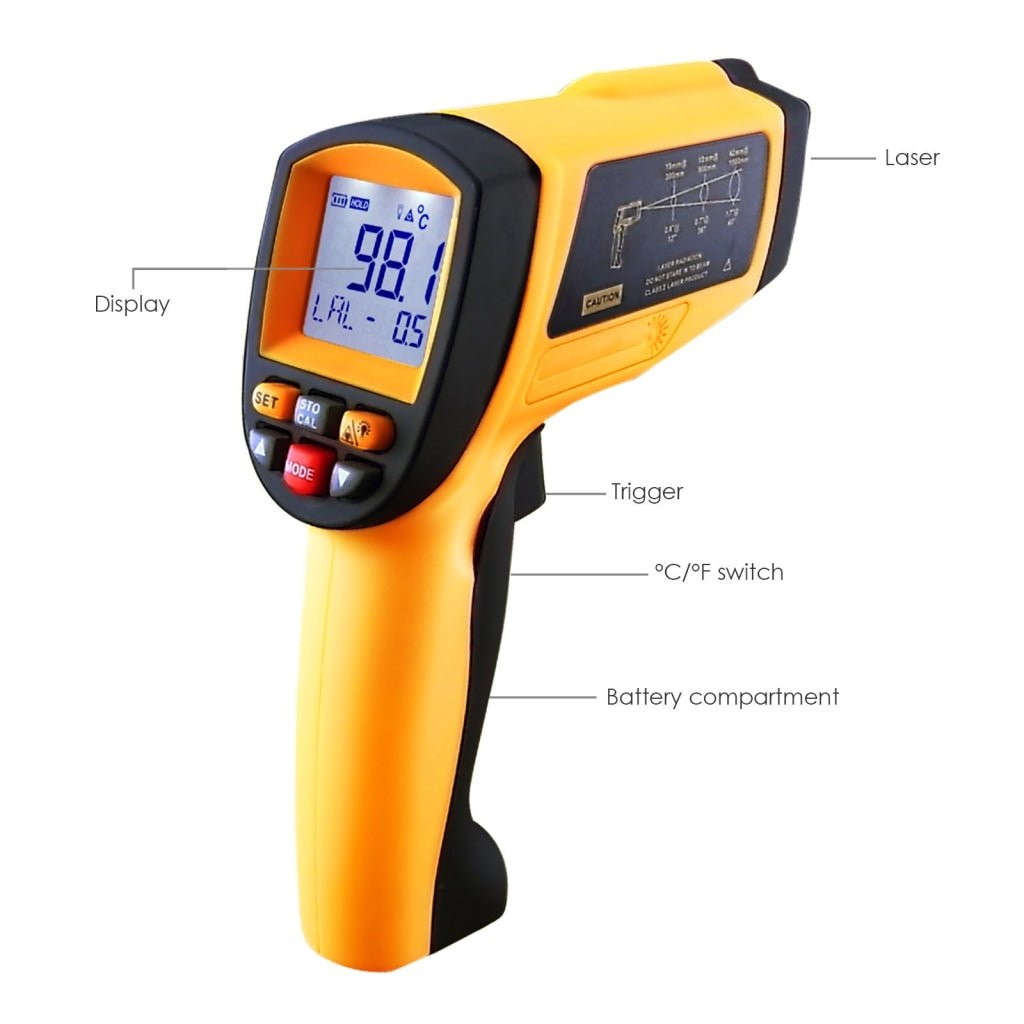

It is consist of Optics, Temperature Sensor signal amplifier, Processing circuit and LCD display. The device's electronics translate the information into a temperature reading which is displayed on the LCD.

Applications:

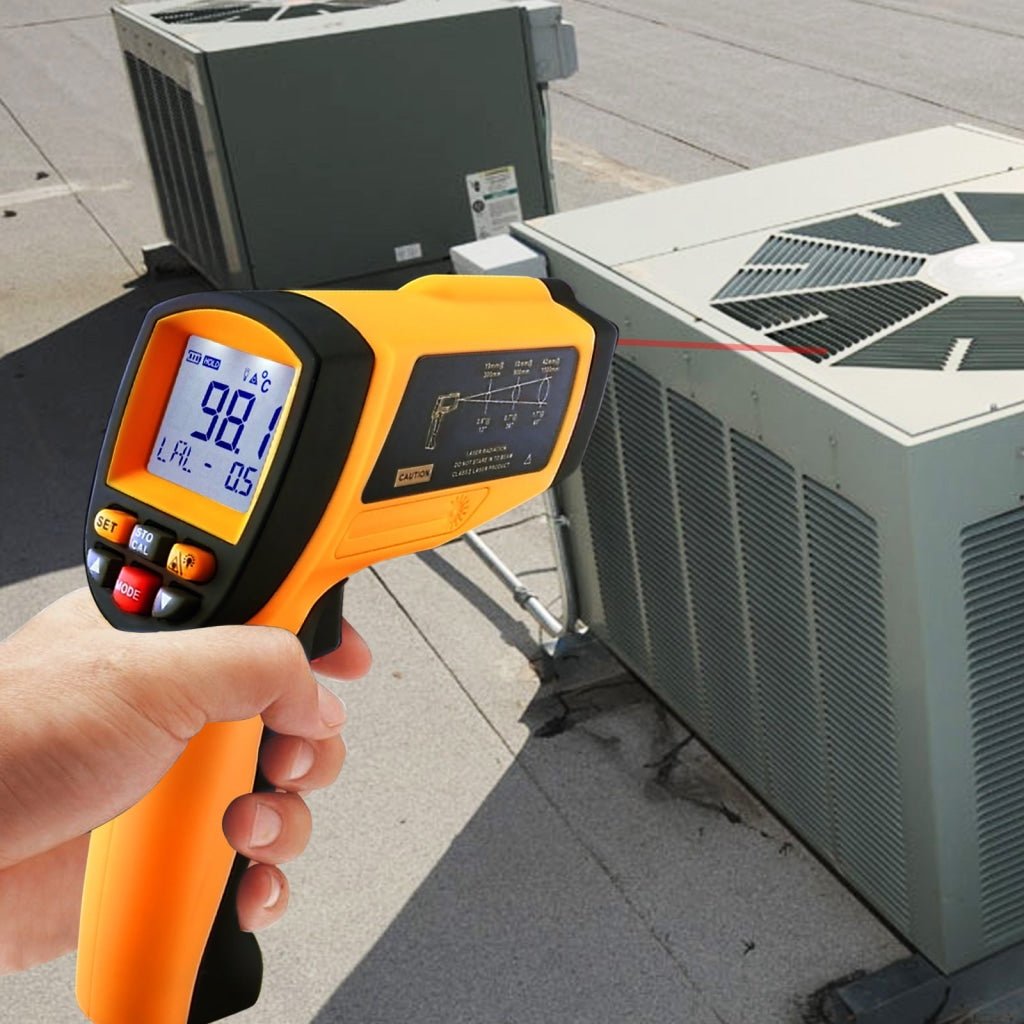

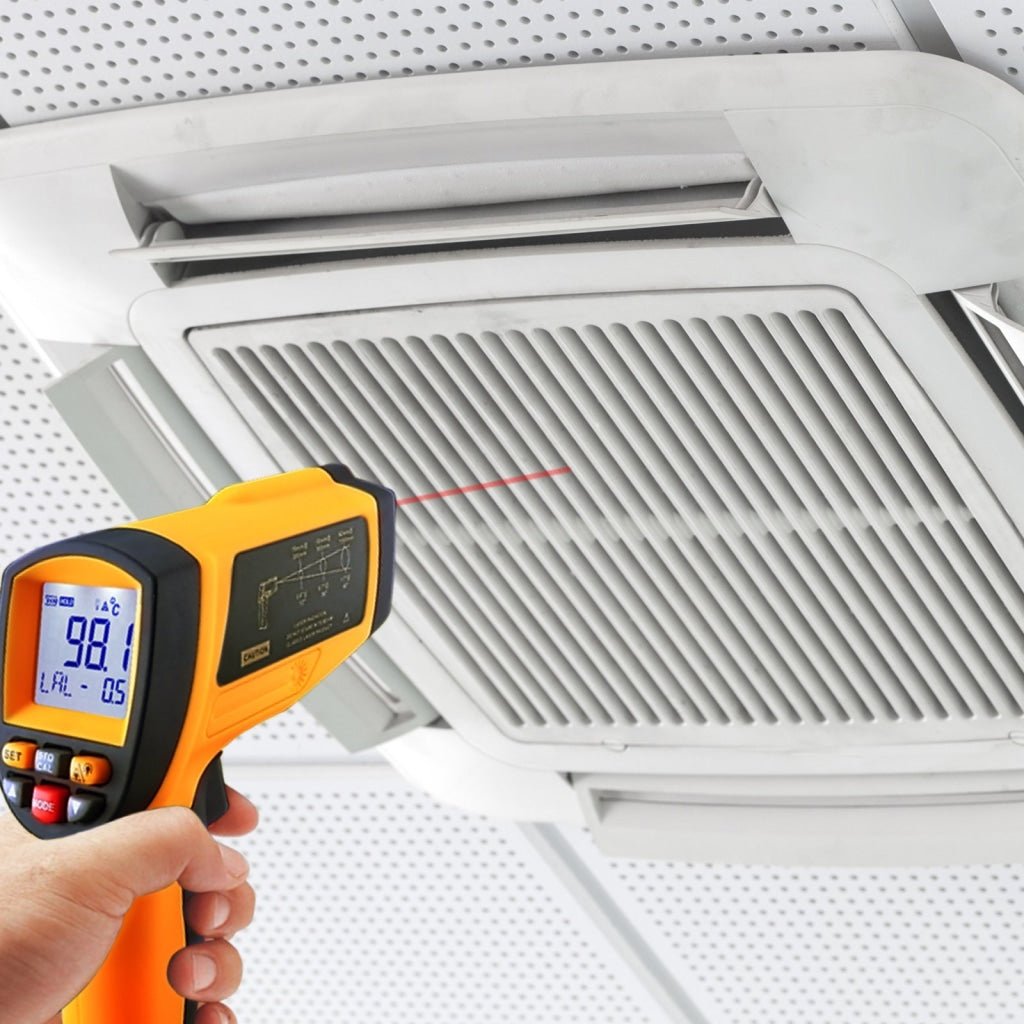

*Heat ventilation air-conditioning and refrigeration*Automotive industry*Food preparation*Horticulture*Construction, mechanics, *Electrical & power voltage/current inspection field*Water treatment and water quality inspection*Environmental monitoring*Marine and weather*Gas industry*Food processing industry




Features

  • Memory storage function (up to 12 data)
  • Highly accurate and reliable
  • Spectral Response from 8~14µm

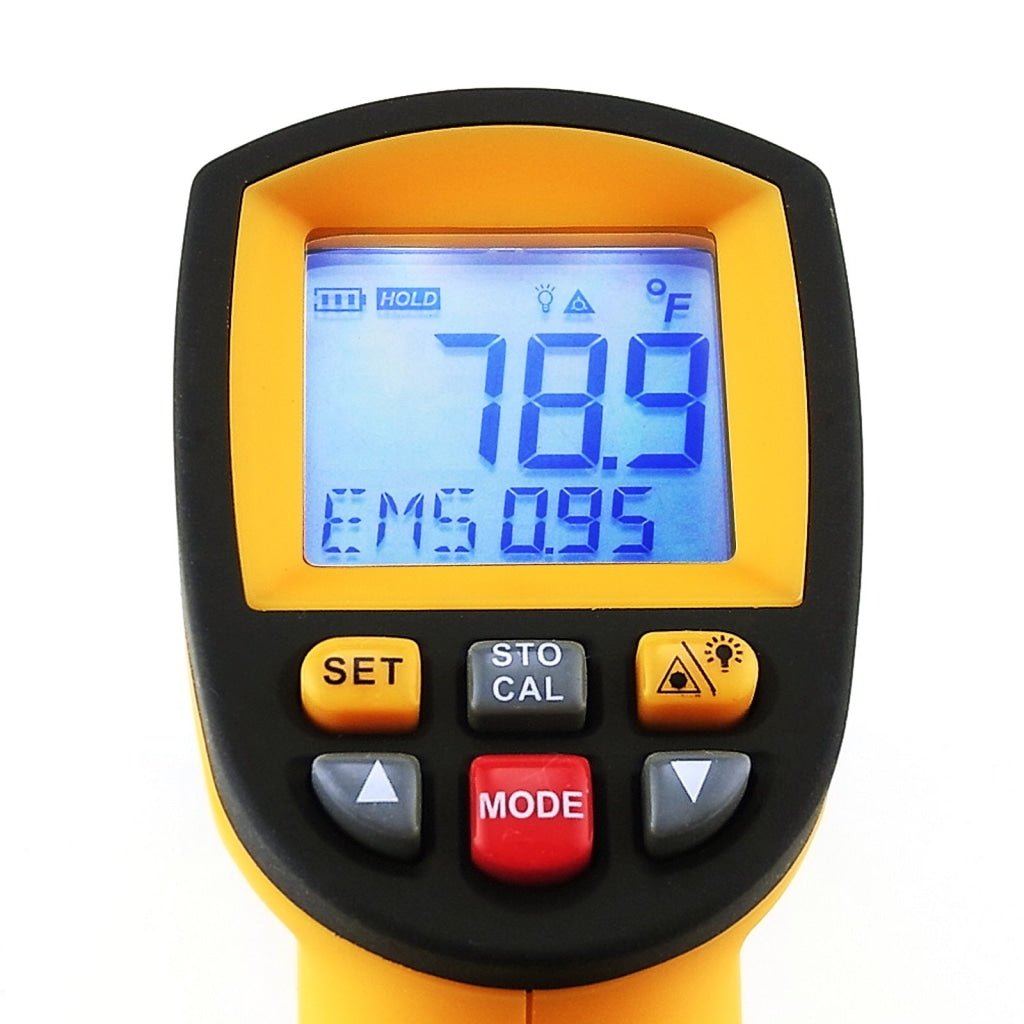

  • Large clear LCD display with Backlight
  • 3 levels Battery Life Indication
  • Auto Power Off
  • Data Store/Recall Function
  • Data Hold Function
  • Access surface temperature in 1 second
  • Selectable between °C and °F
  • Maximum, Minimum, Average and Difference temperature functions
  • Adjustable High / Low Temperature Alarm
  • Fast response time (0.5 seconds)
  • Measure hazardous or inaccessible objects (high-voltage parts)
  • Laser Target Pointer selection





  Specifications

  • Measuring Range : -18 ~ 1150°C / 0 ~ 2102°F
  • Accuracy
    • 0 ~ 1150°C (32~2102°F) : ±1.5°C (±2.7°F) or ± 1.5%
    • -18 ~ 0°C (0~32°F) : ±3°C (±5°F) whichever is greater

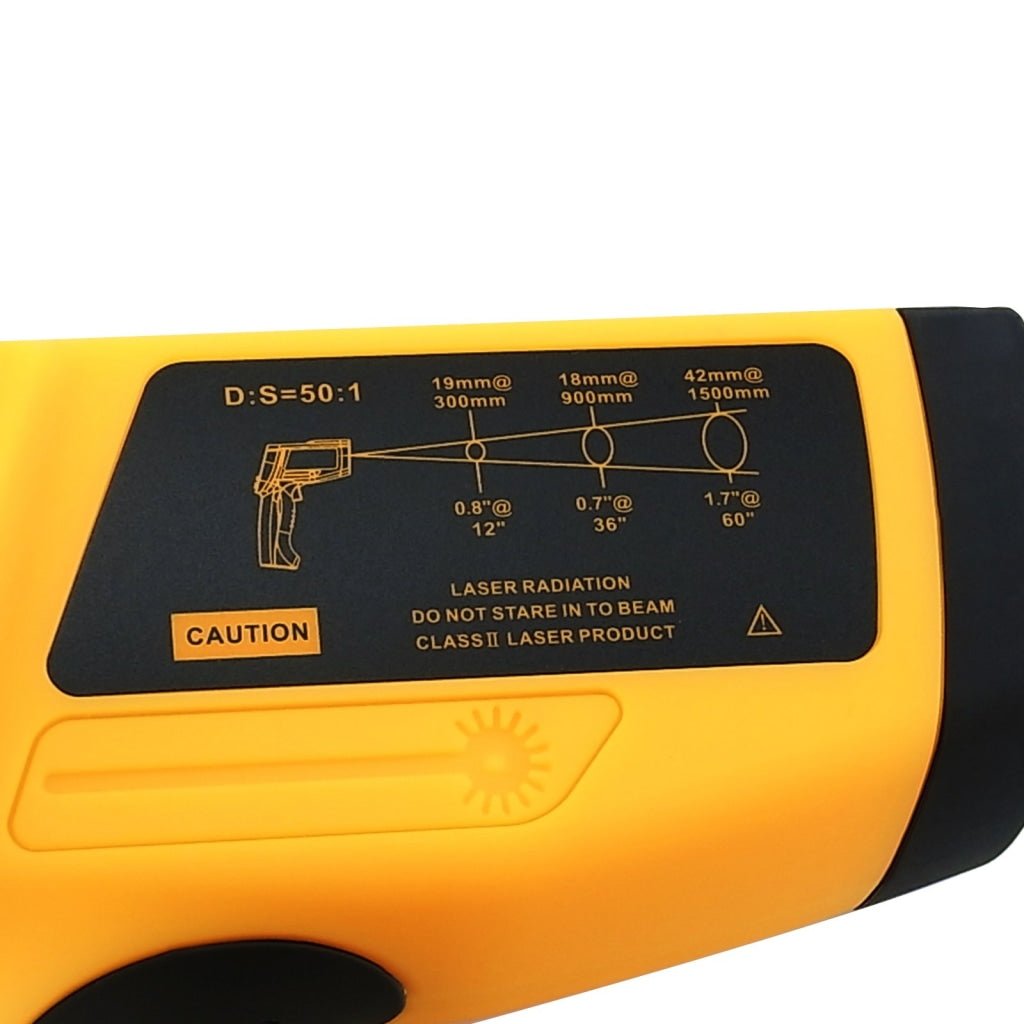

  • Distance to Spot Size / DS Ratio : 50:1
  • Resolution : 0.1 °C/°F
  • Repeatability : 1% of reading or 1°C
  • Response Time : 500mSec, 95% response
  • Spectral Response : 8~14µm
  • Emissivity : User Adjustable and Preset at 0.95
  • Laser Power : <1 mW
  • Laser Class : Class III
  • Operating Environment
  • Temperature : 0~40°C (32~104°F)
  • Humidity : 10~95% R.H. non-condensing at up to 30°C (86°F)
  • Storage Temperature:  -20~60°C (-4~140°F)
  • Low battery indication (3 levels)

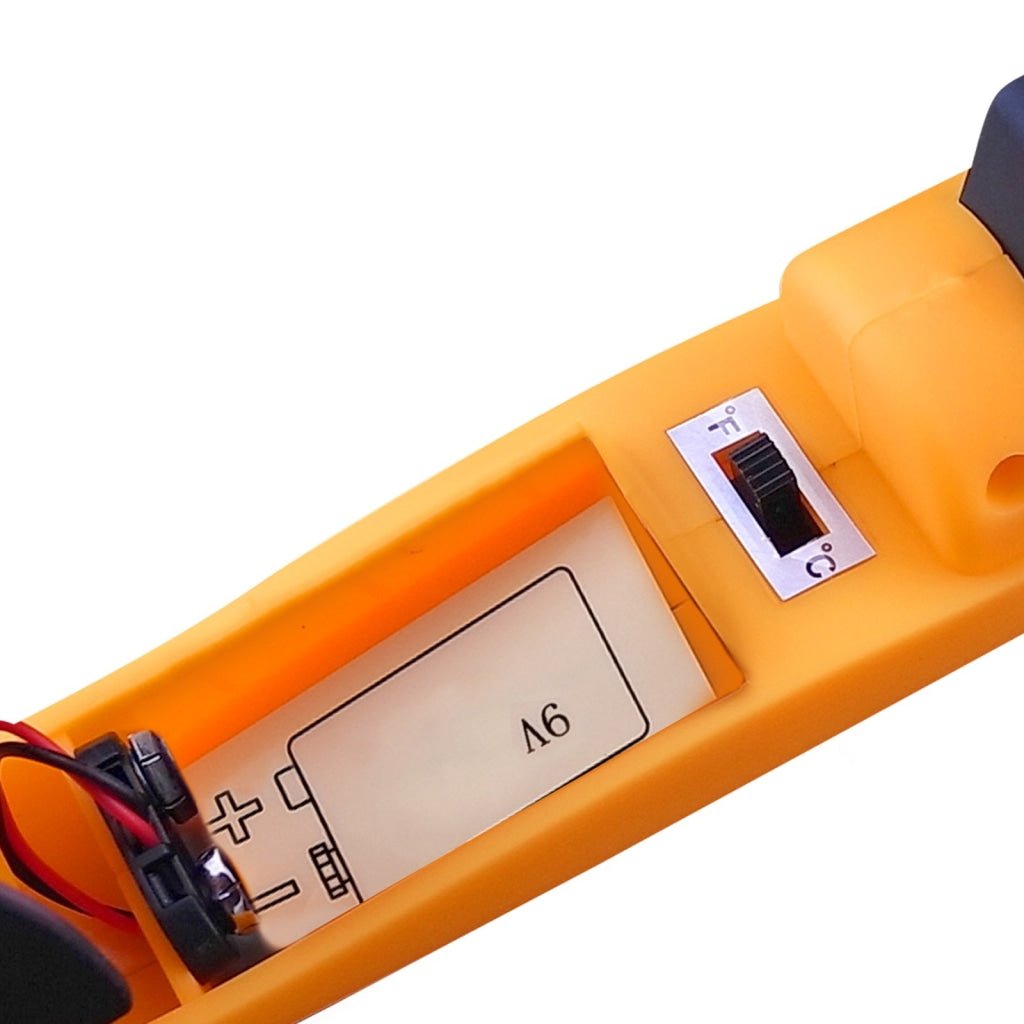

  • Power : 1 x 9V Battery (included)
  • Typical Battery Life (Alkaline) : 12 hours (Laser), 22 hours (non-Laser)

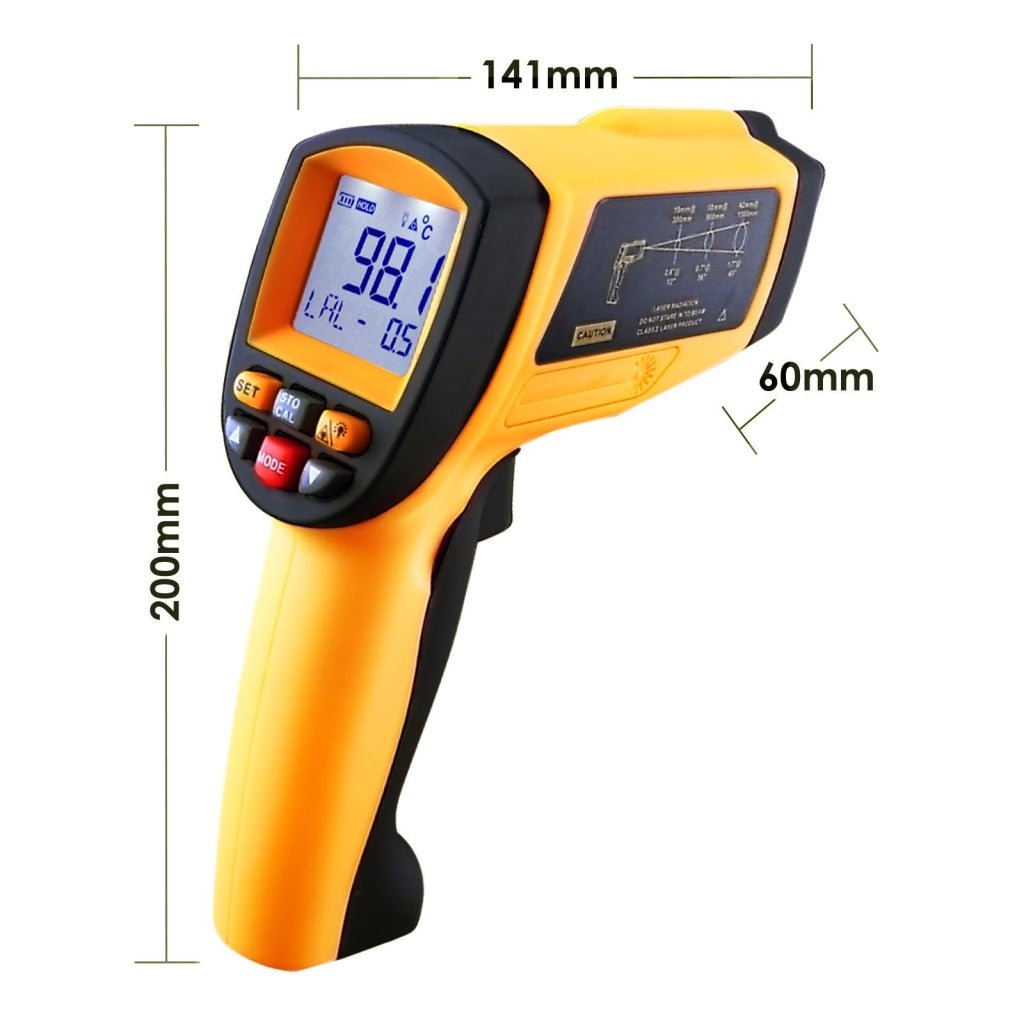

  • Item Size : approx. 141 x 60 x 200mm
  • Item Weight : approx. 270g



Approximate Emissivity
Material
Emissivity

**Aluminum

**0.30
**Brass , Lead
**0.50

**Basalt , Iron

**0.70

**Steel

**0.80

**Carbon , Glass (plate)

**0.85

**Brick , Frozen Food , Sand , Snow

**0.90

**Dirt , Oil , Textiles , Wood

**0.94

**Hot Food , Paint , Water

**0.93

**Asphalt , As bestos, Ceramic , Concrete , Copper ,
**Paper , Plastic , Rubber

**0.95

**Ice , Limestone , Skin

**0.98

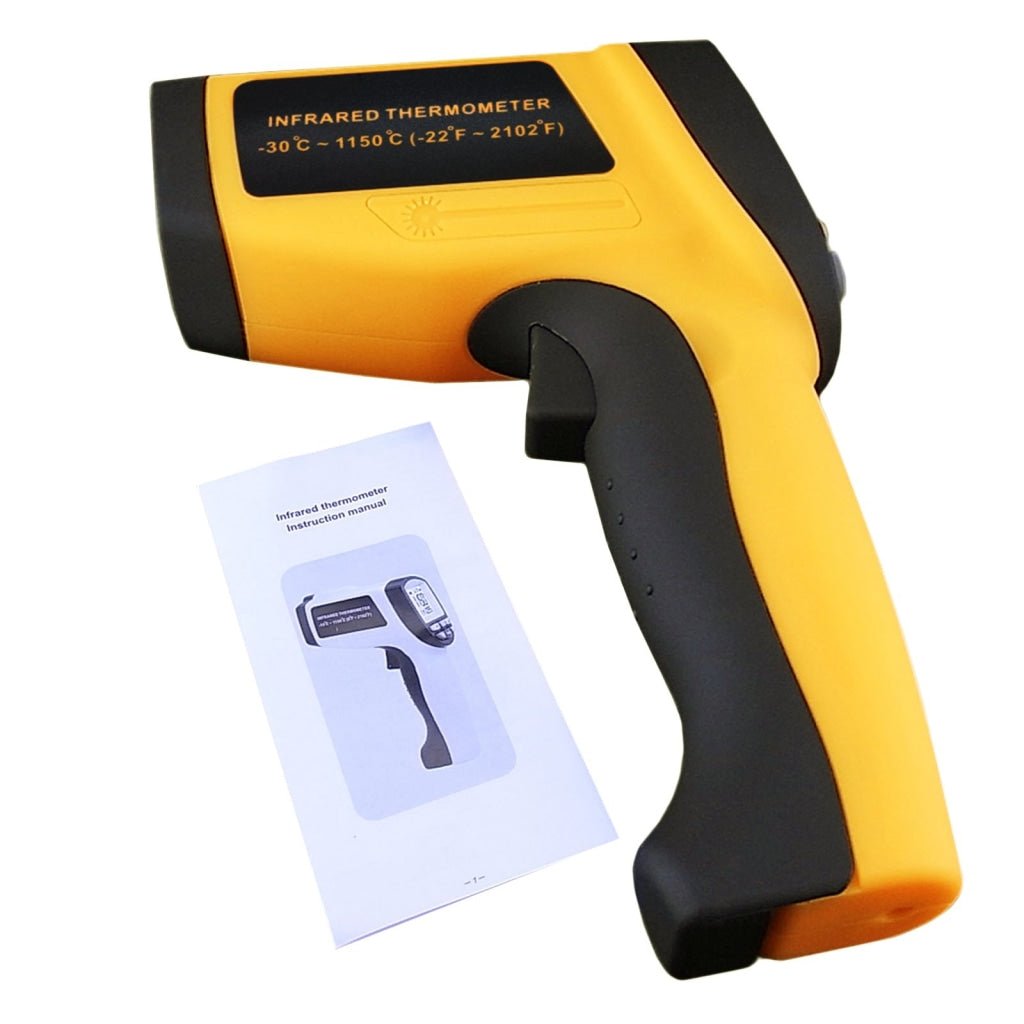

Set Includes

  • 1 x Professional Infrared Thermometer
  • 1 x Instruction Manual
  • 1 x 9V Battery
  • Standard packaging Box
