IR-872D 50~1150°C -58~2102°F 20:1 Infrared IR Laser Thermometer

This product is currently sold out. Please contact us if will order in bulk.


Model : IR-872D

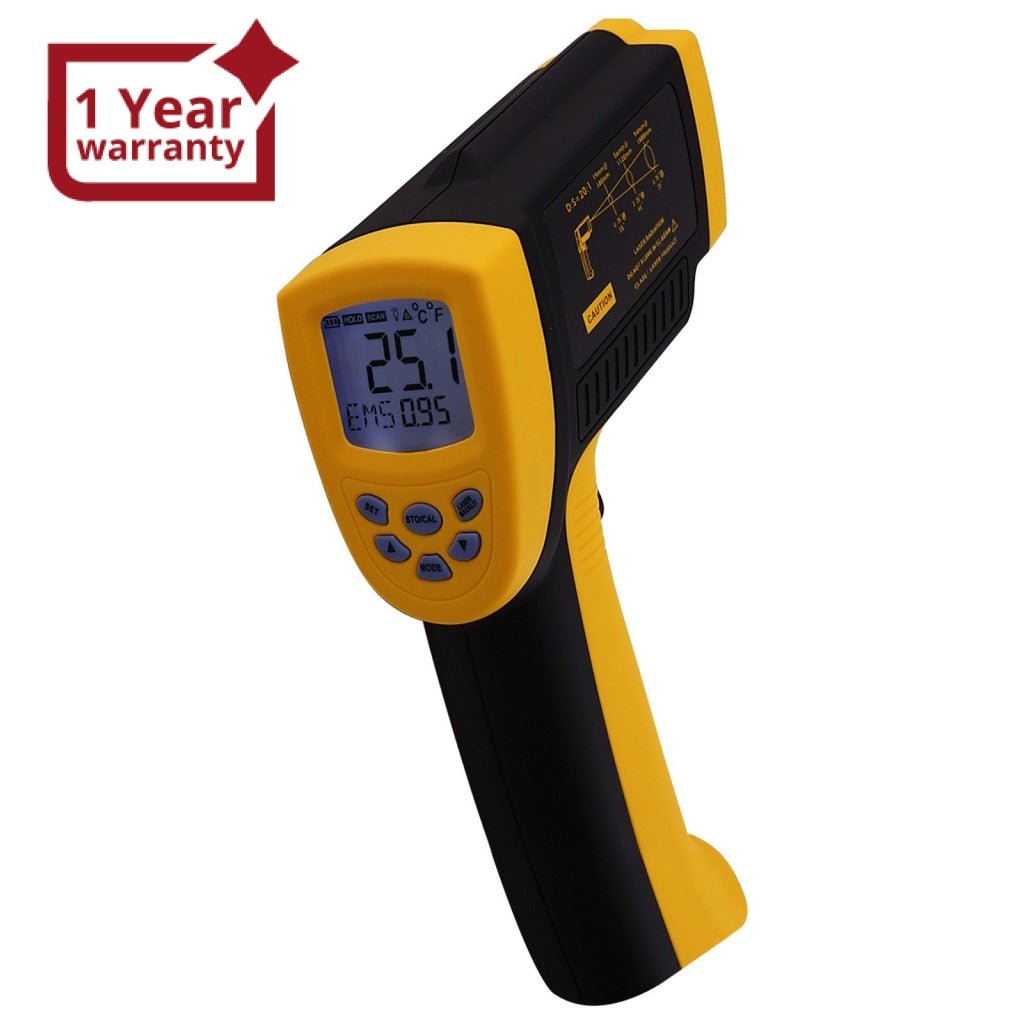

This high quality Digital IR thermometer can safely measure surface of hot, hazardous or hard to reach objects without having to touch them. Just aim with Laser Point and read the temperature in less than a second.



It has Wide Temperature Range from -50 to 1150°C (-58~2102°F) and Ambient Operating range of 0~40°C (32~104°F). Also features Backlight LCDHigh Distance to Spot Ratio (20:1)High AccuracyFast Responding Time (0.5 seconds)User Adjustable Emissivity from 0.10 to 1.00 and Spectral Response from 8~14µm.



It also has selectable °C and °F, 12 memories data storageMaximum, Minimum,Average and Difference temperature functions, Adjustable High and Low Temperature Alarm and 5 levels Battery Life function.



Perfect for maintenance industry, food preparation, horticulture, HVAC, construction, mechanics, medical, animal care and hot spots.



How Infrared Technology Works

Infrared Thermometer measures the surface temperature of an object. The unit's optics sense emitted, reflected and transmitted energy which is collect and focused onto a detector.

The unit's electronics translate the information into a temperature reading which is displayed on the LCD. For increased ease and accuracy, the laser pointer makes aiming even more precise.





Features:



  • Ambient Operating range: 0~40°C (32~104°F)
  • High Distance to Spot Ratio (D:S = 20:1)
  • Adjustable Emissivity from 0.10 to 1.00 (Preset at 0.95)
  • Memory storage function (up to 12 data)
  • Spectral Response from 8~14µm

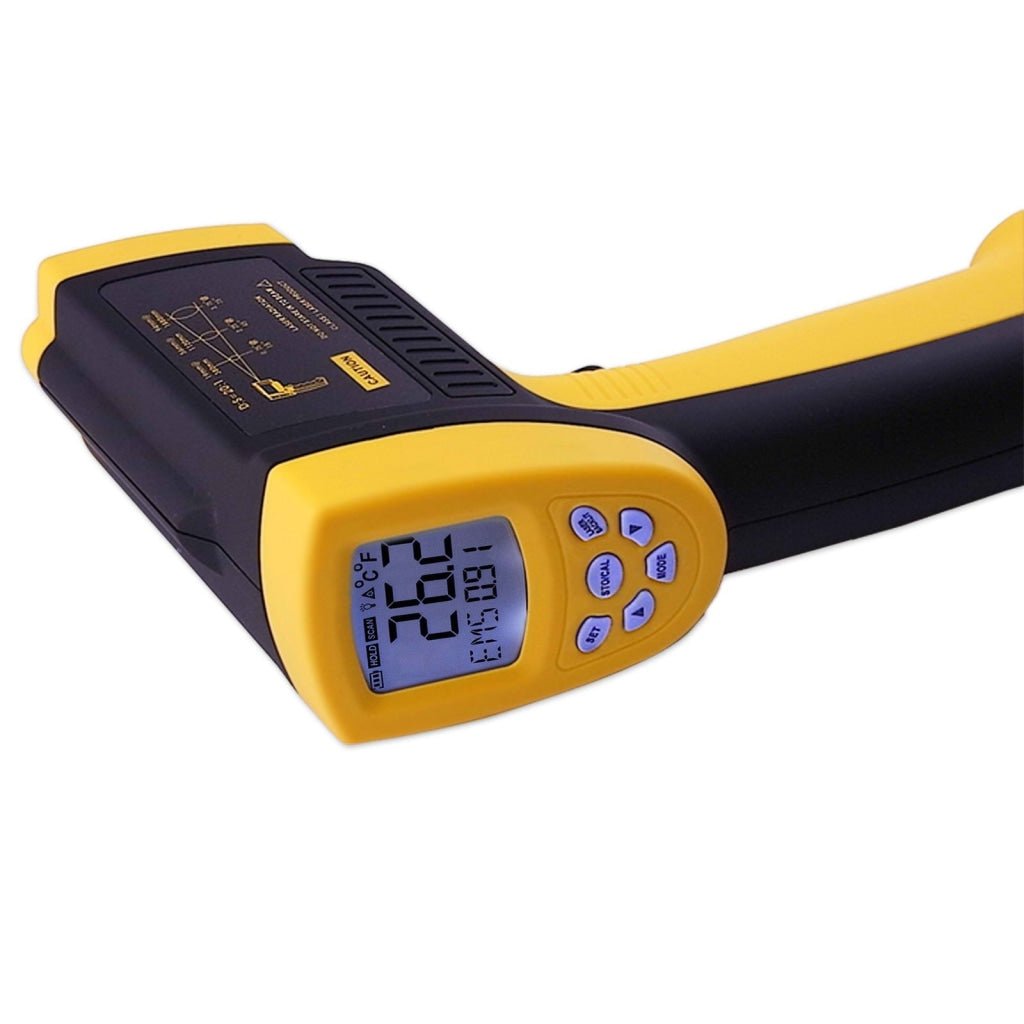

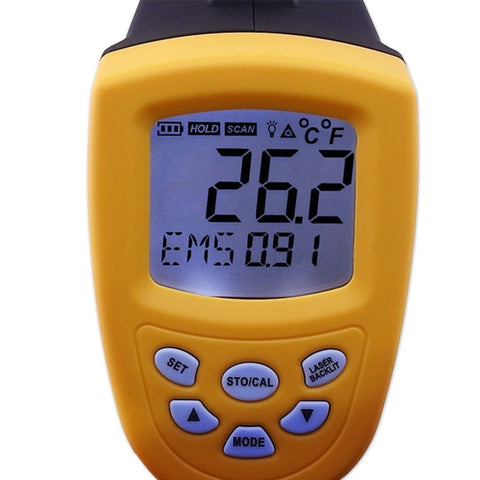

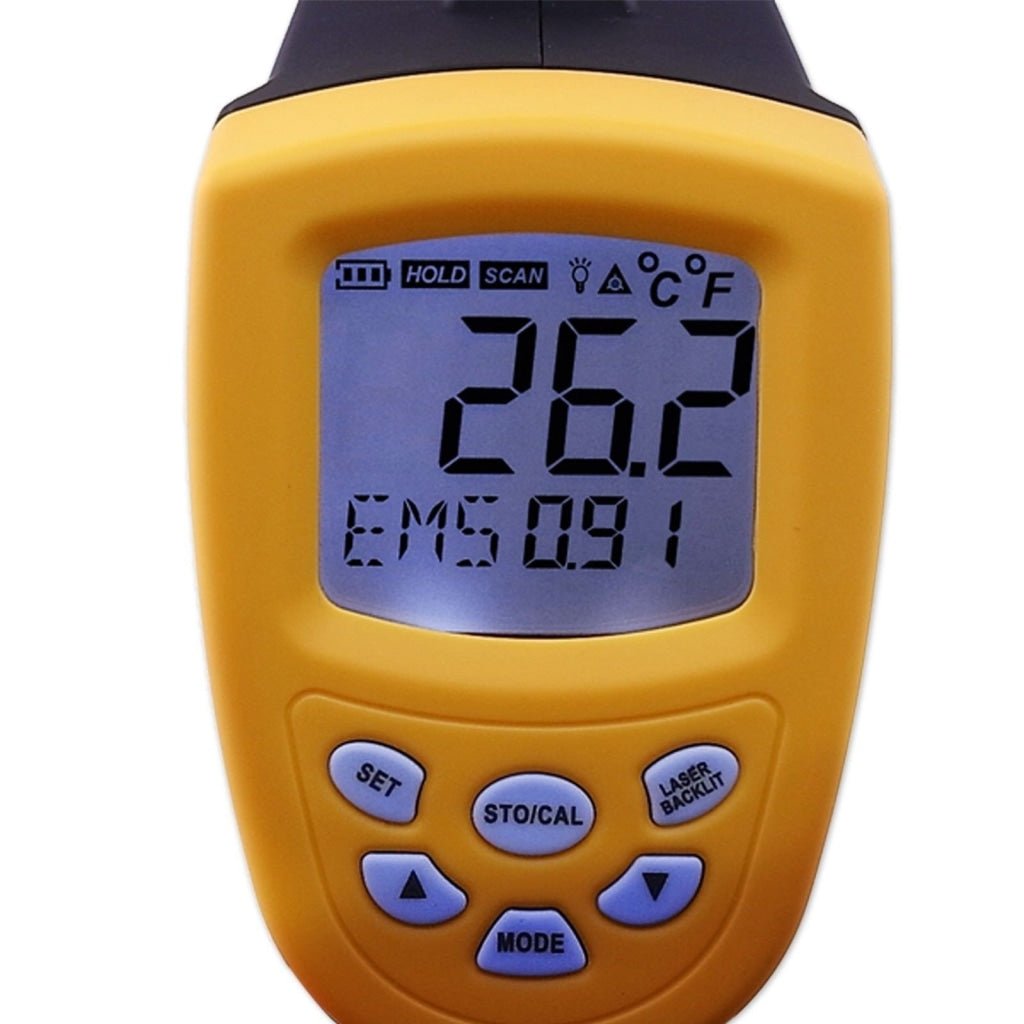

  • Large and Clear LCD Display with Backlight
  • Selectable °C and °F
  • Maximum, Minimum, Average and Difference temperature functions
  • Adjustable High / Low Temperature Alarm
  • High Accuracy
  • Fast response time (0.5 seconds)
  • Measure hazardous or inaccessible objects (high-voltage parts)
  • Low battery indication
  • Auto power off
  • Comes with harmless non-toxic moisture absorbent bag for humidity and odor
  • Conformed with CE Standard



Specifications:

  • Wide temperature measuring range: -50 ~ 1150°C (-58 ~ 2102°F)
  • Accuracy
                     -50~ -32°C(-58~-25.6°F )±5°C
                     -32~0 °C(-25.6~32°F )±3°C
                      0~100°C (32~212°F )±2°C
                      100°C here in before ±2°C or±2%
                      whichever is greater
                      Test temperature 23°C±3°C
    • 0 ~ 1050°C (30~1922°F) ±1.5°C or ±1.5%
    • -50 ~ 0°C (-58 ~ 30°F) ±3°C or ±2% whichever is greater

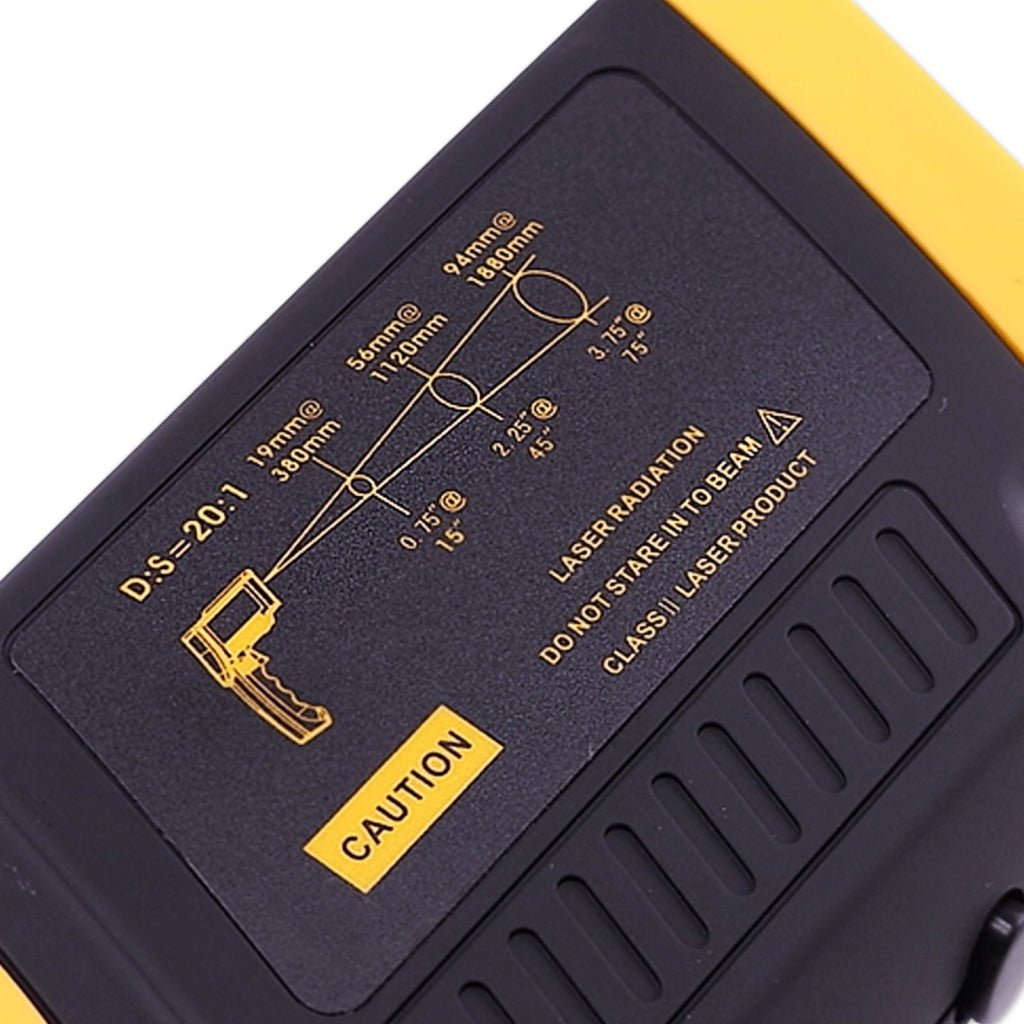

  • Distance to Spot Size/Ratio: 20:1 DS
  • Emissivity: Preset 0.95 and adjustable 0.10 ~ 1.00
  • Response Time: 500ms , 90% response
  • Repeatability: 1% or reading or 1°C
  • Spectral Response : 8 -14µm
  • Laser Power: <1 mW
  • Laser Class : Class II
  • Ambient Operating Range: 0~40°C (32~104°F)
  • Relative Humidity: 10~95% RH non-condensing at up to 30°C(86°F)
  • Storage Temperature: -20~60°C, less than or equal to 85%RH, without battery
  • Low battery indication

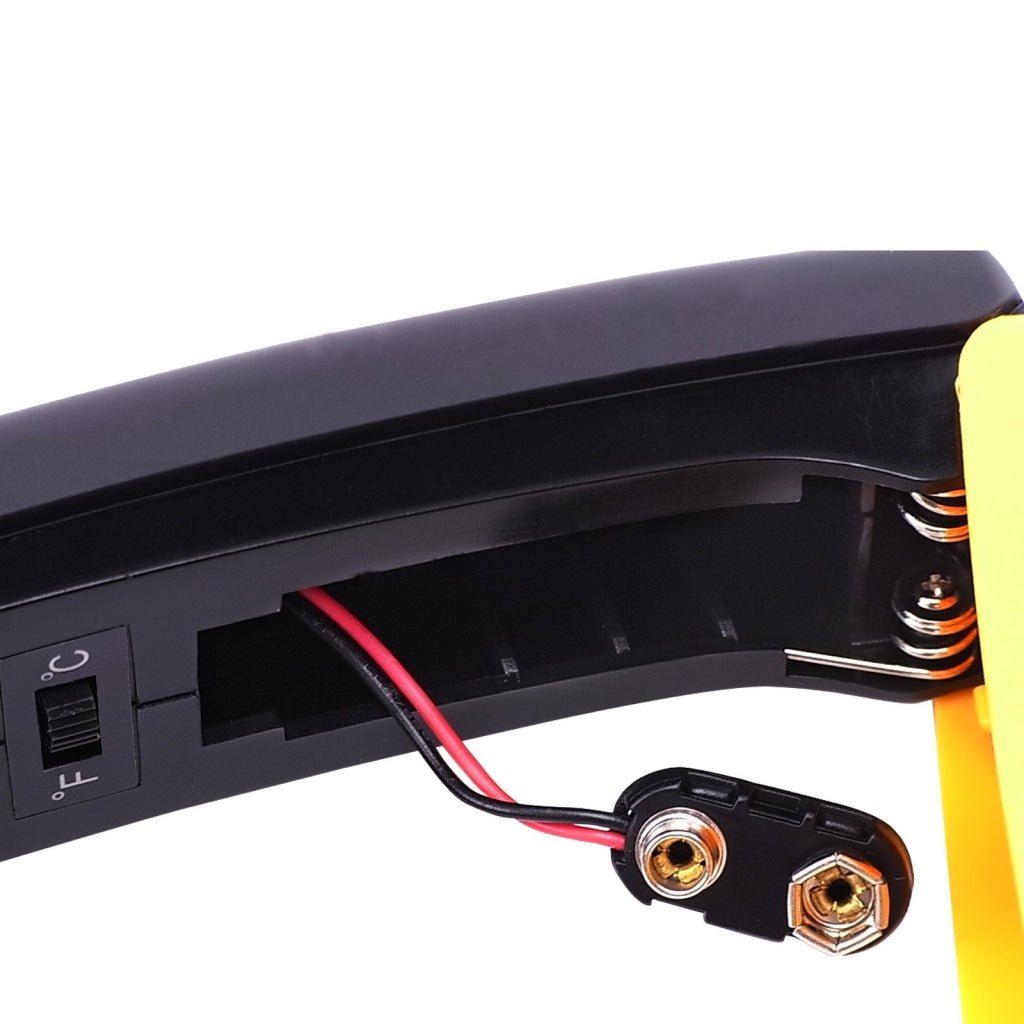

  • Power: 9V Battery
  • Size: 220 x 134 x 60mm
  • Weight: 480g





Table of approximate emissivity



Material
Emissivity
Material
Emissivity
Aluminum
0.30
Lead
0.50
Asphalt
0.95
Limestone
0.98
Basalt
0.70
Oil
0.94
Brass
0.50
Paint
0.93
Brick
0.90
Paper
0.95
Carbon
0.85
Plastic
0.95
Ceramic
0.95
Rubber
0.95
Concrete
0.95
Sand
0.90
Copper
0.95
Skin
0.98
Dirt
0.94
Snow
0.90
Frozen Food
0.90
Steel
0.80
Hot Food
0.93
Textiles
0.94
Glass (plate)
0.85
Water
0.93
Ice
0.98
Wood
0.94
Iron
0.70

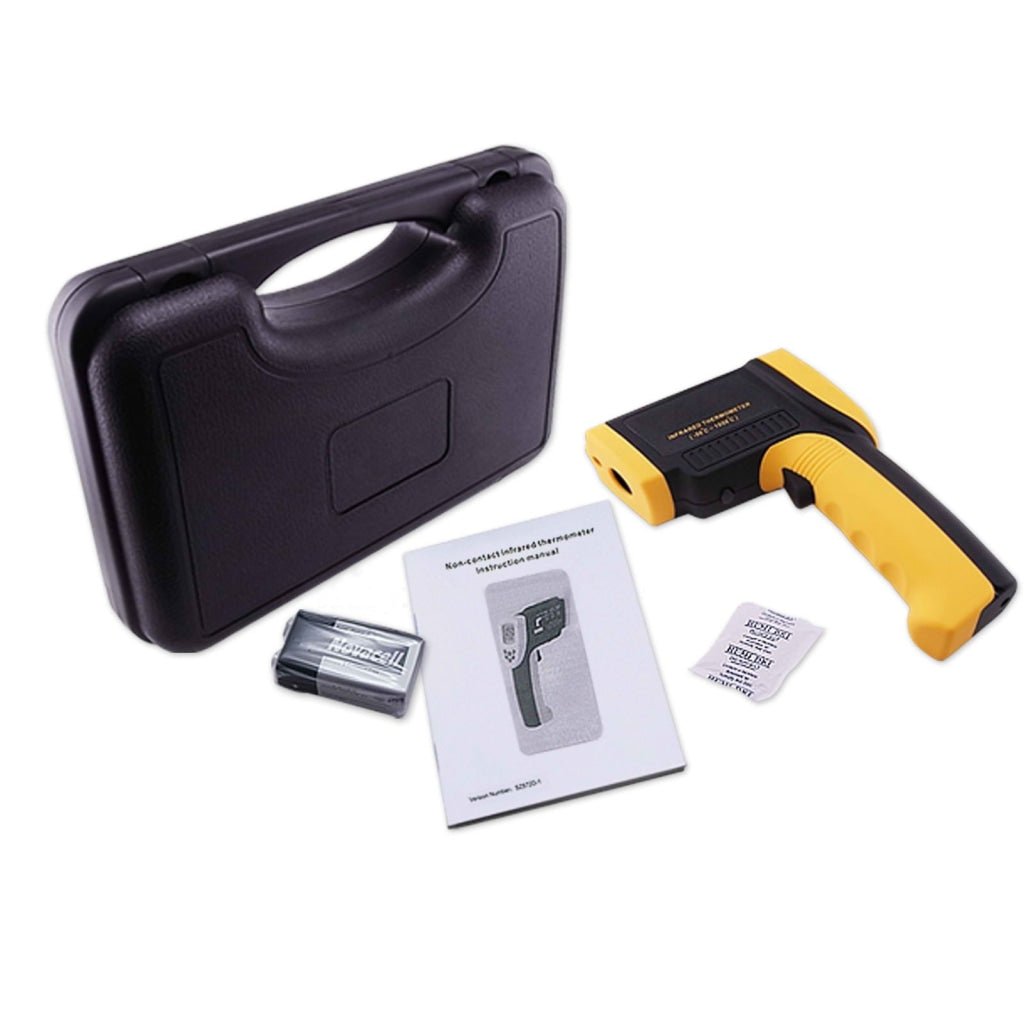

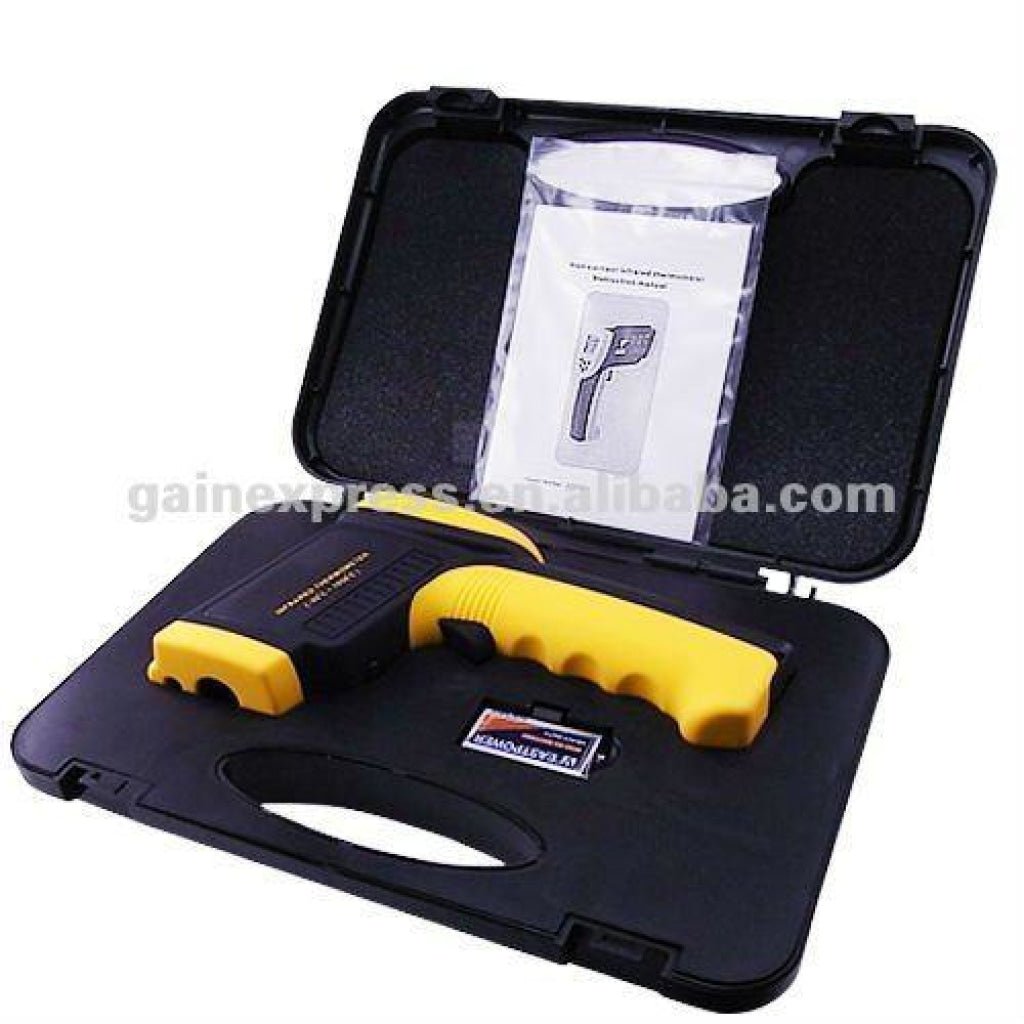

Set Includes:

  • 1 x IR Thermometer
  • 1 x 9V battery (FREE)
  • 1 x Quick Start Guide
  • 1 x Non-toxic moisture absorbent bag
  • 1 x FREE Protective Carrying case with contoured rubber
