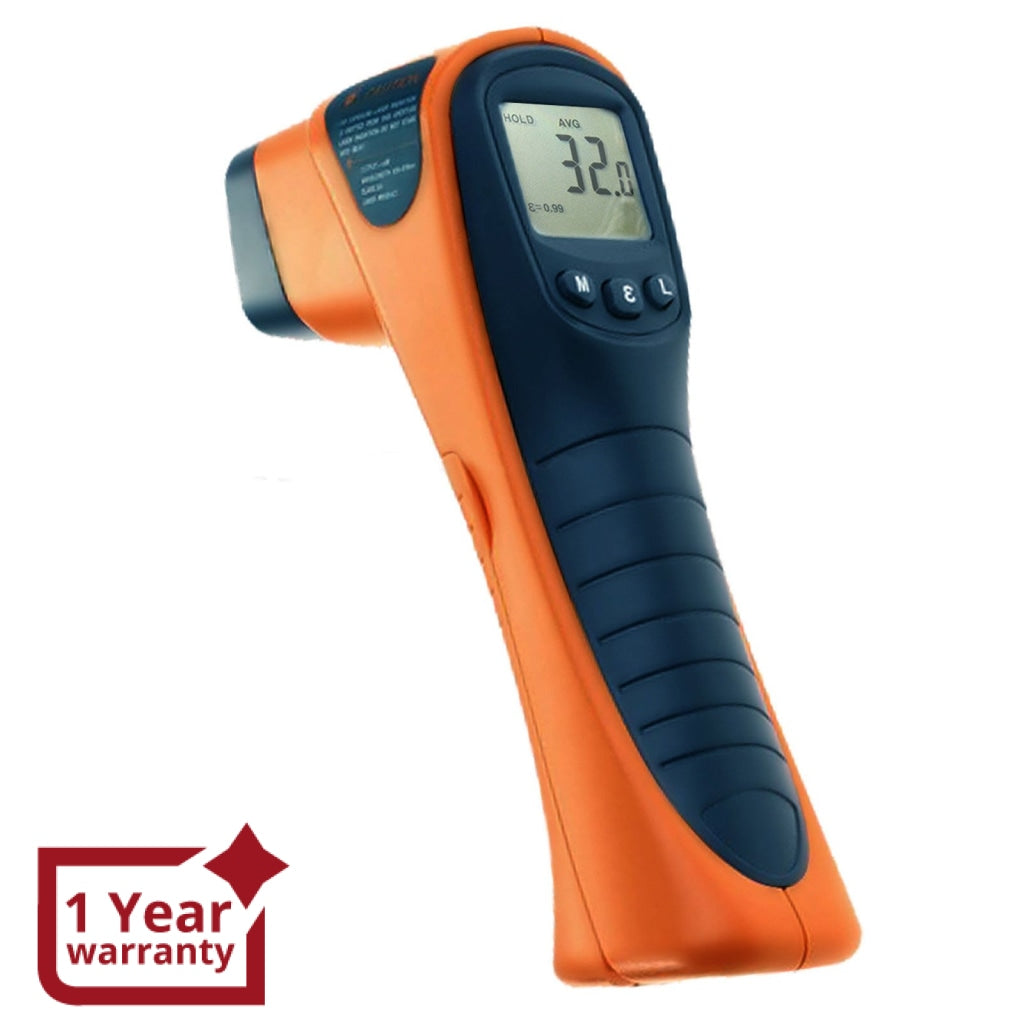

IR-8560 Digital Non-Contact IR Thermometer -13~1040°F -25~560°C, 12:1


Quantity
  OR


Model : IR-8560

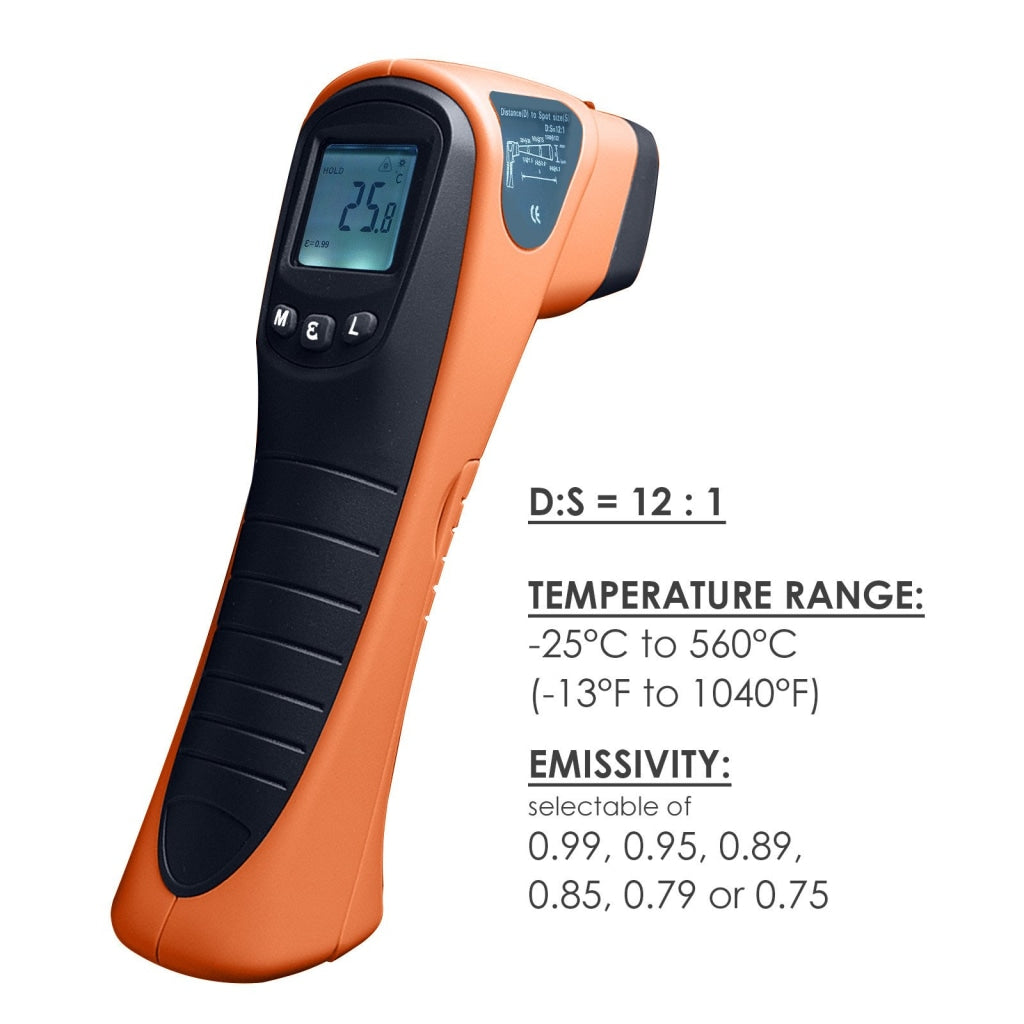

This well designed device is small enough to fit in a laptop bag and larger sized tool kit. With its 12:1 D:S it can accurately measure a temperature range between -13 to 1040°F (-25 ~ 560°C). It has selectable Emissivity: 0.99, 0.95, 0.89, 0.85, 0.79, and 0.75. It accurately and rapidly measures the temperature of different surfaces in both °C and °F safely. Measures surface temperatures of hot, hazardous or difficult-to-reach objects, without touching them. With its built-in laser you can take aim the target and get the reading at a distance, you'll never burn your hands getting a reading.



This IR & laser thermometer has CE marking, it conforms with the essential health and safety requirements set out in European Directives. Becoming the indispensable tool for many maintenance and industrial troubleshooting applications.

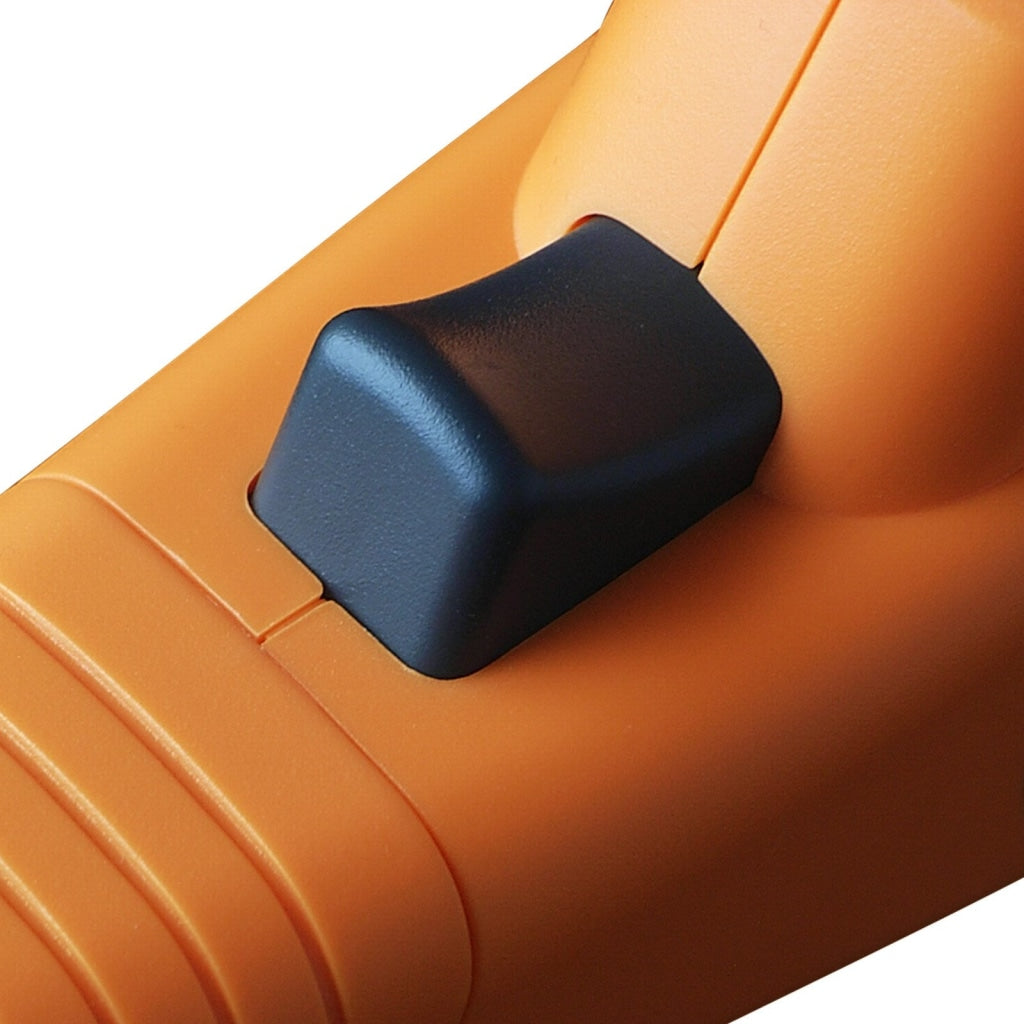

Safe, can be used to wide range applications and with 6 selectable emissivity! Just aim, pull the trigger and get the results in less than a second!

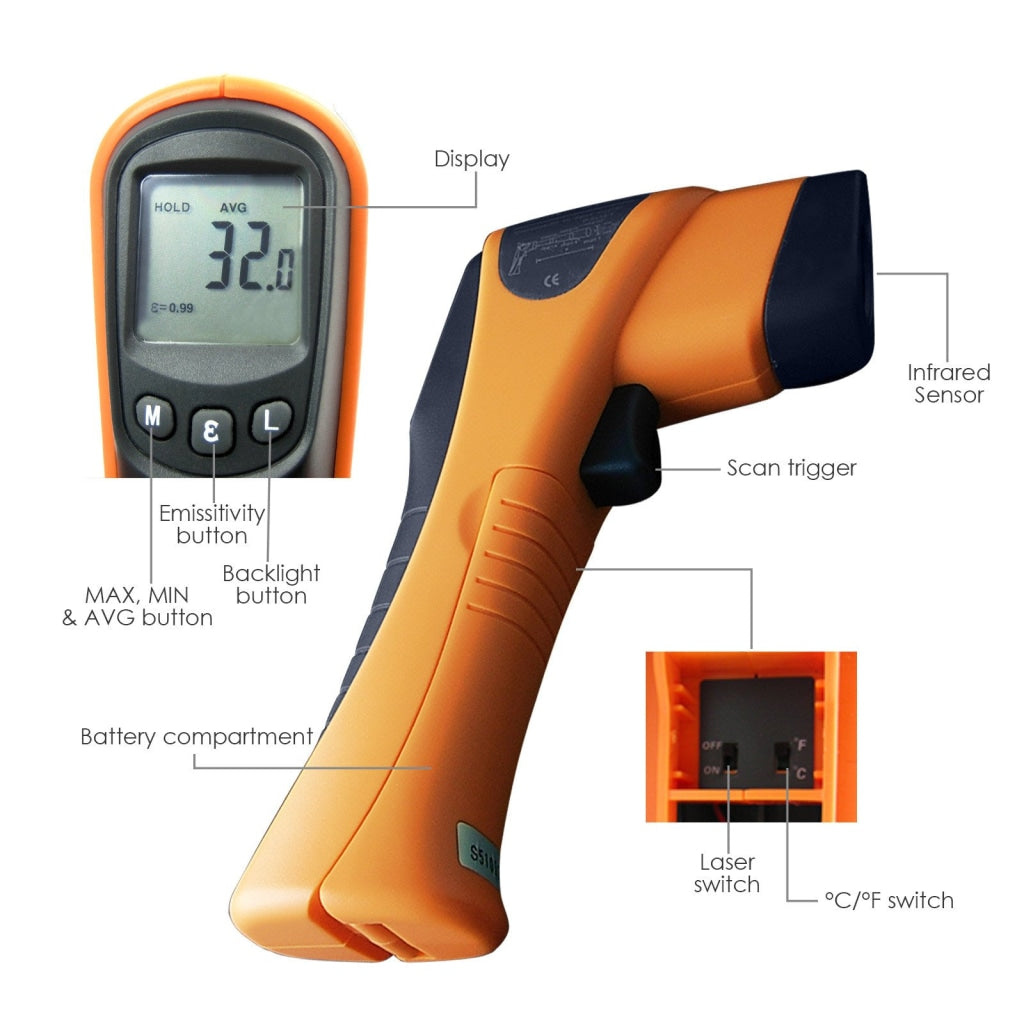

Features

  • Non-contact accurate temperature measuring

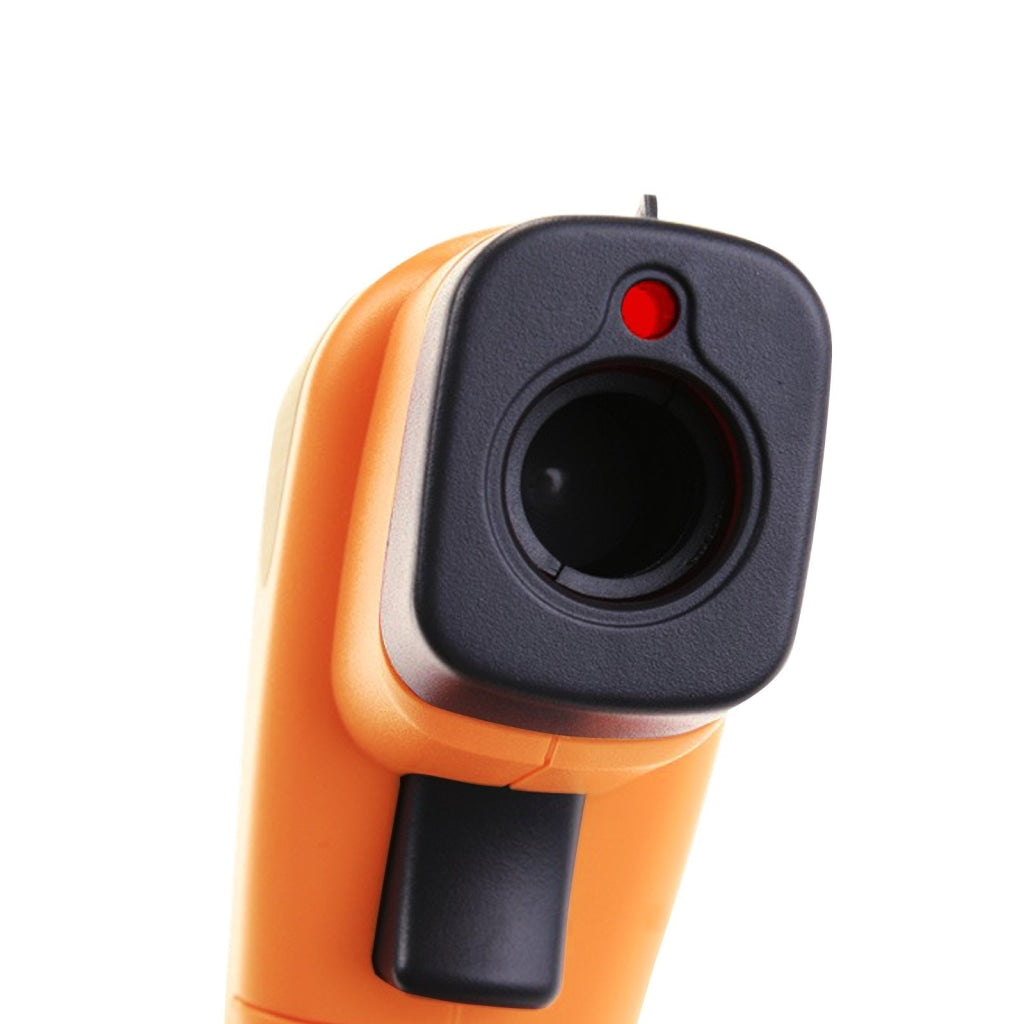

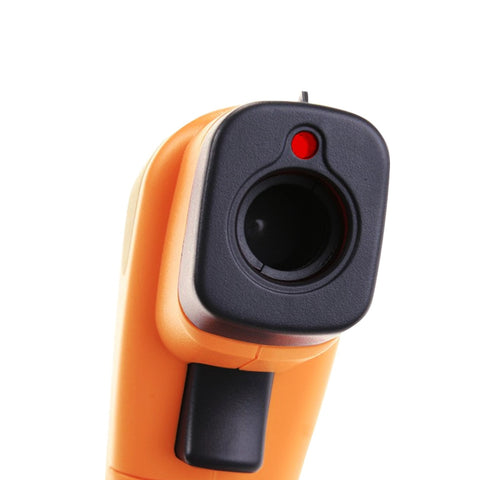

  • With built-in laser pointer identifies target area and will not inflict damage to the target object

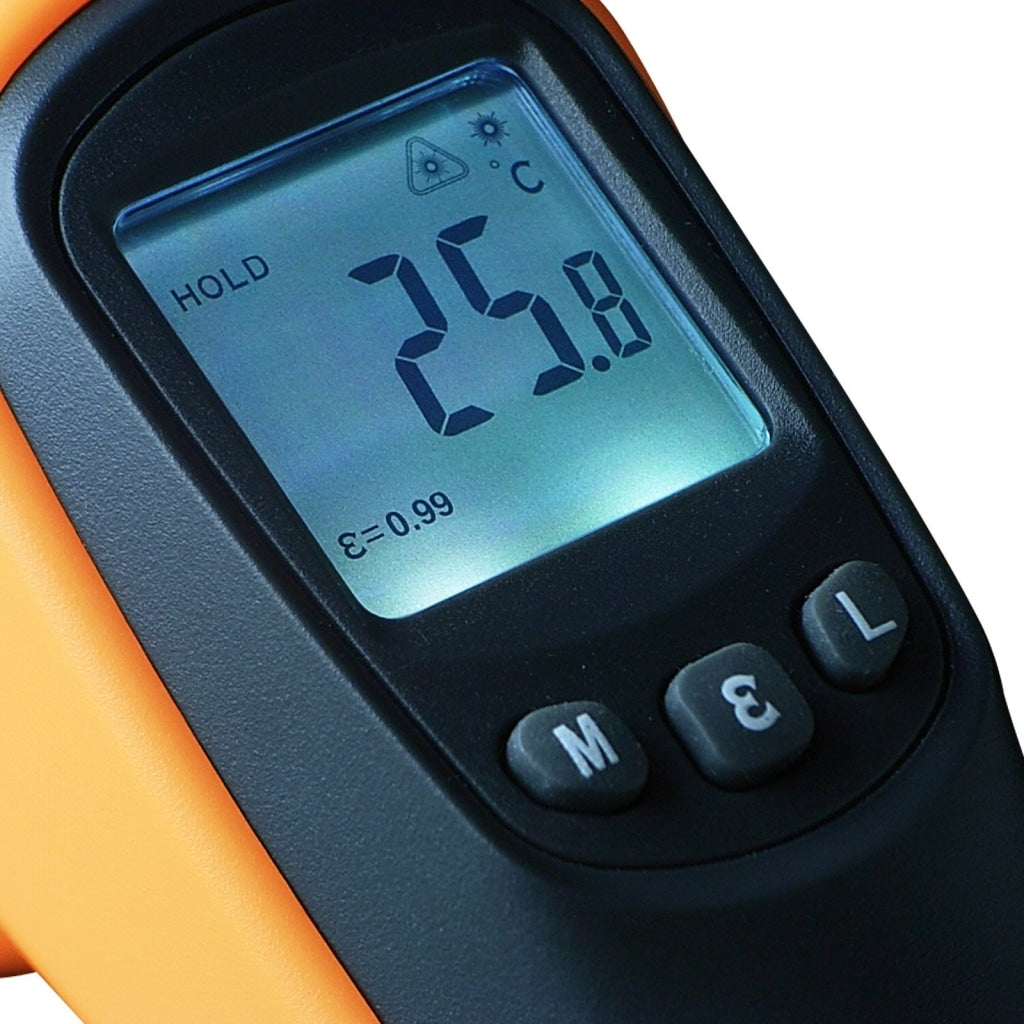

  • Big LCD with white backlight

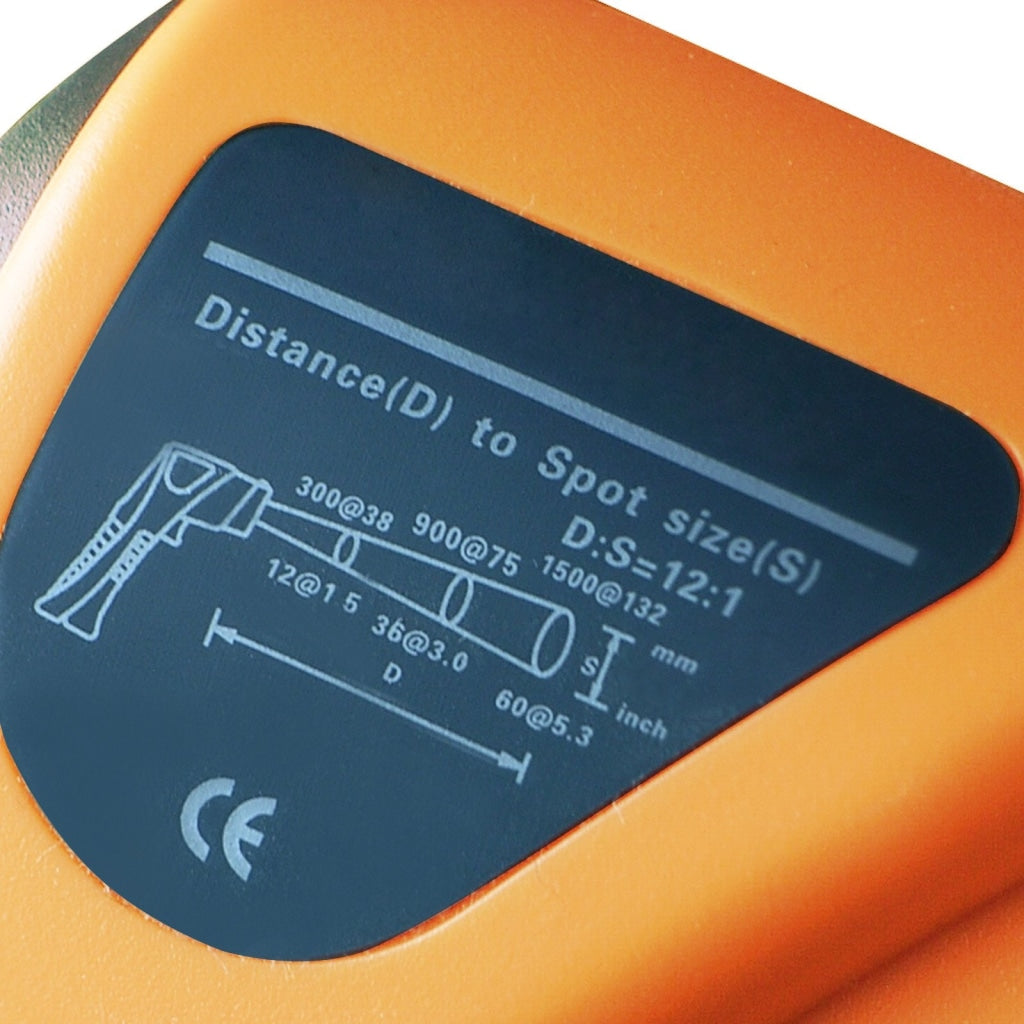

  • D:S = 12 : 1
  • Measure in both °C &°F
  • With MAX., MIN., AVG and storage functions
  • Gives exact reading with no guessing or errors
  • Housed with strong & light weight ABS-plastic housing
  • Durable and long lasting components

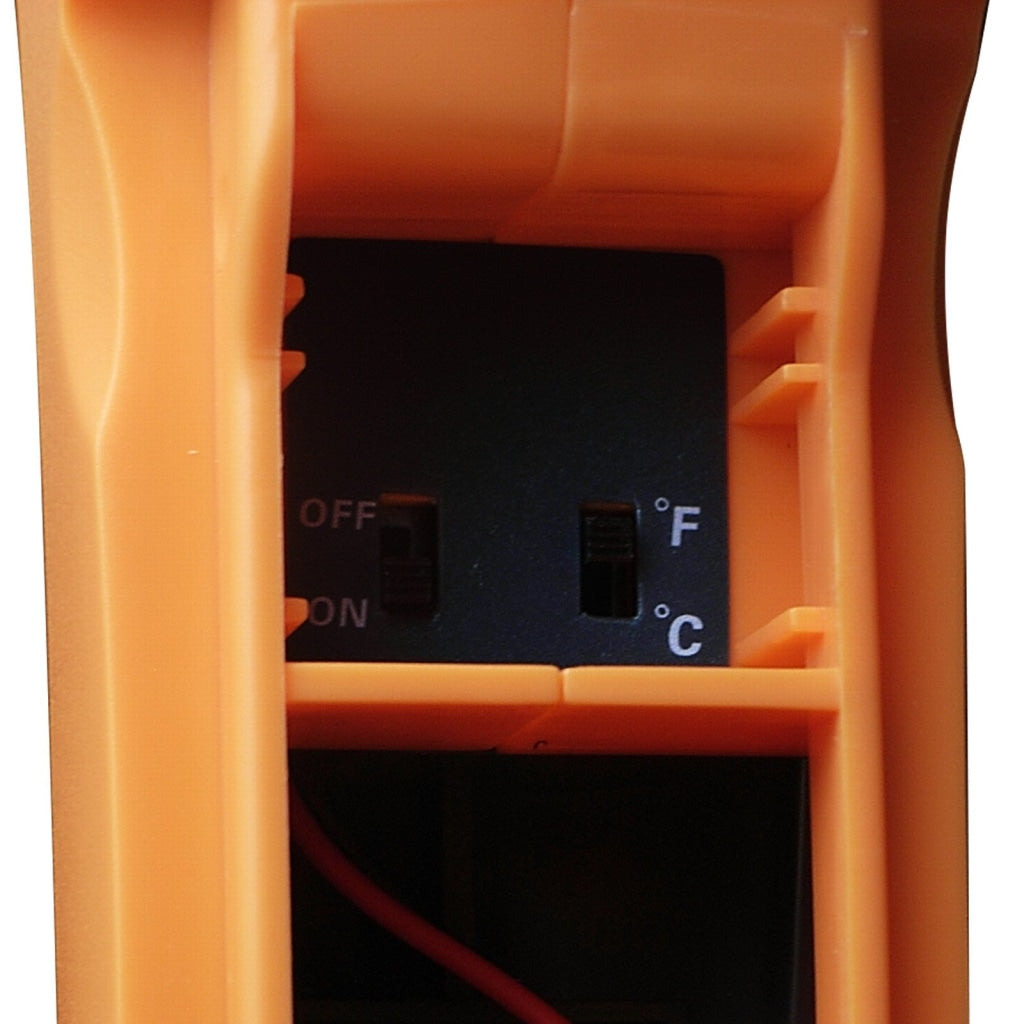

  • With On/Off Switch
  • Carefully shaped to fit comfortably in either hand
  • Low Battery Indicator
  • Has CE marking which means that the device conforms with the essential health and safety requirements set out by the European Directives
  • Brand new and unused

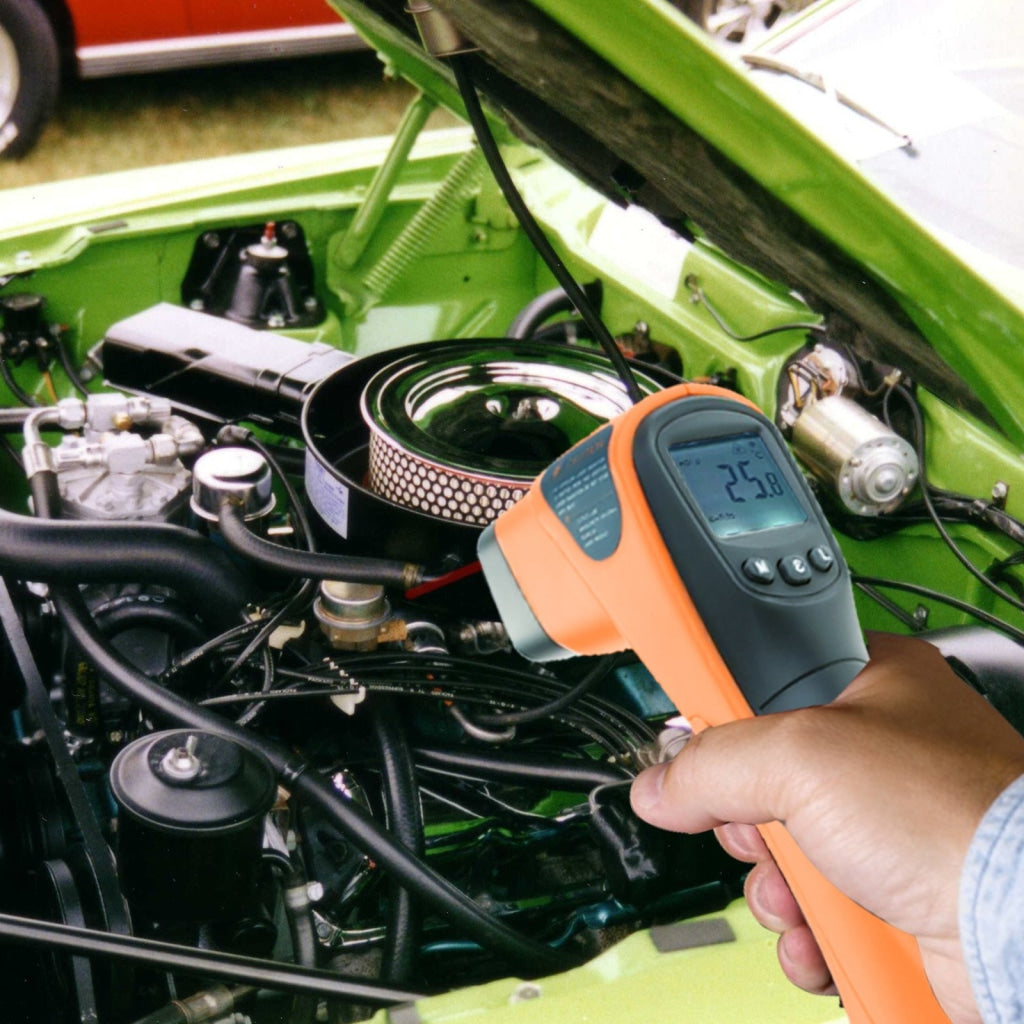

  • Extensive industrial usage : food, security, inspection, train. diesel engine, injection molding applications, and etc.
  • With FREE carrying case





Specifications:

  • D:S = 12 : 1
  • Temperature range : -25°C to 560°C (-13°F to 1040°F)
  • Emissivity : selectable of 0.99, 0.95, 0.89, 0.85, 0.79 or 0.75
  • Resolution : 0.2°C or 0.4°F
  • Sampling rate : about 0.5 seconds
  • Spectrum reaction : 6 -14µm
  • Laser Power: <1 mW
  • Accuracy:
  • -25 ~ -10°C (±3°C) (-13 ~ 14°F (±5°F)
  • -10 ~ 30°C (±2°C) (14 ~ 86°F (±4°F)
  • 30 ~ 560°C (1.5% ±1°C) (86 ~ 1040°F (2% ±2°F)
  • °C / °F Selectable
  • MAX., MIN., AVG and storage functions
  • Operating environment:
  • Temperature : 0~50°C (32~122°F)
  • Relative Humidity: 10~80%RH

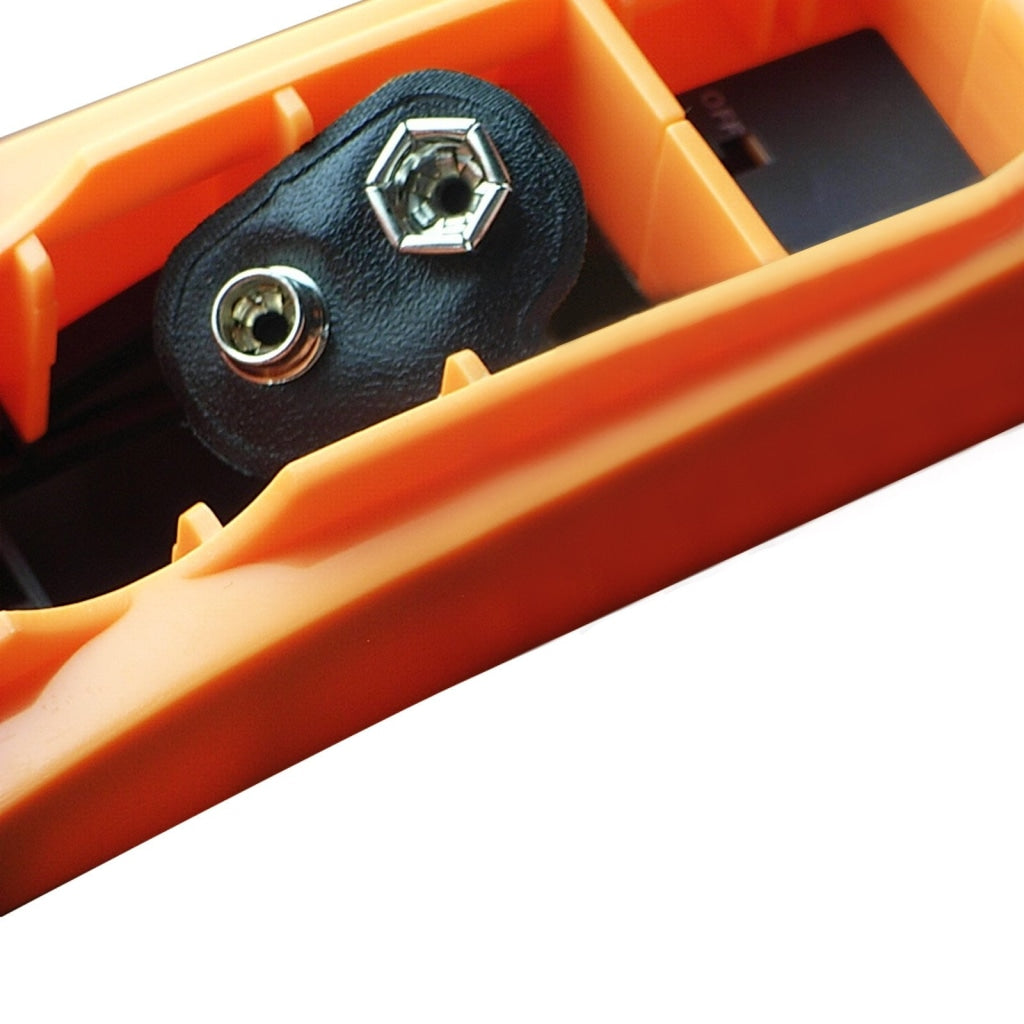

  • Power : 1 x 9V battery (included)
  • Weight : about 195g (including battery)

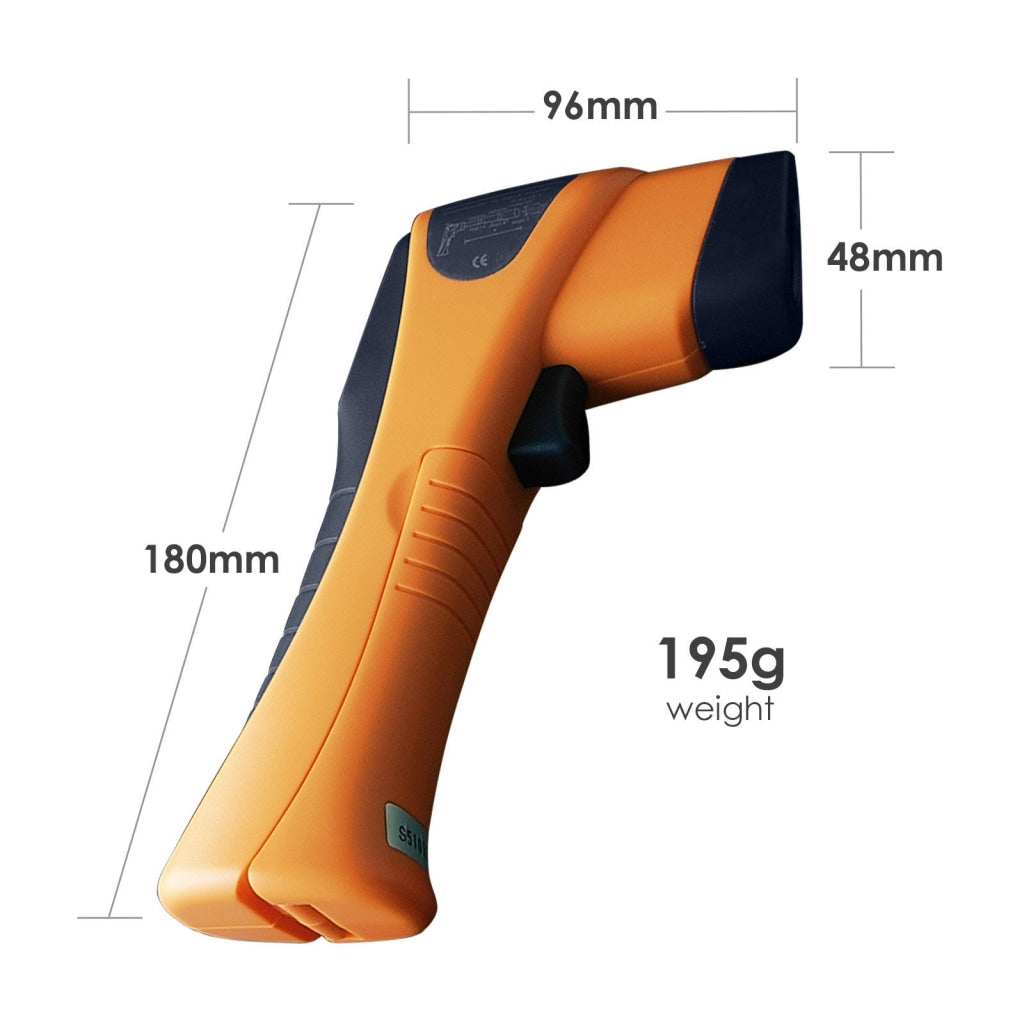

  • Size: 180 x 48 x 96 mm

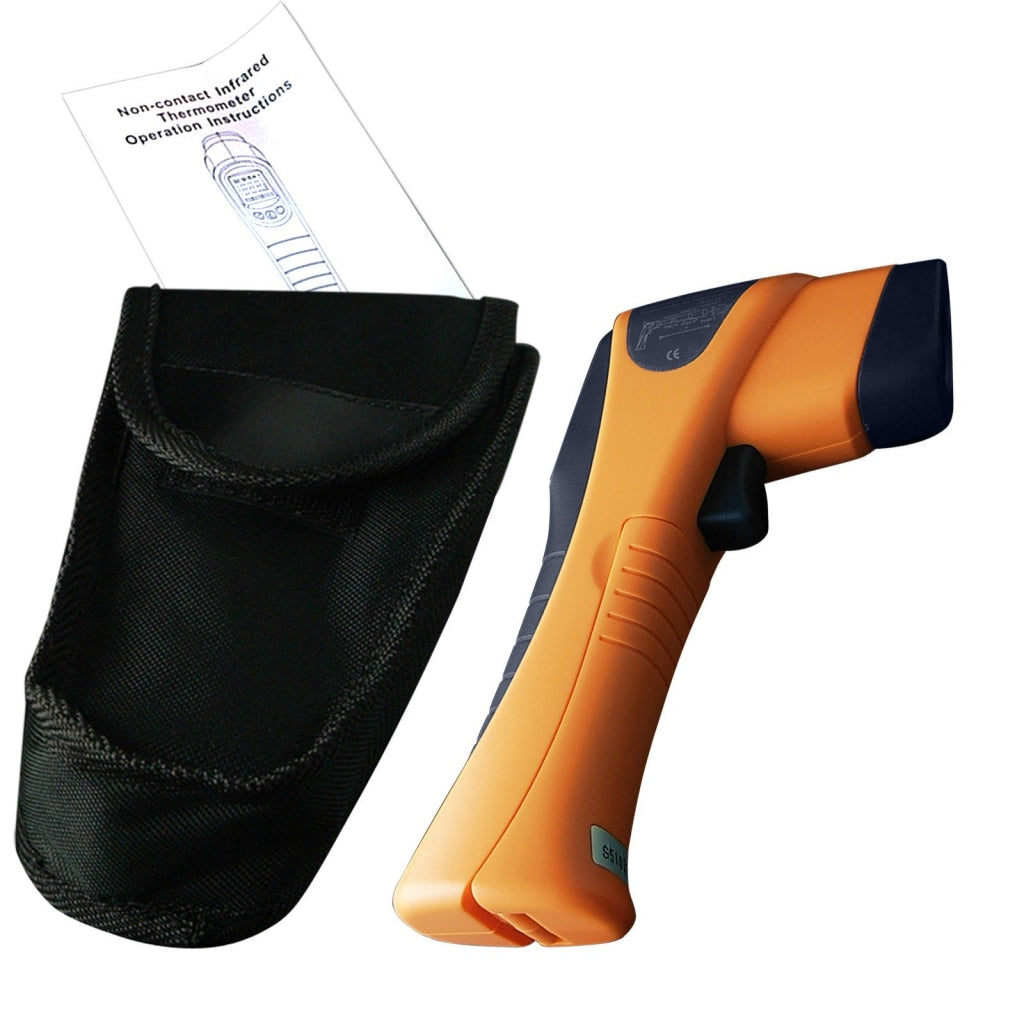

Set includes:

  • 1  x  IR Thermometer
  • 1  x  9V Battery ( FRE )
  • 1  x  Carrying pouch ( FREE )
  • User Manual
