GM-026 Handheld Gloss Meter 20 & 60 Degree Tile Floor Metal Surface 0.1 ~ 200 w/ Memory


Quantity
  OR


Model : GM-026

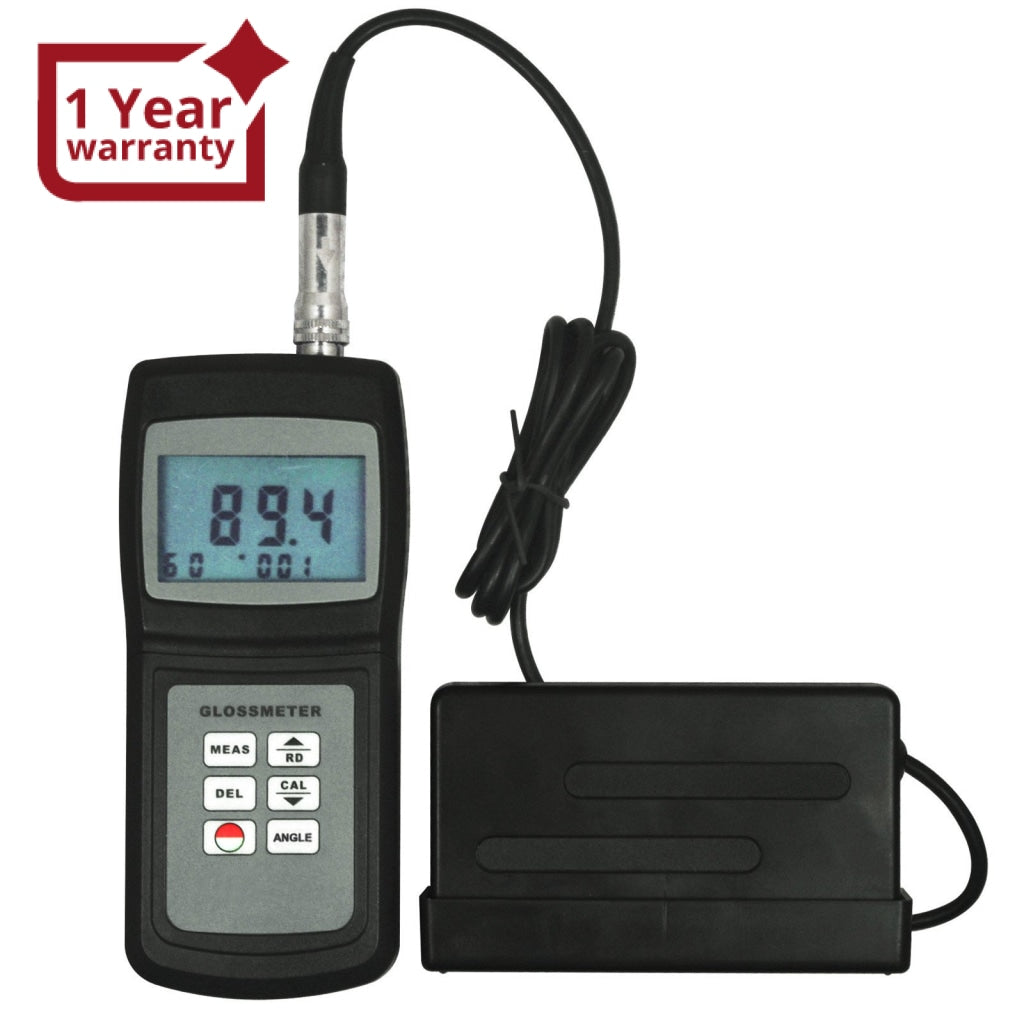

This Compact and portable Gloss Meter is used to measure specular reflection gloss of a surface. It has 20° and 60° measuring angle and capable to save in group up to 254 data. Very flexible to use with its separate probe.



Applications:

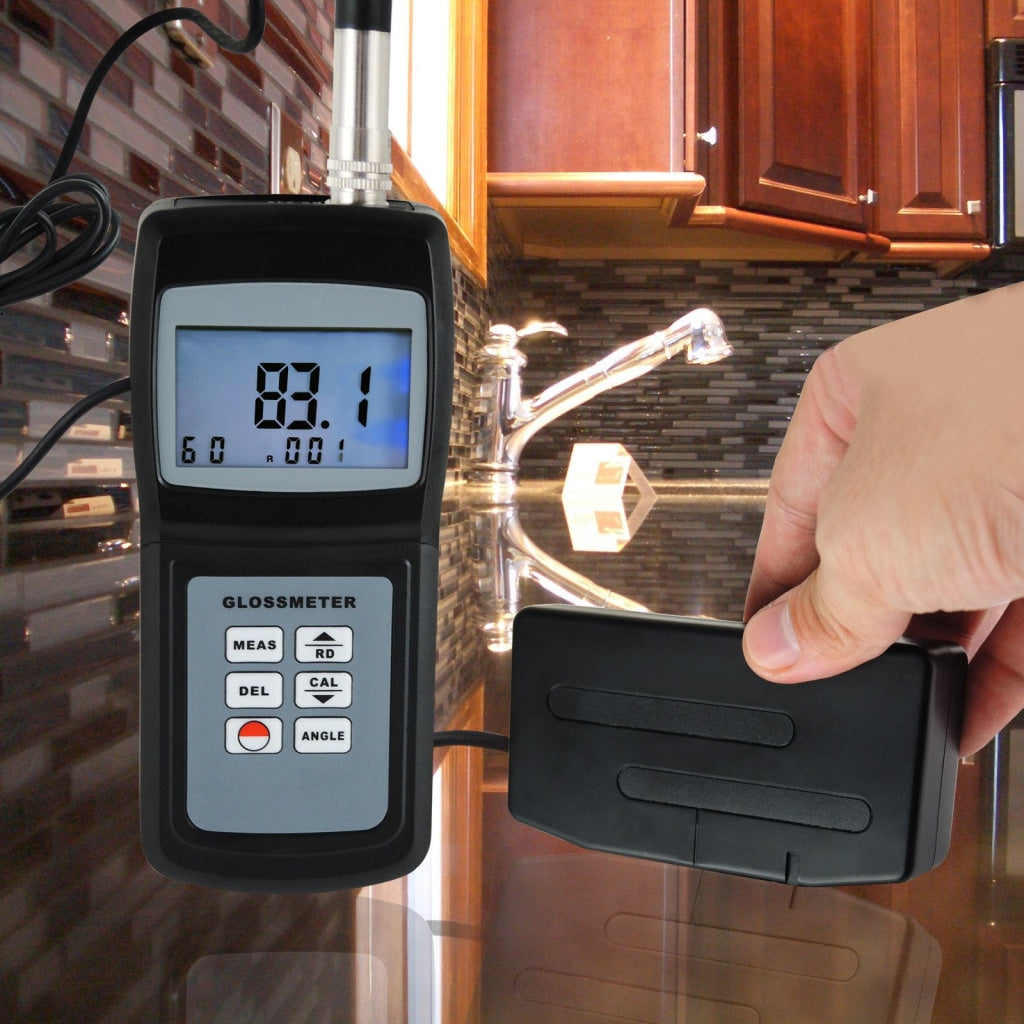

Widely used in floor maintenance, Surface Cleaning quality Control, Stone and tile gloss measurement, Checking printed materials, Quality control of paint and ink, Polished metal surface, measurement(chrome plating) Inspection of paint protection and waxing, Auto-body paint inspection, Surface inspection of plastic moldings, Evaluation of detergents and washers, Checking masonry and building exteriors.

Features:

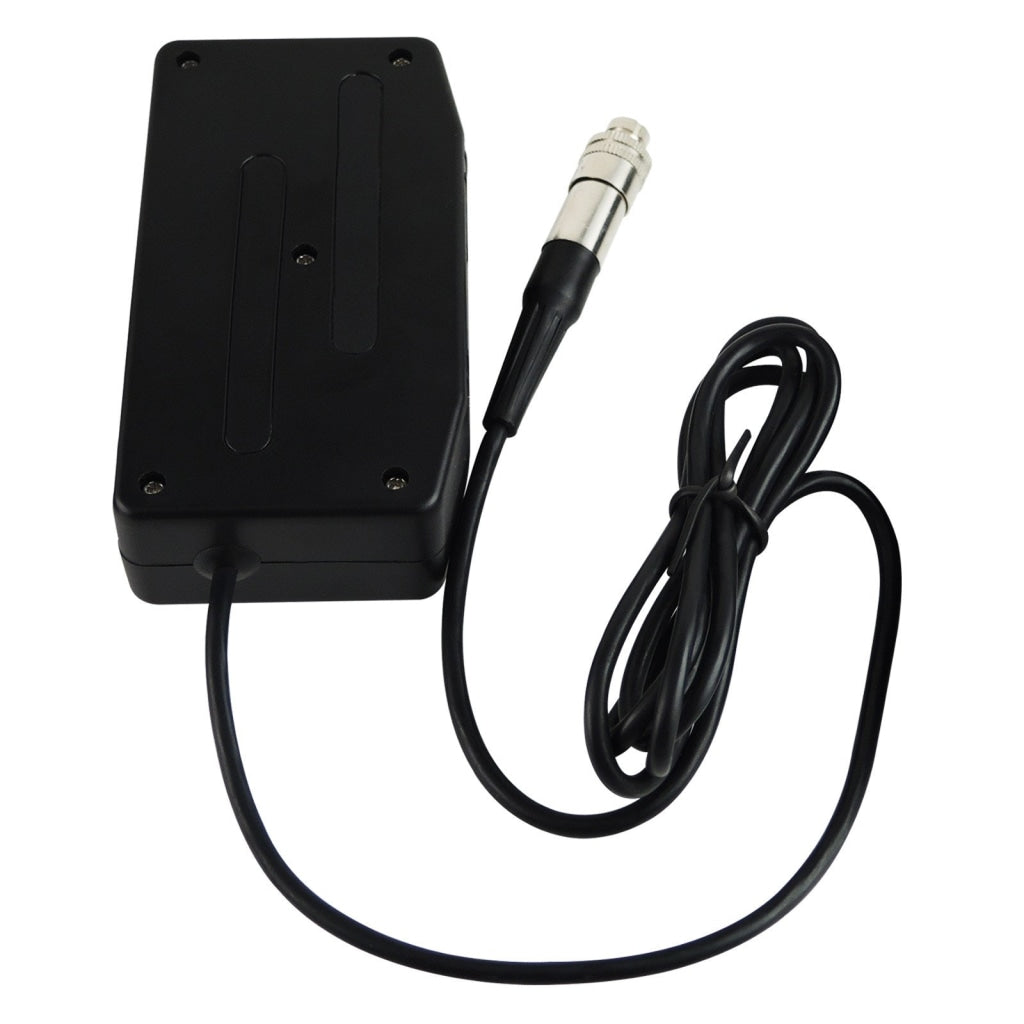

  • Flexible use with its separate probe
  • Store up to 254 groups of data with measurement conditions
  • Memory Recall function
  • Can communicate with a pc by optional RS232C cable and software (not included in the set)
  • Factory calibrated
  • Auto power off to conserve battery when idle for 30 minutes
  • Designed and manufactured in accordance with international standard ASRM D523, ASTM D1455, ASTM C346, ASTM C584, ASTM D2457, DIN EN ISO 2813, DIN 67530, EN ISO 7668, JIS Z 8741, MFT 30064, TAPPI T480, GB 9754, GB/T13891, GB 7706 and GB 8807
  • Technical parameters conforms with JJG 696-2002

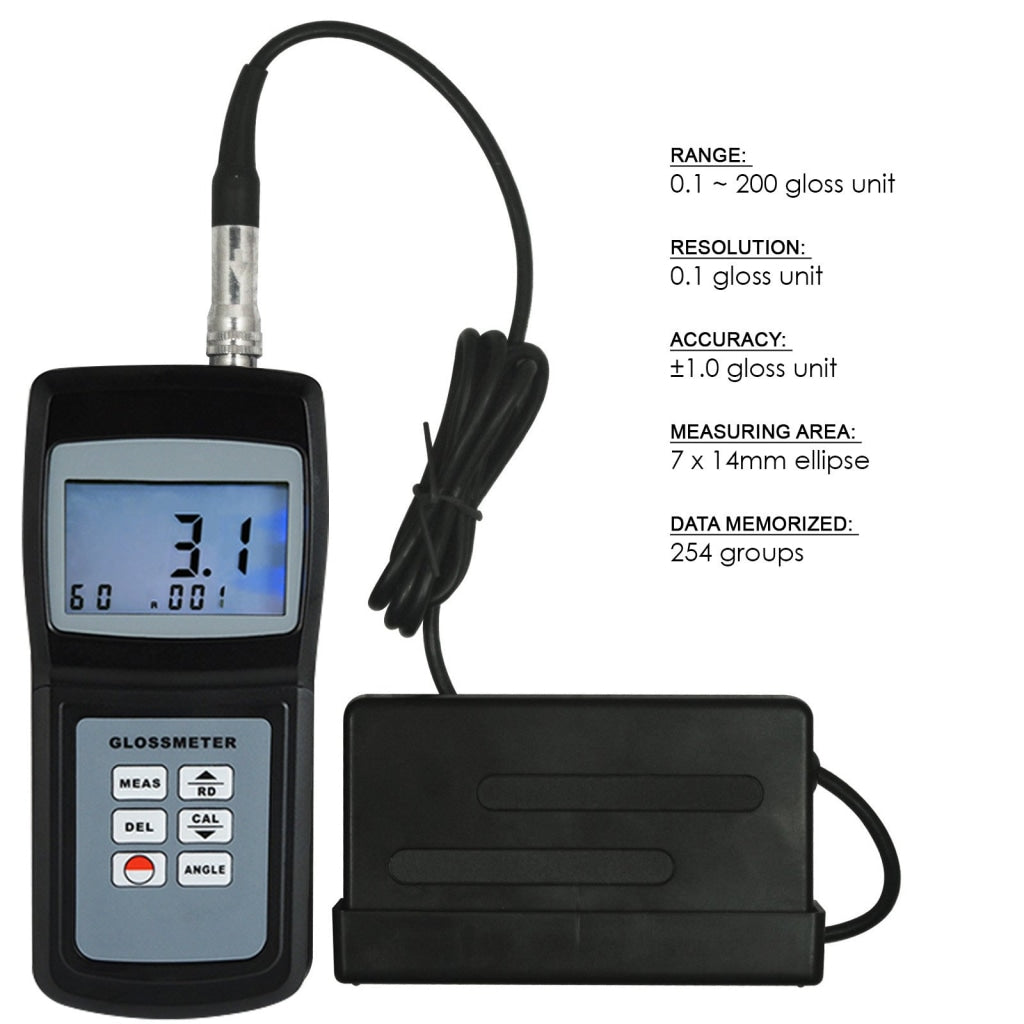

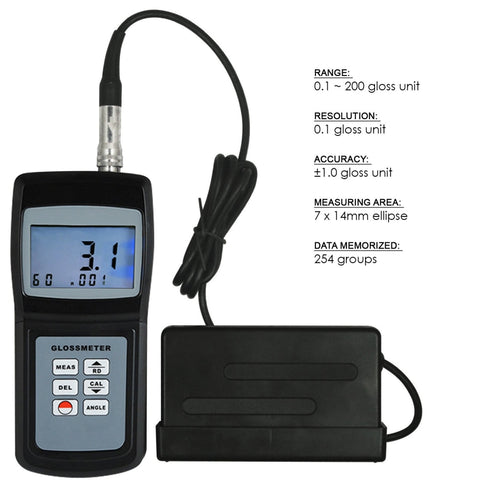

Specifications:

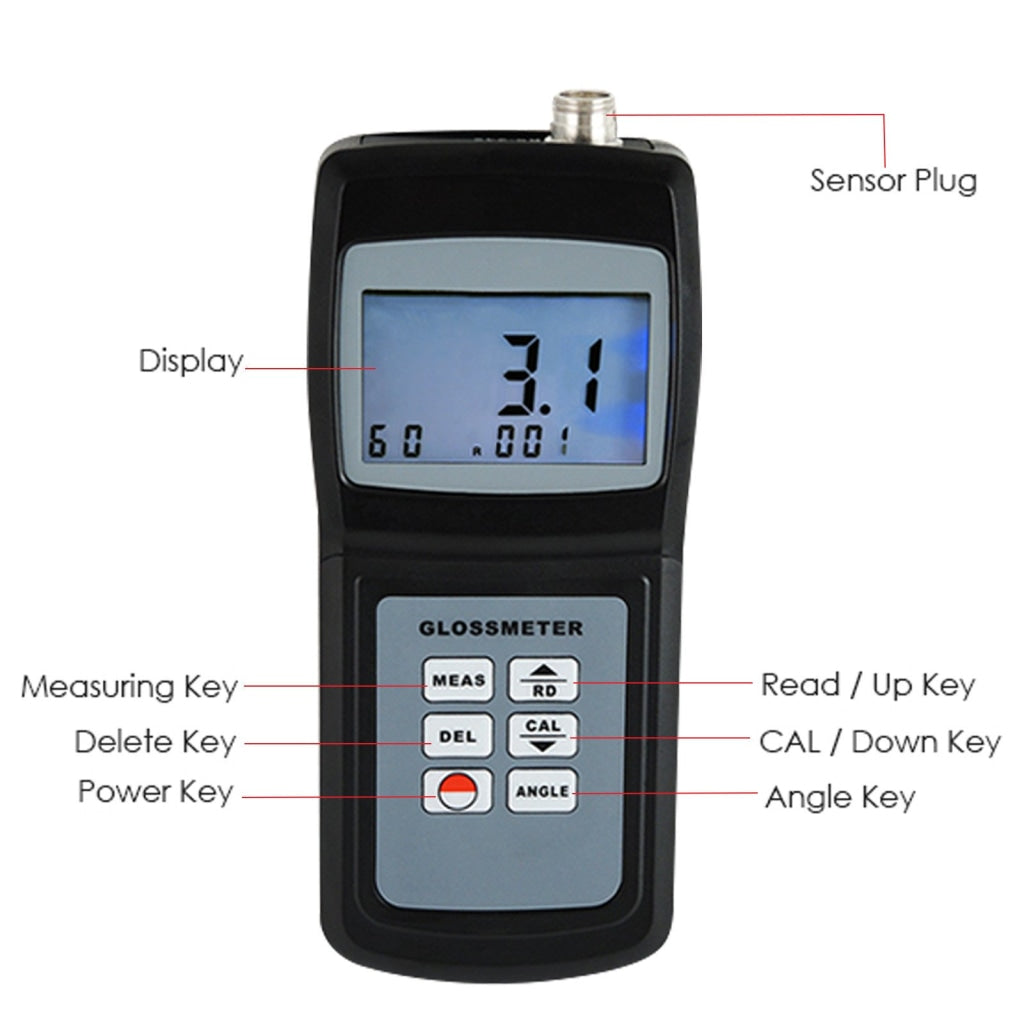

  • Display: 4 digits backlit LCD
  • Measuring Geometry: 20° & 60°
  • Range: 0.1 ~ 200 gloss unit (against reference standard)
  • Resolution: 0.1 gloss unit
  • Accuracy: ±1.0 gloss unit (against reference standard)
  • Repeatability: ±0.5 GU (0...99.9)
  • Measuring Area: 7 x 14mm ellipse
  • Data memorized: 254 groups

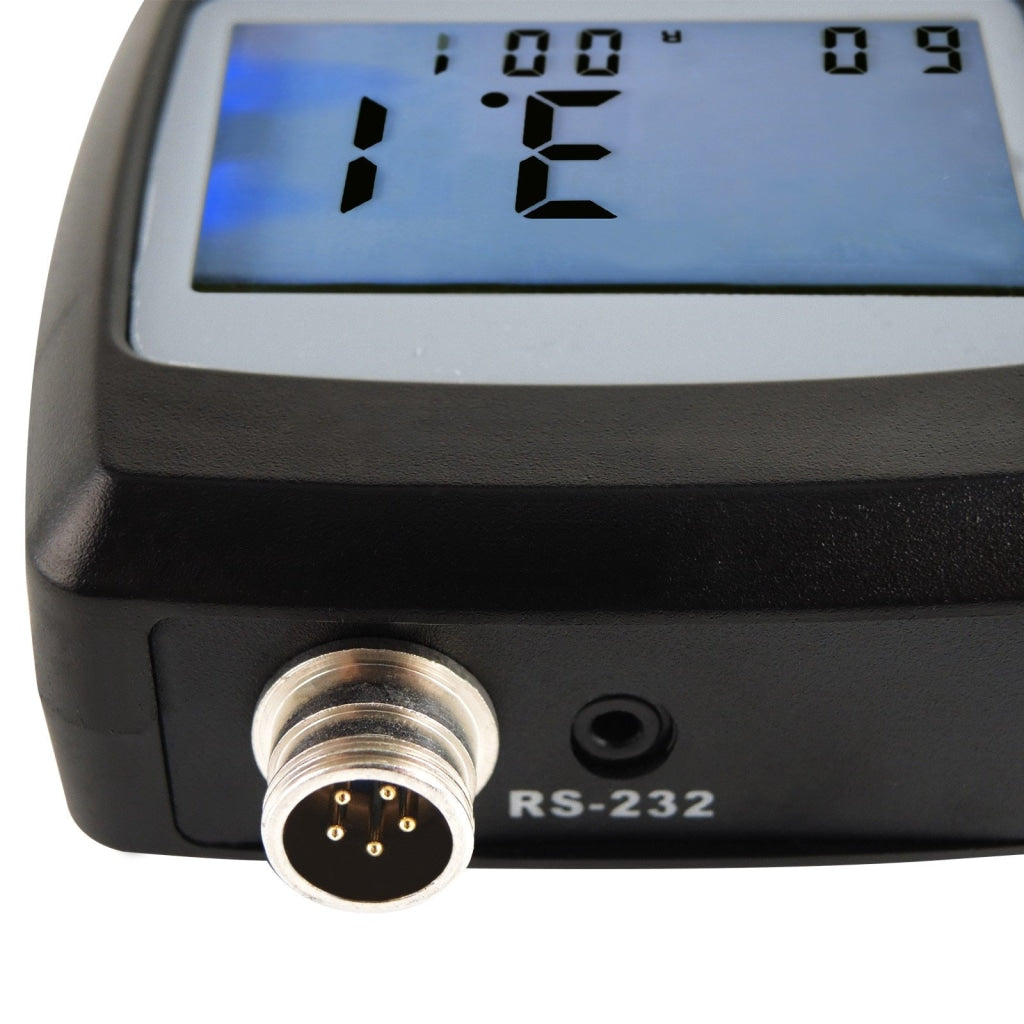

  • Data output: RS 232 C serial interface
  • Working Condition:
    • Temperature range: 0~40°C
    • Humidity: up to 85%

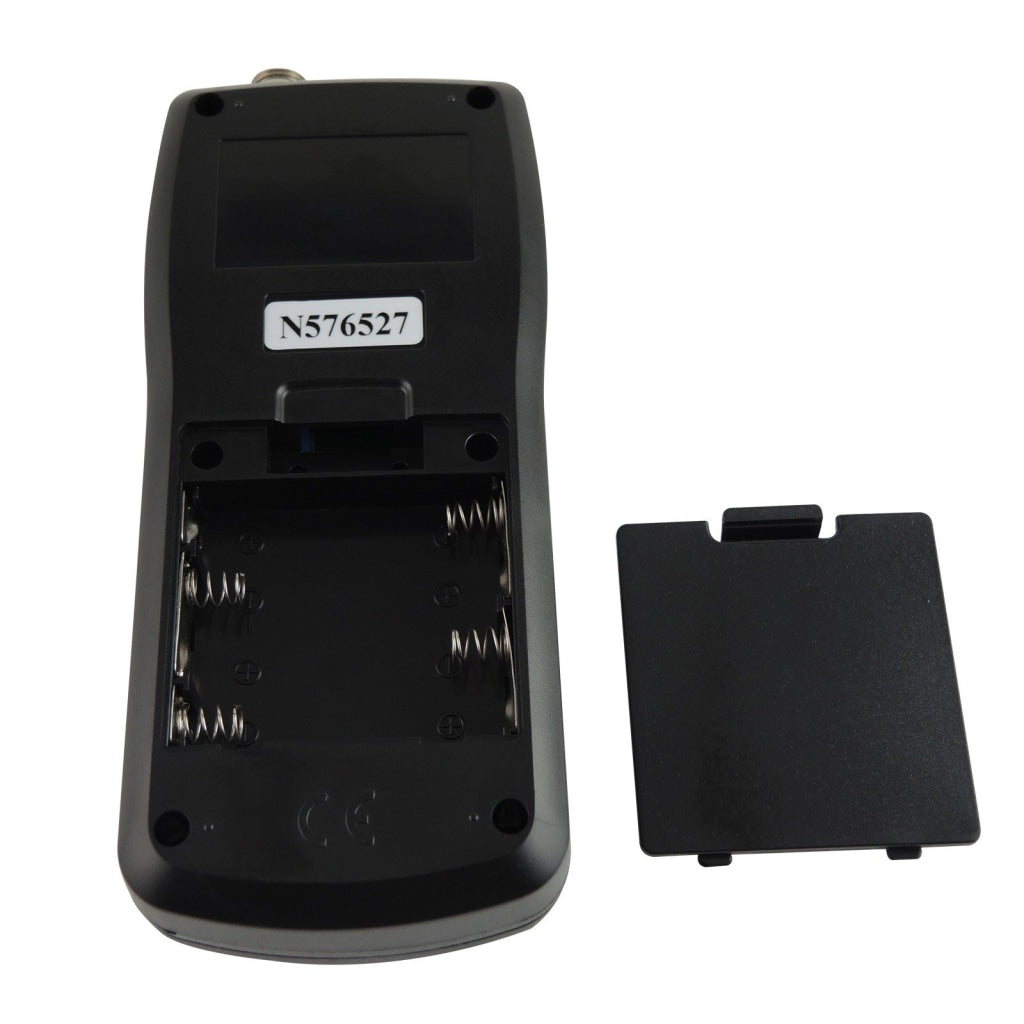

  • Power: 4 x 1.5V AAA battery (not included in the set)

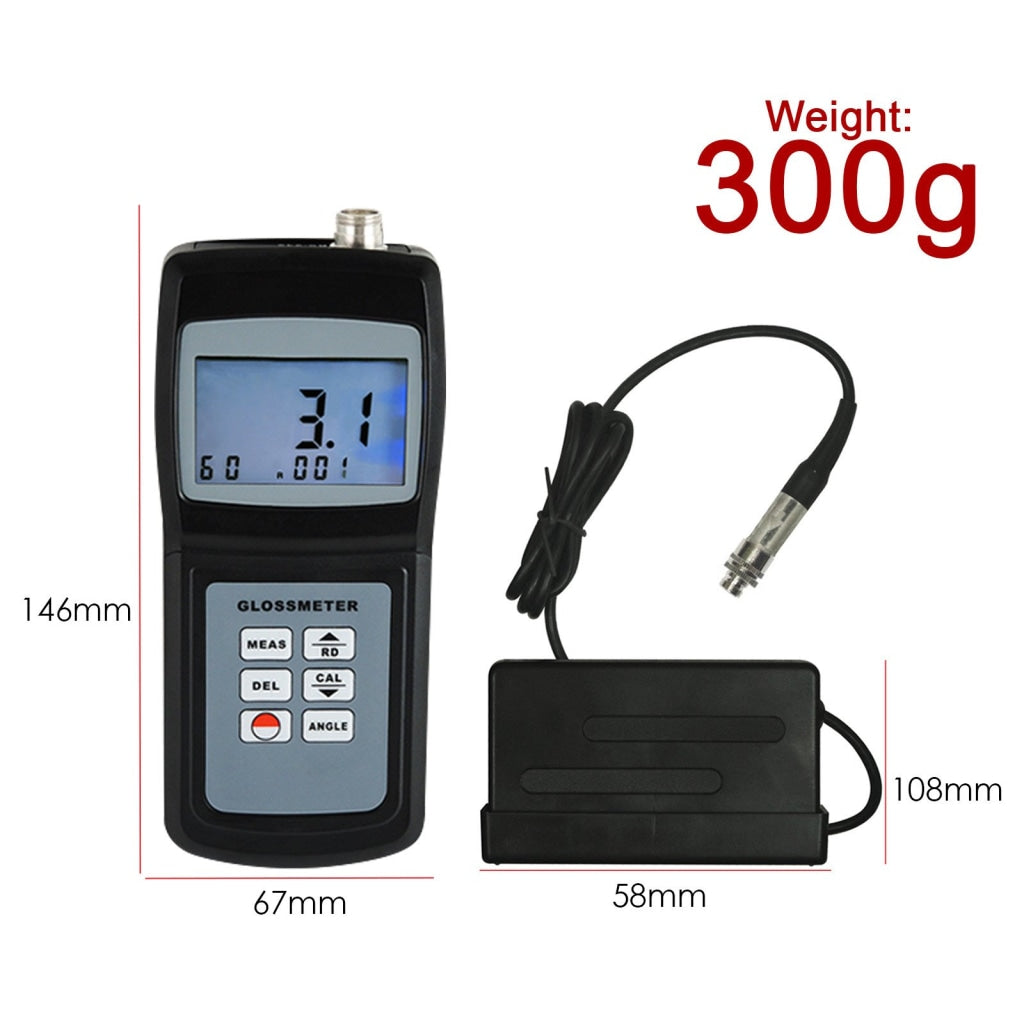

  • Dimension
    • Main Unit: 146 x 67 x 28mm
    • Sensor: 58 x 28 x 108mm
  • Weight: about 300g (including fitted batteries)

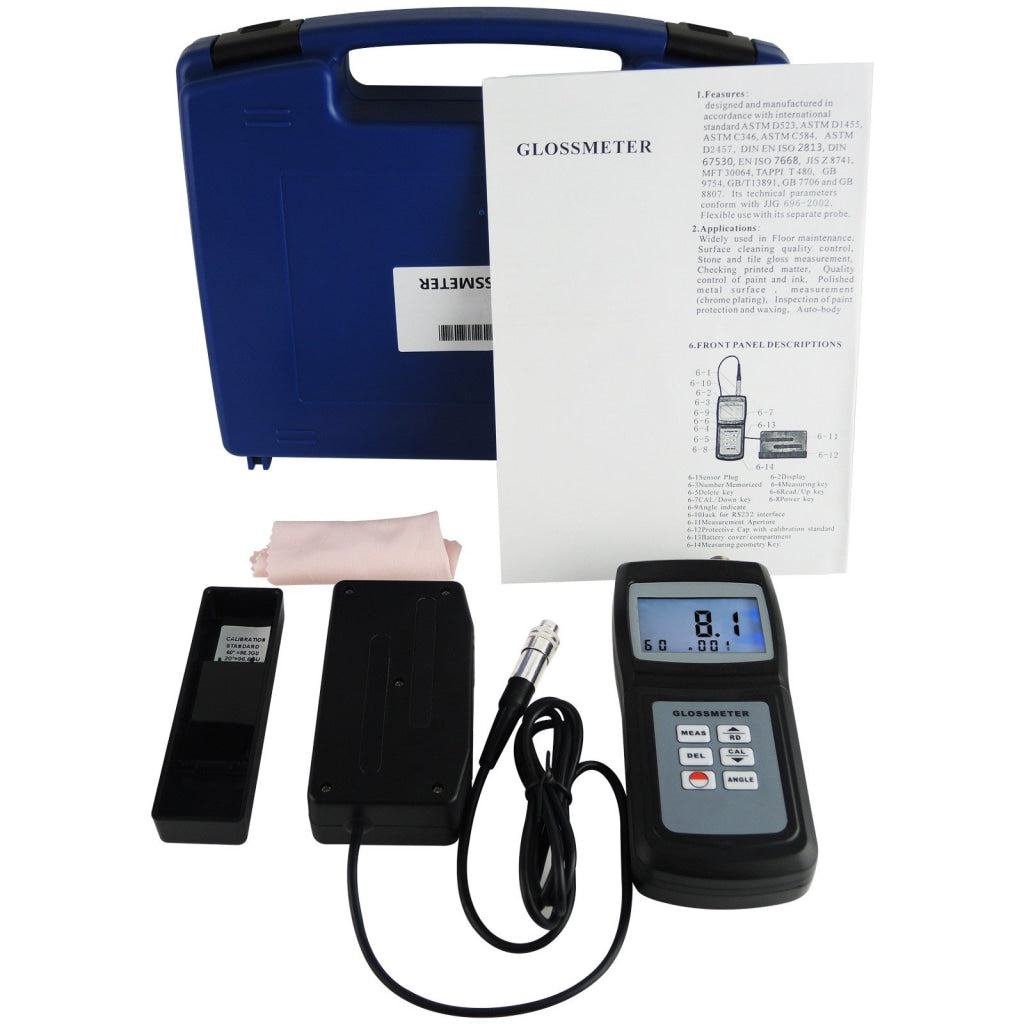

Set Includes:

  • 1 x Digital Gloss Meter

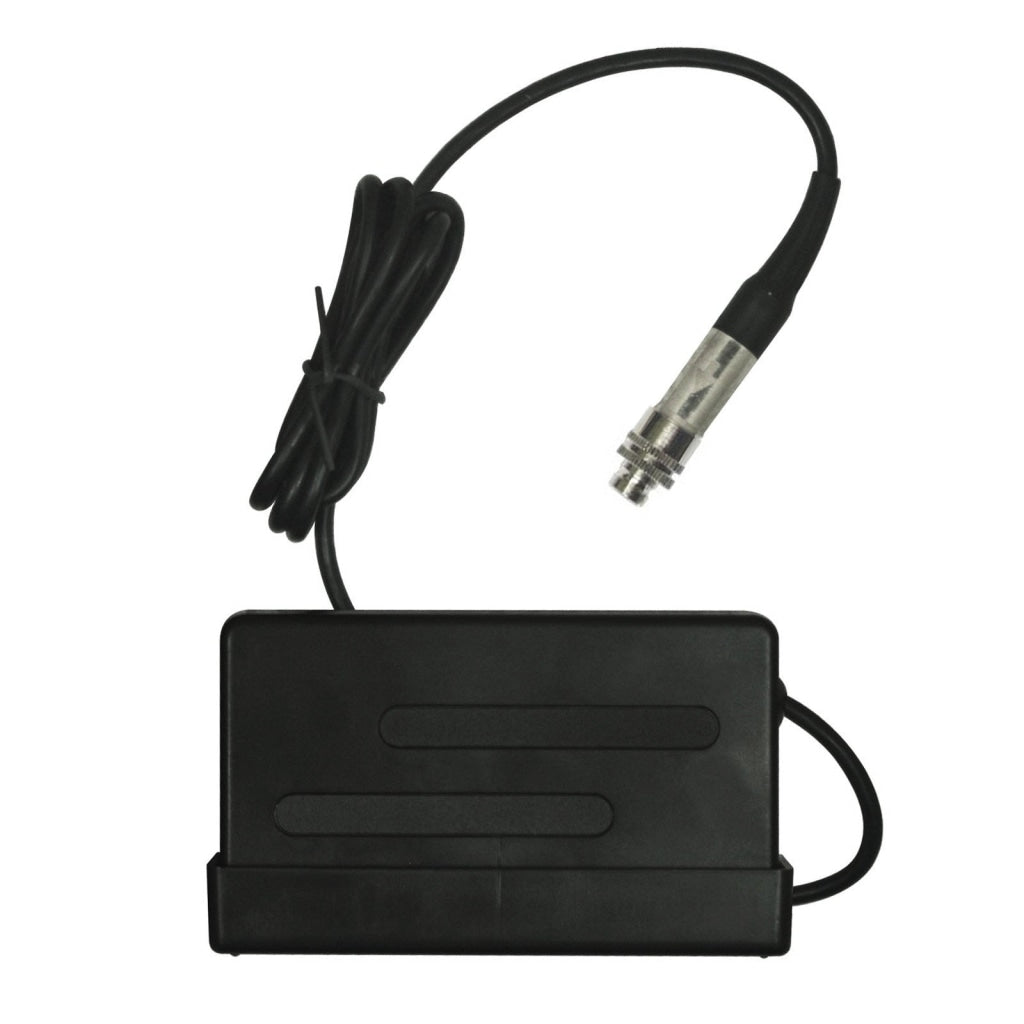

  • 1 x External Probe
  • 1 x English Operation Manual
  • 1 x Holder with calibration standard
  • 1 x Optic Cleaning Cloth
  • Carrying Case
  • Standard Factory Packaging



Optional Item (not included in set)
          Please click here to buy this optional item   RS-232 Software & Cables
or you may contact us at sales(at)gainexpress.com if you want an optional items to be included in your order
