Professional and amateur fishermen love this fish finder to find out the location as well as the depth of fish and bottom contour of water. Ideal for Ocean, river or lake and detecting a Fish or school of fish in any particular area has never been this easy. This fish finder literally brings the fish to you.
This fish finder is designed to be used with a bait boat. Just simply install the Long - Distance signal tower (transmitting antenna) to your bait boat, power on the signal tower, then you can power on your fish finder and enjoy fishing.

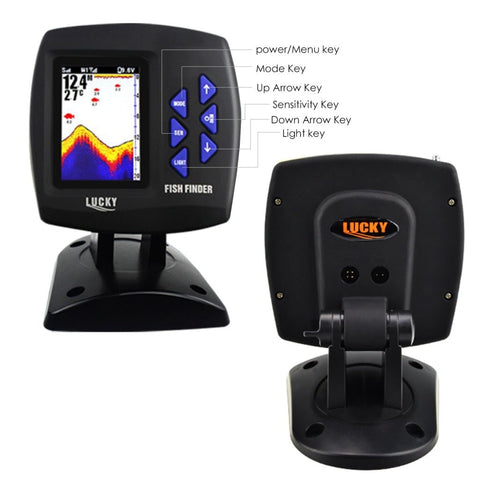

Features
- Big COLORED 3.5 inches MVA/TFT LCD

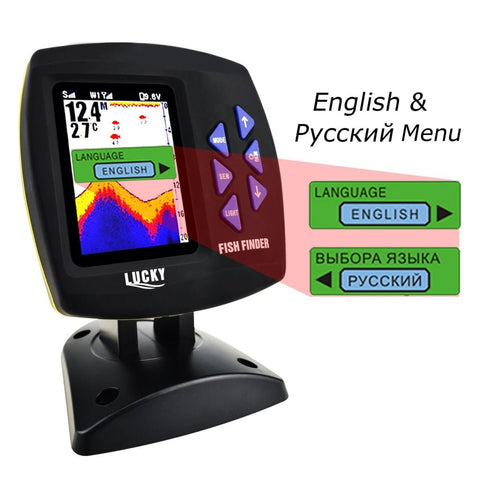

- Dual Language, English and Russian

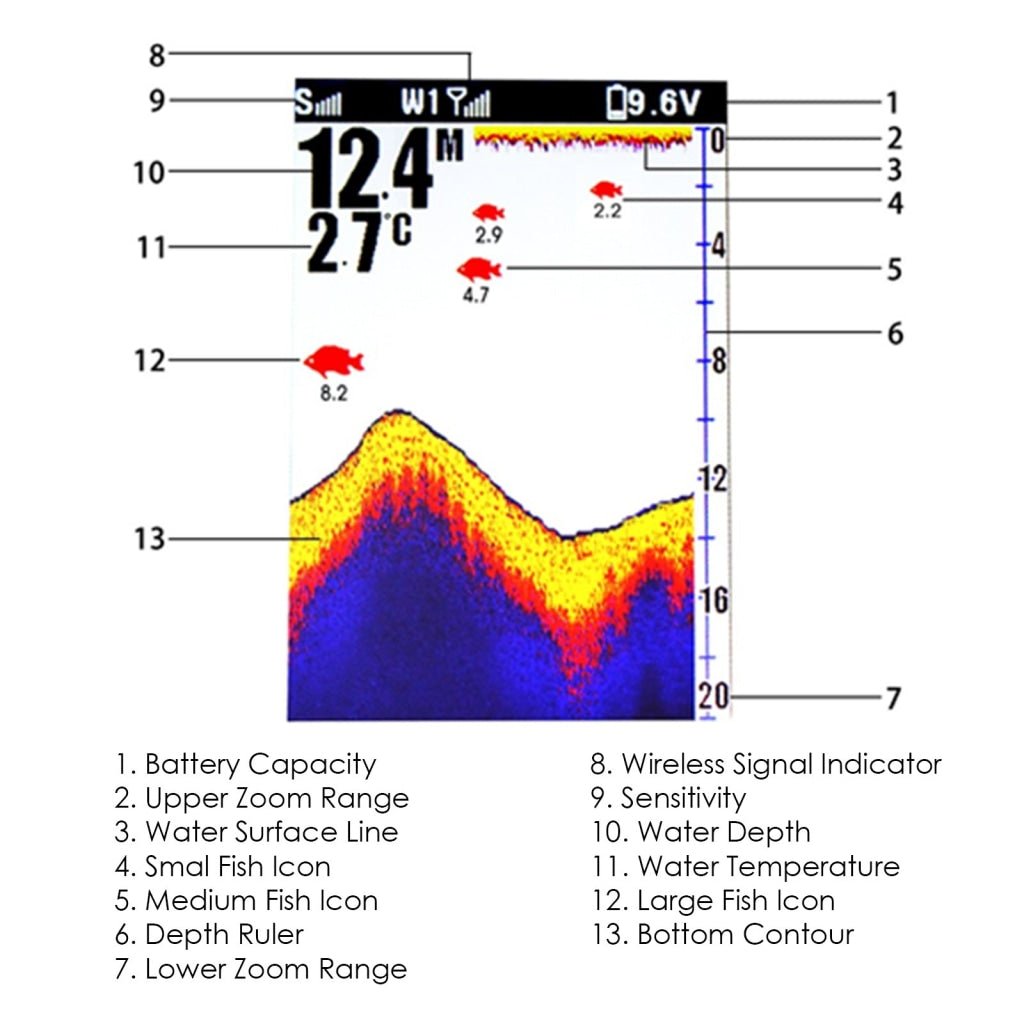

- Displays:
- medium and small fish icons
- Fish location depth
- Current bottom contour
- Battery Capacity
- Depth Ruler
- Backlight Features with On/ Off White LED
- Measure water temperature and depth, and fish depth location
- Set your own preferred setting in:
- sensitivity
- zoom range
- measuring unit
- depth range
- shallow alarm
- fish icon
- fish alarm
- chart speed
- brightness
- color tone (representing the bottom and structure on the display)
- battery alarm
- High frequency
- Built-in memory automatically saves/stores current setting before turning the fish finder

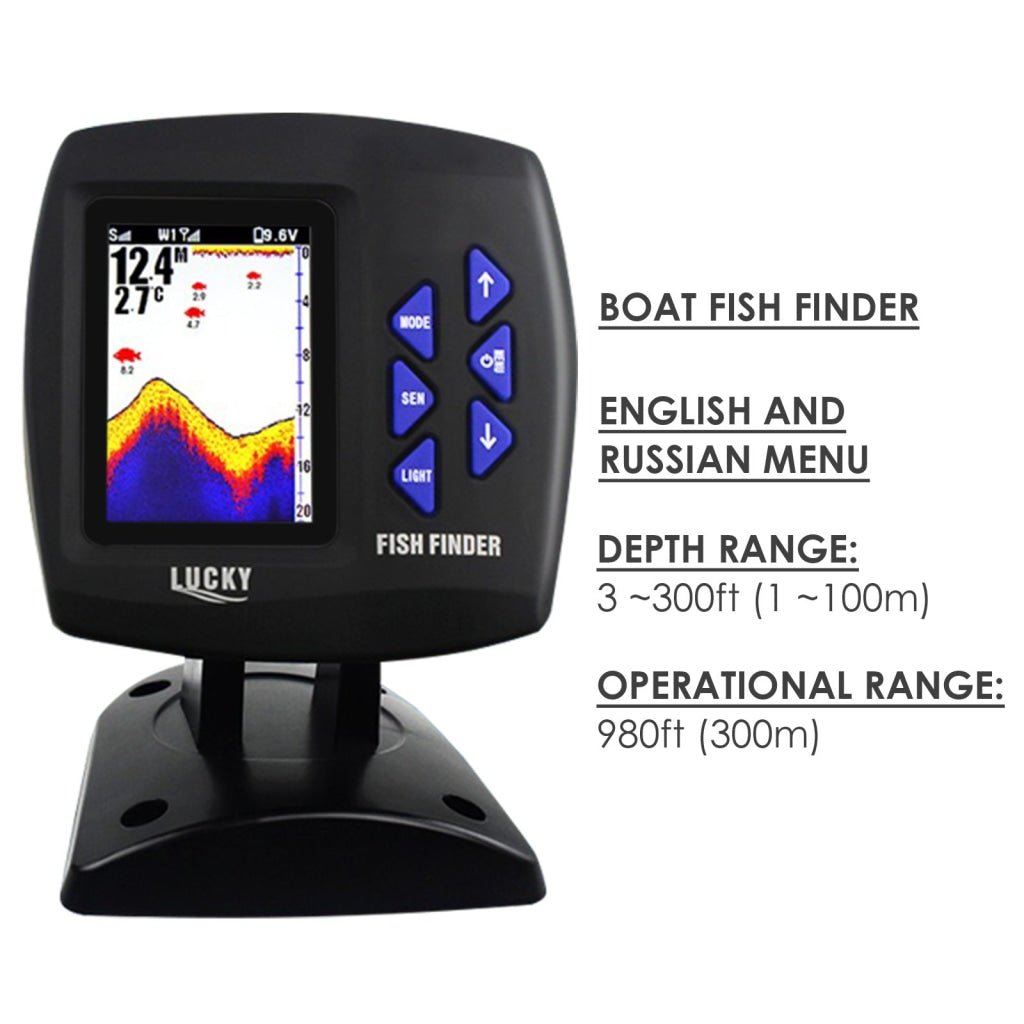

Specifications
-
Main unit:
-

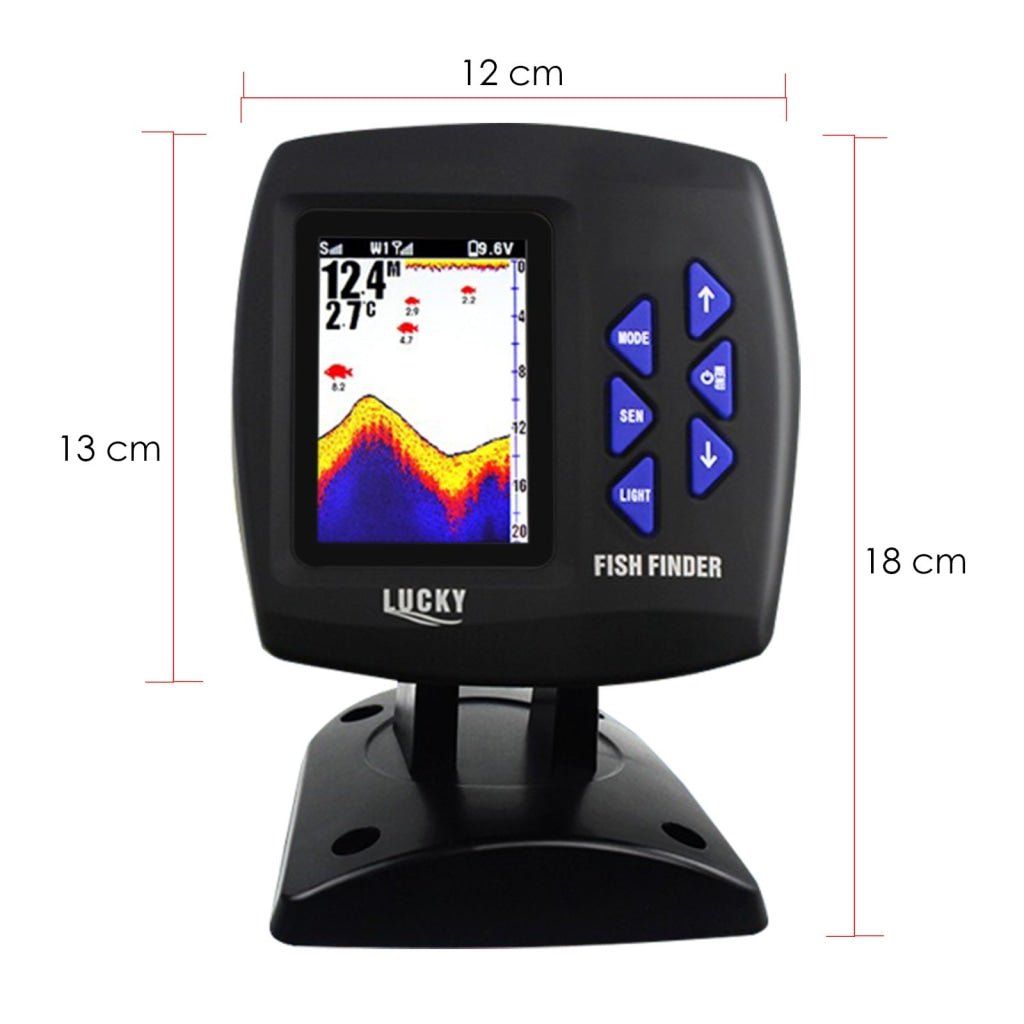

Display: 3.5inch MVA-TFT-LCD
-
Sonar operation frequency: 200KHz
-
Back lighting: On/off White LED
-
Unit Selections: Meters/ feet , Fahrenheit and Celsius
-
Power Requirement: 11 ~ 13VDC
-
User mode Selections: Start Up, Simulation
-
-
Sensor
-
Sonar beam angle: 45 degrees
-
Depth range: 3 ~328ft (1 ~100m)
-
Operational frequency: 433.92 MHz
-
Maximum RF distance: 980ft (300m) (less than 980ft if the water is not smooth)
-
Power Requirement :11 ~ 13V DC
-
-
Operational Temperature:-14 ~ 122°F (-10 ~50°C)

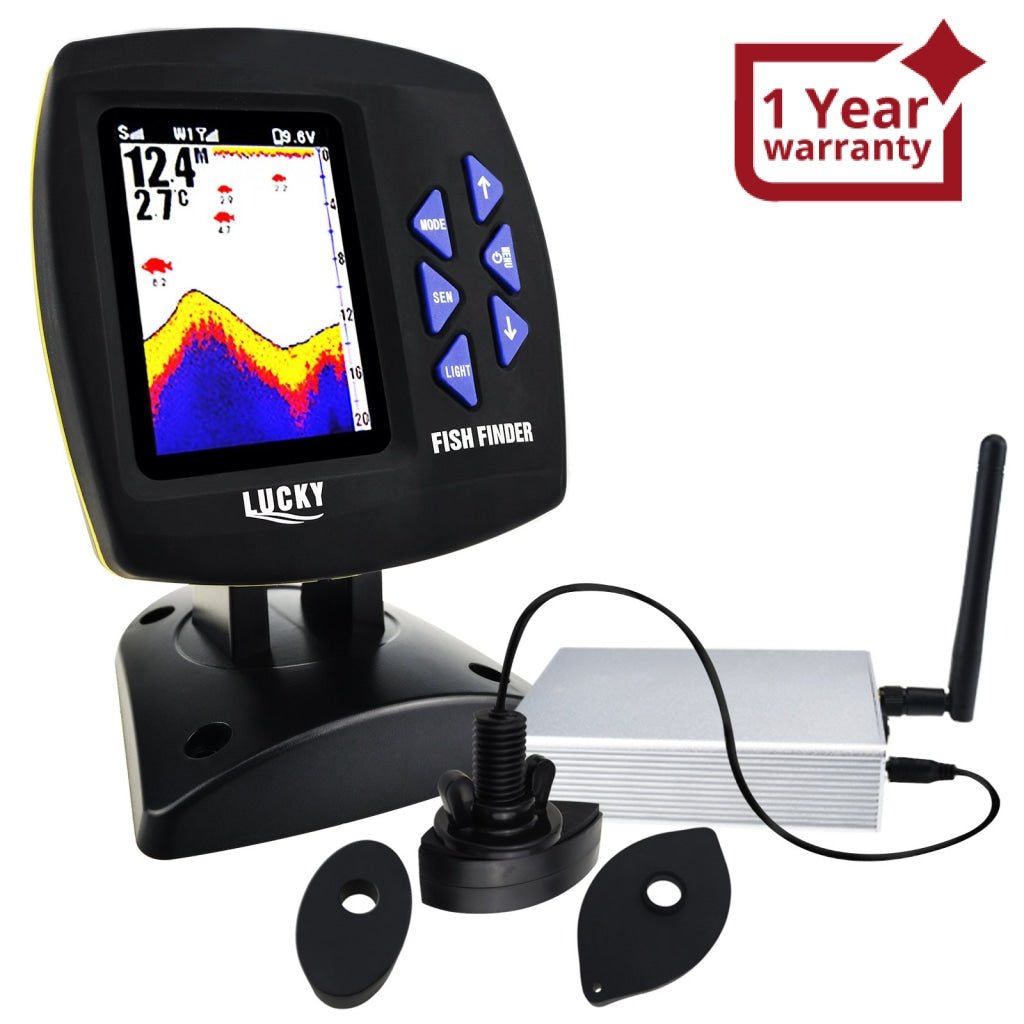

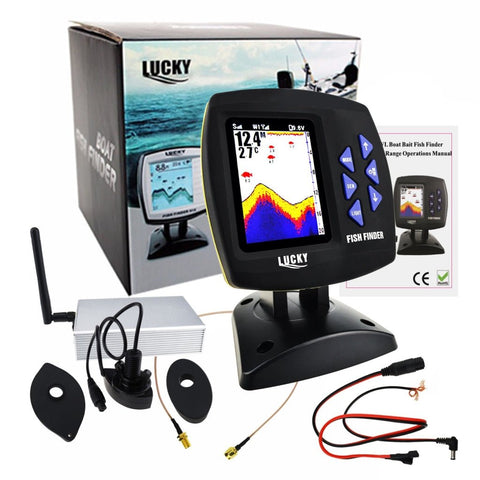

Set Includes
-
1 x Main unit Boat Fish Finder
-
1 x Sonar Sensor with transmitter cable
-

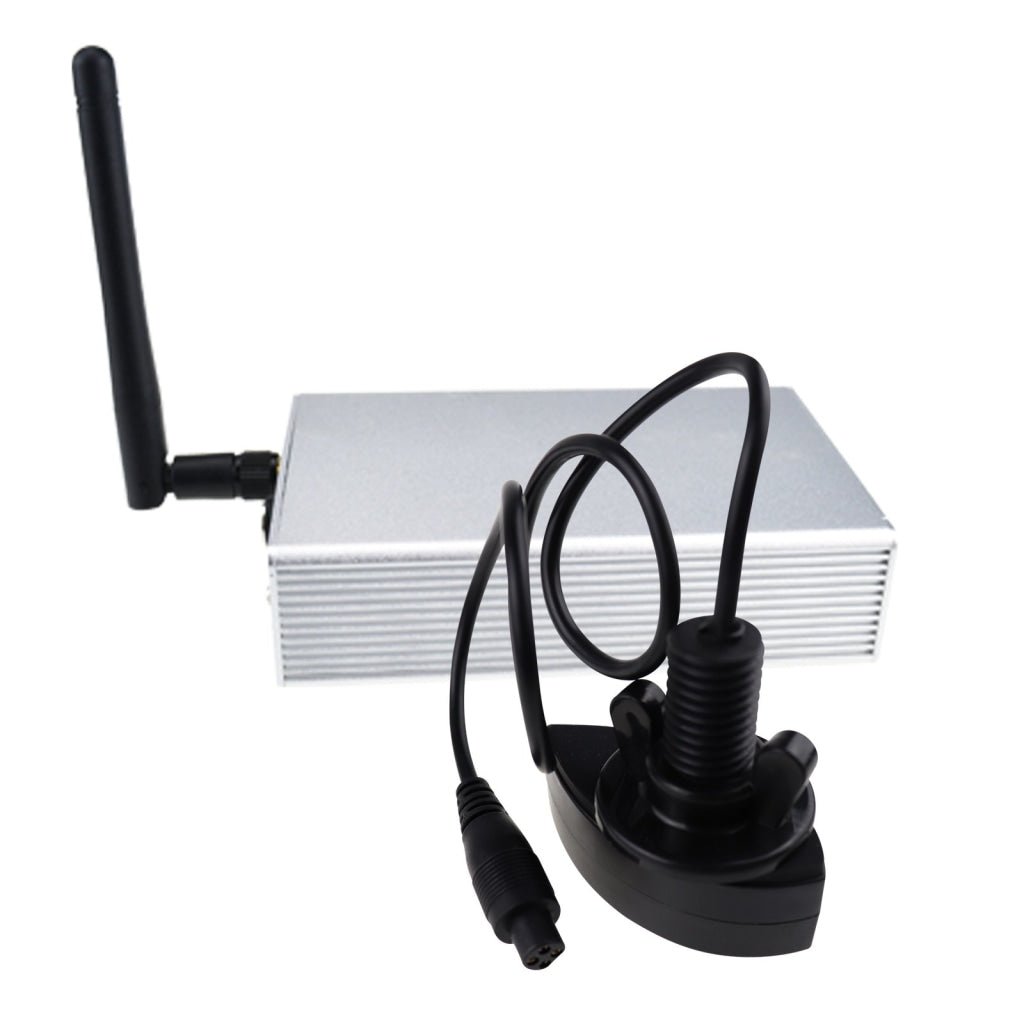

1 x Wireless Signal Tower
-
1 x Wireless Signal Tower Antenna

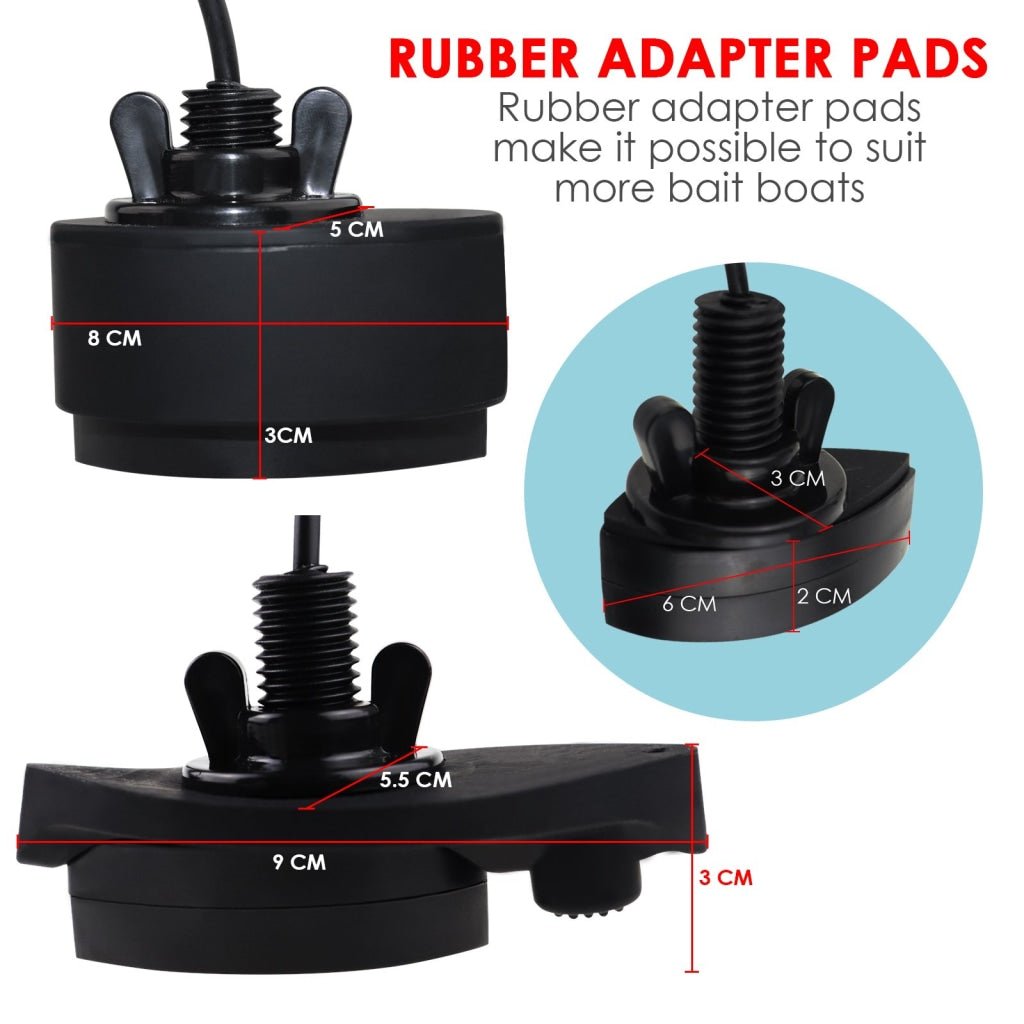

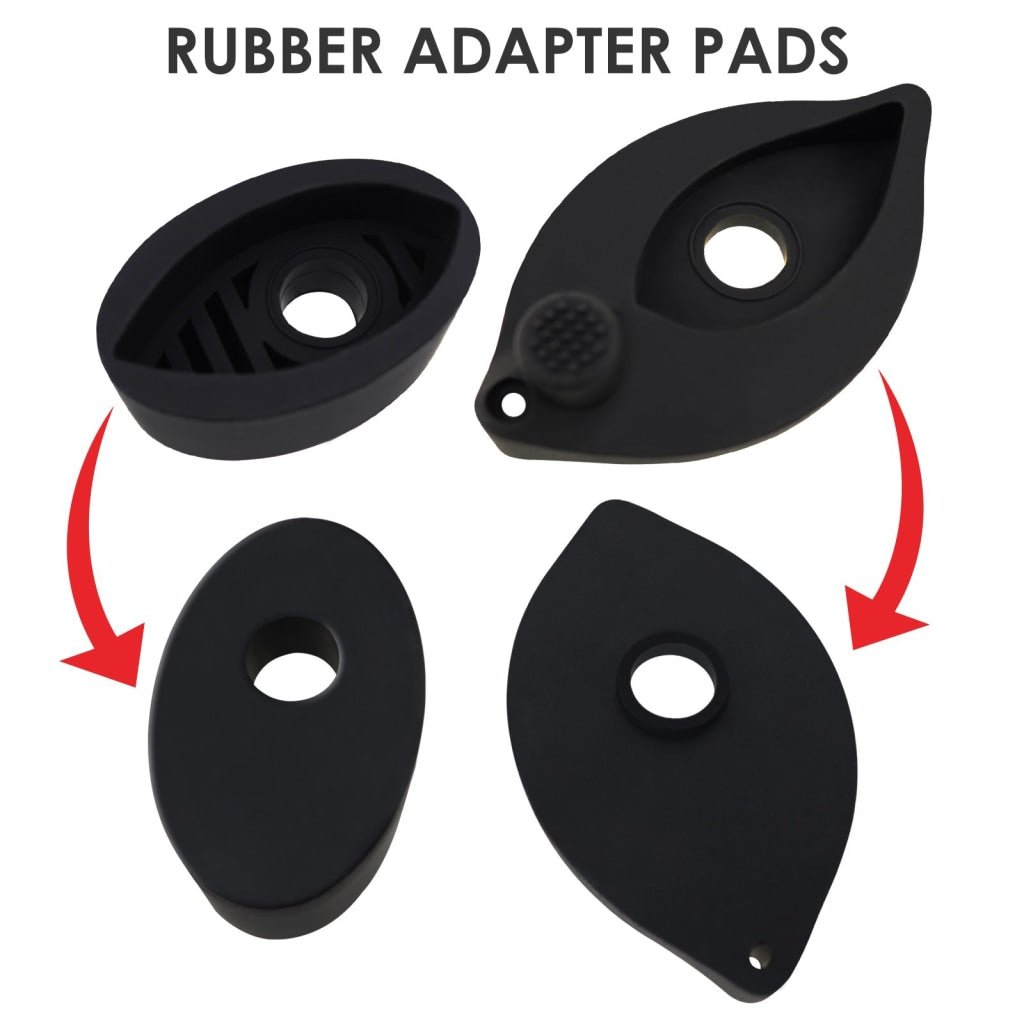

- 1 x Pair of rubber adaptor pads
-

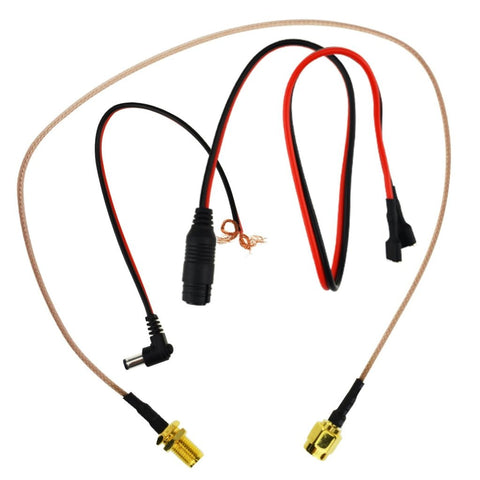

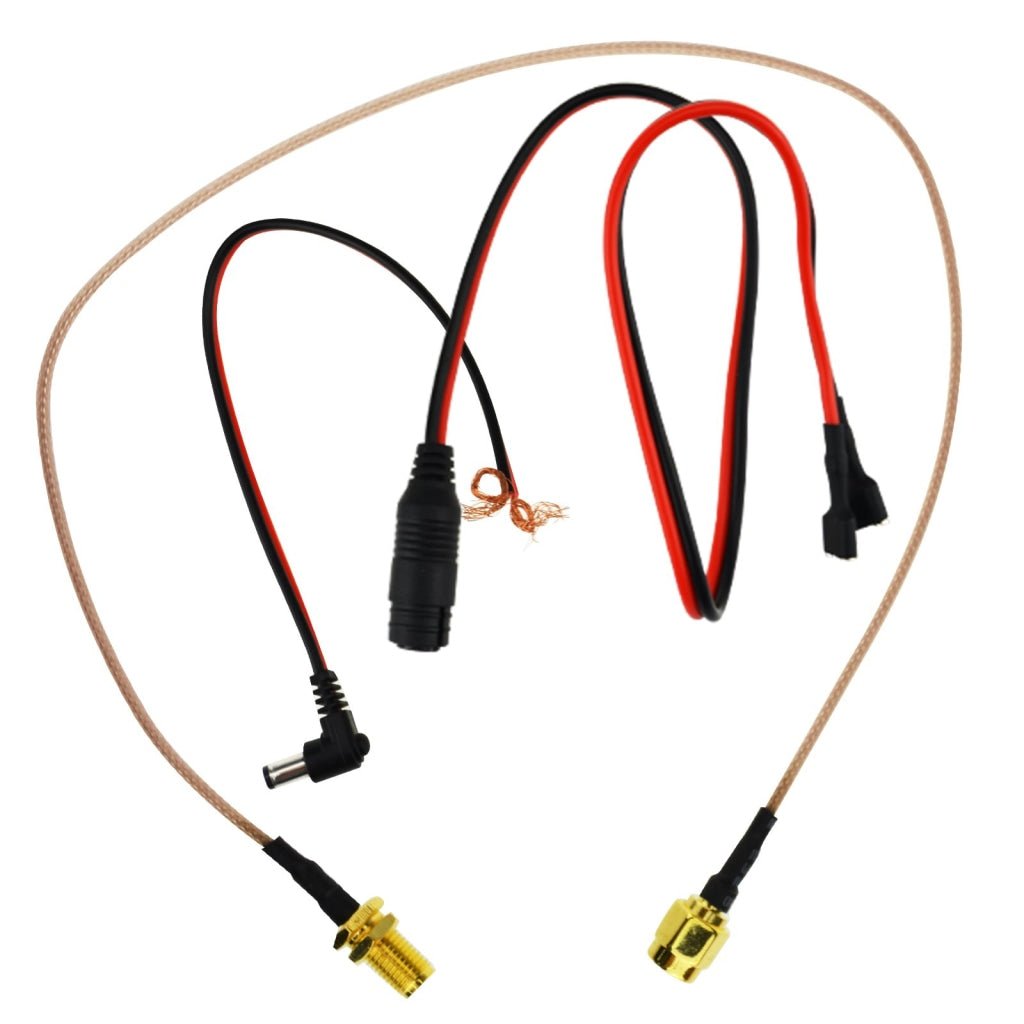

3 x Connecting cables
- English Instruction Manual
-
Standard Factory Packaging
