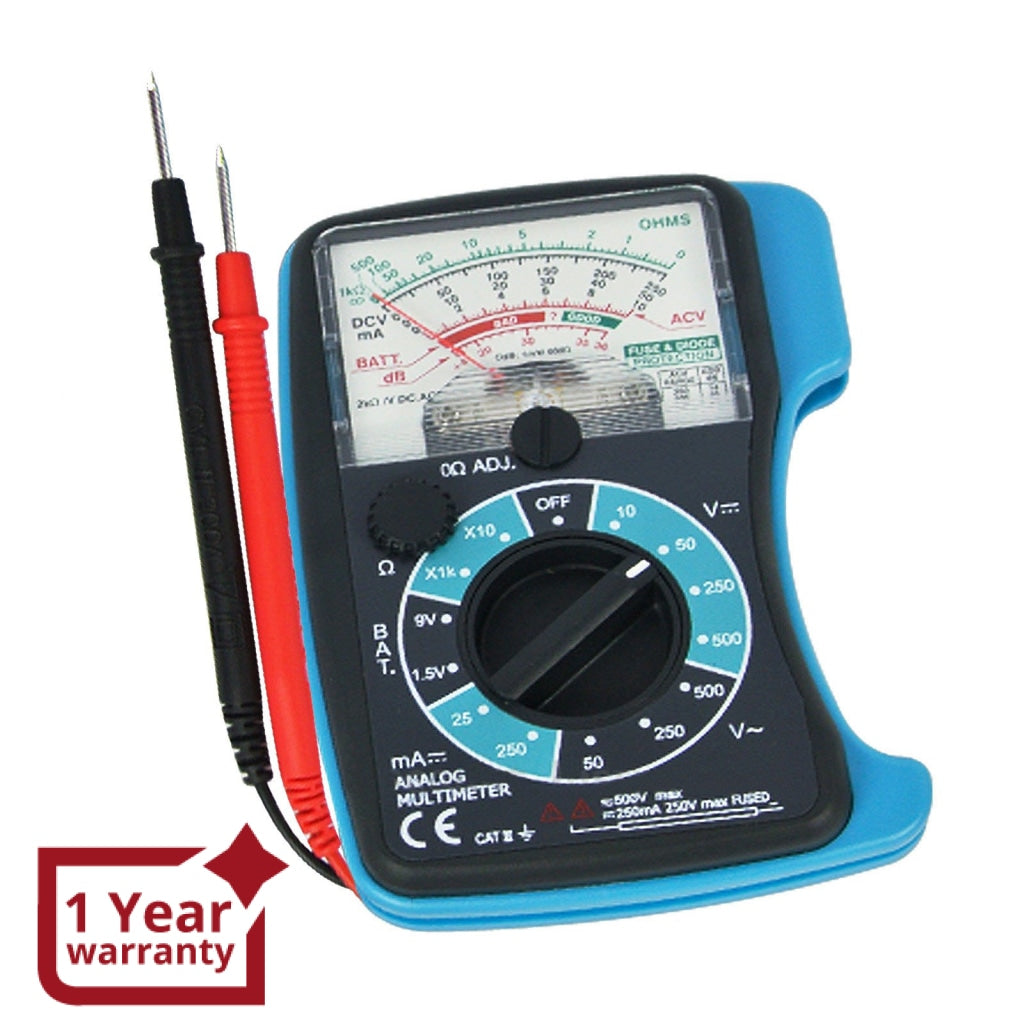

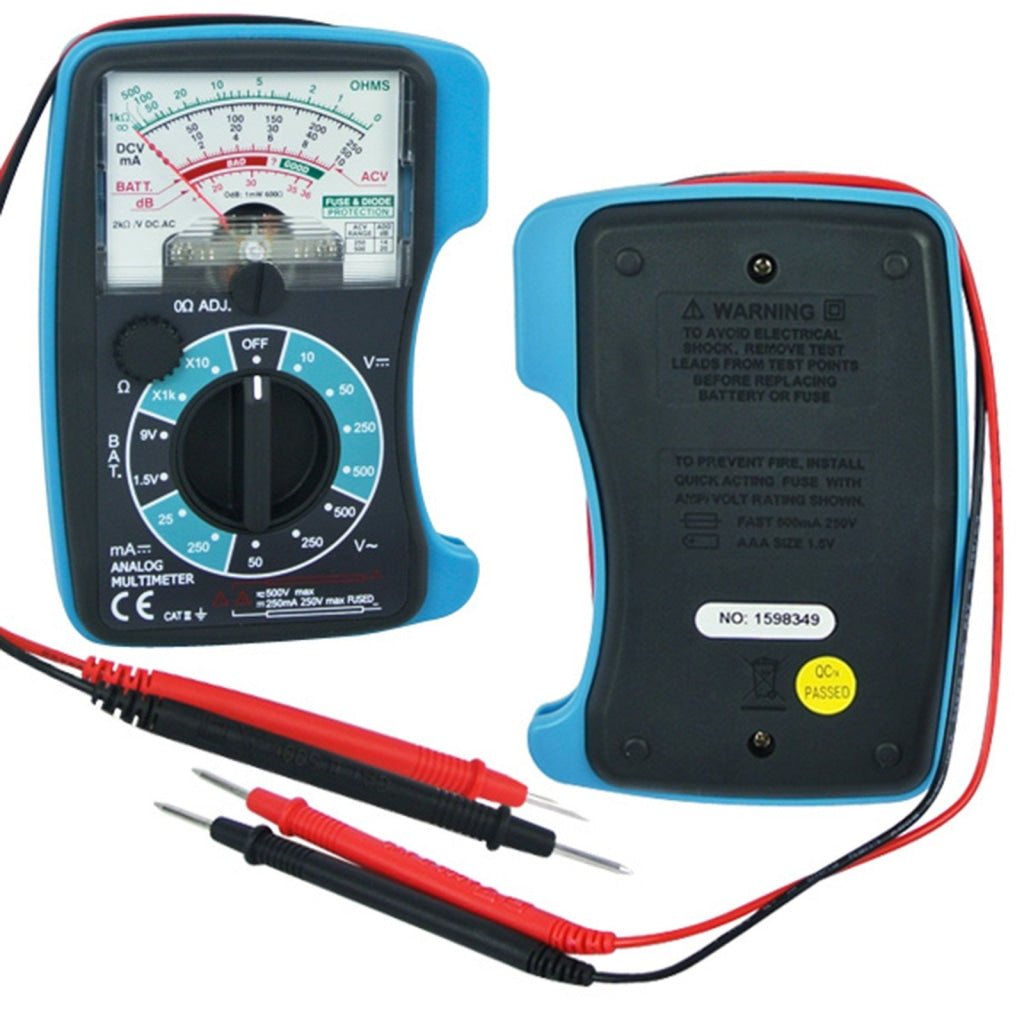

E04-018 Analog 5 Scales Multimeter DC AC Voltage DC Current OHM Decibel Resistance Pocket Size


Quantity
  OR


Model: E04-018

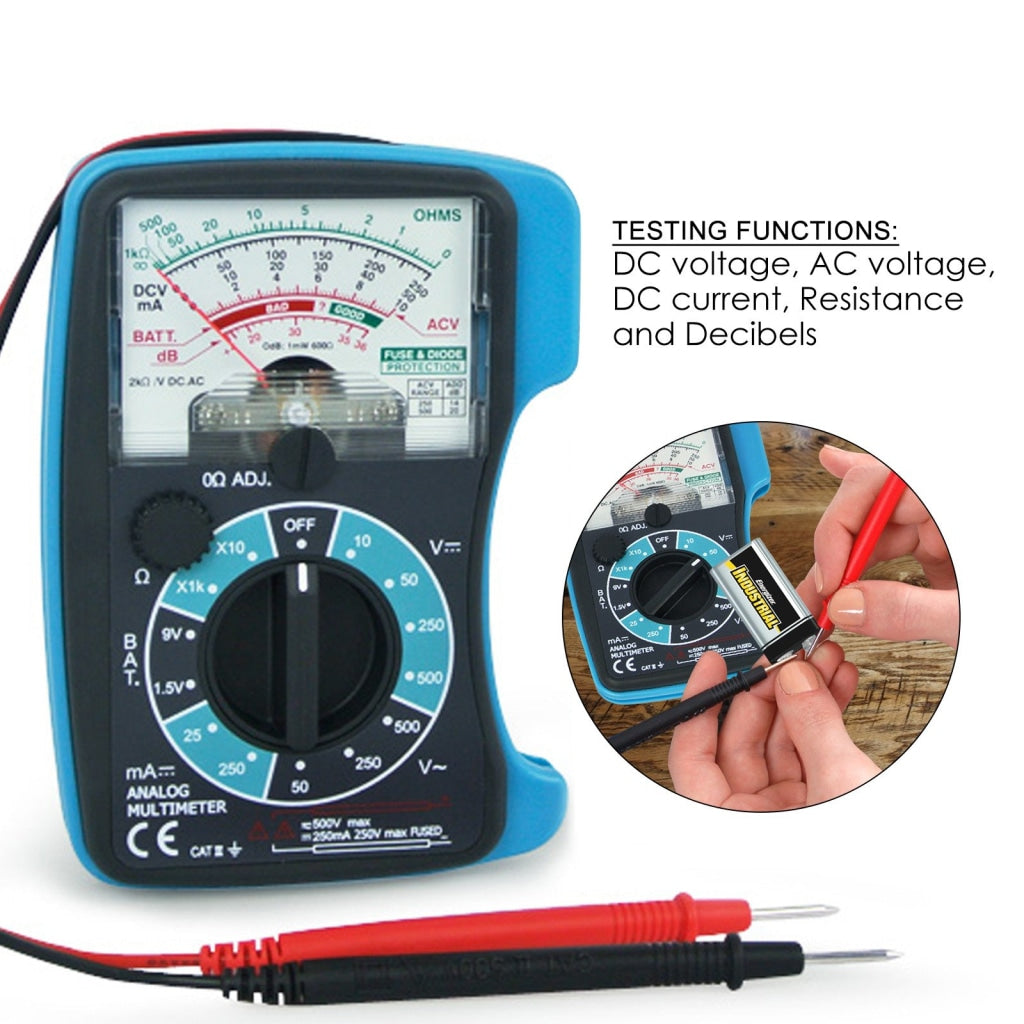

This pocket size multimeter is a recifier type, permanent-magnet moving coil instrument designed for measurements of DC voltageAC voltageDC currentResistance and Decibels.

The meter is to opearate at an ambient temperature from 0°C to 50°C with relative humidity of less than 85%.


Features:

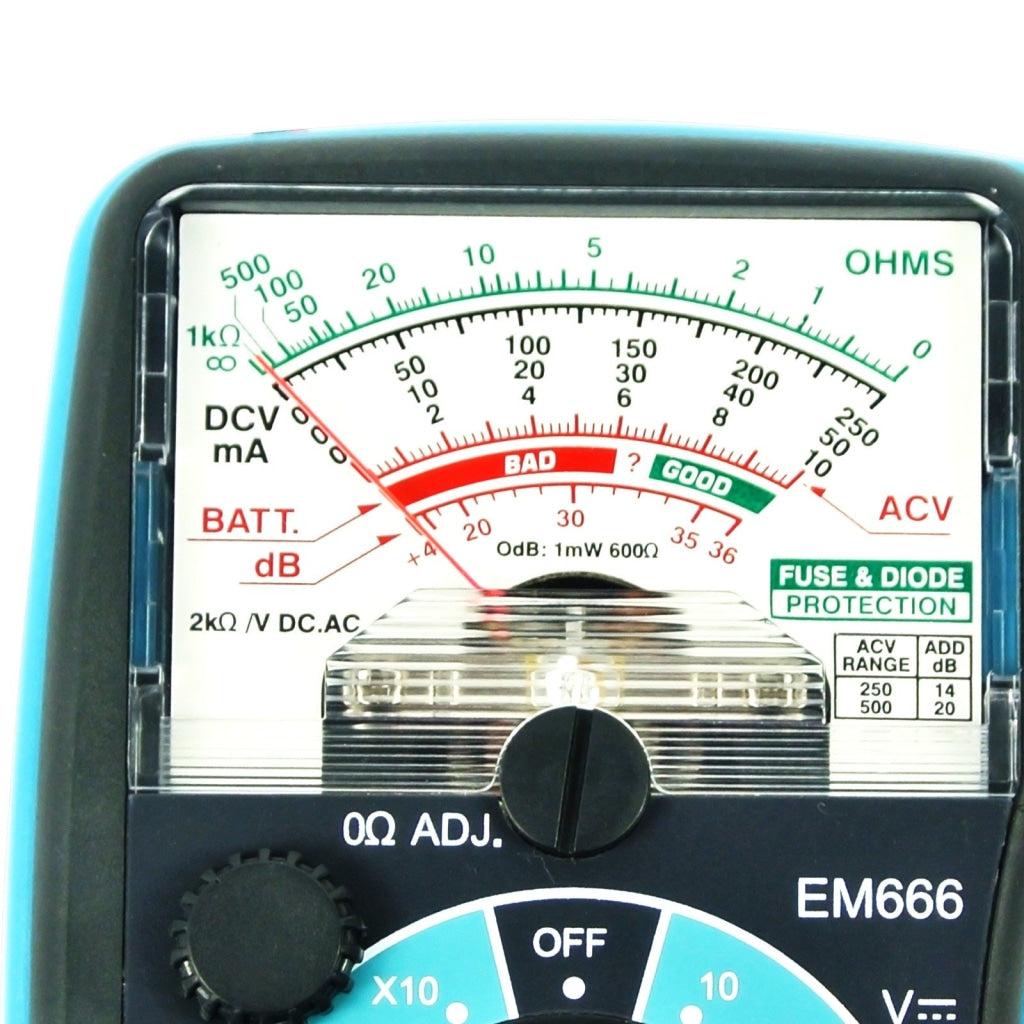

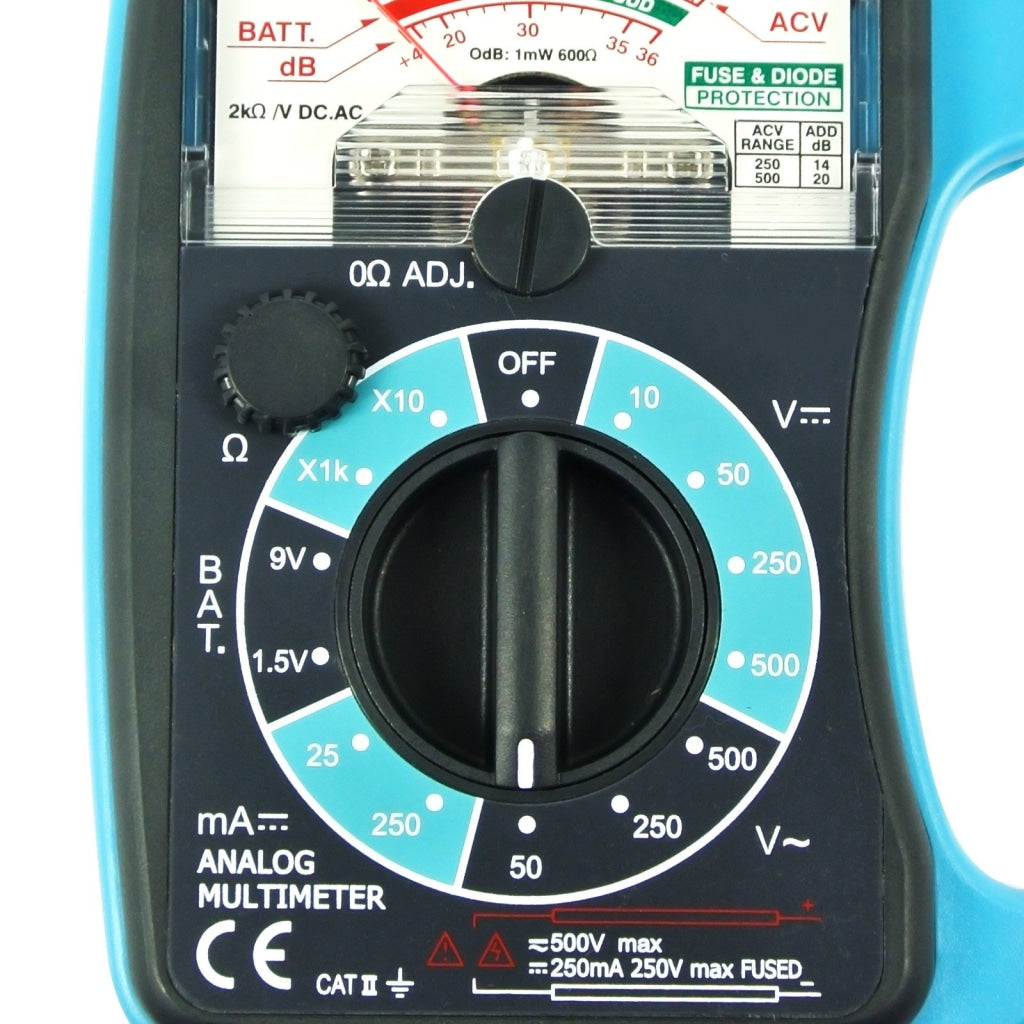

  • (5) five Scales:
    • The upper scale "OHMS" is for resistance measurements
    • The second scale "DCV.mA" is for DC voltage measurements and DC current measurements.
    • The third scale "ACV" is for AC voltage measurements.
    • The fourth scale "BATT" is for battery test.
    • The Fifth scale "dB" is for decibels.
  • Battery check function
  • Full measurement ranges protection

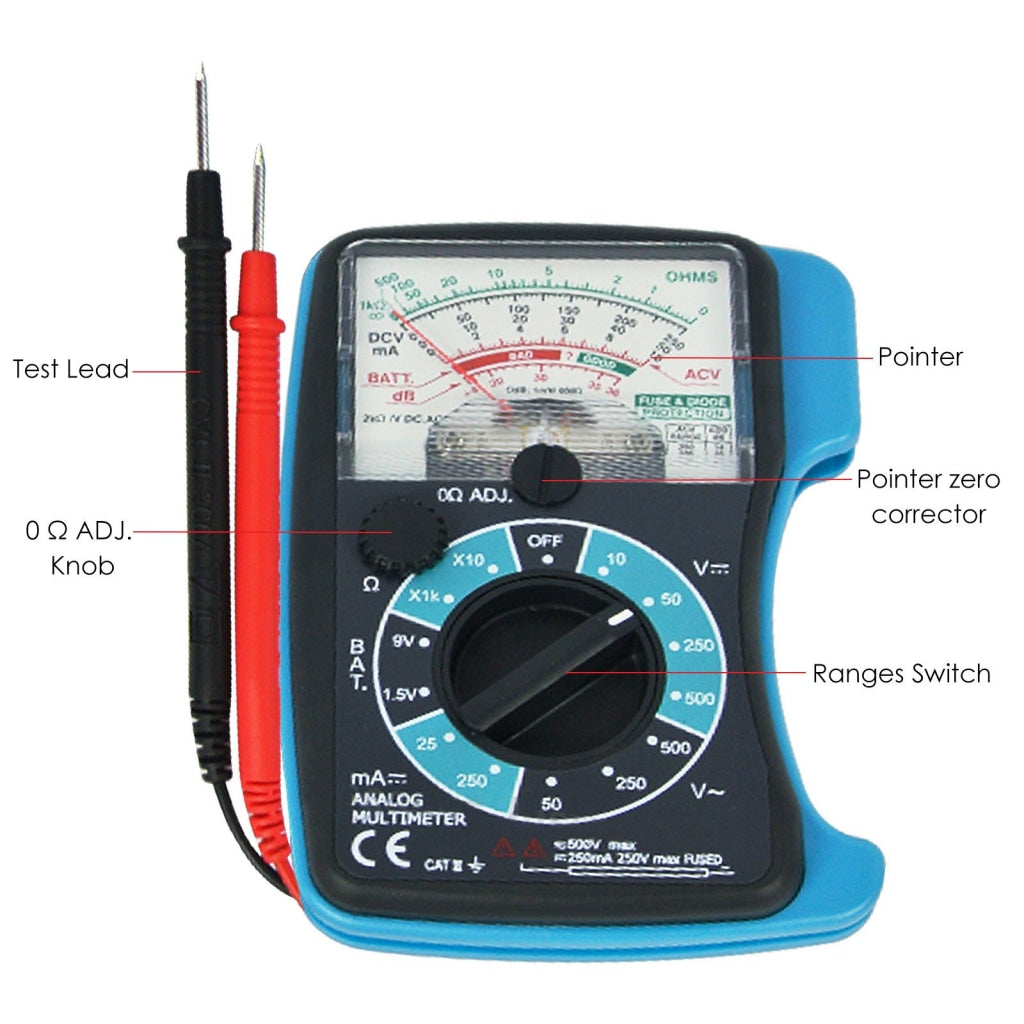

  • Moulded rubber casing

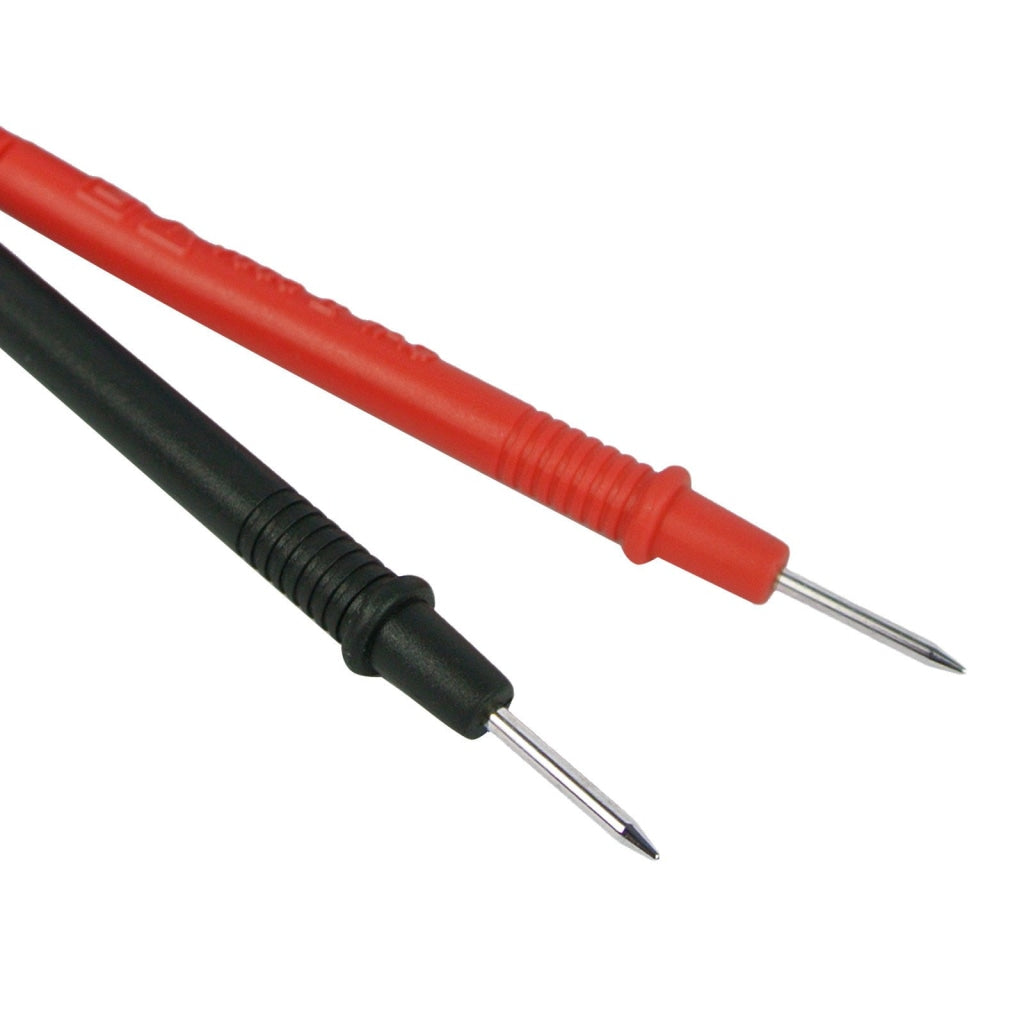

  • Integrated test leads
  • Zero adjust control
  • Pocket-size analog meter



Specification

  • DC voltage : 0~10~50~250~500V
    • Accuracy at FSD : 5 ; 2000Ω/V
  • DC Current : 0~25~250mA
    • Accuracy at FSD : 5
  • AC Voltage : 0~50~250~500V
    • Accuracy at FSD : 5 ; 2000Ω/V
  • Resistance : 0~10kΩ~1MΩ
    • Accuracy at FSD : 5;
    • (arc length) central value 5.5
  • Decibel : +4 ~ +36dB

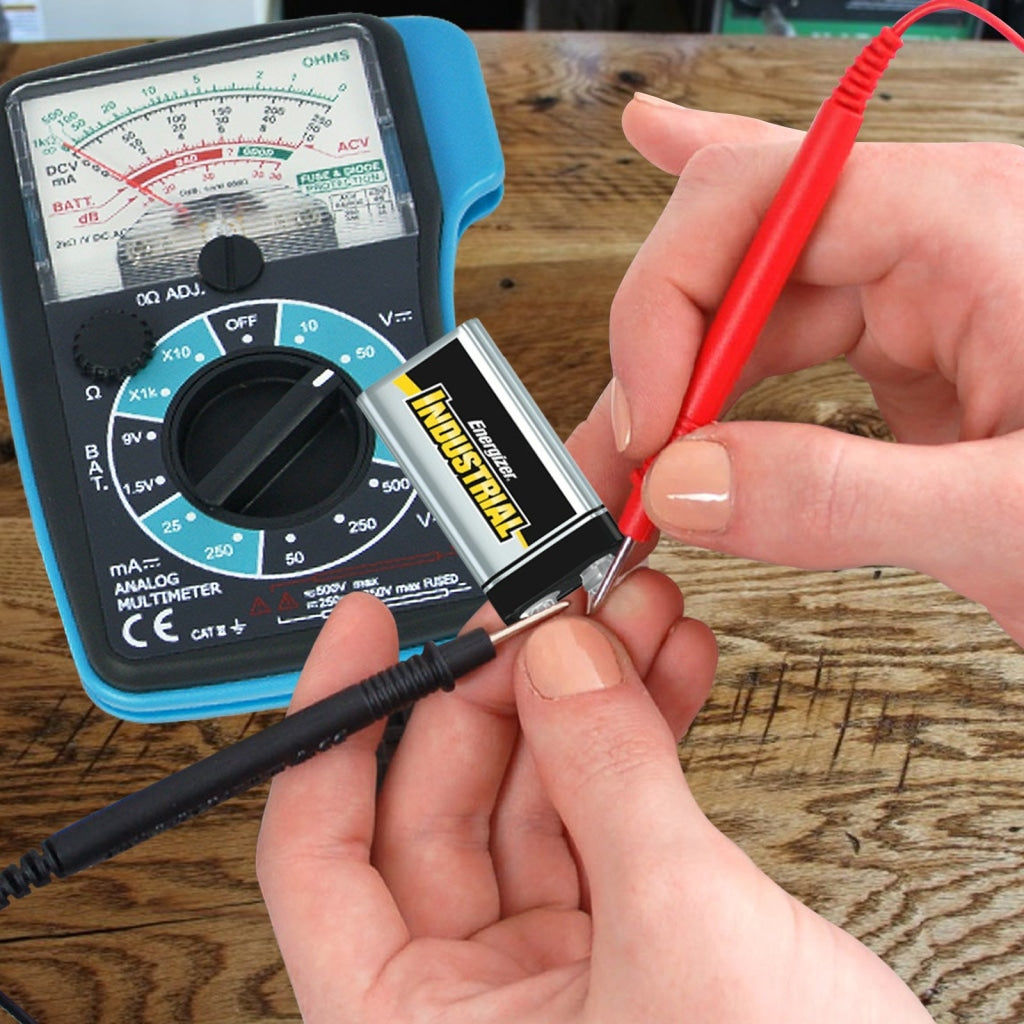

  • Battery Test : 1.5V (about 100mA)
    • 9V (about 20mA)
  • Safety Standard : IEC-61010-1, CAT II 500V
  • Withstand Voltage : AC3700V for one minute between internal circuit and housing case
  • Type of Fuse : 500mA / 250V, Fast action, Ø5x20mm
  • Overload Protection : Protected by fuse and diode against accidental overload.
  • Operating Environment :
    • Temperature : 0~40°C
    • Relative humidity : <80%
  • Storage Environment :
    • Temperature : 0~50°C
    • Relative humidity : <85%

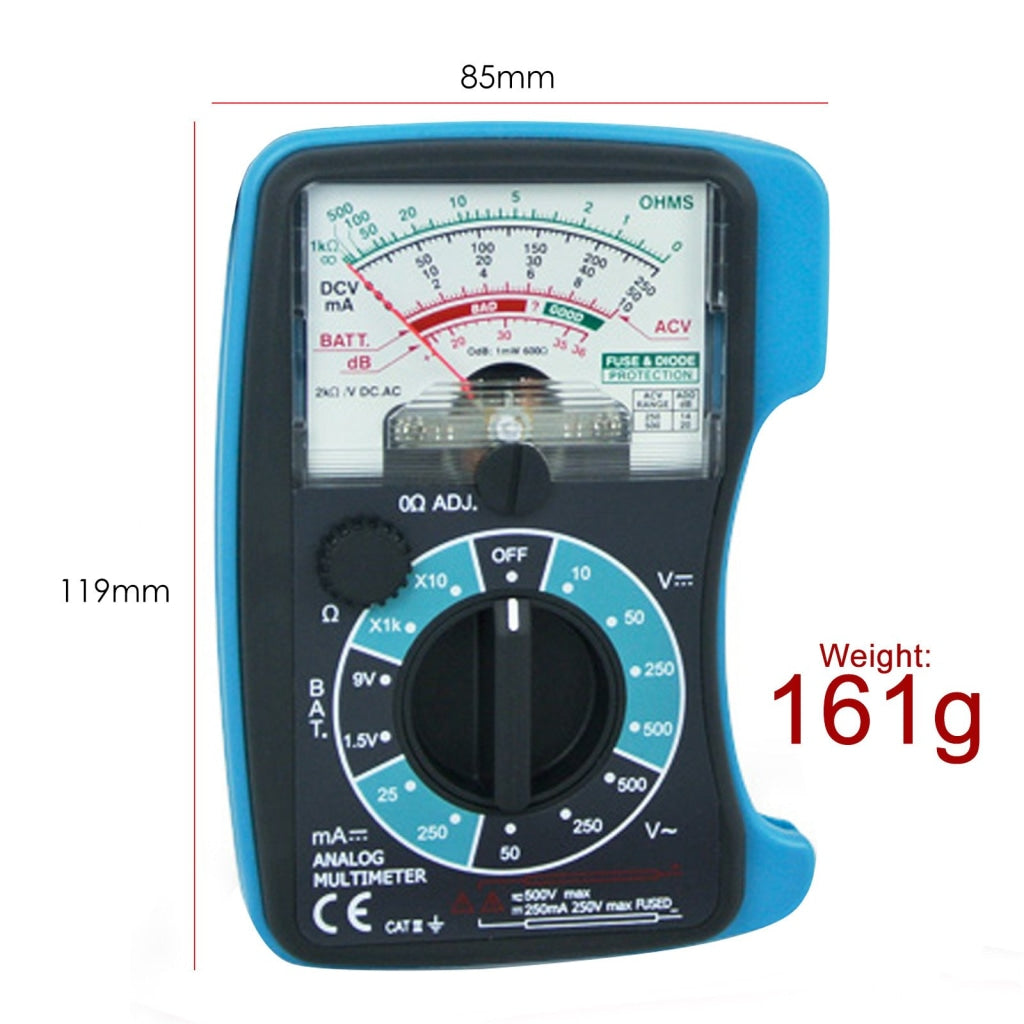

  • Size : 119 x 85 x 28mm
  • Weight : about 161g

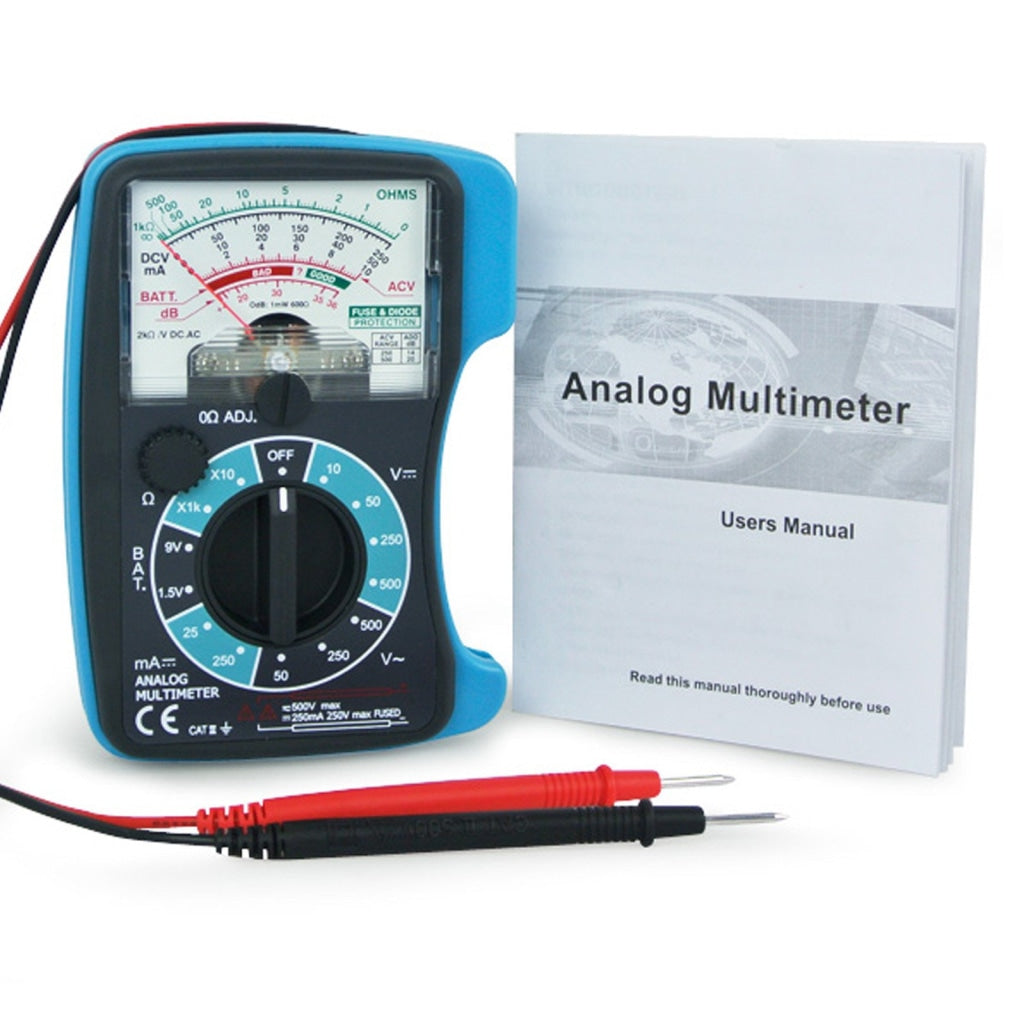

Set includes:

  • 1 x Analog Multimeter
  • 1 x English Instruction Manual
  • Blister Packging
