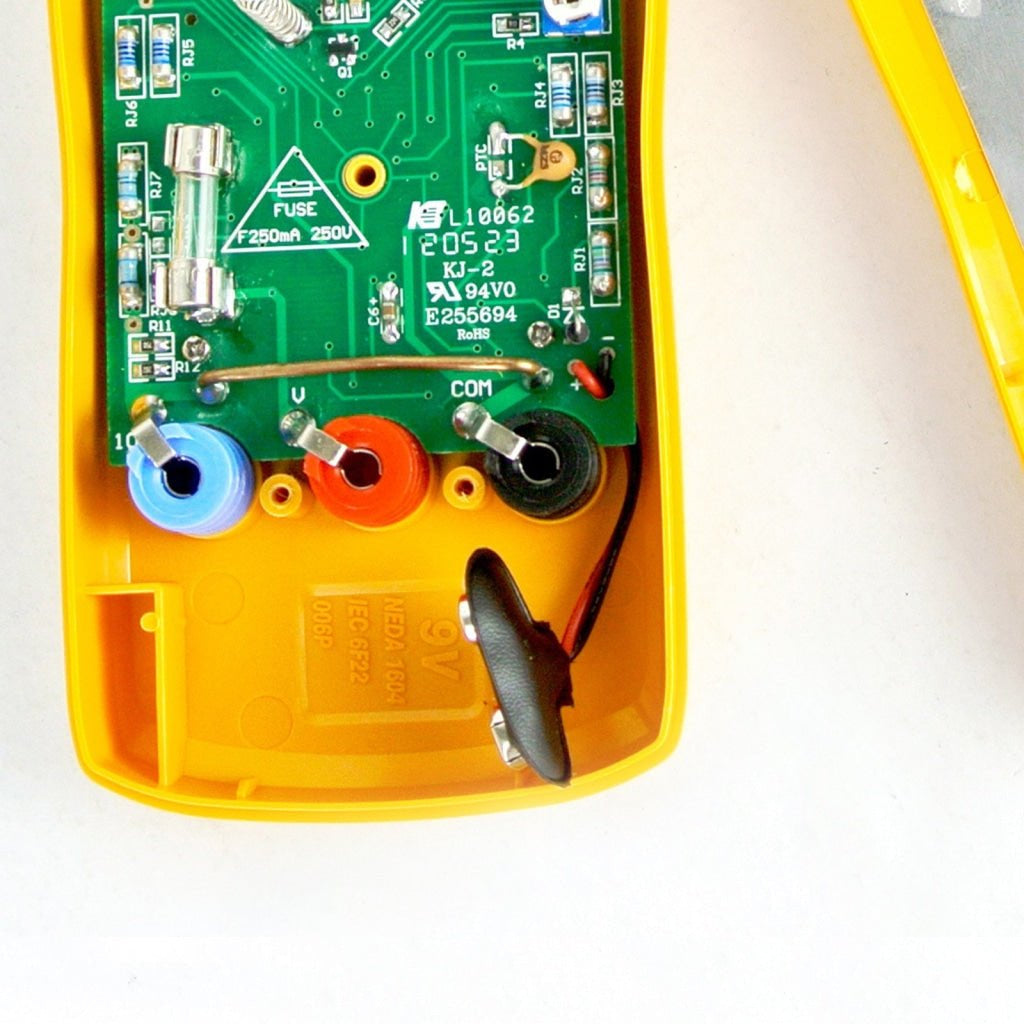

E04-009 Digital Multimeter 1999 Counts ACV DCV DC Current Diode Battery Tester Meter LCD Display CE Marking

Save 18%

Quantity
  OR
Free Shipping via Registered AirMail with Tracking Number How to Apply a Discount Code and Change Shipping Method
Ask for a Quote Learn More About the Checkout Process


Model: E04-009

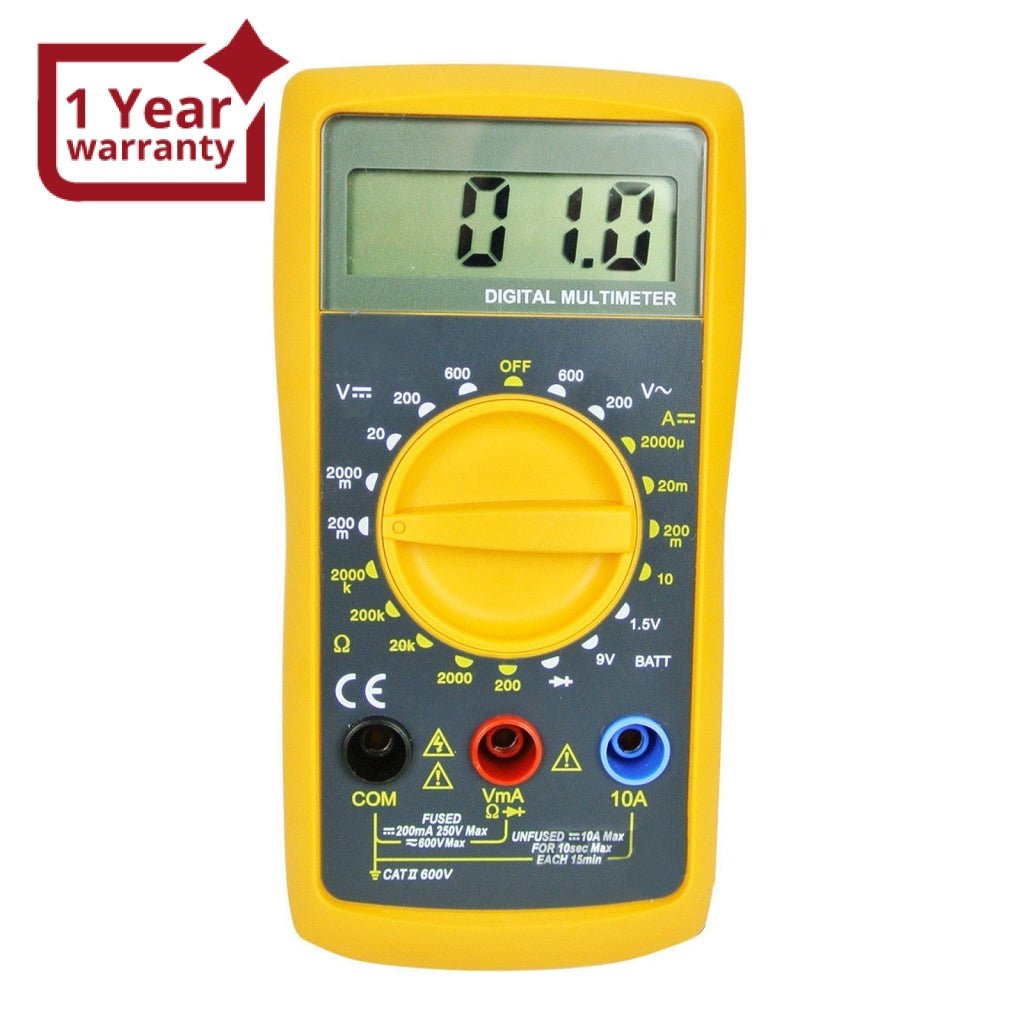

This Digital Multimeter is used for measuring DC and AC voltage, DC current, Resistance and testing Diode. It also has battery test function. It has 3 1/2 digit LCD display with maximum reading of 1999.

It is an ideal instruments for use in fields, laboratory, workshop, DIY and home applications.

This Multi function meter asserts that the item meets all the essential health and safety requirements set out in European Directives (CE Marking).

Features:

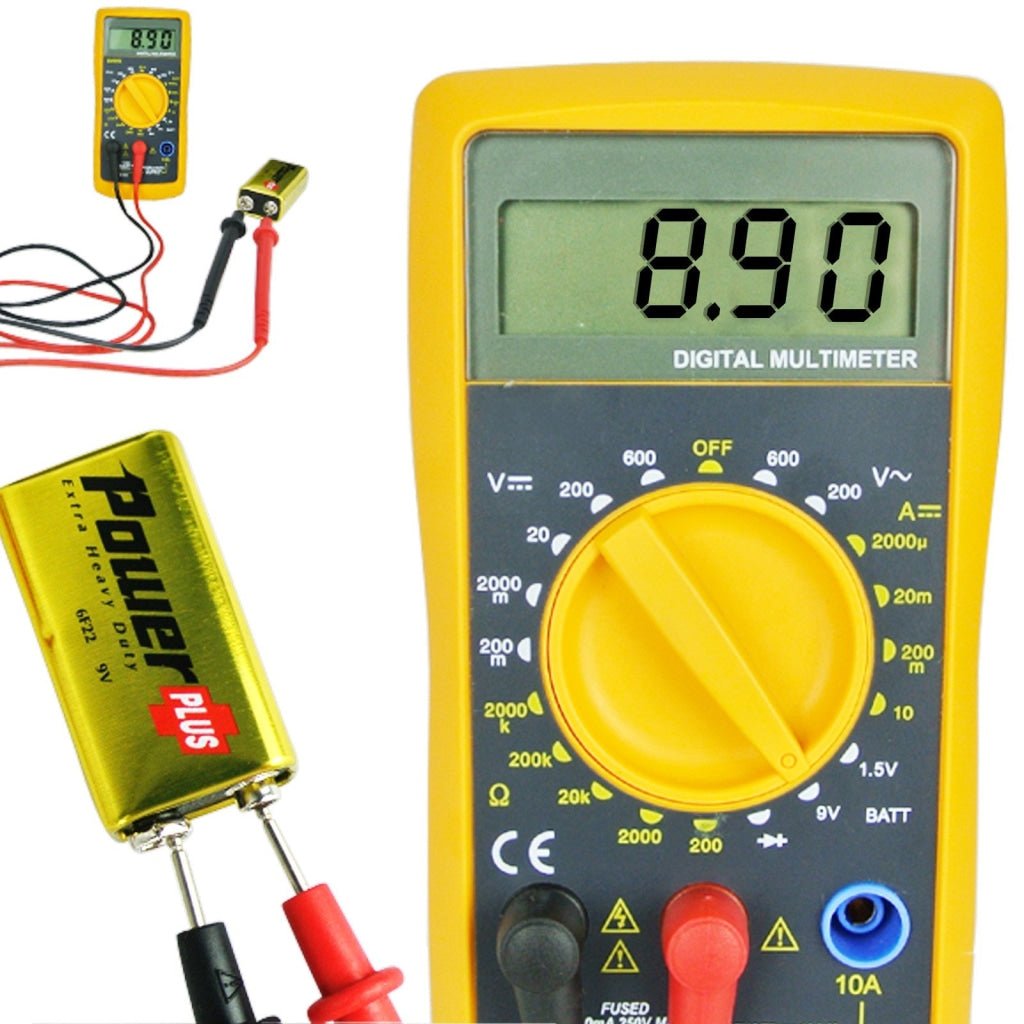

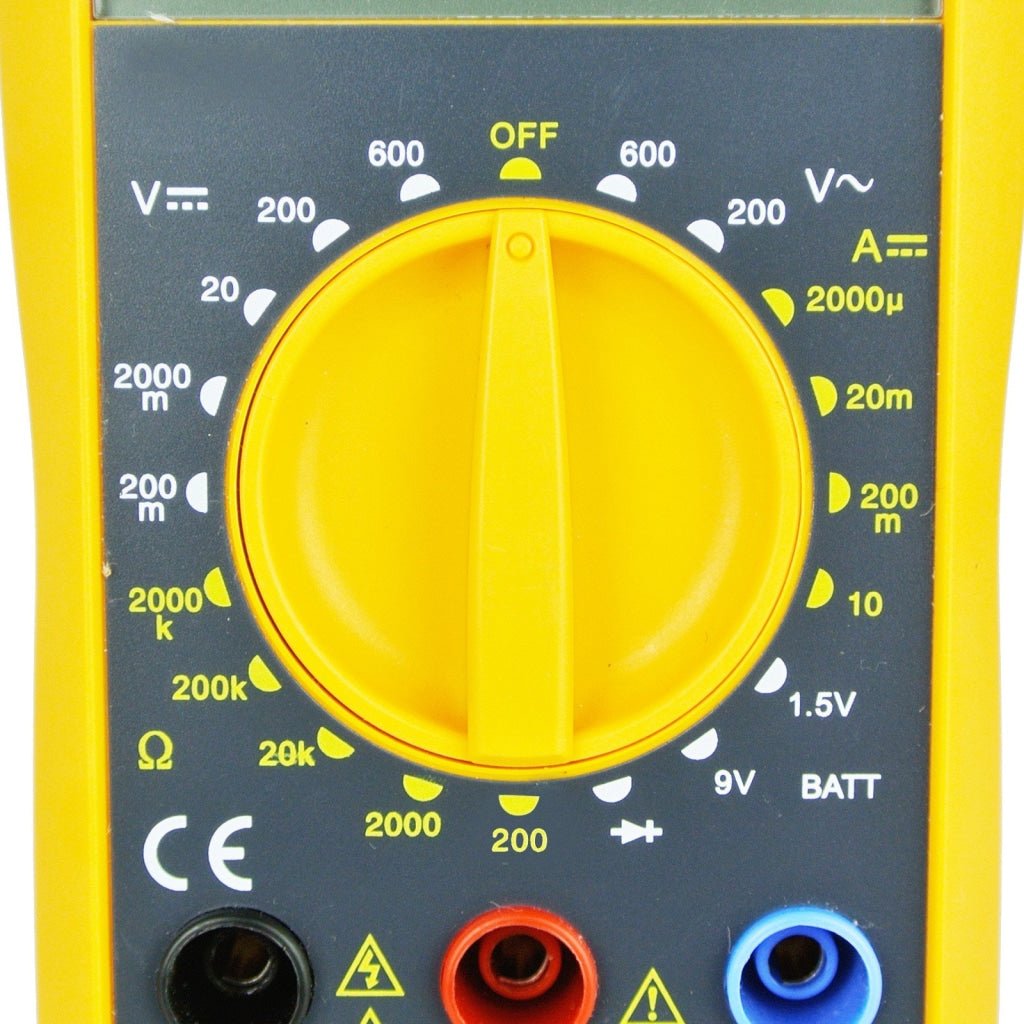

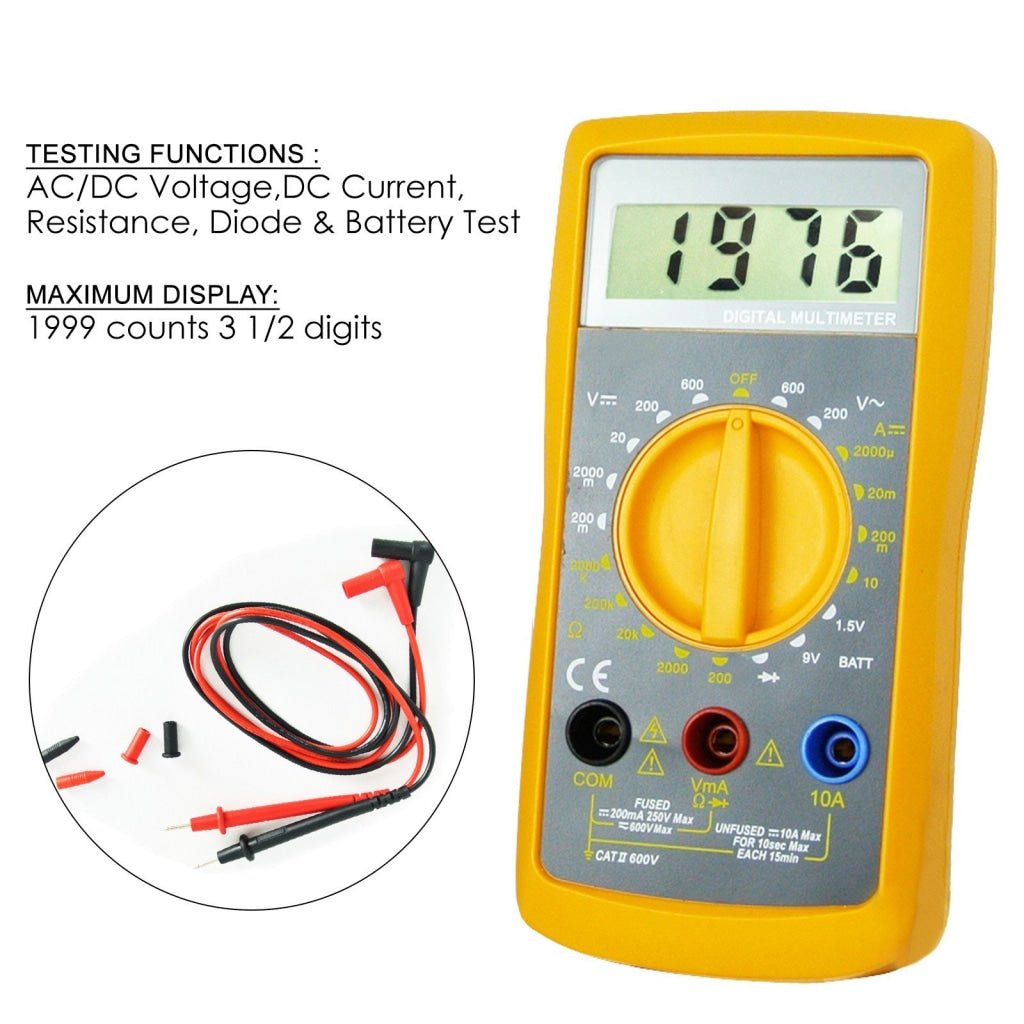

  • Multiple function measurement : AC/DC Voltage,DC Current, Resistance, Diode and Battery Test

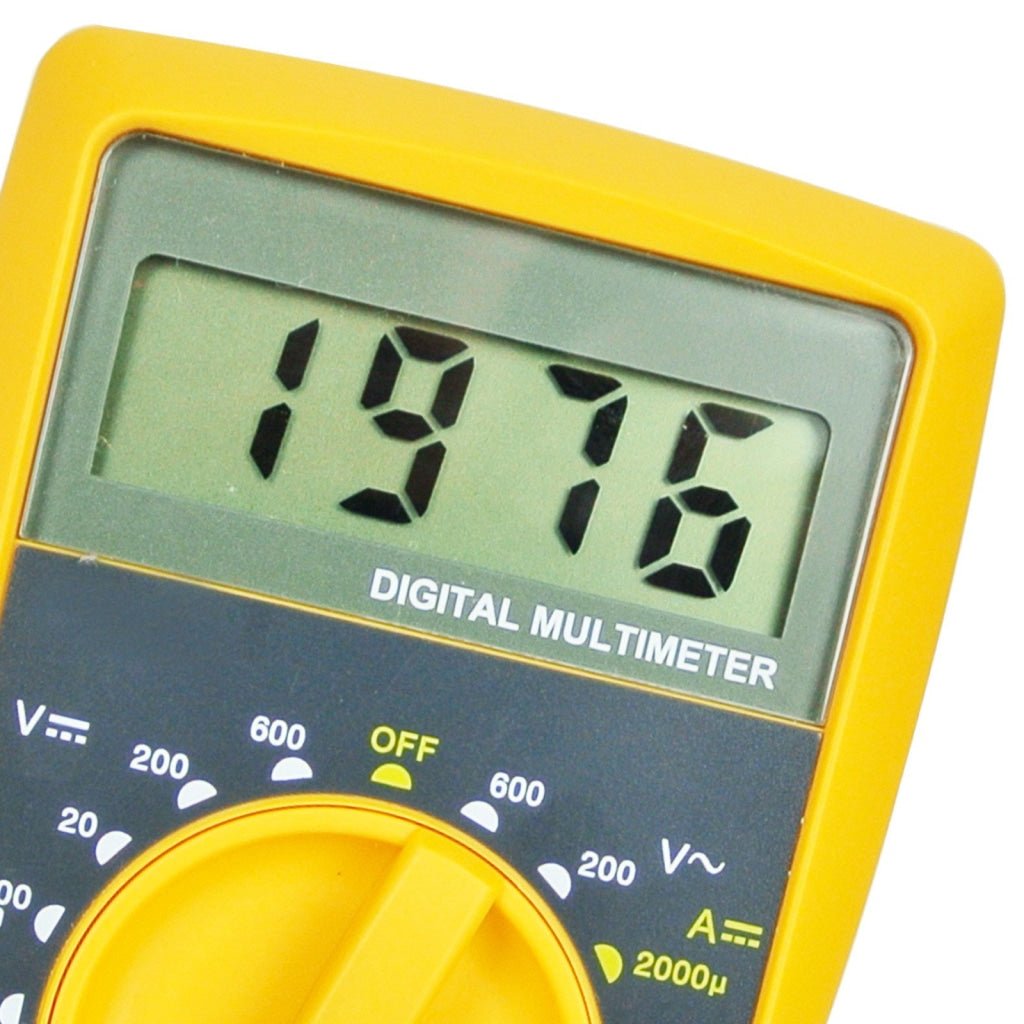

  • 1999 Counts, 3 1/2 digits Large LCD display
  • It has low battery indication appeared on the LCD
  • Design according to IEC61010 concerning electronic measuring instruments with measurement category (CAT II 600V)

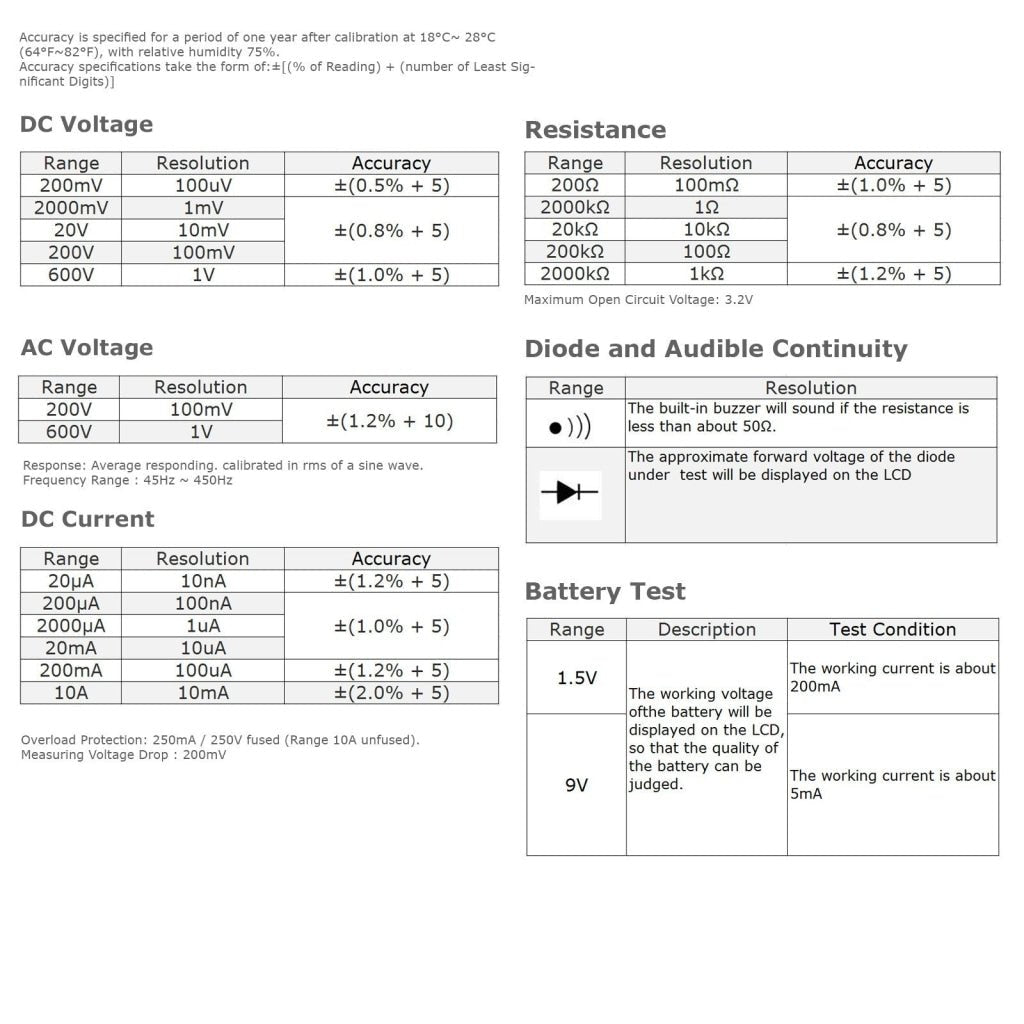

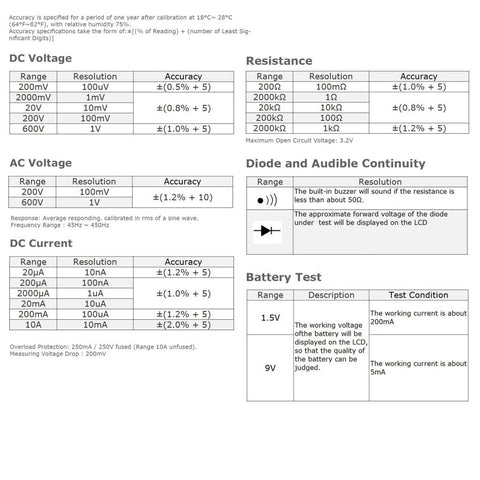

Specifications:

  • Maximum display: 1999 counts (1/2 digits) with automatic polarity indication
  • Indication Method: LCD Display
  • Over-range Indication: Only figure "1" displayed on the LCD
  • Reading Rate: about 2~3 times/second
  • Operating Temperature: 0~40°C (32~104°F), <75% RH
  • Storage Temperature: -10~50°C (14~122°F), <75% RH
  • Power Supply: 1 x 9V Battery

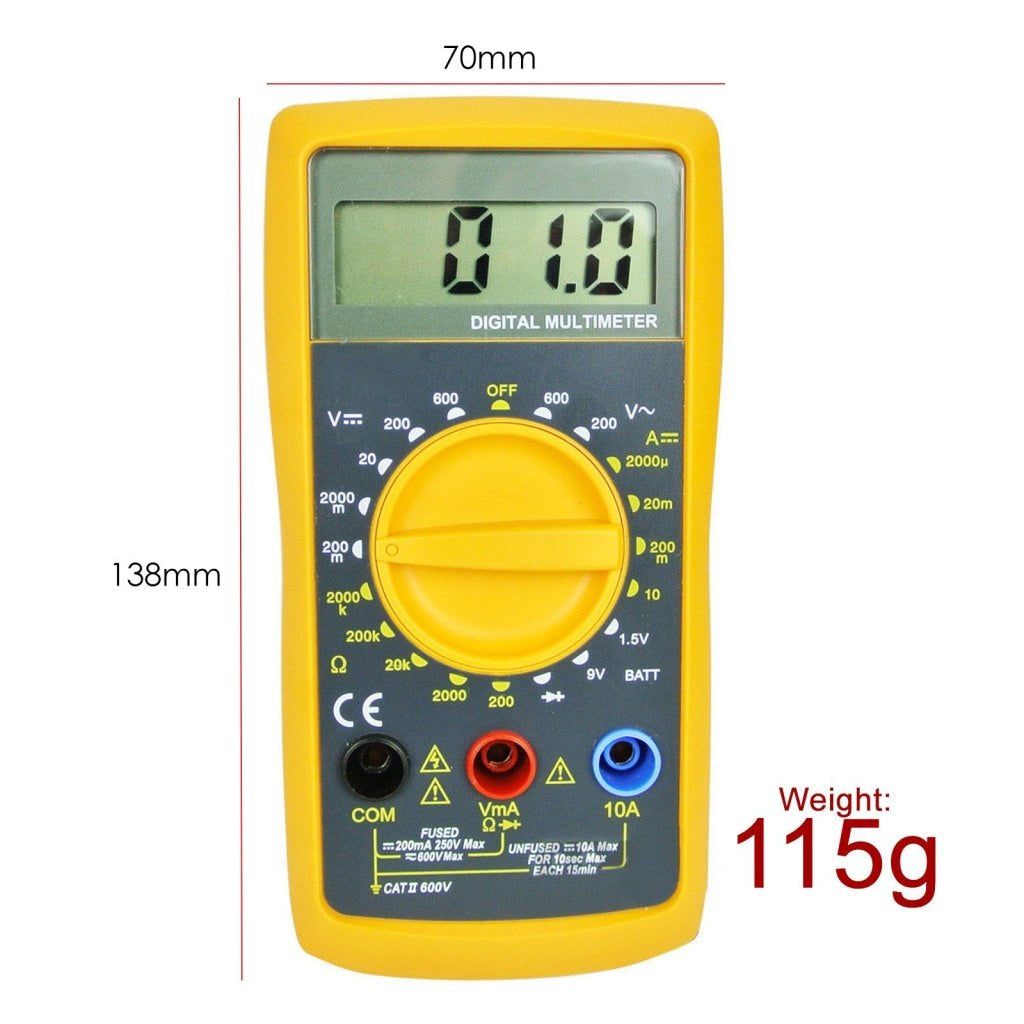

  • Dimensions: 138 x 70 x 28 (mm)
  • Weight: 115g (including battery)

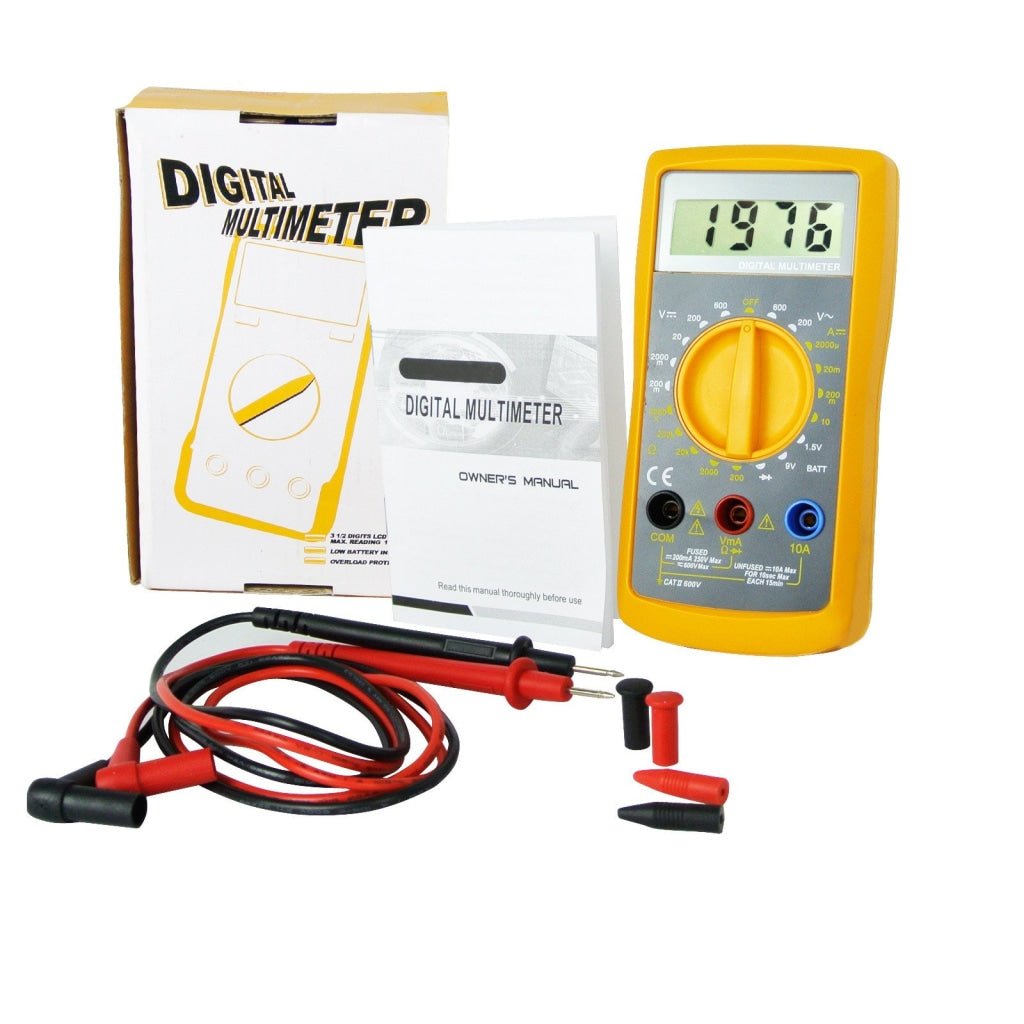

Set includes:
  • 1 x Digital Multimeter

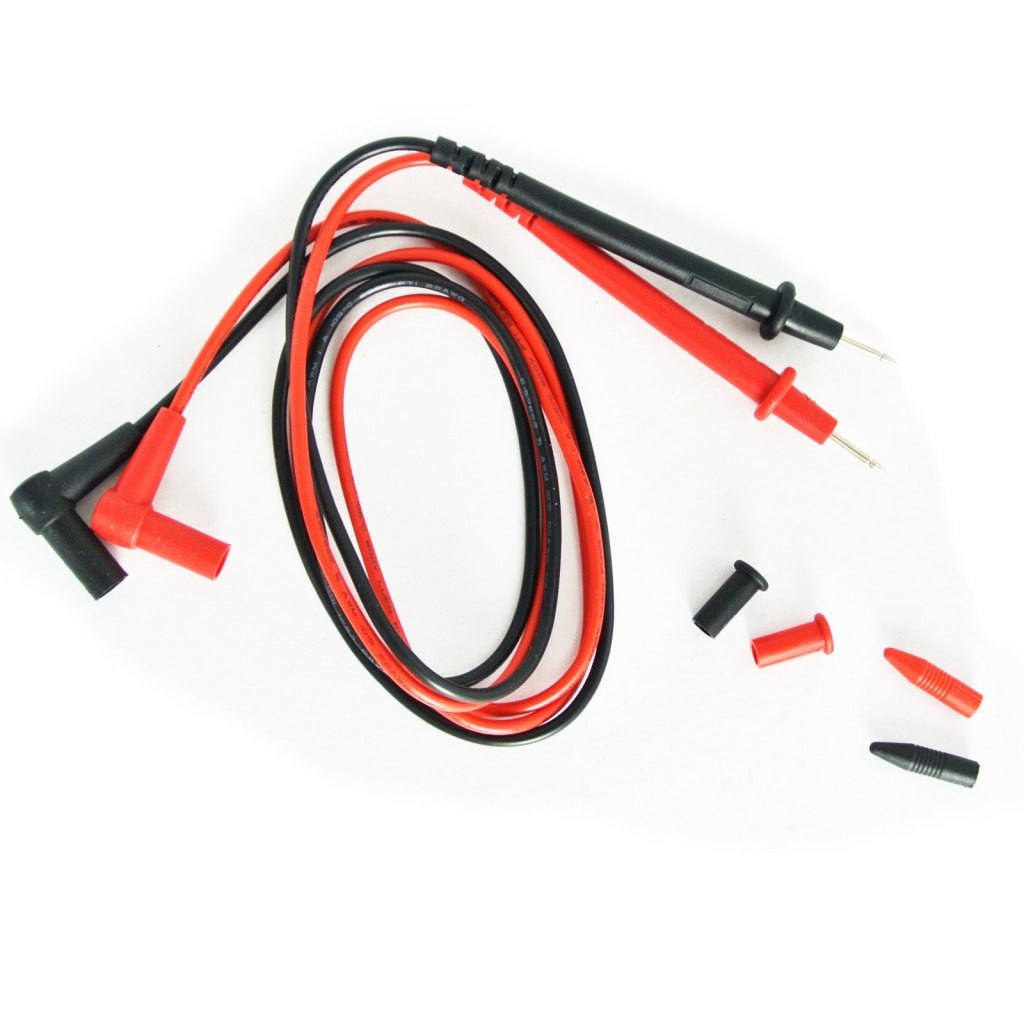

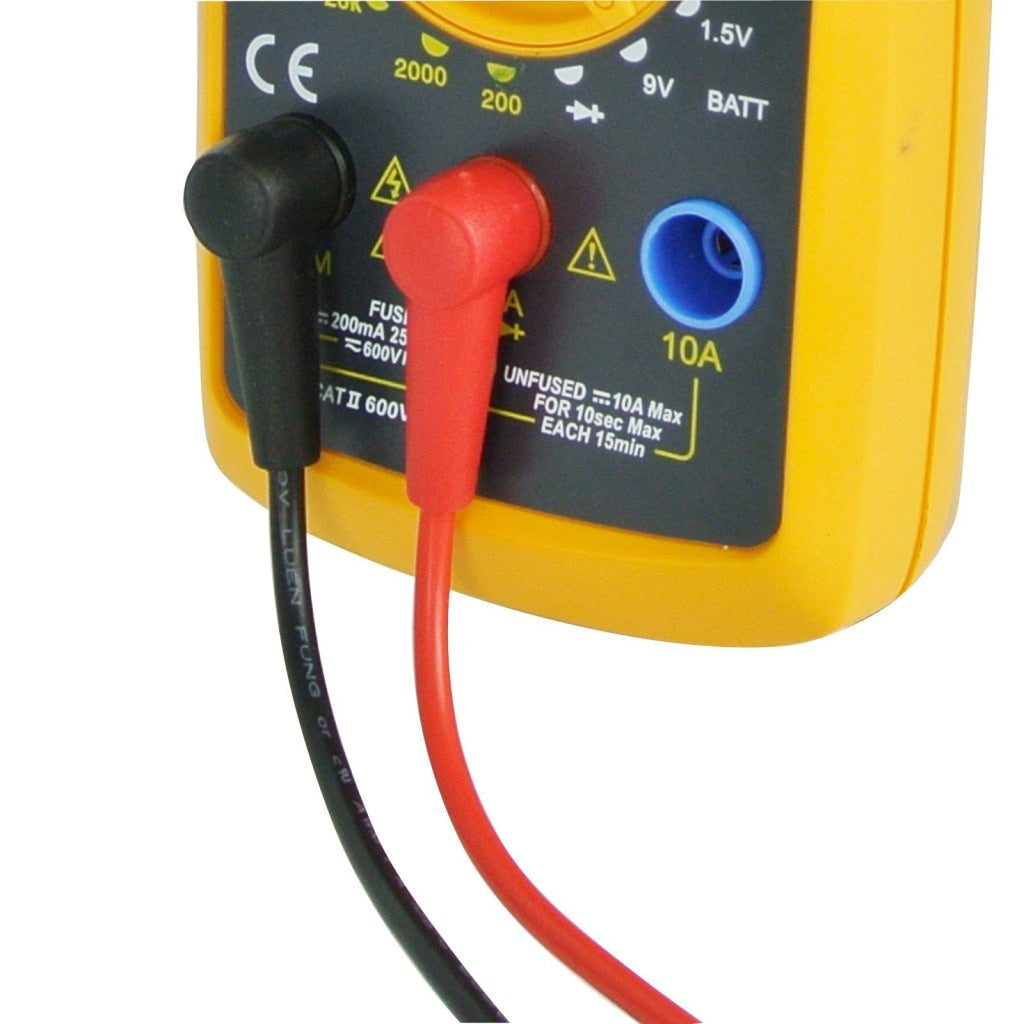

  • 1 x Test Leads (pair)
  • 1 x 9V Battery (FREE)
  • 1 x English user Manual
  • Standard Packaging
