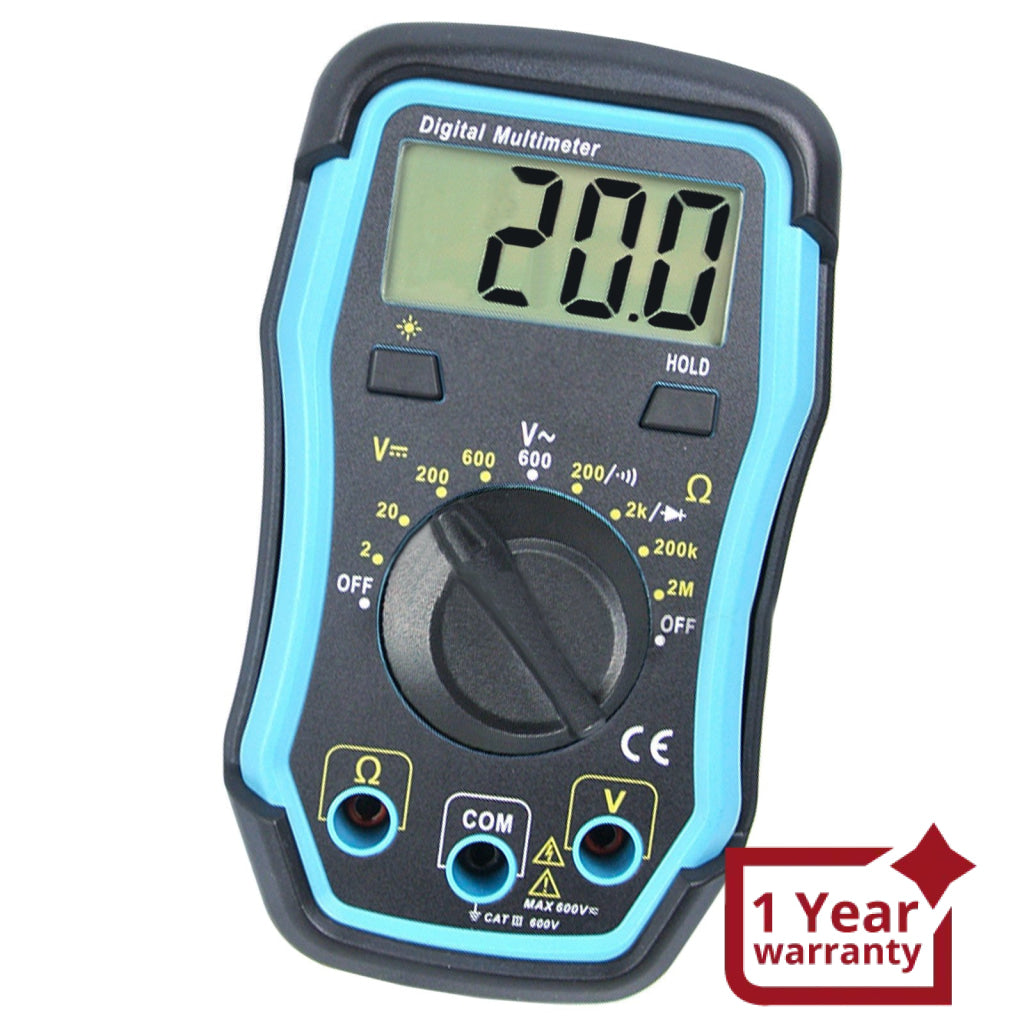

E04-008 Multimeter DC AC Resistance Diode Tester w/ Backlight 1999 Reading LCD Display CE Marking


Quantity
  OR

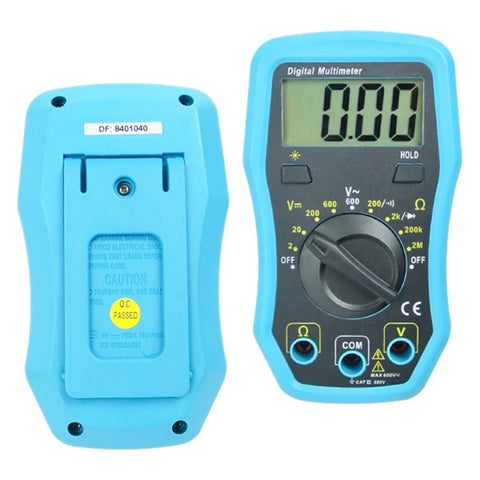

Model: E04-008

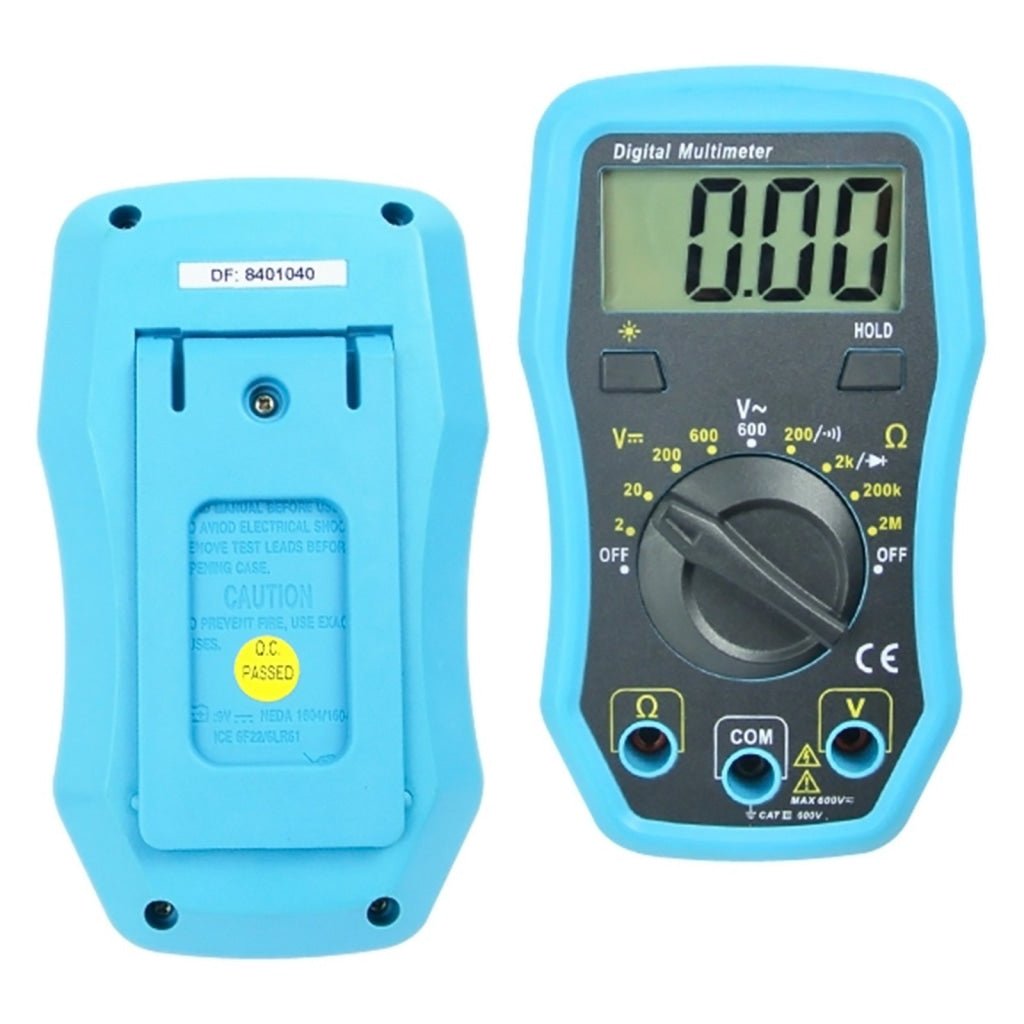

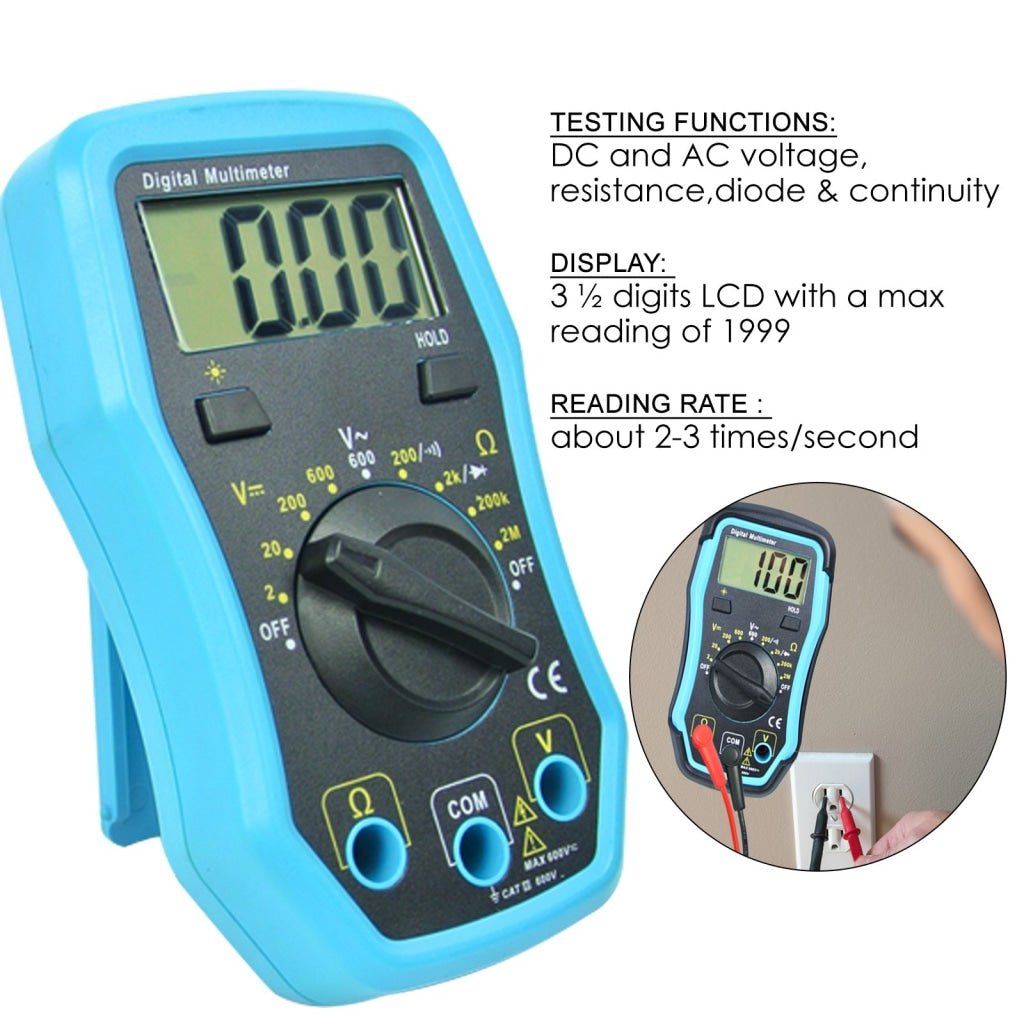

This multimeter is a compact 3 1/2 digits digital multimeter for measuring DC and AC voltage,resistance,diode and continuity. It features low battery indication and full range overload protection.It is easy to operate and is an ideal measurement tool.

This multimeter meter asserts that the item meets all the essential health and safety requirements set out in European Directives (CE Marking).

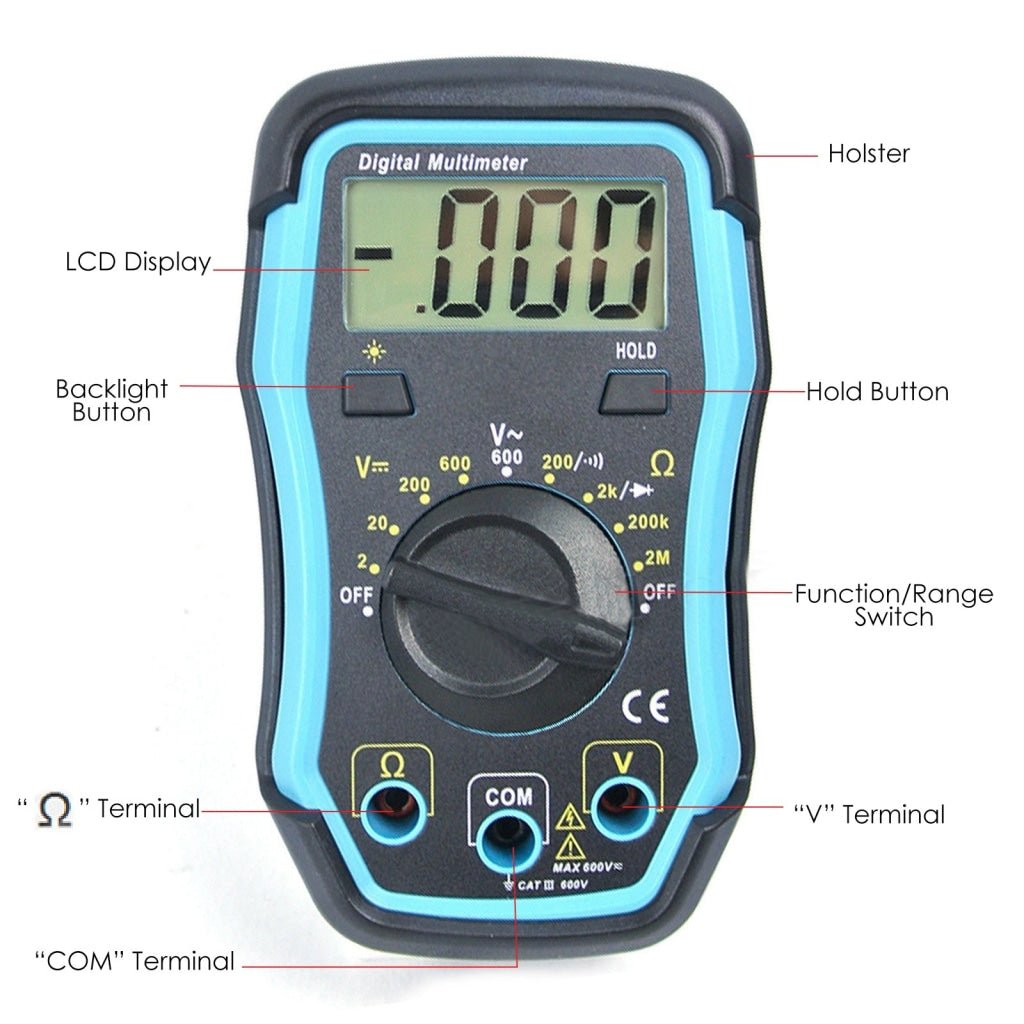

Features:

  • 1/2 digits LCD,max reading 1999
  • Overload Protection
  • Low battery indication
  • Audible continuity
  • Data hold function

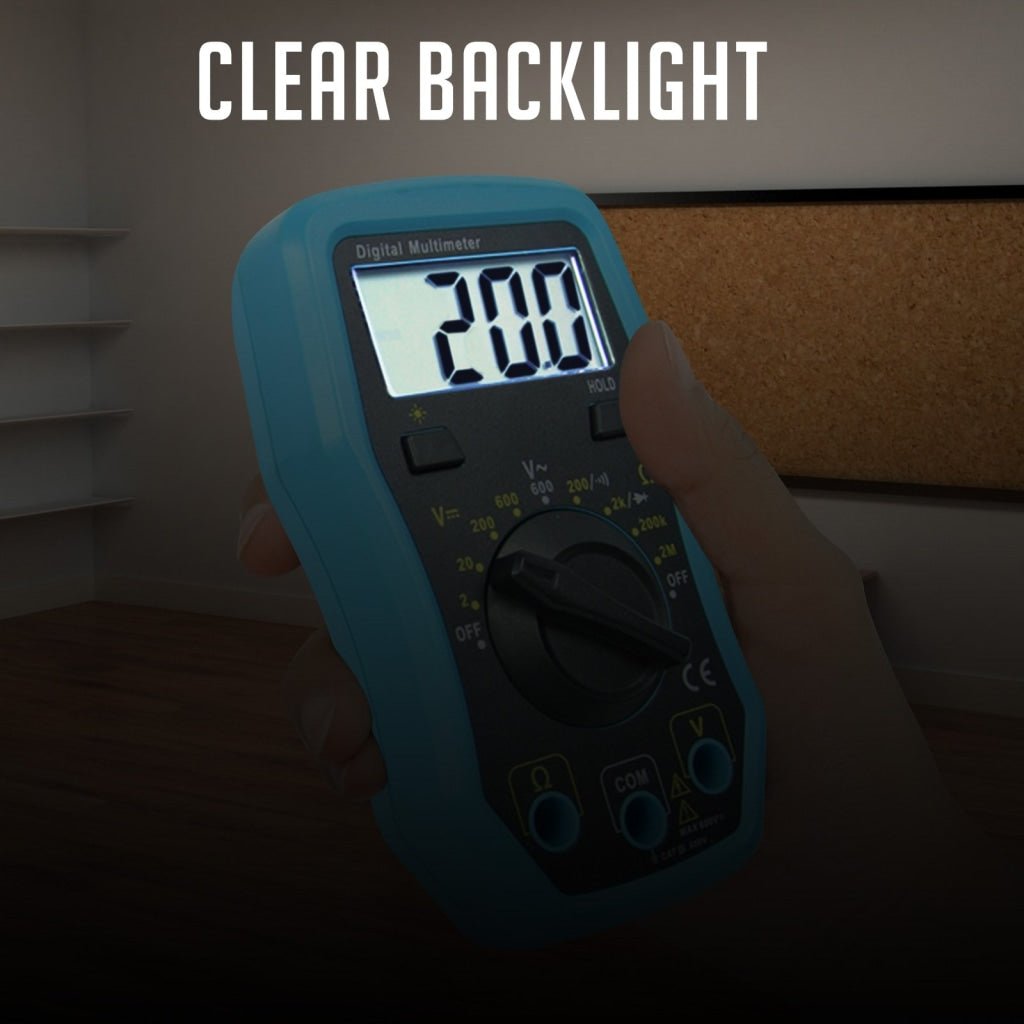

  • With backlight function
  • Includes protective rubber holster
  • Low battery indication LCD display
  • IEC-61010 CATIII 600V

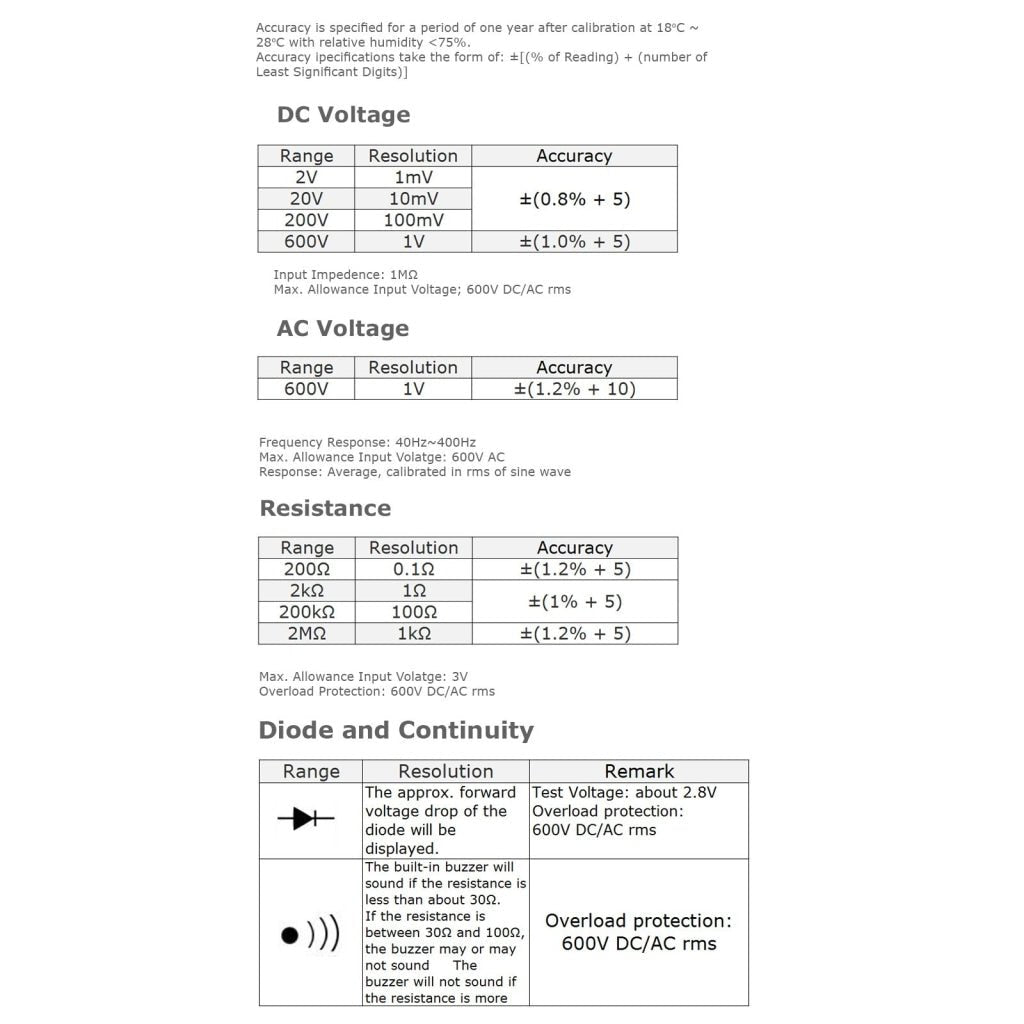

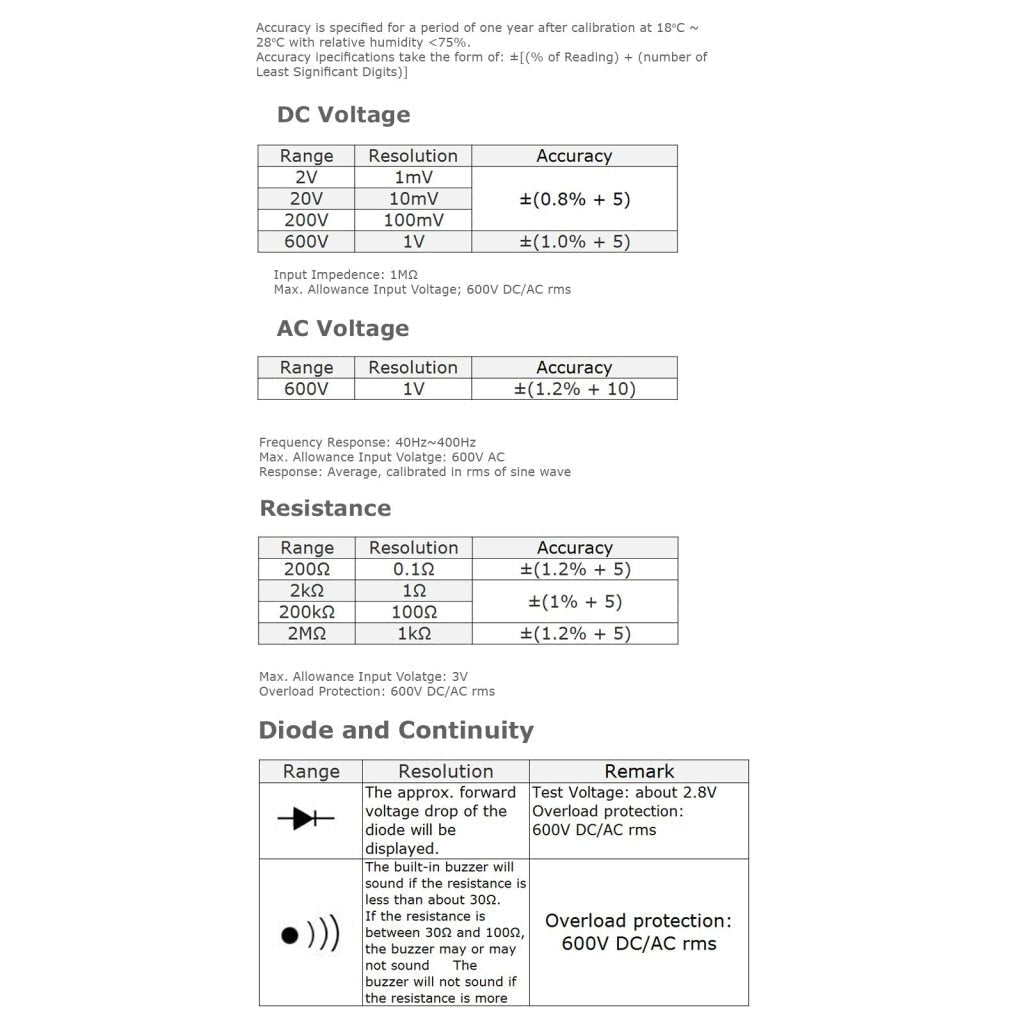

Specifications:

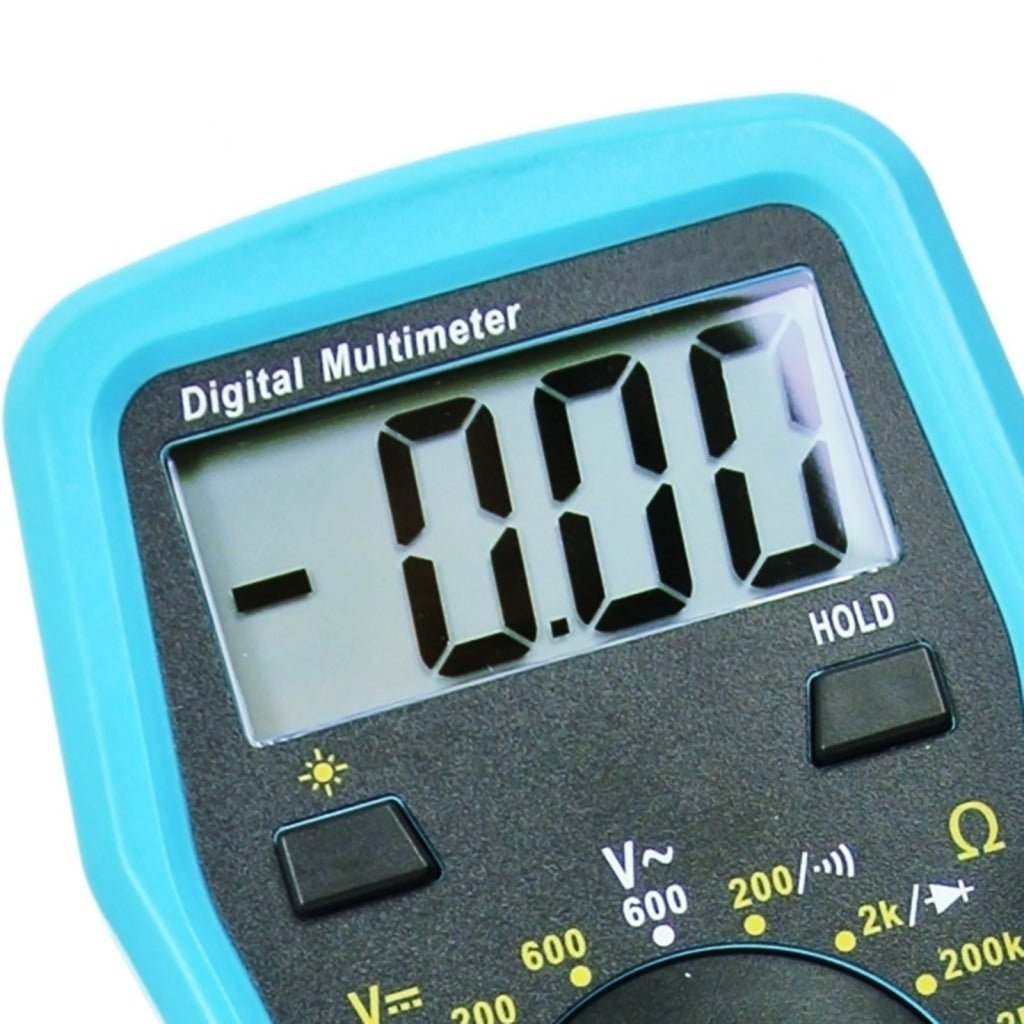

  • Display: 3 ½ digit LCD with a max. Reading of 1999
  • Negative Polarity Indications: “-“ shown the display automatically
  • Over range Indication: only figure “1” shown on the display
  • Sampling Rate:  About 2-3 times per sec.

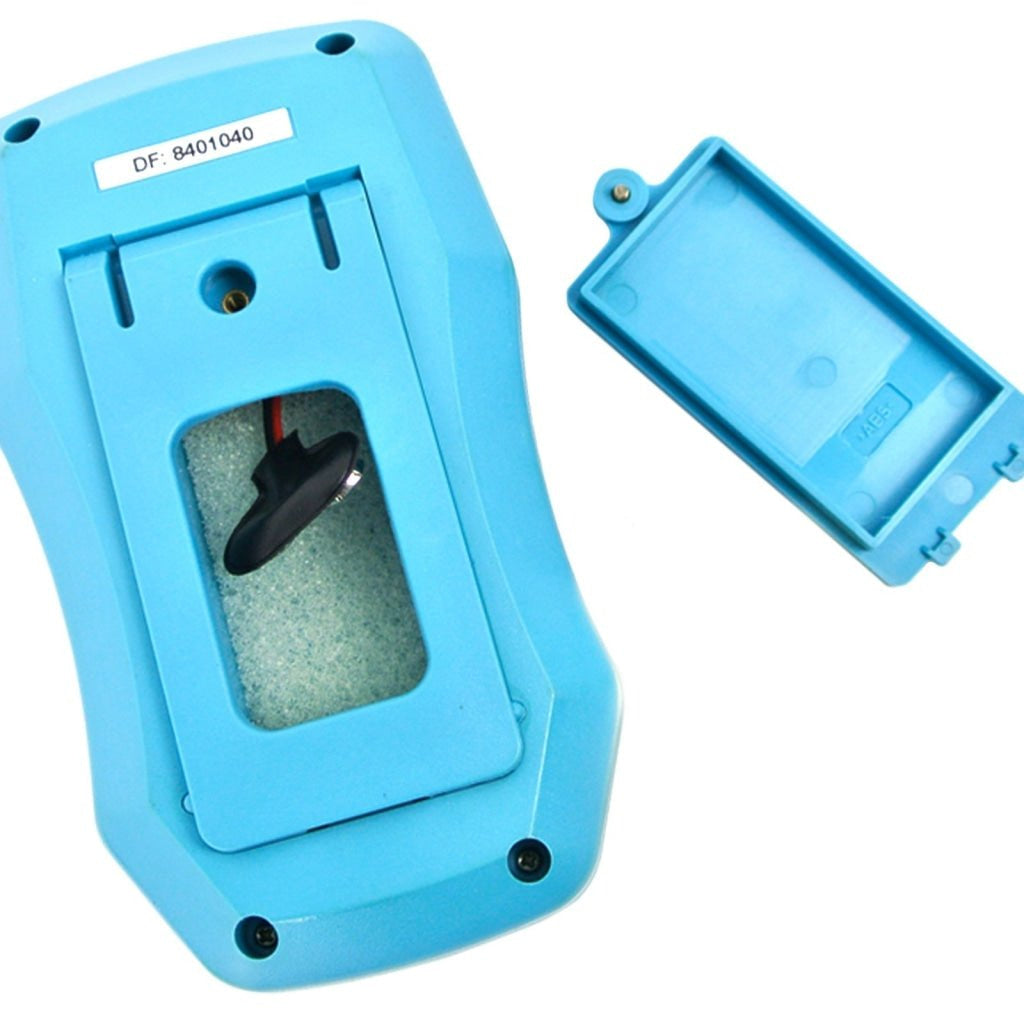

  • Battery : 1 x 9V battery (not included in the set)
  • Operation Temperature: 0°C~40°C, ≤75%RH<
  • Storage Temperature: -10°C~50°C, ≤85%RH

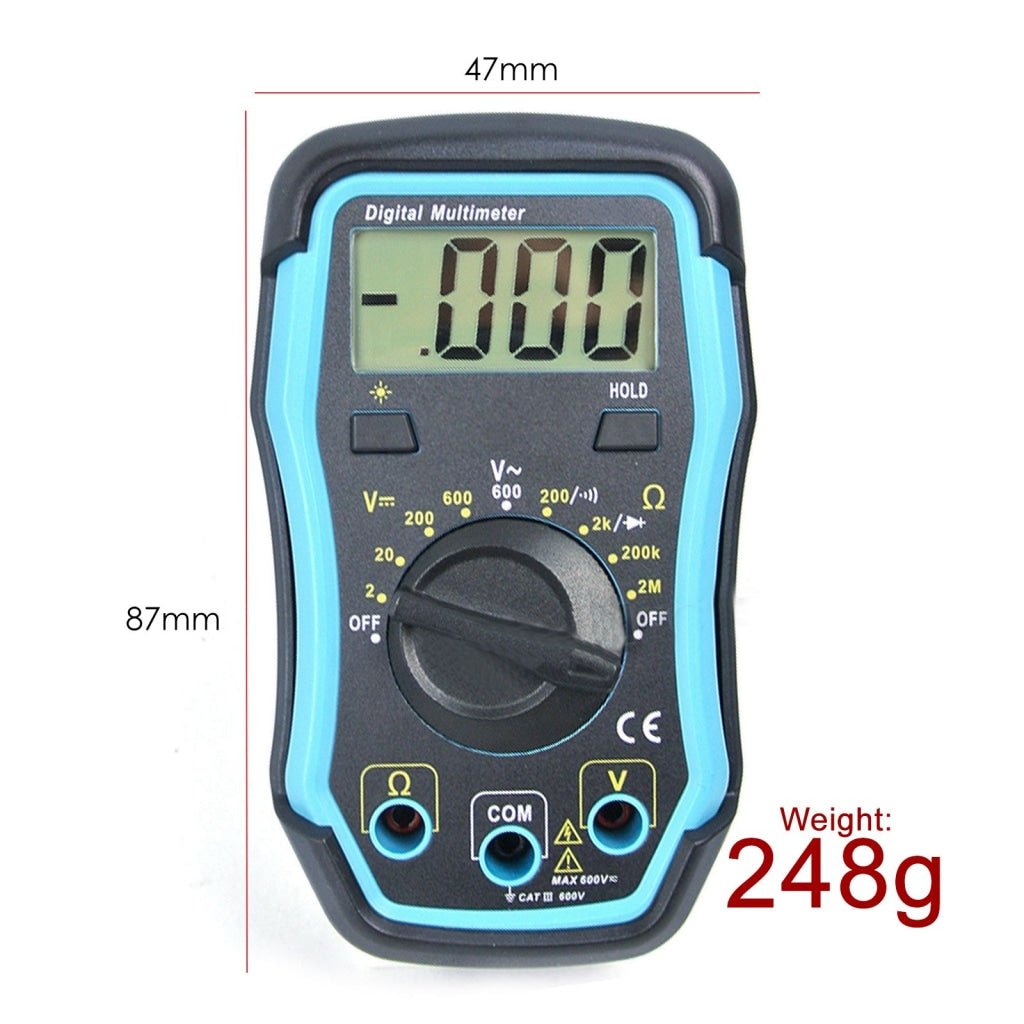

  • Size: 47 x 87 x47mm
  • Weight: about 248

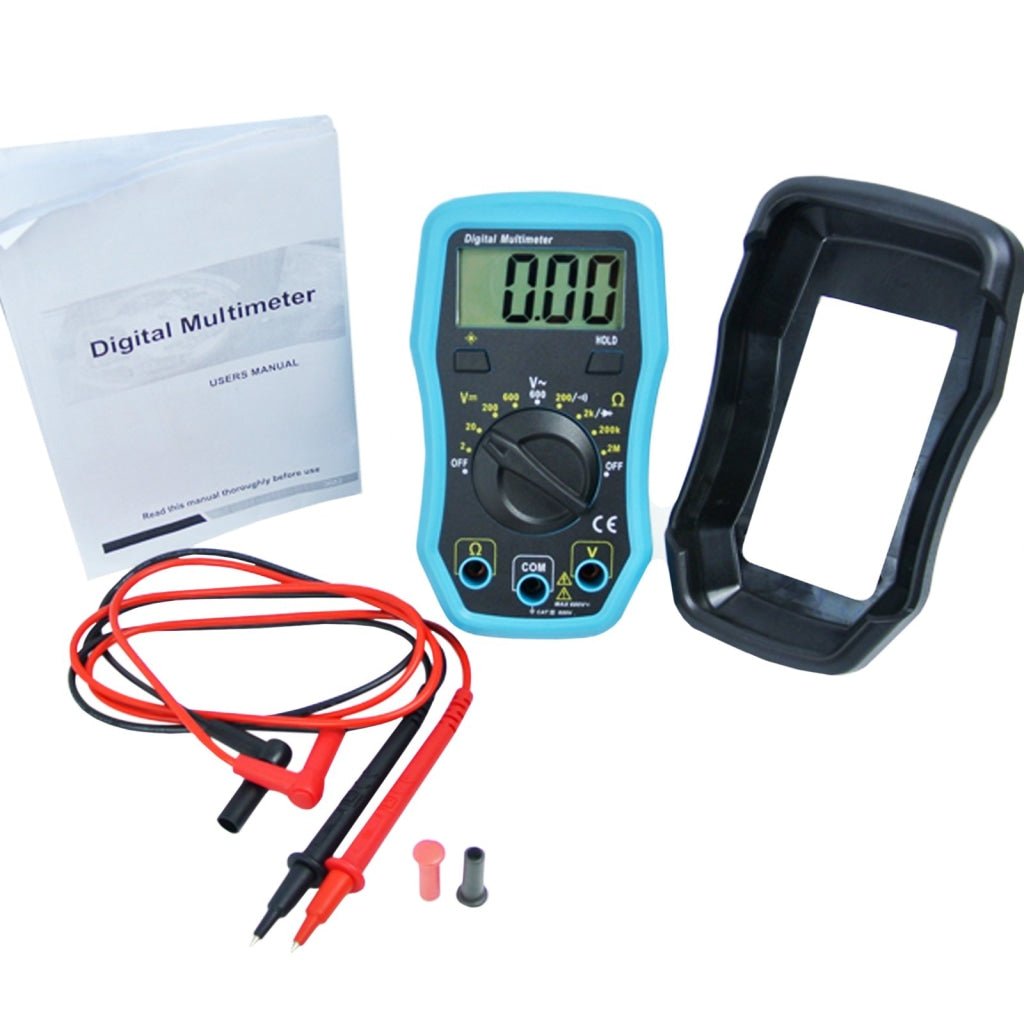

Set Includes:

  • 1 x Digital Multimeter

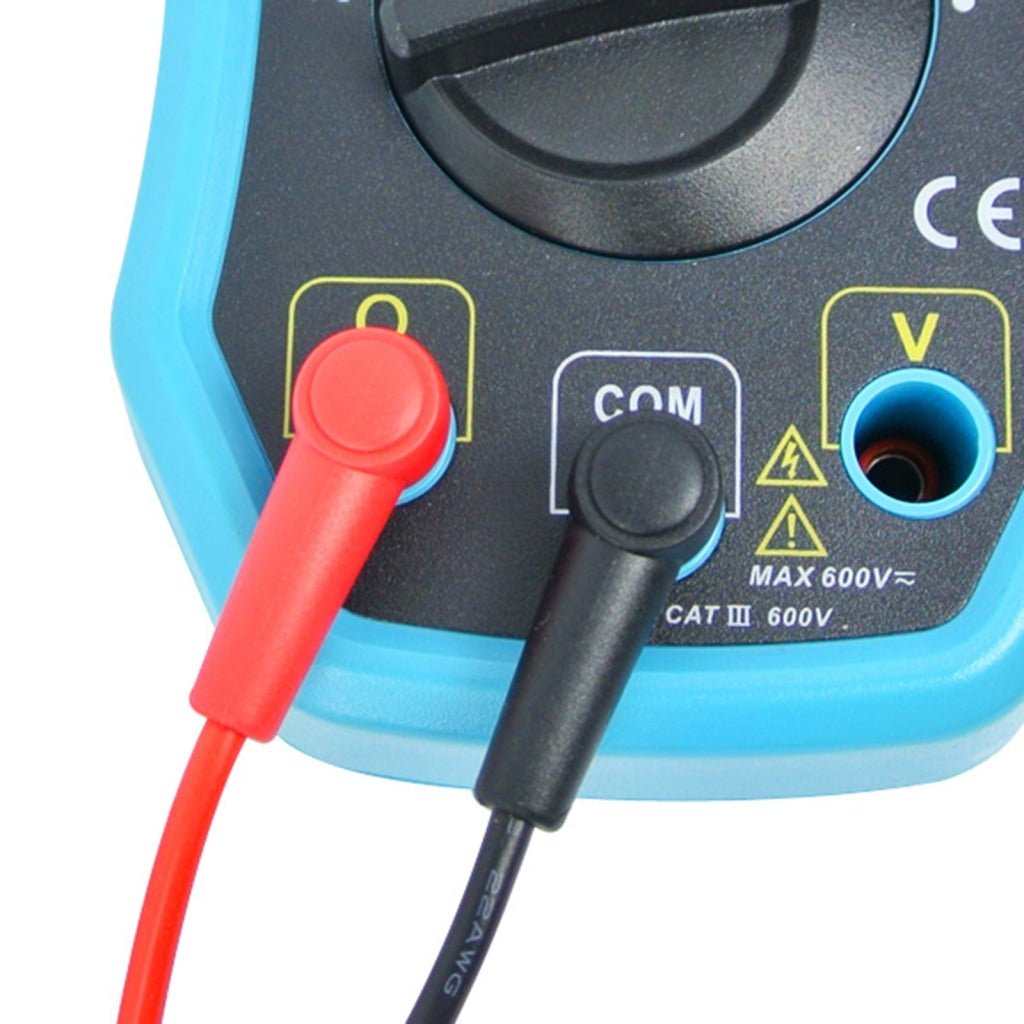

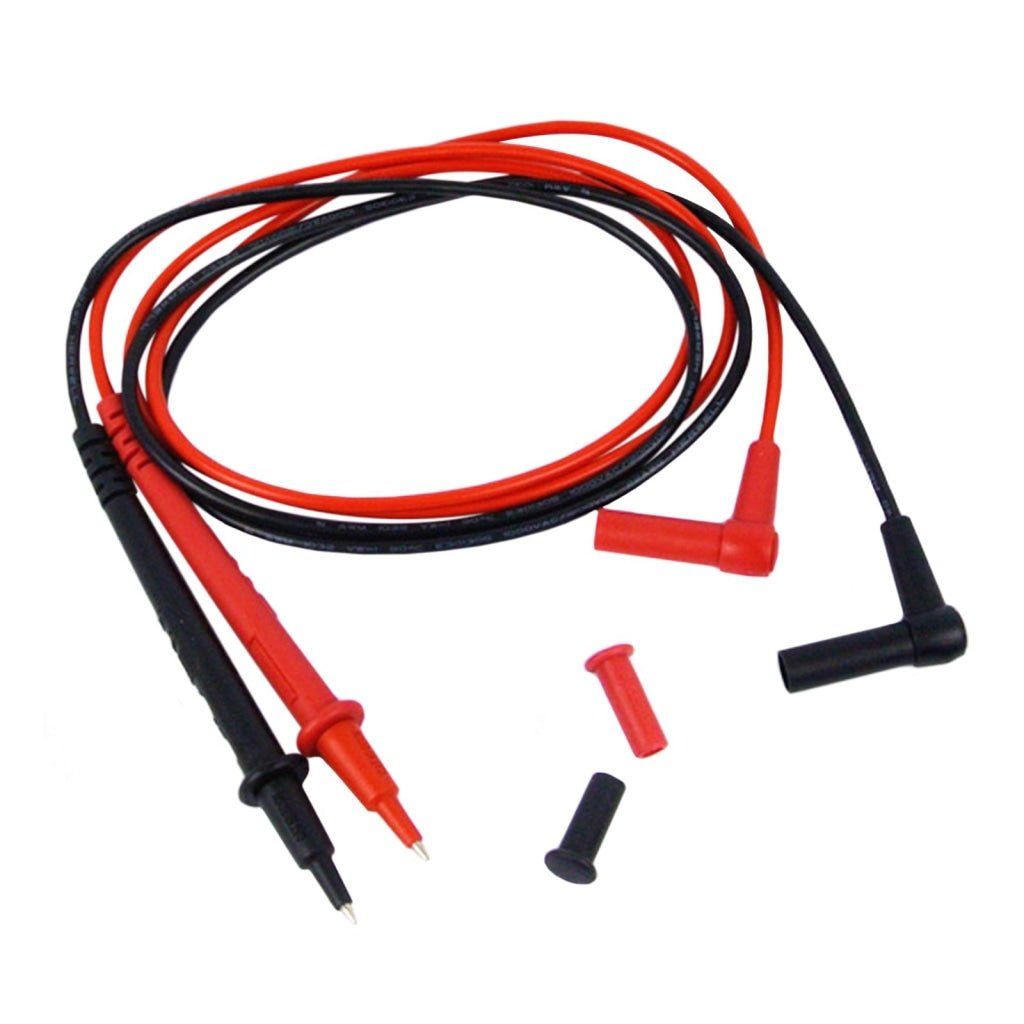

  • 1 x Test Leads (pair)
  • 1 x Protective Rubber Holster (FREE)
  • 1 x English User Manual
  • Standard Factory Packaging
