CTM-444 Professional Thickness Gauge Ultrasonic Thickness Meter Datalogger 1.0~300.0mm (0.03~11.8inches) Record 1500 Data MAX|MIN|AVE Reading Colored Screen for Steel, Metal, Ceramics etc. Measurement
This ultrasonic thickness gauge offers quick, non-destructive thickness measurement from one side of solid materials that conduct ultrasound waves well, such as steel, other metals, glass, plastics, and ceramics. Measurement ranges may vary depending on the sound velocity and density of the material. It is best suited for use on smooth, clean surfaces; for the most accurate readings, ensure any dirt, rust, or coatings are removed prior to testing.
Features:
- Measure the thickness of materials with different sound velocities
- Probe: 5Md10
- Manual or automatic data storage
- Display will change to red when the High and Low limits are exceeded (beep when the alarm sound is enabled)
- Enabled or Disabled Automatic shutdown (can set after 5min, 10min or 30min with no operation)
- Backlight selection (constant or high brightness)
- MAX/MIN/AVE reading display
- Battery strength indicator
- Data storage indicator
- Two measurement interface view
- Colored screen display with user friendly interface
- Selectable measurement unit (mm/inches)
- Easy calibration with built-in 4mm block & coupling agent
- PC software for data download
Specifications:
- Measurement range: 1.0~300.0mm (steel)
- Data Storage: 1500 data sets
- Operation Frequency: 5MHz/2.5MHz
- Accuracy: ±(0.5%H+0.05)mm
- Resolution: 0.01mm(1.00~99.99mm)/0.1mm(100~300mm)
- Pipe Lower Limit: ⌀20x3mm(steel)
- Sound Speed Measurement: 1000~9999m/s
- Operating Temperature: 0~40°C (32~104°F)
- Power Supply: 1000mAh 3.7V LI Battery
- USB Charging: 5V 1A
- Dimension: 150.6 x 65.3 x 35mm
- Weight: 158gms

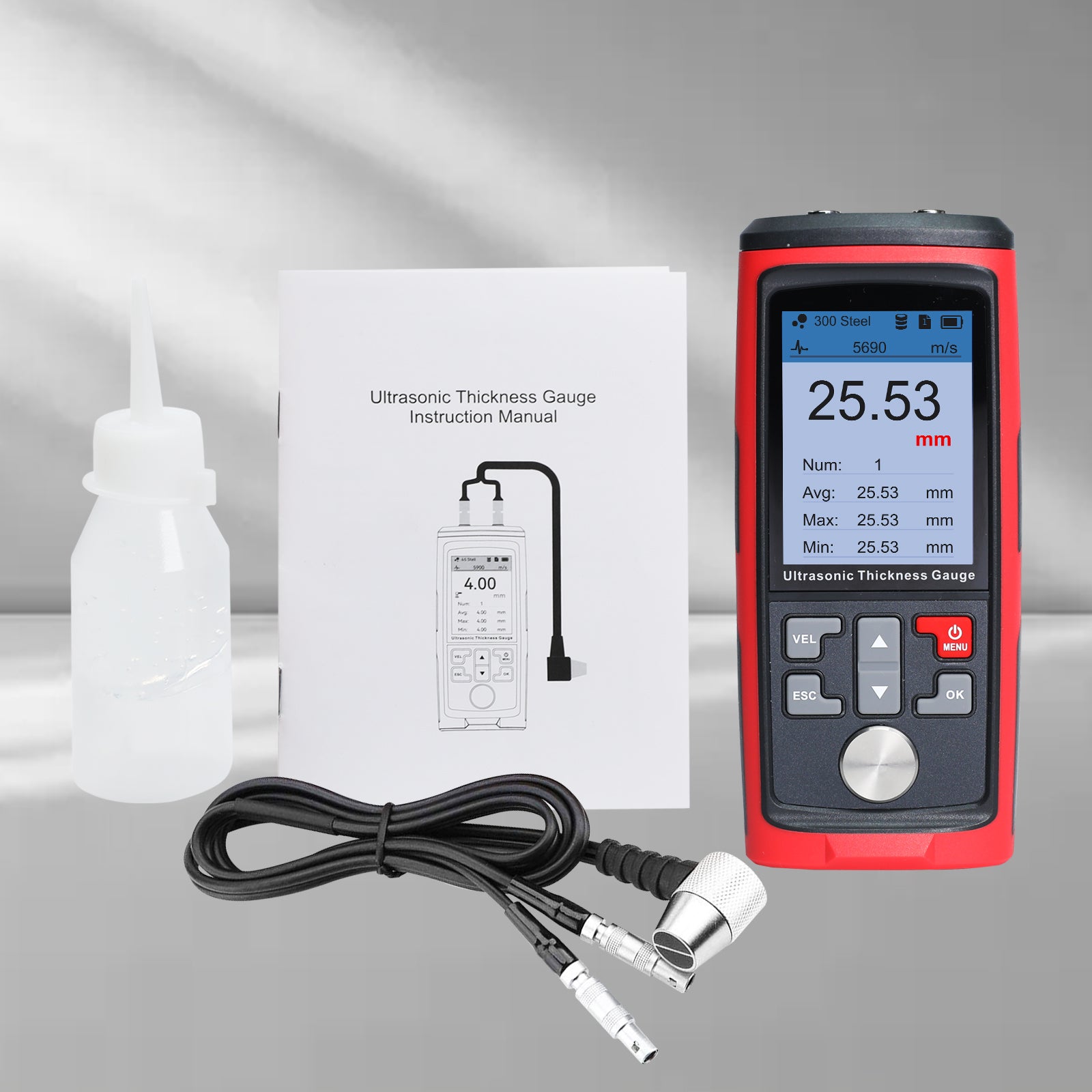

Set Includes:
- 1 x Ultrasonic Thickness Meter
- 1 x Sensor Probe
- 1 x Bottle of Coupling Agent
- 1 x USB Cable
- Carrying Case
- English Instruction Manual
- Standard Factory Packaging
