Mode: CM213

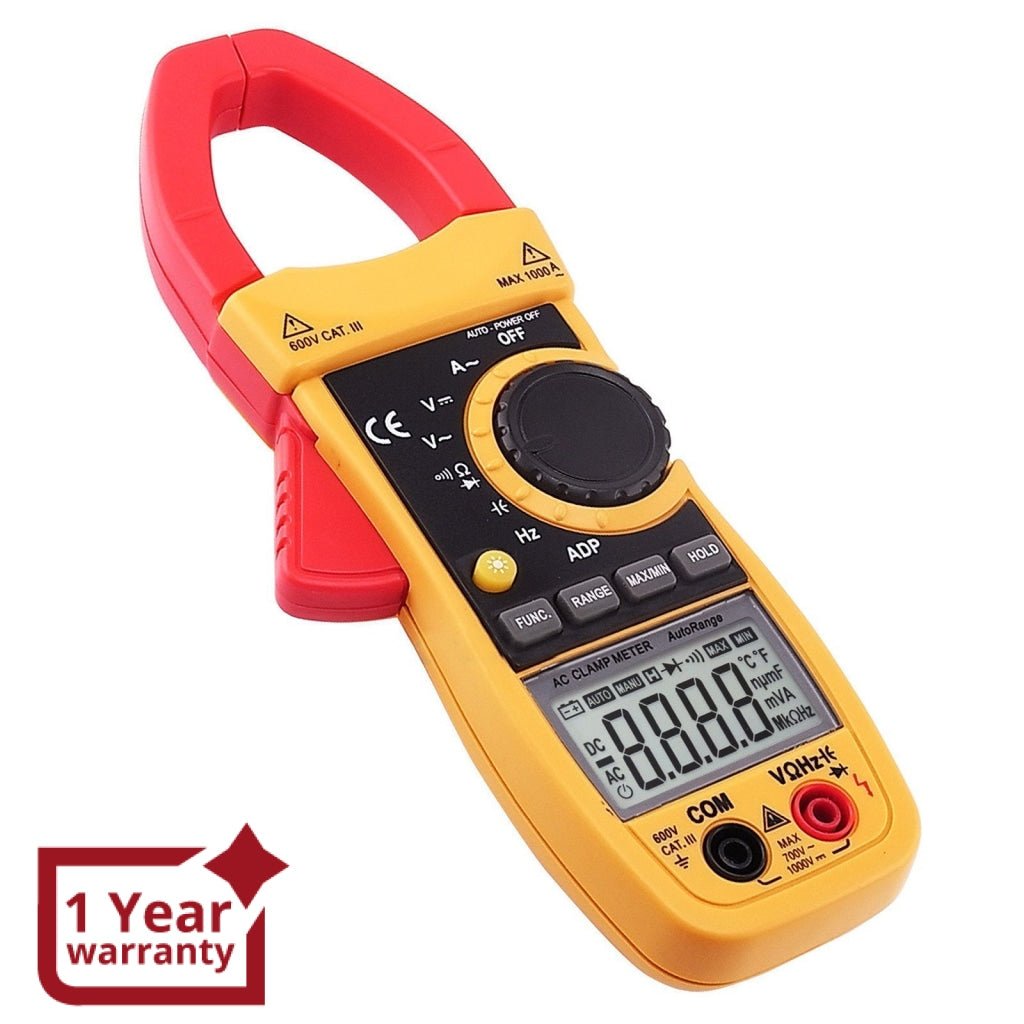

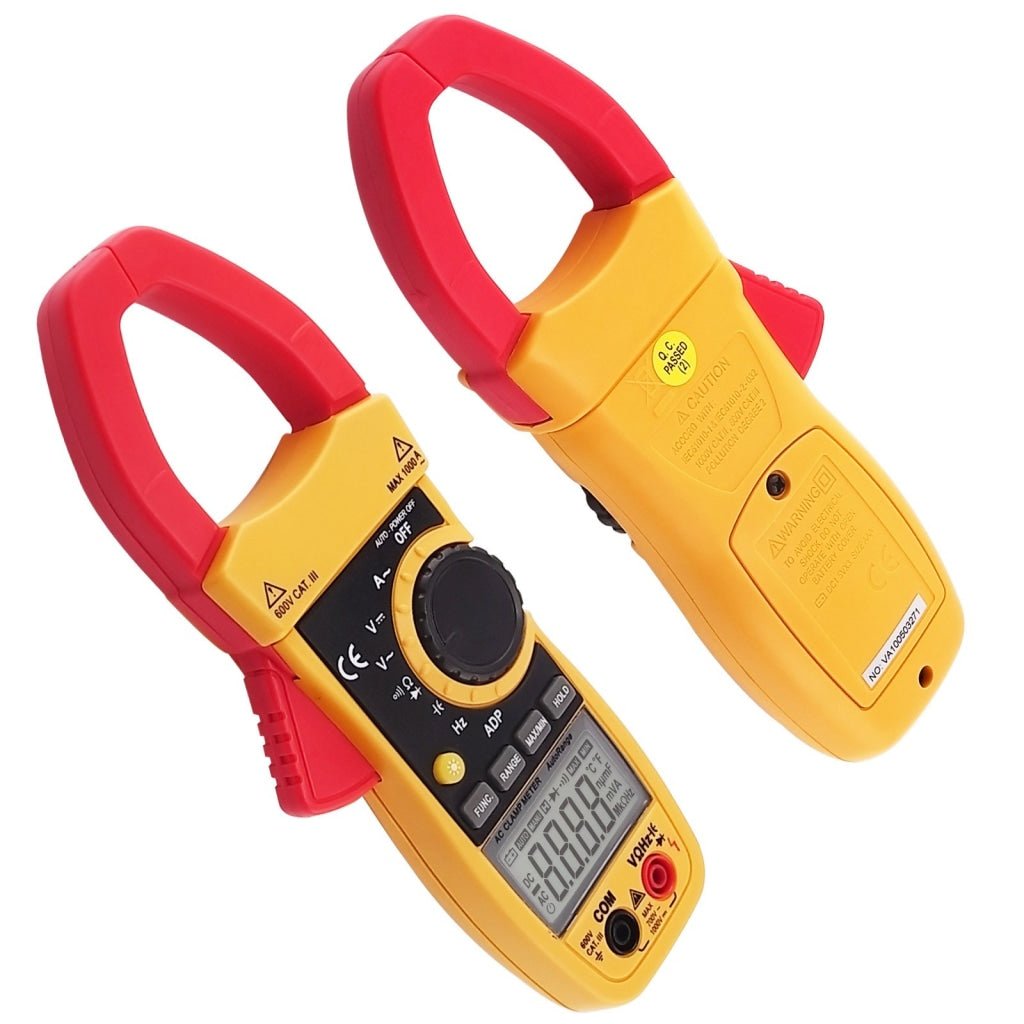

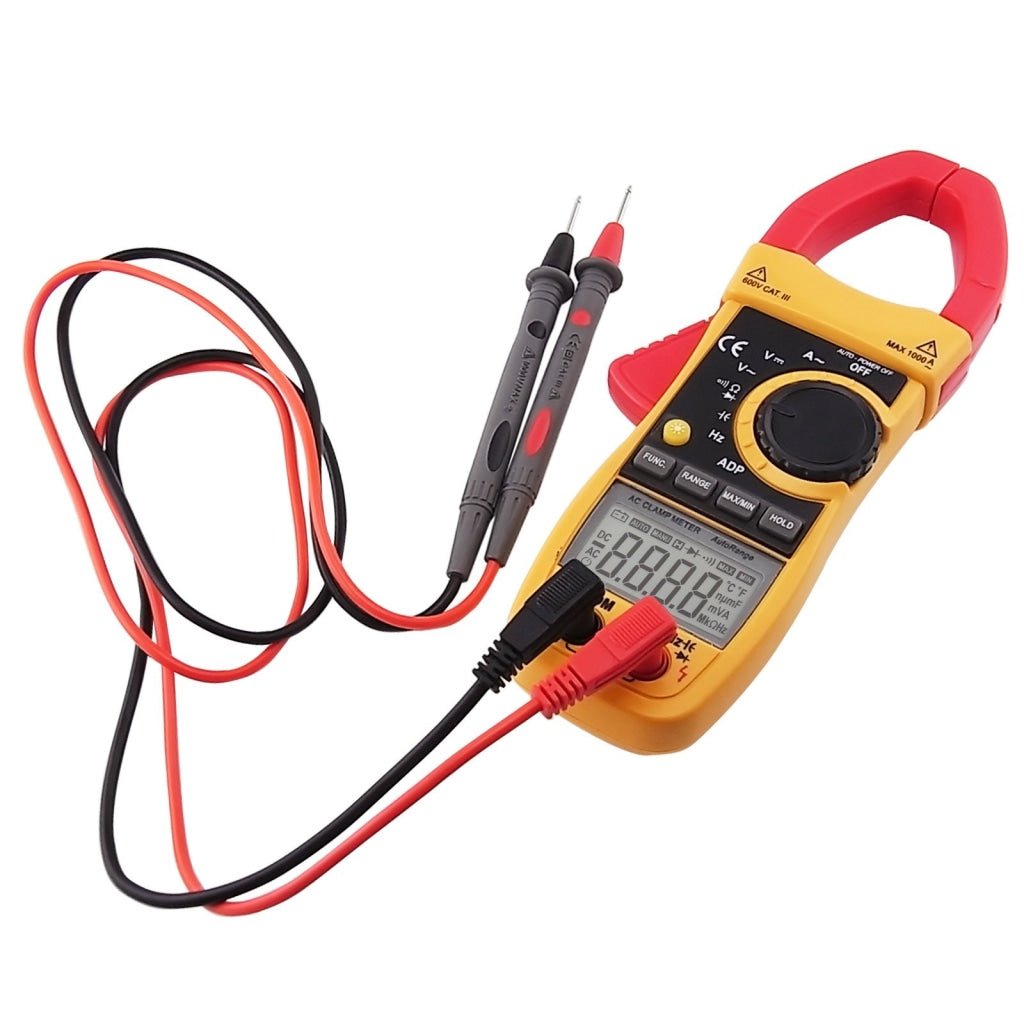

This Professional Multifunction AC/DC Voltage AC Current Clamp Meter has both Auto & Manual Range with 5999 counts. This clamp meter measures DC and AC voltage, AC current, Resistance, Capacitance, Frequency, Diode, Continuity and ADP Measurement.

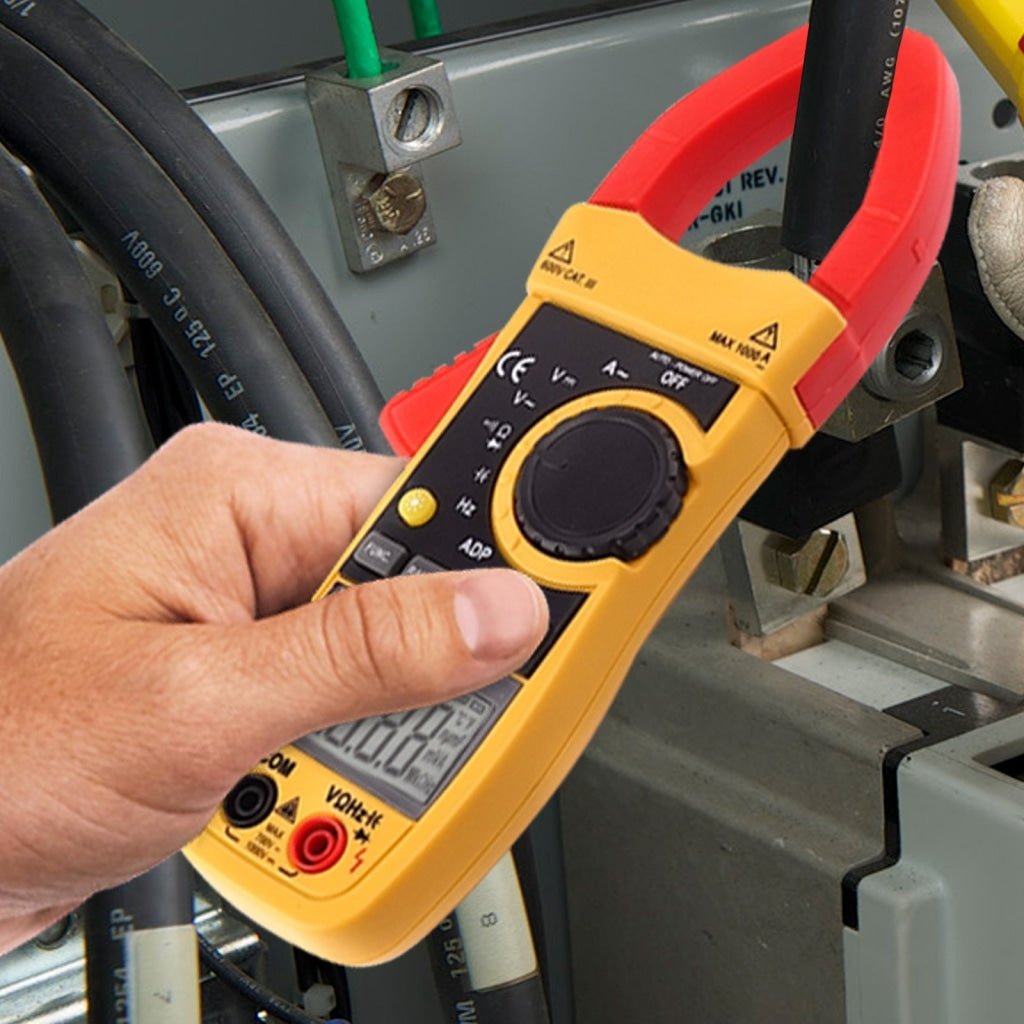

In addition to features are Backlight, MAX/MIN Mode and Over range protection. It clamps around an electrical conductor to allow the electrical current in the conductor to be measured, without having physical contact with it, or to disconnect the wiring through which the current is flowing.
It complies with all essential health and safety requirements set out in European Community Directives. It also meet internationally proven safety standards such as IEC1010-1, IEC1010-2-032, concerning electrical measuring instruments with double insulation overvoltage category 1000V CAT II 600V CAT III and pollution degree 2.
Features:
- Professional Multifunction Clamp Meter

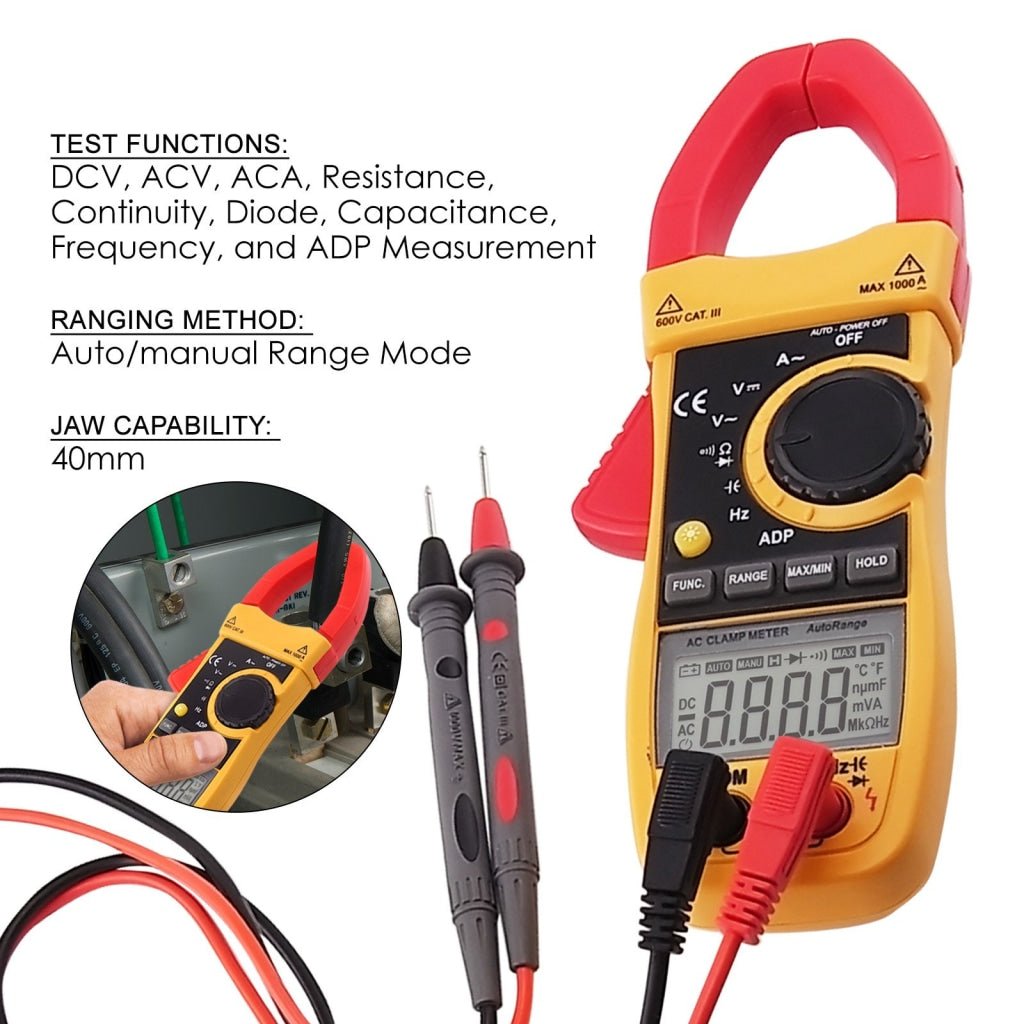

- Test Functions DCV, ACV, ACA, Resistance, Continuity, Diode, Capacitance, Frequency, and ADP Measurement

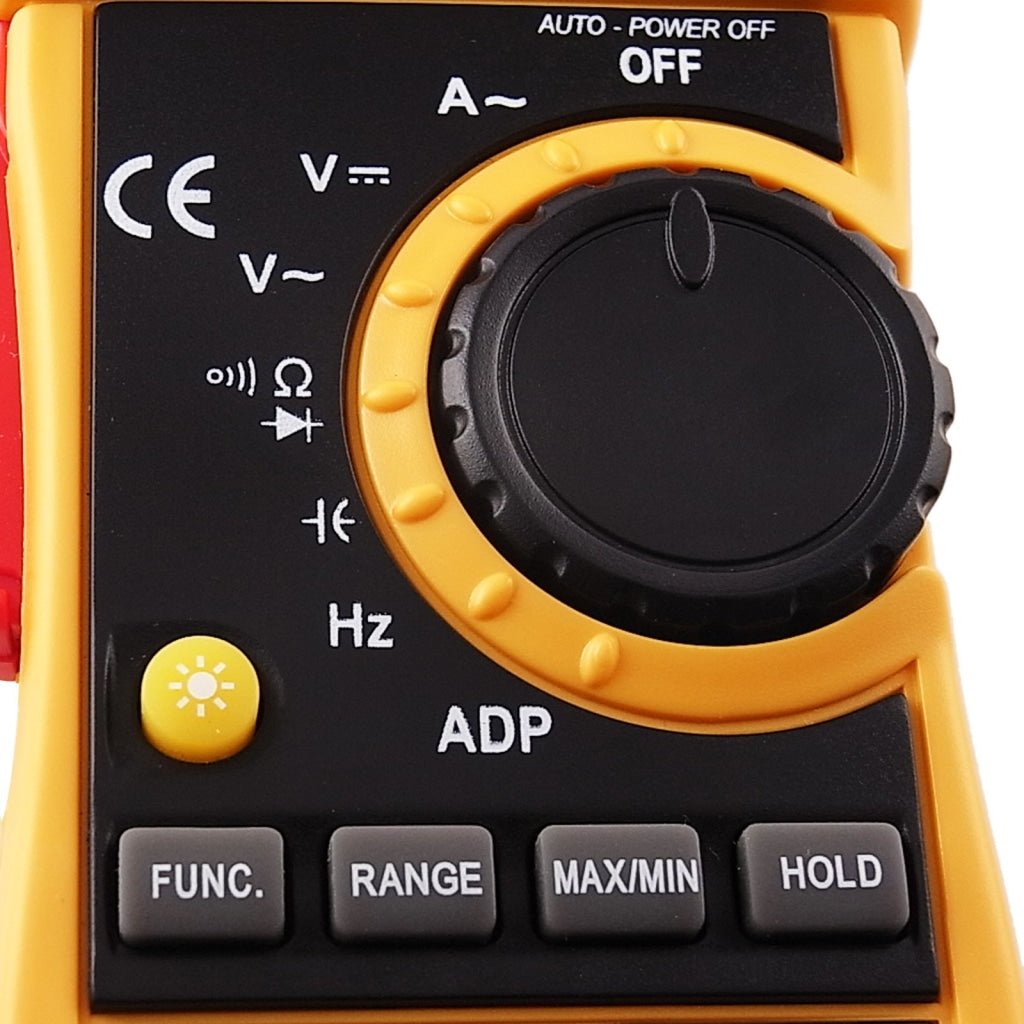

- Function keys: Data hold, MIN/MAX and Backlight
- International Standards: CE, IEC1010-1, IEC1010-2-032, CATII 1000V, CATIII 600V, EMC
- Reliable and accurate measured results
- ·40mm maximum conductor diameter

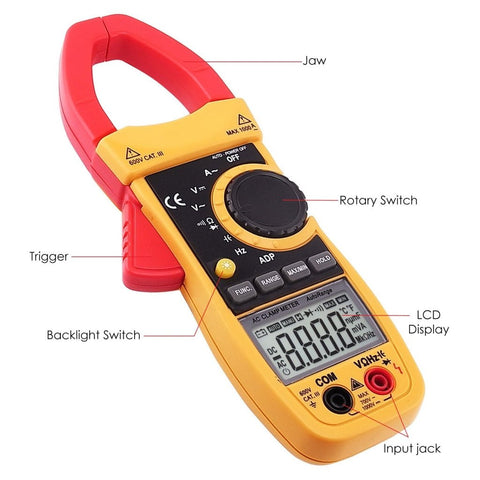

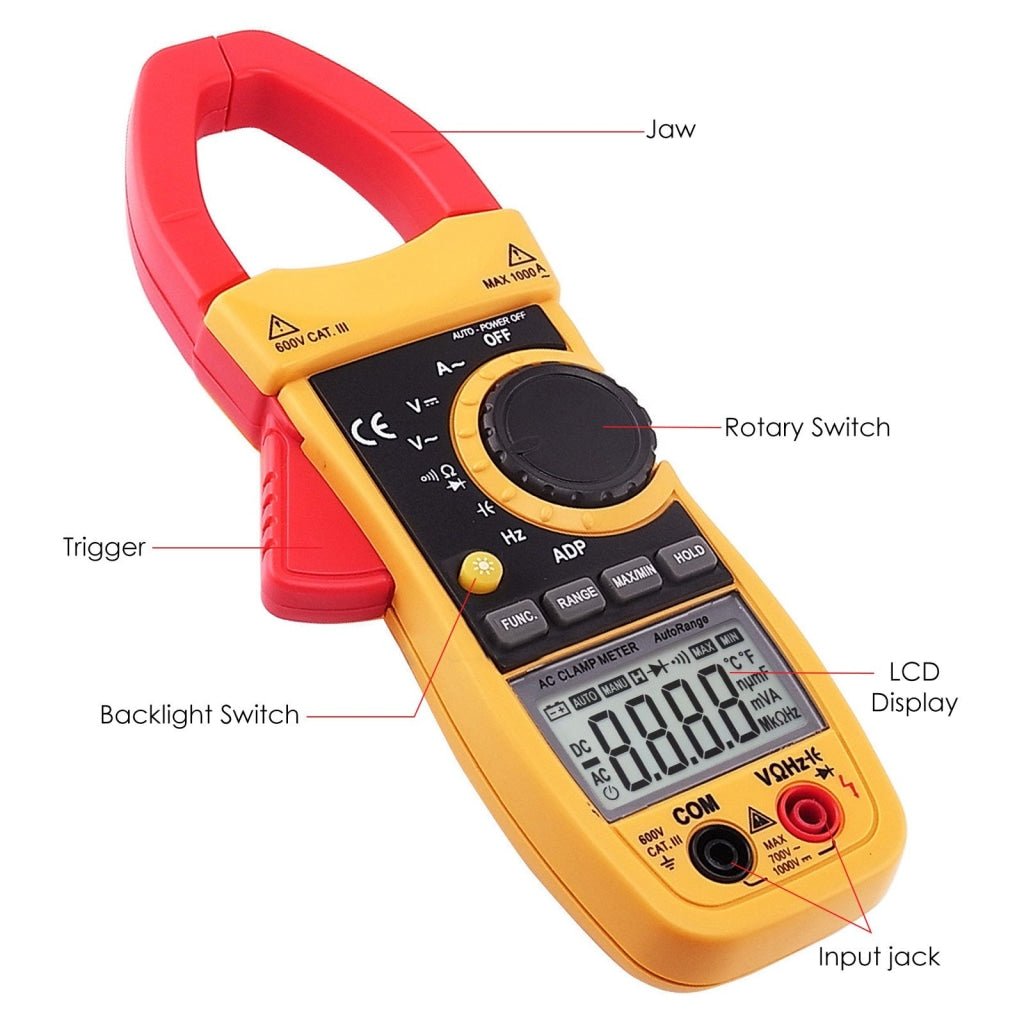

- Ergonomic grip with bigger jaw opening and larger conductor size
- Bigger LCD screen with higher maximum reading
- Overload Protection
- Impedance in circuit is below 40Ω with buzzer alarm
- Auto power off and low battery indication
- Auto and Manual Ranging

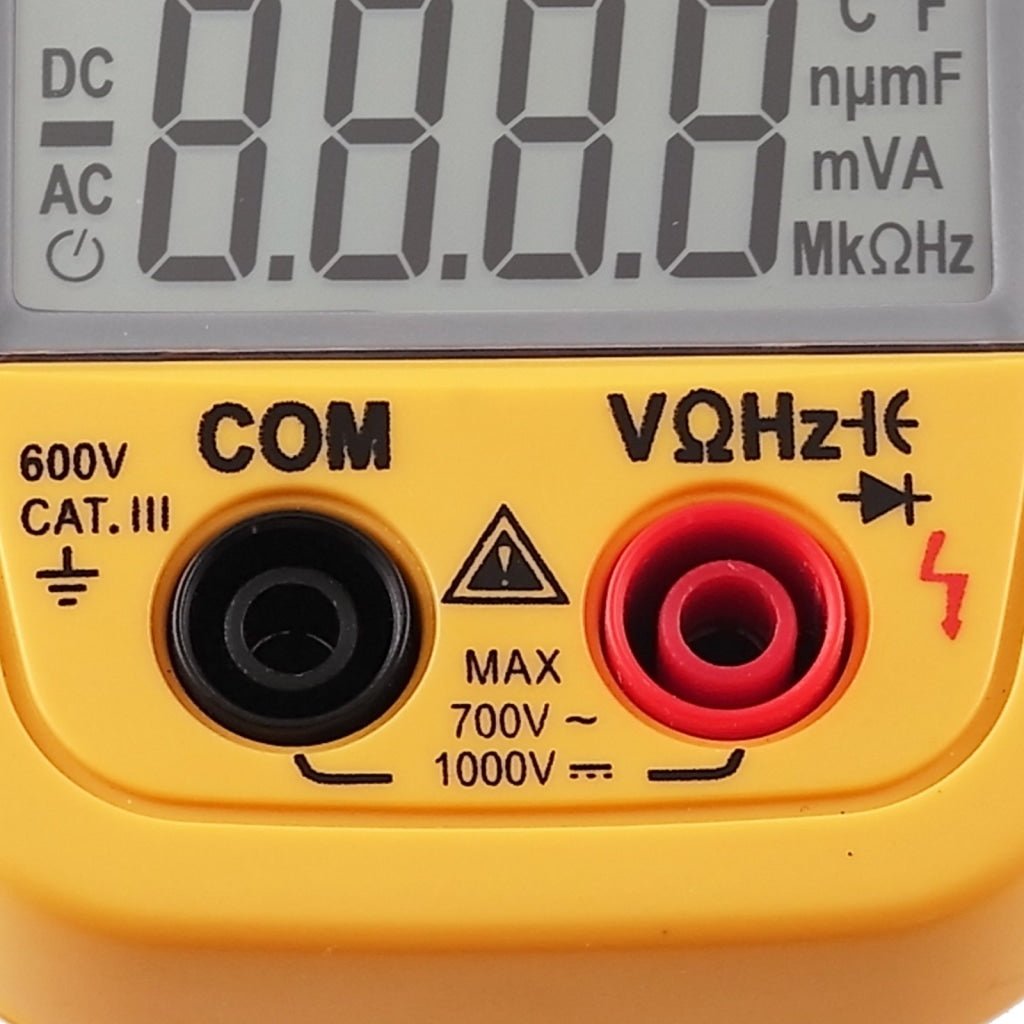

- Safety Guard and secured jacks
- Double insulated
- Design in accordance with Electromagnetic Compatibility (89/336/EEC) & Low Voltage (73/23/EEC as amended by CE Marking (93/68/EEC)
- Includes heavy-duty test leads and batteries
- Brand new

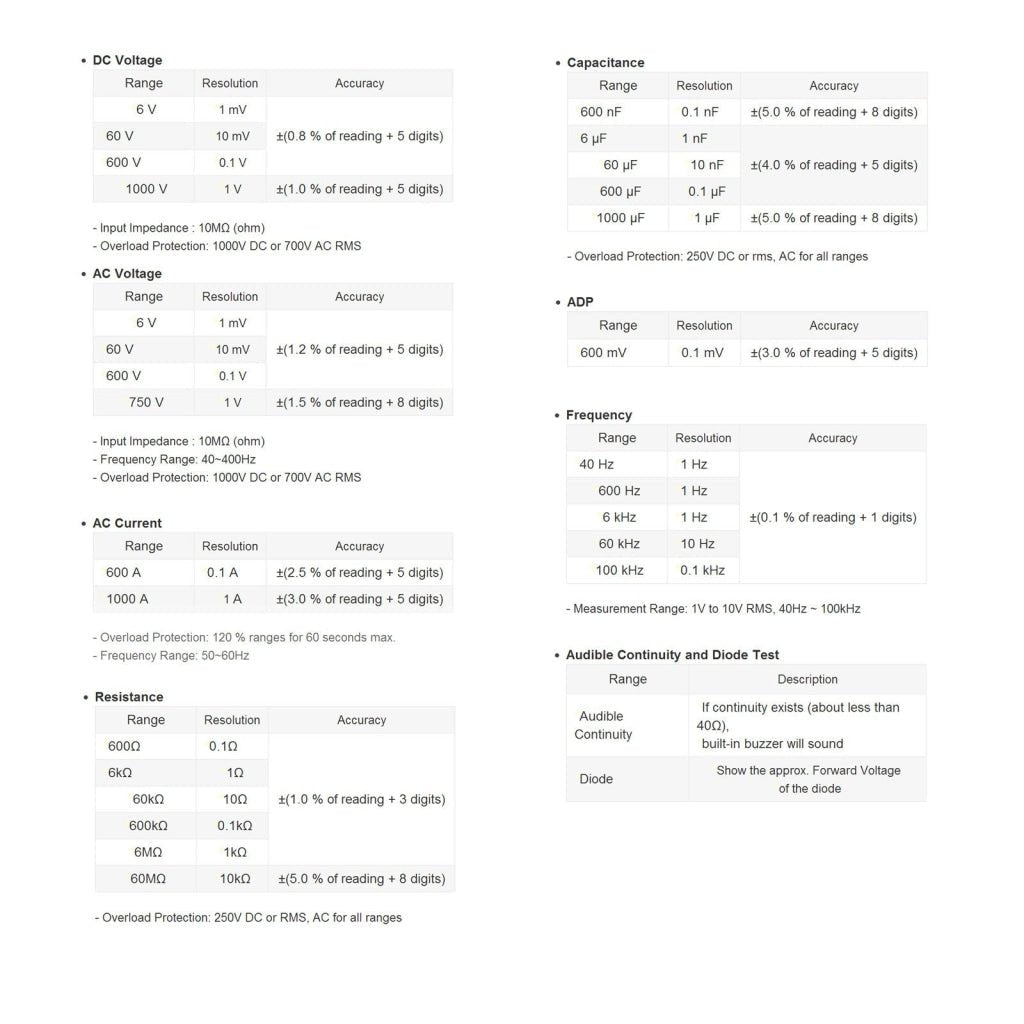

Specifications:
- General Specifications:
- Maximum Voltage: 1000V CATII 600V CATIII
- Altitude: 2000m

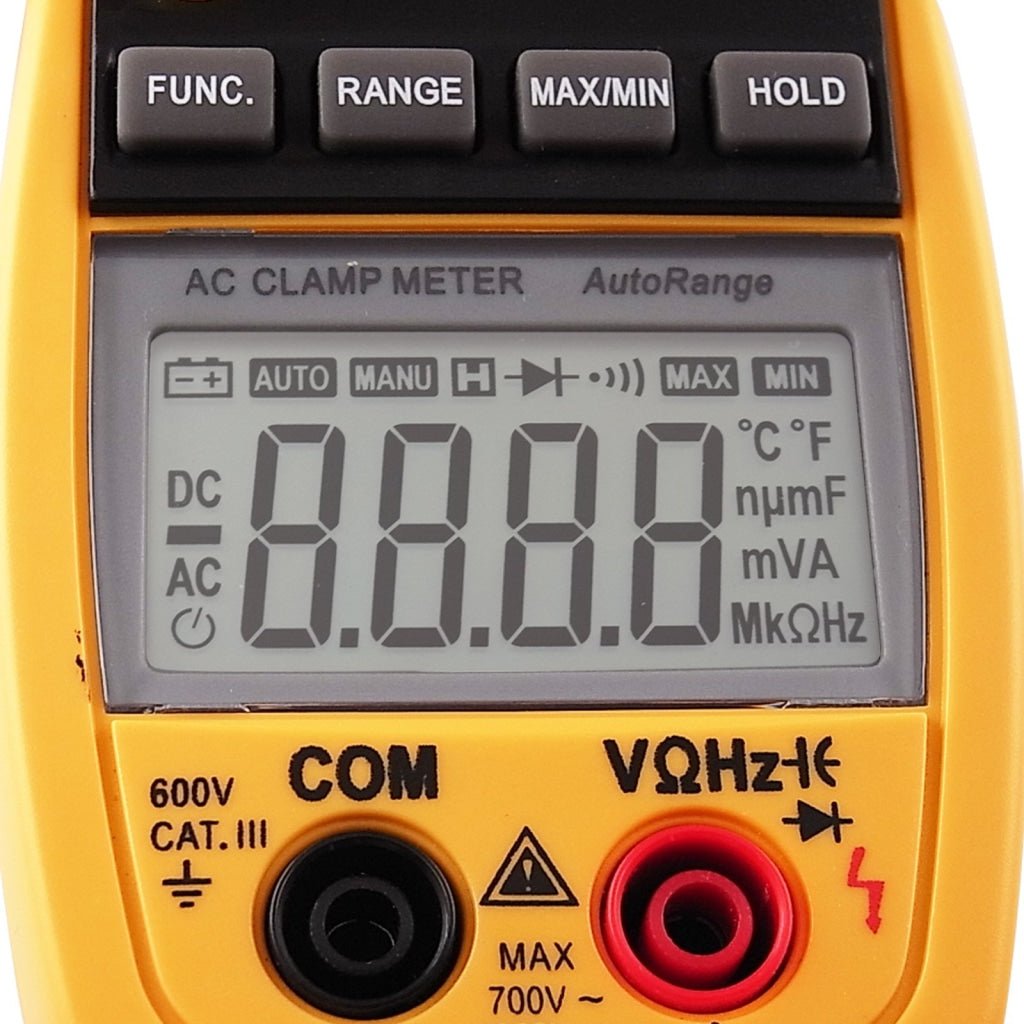

- Display:
- LCD 5999 counts
- Update 2 ~ 3 per second
- Ranging Method: Auto/manual Range Mode
- Polarity Indication: "-" display for negative polarity
- Over Range Indication: LCD will display "OL"
- Low Battery: icon will appears on LCD

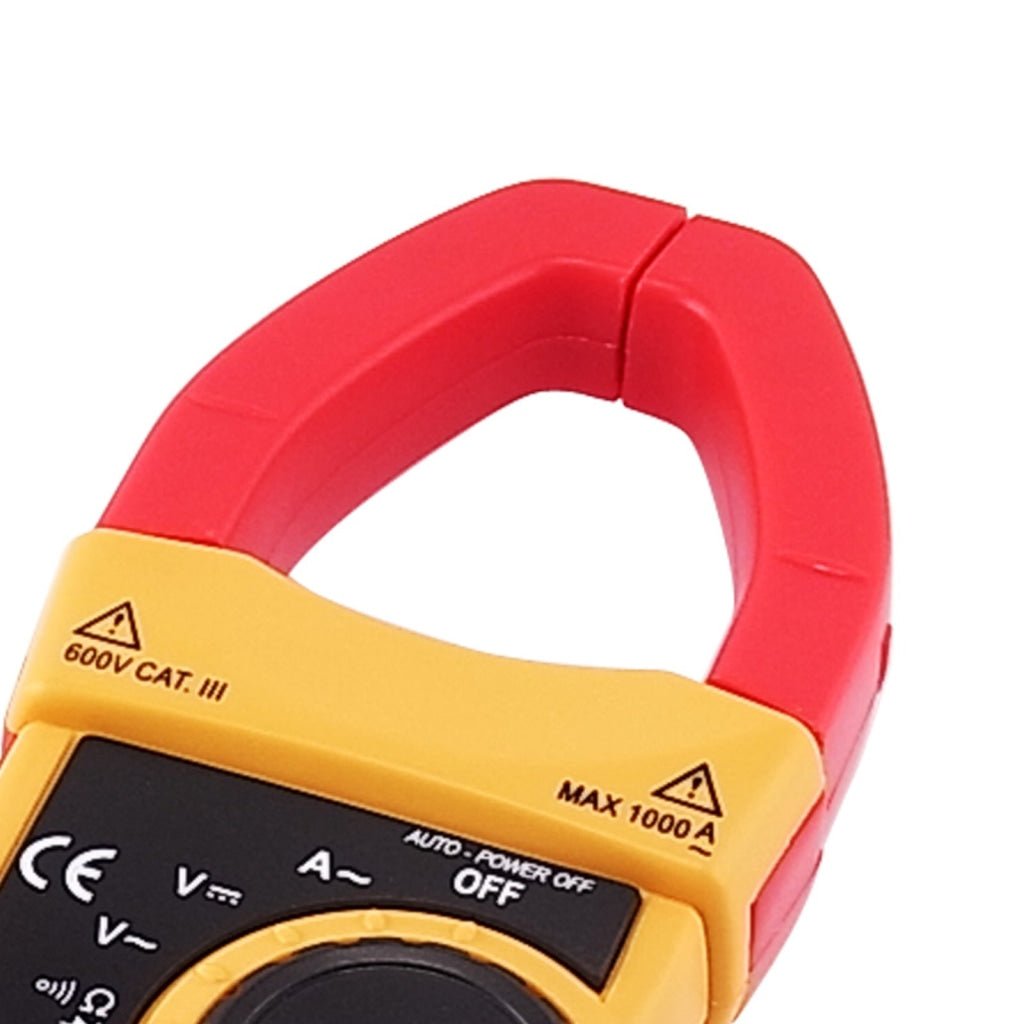

- Jaw Capability: 40mm, Max conductor size

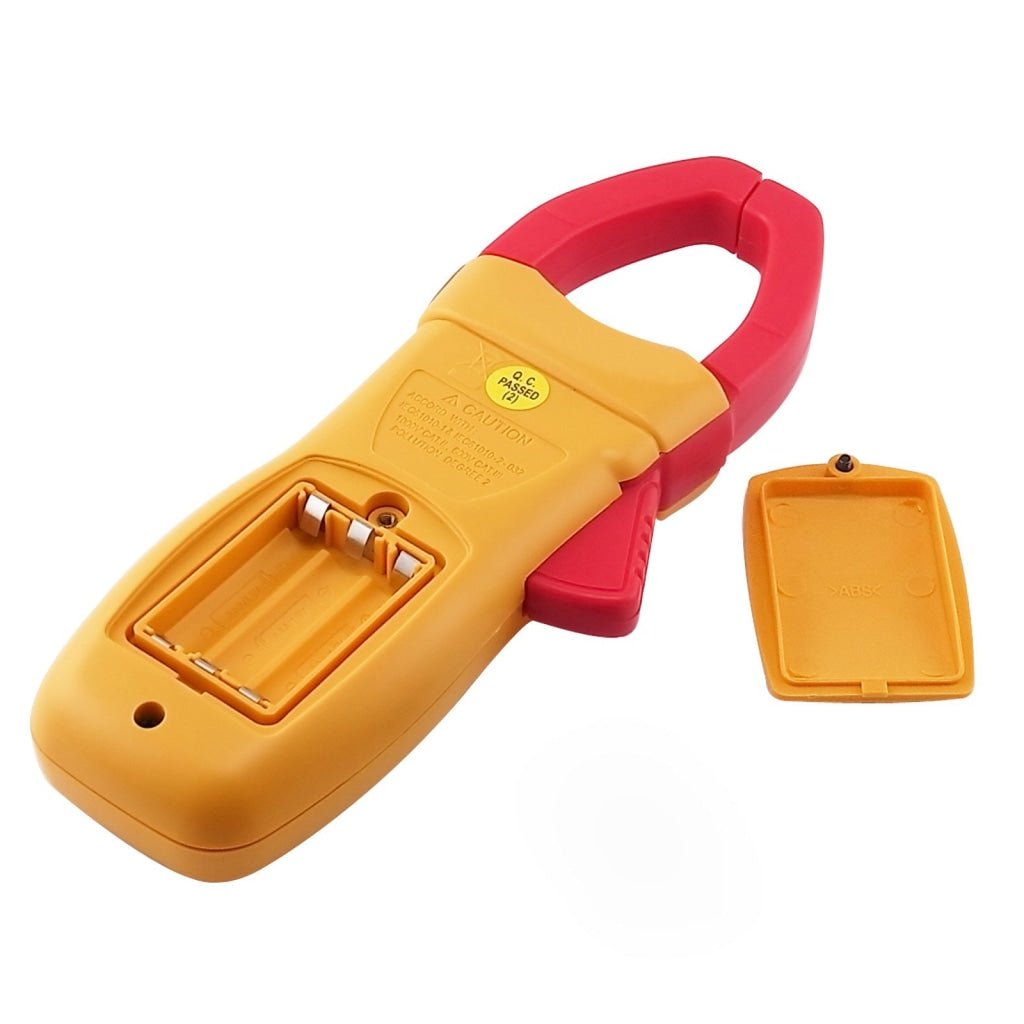

- Power: 3 x 1.5V AAA Batteries
- Operating Temperature: 5 ~ 35°C
- Storage Temperature: -10 ~ 50°C

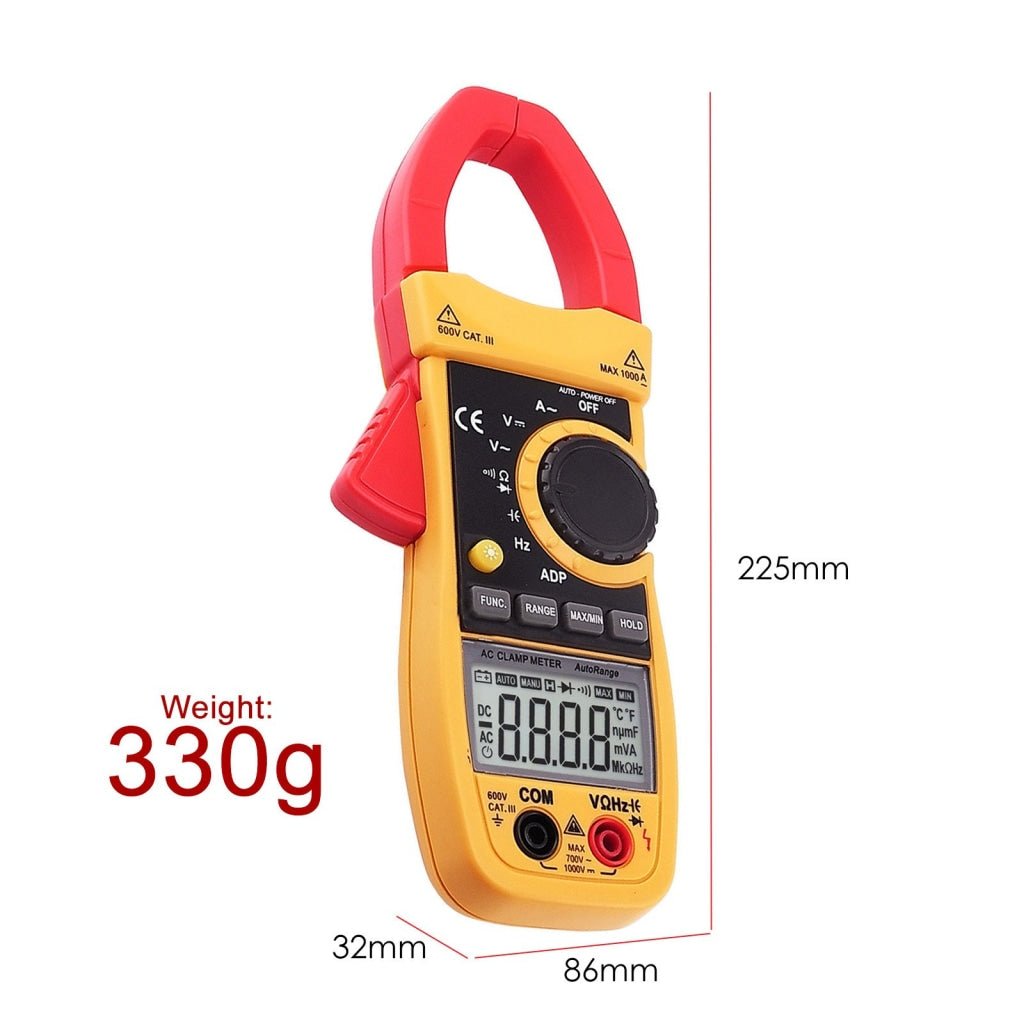

- Dimension: approx. 225 (L) x 86 (W) x 32 (D) mm (8.86' x 3.39' x 1.26' inch)
- Weight: approx. 330g

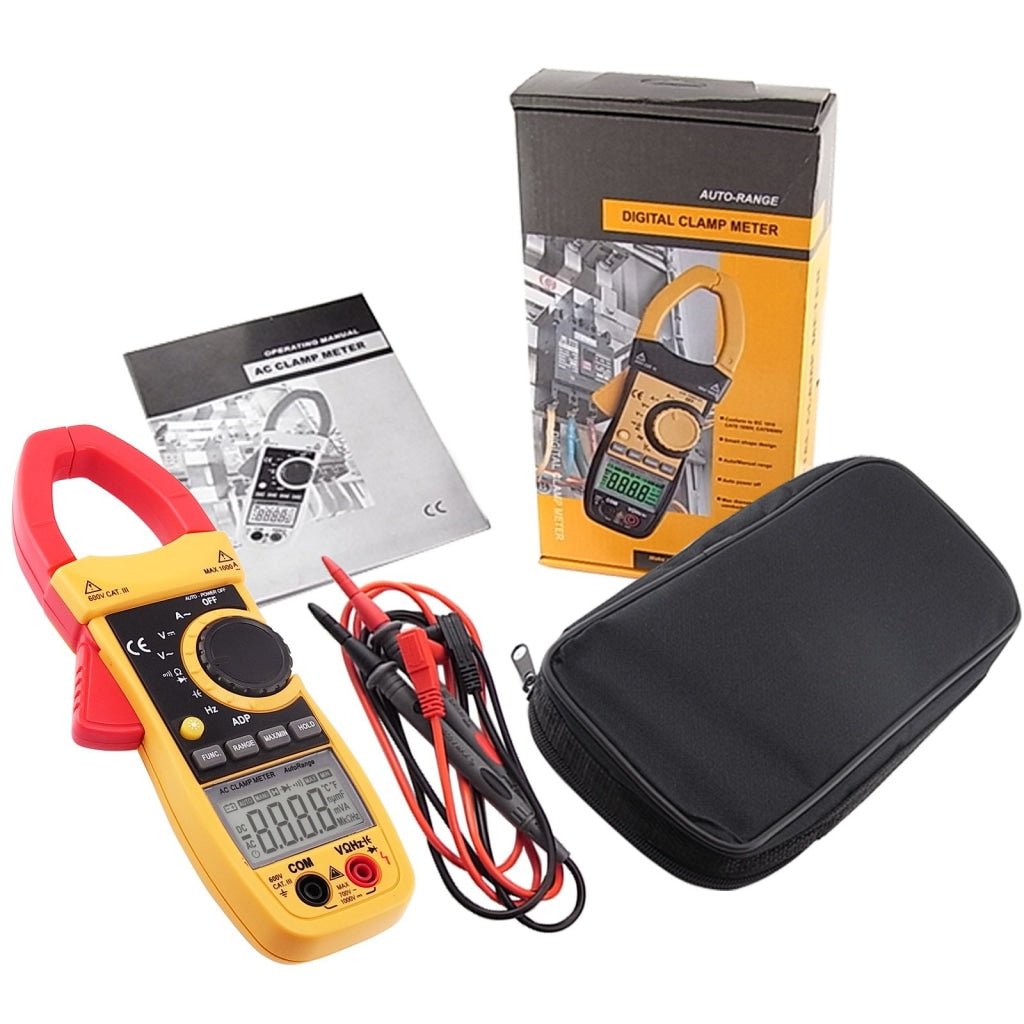

- 1 x Multifunction Clamp Meter
- 3 x 1.5V AAA Battery (FREE)

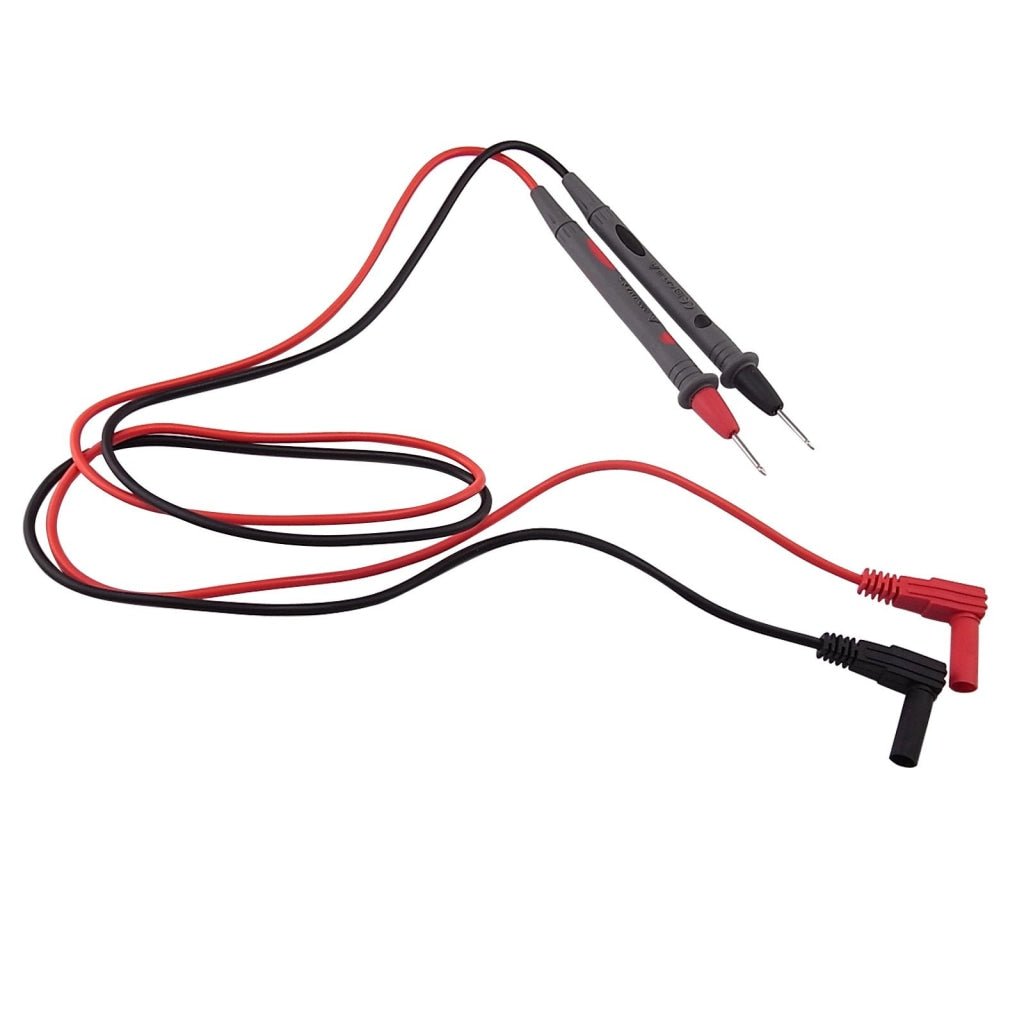

- 1 x Test Leads (set)
- 1 x Protective zippered carrying pouch
- English Instruction Manual
- Standard packaging box
