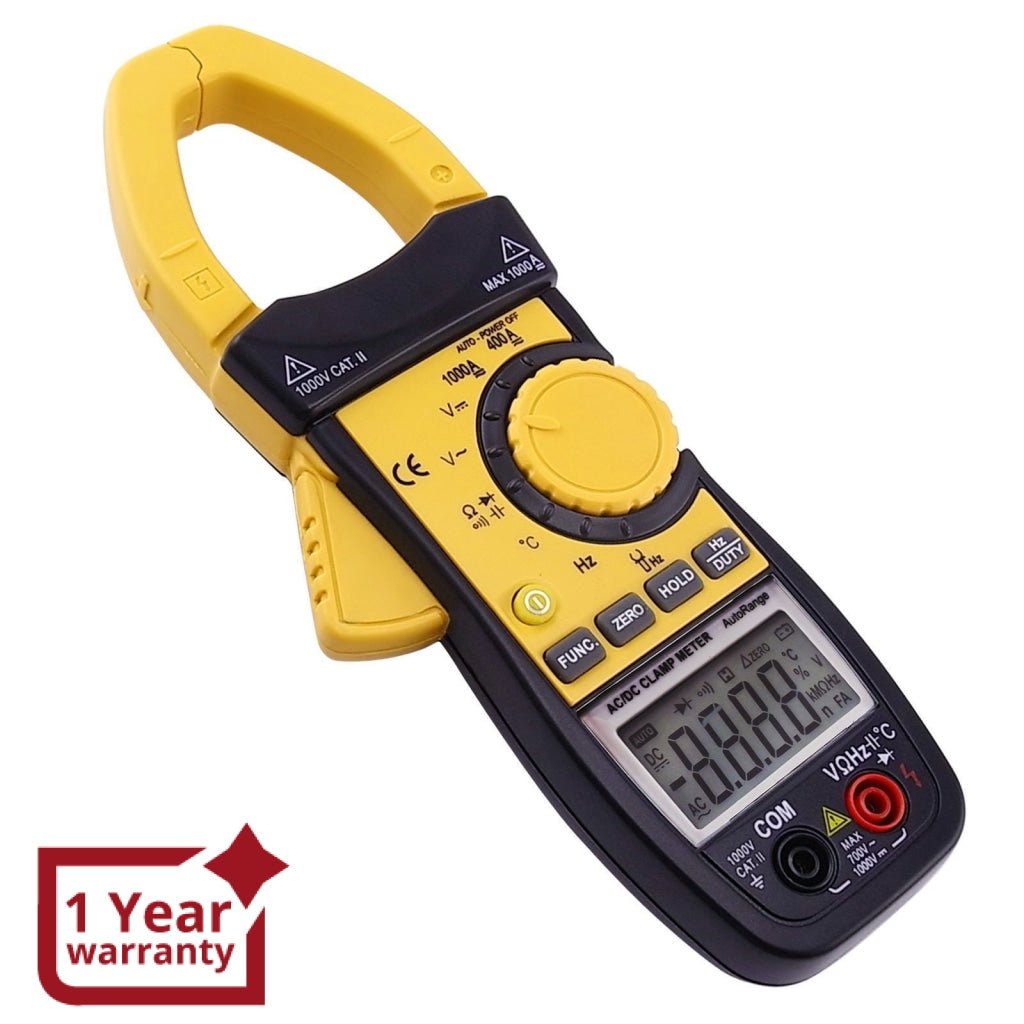

CM113 Digital AC/DC Clamp Meter Multimeter Thermometer Ohm Auto Range 3999 Counts Professional Tester

  • 0% OFF
  • Regular Price


Add to Wishlist

Check shipping / delivery time for your country | Free Shipping Worldwide Request for Quotation

Model: CM113


This is an Auto Range Professional Multifunction AC/DC Clamp Meter with 3999 counts. Capable to measure DC and AC voltage, DC and AC current, Resistance, Capacitance, Temperature (°C), Frequency, Frequency from the clamp, Duty Cycle, Diode and Continuity Tests.

In addition to features are Relative Measurement Mode (Zero Function) and Over range protection. Simply clamp around an electrical conductor to allow the electrical current in the conductor to be measured, without having physical contact with it, or to disconnect the wiring through which the current is flowing.

It complies with all essential health and safety requirements set out in European Community Directives. It also meet internationally proven safety standards such as IEC1010-1, IEC1010-2-032, concerning electrical measuring instruments with double insulation overvoltage category 1000V CAT II 600V CAT III and pollution degree 2.

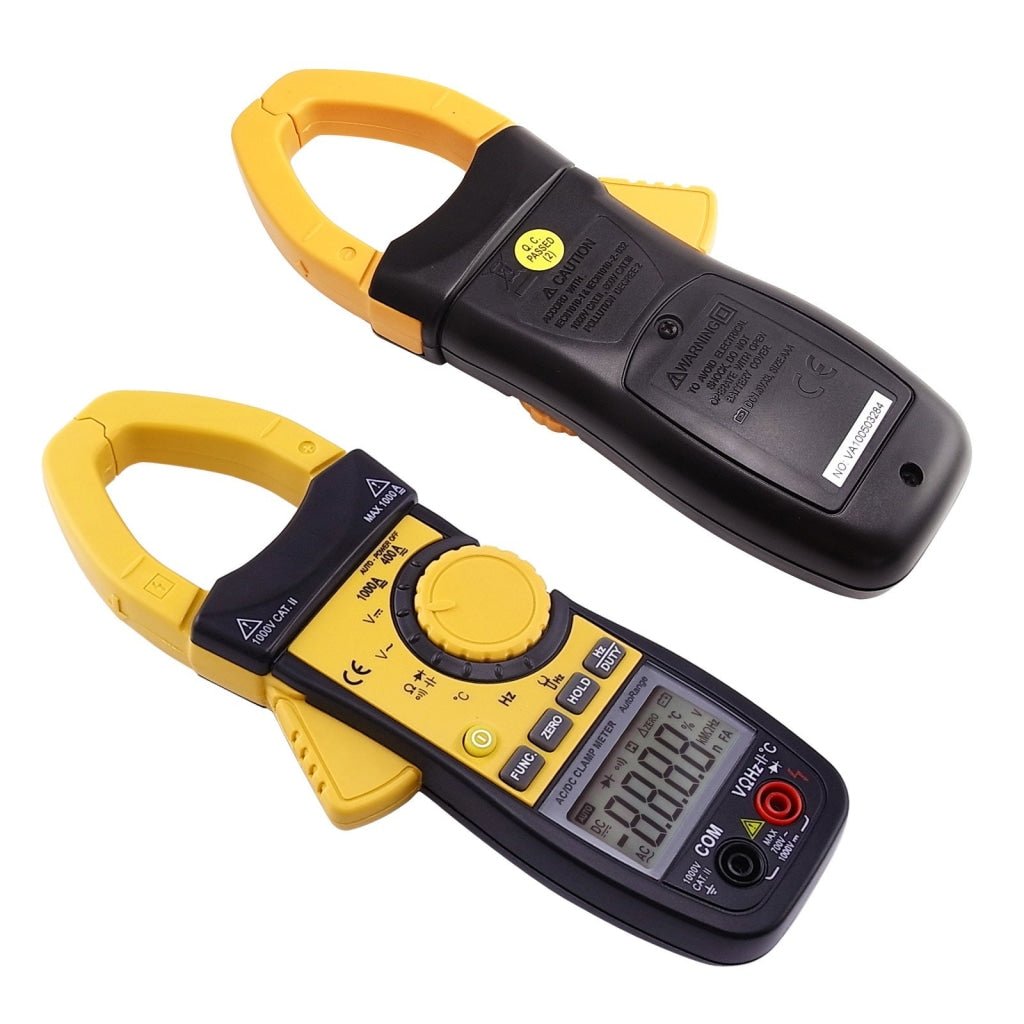

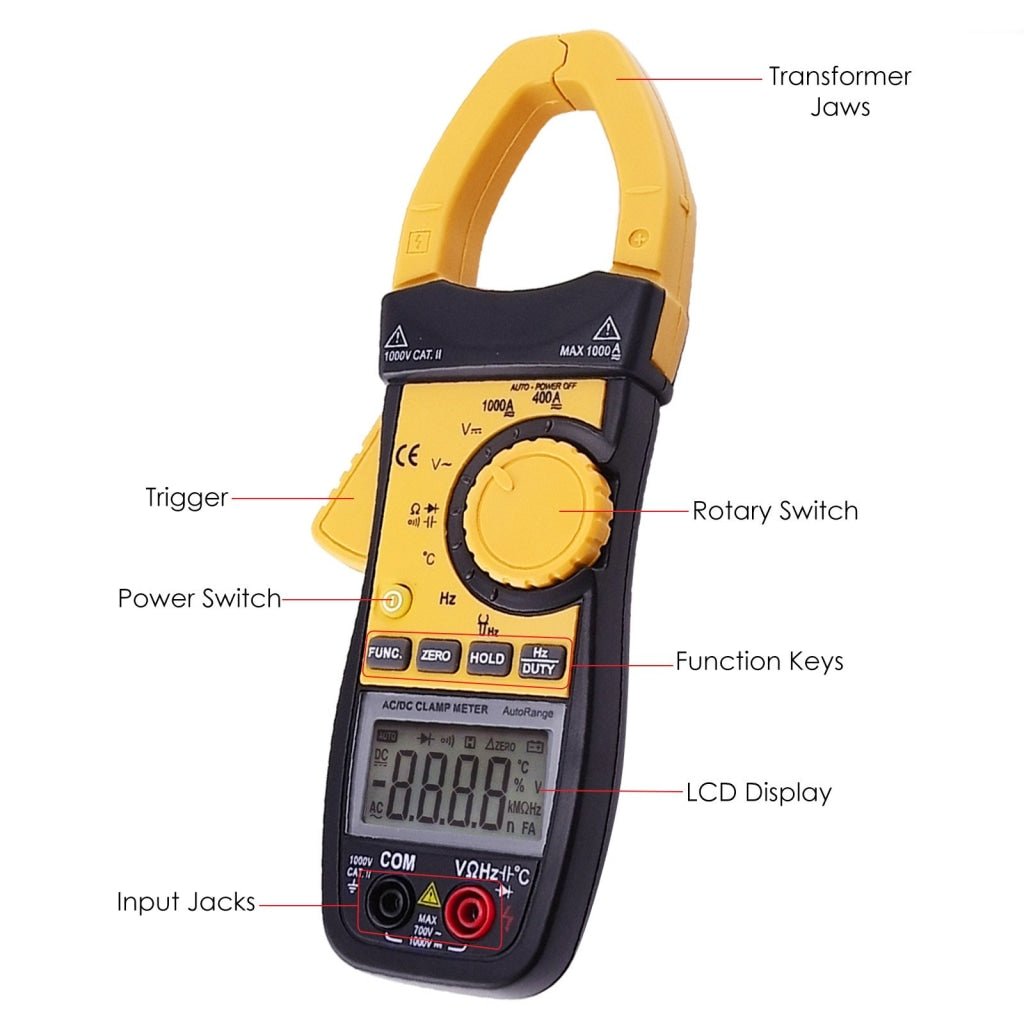

  • Professional Multifunction AC/DC Clamp Meter

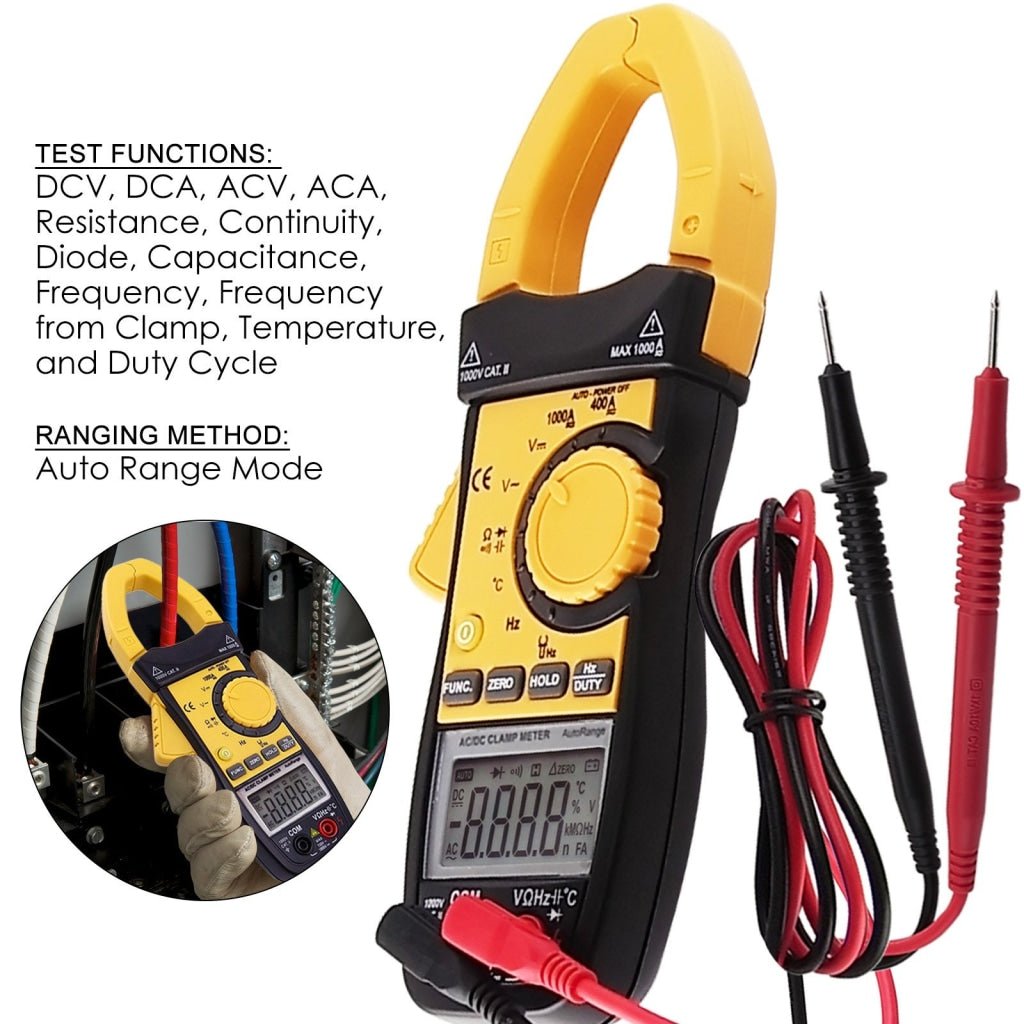

  • Test Functions DCV, DCA, ACV, ACA, Resistance, Continuity, Diode, Capacitance, Frequency, Frequency from Clamp, Temperature, and Duty Cycle

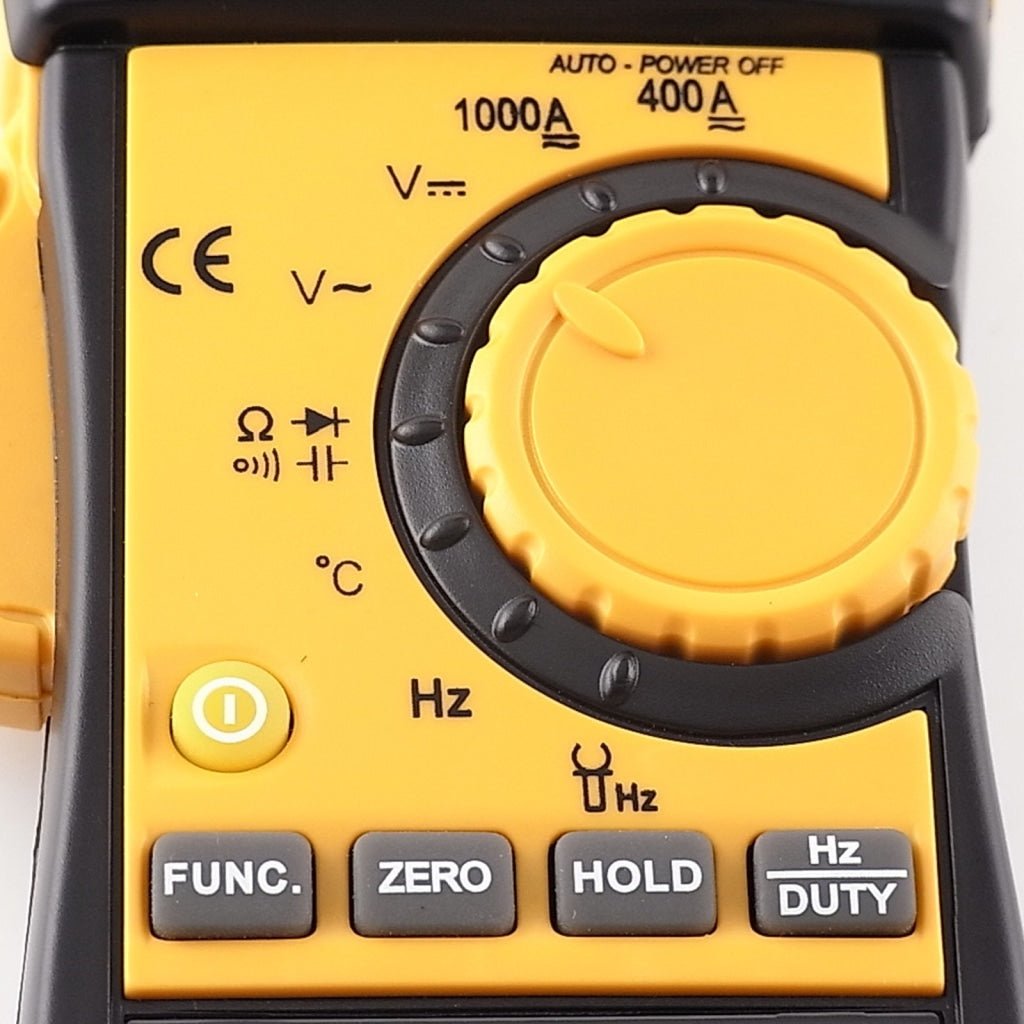

  • Function keys: Data hold and Auto Zero
  • International Standards: CE, IEC1010-1, IEC1010-2-032, CAT II 1000V, CAT III 600V, EMC
  • Reliable and accurate measurements

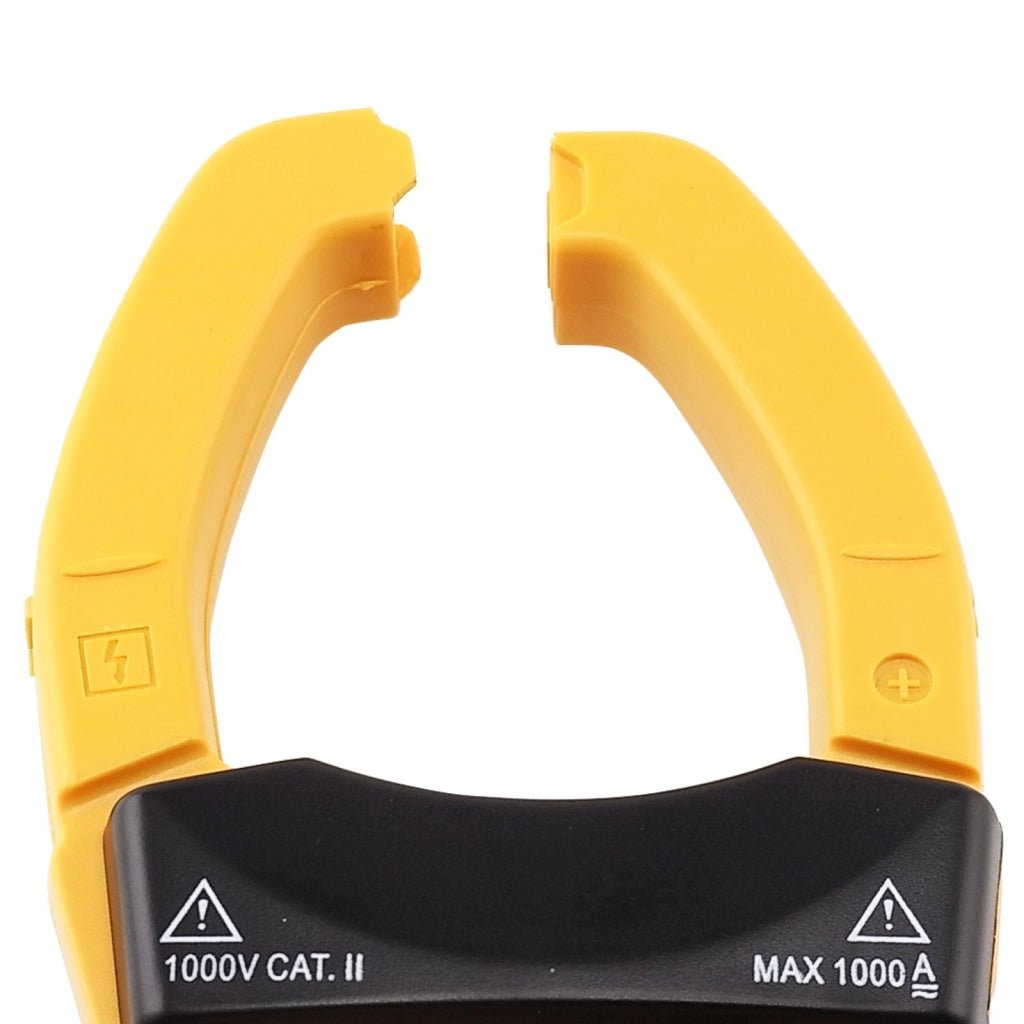

  • Φ40mm maximum conductor diameter
  • Ergonomic grip with bigger jaw opening and larger conductor size

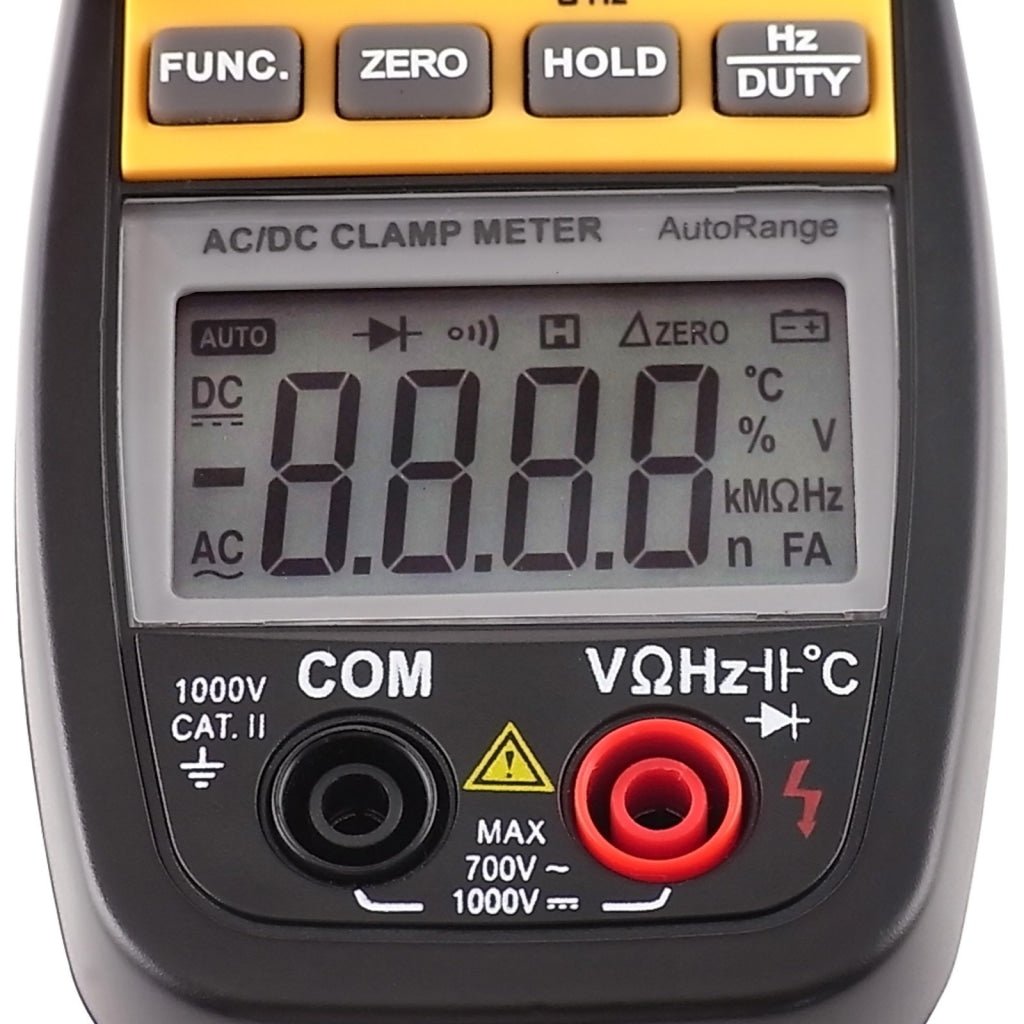

  • Bigger LCD screen
  • Overload Protection
  • Impedance in circuit is below 30Ω with buzzer alarm
  • Auto power off and low battery indication
  • Automatic Ranging
  • Safety Guard and secured jacks
  • Double insulated
  • Design in accordance with Electromagnetic Compatibility (89/336/EEC) & Low Voltage (73/23/EEC as amended by CE Marking (93/68/EEC)
  • Includes heavy-duty test leads and batteries
  • Brand new

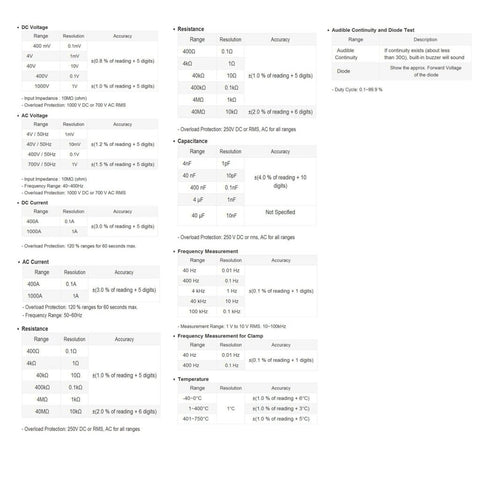

  • General Specifications:
    • Maximum Voltage: 1000 V DC or 700 V AC RMS
    • Altitude: < 2000m
    • Display: LCD 3999 counts Update 2 ~ 3 per second
    • Ranging Method: Auto Range Mode
    • Polarity Indication: "-" display for negative polarity
    • Over Range Indication: LCD will display "OL"
    • Low Battery: icon will appears on LCD
    • Jaw Capability: 40mm, Max conductor size

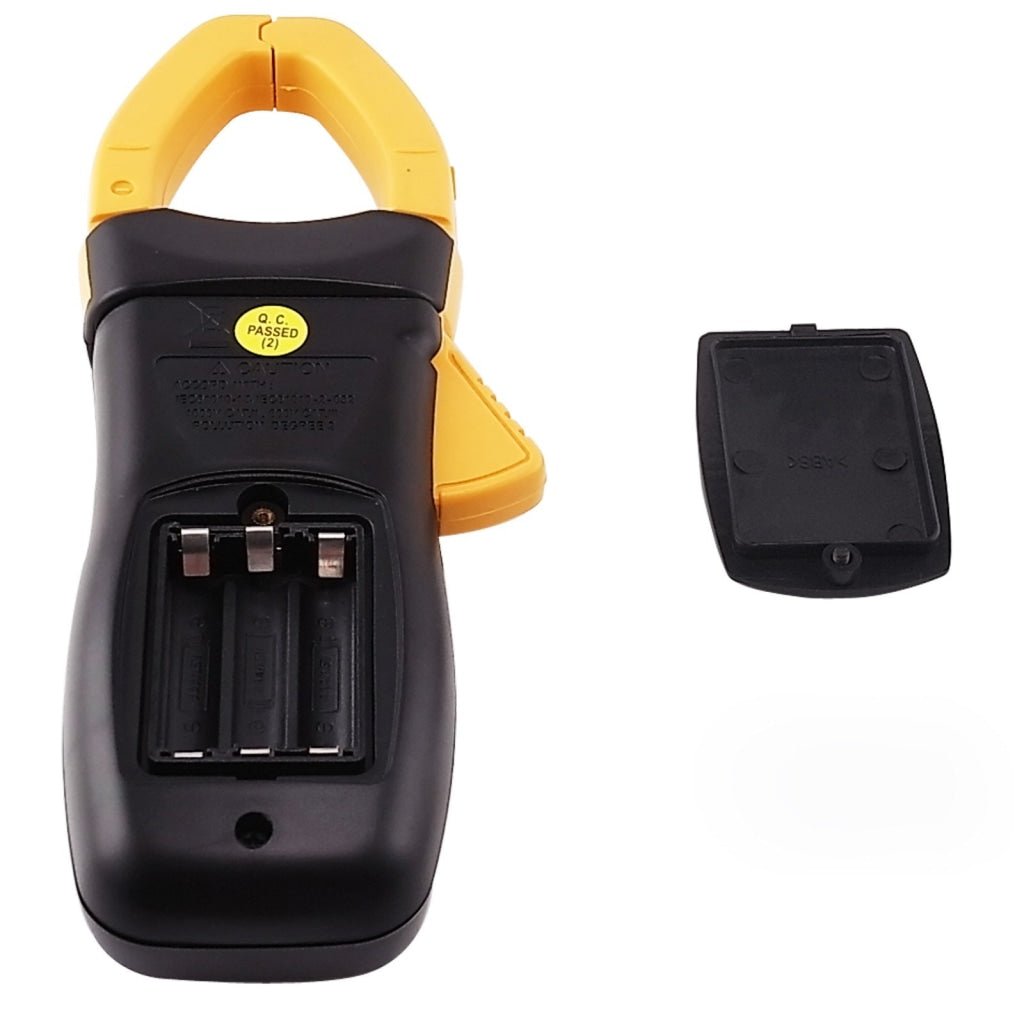

    • Power: 3 x 1.5V AAA Batteries
    • Operating Temperature: 5~35°C
    • Storage Temperature: -10~50°C

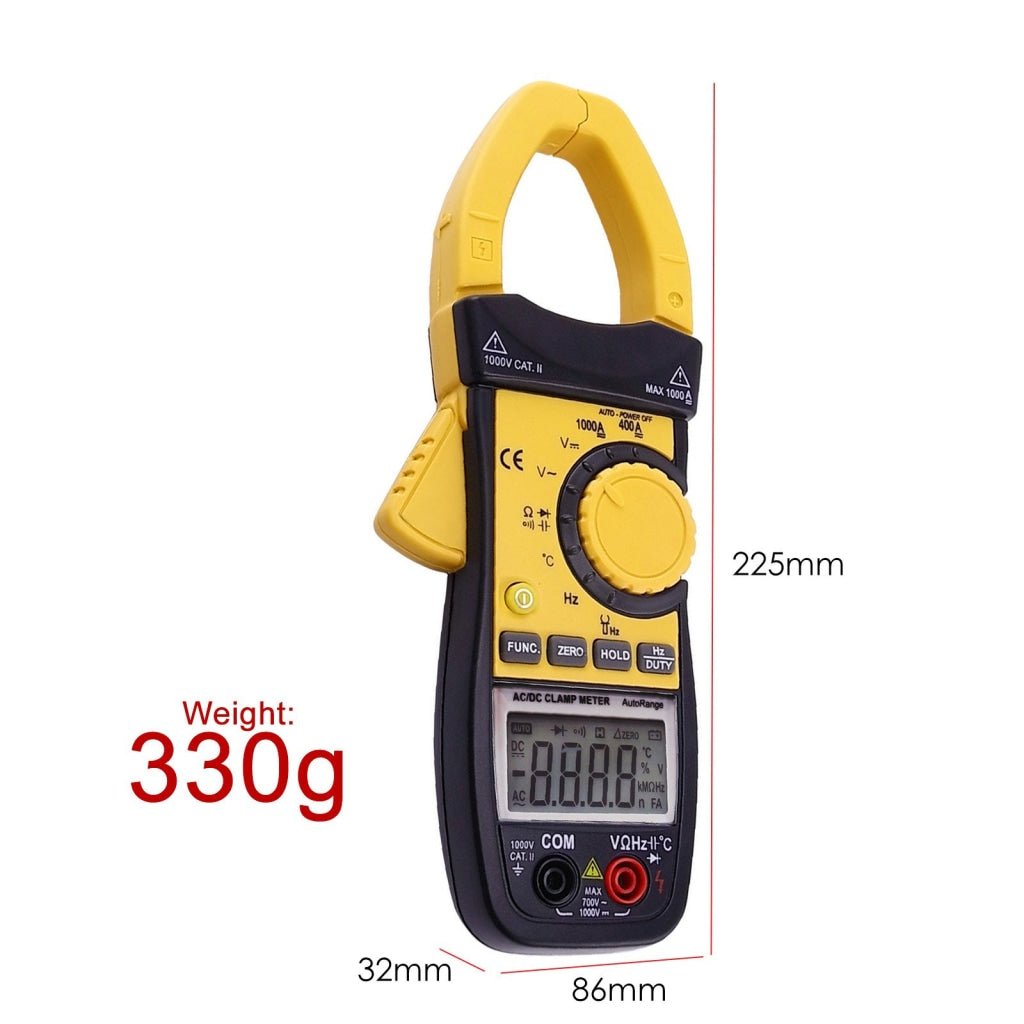

    • Dimension: approx. 225(L) x 86(W) x 32(D) mm (8.86' x 3.39' x 1.26' inch)
    • Weight: approx. 330g

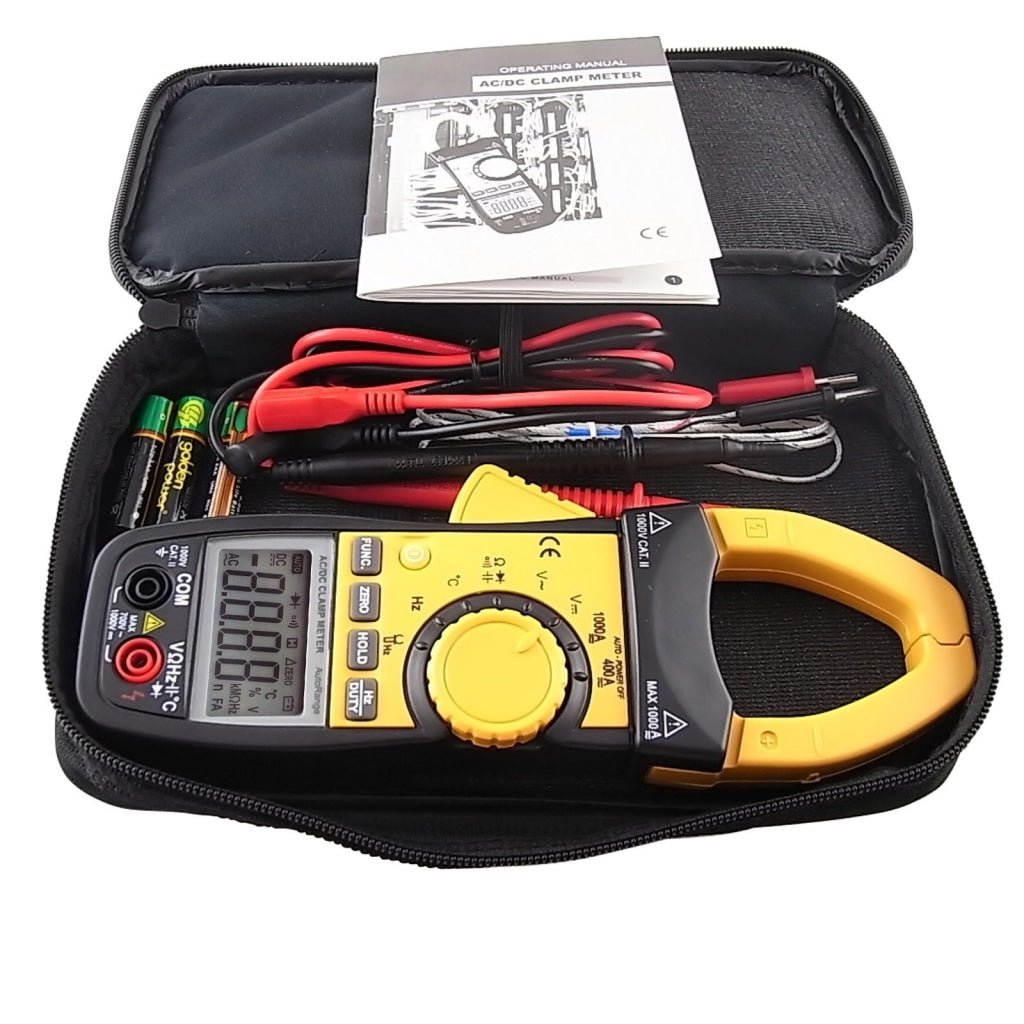

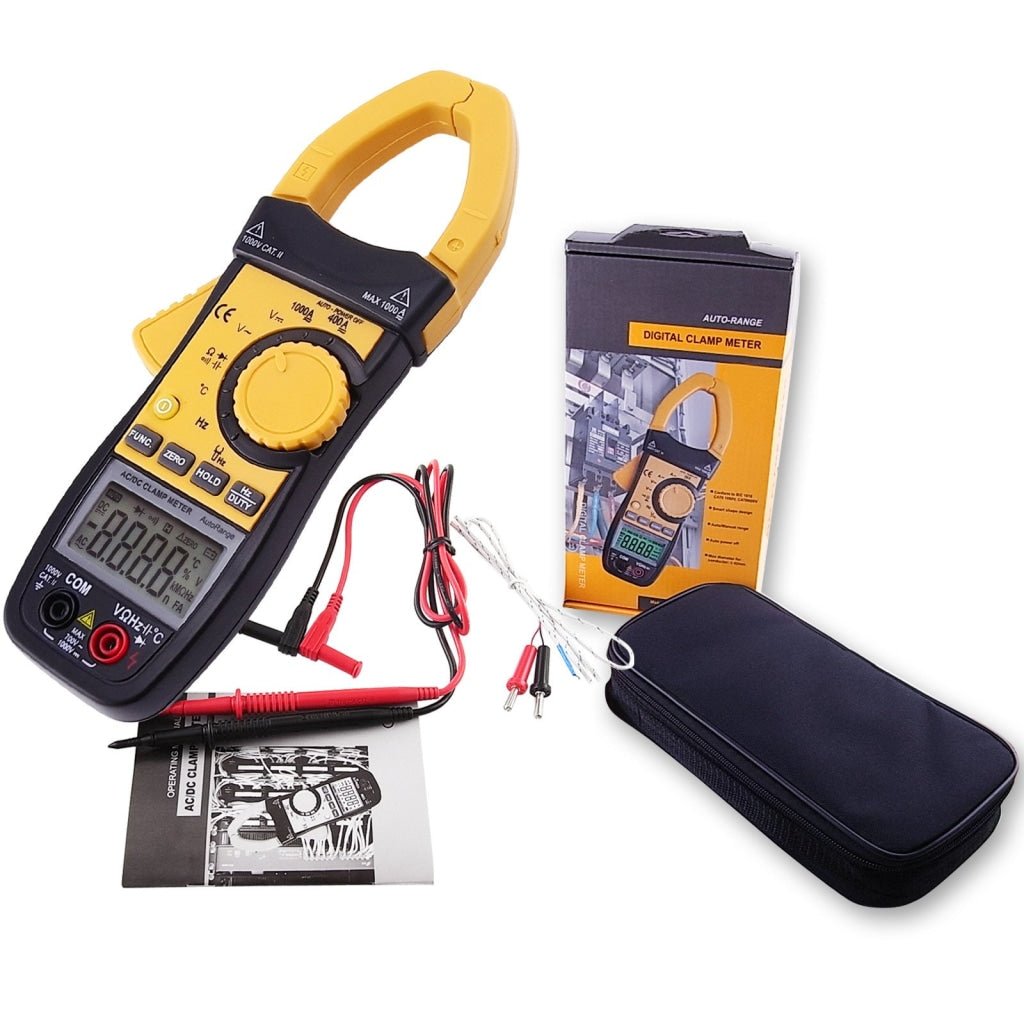

Set Includes
  • 1 x Professional Multifunction AC/DC Clamp Meter
  • 3 x 1.5V AAA Battery (FREE)
  • 1 x "K" type thermocouple

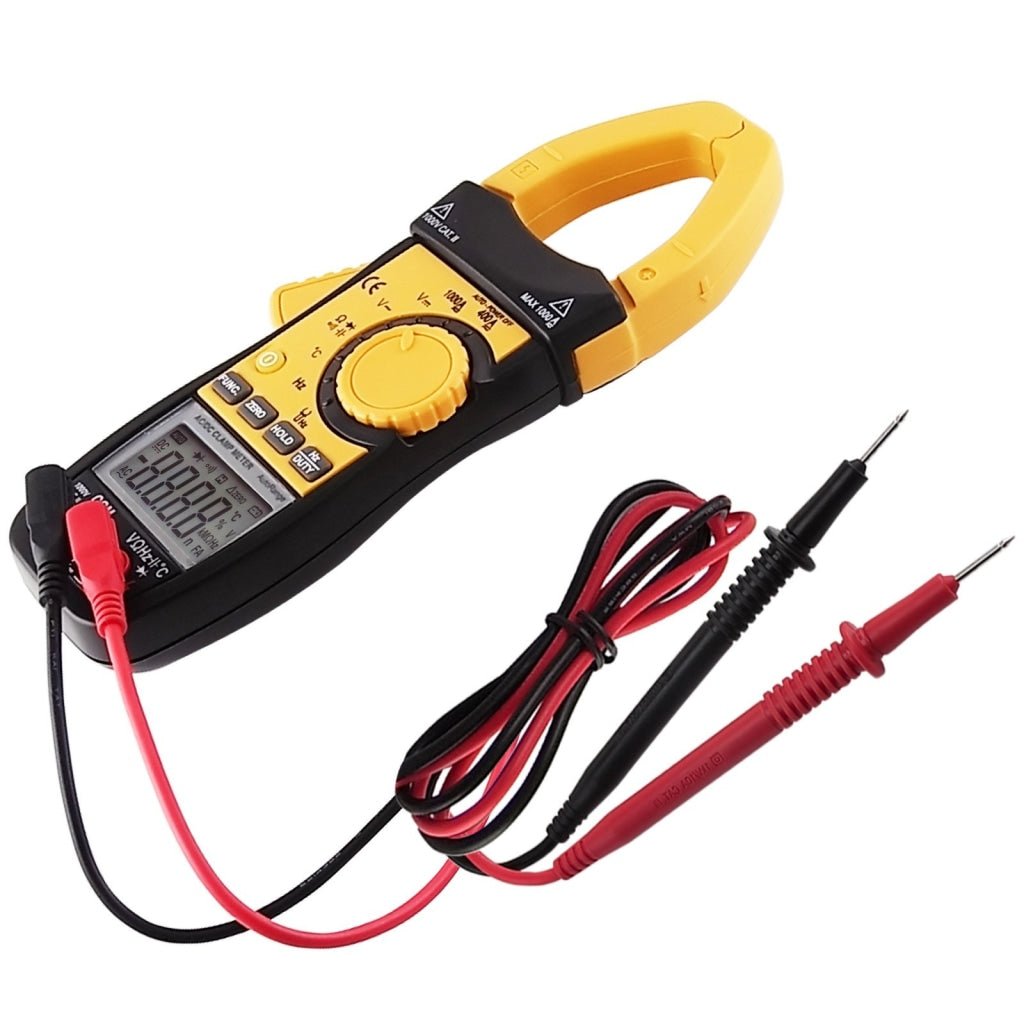

  • 1 x Test Leads
  • 1 x Protective Zippered Carrying Pouch
  • English Instruction Manual
  • Standard packaging box
