88163 Digital Waterproof USB Datalogger Humidity Temperature and Pressure Barometric Data Logger gauge, generate PDF/Excel report LED indicator


Quantity
  OR


This USB Datalogger provides multi-function for you to measure and save the records of temperature, humidity and pressure throughout the measurement period.  Just plug and play without any specific software nor driver required. User’s company name titled measurement report, alarm measurement setting and password locking for any setting change are available for professional measurement.



 Features:

  • Measure Barometric Temperature and Humidity,
  • Plug and play with USB 2.0, USB driver is not required
  • Automatically generate PDF/Excel report. report contains summary, graphics and detailed data
  • Language setting: English, German, French, Italian, Spanish and Portuguese
  • Waterproof cover for USB plug and function as a stand for the logger
  • Configuration changes can be locked with Password
  • Report can be titled with user’s Company Name
  • 3 simplified operation keys
  • Note to Buyer : Support Windows 7,8 and 10 only



Specifications:

  • Temp. Range:  NTC themistor, -30~70°C, -22~158°F
  • Resolution: 0.1°C, 0.1°F
  • Accuracy (under):  ±0.5°C
  • Humidity Range: 0.1~99.9%rh
  • Resolution: 0.1%rh
  • Accuracy:  ± 3% (under 25°C, 10~90%rH); ± 5% (other condition)
  • Barometric. Range: 300~1100hpa; 8.9~32.5inHg
  • Resolution:  01hpa: 0.1inHg
  • Accuracy:  ± 3hpa (under 0~60°C); ± 5hpa (-20~0°C)
  • Sampling Points 24K: T& 24K: RH ,  24K: T& 24K: R
  • Operating Temp. -30 ~ 70°C(Logging Status) : Room Temp. (PC mode)
  • Operating RH%:  Humidity < 90%
  • Storage Temp: -40 ~ 85°C
  • Storage RH% : Humidity < 90%
  • Sampling Interval : 30 seconds, 5, 10, 30, 60, 90 120 minutes
  • Alarm range : Programmable from -30~70°C
  • Alarm type : Single Event, Cumulative, Disable
  • Operation Keys : 3 keys (Start/Stop, Mark & Court key)
  • LED idicator : REC, High/ Low alarm
  • Dimension (L x W x T):  110 * 45 * 17 mm
  • Weight: 50g
  • Power Supply: 2 x CR2032 3V Batteries, 3 months life time (included in the set)

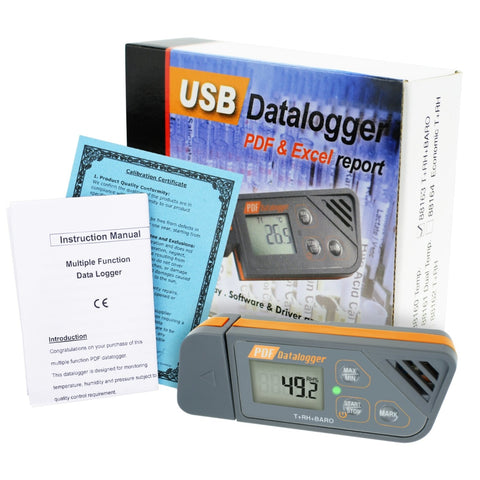

 Sets includes

  • PDF Datalogger
  • 2 x Panasonic CR 2032 3V
  • English Instruction Manual
  • Calibration Certificate
  • Standard Factory Packaging
