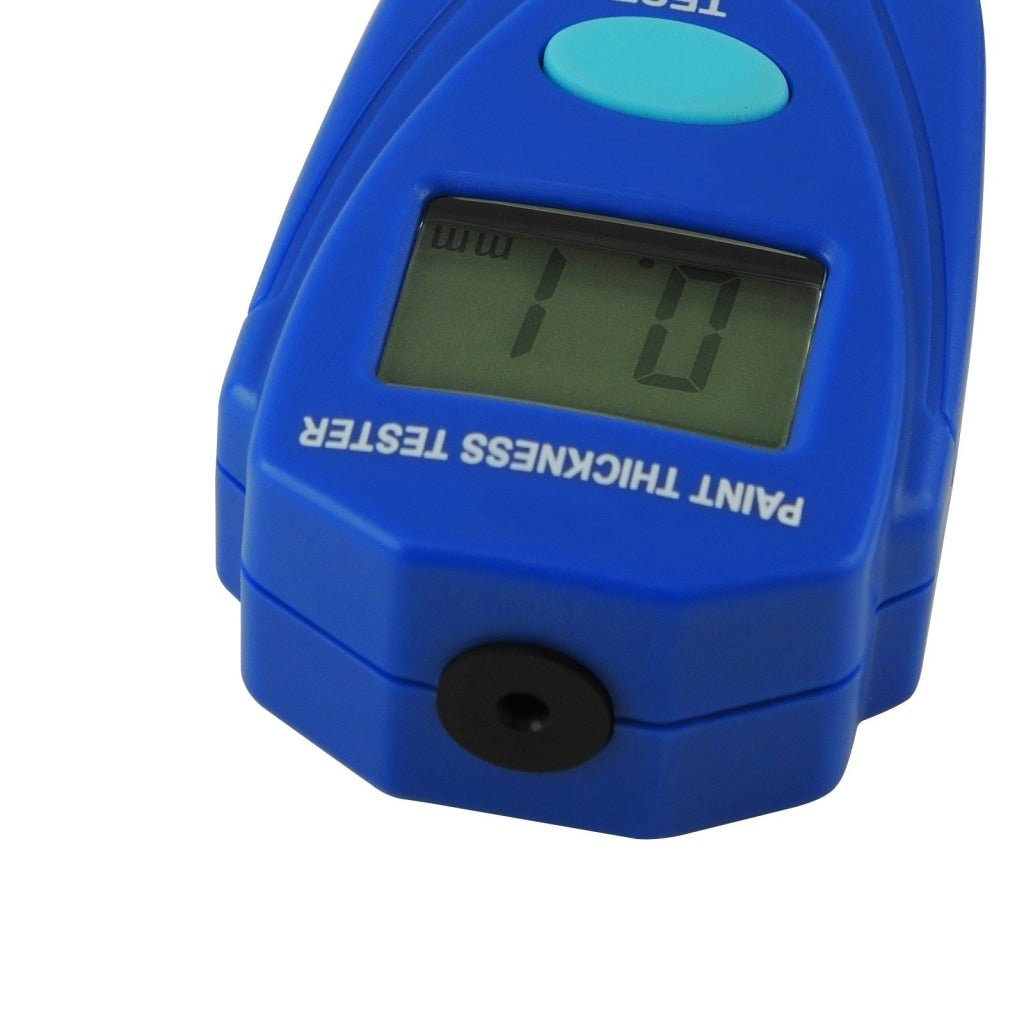

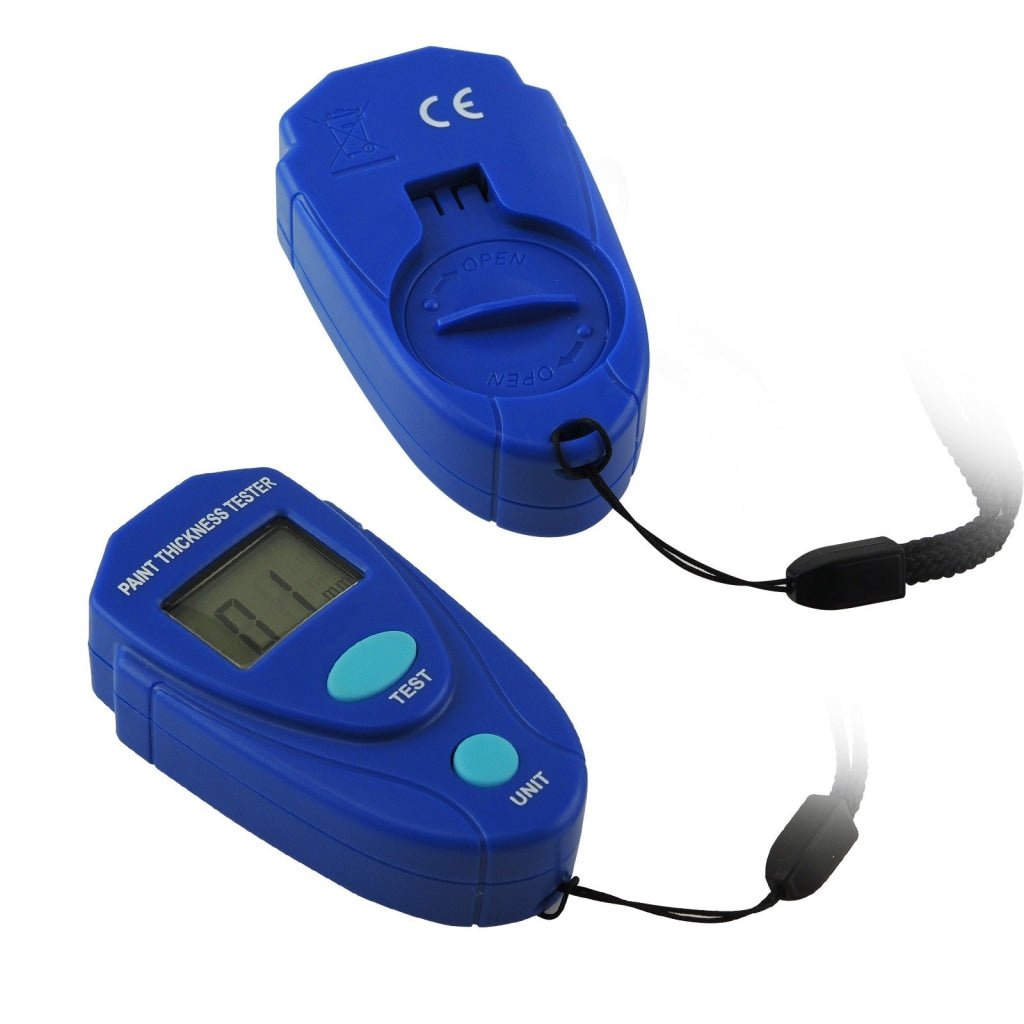

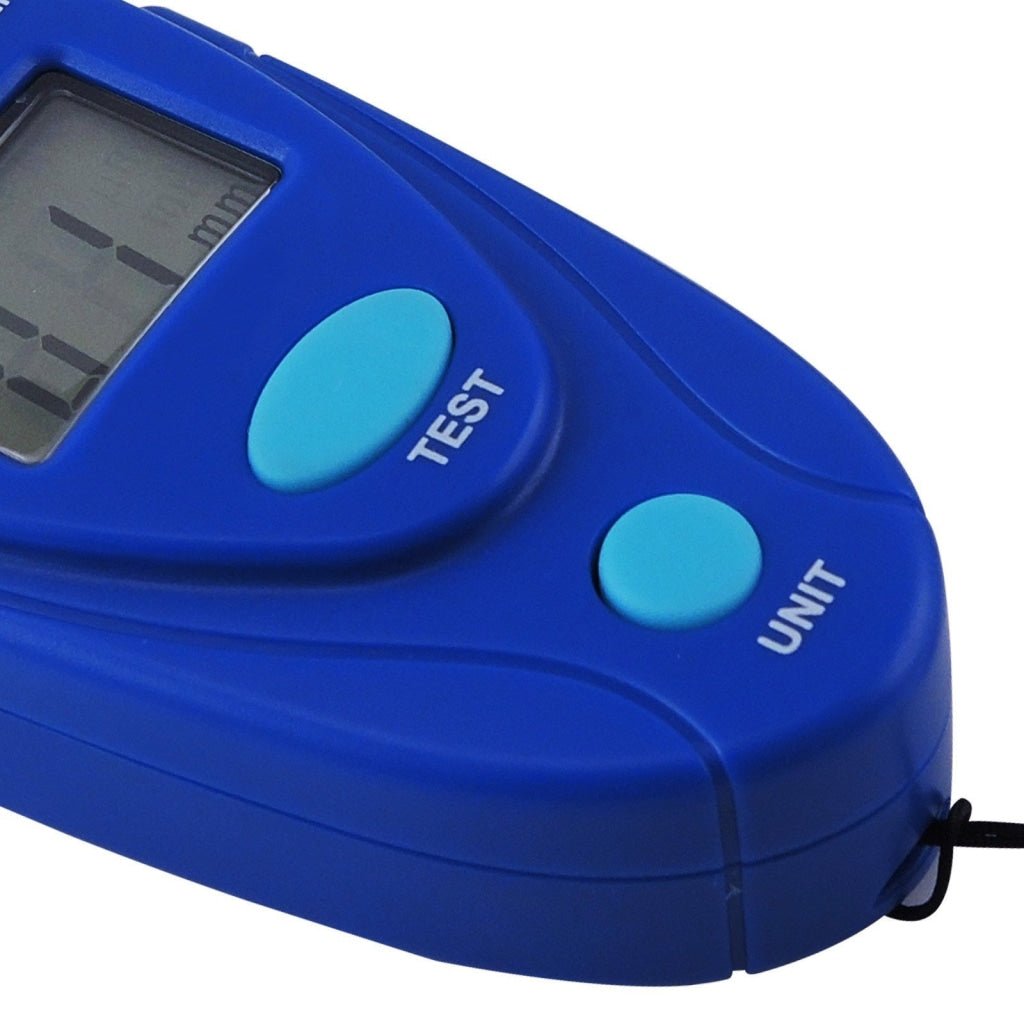

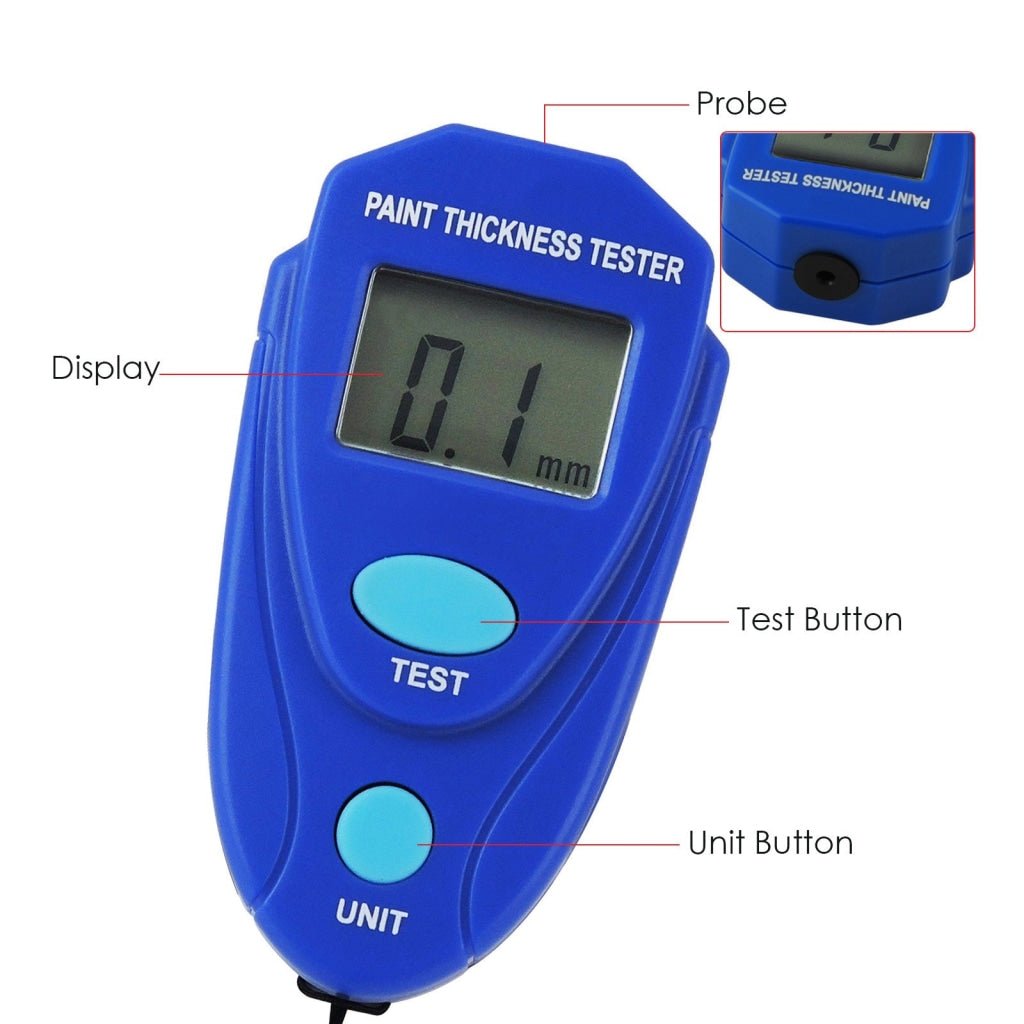

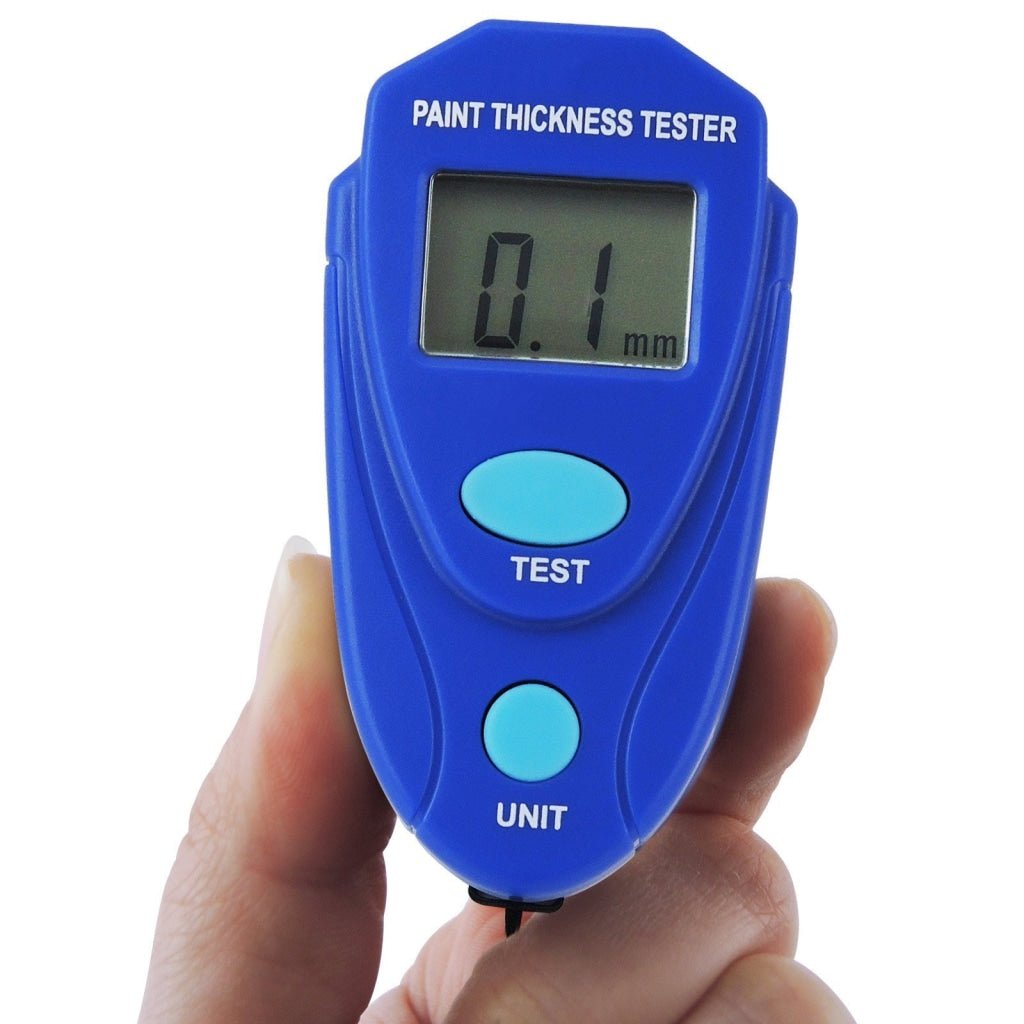

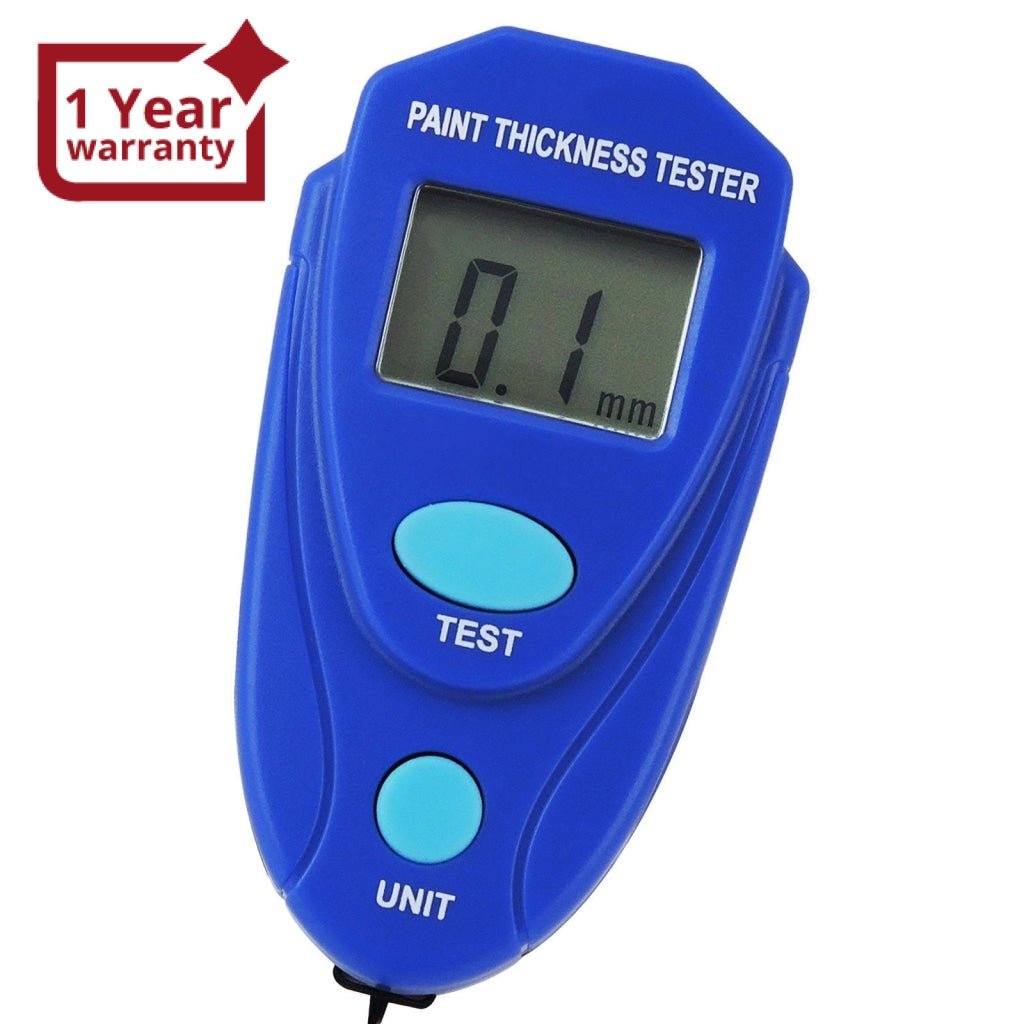

E04-025 Digital Non-Magnetic Coating Thickness Gauge Car Painting Thickness Meter Tester Mini Handheld Tool

  • 0% OFF
  • Regular Price

    $29.90



Add to Wishlist


Check shipping / delivery time for your country | Free Shipping Worldwide Request for Quotation

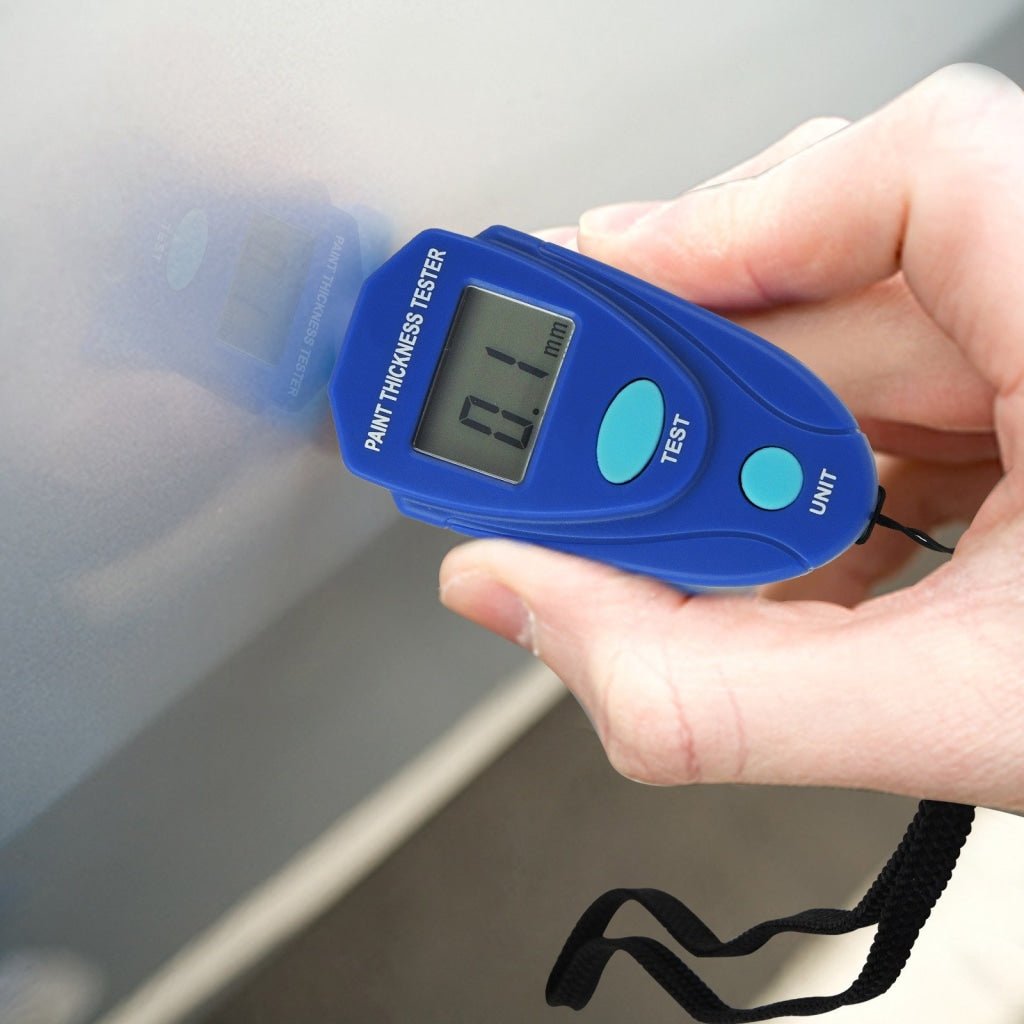

This paint thickness meter is designed to not-destructively measure the thickness of non-magnetic coatings (including paint, enamel, plastic, epoxy, etc.) on iron, steel or aluminum.


Features:

  • Portable Digital Paint thickness gauge
  • With Range of 0.1~2.00mm,±0.1 accuracy
  • Measurement mode : Fe
  • Automatic calibration, Data hold
  • Auto power off mode designed to conserve battery life
  • Compact design and easy to carry
  • Powered by 3V button cell (included in set)



Specifications:

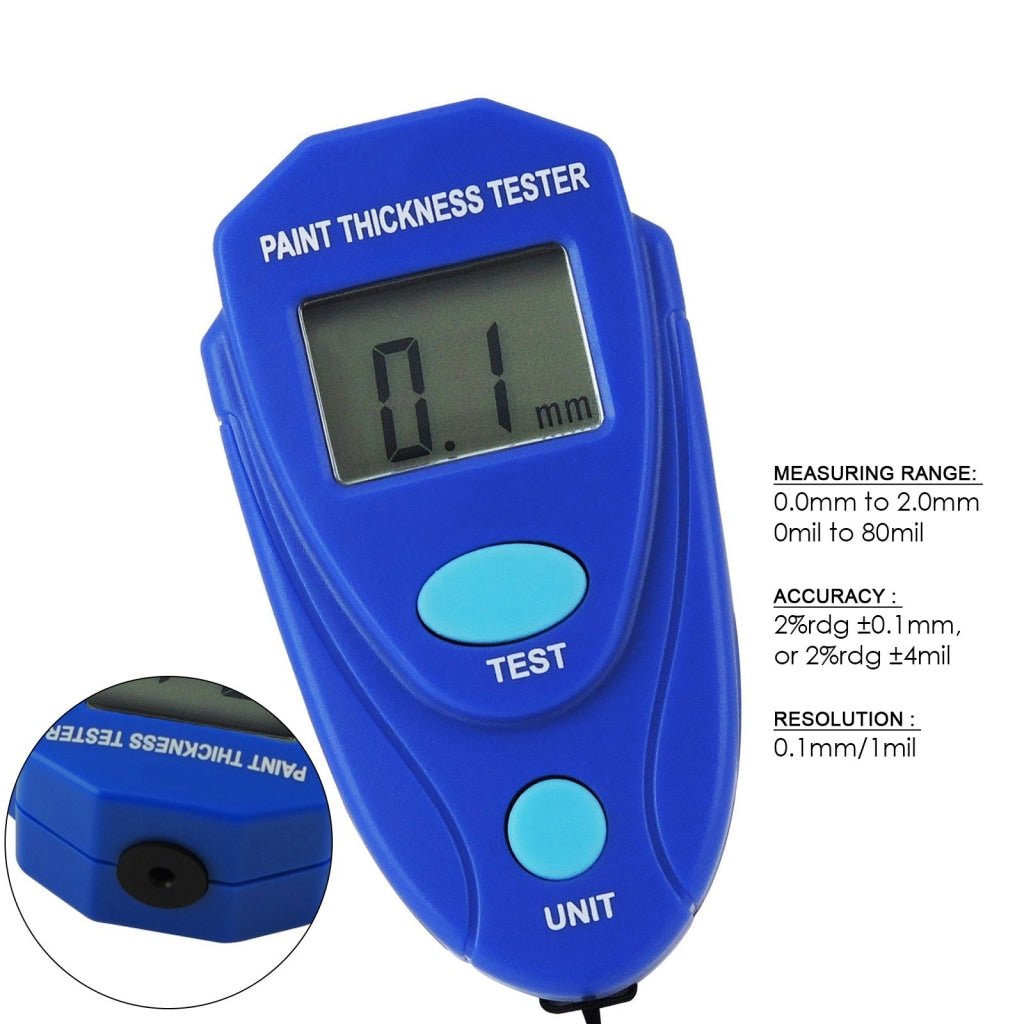

  • Measuring Range: 0.0mm to 2.0mm
      • 0mil to 80mil
  • Accuracy : 2%rdg ±0.1mm, or 2%rdg ±4mil
    • note: Accuracy is guaranteed at the operating temperature of 23°C ±5°C and relative humidity of not more than 75%.
  • Resolution : 0.1mm/1mil

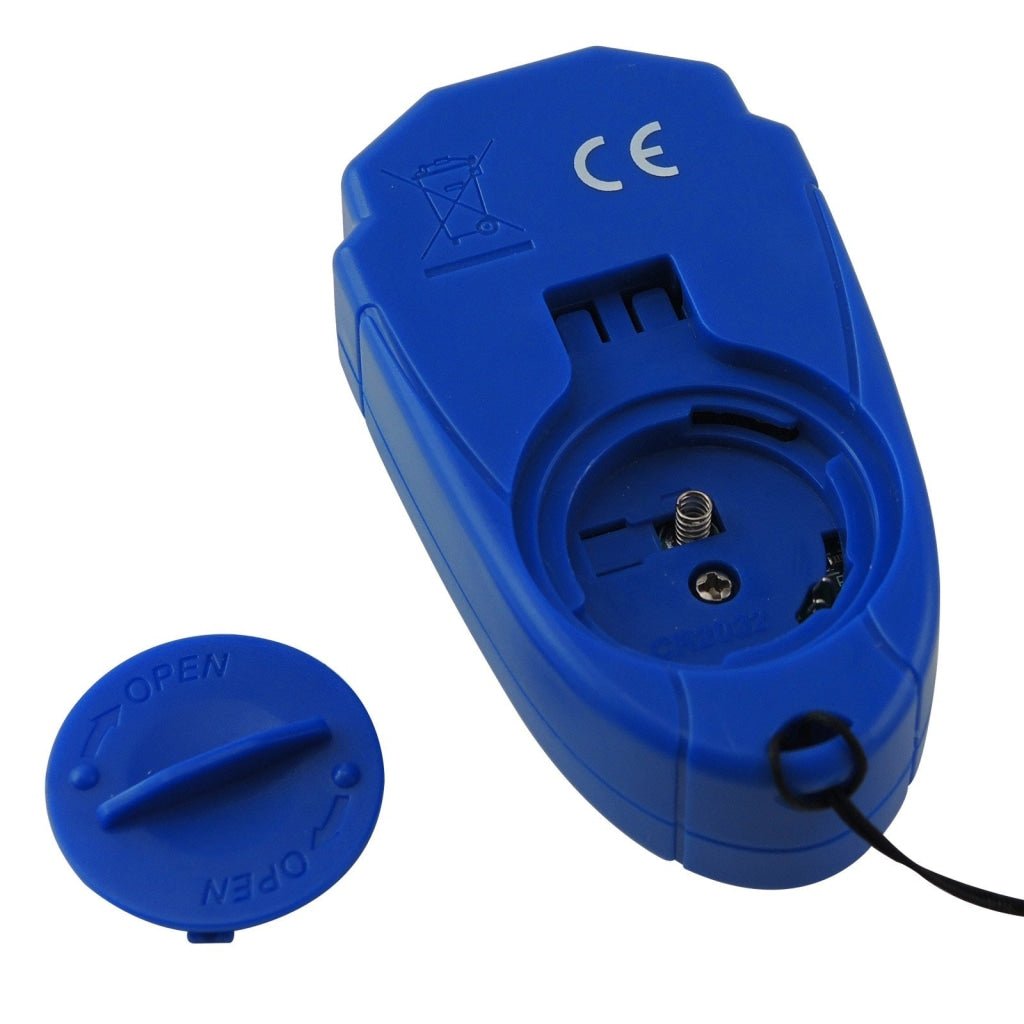

  • Power Supply : 1 x 3V button cell, CR2032 or equivalent
  • Operating Environment
    • Temperature : 0°C to 40°C
    • Relative Humidity : < 80%
  • Temperature Coefficient :
    • 0.05x(2%rdg ±0.1mm, or 2%rdg ±4mil)/°C(<18°C or >28°C)
  • Storage Environment
    • Temperature : -10°C to 50°C
    • Relative Humidity : <80%

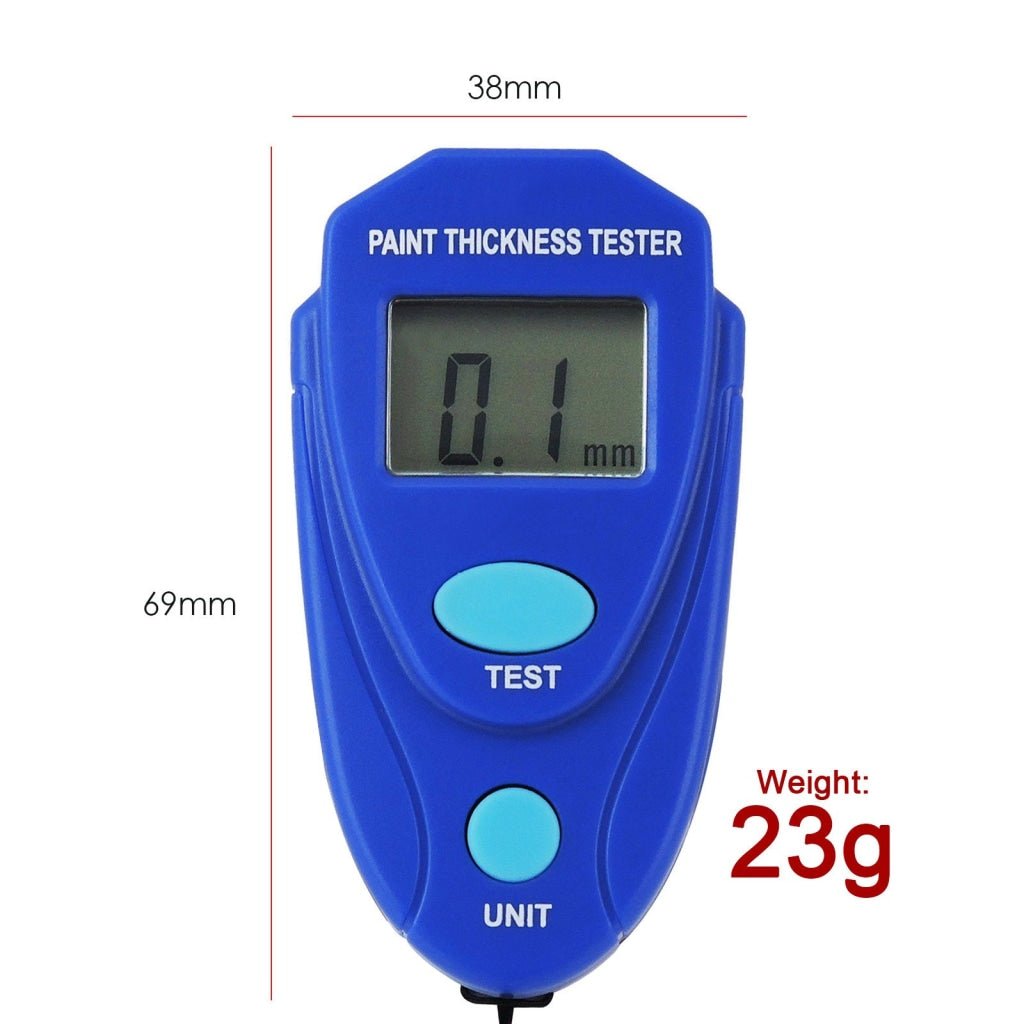

  • Size : 6.9 x 3.8 x 2cm
  • Weight : About 23g (including button cell)

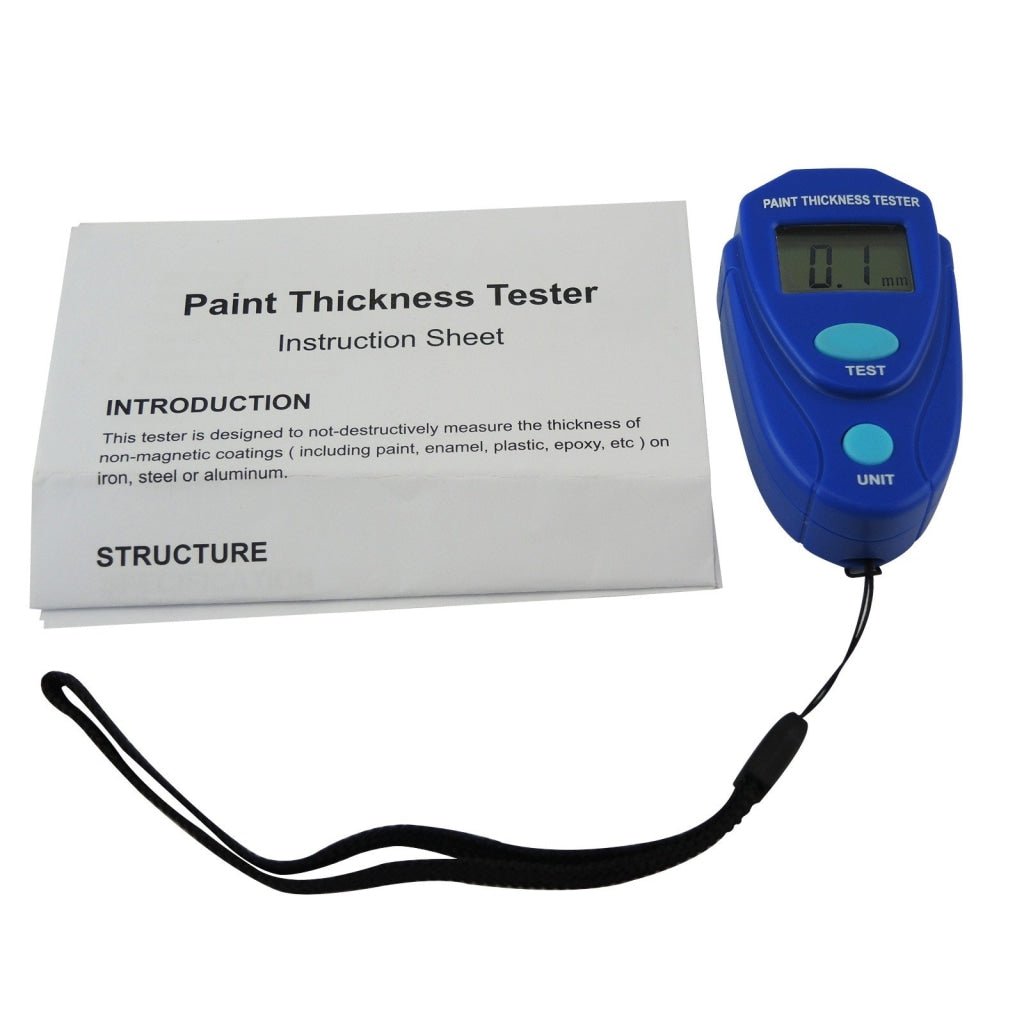

Set Comprise:

  • 1 x Paint Thickness Tester
  • 1 x 3V(CR2032) button cell buttery
  • 1 x English Manual
  • Standard Blister Packaging
