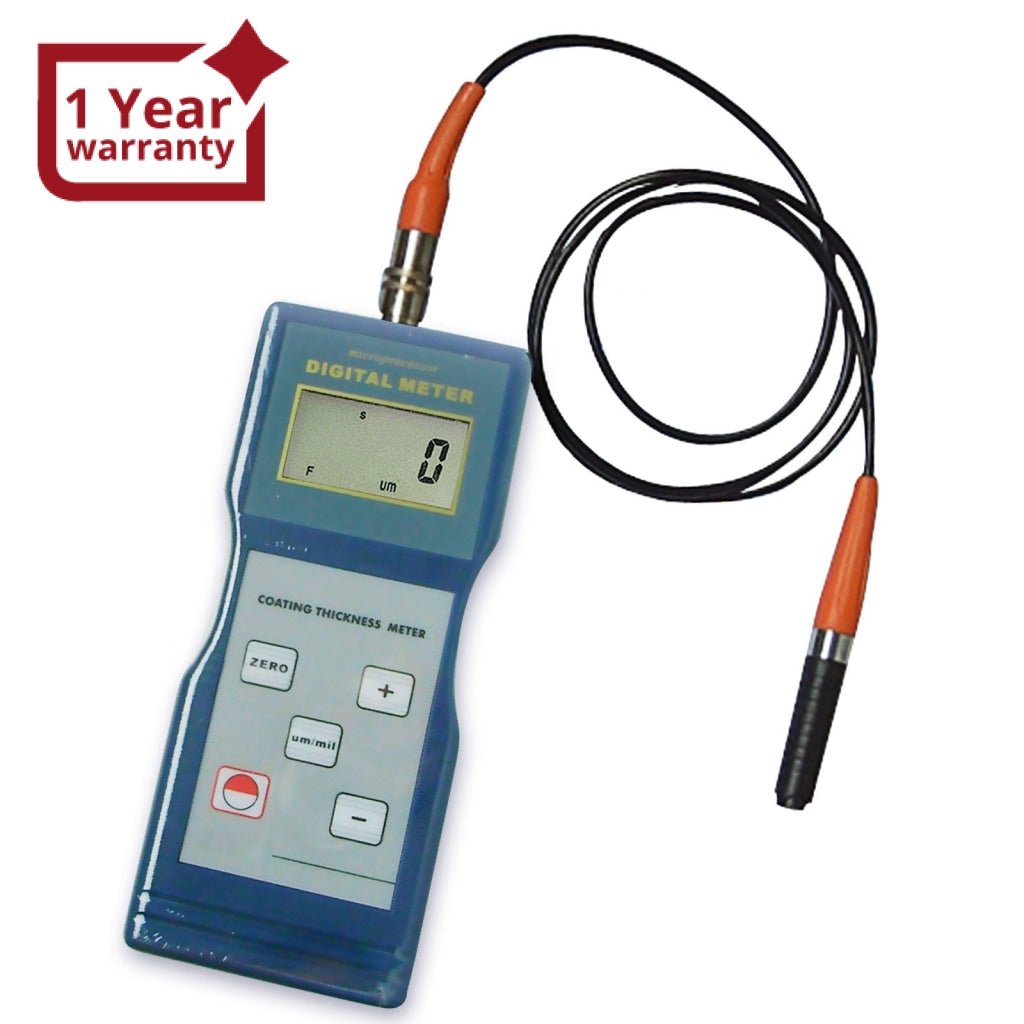

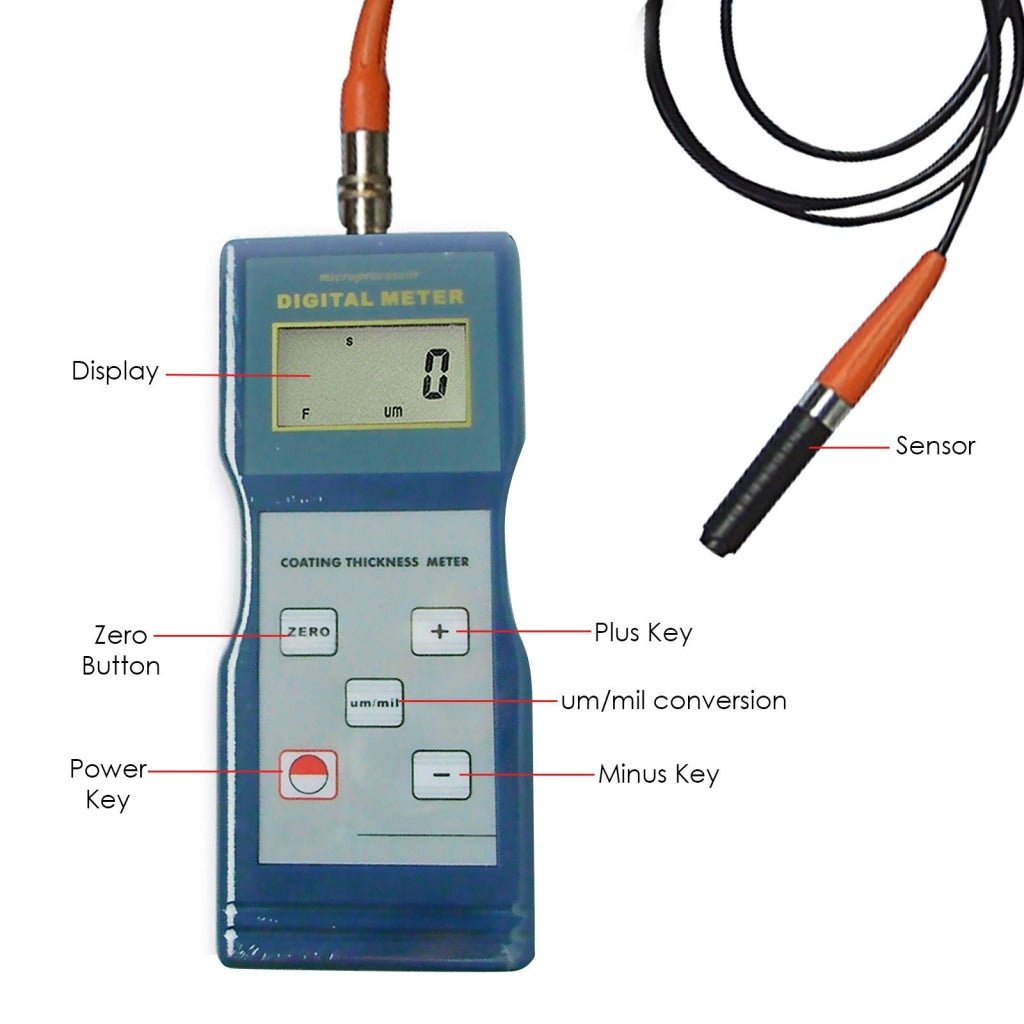

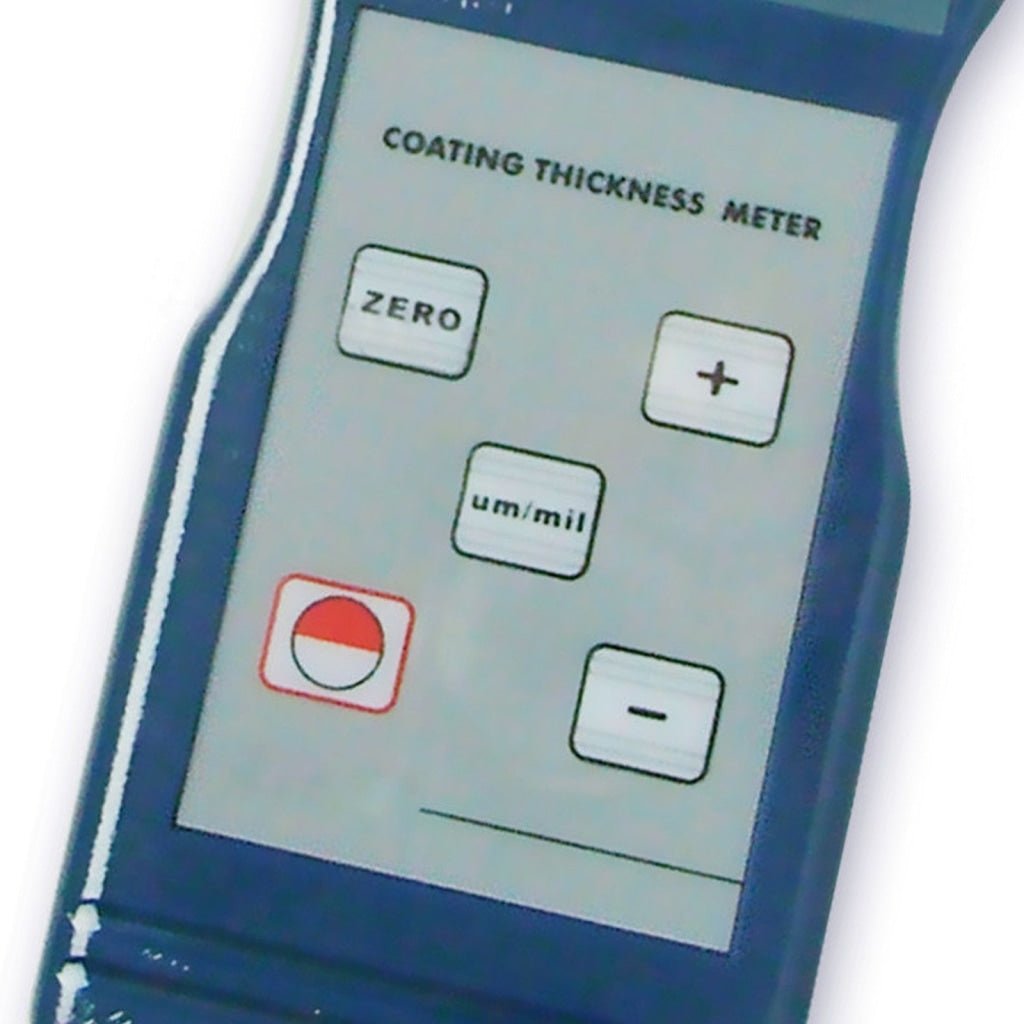

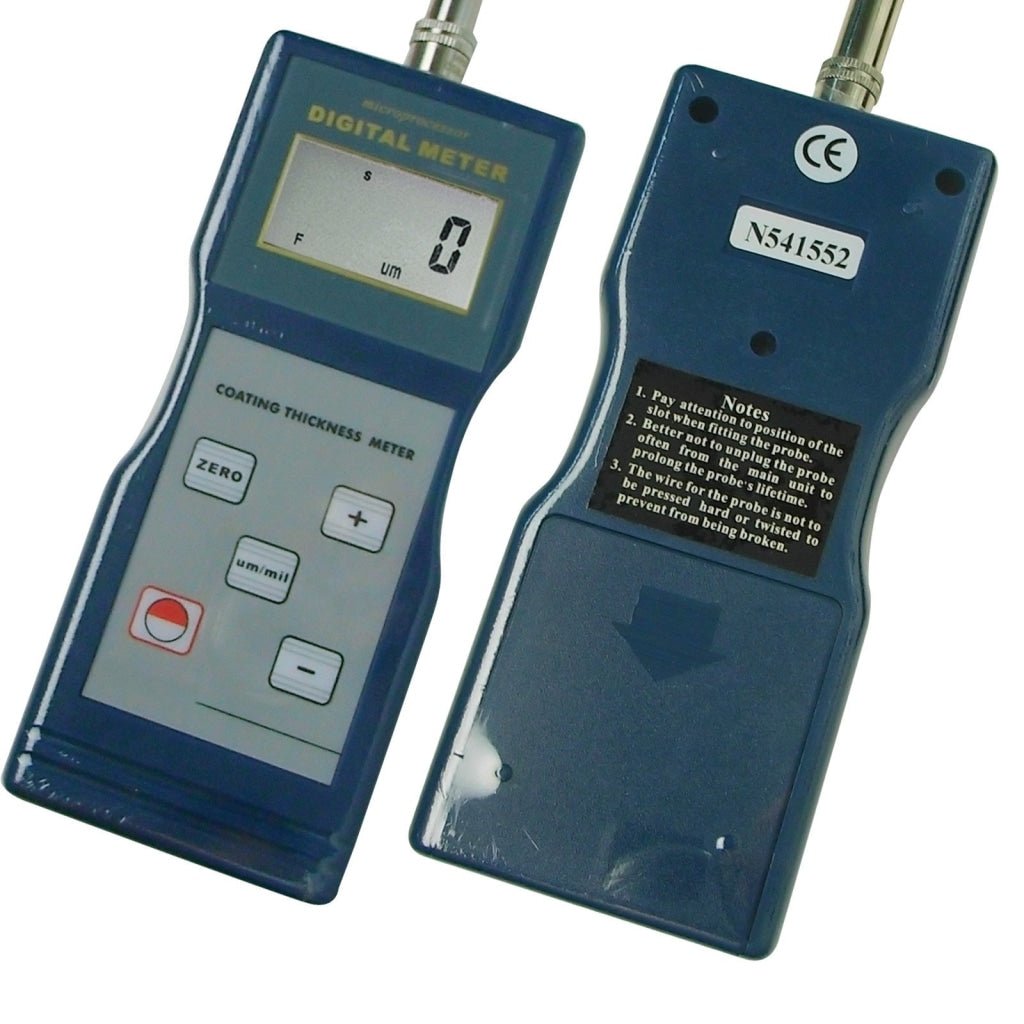

CM-8821 Digital Paint Coating Thickness Meter Gauge F Probe 1000μm / 40mil CE Marking Portable

  • 0% OFF
  • Regular Price

    $196.90



Add to Wishlist


Check shipping / delivery time for your country | Free Shipping Worldwide Request for Quotation

Features:
  • Has CE marking, conforms with the essential health and safety requirements set out by the European Directives
  • Conforms to international standards and passed the standards of ISO2178
  • Suitable for the laboratory and for use in harsh field conditons
  • Widely used to measure the thickness of non-magnetic materials (e.g. paint, plastic, porcelain enamel, copper, zinc, aluminium, chrome, etc. ) on magnetic materials (e.g. iron, nickle, etc. ) often used to measure the thickness of plating layer, lacquer layer, porcelain enamel layer, phosphide layer, copper tile, aluminium tile, some alloy tile, paper, etc.
  • Used the exclusive Micro-computer LSI circuit and crystal time base to offer high accuracy measurement and fast measuring time
  • Performs Automatic Calibration when no substrate or metal substrates are near the sensor probe
  • Allows re-calibration using the included iron subrate block or an uncoated standard
  • With wide measuring range of 1000µm/0-40mil and high resolution
  • Digital display gives exact reading with no guessing or errors
  • Durable, long-lasting components with strong but light weight ABS-plastic housing assures maintenance free performance for many years. The housing had been carefully shaped to fit comfortably in either hand.

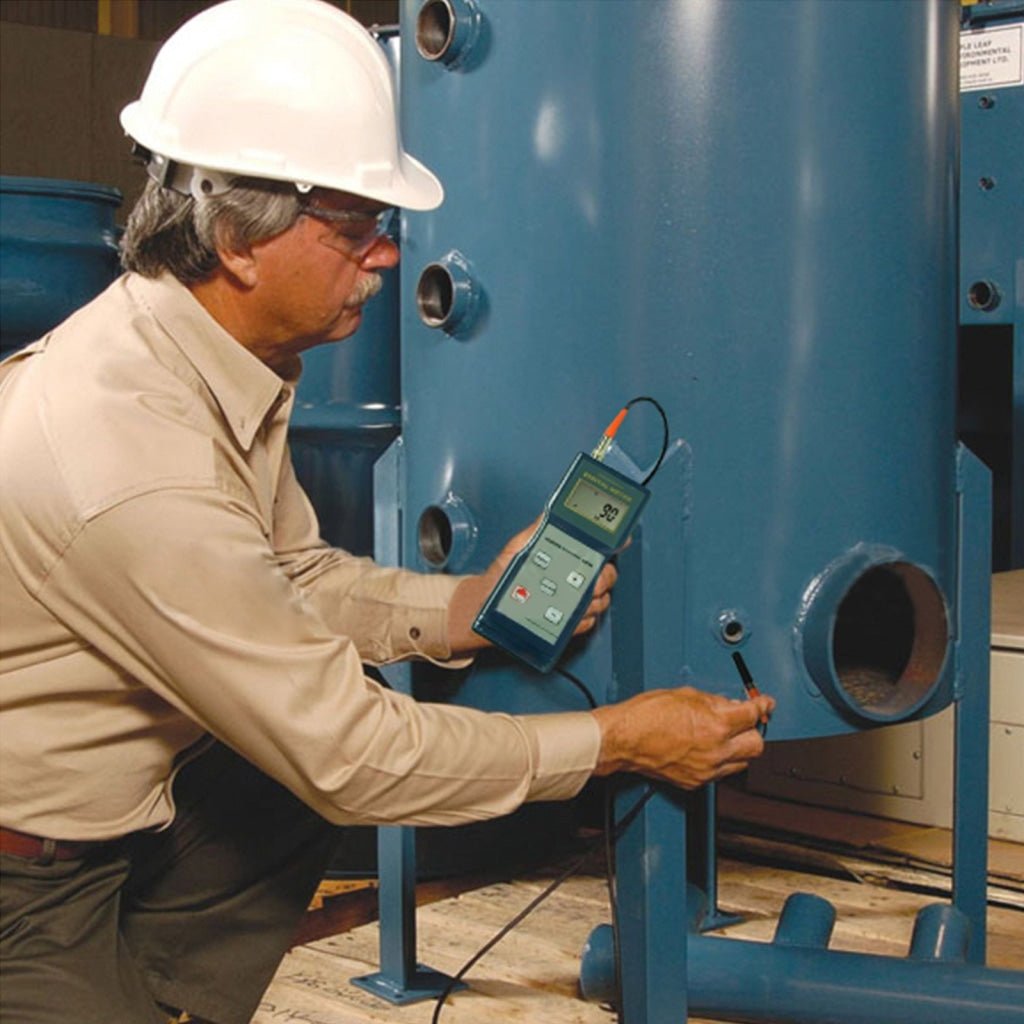

  • Use it anywhere -- Suitable for the laboratory, Powder Coating Companies, Manufacturing Companies, Paint Suppliers, Manufacturing Companies, Steel and Aluminum Refinishing, Automobile Dealers, Auto Auctions, Body Shops, Auto Detailers and any company needing a highly accurate measurement of the dry coating thickness and can be used even in harsh field conditions.

Specifications:
  • Operating Principle: Magnetic Induction (F)

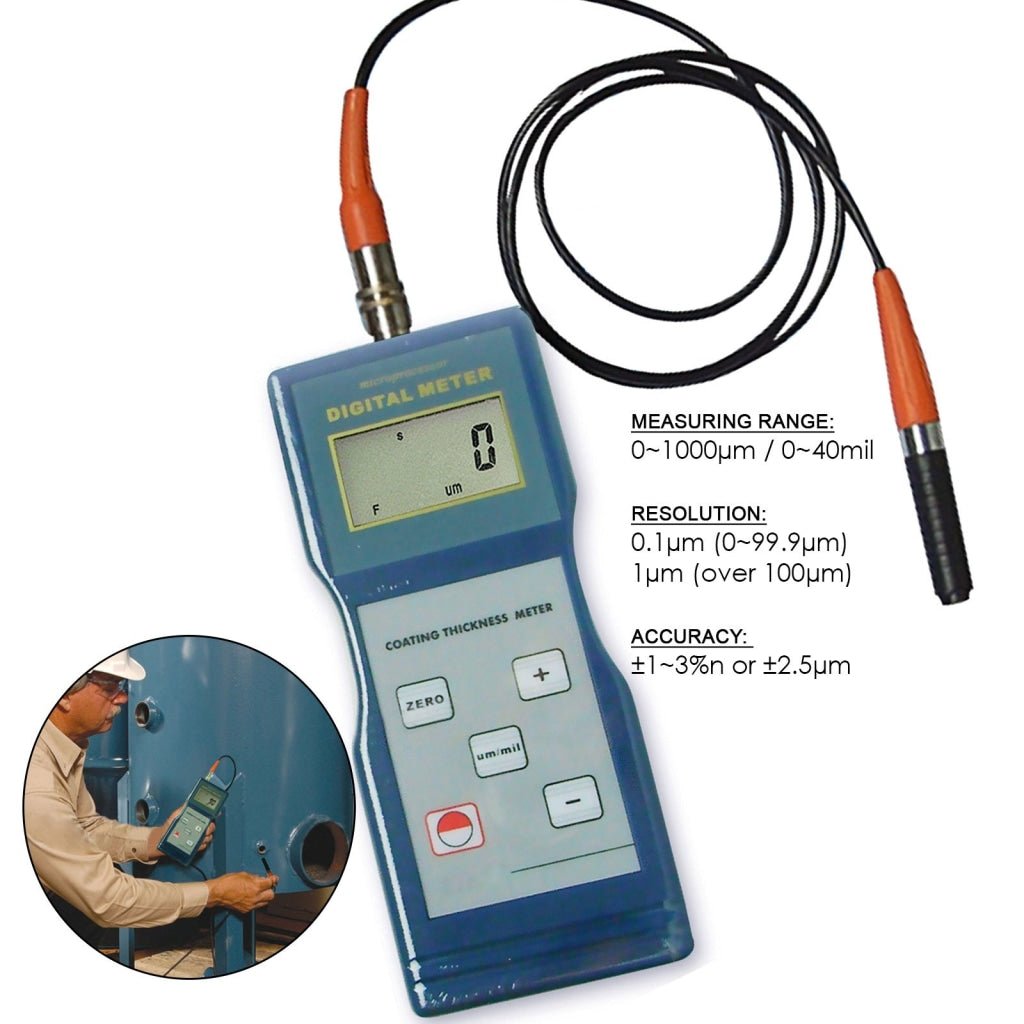

  • Measuring Range:0~1000µm / 0~40mil
  • Resolution:
    • 0.1µm (0~99.9µm)
    • 1µm (over 100µm)
  • Accuracy: ±1~3%n or ±2.5µm (whichever is greater)
  • Min. measuring area: 6mm
  • Min. sample thickness: 0.3mm
  • Metric/ imperial: convertible
  • Auto power off
  • Automatic Calibration (when no other metal substrate near the probe sensor upon switching on)

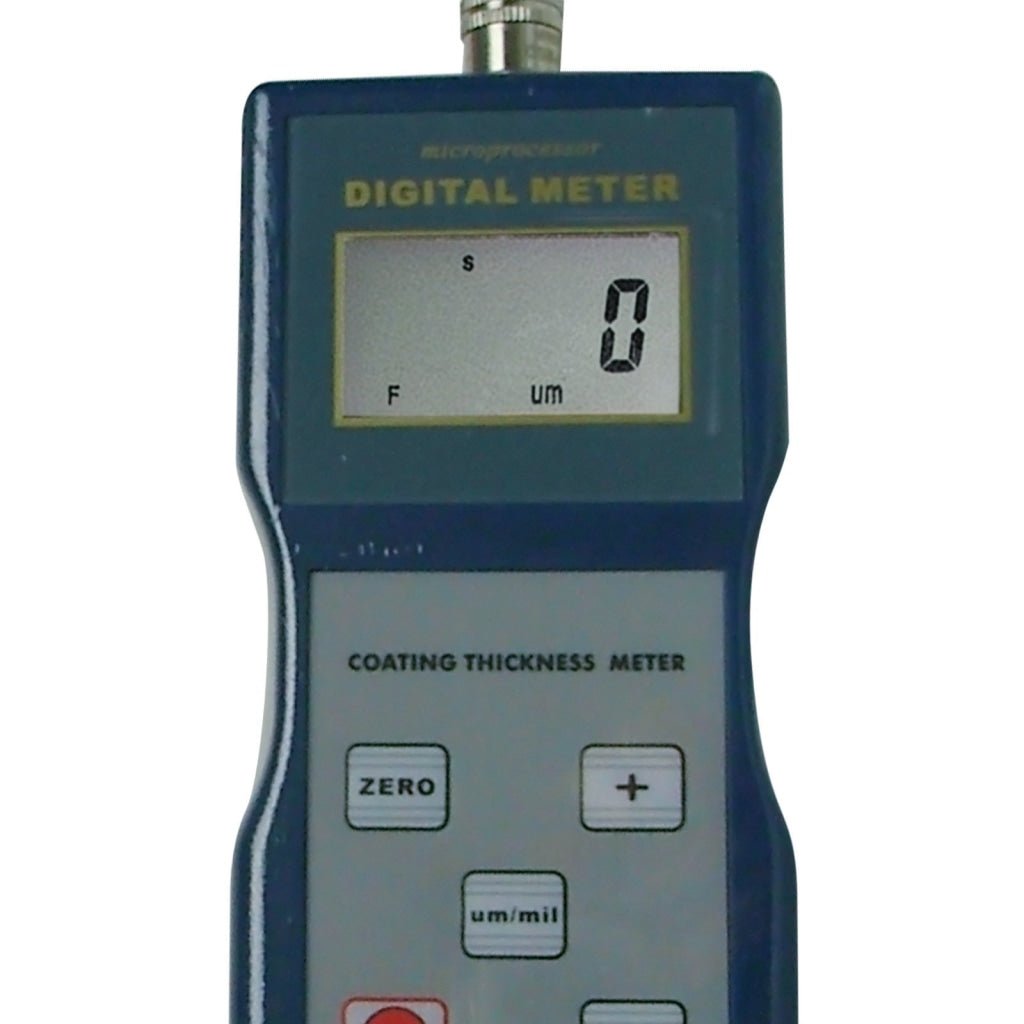

  • Display: 4 digits, 10mm LCD.
  • Operating conditions:
    • Temperature 0~50°C (or 32~122 in °F)
    • Humidity <80%
  • Battery indicator: Low Battery Indicator
  • Power supply: 4 x AA 1.5V battery

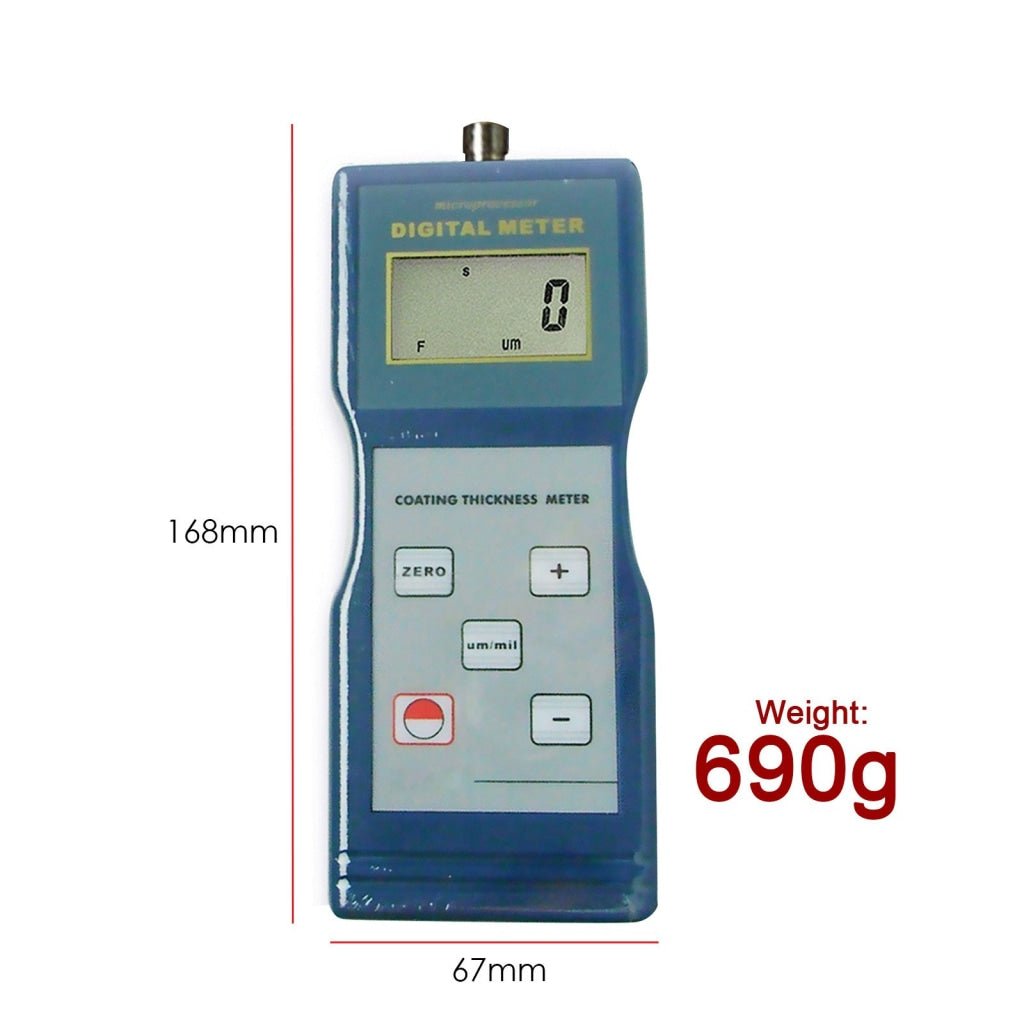

  • Dimensions (main unit): 67 x 168 x 31mm
  • Weight:
    • Main Unit: 155g (battery excluded)
    • Whole Packaging: 690g (battery excluded)

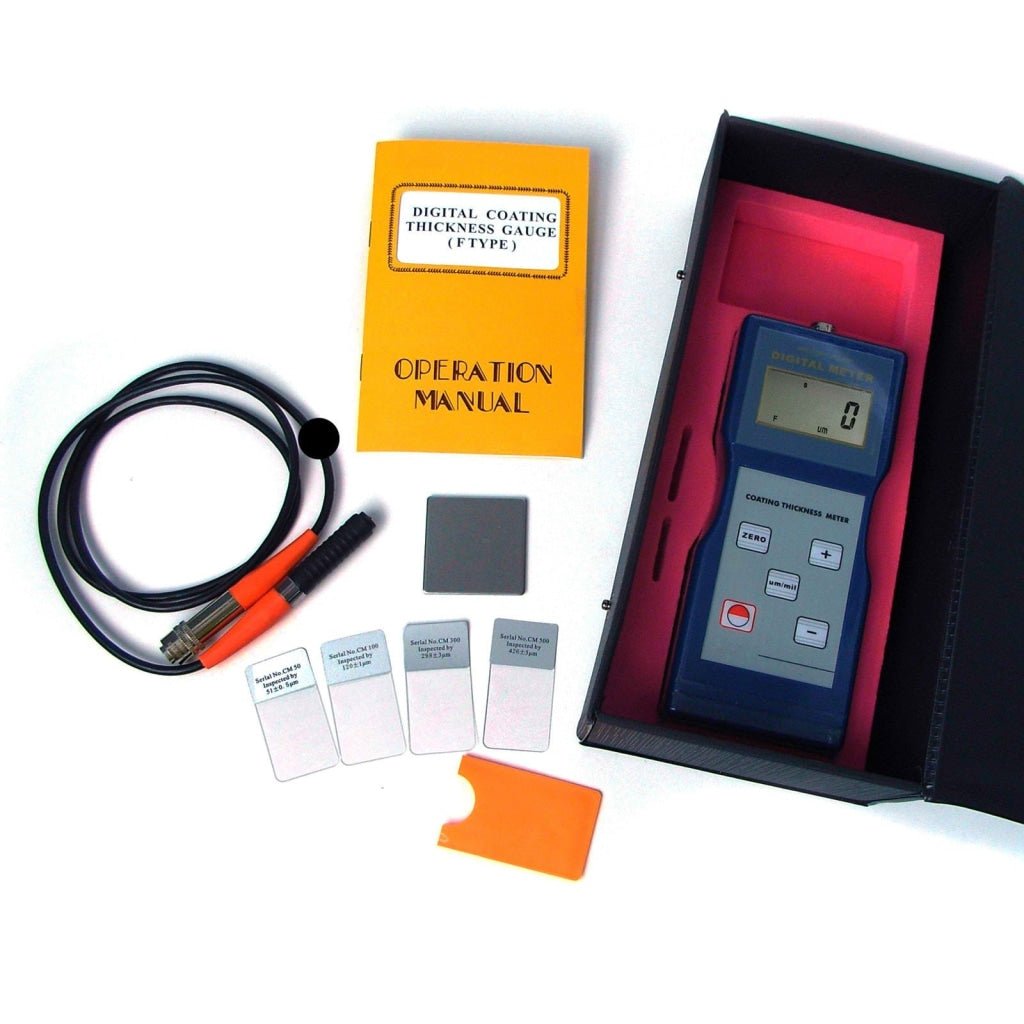

Set includes:
  • 1 x Digital Coating Thickness Gauge
  • 1 x F type Probe with 1M cable
  • 1 x Iron Substrate Block

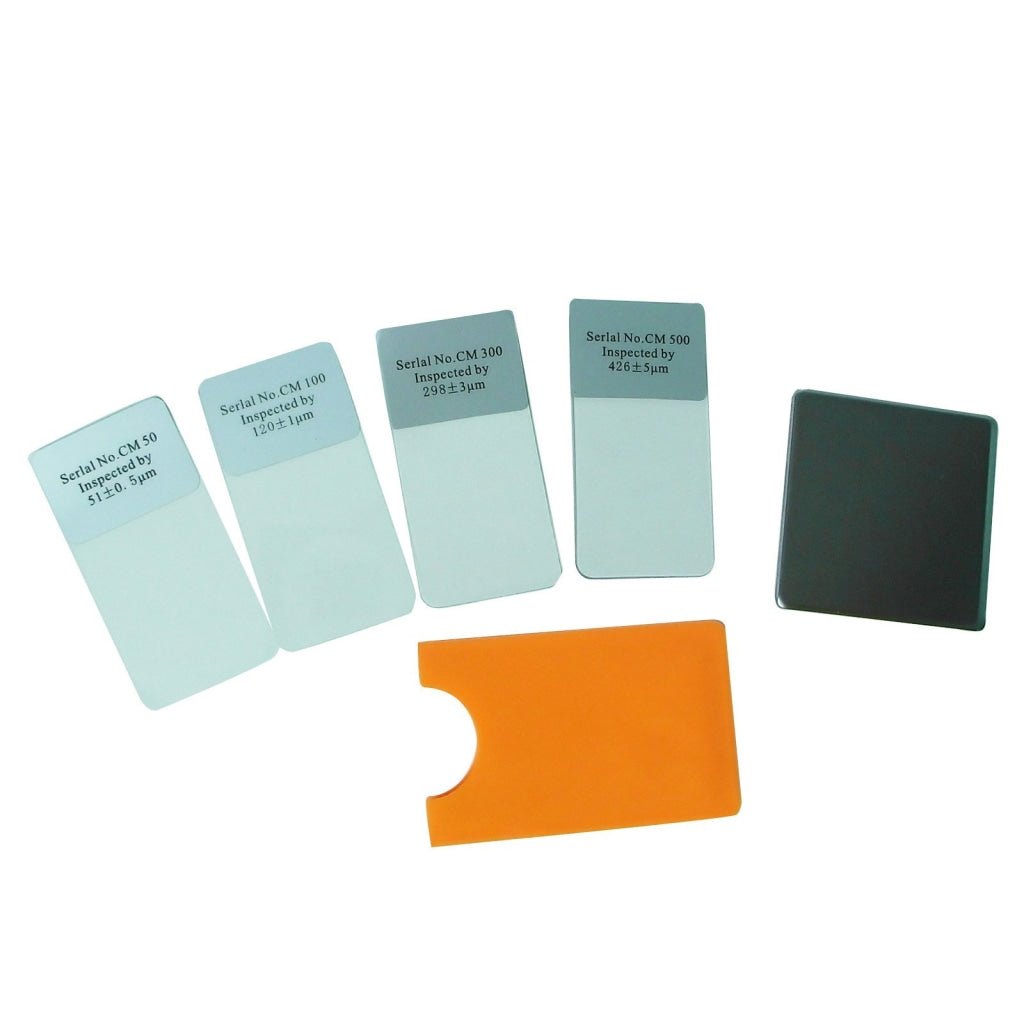

  • 4 x Calibration Foil
  • 1 x Plastic Pouch
  • 1 x Carrying case
  • English Instruction manual
  • Standard Factory Package
