Applications: Widely used in Floor maintenance, Surface cleaning quality control, Stone and tile gloss measurement, Checking printed matter, Quality control of paint and ink, Polished metal surface,measurement (chrome plating), Inspection of paint protection and waxing, Auto body paint inspection, Surface inspection of plastic moldings, Evaluation of detergents and washers,Checking masonry and washers, Checking building exteriors
- In accordance with international standard ASTMD523, ASTMD1455, ASTMC346, ASTMC584, ASTMD2457, DIN ENISO2813, DIN67530, ENISO7668, JISZ8741, MFT30064, TAPPIT480, GB9754, GB/T13891, GB7706 and GB8807. Its technical parameters conform with JJG696-2002.
- Accurate measurement, good repetitiveness.
- Small in size, easy to carry.
- Auto calibration.
- Intelligent design, rapid measurement.
- Able to store 254 groups of measurements.
- Back-light display, suitable for low light environment.
- Use “USB data output” and “RS-232 data output” to connect with PC.
- Provide “Bluetooth ™ data output” choice.
- Display : 4 Digits Back-light LCD
- Measuring Geometry : 60 Degrees

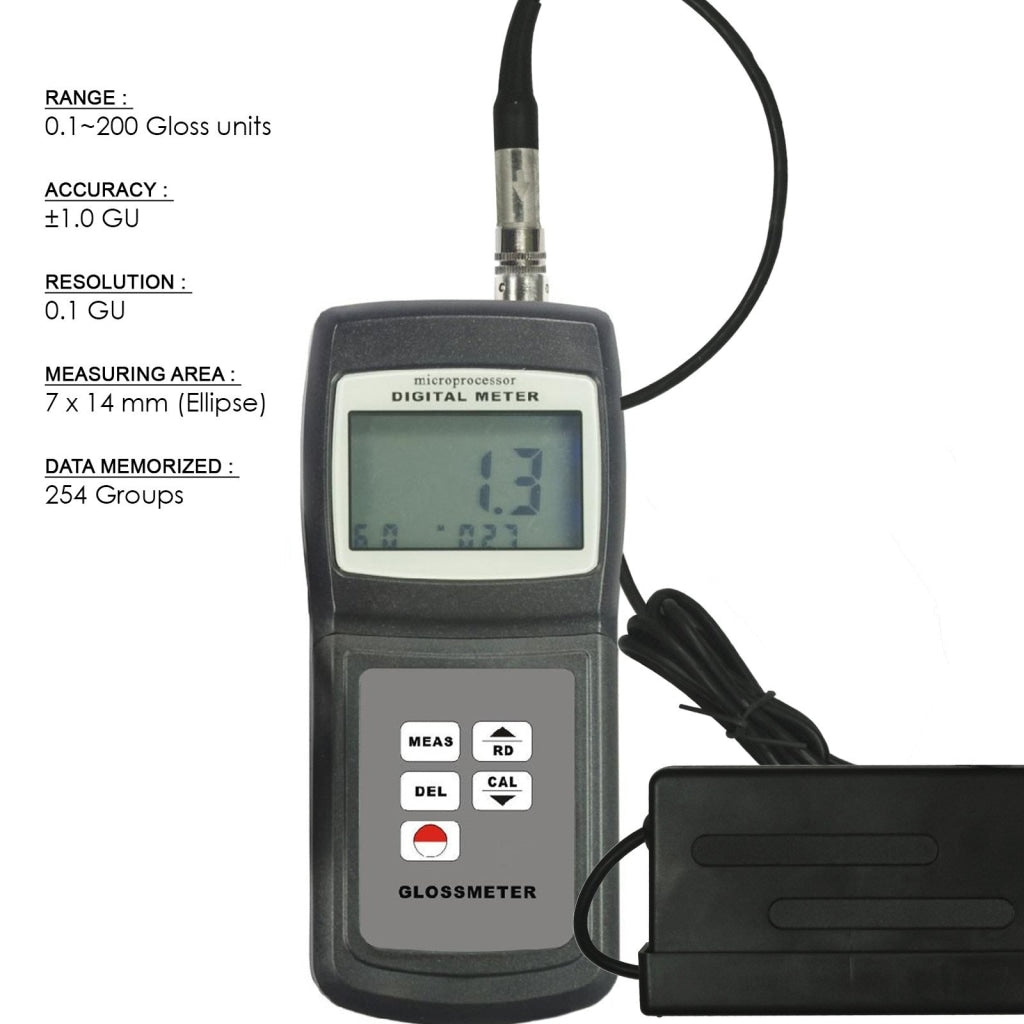

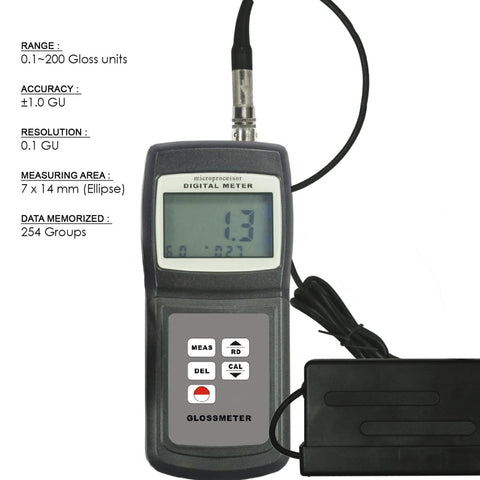

- Range : 0.1~200 Gloss units
- Gloss Units : GU
- Accuracy : ±1.0 GU
- Resolution : 0.1 GU
- Repeatability : ±0.5 GU
- Measuring Area : 7 x 14 mm (Ellipse)
- Data Memorized : 254 Groups
- Working Condition :
- Temperature : 0 ~ 40°c
- Humidity : <85%
- Power Supply : 4 x 1.5v AAA size (UM-4) battery

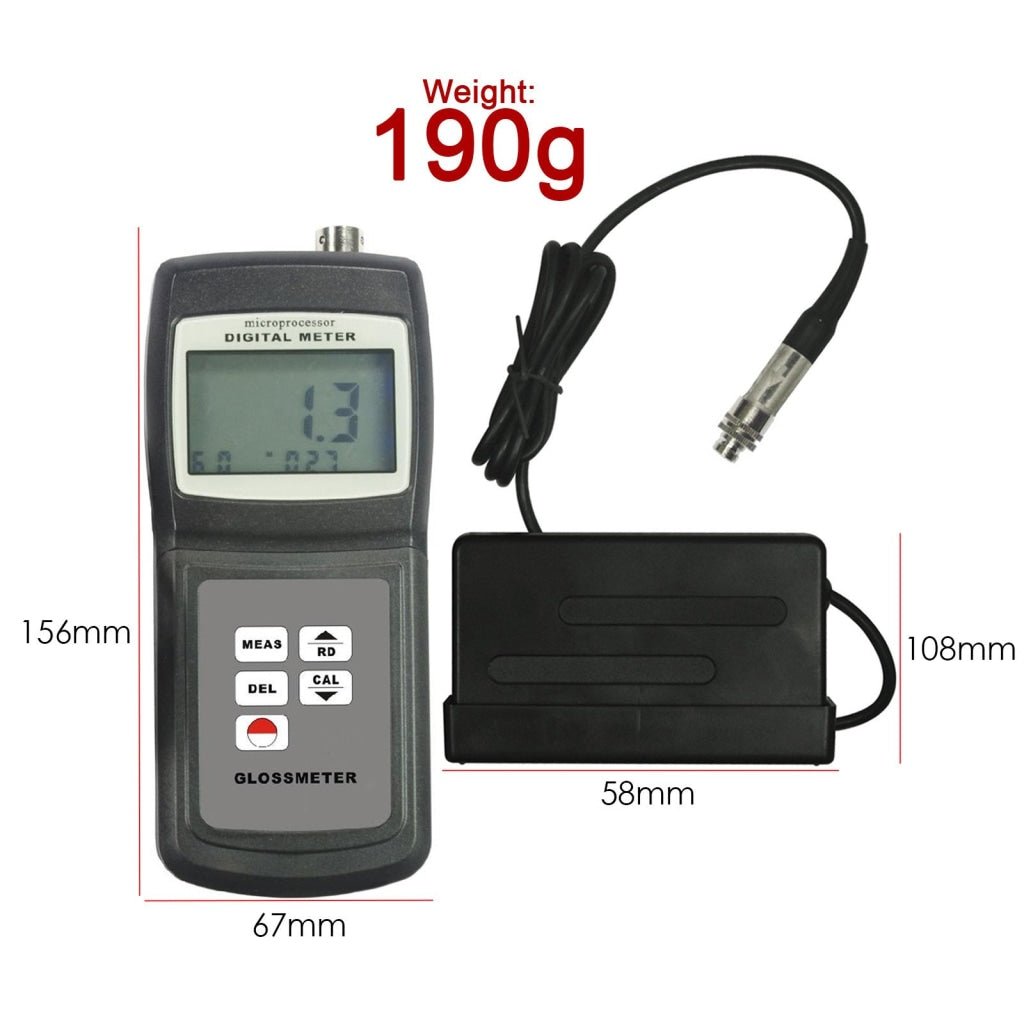

- Unit : 156 x 67 x 28mm
- External Probe : 58 x 28 x 108mm
- Weight : 190g (not including batteries)
- Main Unit
- Holder With Calibration Standard

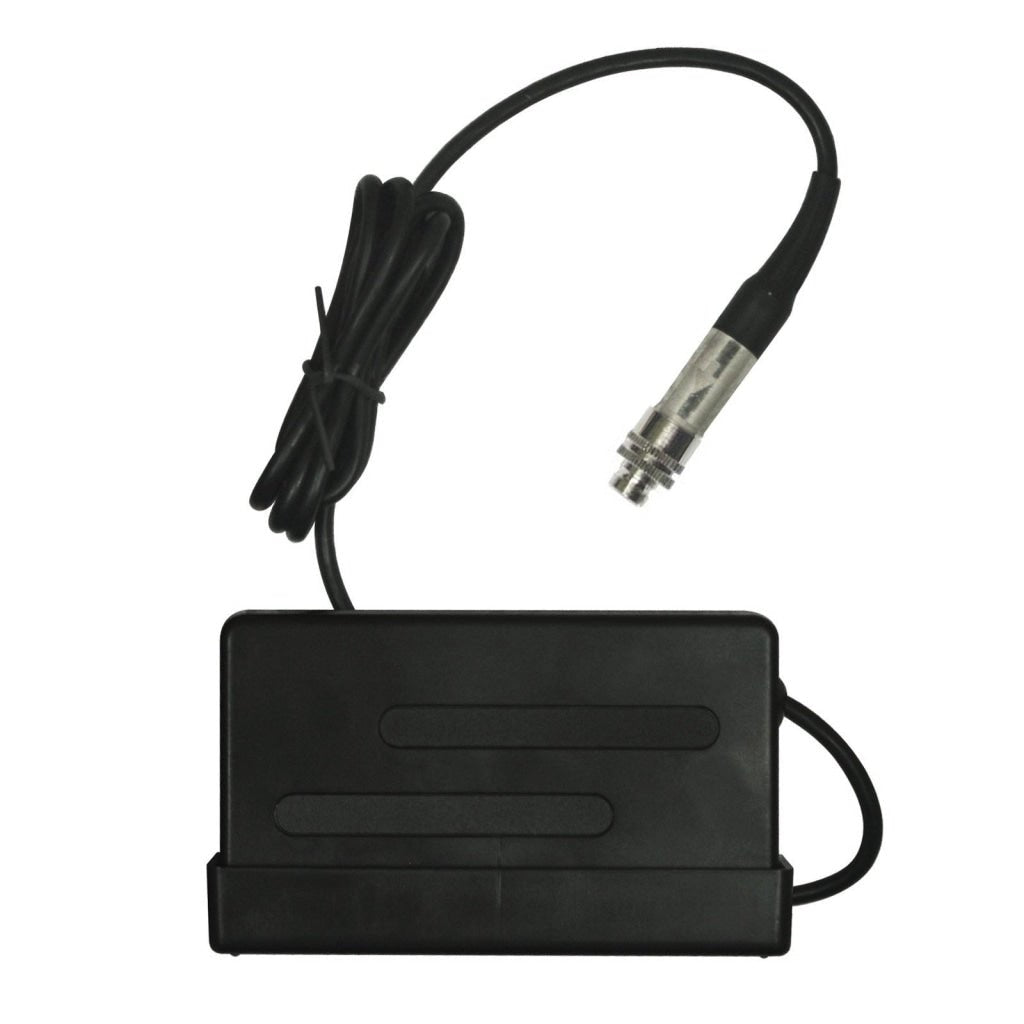

- External Probe
- Optical Cleaning Cloth
- Carrying Case(B07)
- English Operation Manual
Optional Accessories: (not included on set)
or you may contact us at sales(at)gainexpress.com if you want an optional items to be included in your order
- USB, RS-232 Data Cable With Software
- Bluetooth Data Out put With Software
