VID-4 Pipe Car 2.4" LCD Inspection BORESCOPE Video Camera + 1M Cable

Model: VID-4

This is a new model provides TV video AVI output and comes with an integrated 2.4" color LCD and an AVI output for televisual display.It still has the 8mm head to get into smaller areas. Mechanics will love this tool because they can see inside the motor without the time-consuming disassemble. It can also be used to check wear on pinion gears. Building contractors and home inspectors will use this to look inside of walls.

The water resistant Video Borescope is a very handy pipeline inspection tool that helps you to search inside hard to see places. The flexible video borescope comes with 2.4" color display screen system with 320x234 resolution, built-in adjustable 4 LED lights at the end to illuminate objects and has glare-free close-up & a wide range field of view. The optimized illuminant design can illuminate/light every crack and burning mark on a high reflective surface and helps you see in darkened areas and aids in illuminating the picture for the integrated camera. The flexible gooseneck retains a configured shape for inspecting hard-to-reach areas and the shaft can be exposed to water.

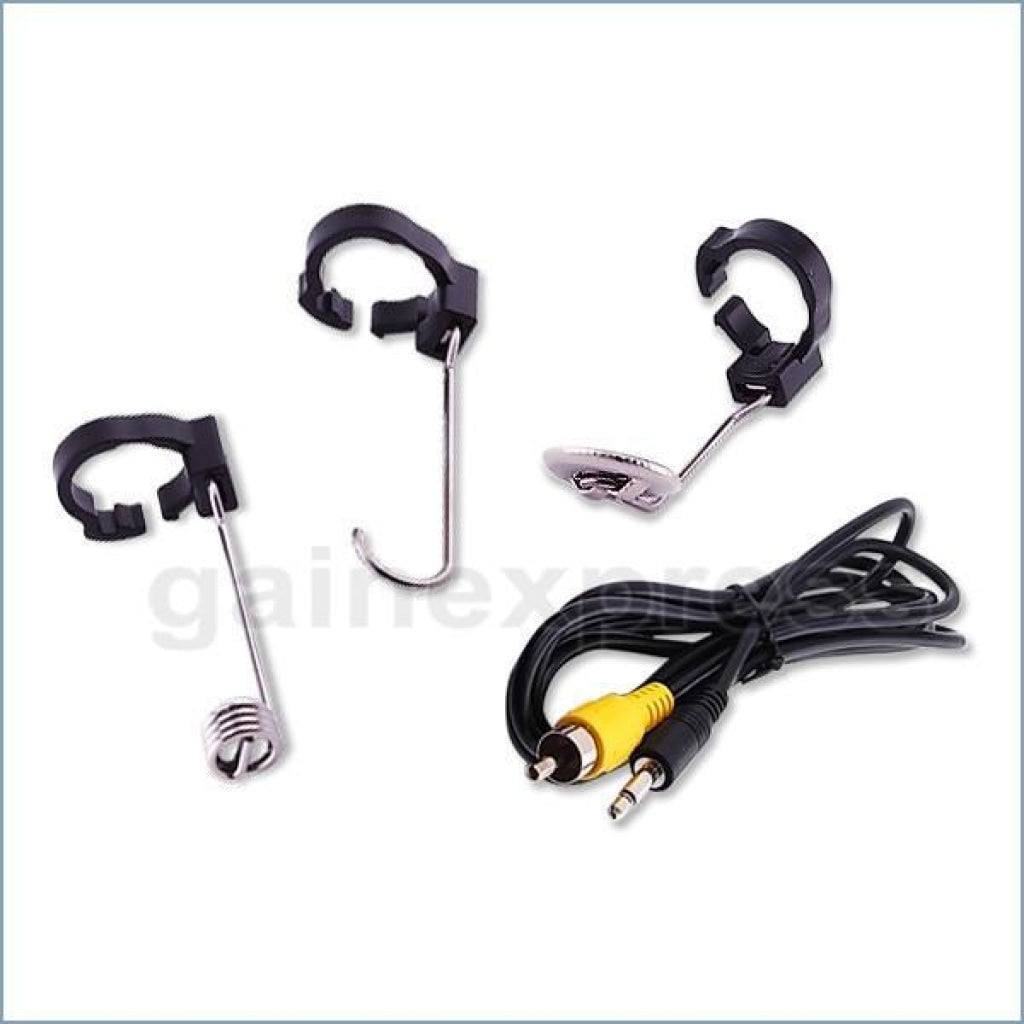

Accessories such as mirror tip is included for viewing within 54° angle. Strongmagnetic tip allows you to pick-up nuts, bolts and screws you may have dropped in inaccessible places. Easy clip on design for fast installation. Hook tip, J-shaped extension used to tug, pull or pick up small objects or wires.

Applications:

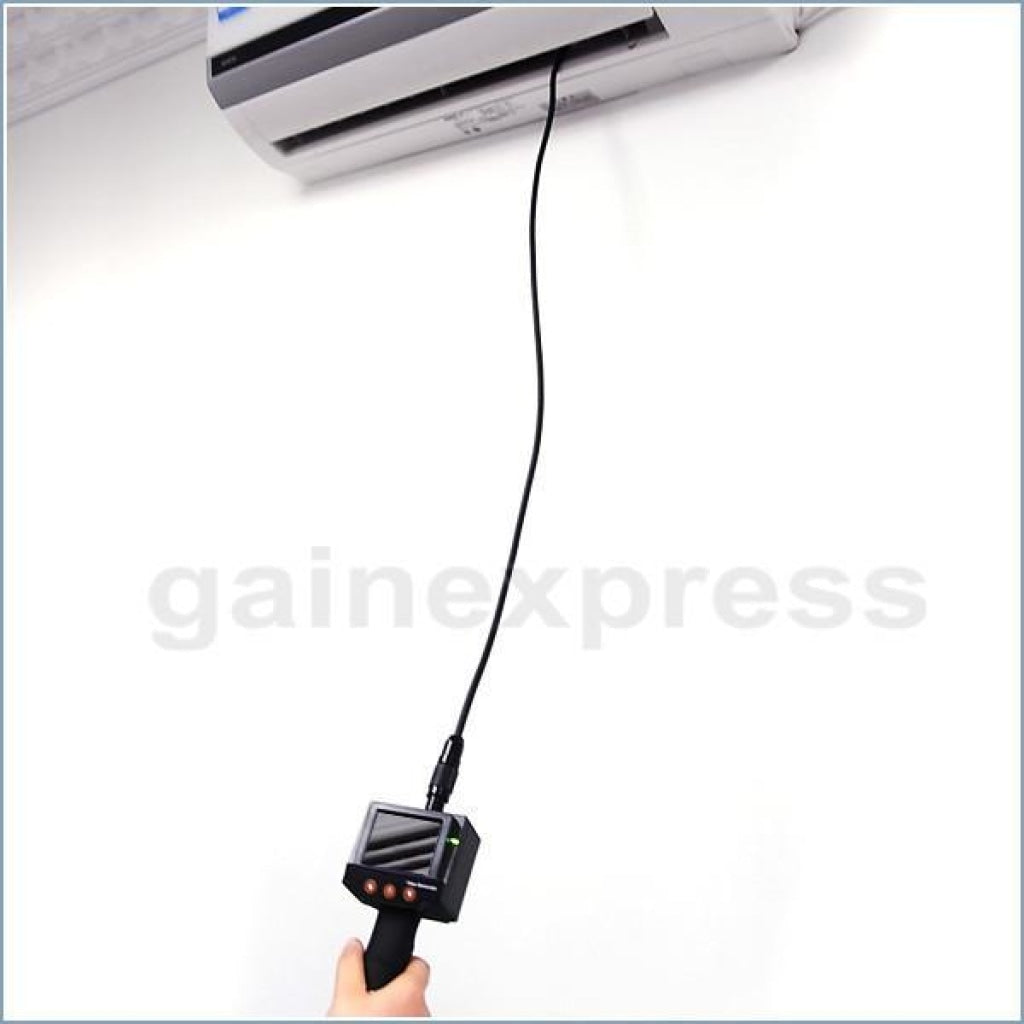

Industrial field, Petrochemical field,Electric field, Gas pipe, Building Construction & Home inspection, Pest Control, HVAC, Automotive, Safety and security inspections, Aerospace

Features:

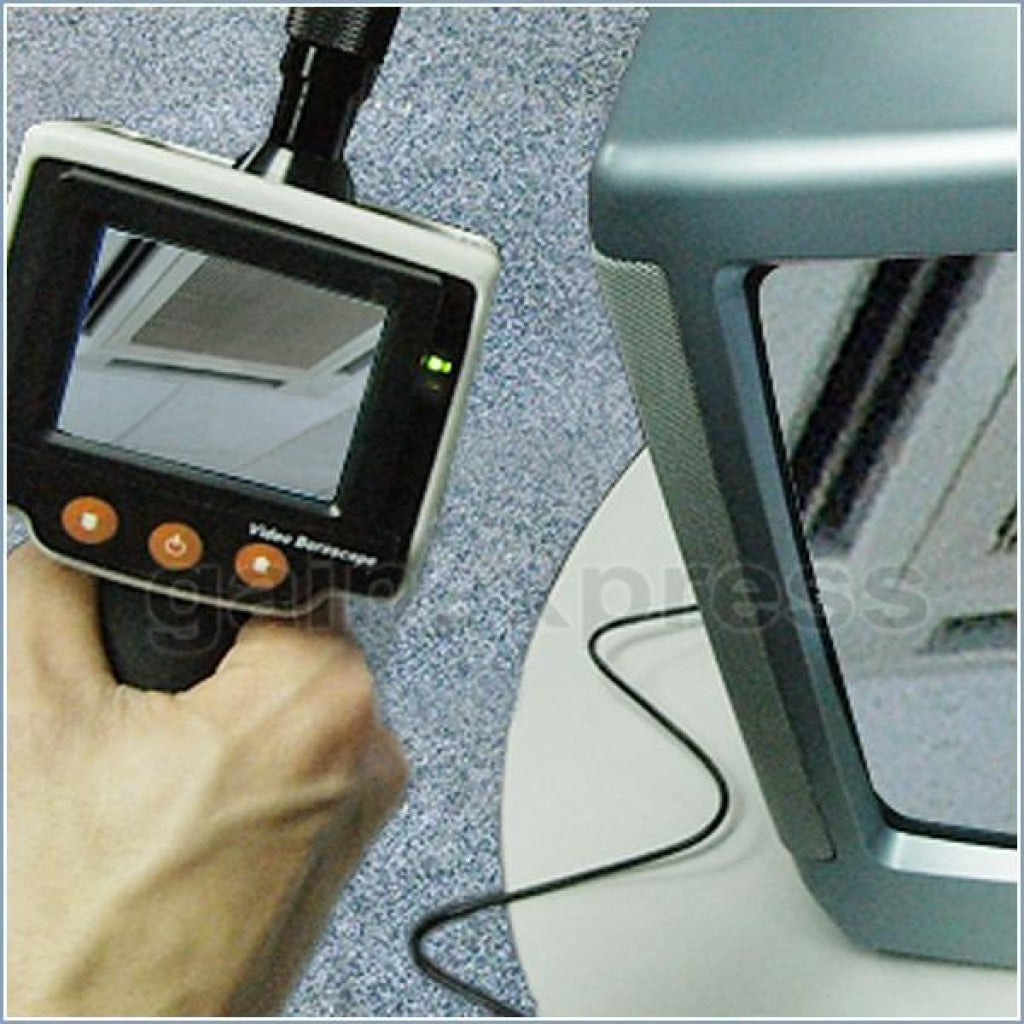

• NTSC TV video AVI output with video wire
• TV Video output
• Glare-free close-ups and wide range field of view
• 6.8mm PE covered metal probe with ABS handle
• Water resistant Camera Head

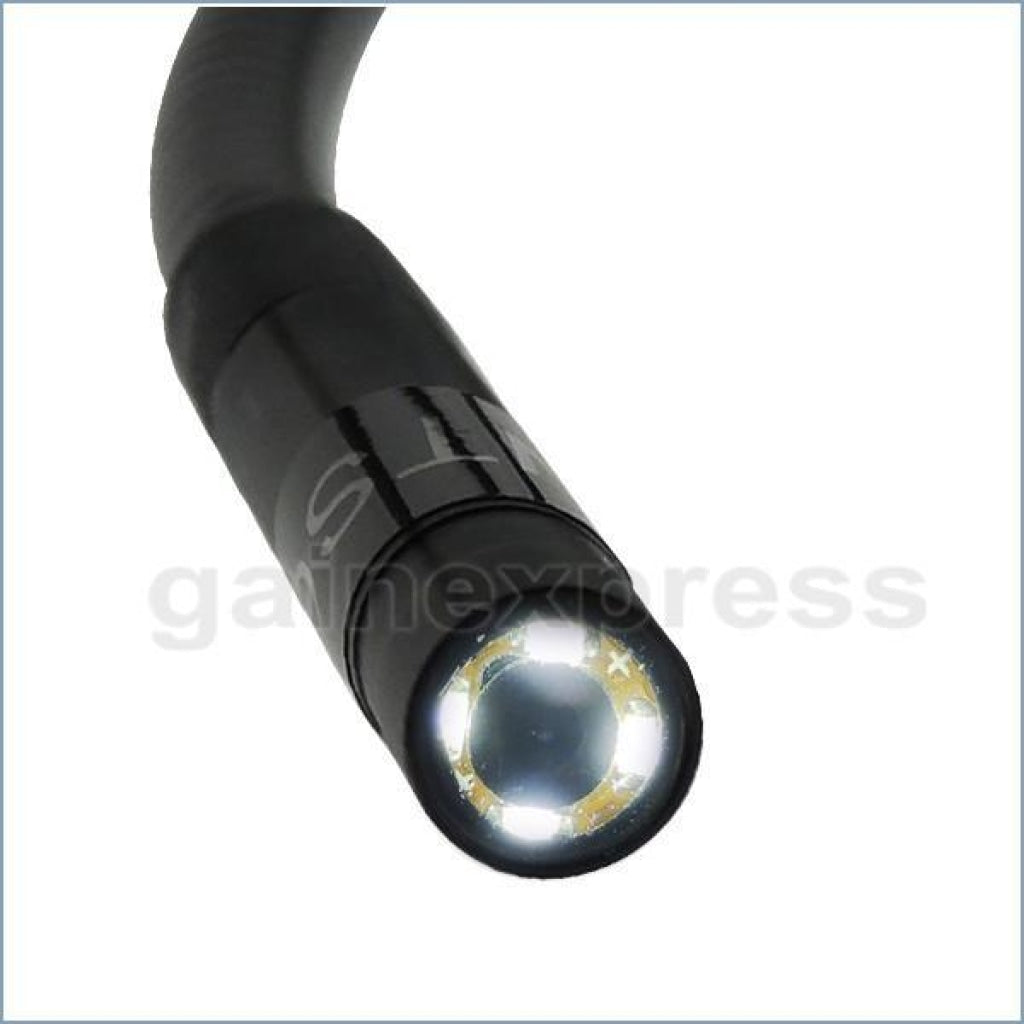

• 4 white LED lights with brightness control
• F2.8 Lens with 54° Viewable Angle and 3~6cm focal distance
• 2.4" TFT LCD Color Monitor with 320x234 pixels resolution
• High resolution image, optical system, stable performance and easy to operate
• Picture vertical mirror/normal function, allows 180° image rotation

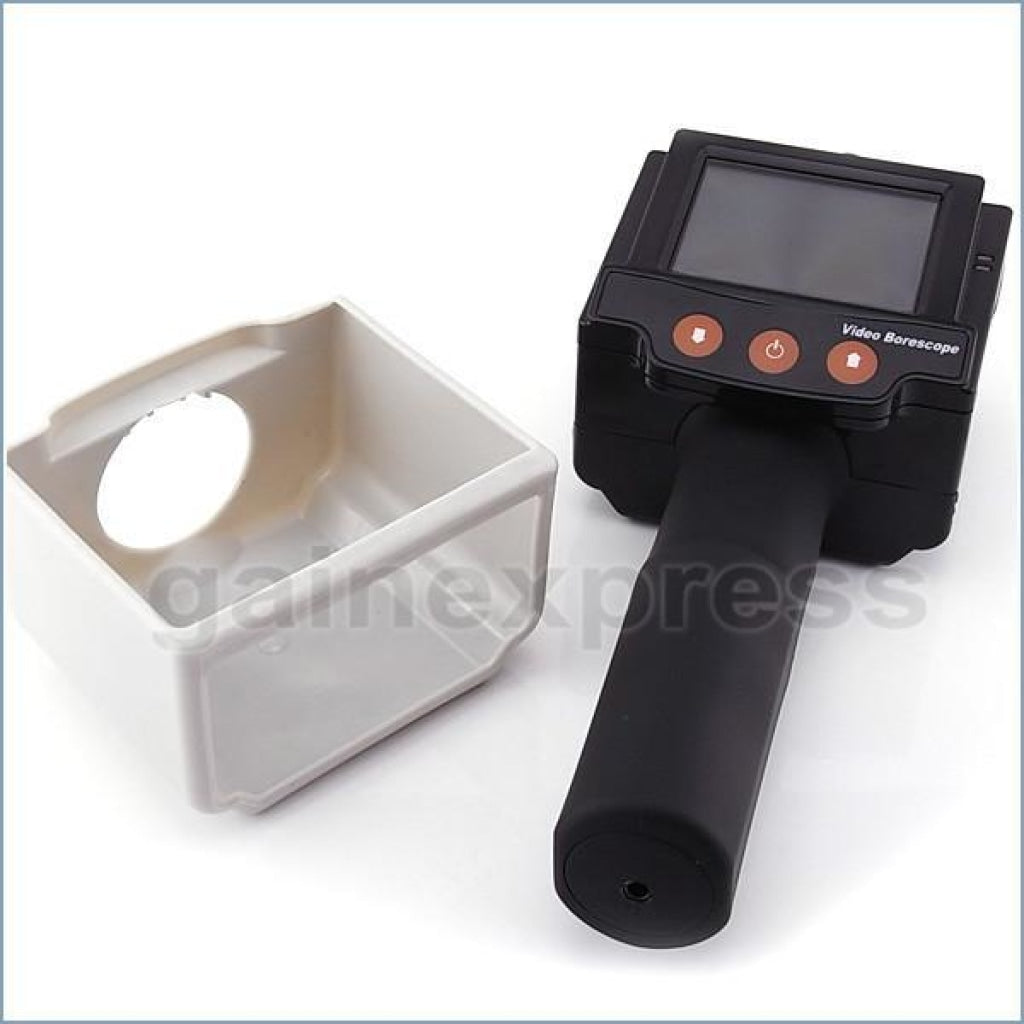

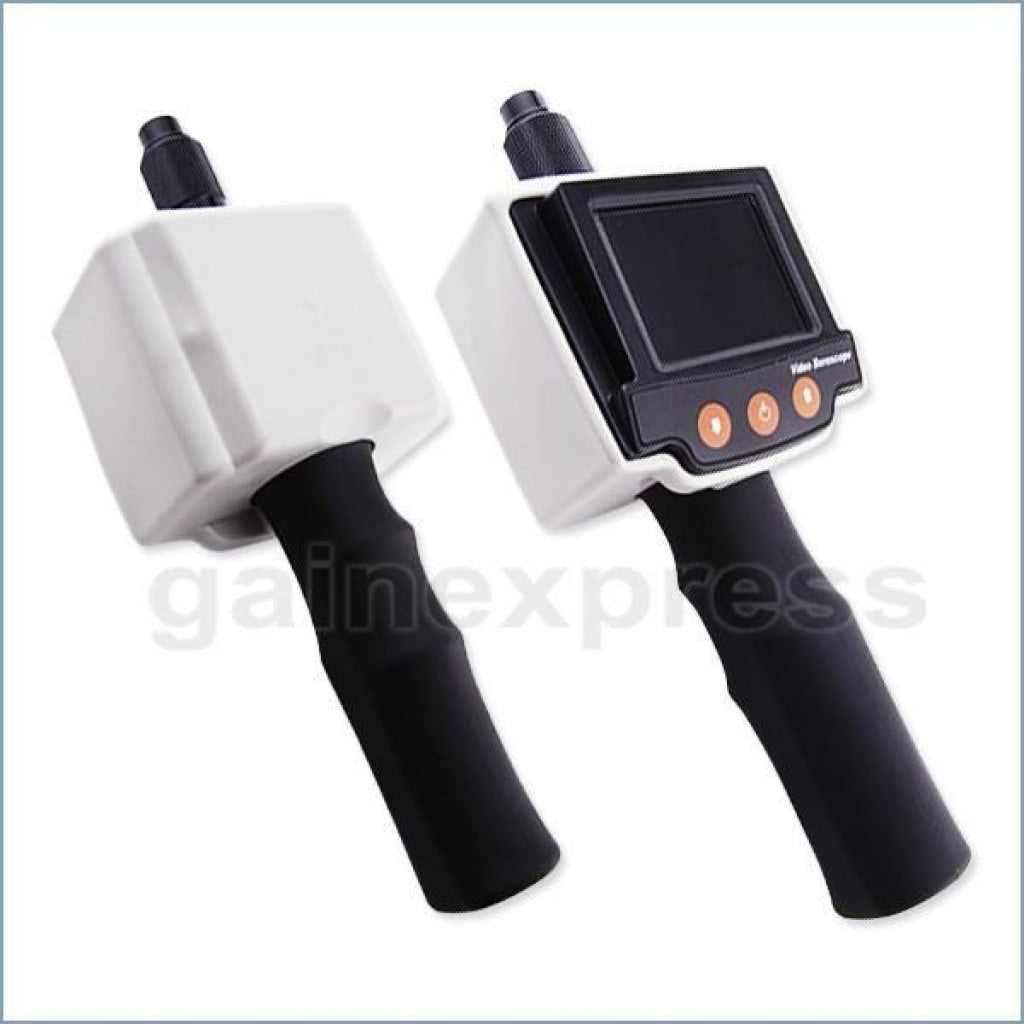

• With Protective Rubber Housing, serves as shock absorber when accidentally dropped
• High visibility color LCD display
• Built-in high power adjustable 4 LED's light
• Lightweight ergonomic design
• Fit for hard-to-reach distant inspection
• Shaft can be exposed to water, IP 67 water level

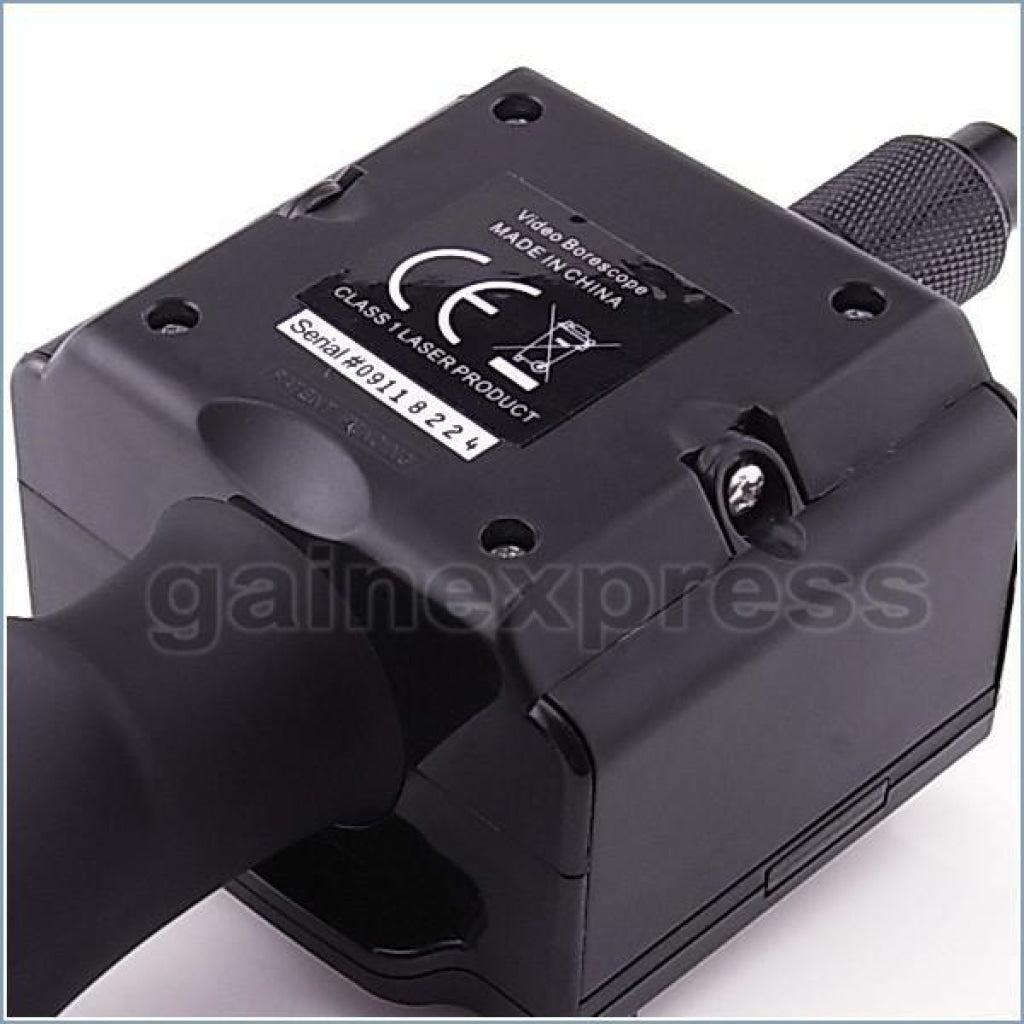

• With CE marking, meets EU safety, health and environmental requirements
• With Approval from EMC, RoHS, PAHS, DEHP, FCC
• Brand new

Specifications:

• LCD : 2.4 inch TFT Color screen with 320x234 resolution
• Lens sens resolution : 320x234 pixels
• Sensitivity : 0.7V (Lux.sec)
• CMOS Sensor
• Color Mosaic : RGB Bayer Pattern
• Auto white comparison & exposure to light
• Video Format : NTSC composite video

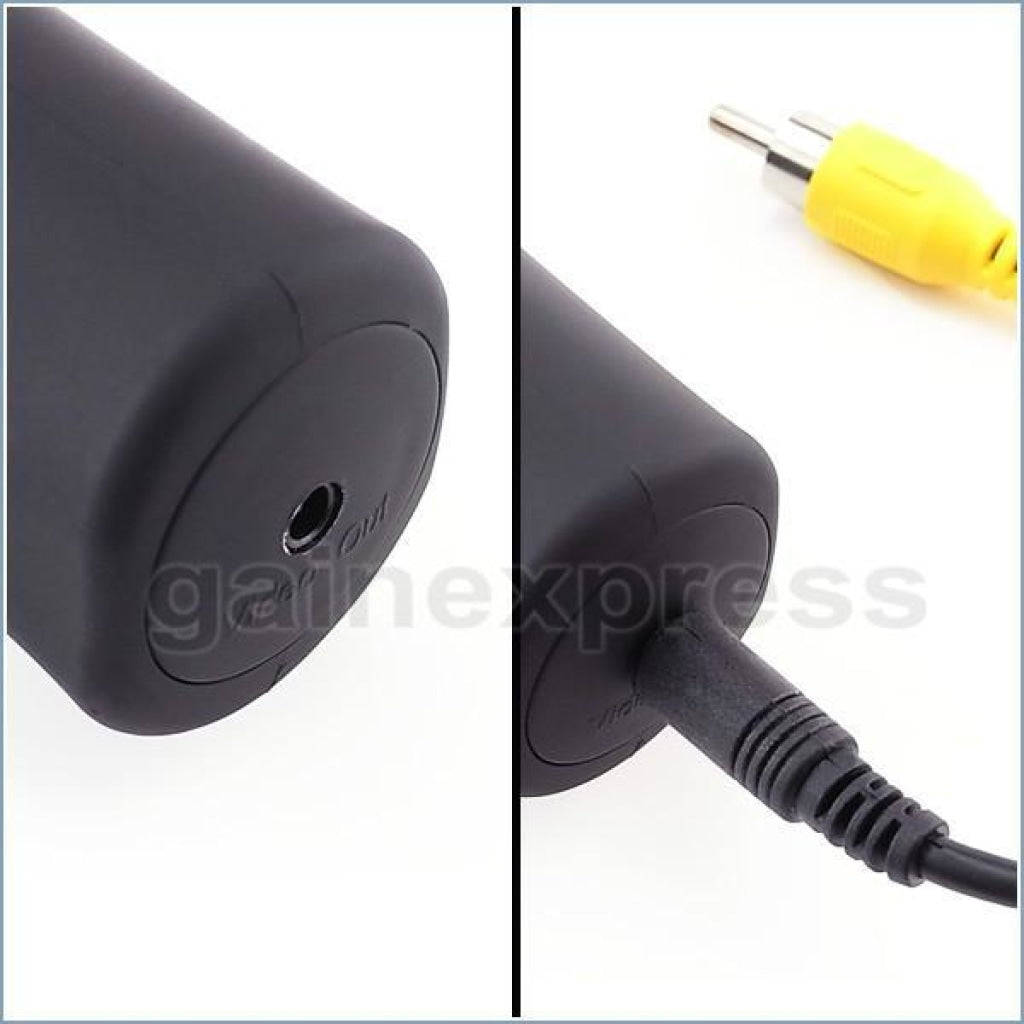

• Handle End AVI Port : NTSC Signal Out
• Level of Resistant: IP67
• Camera:

  • Lens: F# 2.8
  • Lens Coverage : 54°
  • Focus: 3-6cm
  • Outer diameter: 8mm
  • IP 67 water resistant
• Probe:

  • Metal Tube Length: 88.0 ±2.0cm
  • Diameter of hard tube: 6.8mm
  • Minimum Bending Radius: 4.5cm
• Operation Temperature : 0~45°C
• Body Size(LxWxH) : 81 x 75 x 62mm
• Handle Length : 11.5cm

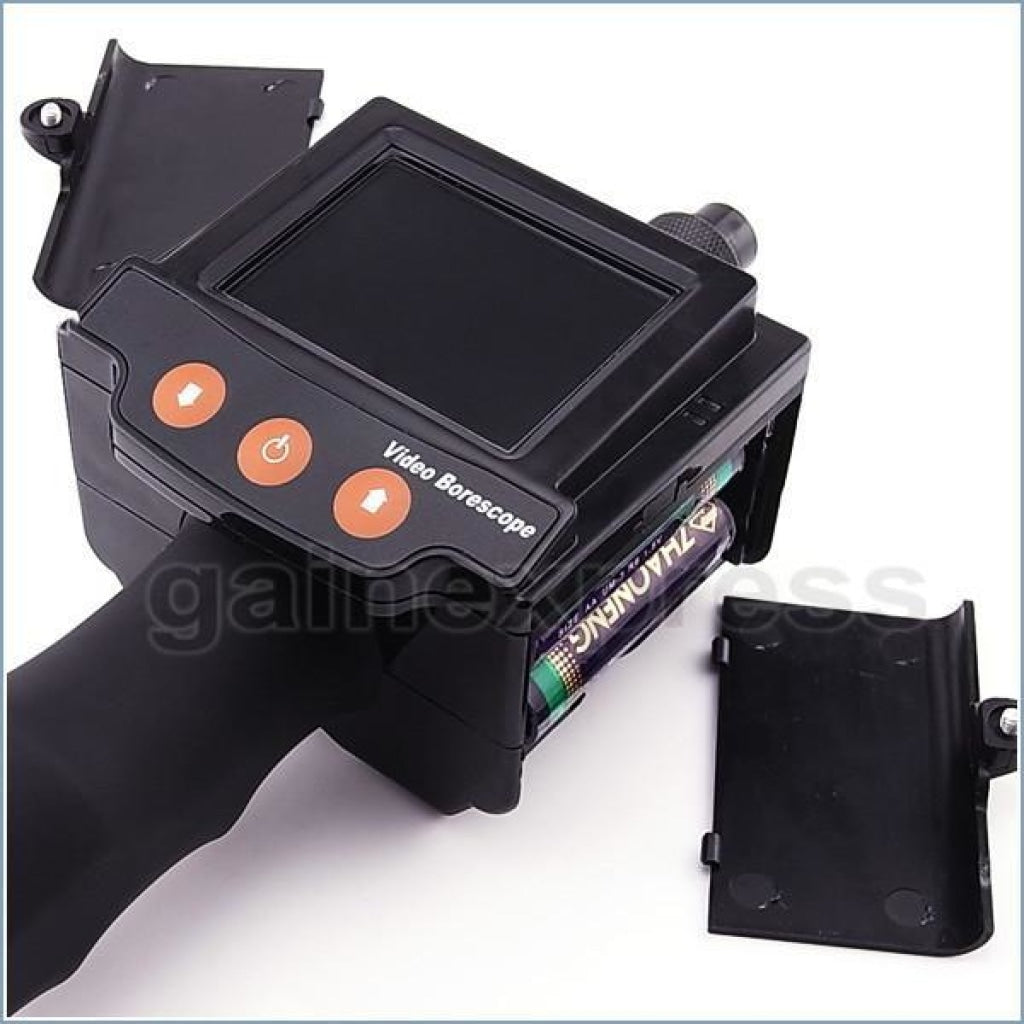

• Power : 4 x 1.5V AA batteries
• Power Consumption : 200mA
• TV Cable Length : Approx. 1.5M
• Weight: approx. 370gm (excluding accessories)

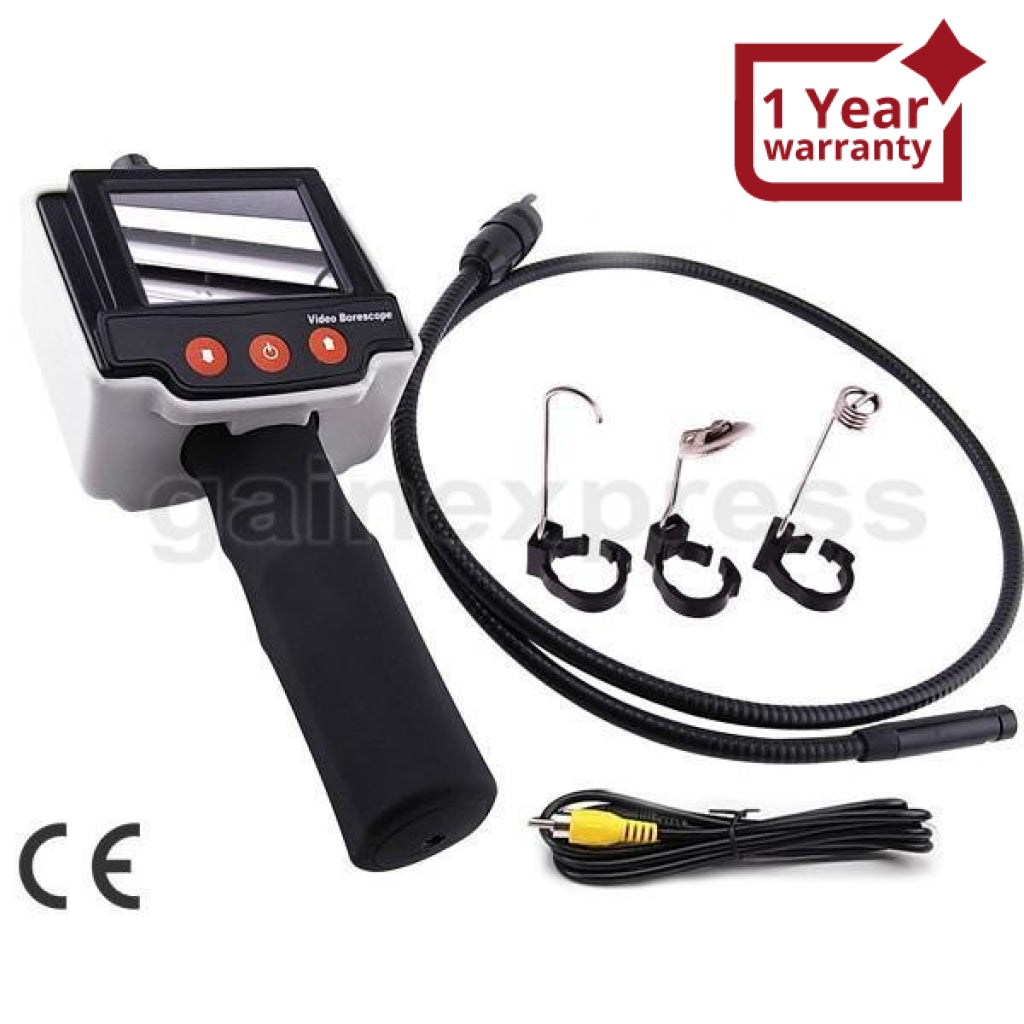

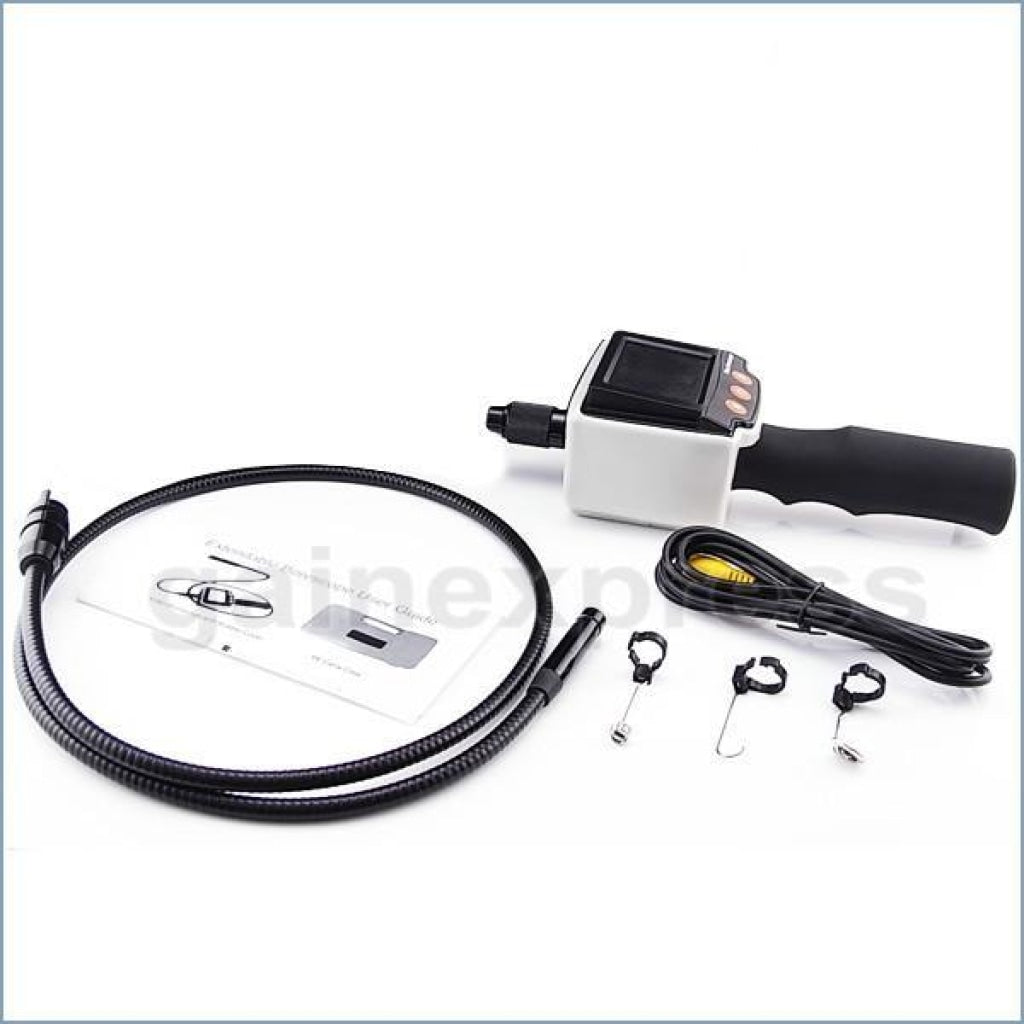

Set Includes:

• 1 x 2.4 " Pipe Car Inspection BORESCOPE Video Camera
• 1 x Operation Manual
• 1 x Standard 1-meter Probe
• 1 x Magnetic Tip (FREE)
• 1 x Hook Tip (FREE)
• 1 x Mirror Tip (FREE)
• 4 x 1.5V AA Alkaline Batteries (FREE)
• Standard Factory Package
• 1 x Video cable (FREE)
