N04NTS-200_5M Detachable 3.5" LCD Inspection Camera 8.2mm Endoscope Borescope + 5M cable
- Description
- Return, Refund, & Warranty Policy
- Reviews
Model : N04NTS-200_5M

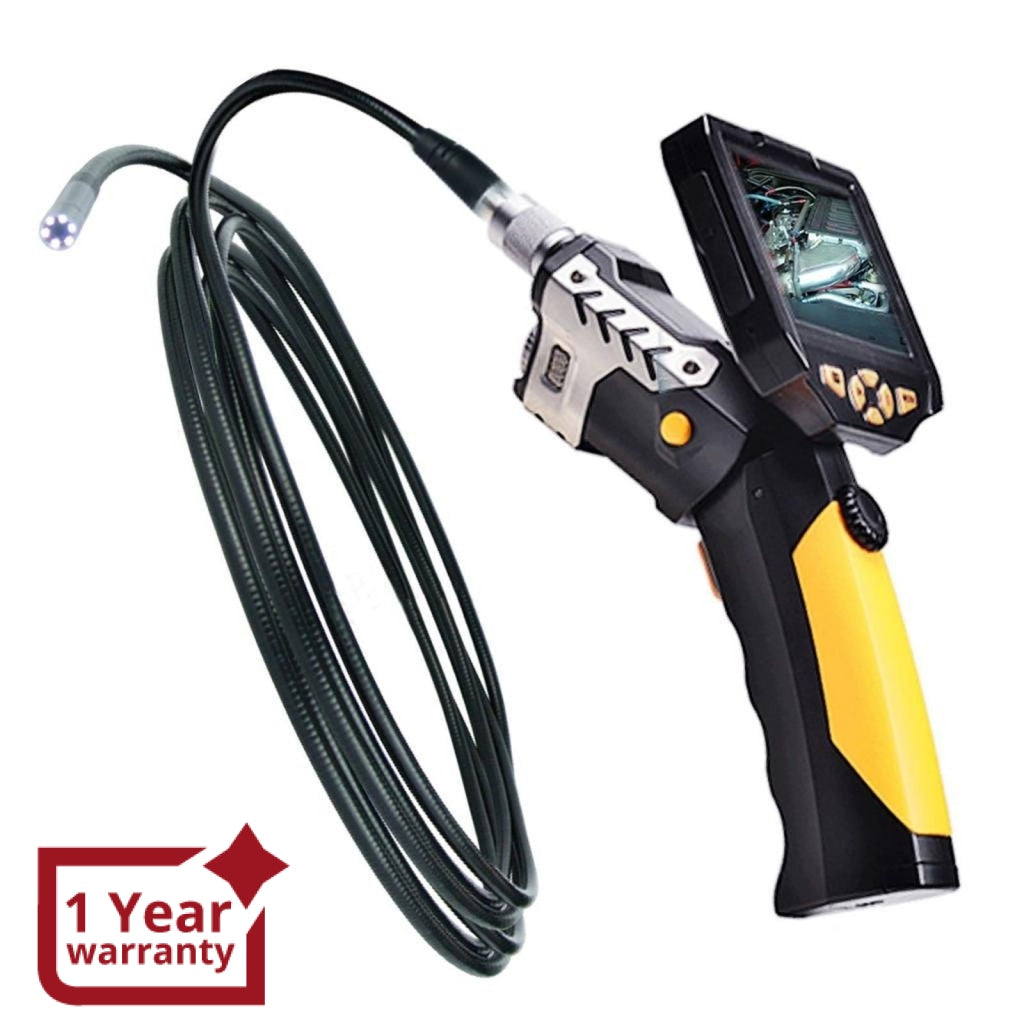

This Large 3.5" Color LCD Video Inspection Camera uses optoelectronic technology to investigate hard-to-reach areas.The built-in 1W LED flash light by well-known manufacturer CREE provides a powerful light source to the surroundings which enables you to work in dark areas much more conveniently.The waterproof 5M cable with slim 8.2mm camera head and high-intensity LED to illuminate specific inspection areas as well as inspect areas under water,gaps and holes especially with small openings.
Supports audio & visual video recording, 4X zoom and image rotation & flip over.The set comes with FREE 2G micro SD card.
This inspection camera helps you to diagnose broken part, weld point and released parts easily to save time and increase productivity. It has many applications including HVAC (heating, ventilation, air conditioning) inspection, vent pipe, machine equipment, engine, cable routing, automotive / boat / aircraft or aviation inspection & maintenance, automotive or vehicle maintenance, electrical, plumbing, building inspection, refrigeration, general home inspection and home construction.
Features:
- High definition video recording with sound
- Large 3.5" color LCD monitor with high resolution and visibility

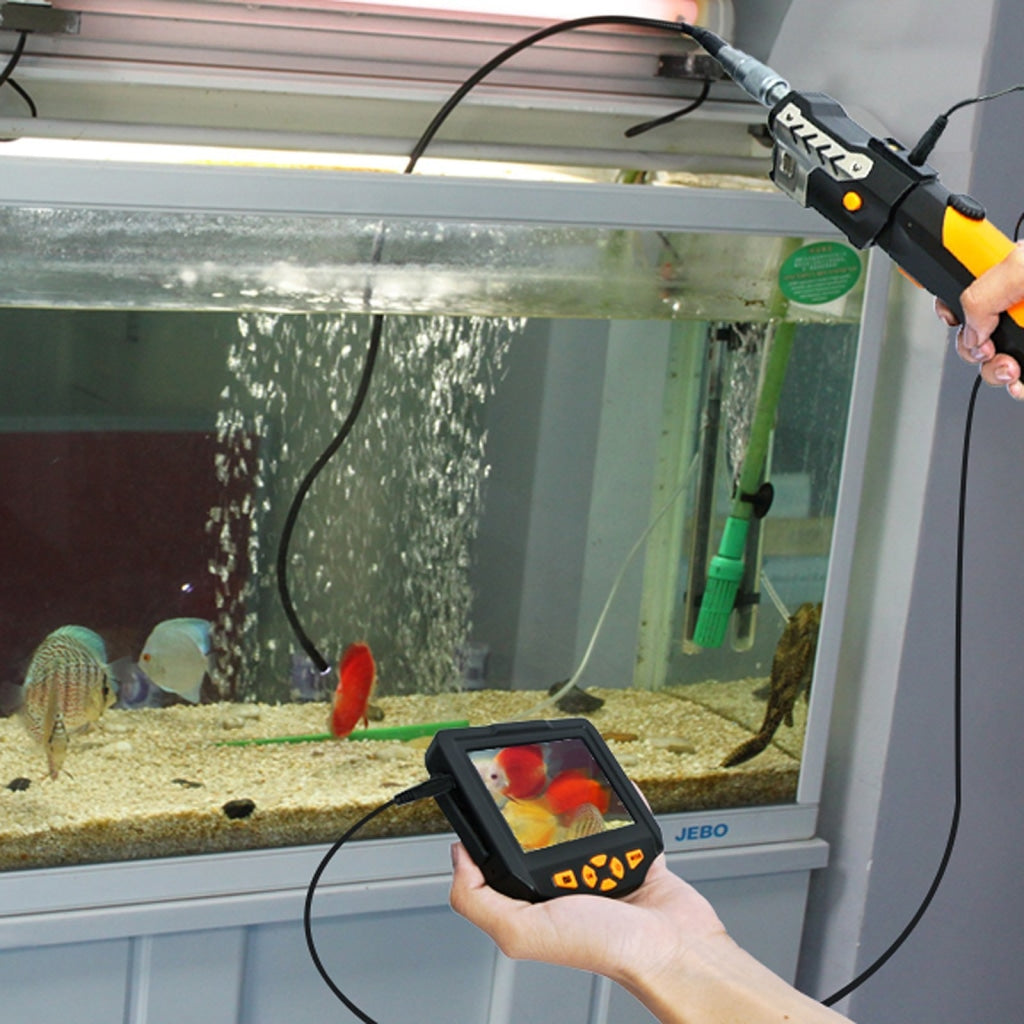

- Detachable LCD receiver for remote viewing with cable up to 1.5m (4.95ft)
- 4X zoom and 360° image rotation & flip over
- Capture images (JPG) up to 3 megapixels or videos (AVI) up to 720p HD
- Menu in 7 languages ( English, Chinese, French, German, Spanish, Russian and Japanese )

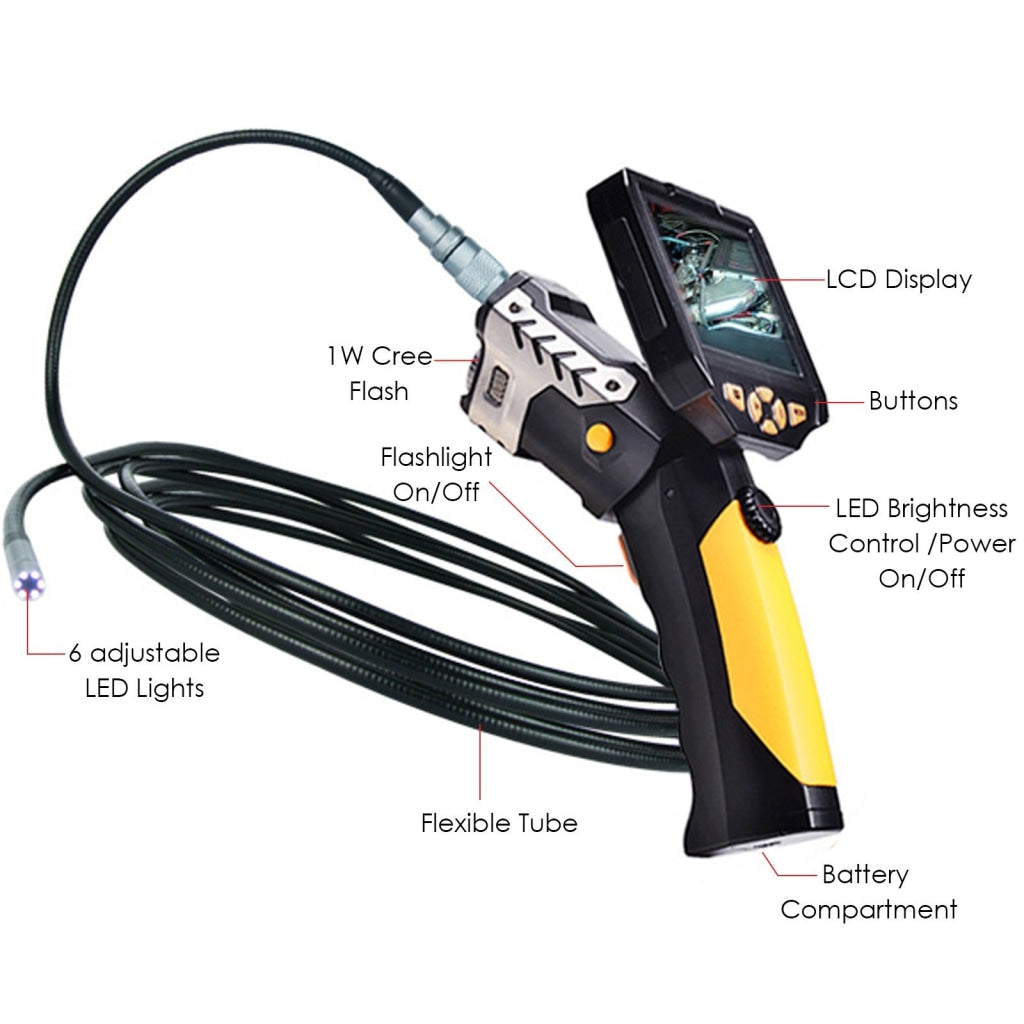

- Built-in 1W LED flash light by CREE
- IP67 waterproof probe and camera head
- Slim 8.2 mm camera head with 6 pcs of adjustable LEDs
- Conveniently save data in MicroSD card (included in set)
- View saved data in computer via USB cable
- Enable/disable auto power off
- Output to TV, supports NTSC & PAL
- Selectable Colored / Black & White in viewing and recording
- Ergonomic and robust designs & one-hand operation
- Flexible, portable, easy to operate and stable performance
- Adjustable handle angle
- High performance camera module with crystal clear output

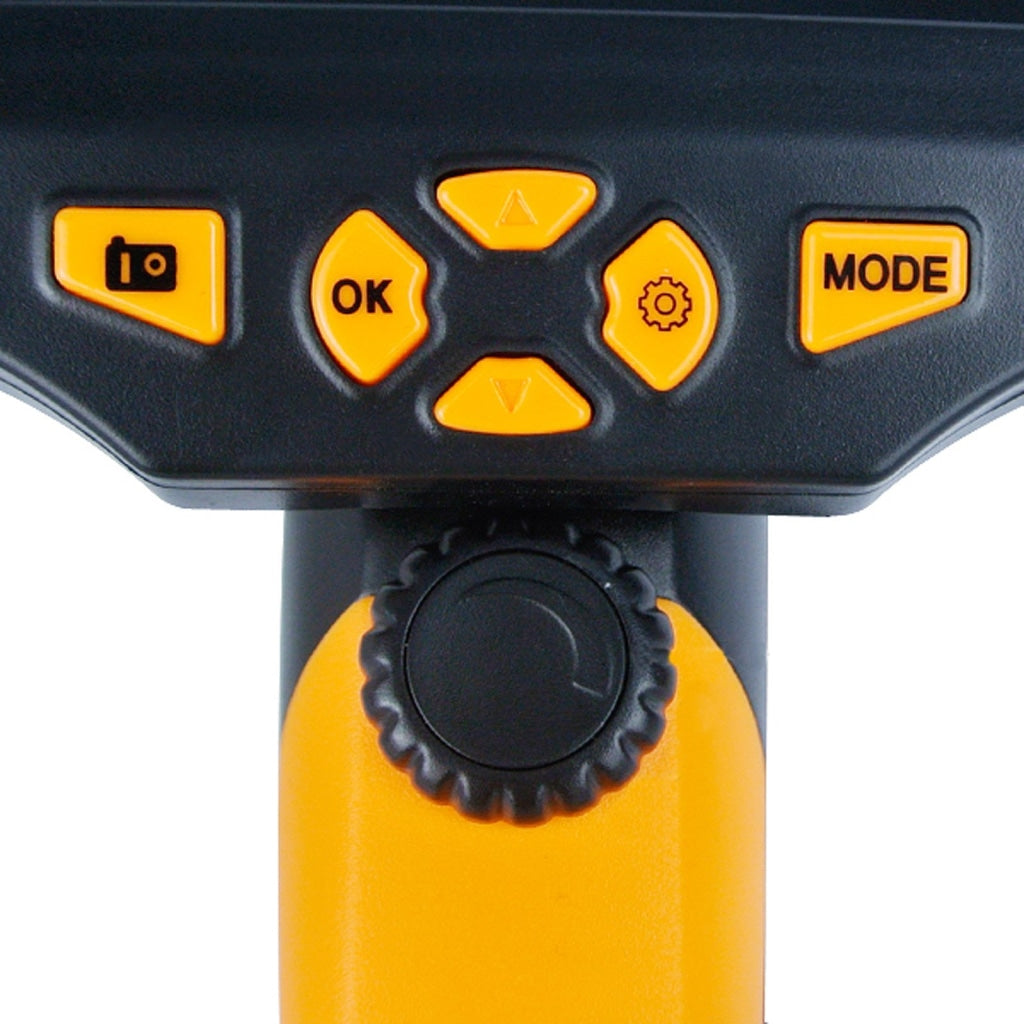

- Users can control all the keys with one hand
- Adjustable handle offers extra comfort
- Stainless steel shield and overall reinforced structures ensures sturdiness and heavy duty quality
- Comes with Standard waterproof 5M cable
Specifications:
-

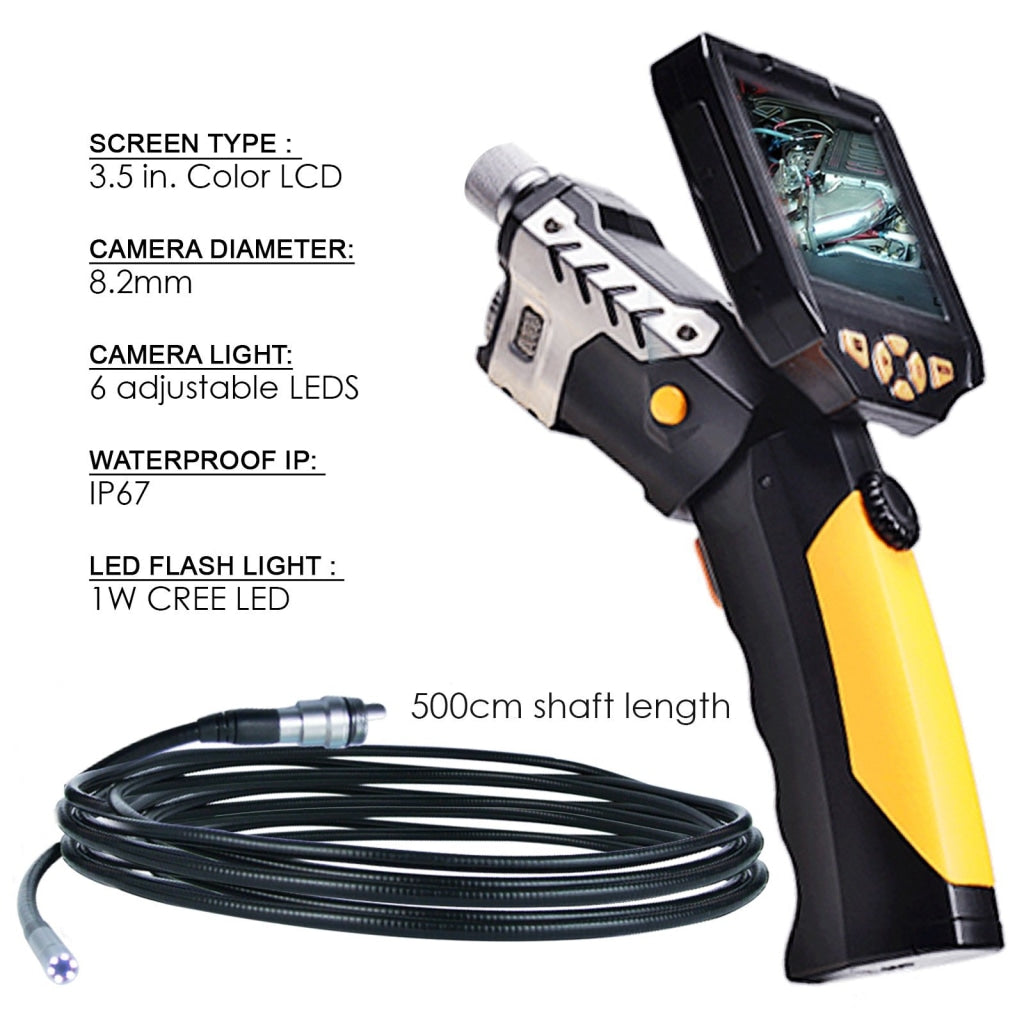

Monitor

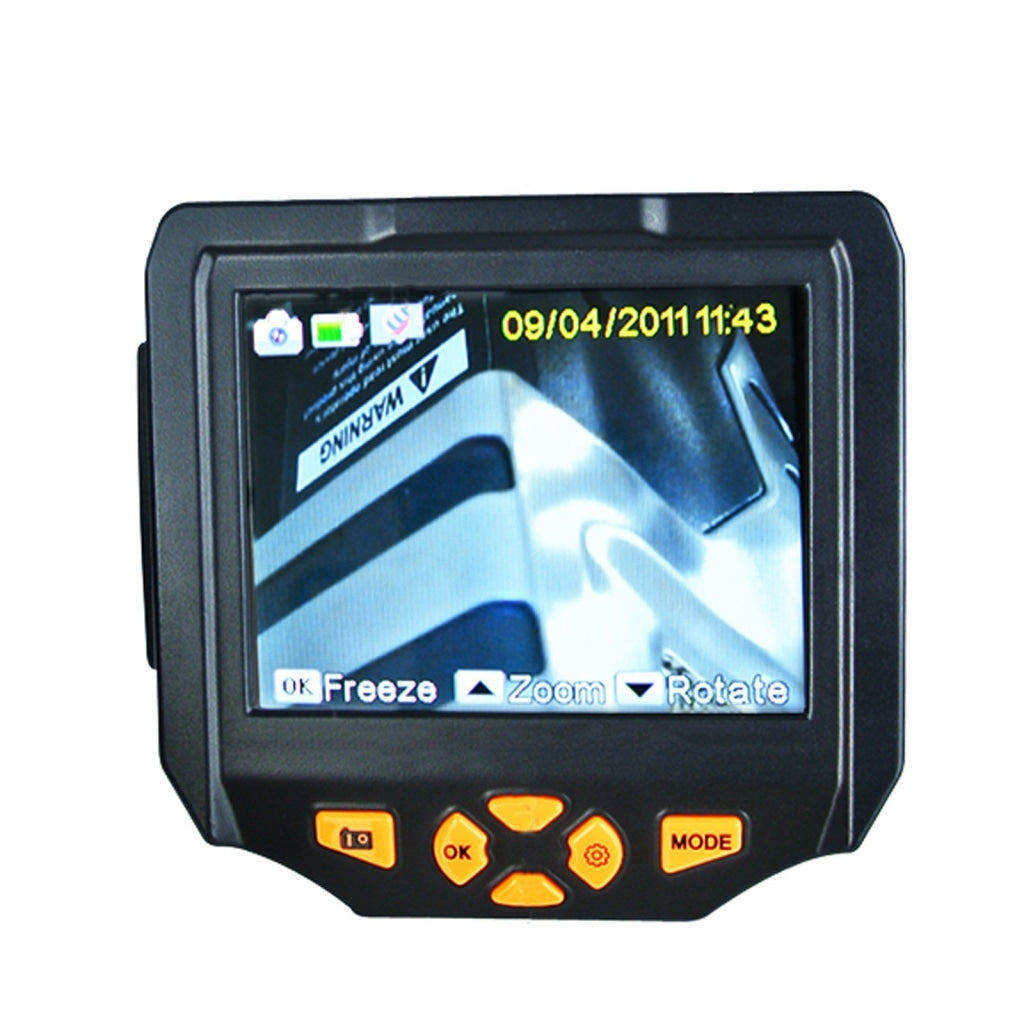

- Screen Type : 3.5 in. (88.9mm) Color LCD
- Resolution : 320 * 240 pixels ( QVGA )
- Rotation : 360° rotation
- Zoom : 4x Digital Zoom
- Video Recording Resolution : 720 * 480, 1280 * 720 (Pixels)
- Image Capturing Resolution : 720 * 480, 1600 * 1200, 2048 * 1536 (Pixels)
- Menu languages : English, Chinese, French, German, Spanish, Russian and Japanese

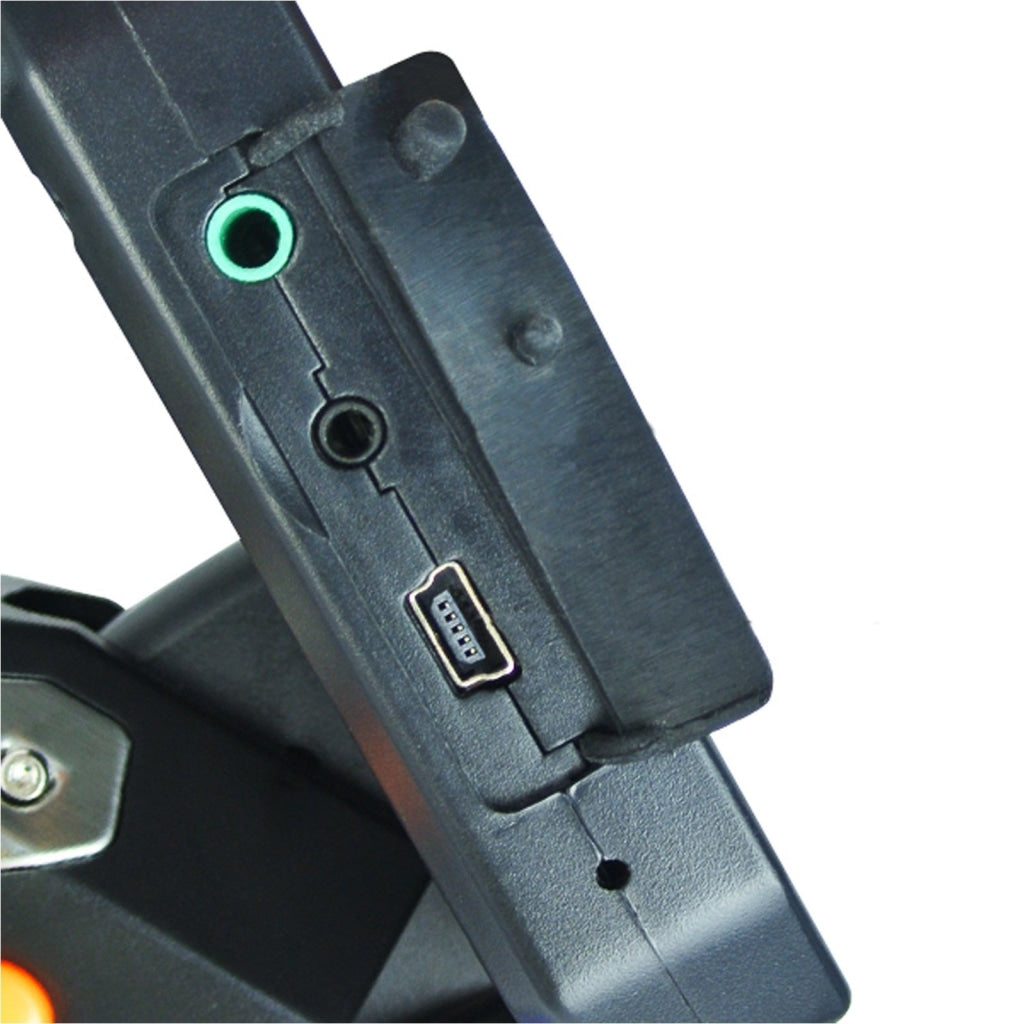

- Remote Connection Port : AV-out, USB, TF card slot

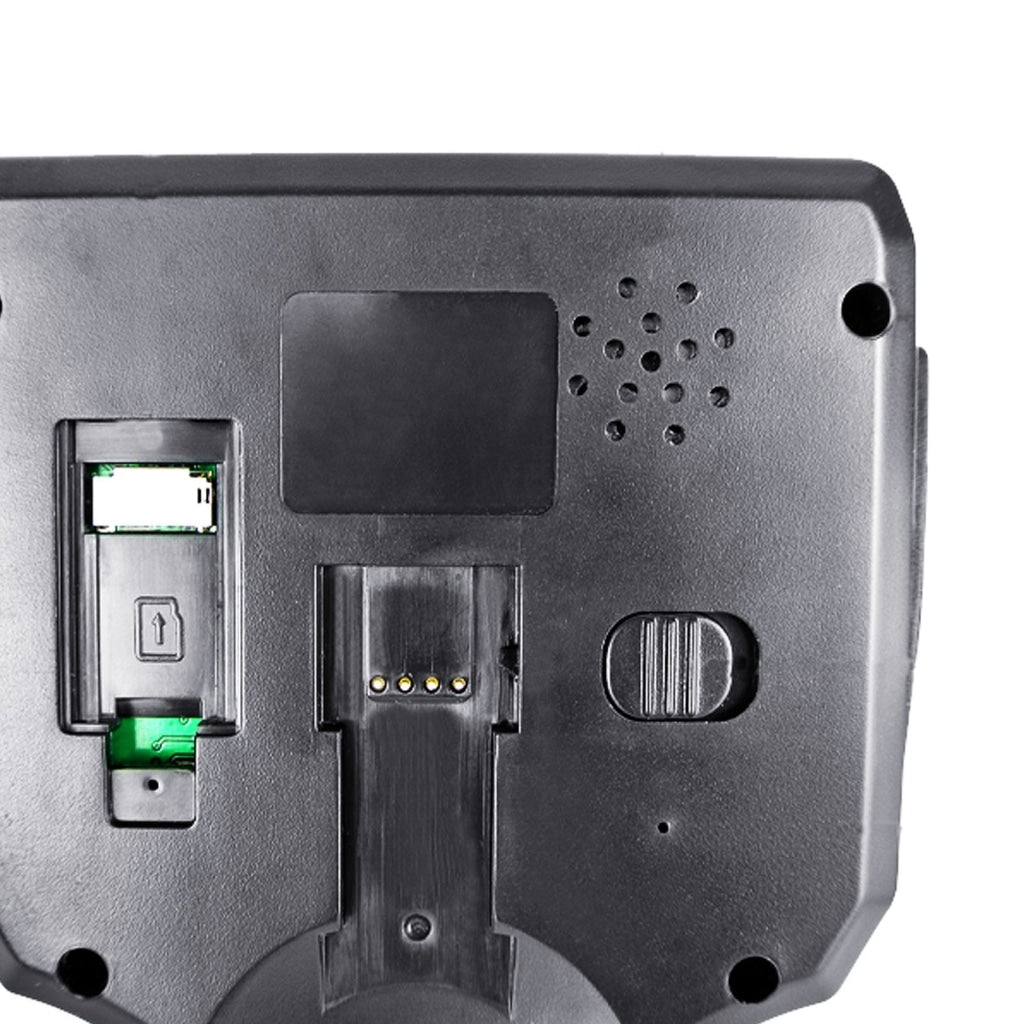

- Data Storage Media : 2GB MicroSD card included (supports up to 32GB)
-
Camera
- Diameter : 8.2mm
- Shaft Diameter : 7.6mm
- Shaft Length : 500cm
- Resolution : 300K pixels VGA
- Viewing angle : 60°
- Depth of Field : 80mm - infinity ( 50-80mm is recommended for best clarity or the most clear view)
- Light Source : 6 adjustable high-intensity LEDs
- Probe and Camera Head Protection : IP67
-
Other
- LED Flash light : 1W CREE LED
- Operating Temperature : 32° to 113°F (0° to 45°C)
- Power Source : 4*AA battery (not included)
- Max battery life : 4 ~ 5 hours
- Cable : Standard 5M waterproof cable
- Weight : 445g (excluding the probe)

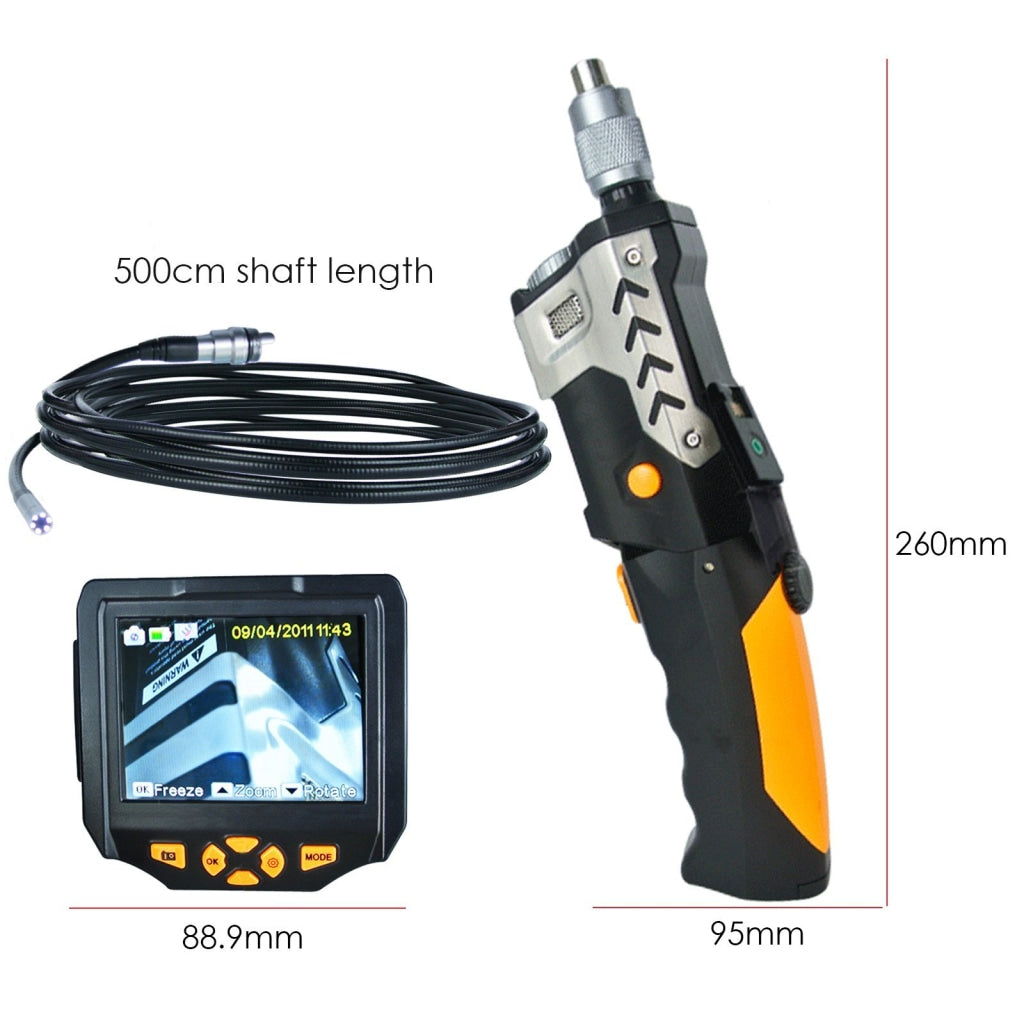

- Dimension (Grip) : 260 (L) x 95 (W) x 80 (H) mm (excluding the probe)
- Certification : CE, FCC, RoHs

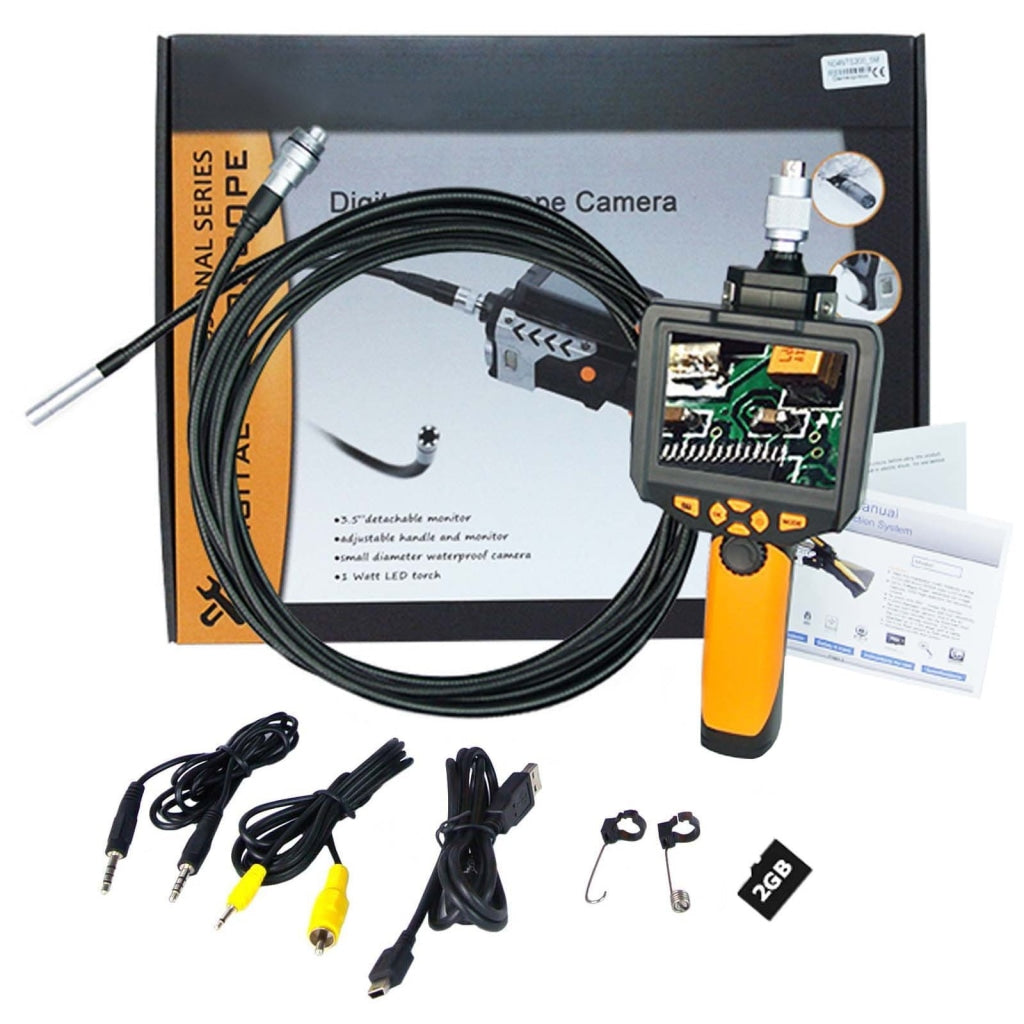

Set includes:
- 1 x HD Digital Endoscope
- 1 x 3.5 inch LCD Receiver (detachable from Camera Grip)
- 1 x 5M Standard Waterproof cable with 8.2mm camera head

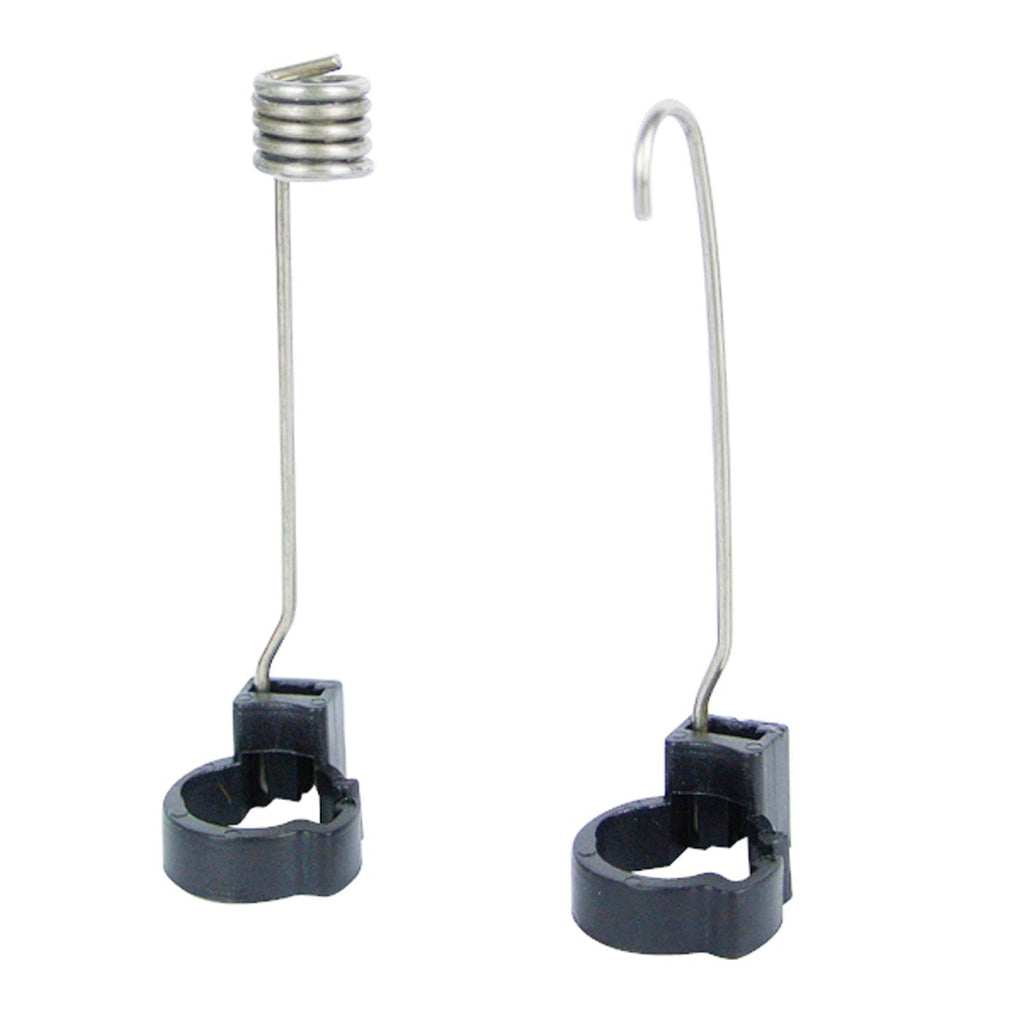

- 1 x Magnet Tip
- 1 x Hook Tip
- 1 x Remote Connecting Cable
- 1 x USB Cable
- 1 x Video Cable
- 1 x 2GB MicroSD Card
- 1 x English Instruction Manual
- Standard Colored Box
