- VC-8145 DMM Digital Bench Top Multimeter PC Analog Bar Meter VC-8145 DMM Digital Bench Top Multimeter PC Analog Bar Meter

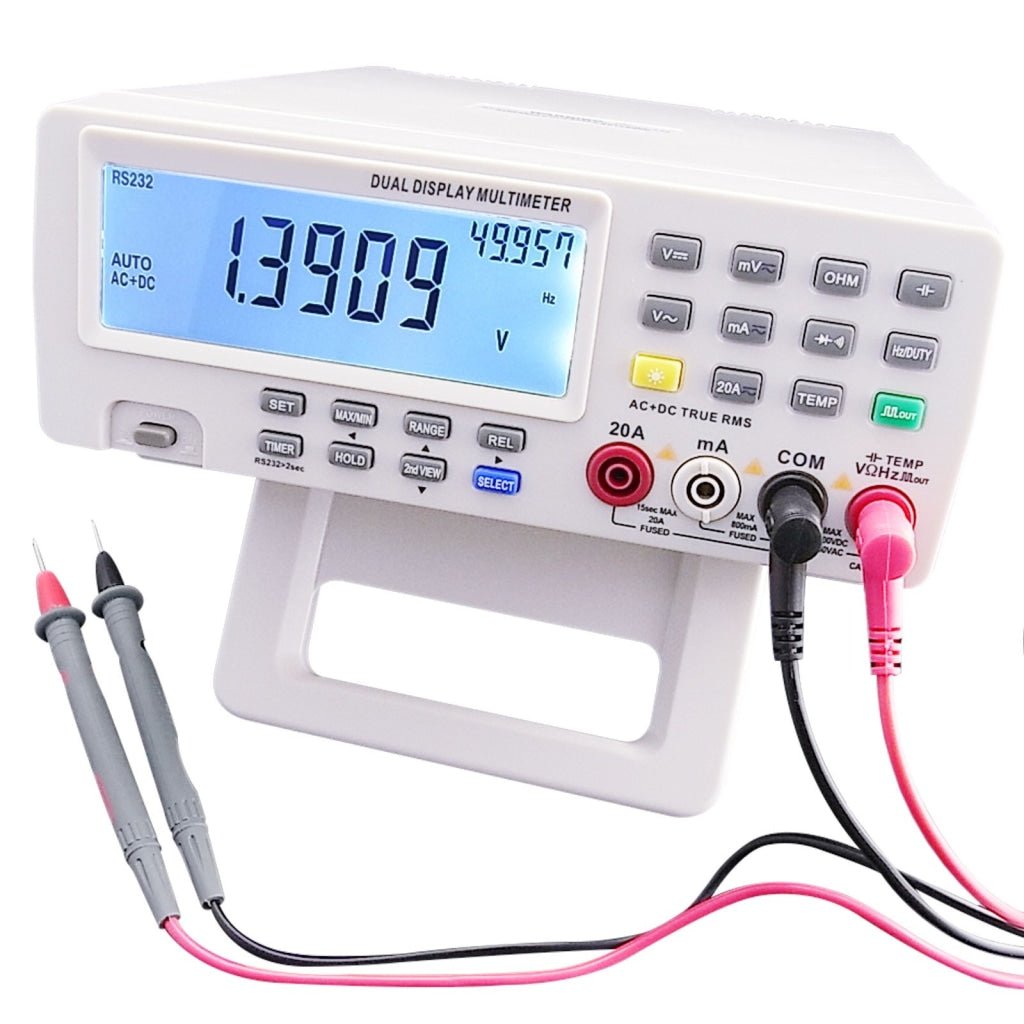

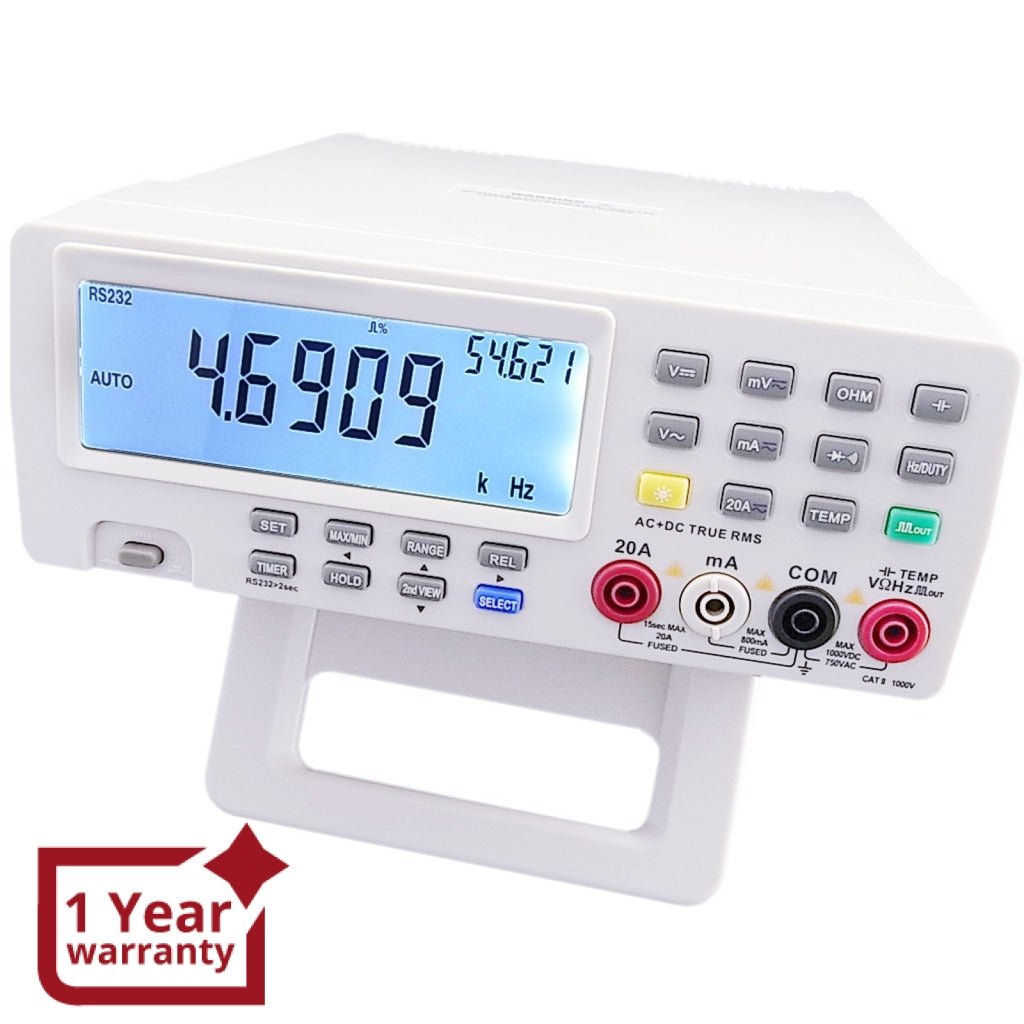

VC-8145 DMM Digital Bench Top Multimeter PC Analog Bar Meter
- Description
- Return, Refund, & Warranty Policy
- Reviews

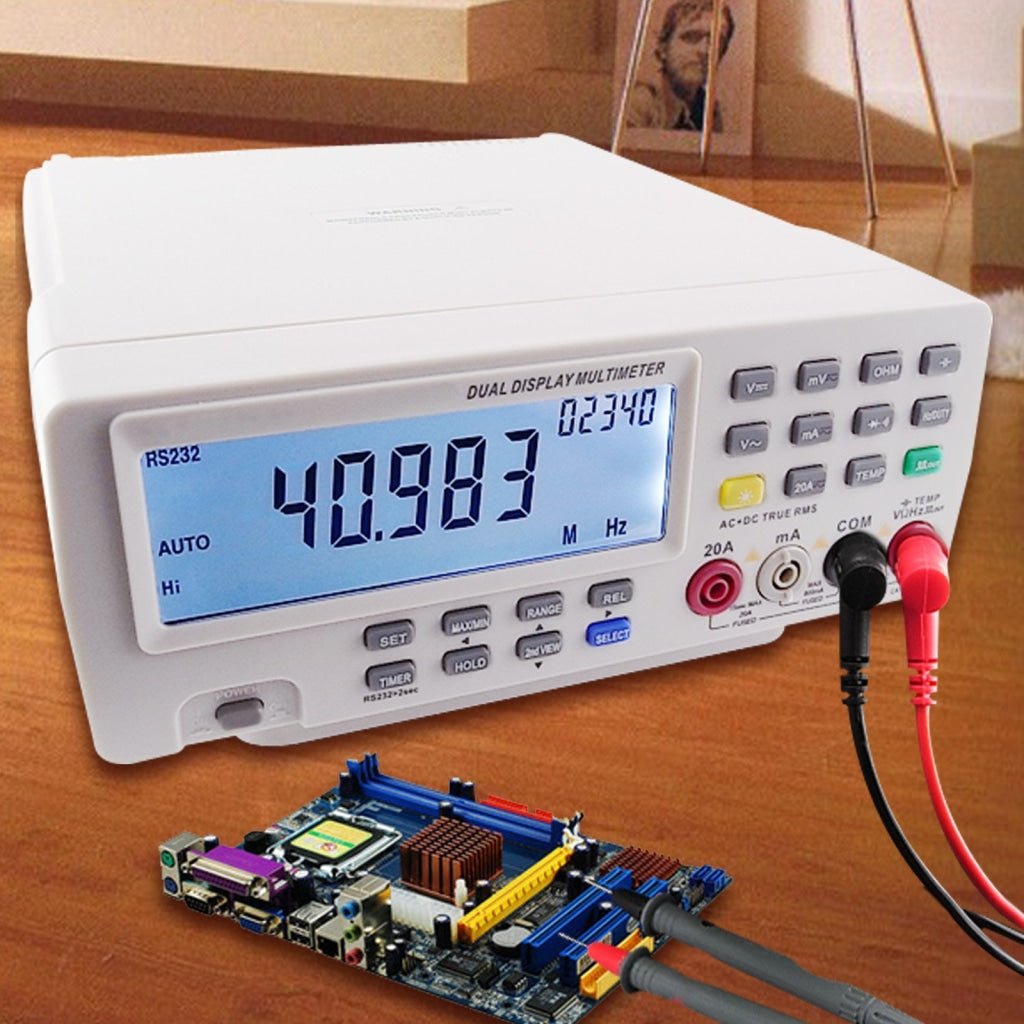

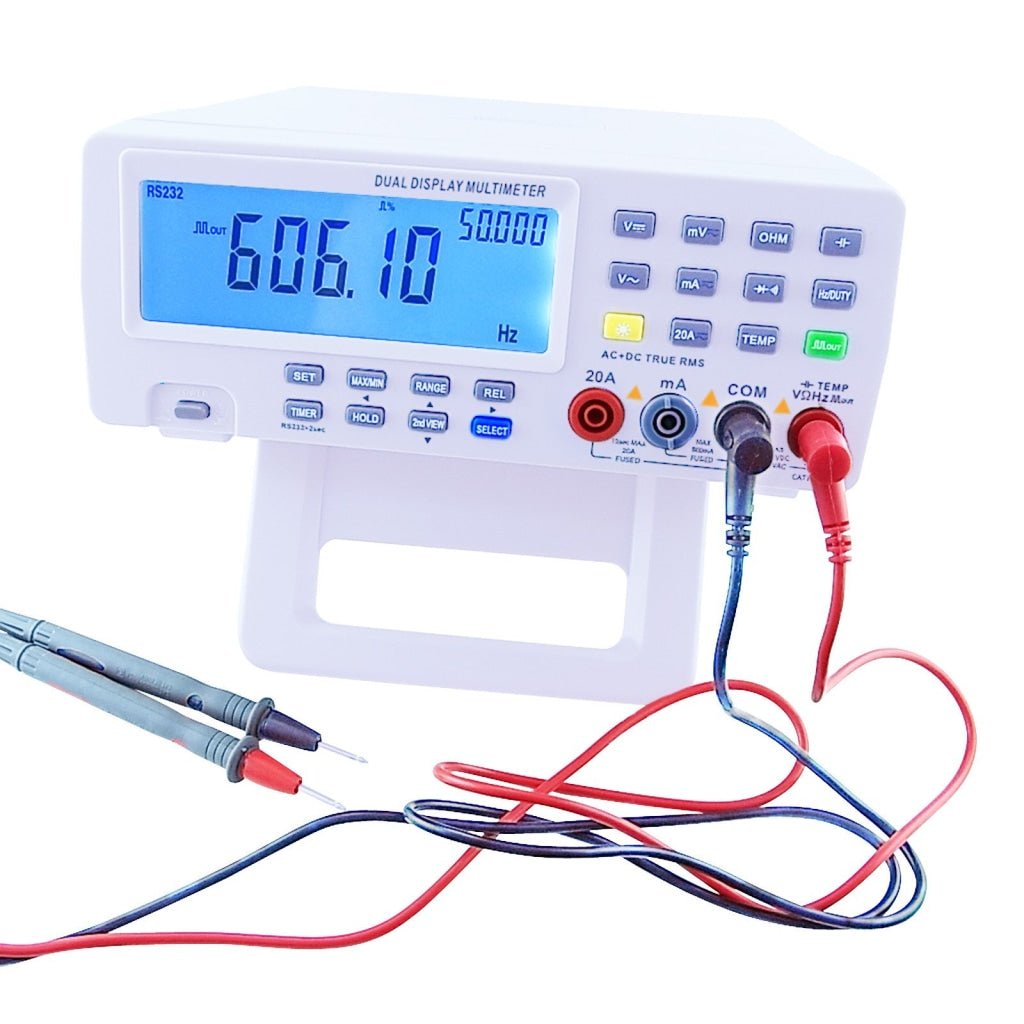

The Professional Bench Top Multimeter is a unique multi-functional device suitable for use on production lines, laboratories, factories, radio-technology, R & D, maintenance and repairing work.
The meter can provide functions including analog bar and unit symbol display, data holding, relative value measuring and maximal/minimal value measuring.
Features:
- High contrast and Wide visual angle LCD display with backlight
- Dual Display:
- Main Display: 80000
- Secondary Display: 80000
- Analog Bar Graph: 23 segments, update 40 time/sec

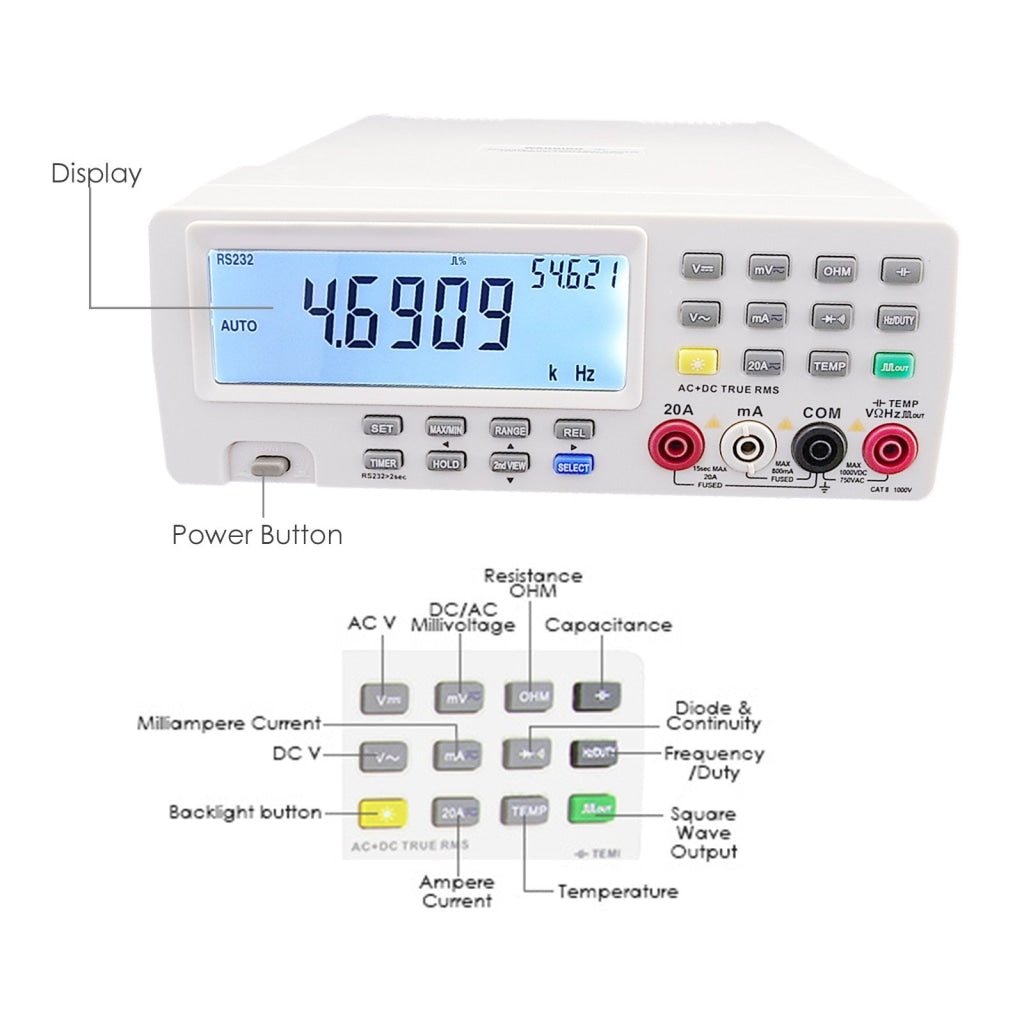

- More than 50 measuring functions including DC/AC Voltage, DC/AC Currents, Resistance (Ω), Capacitance, Frequency (Hz), Temperature (°C/°F), Duty Cycle, Diode & Continuity Check
- Single Analyzed:
- (AC+DC) measuring synchronous
- (AC+Hz) measuring synchronous
- (DC+dBm) measuring synchronous
- (dBm+Hz) measuring synchronous
- (Hz+Duty) measuring synchronous
- (°C+°F) displaying synchronous
- Frequency measurement : 0.5Hz -1000.000000MHz
- Basic DC Accuracy : 0.05 %
- mV Impedance : >1000MΩ
- 16 Frequency points, 1% to 99% duty selectable square wave output
- Analyzing component of current or voltage signal
- Resistance Measuring : 0.1Ω to 80MΩ,10MΩ to 8000MΩ
- Capacitance Measuring : 10nF to 100µF
- Temperature Measuring : -50°C to 1372°C, -58°F to 2502°F
- dBm 20 types of reference impedance
- Auto data hold/ peak hold
- Relative measuring : REL, Relative percent : REL%
- 36 hours dynamic recording : MAX / MIN / AVG / MAX-MIN
- Communication : 9-pin isolated optical RS232 cable
- Measure speed is about 3 per second
- Timer for measurement
- Safety/Compliance : IEC 61010 CAT II 1000V ; CAT III 600V
- Auto power off
- 0.1 ~ 99.9% pulse duty cycle measuring
- Set upper and lower limit area measuring
- Photoelectricity insulation RS-232 computer interface
- Timing measuring function
- AC measuring adopt High accuracy RMS, Widely measuring and AC+DC function, can measure the accuracy virtual value of AC by any wave

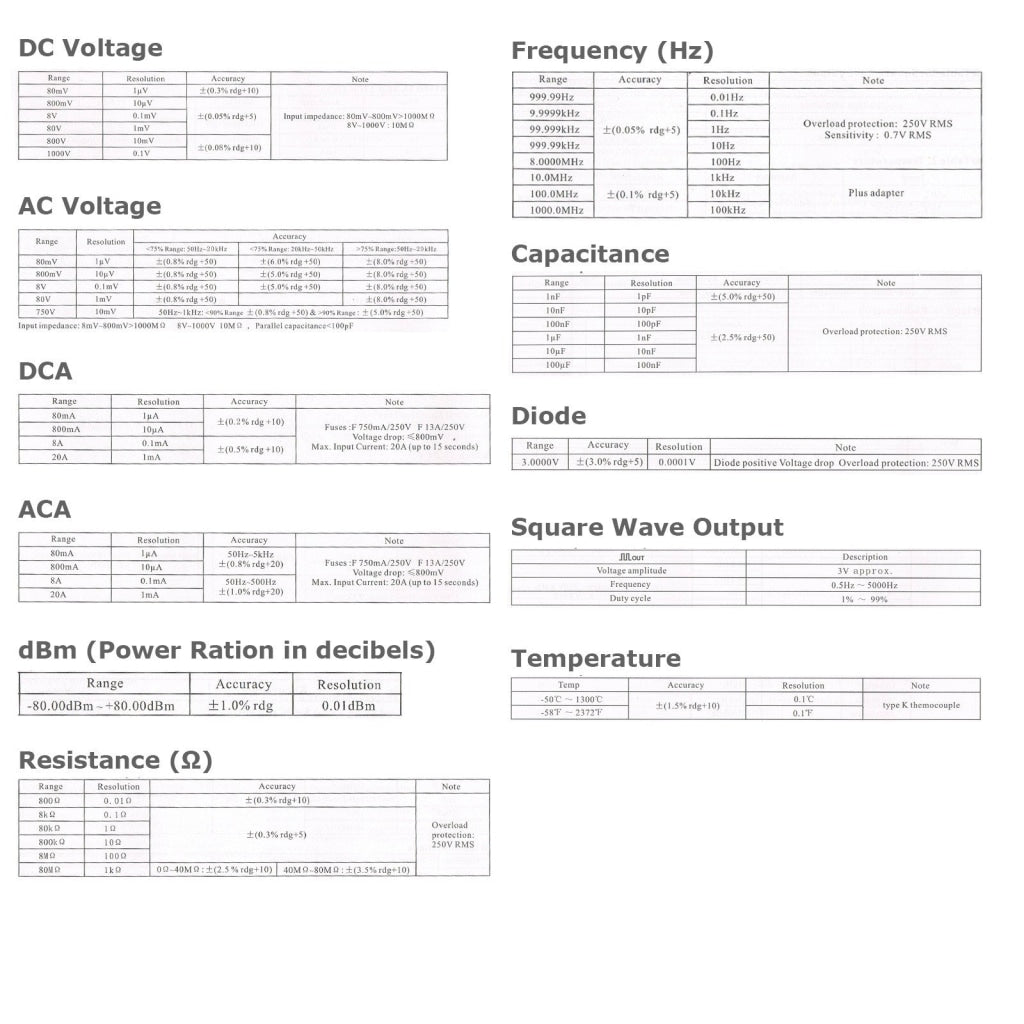

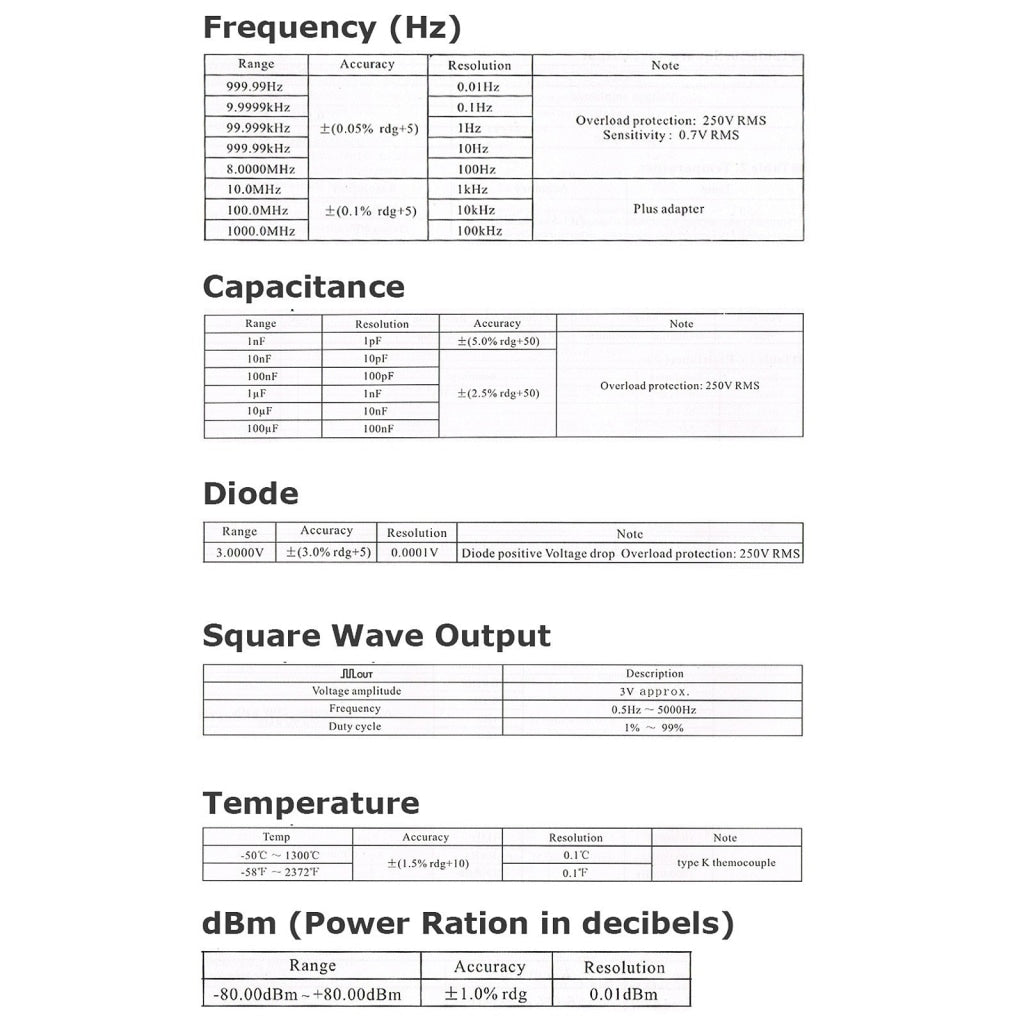

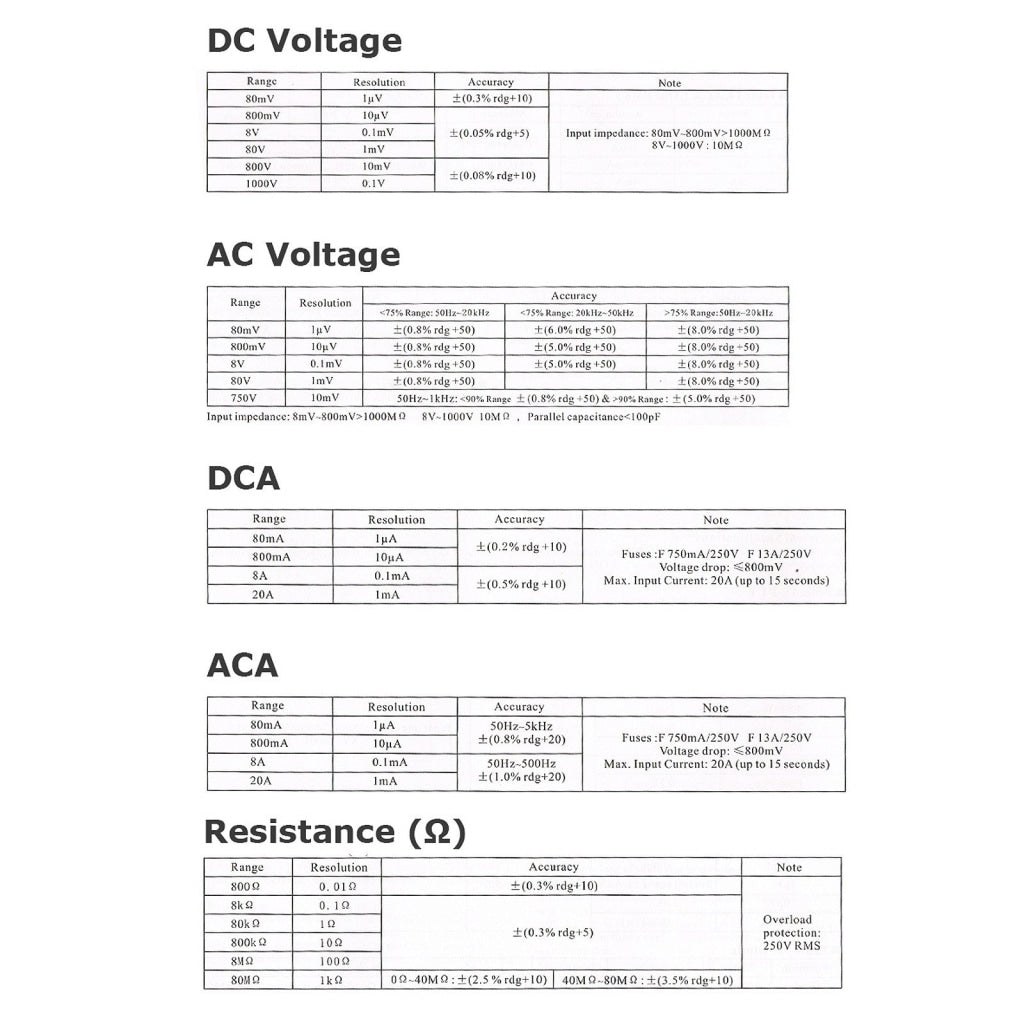

Specifications:

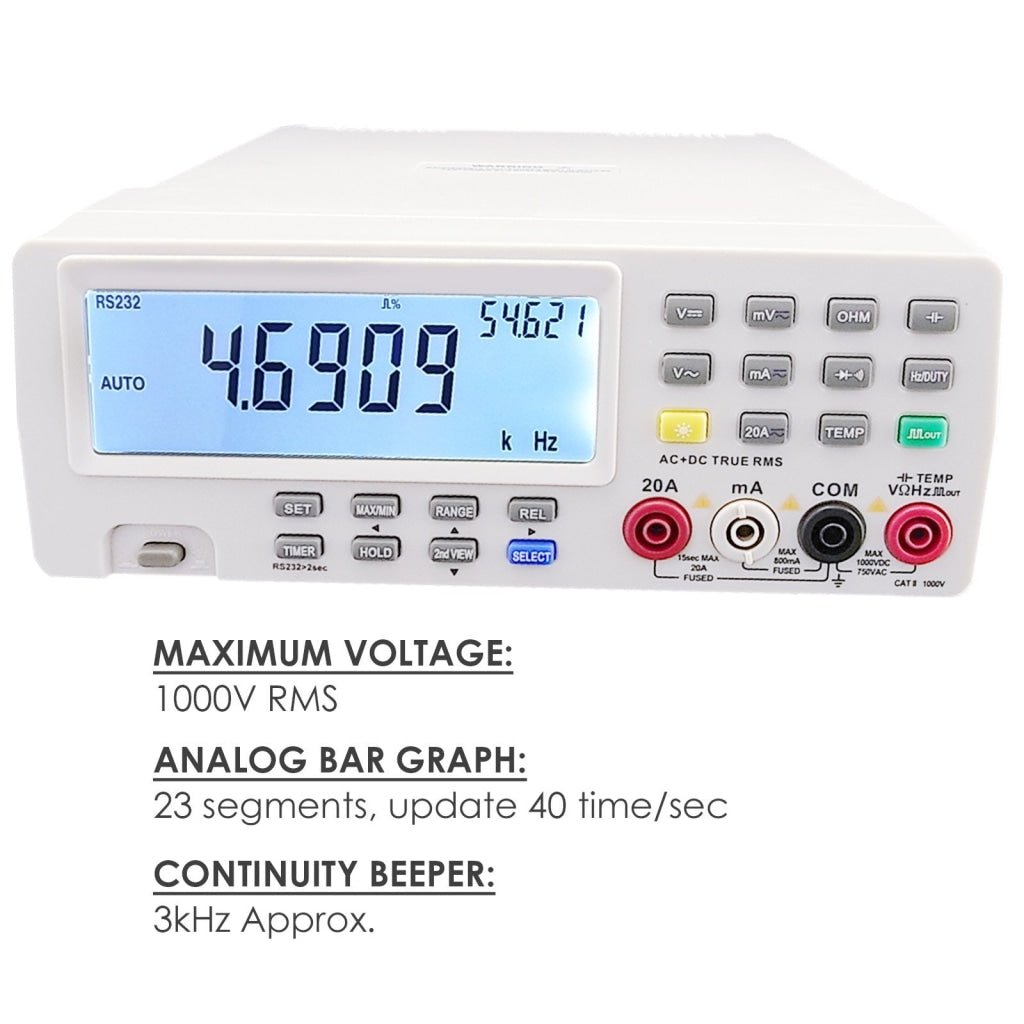

- Maximum voltage between any terminal and earth ground: 1000V RMS
- Continuity Beeper: 3kHz Approx.
- Operating Temperature: 0~50°C
- Storage Temperature : -20~60°C
- Operating Altitude: under 2000m
- Storage Altitude : under 5000m
- Relative Humidity : ≤75% @ 0~40°C; ≤45% @ 40~50°C
- Electromagnetic Compatibility : in a RF field or 1 V/m on all ranges and function except Capacitance
- Total Accuracy : specified +5% of range Capacitance not specified in RF fields performance above 1 V/m is not specified

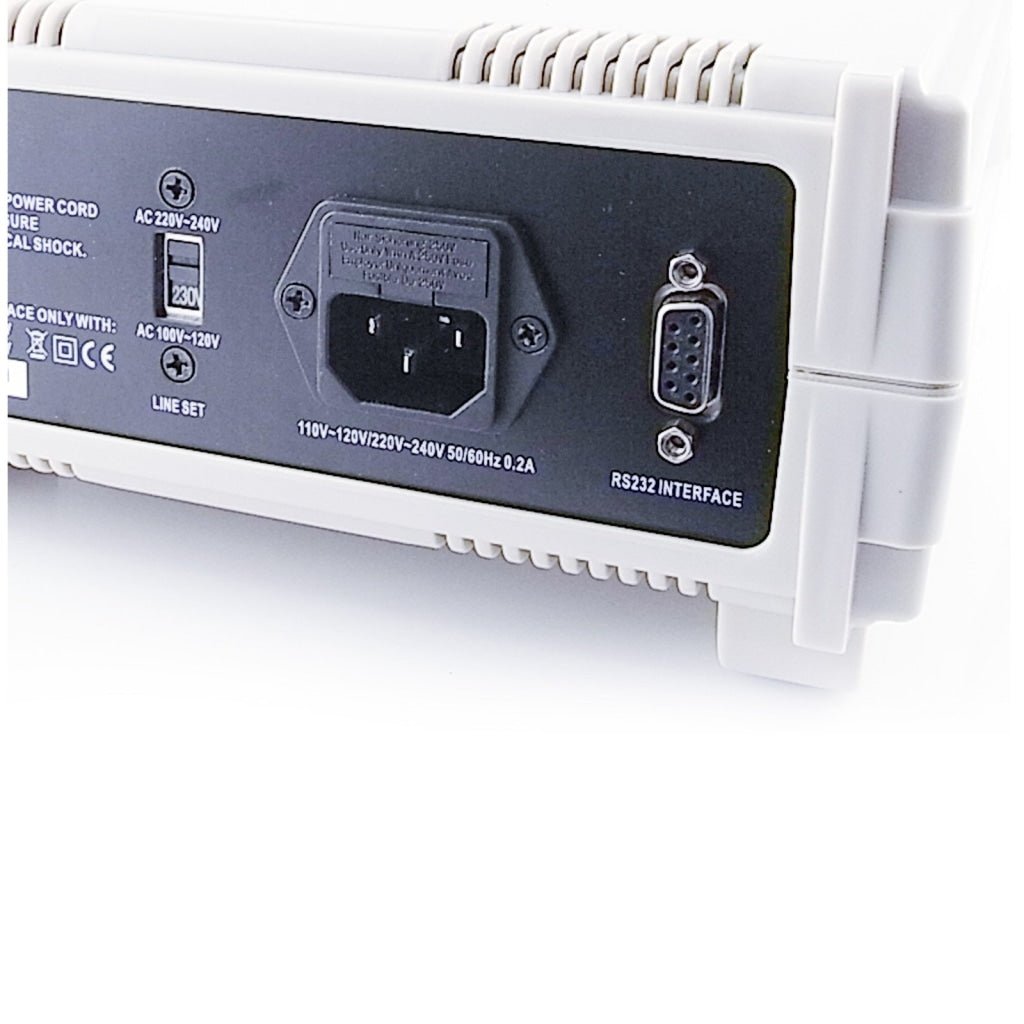

- PC Interface : RS-232
- Compatible with Windows 2000 & XP only
- AC Power : 110~220 V (US / EU / AU / UK Power adapter plug)

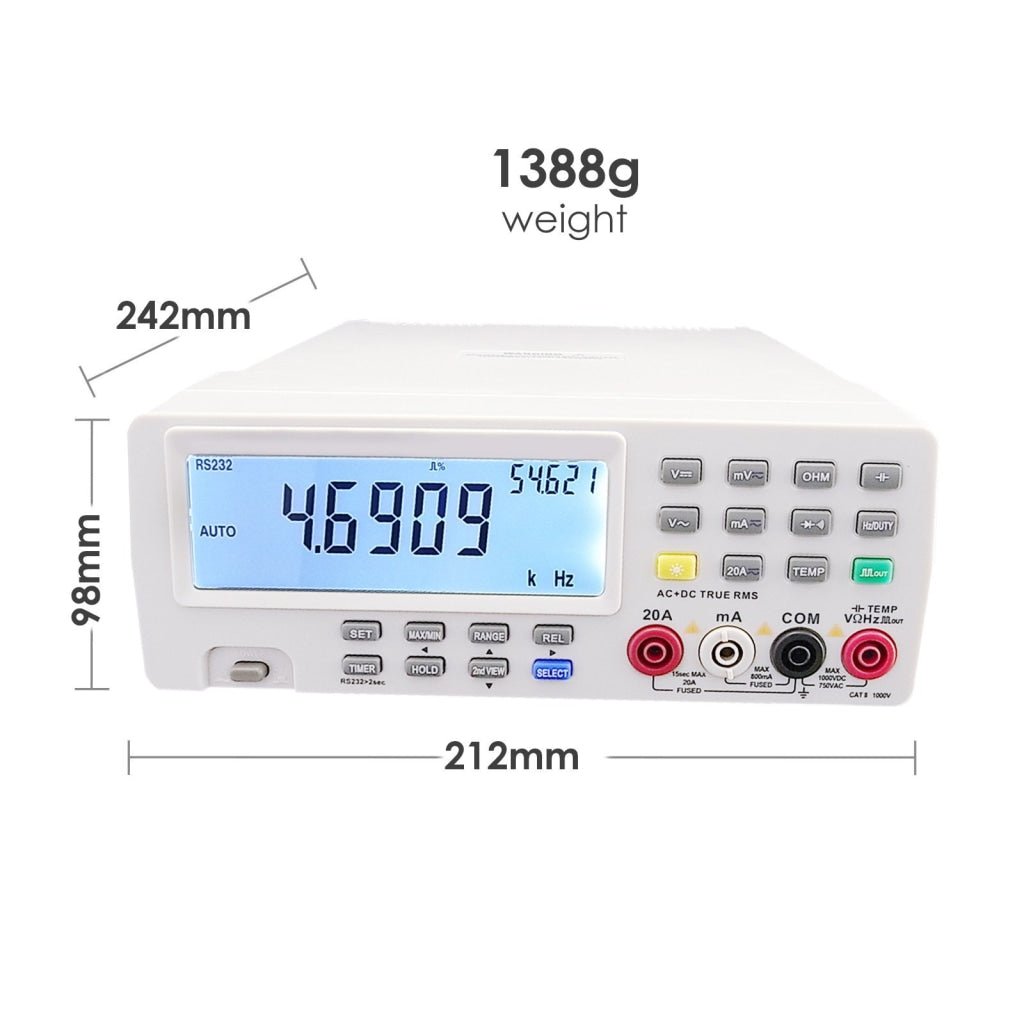

- Size : approx. 242 x 212 x 98 mm
- Weight : approx.1388g (accessories not included)

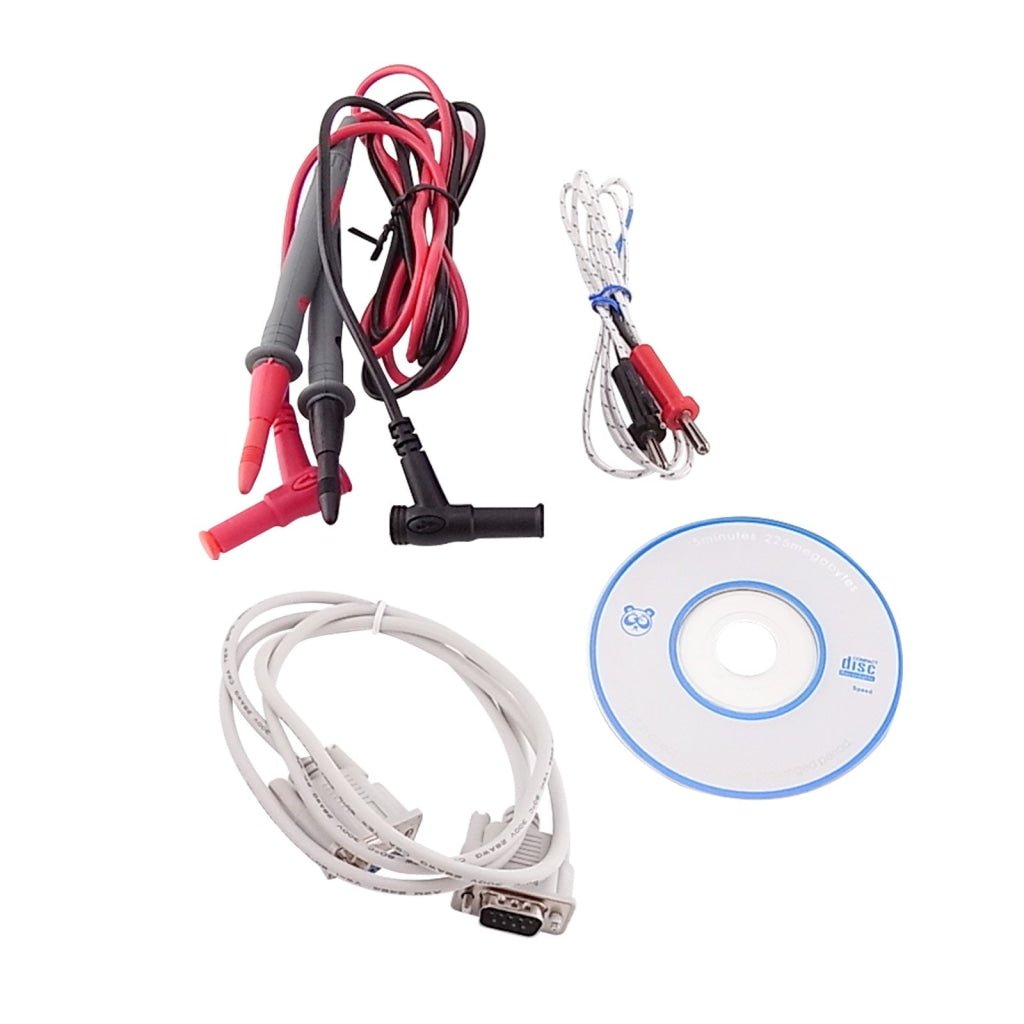

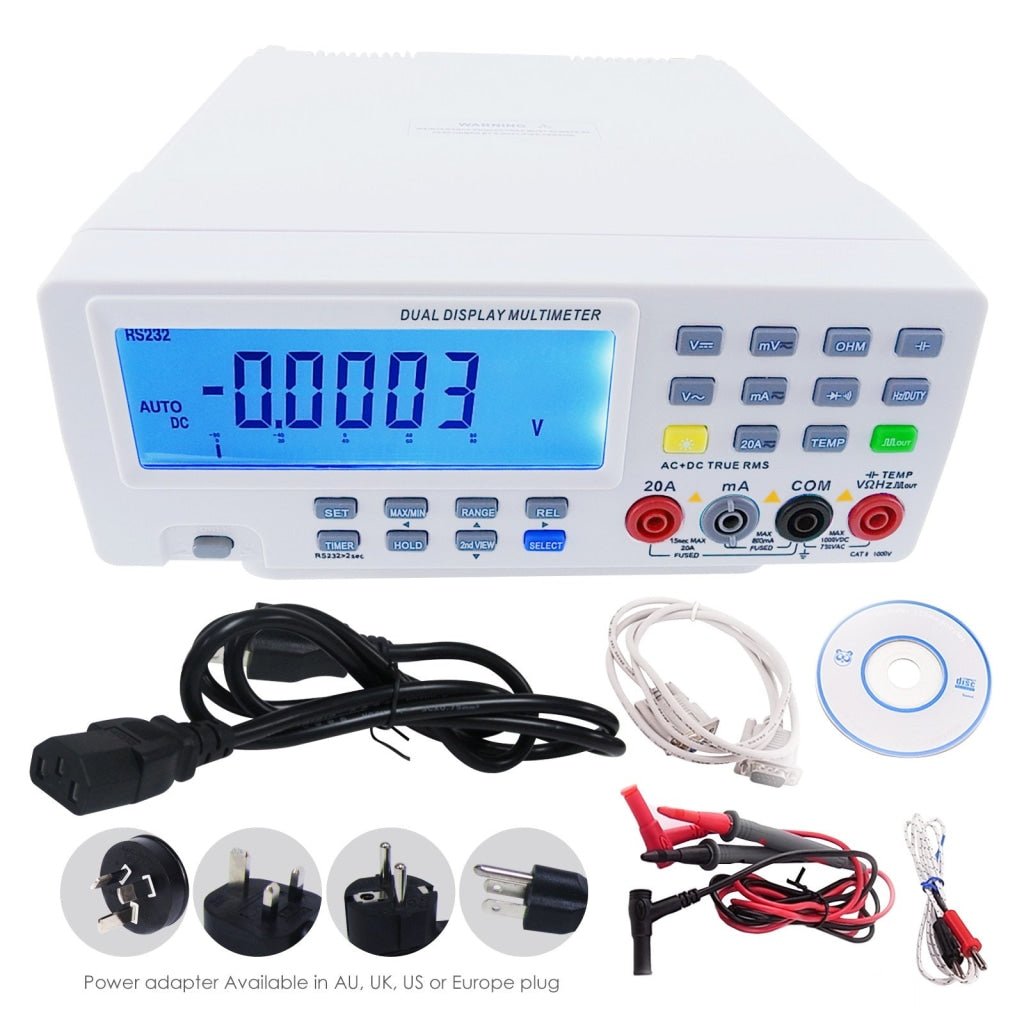

Set Includes:
- 1 x Digital Bench Top Multimeter
- 1 x Pair of Test Leads
- 1 x Type K Thermocouple
- 1 x RS-232 Software CD
- 1 x 9-pin Cable Adapter
- 1 x AC Power Cord (available in US / EU / AU / UK Power Plug)
- English Instruction Manual
- Standard Packaging Box
