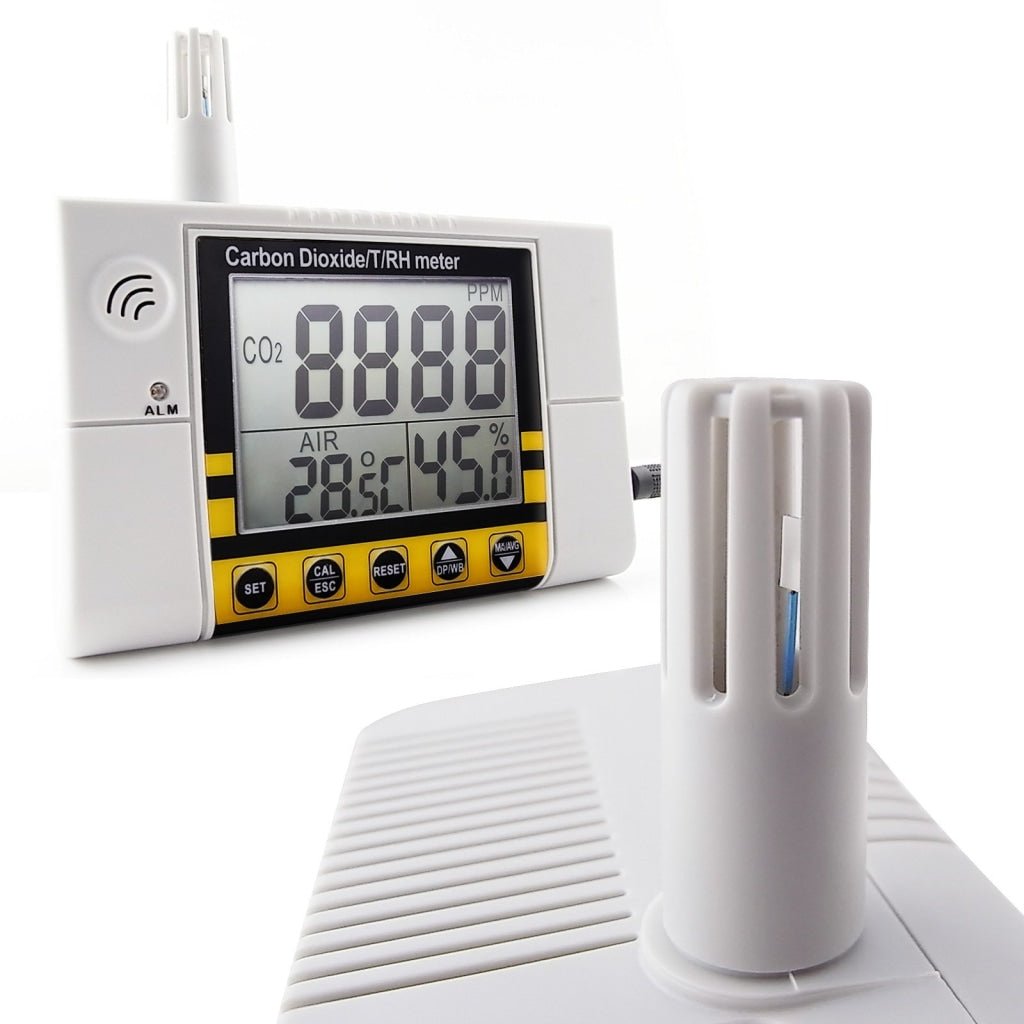

CO22 Carbon Dioxide / Temperature/ Humidity Indoor Air Quality Monitor Meter, Wall Mountable CO2 Detector 0~2000ppm Range
The industrial wall mount CO2 Sensor & Controller is designed for fast & accurate measurement of CO2 level, humidity and temperatures of air, dew point and wet CO2 bulb. It monitors concentration level and can controls ventilation system such as air conditioning to operate only when its necessary without the need for occupant intervention. With CO2 Monitor & Controller you are ensured with a healthy workplace requiring minimum energy consumption while simultaneously maintaining Indoor Air Quality (IAQ).

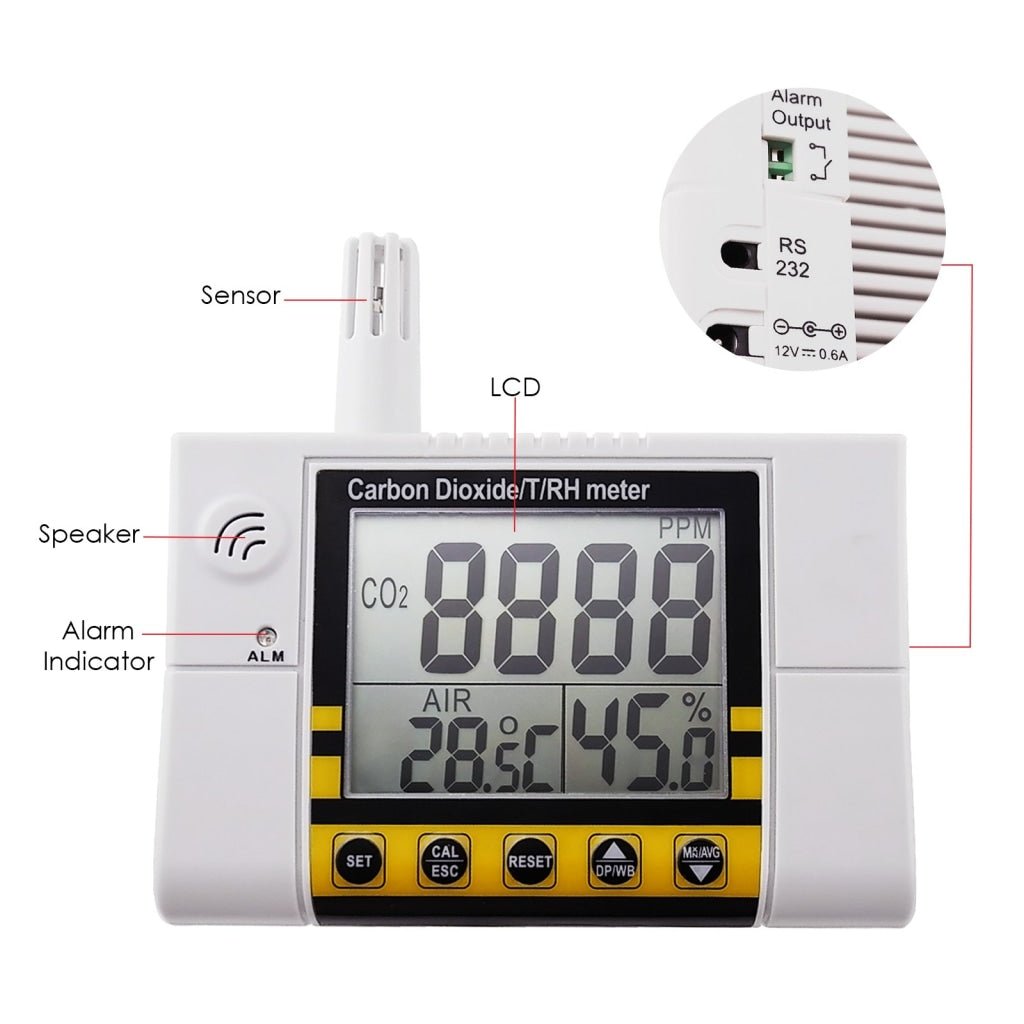

The meter is designed with a built-in relay, which can be connected to an Indoor Air Quality (IAQ) system to control the opening and closing of the system. It also allows you to set 2 limits, upper limit or the maximum CO2 concentration and the lower limit or the normal CO2 concentration level. In addition, it also has an audible & visual alarm that gives warning whenever the CO2 concentration level exceeds the limit and will only stop when CO2 goes back to normal level or a key has been pressed.

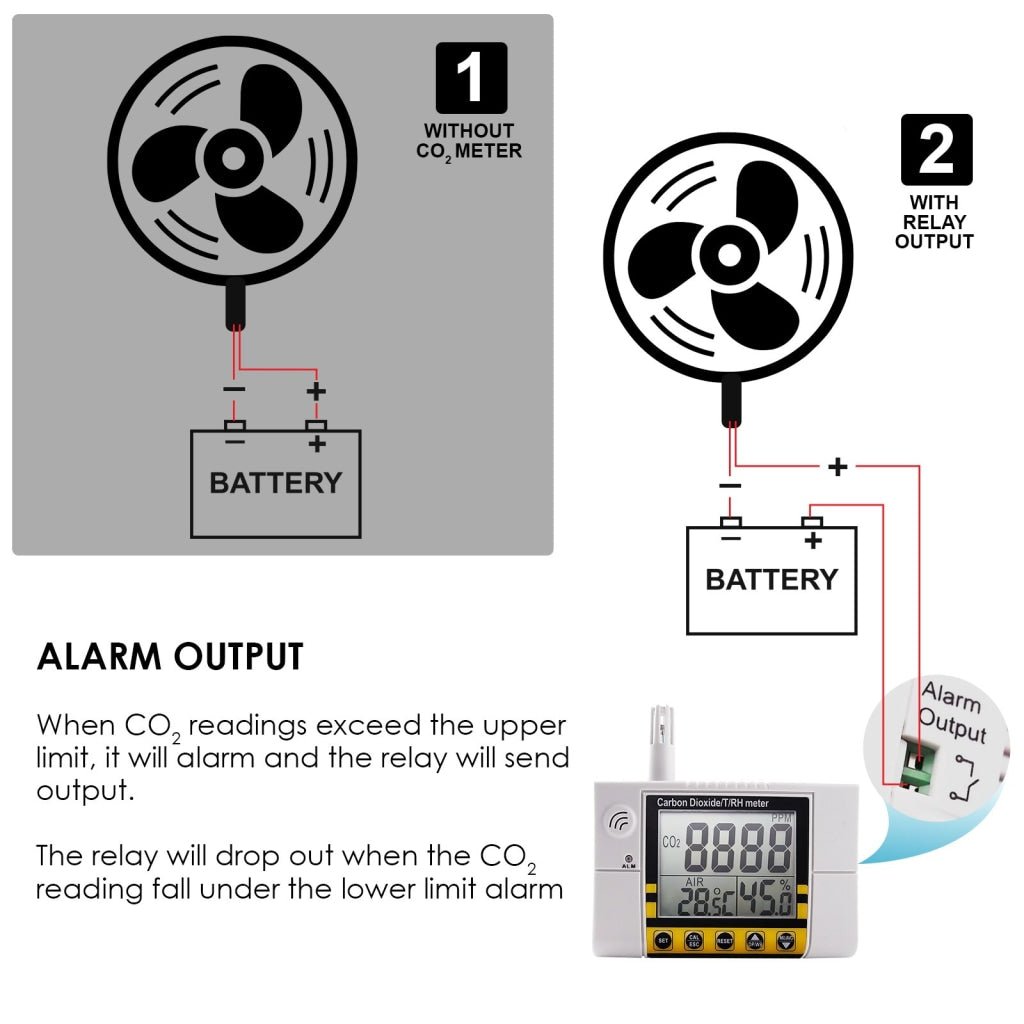

For example, the main unit is connected to a ventilation system. (Eg: air-conditioning) When CO2 readings go over the upper limit, beeps will be heard, LED light will be flashing and the relay will automatically turn on and sends an output signal, so the fan will be turned on. Once the CO2 reading falls under the upper limit or reaches the normal CO2 concentration, the beeping will stop, the flashing will stop and the relay will send out an output signal again to close or turn off the fan.

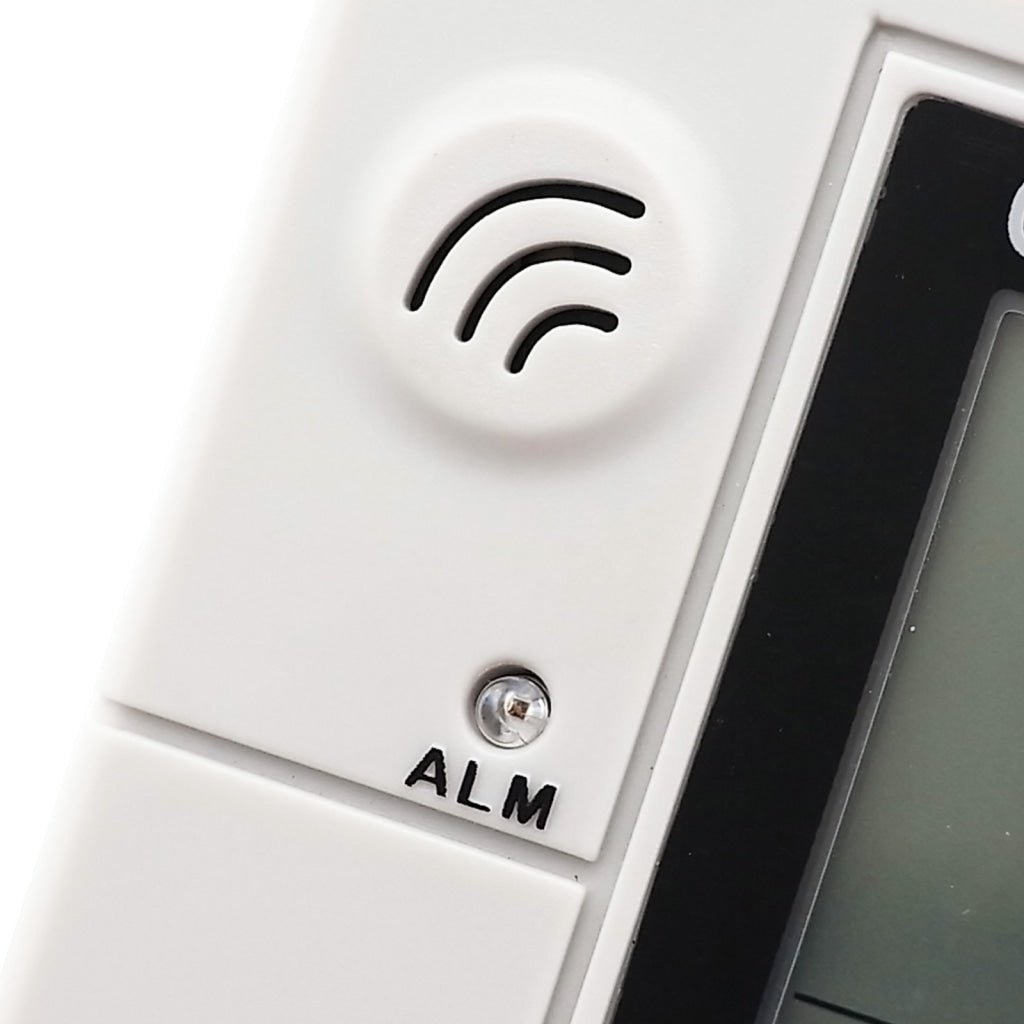

When the unit gets a high reading of CO2 and there is no ventilation system attached, the user will be notified via the beeping alarm and flashing LED light and will automatically stop once CO2 concentration goes back to its normal level or a key has been pressed.
In addition, it has PC Link that can send gathered data directly to your PC for on-line logging and data analysis via the optional RS-232 interface and software (not included in the set).
Areas of Application:
Hospitals, Offices, Schools, Theaters, Indoor Sports Arenas, High Rise Buildings, Indoor Area Quality, Commercial Buildings, Residential Housing, Public Buildings, Demand Controlled Ventilation, Clean Rooms.
Poor indoor air quality in rooms can lead to fatigue, lack of concentration and illness (Sick Building Syndrome) due to a high concentration of CO2 level.
Features:
- Simultaneous triple result, displaying CO2 level, temperature and humidity
- Stable Non-Dispersive Infrared (NDIR) Sensor for CO2 detection
- Triple LCD Display and programmable alarms
- Built-in Non-Dispersive InfraRed (NDIR) sensor that provides long-term & stable monitoring
- Built-in relay that controls the ventilation system to automatically maintain the CO2 level that you set or specify
- Statistics of weighted averages
- TWA (Time-Weighted Average) 8 HRS
- STEL (Short-term exposure limit) 15 Minutes
- Visible & Audible (80db) CO2 warning alarm when CO2 concentration exceeds the set limits

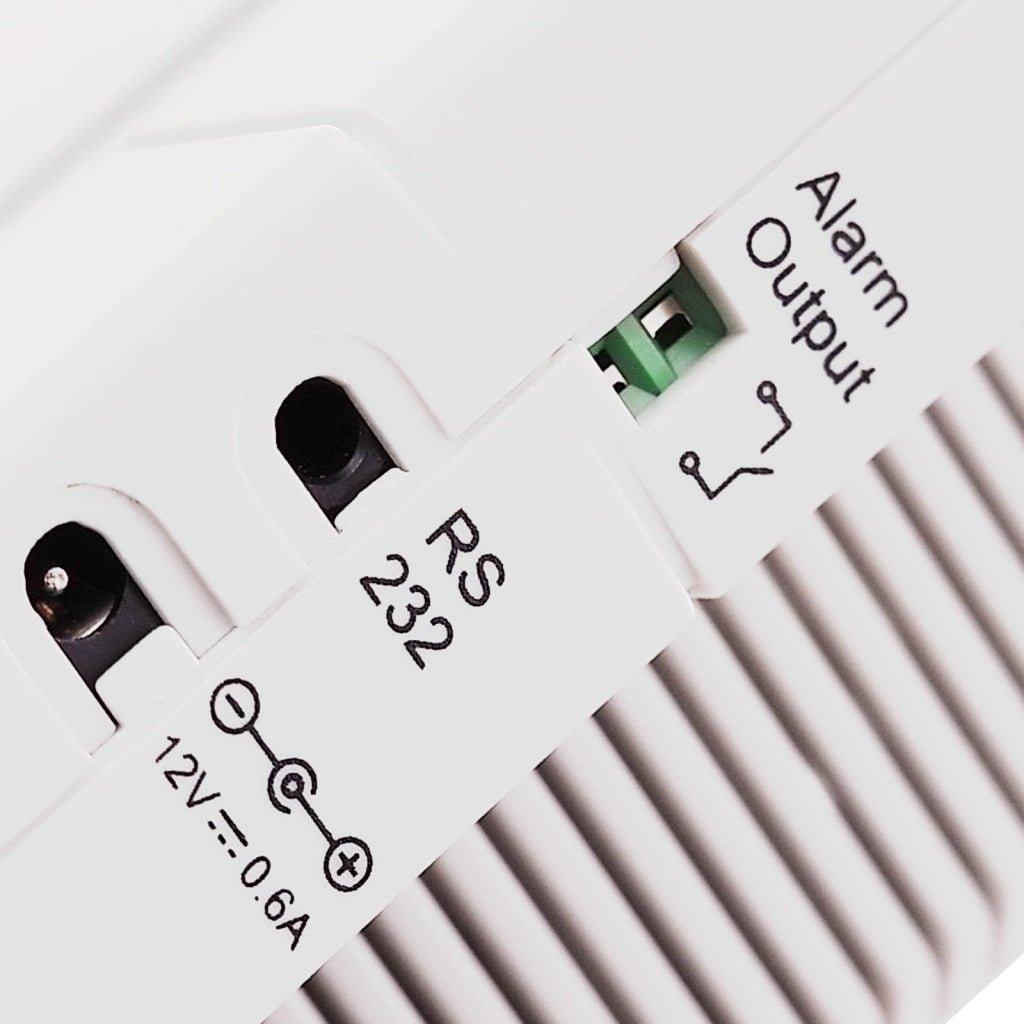

- Alarm Output Relay for ventilation control
- ABC (automatic Baseline Calibration) and manual CO2 calibration
- Long Time Drift Compensation
- Selectable °C and °F
- With Min/Max, Average Recall
- Factory pre-calibrated and inspected for precision performance
- Continuous monitoring

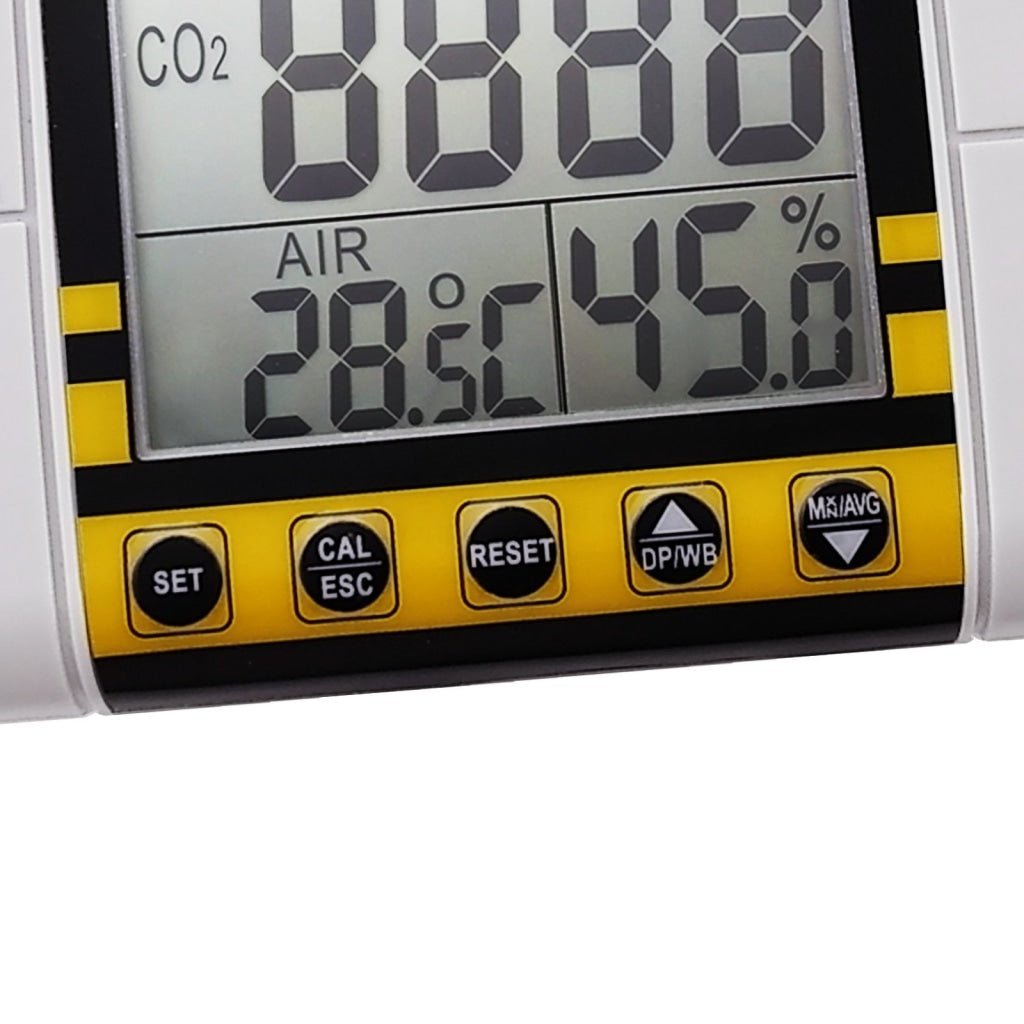

- Large Triple Function LCD Display with digital readout

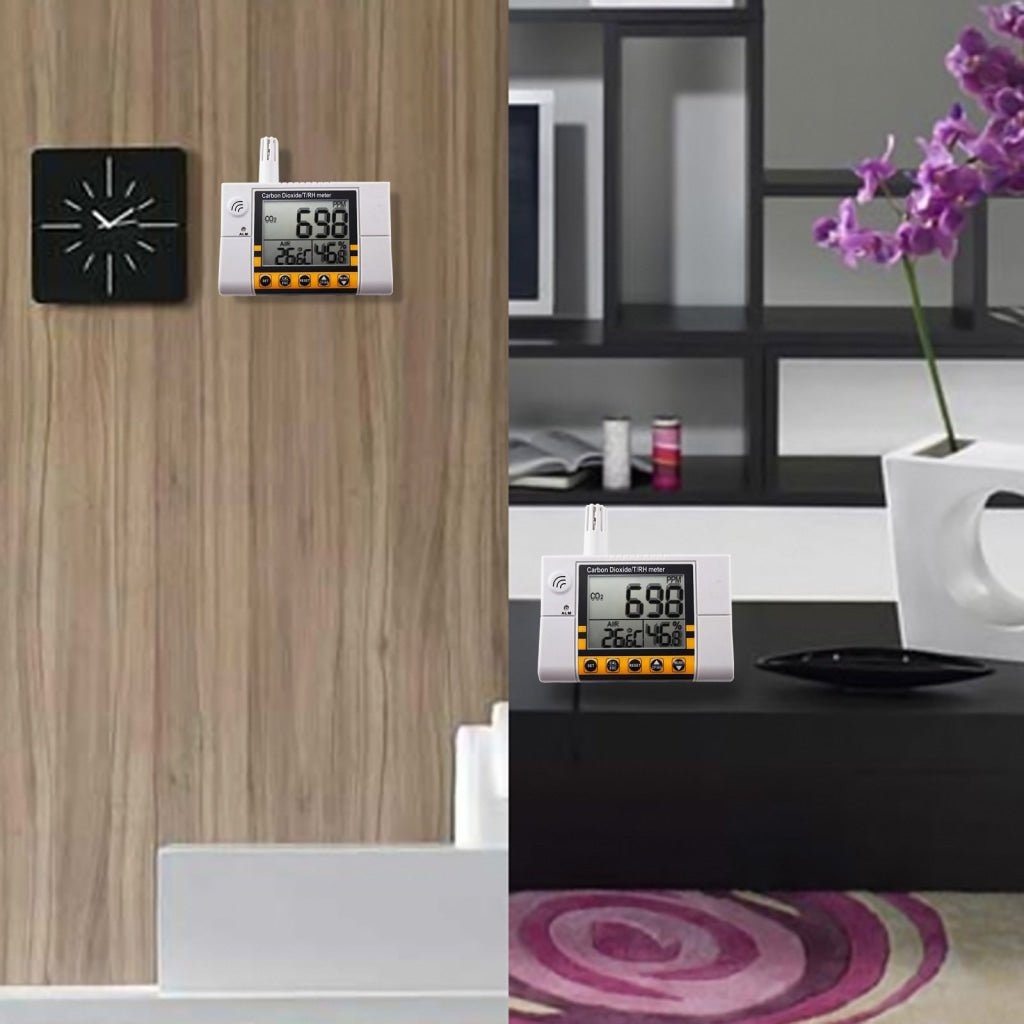

- With calibration indicator and can be mounted on the wall or a desk
- Professional-Grade testing tool
- With 100V ~ 240V power input and include power adaptor

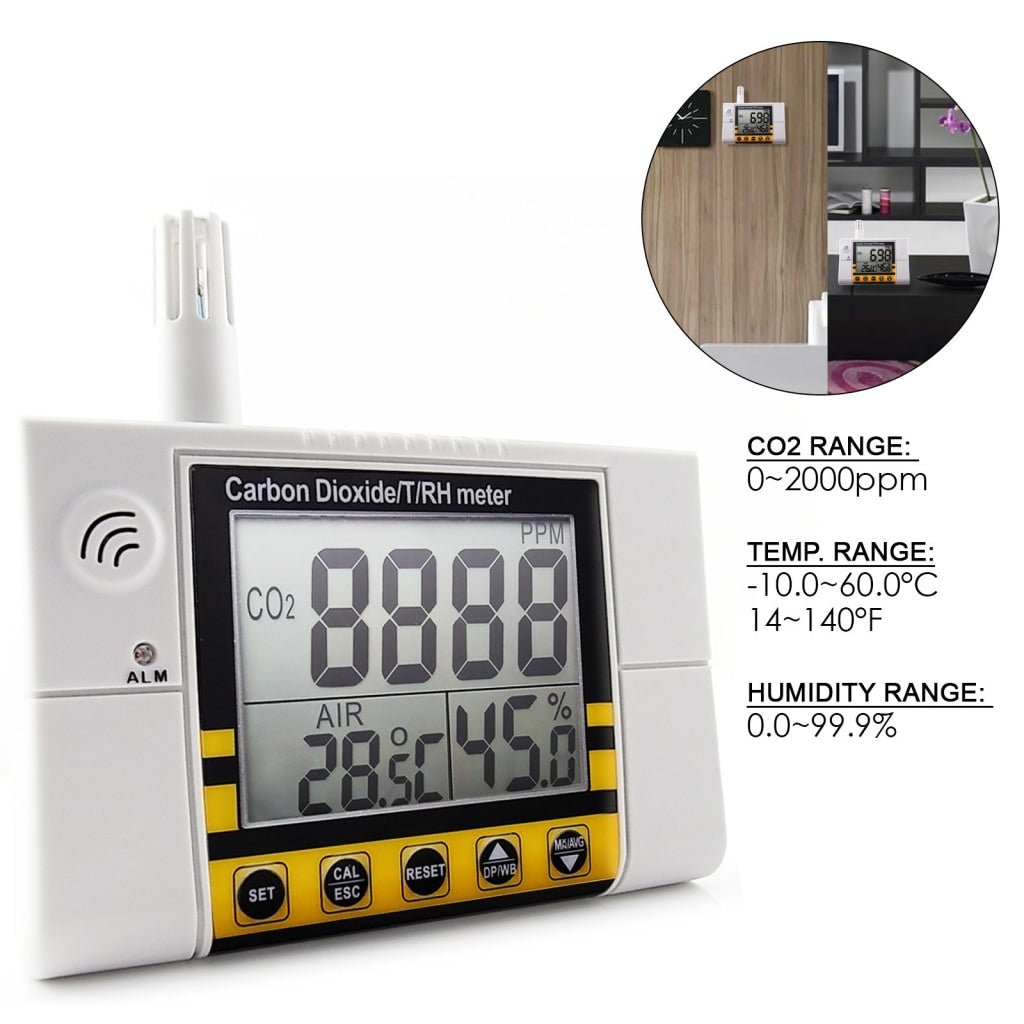

Specifications:
- Carbon Dioxide (CO2)
- Range: 0~9999ppm
- Accuracy: 0~2000ppm, ±50ppm or ±5% of the reading; Above 2000ppm, ±10% of the reading
- Resolution: 1ppm
- Pressure Dependence: + 1.6% reading per kPa deviation from normal pressure, 100kPa
- Temperature
- Range: -10.0 ~ 60.0 ° C (14 ~ 140 ° F)
- Resolution: 0.1 ° C / ° F
- Accuracy: ± 0.6 ° C / ± 0.9 ° F
- Humidity
- Range: 0.0 ~ 99.9%
- Resolution: 0.1%
- Accuracy: ± 3% (10 ~ 90%) ** ± 5% (others)
- Pressure Dependence: +1.6% reading per kPa deviation from normal pressure, 100kPa
- Warm up: 30 seconds
- Operating Condition: 0~50°C, 0~95%RH
- Storage Condition: -20~60°C, 0~99%RH
- Power Supply: 1A Output 12V AC Adaptor
- Power Voltage : 100~240V

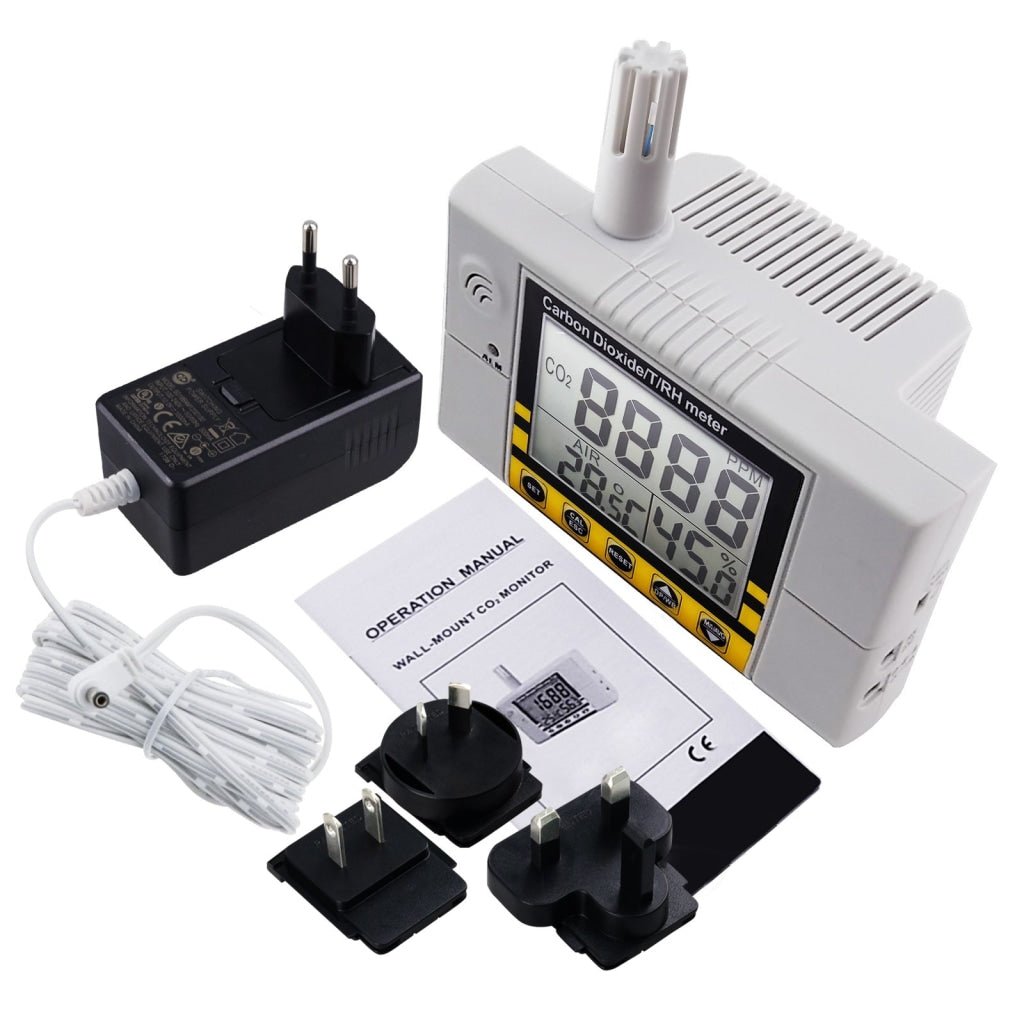

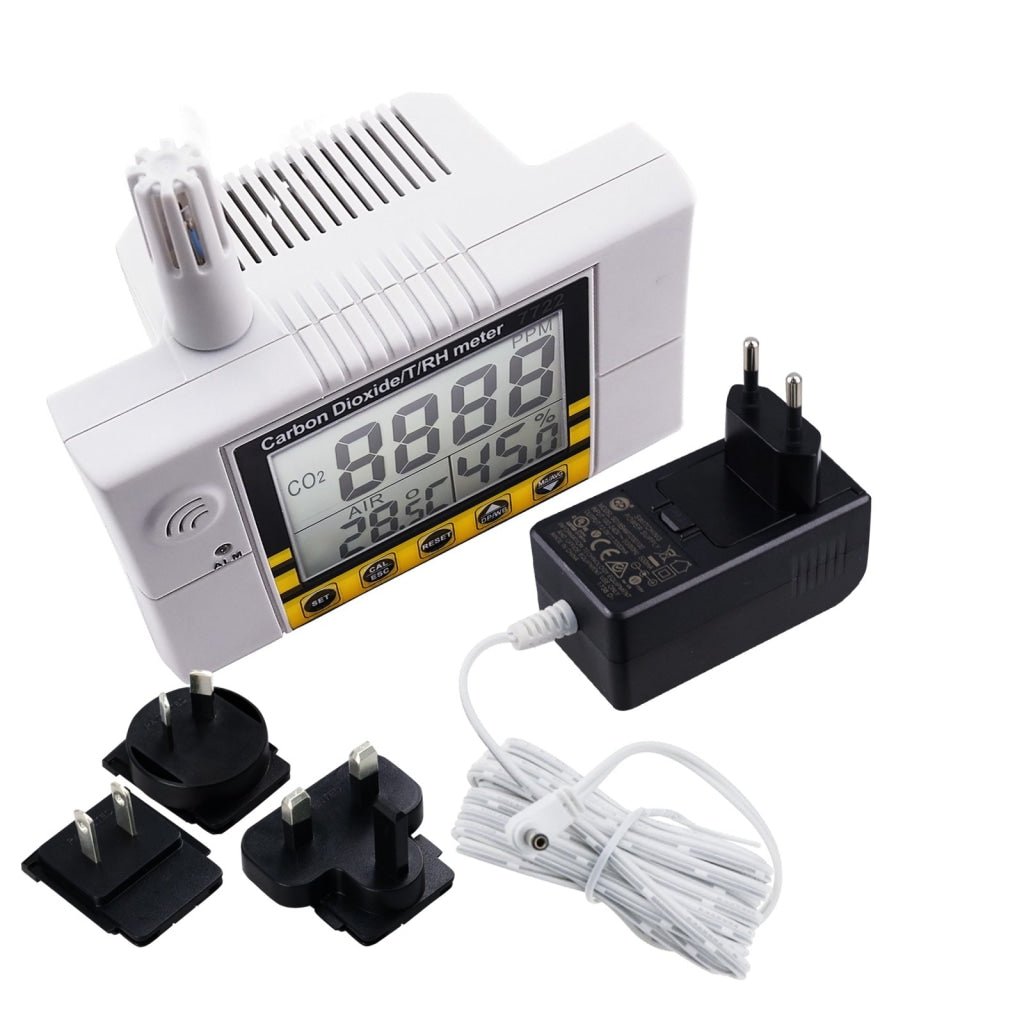

Set Includes:
- 1 x Wall Mountable Carbon Dioxide Monitor
- 1 x 12V Power Adaptor (available in US / UK / AU / EU plug)
- English Operation manual
- Standard packaging box
Optional Item (not included in set)
Please click here to buy this optional item RS232 CD software & cable if you want to be included in your order.
Unhappy with your item?
If you are dissatisfied with your purchase, you may return it to us within THIRTY (30) DAYS from the purchase date subject to conditions below. Report or contact us for claims on missing items or parts, items damaged in transit, and incorrect item delivery within 2 business days upon receipt of item.
Refund & Credit
Refunds for the returned item will be issued in the same payment form used at the time of purchase. Once we receive and inspect the product, we will credit the amount to your account. Please allow 5-7 days for the credit to appear on your account.
Exchange
If the item was sent back for an exchange, please allow 3-5 business days for the replacement to be processed. The buyer will shoulder the return cost when returning an item for an exchange.
Wrong Item Received
If you received the wrong item, you may exchange it for the correct item or return it for a full refund.
Conditions
Please read all conditions below. If conditions are not met, Gain Express Holdings Ltd. reserves the right to refuse the return or to charge a restocking fee not less than 15%.
All returned or exchanged items must be in new condition and in their original box.We may refuse your return or refund request if:
- The item(s) is returned without an RMA form
- The item(s) has no valid, readable serial number (if any), inluding but not limited to items with missing, damaged, altered, or unreadable serial numbers
- The item(s) was returned without all original packaging and accessories, including the retail box, manuals, cables and all other accessories originally included with the item(s)
- The item(s) exhibits physical damages or is dirty
Returns must be done within THIRTY (30) DAYS after the purchased item has been received (unless specified) for replacement or full/partial refund, depending on what is agreeable to both parties.
Returning an Item
All returned items must be in good condition with complete original packaging and accessories. We reserve the right to charge a handling fee on all items returned to us for non-quality issues.
To Return Item(s):
-
Fill out the RMA (Return Merchandise Authorization) form and submit for our review. Once we have authorized your return request via e-mail, then proceed to step.
-
Pack your item(s) inside a shipping box. Please write Order ID # on a piece of paper and include it inside the box.
(Please do not place stickers or shipping labels on the original manufacturer's package.) -
Ship your item(s) to a warehouse near you.
(We recommend you ship via insured ground service with a tracking number. Return shipping charges is the buyer's responsibility. Gain Express Holdings Ltd. will bear the shipping cost of the replacement. We are not responsible for lost or damaged packages.)
We will take care of the rest for you!
Once our Returns Department has received and inspected your return, your refund or exchange will be processed right away.
Warranty
Replacement Warranty
Returns must be done within THIRTY (30) DAYS after receiving the purchased item (unless specified) for replacement or full/partial refund, depending on what is agreeable to both parties.
Product Service Warranty

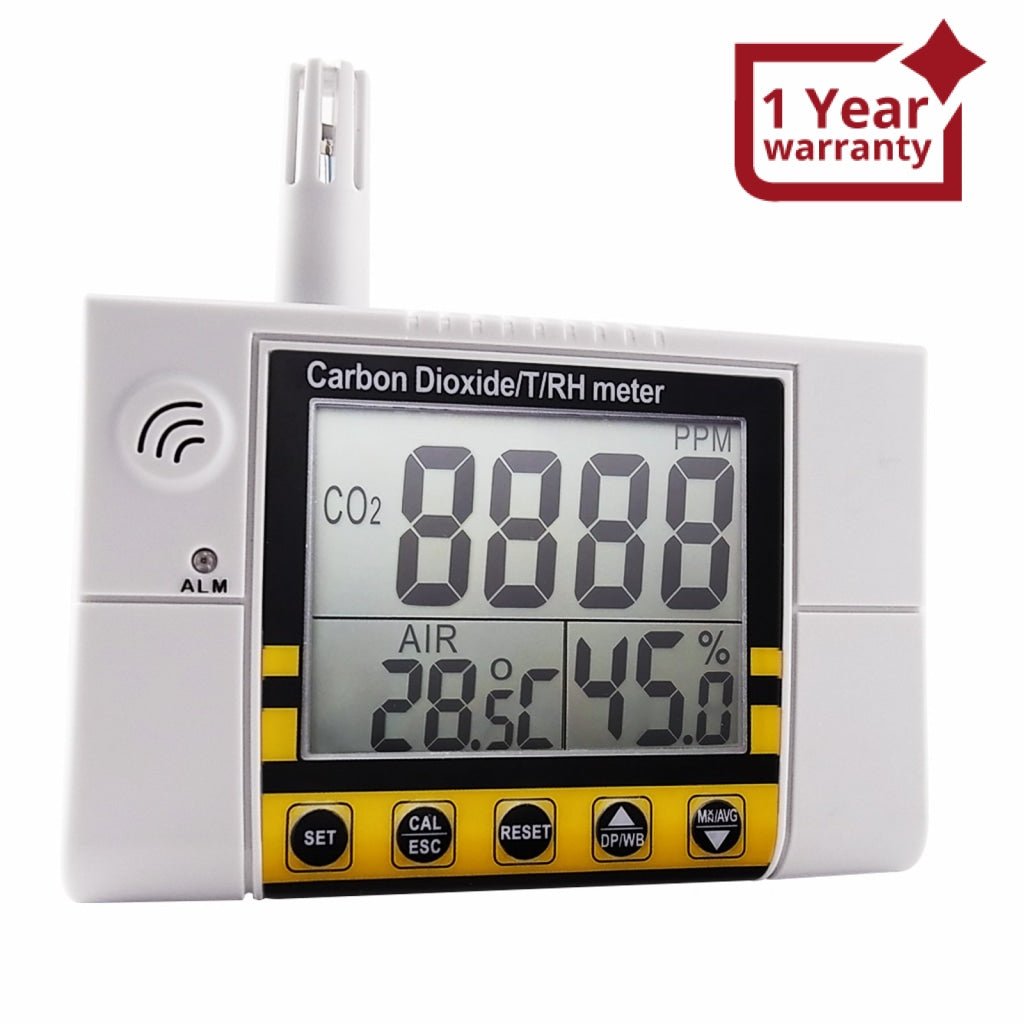

All our items come with ONE (1) YEAR warranty for manufacturer defects. It does not include damage caused by misuse, accidents, abuse, alterations, neglect or other external causes.
