8930B Compact Sound Level Calibrator 114dB / 94dB / 104dB Calibration Level For 1/2" 13.2mm Microphone Size Sound Level Meters
- Description
- Return, Refund, & Warranty Policy
- Reviews

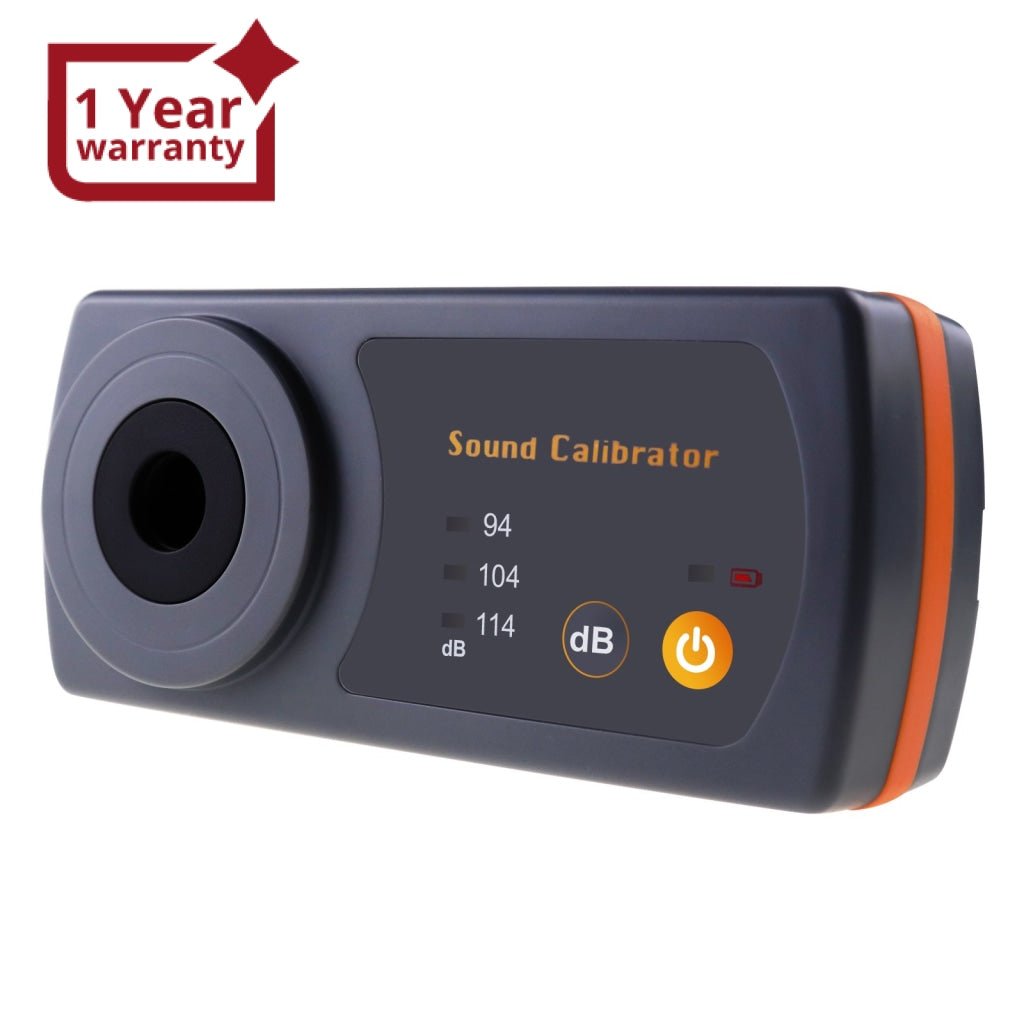

Portable compact battery operated sound level calibrator suitable for many sound level meters.

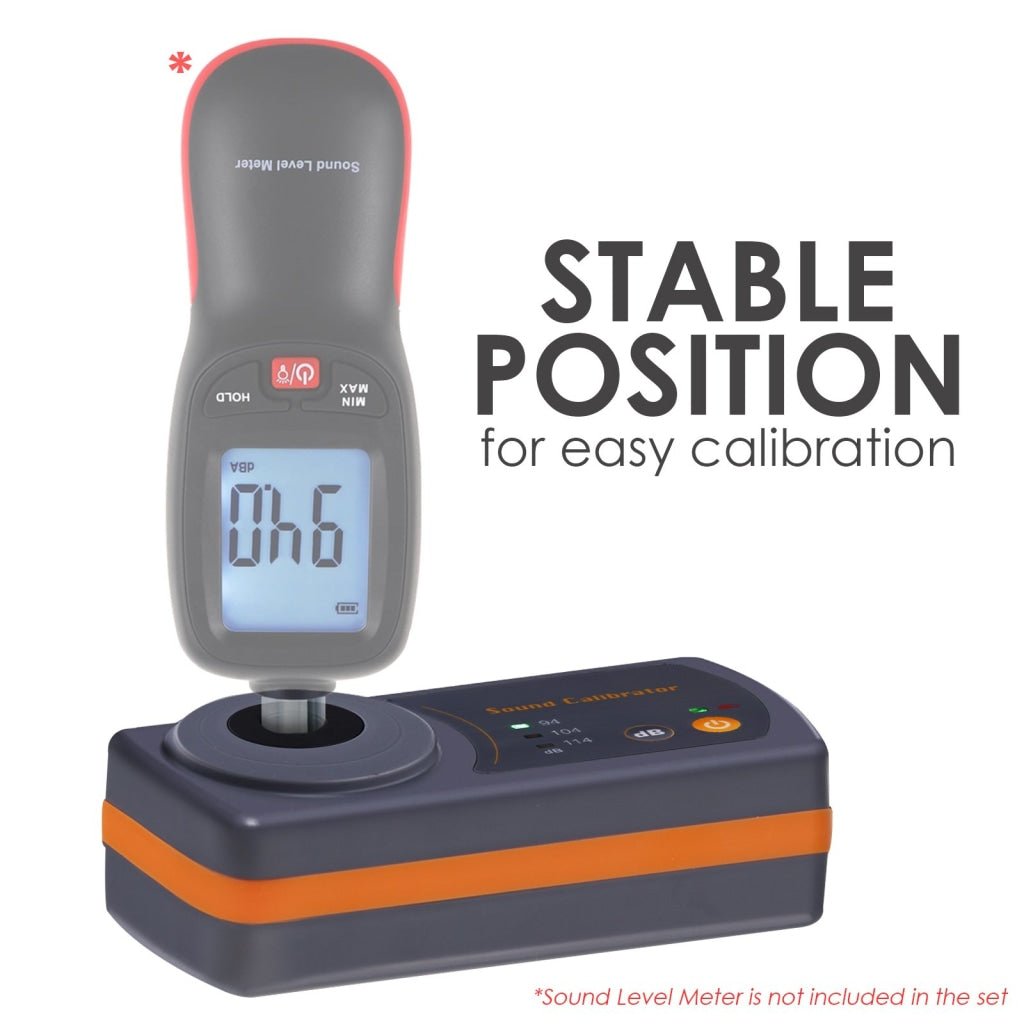

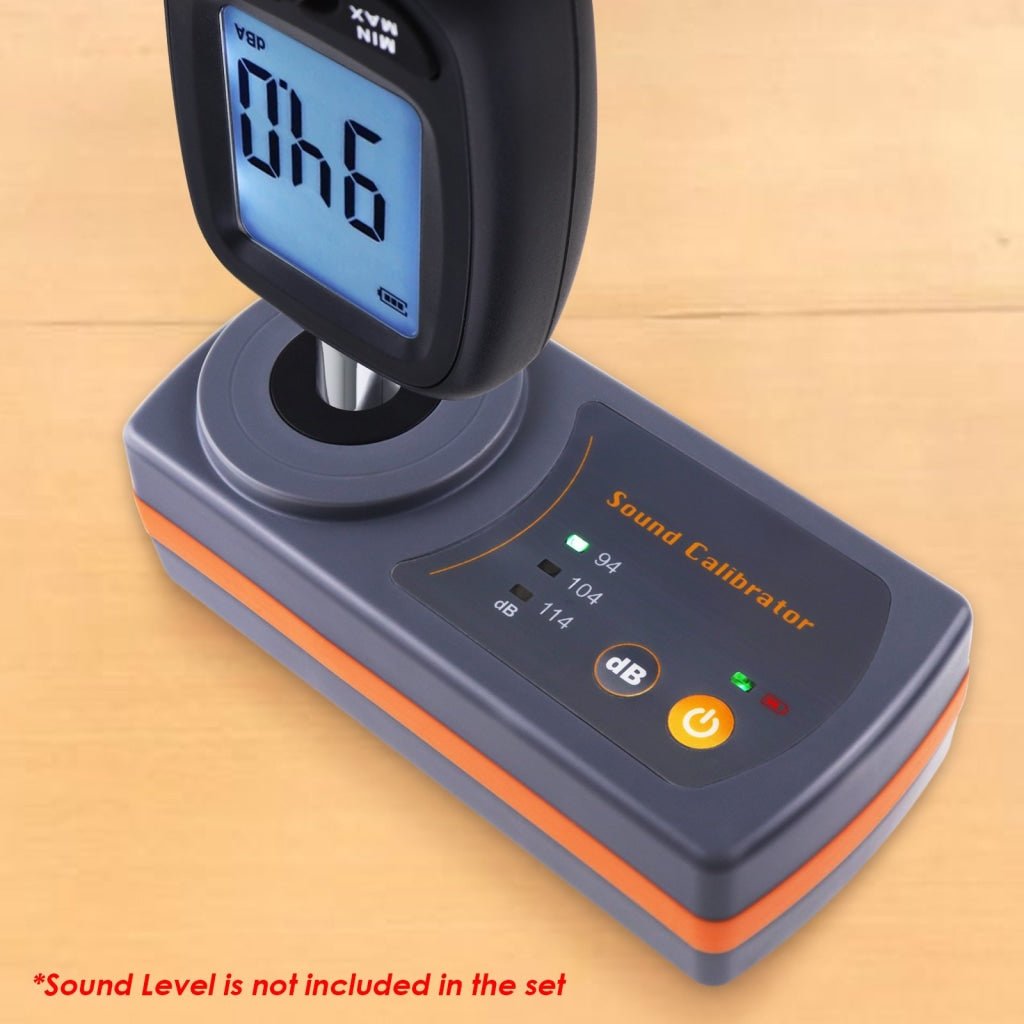

When a microphone from a sound level meter is inserted into this calibrator, the sound level meter picks up the signal and displays the signal in dB (decibel) units. The sound level meter should be adjusted (if necessary) to match the calibrator's output signal as closely as possible
Calibration frequency at 1K Hz with three levels 114dB, 94dB and 104 dB. The 1000 Hz frequency allows calibrating sound level meters with any frequency weighting (LIN, A, B, ...), without applying any correction factor.
It can be conveniently used both in laboratory and in the field. The 114 dB sound level allows performing calibrations even in high background noise environments.
Features:
- Meet IEC 60942:2018, class 2 standard
- Stay accurate even in extreme humidity condition
- Suitable for all sound level meters with microphone head mechanical compliant with IEC 61094-1 or IEC 61094-4 in a 1/2"(13.2mm) microphone size
- Calibration frequency at 1K Hz with three level 114dB, 94dB and 104dB
- Vivid LED display with stability and low power indicator

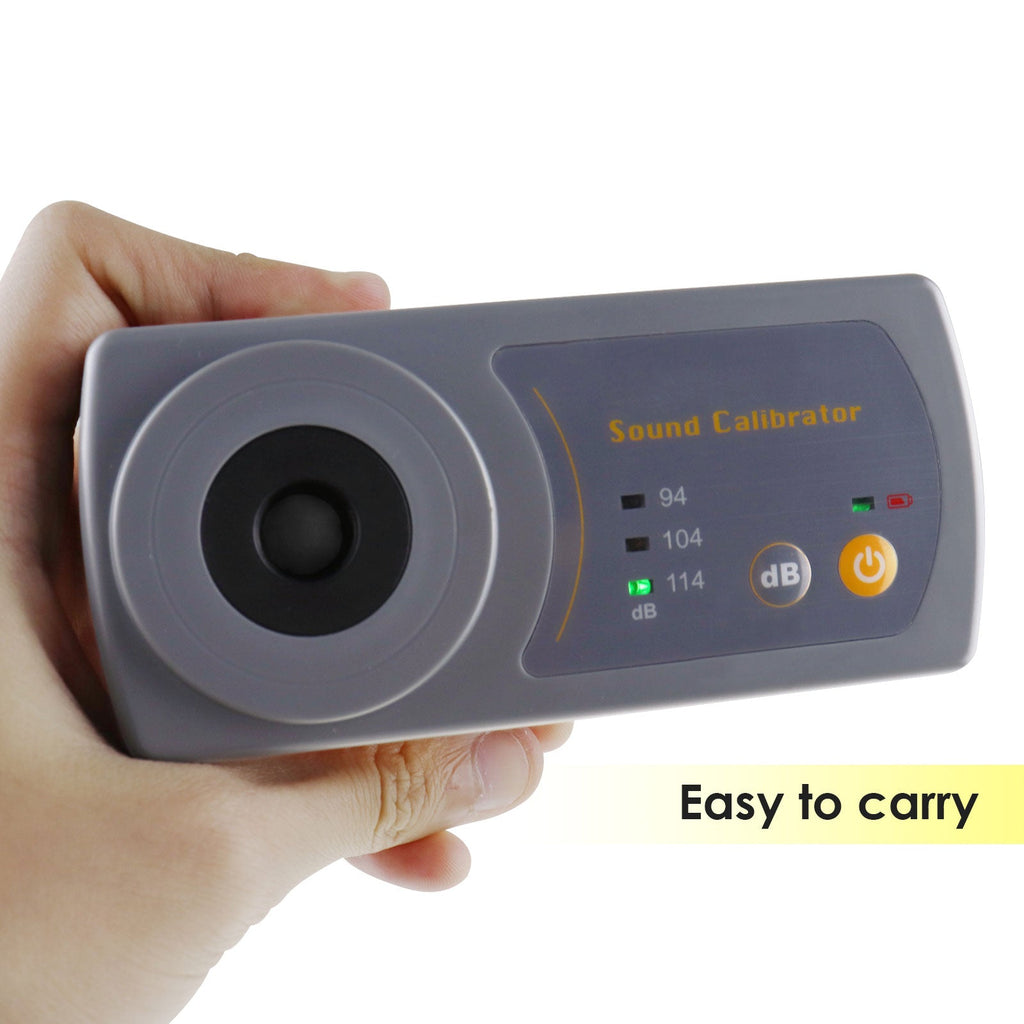

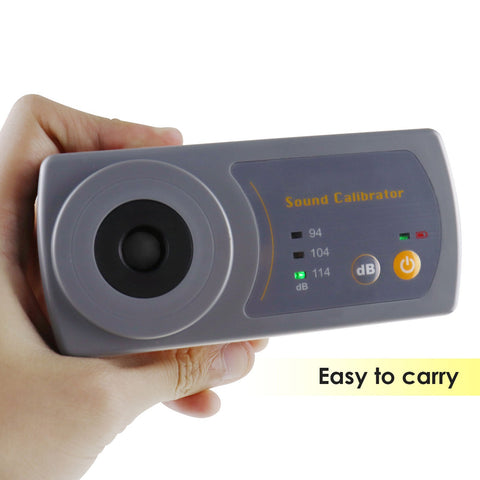

- Battery powered, easy to carry around
Specifications:
- Calibration frequency: 1000Hz
- Frequency accuracy: ±1.7%
- Sound Pressure Level: 94dB / 104dB / 114dB
- Sound Pressure accuracy: ±0.4dB

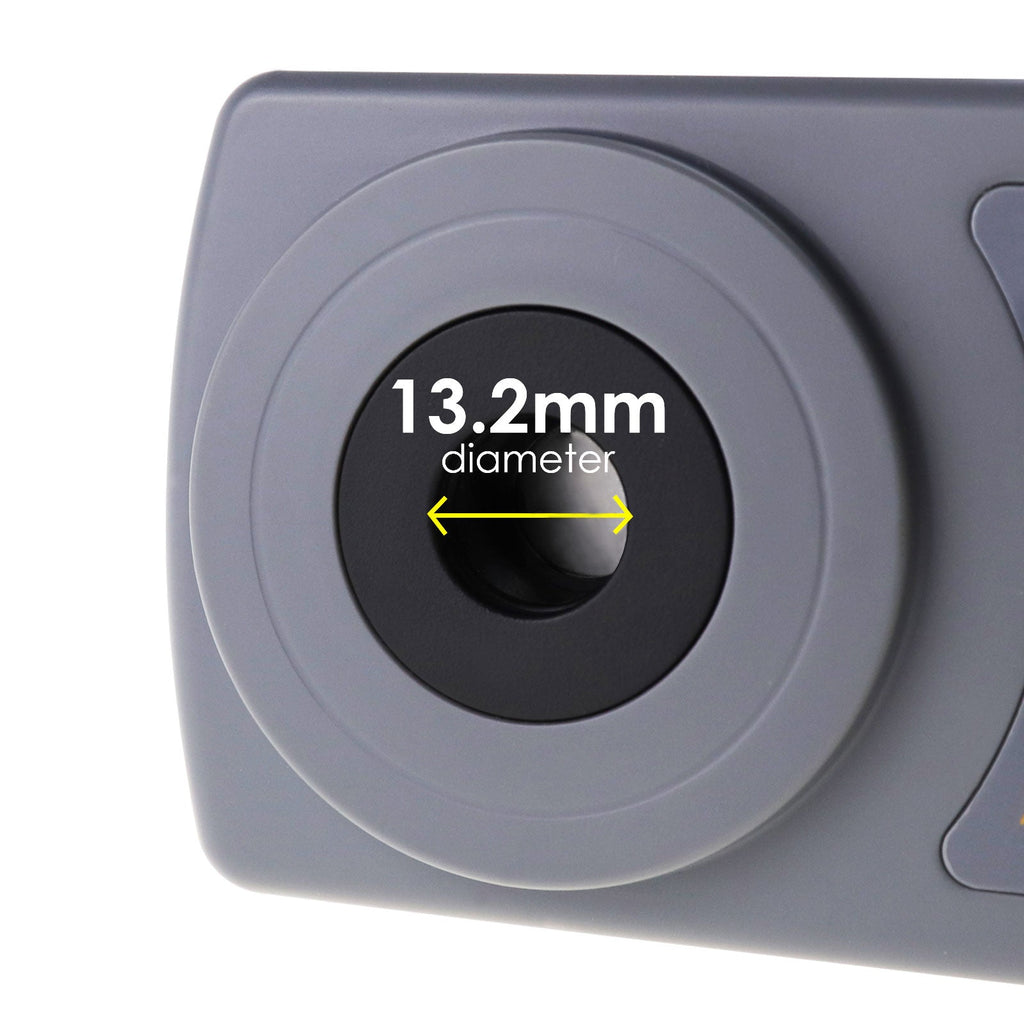

- Microphone head cavity diameter: 13.2mm (½")
- Stabilization time: 10 seconds
- Total distortion: <3%
- Ambient Condition Influence:
- Temperature and humidity influence: <0.4dB @ 0...40°C and 25...90%RH
- Static pressure influence: <0.1dB @65...108kPa
- Stability levels
- Short term stability (<60s): ±0.15dB
- Stability after 1 year with normal use: ±0.35dB

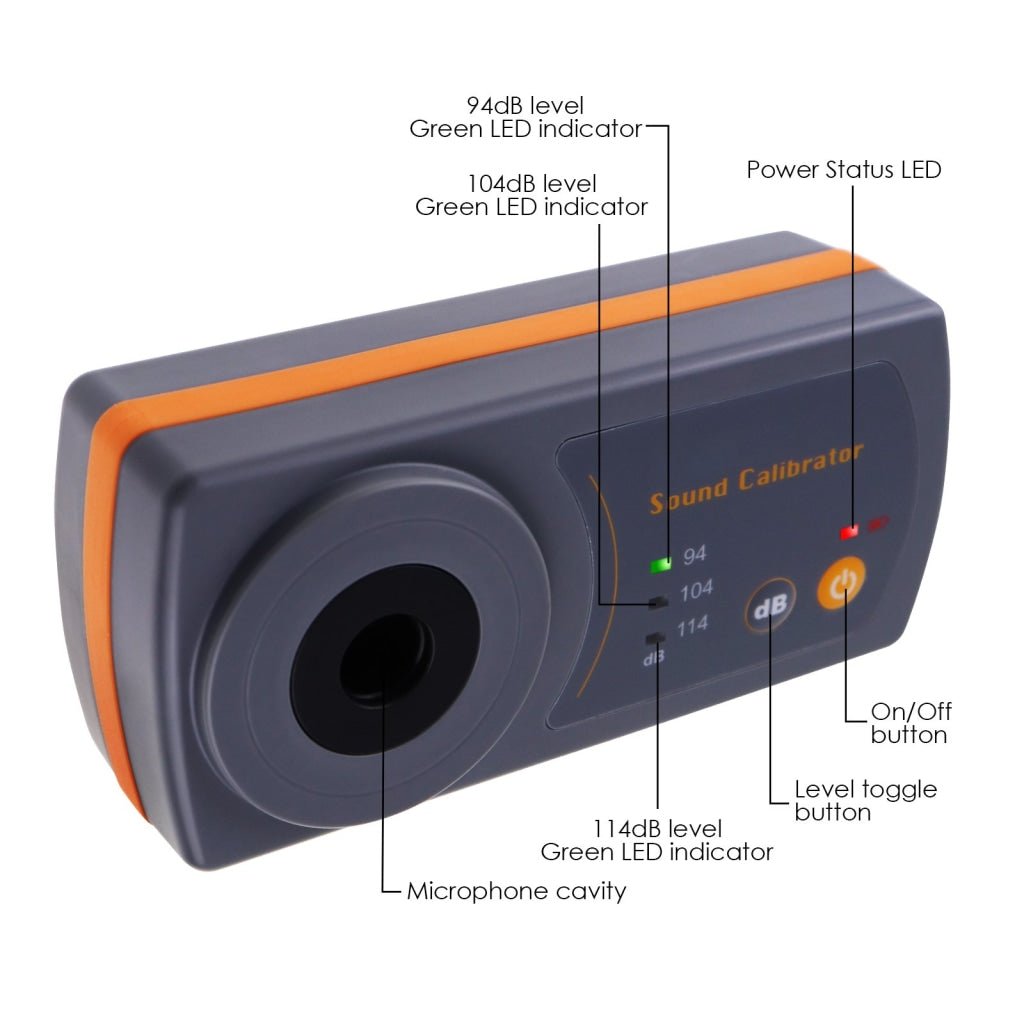

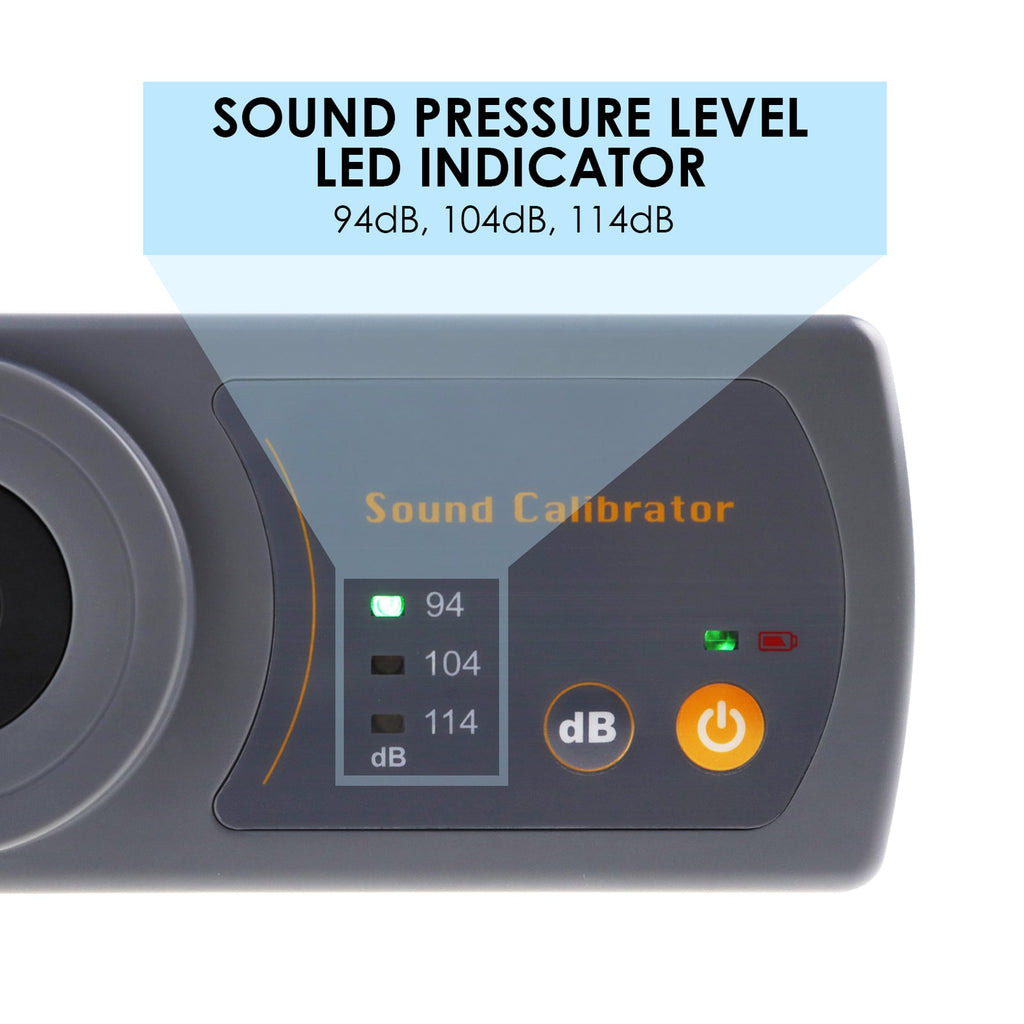

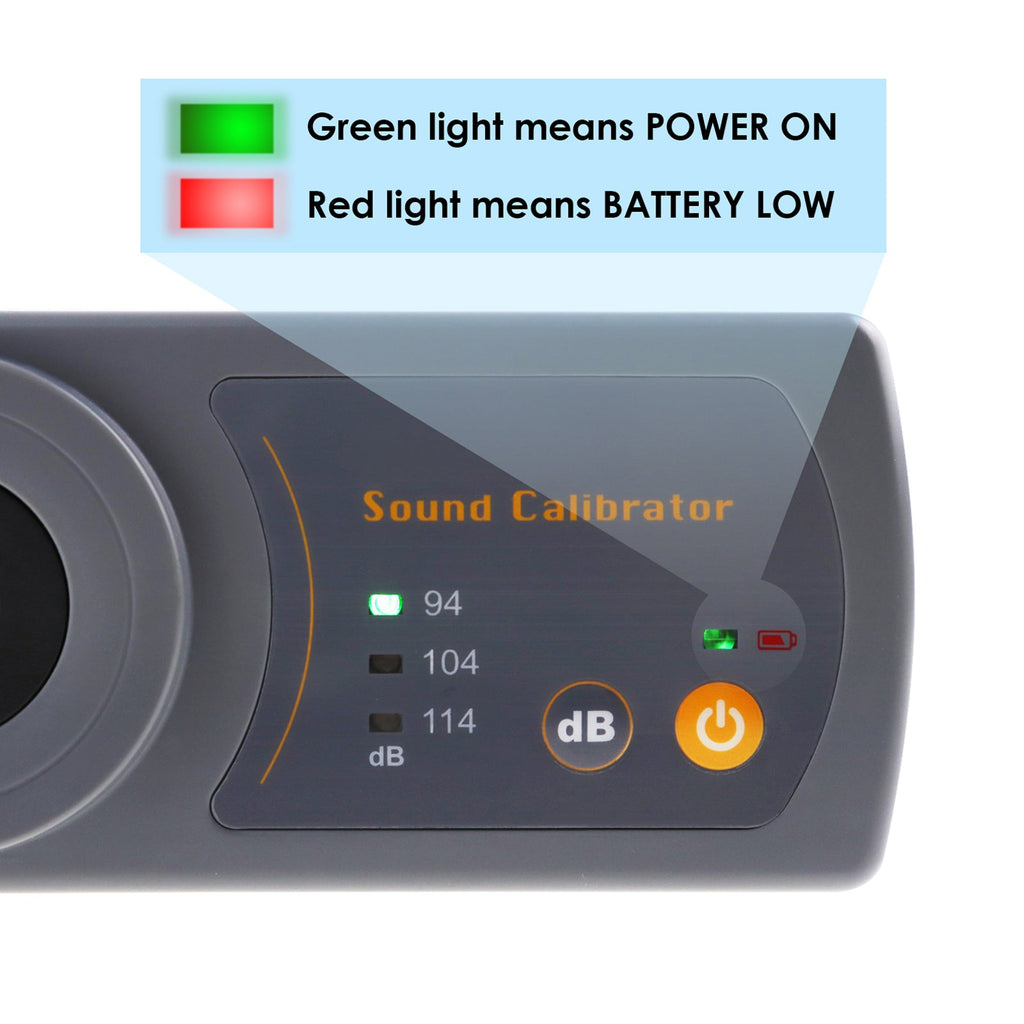

- LED indicator: 1 green/Red: ready/low power; 3 green: 114/101/94dB
- Operating Environment: 0~40°C; 25~90%RH
- Storage Environment: -20~50°C; <90%RH

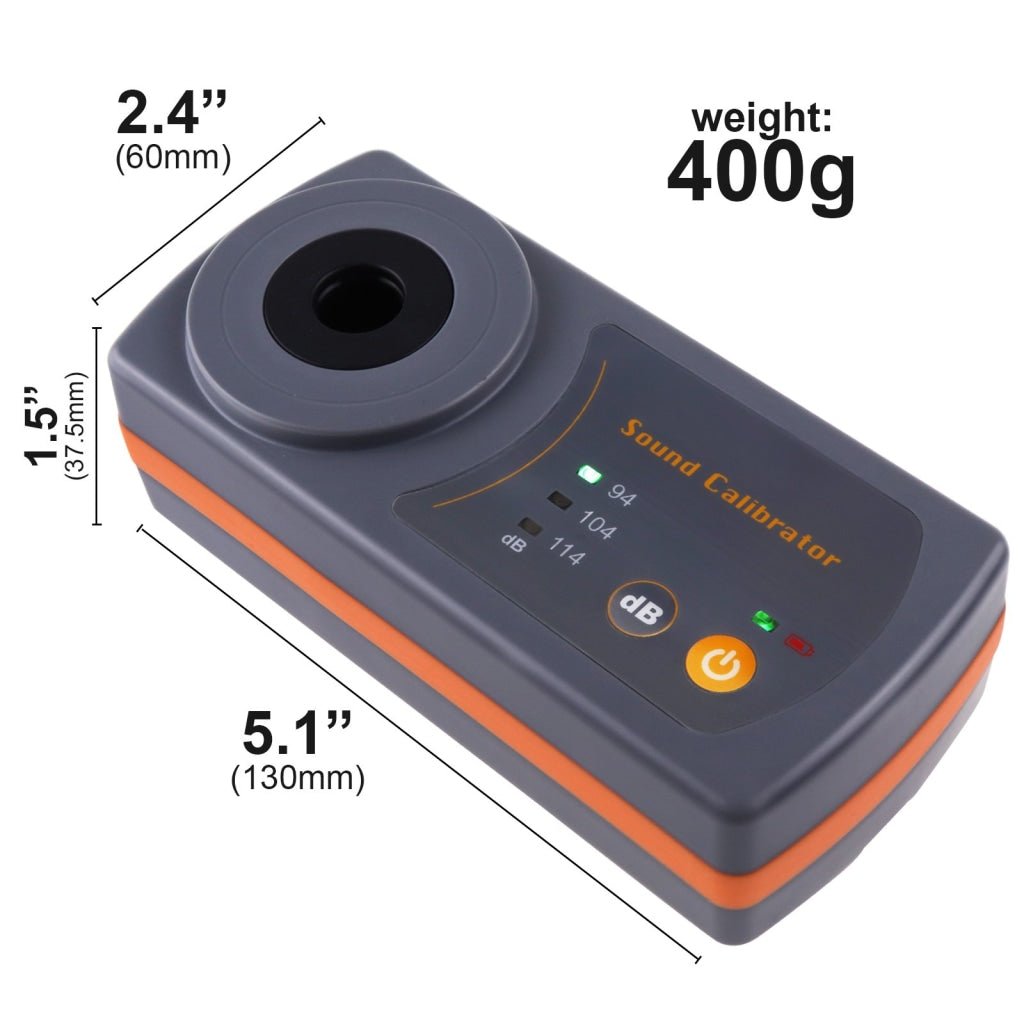

- Dimension: 60 x 130 x 37.5mm
- Weight: ~400gms

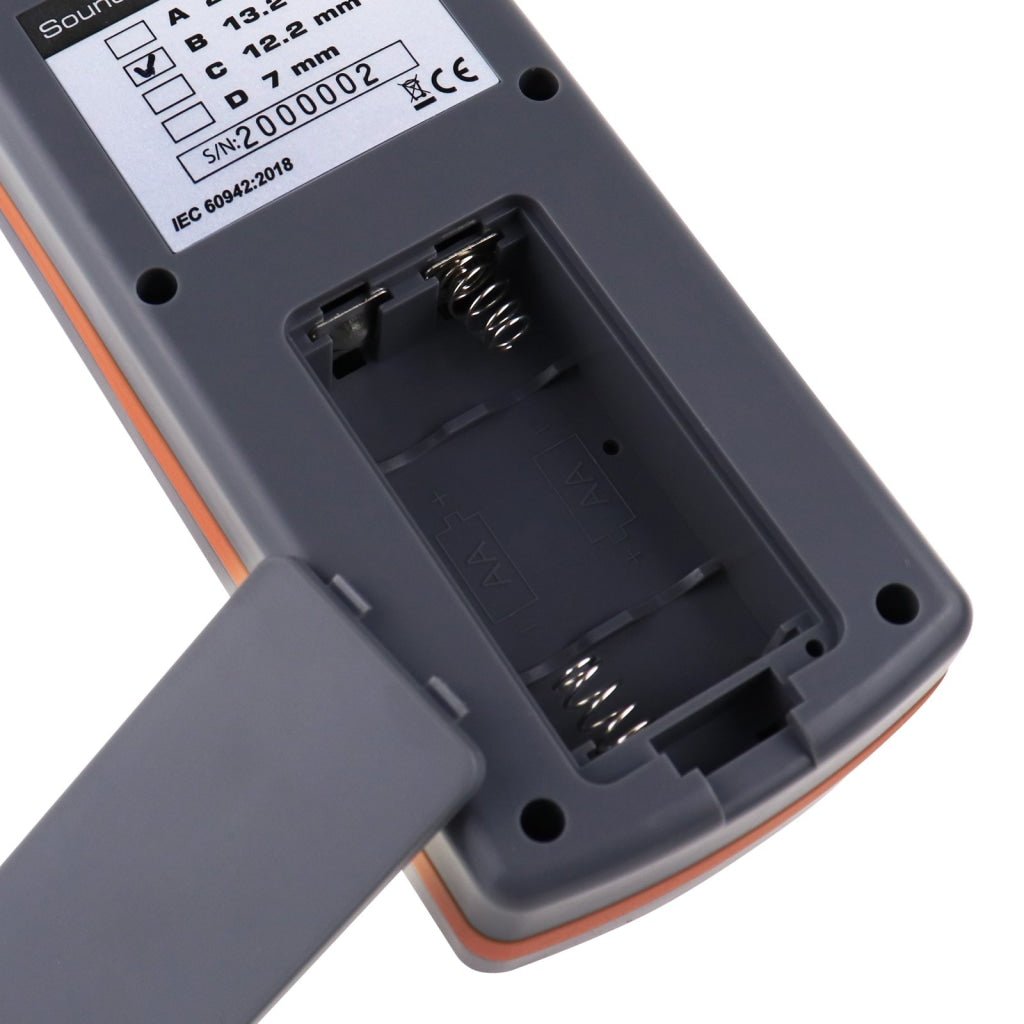

- Battery: 2 x AA Alkaline battery

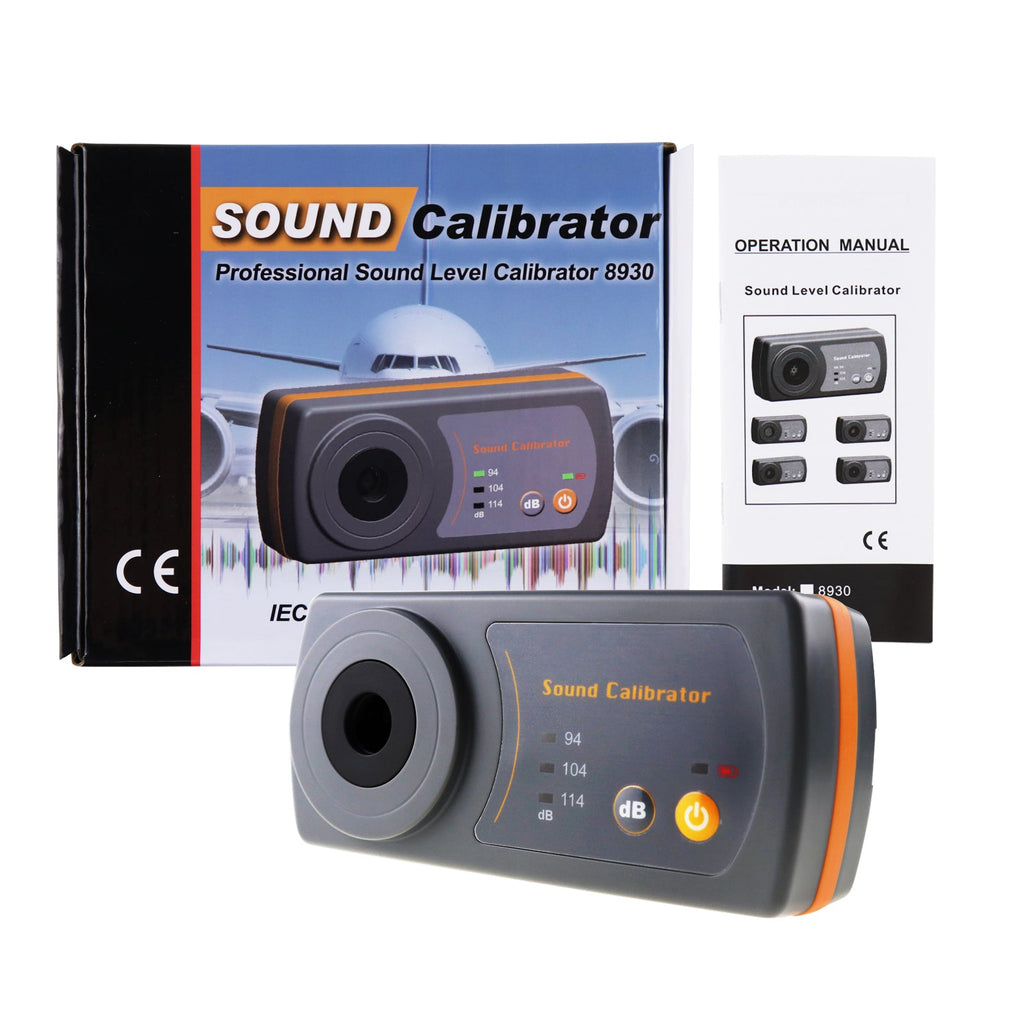

Set includes:
- 1 x Sound Level calibrator
- 2 x AA battery
- English instruction manual
- Standard Factory Packaging
Unhappy with your item?
If you are dissatisfied with your purchase, you may return it to us within THIRTY (30) DAYS from the purchase date subject to conditions below. Report or contact us for claims on missing items or parts, items damaged in transit, and incorrect item delivery within 2 business days upon receipt of item.
Refund & Credit
Refunds for the returned item will be issued in the same payment form used at the time of purchase. Once we receive and inspect the product, we will credit the amount to your account. Please allow 5-7 days for the credit to appear on your account.
Exchange
If the item was sent back for an exchange, please allow 3-5 business days for the replacement to be processed. The buyer will shoulder the return cost when returning an item for an exchange.
Wrong Item Received
If you received the wrong item, you may exchange it for the correct item or return it for a full refund.
Conditions
Please read all conditions below. If conditions are not met, Gain Express Holdings Ltd. reserves the right to refuse the return or to charge a restocking fee not less than 15%.
All returned or exchanged items must be in new condition and in their original box.We may refuse your return or refund request if:
- The item(s) is returned without an RMA form
- The item(s) has no valid, readable serial number (if any), inluding but not limited to items with missing, damaged, altered, or unreadable serial numbers
- The item(s) was returned without all original packaging and accessories, including the retail box, manuals, cables and all other accessories originally included with the item(s)
- The item(s) exhibits physical damages or is dirty
Returns must be done within THIRTY (30) DAYS after the purchased item has been received (unless specified) for replacement or full/partial refund, depending on what is agreeable to both parties.
Returning an Item
All returned items must be in good condition with complete original packaging and accessories. We reserve the right to charge a handling fee on all items returned to us for non-quality issues.
To Return Item(s):
-
Fill out the RMA (Return Merchandise Authorization) form and submit for our review. Once we have authorized your return request via e-mail, then proceed to step.
-
Pack your item(s) inside a shipping box. Please write Order ID # on a piece of paper and include it inside the box.
(Please do not place stickers or shipping labels on the original manufacturer's package.) -
Ship your item(s) to a warehouse near you.
(We recommend you ship via insured ground service with a tracking number. Return shipping charges is the buyer's responsibility. Gain Express Holdings Ltd. will bear the shipping cost of the replacement. We are not responsible for lost or damaged packages.)
We will take care of the rest for you!
Once our Returns Department has received and inspected your return, your refund or exchange will be processed right away.
Warranty
Replacement Warranty
Returns must be done within THIRTY (30) DAYS after receiving the purchased item (unless specified) for replacement or full/partial refund, depending on what is agreeable to both parties.
Product Service Warranty
All our items come with ONE (1) YEAR warranty for manufacturer defects. It does not include damage caused by misuse, accidents, abuse, alterations, neglect or other external causes.
The warranty will not extend to consumables (i.e. electrodes, calibration solution, battery, index oil), accessories, cable, compact disk and/or any written document bundled with the item.
