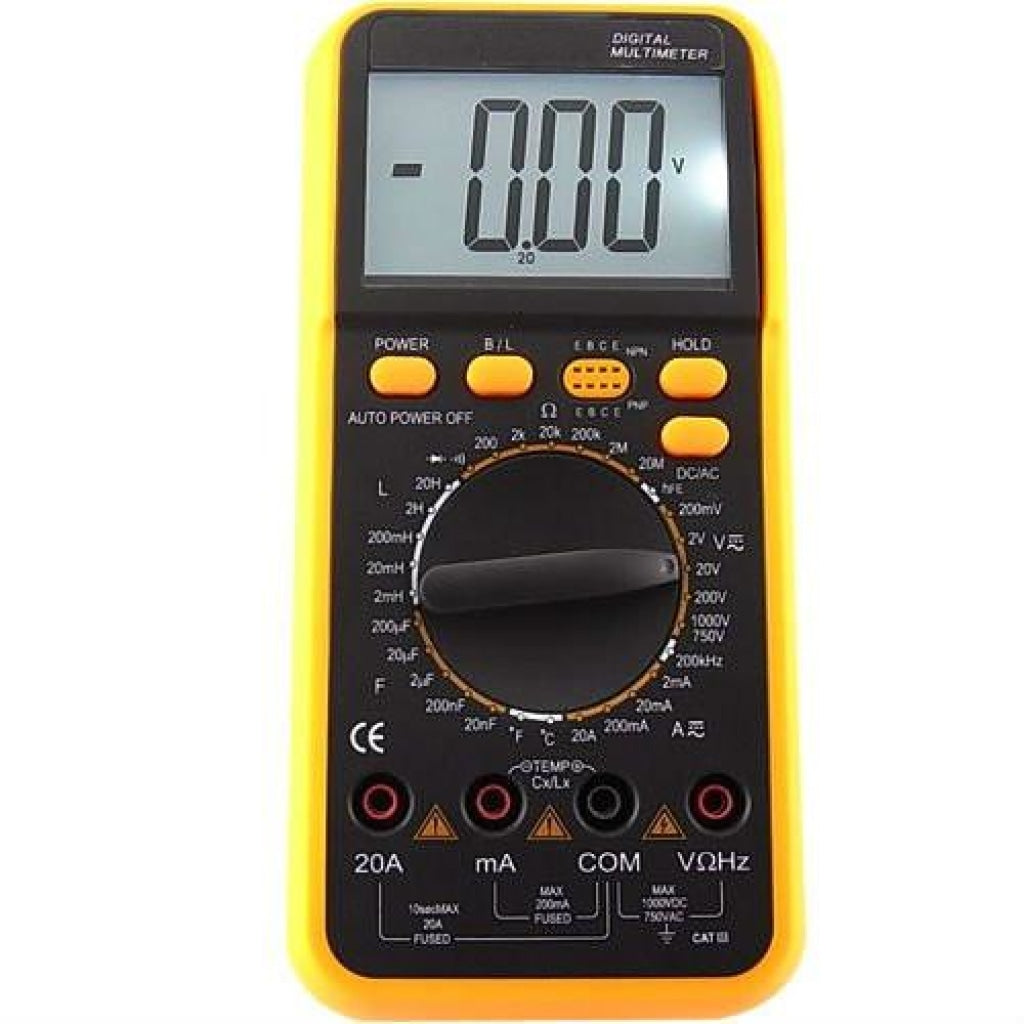

VC-9805A Multifunction Portable DMM Digital Multimeter Electrical Tester Inductance Thermometer
- Description
- Return, Refund, & Warranty Policy
- Reviews
The instruments is a stable and good performance digital multimeter powered by battery. It has 42mmLCD with high figure for clear reading. It measures DC & AC Voltage, DC & AC Current, Resistance, Capacitance, Inductance, Temperature, Frequency, Transistor, Diode, Triode and continuity test. The instrument takes dual- integral A/D converter as key point, it is an excellent tool for use on production lines or lab, R & D, maintenance, measuring, testing, troubleshooting, and repairing work.
Features:
-
Large display screen with high accuracy makes the best digital multimeter more professional
-
Multifunction digital multimeter can offer digital number for quick- changing or unstable signals
-
Durable multifunction digital multimeter is perfect for professional or around-the-house use
-
With data retention, background light, automatic shutdown, continuity test and diode test
- Dual-slope DC/AC converter CMOS technology for auto-zero
-
Over-range indication
-

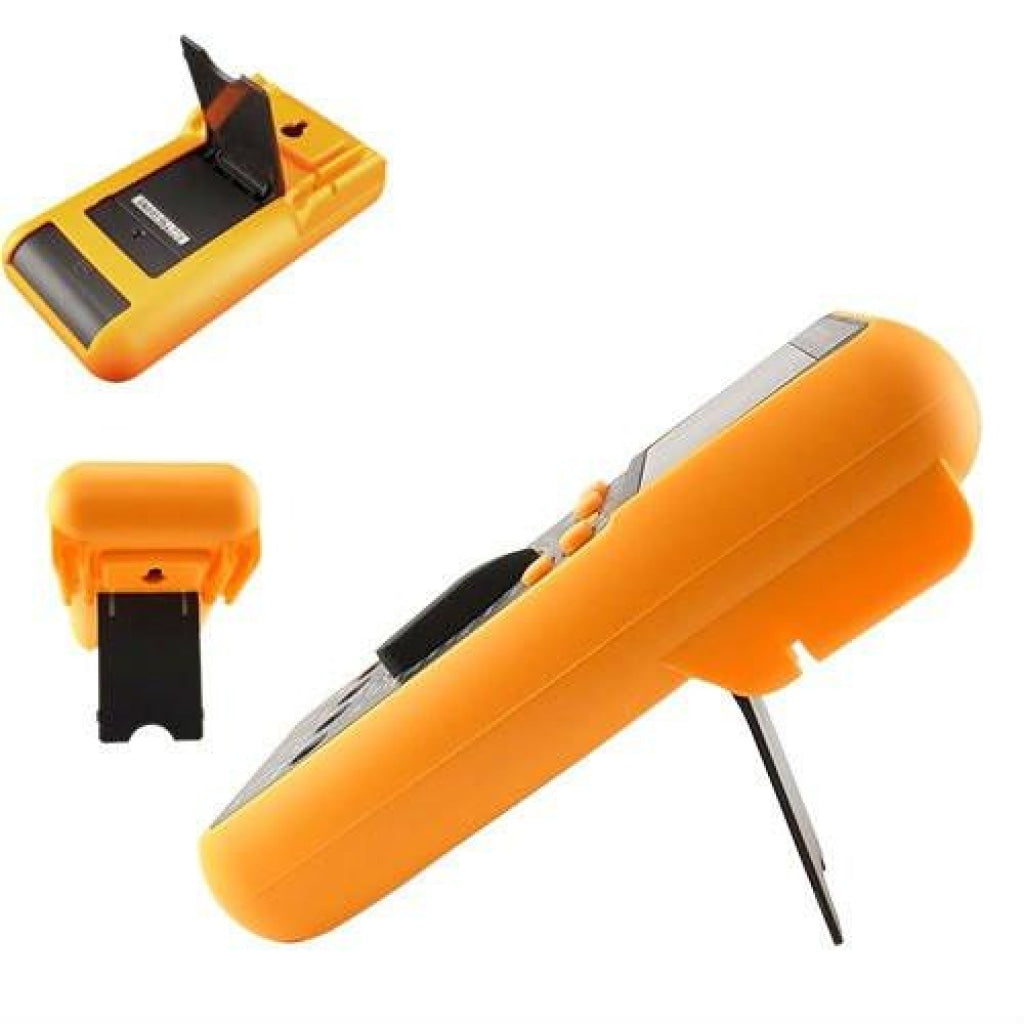

New streamline design holster
-
Full function protection, anti-high voltage circuit design
-
New type battery case design, it’s easy to change battery
- Metallic screen board with stronger antimagnetic and anti-interferential function
Specifications:
-

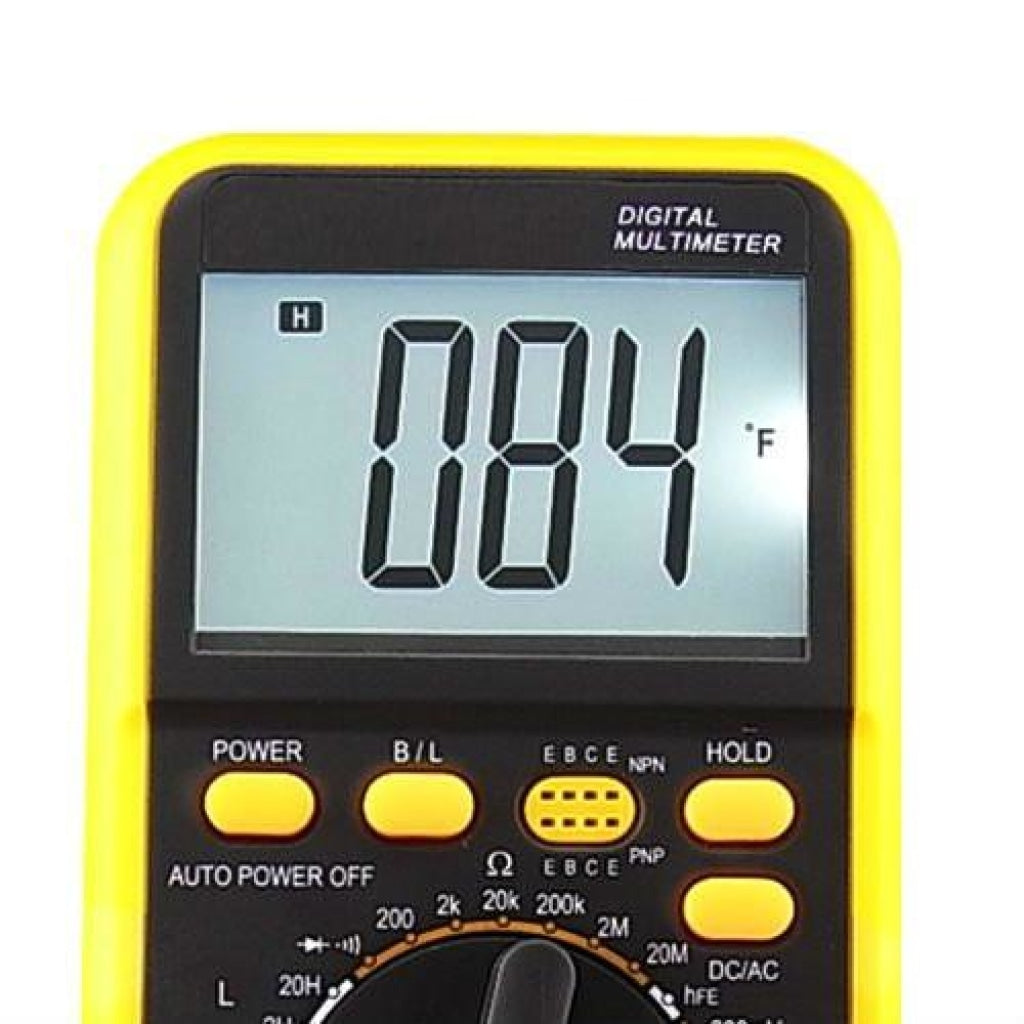

Display: 3 ½ digit Large LCD with a max readings of 1999
-
Auto Polarity indication
-
Measuring method: Dual Slope A/D transfer
-
Sampling Rate: approx. 3 times/sec
-
Over range indication: MSD displays "1" / "OL" or "-1" / "-OL"
-
Operating Temperature: 0~40°C (32~104°F)
-
Operating Relative Humidity: below 80% RH
-
Storage Humidity: below 80% RH
-
Weight: approx. 390 (Meter with Rubber Holster)
Technical Specifications
Accuracy is ±(percentage of reading + number of digit) at (23±5) °C, <75% Relative humidity
|
Range
|
Accuracy
|
Resolution
|
|
200mV
|
±(0.5% + 3)
|
100µV
|
|
2V
|
1mV
|
|
|
20V
|
10mV
|
|
|
200V
|
100mV
|
|
|
1000V
|
±(0.8% + 10)
|
1V
|
Overload protection: Range 200mV: DC250V or AC peak value
****************Other range: DC 1000V or AC peak value
AC Voltage
|
Range
|
Accuracy
|
Resolution
|
|
200mV
|
±(0.8% + 5)
|
100µV
|
|
2V
|
1mV
|
|
|
20V
|
10mV
|
|
|
200V
|
100mV
|
|
|
750V
|
±(1.2% + 10)
|
1V
|
Overload protection: Range 200 mV: DC 250V or AC peak value
Other ranges: DC 1000 V or AC peak value
Frequency response: Range less than 200V: 40~400 Hz
Range 750V: 40~100 Hz
Indication: RMS of sine wave (mean value response)
DCA
|
Range
|
Accuracy
|
Resolution
|
|
2mA
|
±(0.8% + 10)
|
1µA
|
|
20mA
|
10µA
|
|
|
200mA
|
±(1.2% +8)
|
100µA
|
|
20A
|
±(2.0% + 15)
|
10mA
|
Max measuring voltage drop: 200 mV
Max input current: 20A (within 10 seconds)
Overload protection: 0.2A / 250V ; 20A/250V fast-melt fuse
|
Range
|
Accuracy
|
Resolution
|
|
2mA
|
±(1.0% + 15)
|
1µA
|
|
20mA
|
10µA
|
|
|
200mA
|
±(2.0% +5)
|
100µA
|
|
20A
|
±(3.0% + 10)
|
10mA
|
Max input current: 20A (within 10 seconds)
Overload protection: 0.2A / 250V ; 20A / 250V fast-melt fused
Frequency response: 40~200 Hz
Indication: RMS of sine wave (mean value response)
Resistance (Ω)
|
Range
|
Accuracy
|
Resolution
|
|
200Ω
|
±(0.8% + 5)
|
0.1Ω
|
|
2kΩ
|
±(0.8% + 3)
|
1Ω
|
|
20kΩ
|
10Ω
|
|
|
200kΩ
|
100Ω
|
|
|
2MΩ
|
1kΩ
|
|
|
20MΩ
|
±(1.0% + 25)
|
10kΩ
|
Overload protection: DC 250V or AC Peak Value
Note:
A. At range 200Ω, short-circuit the test leads to measure the resistance of the wire, then subtracts
** it from the real measurement.
B. At range 200 MΩ, when the test leads short circuit, LCD displays 1.0 MΩ. In the same way, the reading
** is 10 MΩ while the test leads short at range 2000 MΩ. It’s normal and does not affect the accuracy.
** Please deduct the value from the real measurement.
C. The reading will be displayed slowly when the measurement is more than 1 MΩ. Please wait until stable.
|
Range
|
Accuracy
|
Resolution
|
|
20nF
|
±(2.5% + 20)
|
10pF
|
|
200nF
|
100pF
|
|
|
2uF
|
1nF
|
|
|
20uF
|
10nF
|
|
|
200uF
|
±(5.0% + 10)
|
100nF
|
Inductance
|
Range
|
Accuracy
|
Resolution
|
|
2mH
|
±(2.5% + 30)
|
1uH
|
|
20mH
|
10uH
|
|
|
200mH
|
100uH
|
|
|
2H
|
1mH
|
|
|
20H
|
10mH
|
Frequency
|
Range
|
Accuracy
|
Resolution
|
|
200kHz
|
±(3.0% + 18)
|
100Hz
|
Overload protection: DC 250V or AC Peak Value (within 10 seconds)
|
Range
|
Accuracy
|
Resolution
|
|
-20~1000°C
|
±(1.0% + 5) < 400°C
|
1°C
|
|
±(1.5% + 15) ≥ 400°C
|
||
|
0~1832°F
|
±(0.75% + 5) < 750°F
|
1°F
|
|
±(1.5% + 15) ≥ 750°F
|
Thermocouple: K Type (Banana shape plug)
|
Range
|
Description
|
Condition
|
|
Diode
|
Forward Voltage drop of Diode
|
Forward DC Current is approx.
1 mA. Backward voltage is approx. 3V |
|
Buzzer
|
Buzzer makes a long sounds while resistance is less than (70 ± 20) Ohms
|
Open Circuit Voltage is approx. 3V
|
Warning: Do not input Voltage at this range for safety
Transistor hFE Data Test
|
Range
|
Description
|
Condition
|
|
hFE NPN or PNP
|
0 ~ 1000
|
Basic current is approx. 10µA, Vce is about 3V
|

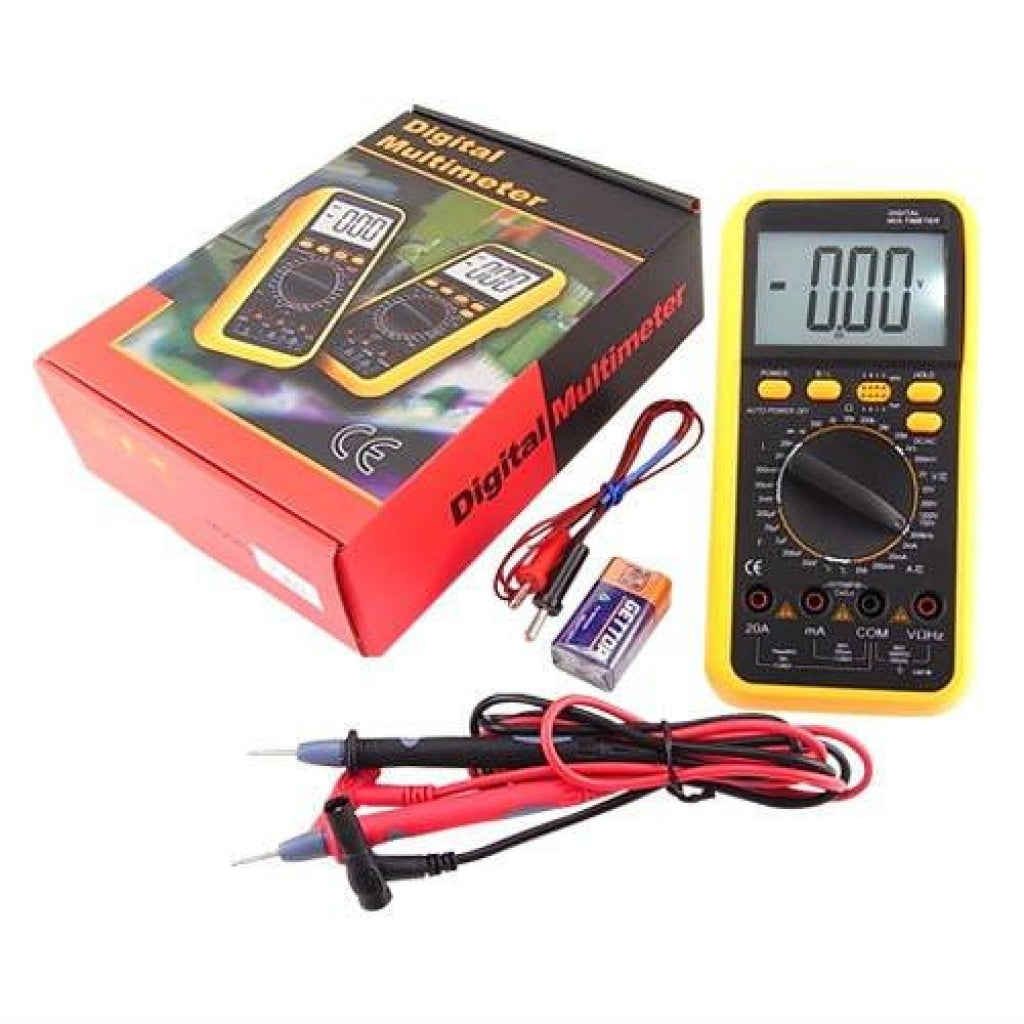

Set Includes:
-
1 x Multifunction Digital Multimeter
-
Test Leads
-
1 x K-Type Thermocouple
-
1 x 9V Battery (FREE)
-
1 x Non-slip Rubber Protection Holster
-
1 x English Instruction Manual
-
Standard Factory Package
