THE-494 Mobile Infrared Thermal Imager - Smart Thermal Imaging & Temperature Measurement Android Type C Mobile Phone Photo Video Capture Camera Thermometer

  • 0% OFF
  • Regular Price

    $222.90 USD

Write a review


Add to Wishlist


Check shipping / delivery time for your country | Free Shipping Worldwide Request for Quotation

Transform your smartphone into a powerful thermal imager with via our state of the art Mobile Infrared Thermal Imager! Simply download the "Smart Thermal" App to enable infrared observation and temperature measurement.

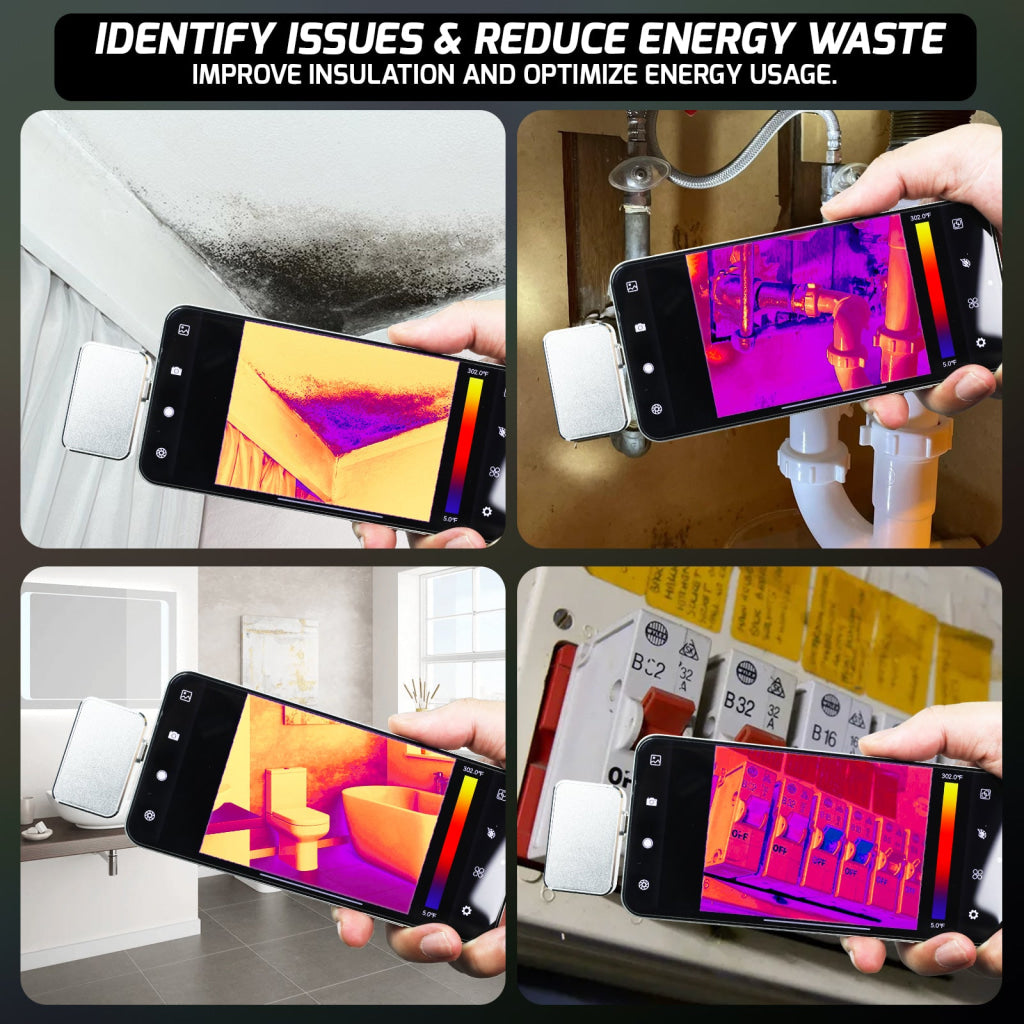

Perfect for DIY inspections, electrical maintenance, HVAC checks, and more! Get yours today and see the heat!
Note: Ensure your phone supports OTG and the function is turned on for proper operation (Android ONLY).

Features:

  • Infrared observation via the mobile application software
  • Carry out infrared temperature measurement and temperature analysis

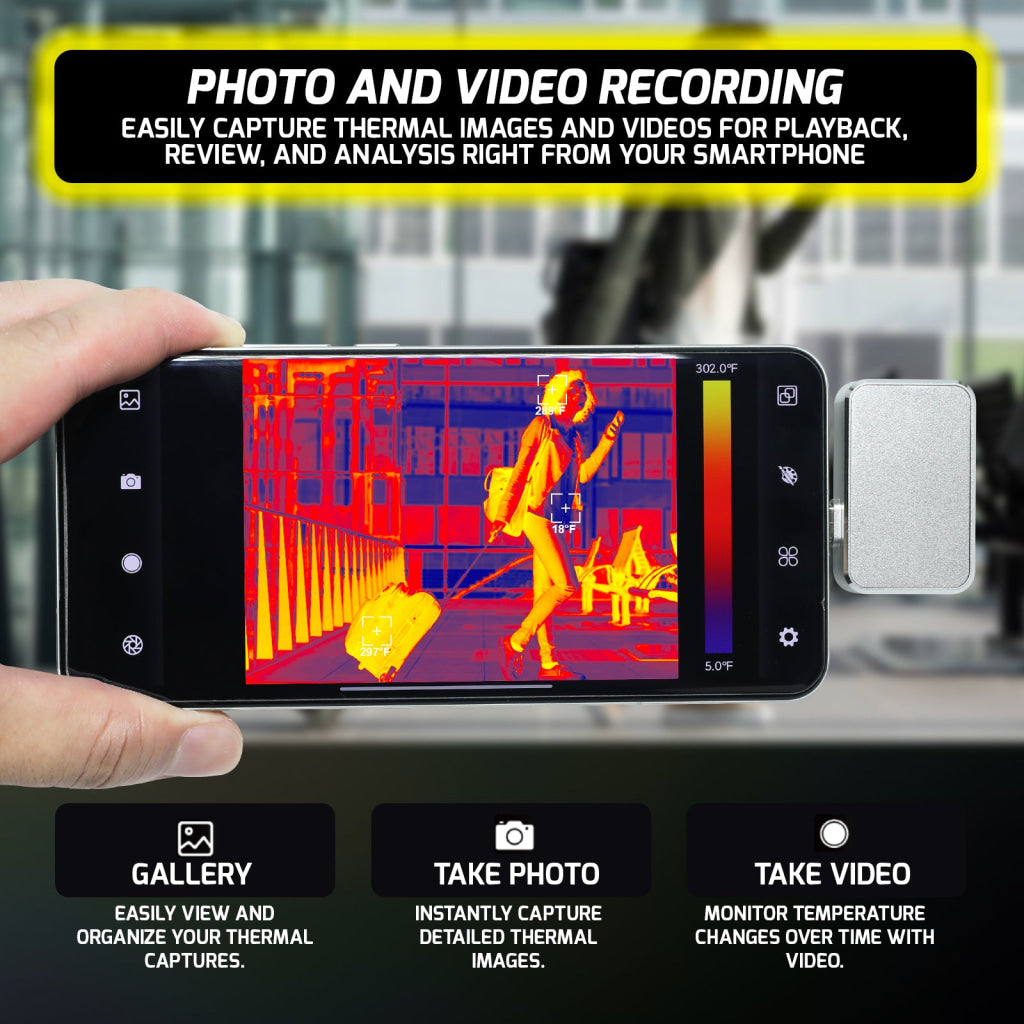

  • Take photos and videos with storage
  • Action control and parameter setting of the mobile phone thermal imager
  • Switchable color palette
  • Simple operation and easy mobile connection
  • Real-time thermal imaging & temperature measurement
  • Easy connectivity via OTG (requires OTG-enabled Android phone)
  • User-friendly app interface

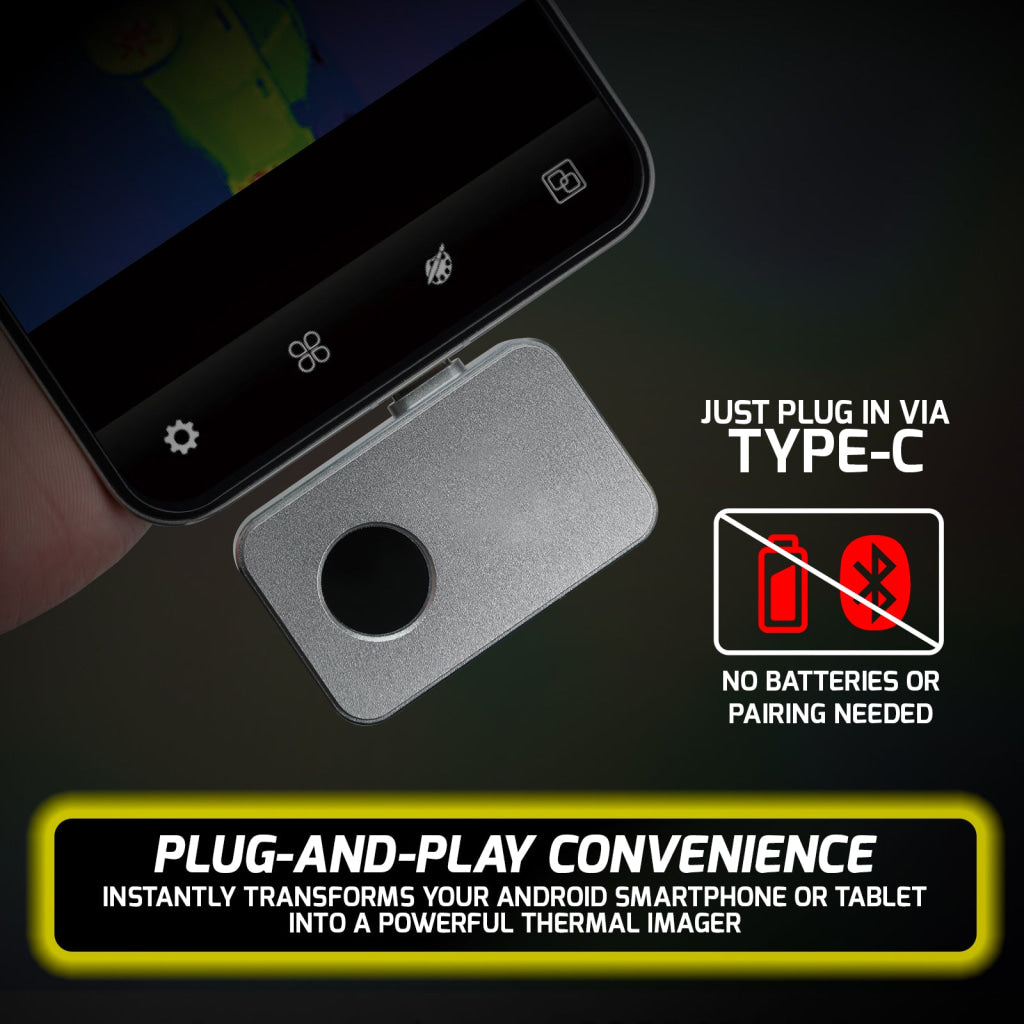

  • Phone plug and play (no battery operation)


Specifications

  • Infrared
    • Detector type: Vanadium Oxide Uncooled Infrared Focal Plane

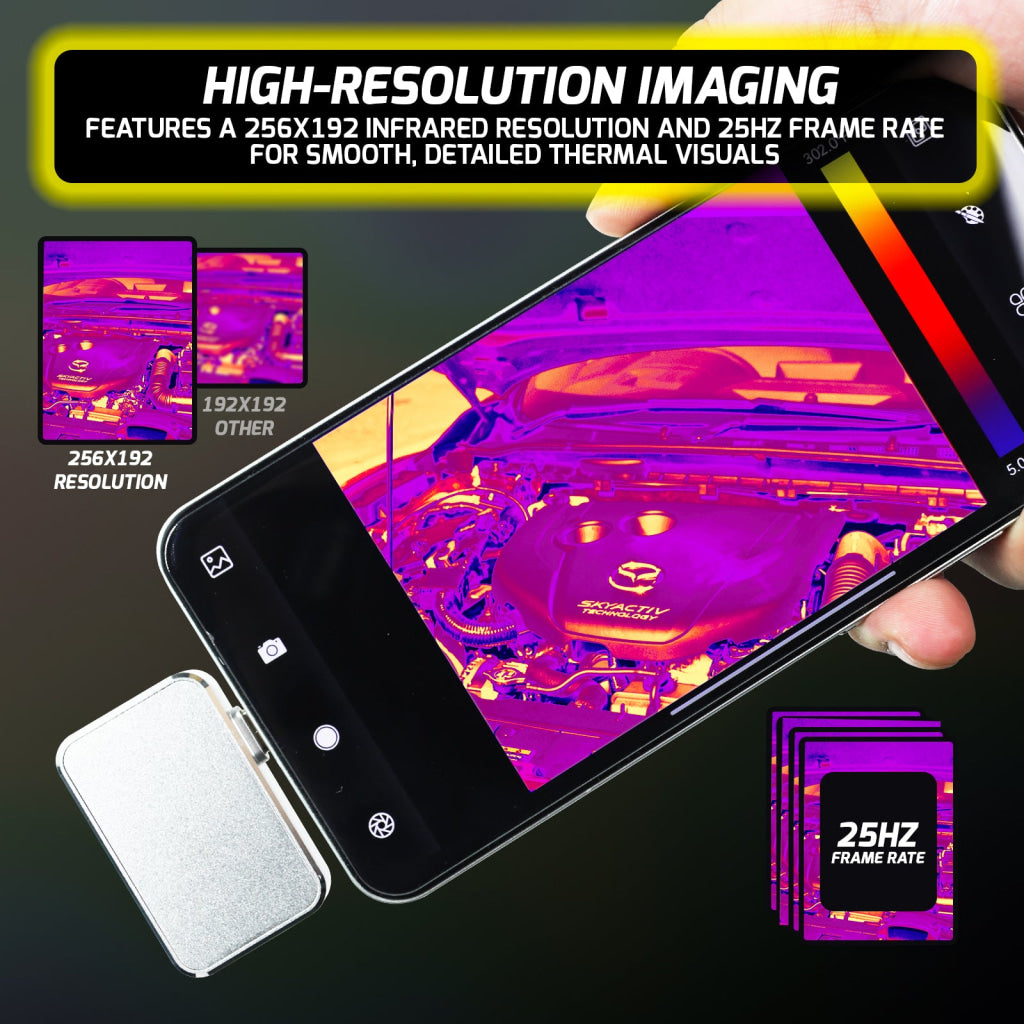

    • Infrared image resolution: 256 x 192
    • Pixel spacing: 12μm
    • Focal length: 3.2mm
    • Angle of view: 56°(H)×42°(V)
    • IFOV: 3.75mrad
    • Working band: 8~14μm
    • NETD: <50mk@25℃,F#1.0
    • Image frame rate: ≤25Hz
    • Focusing mode: Free Focus
  • Display

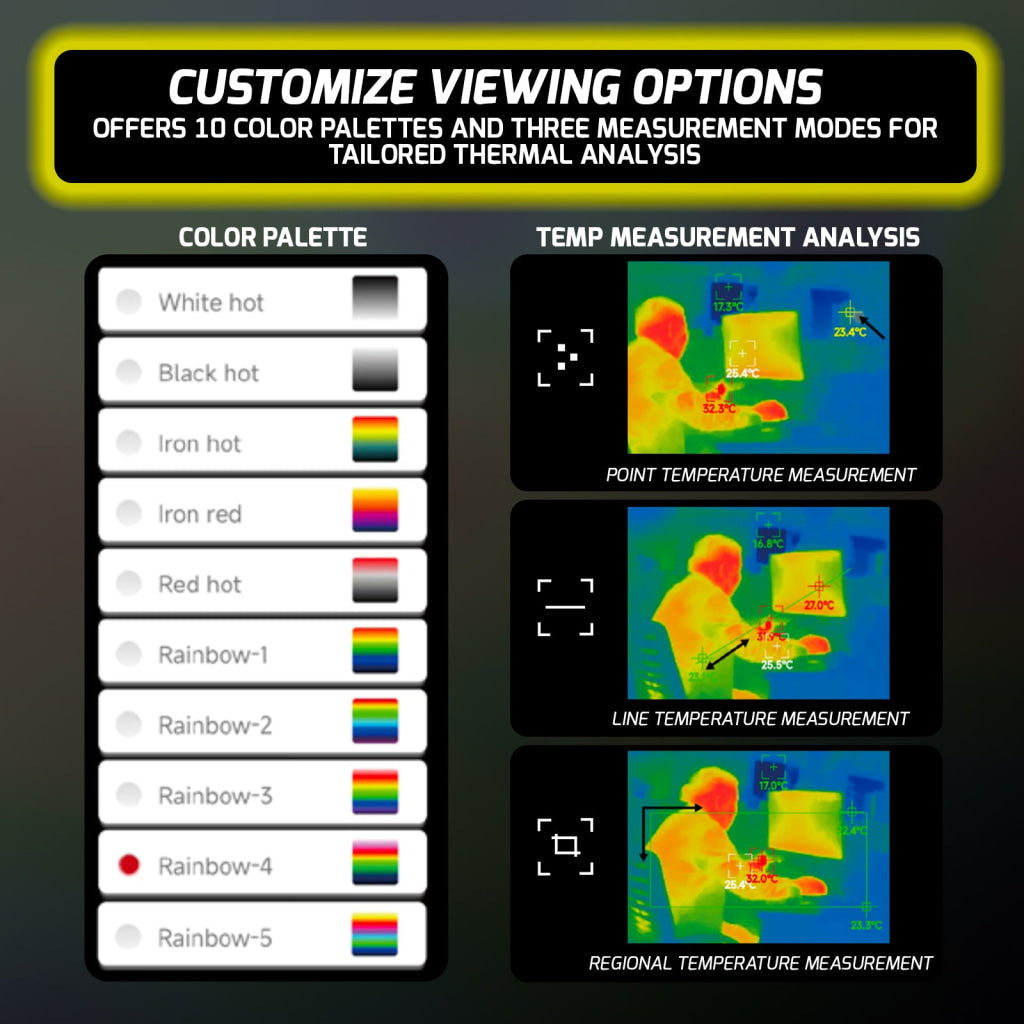

    • 10 Palettes: white hot, black hot, iron hot, iron red,red hot, rainbow - 1,rainbow - 2,rainbow - 3, rainbow - 4, rainbow - 5
  • Temperature measurement function
    • Measurement Method: point, line, and regional temperature measurement

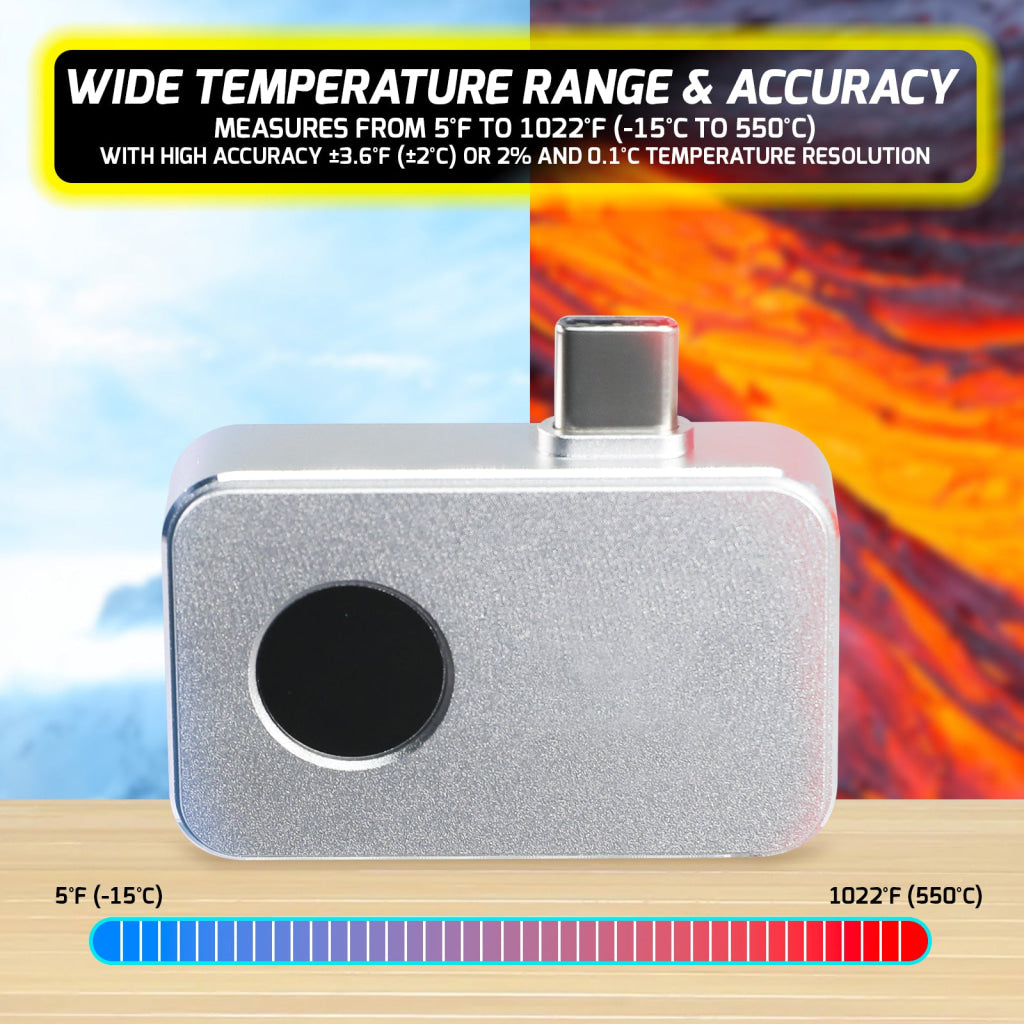

    • Range: -15~150℃ (5~302℉)and 150~550℃(302~1022℉)Automatic gear shifting not supported
    • Measuring Distance: 0.25m~5m
    • Accuracy: -15~-10℃ ±3℃; -10~550℃ ±2℃ or ±2%
  • System function
    • Camera/Video: Supported
    • Picture /Video Format: JPG / MP4
    • Language: Chinese, English, Russian
    • Power Consumption: ≤0.35W
    • External Interface: USB Type-C, DC5V power supply
  • Working Temperature: -10~75℃
  • Storage Temperature: -45~85℃

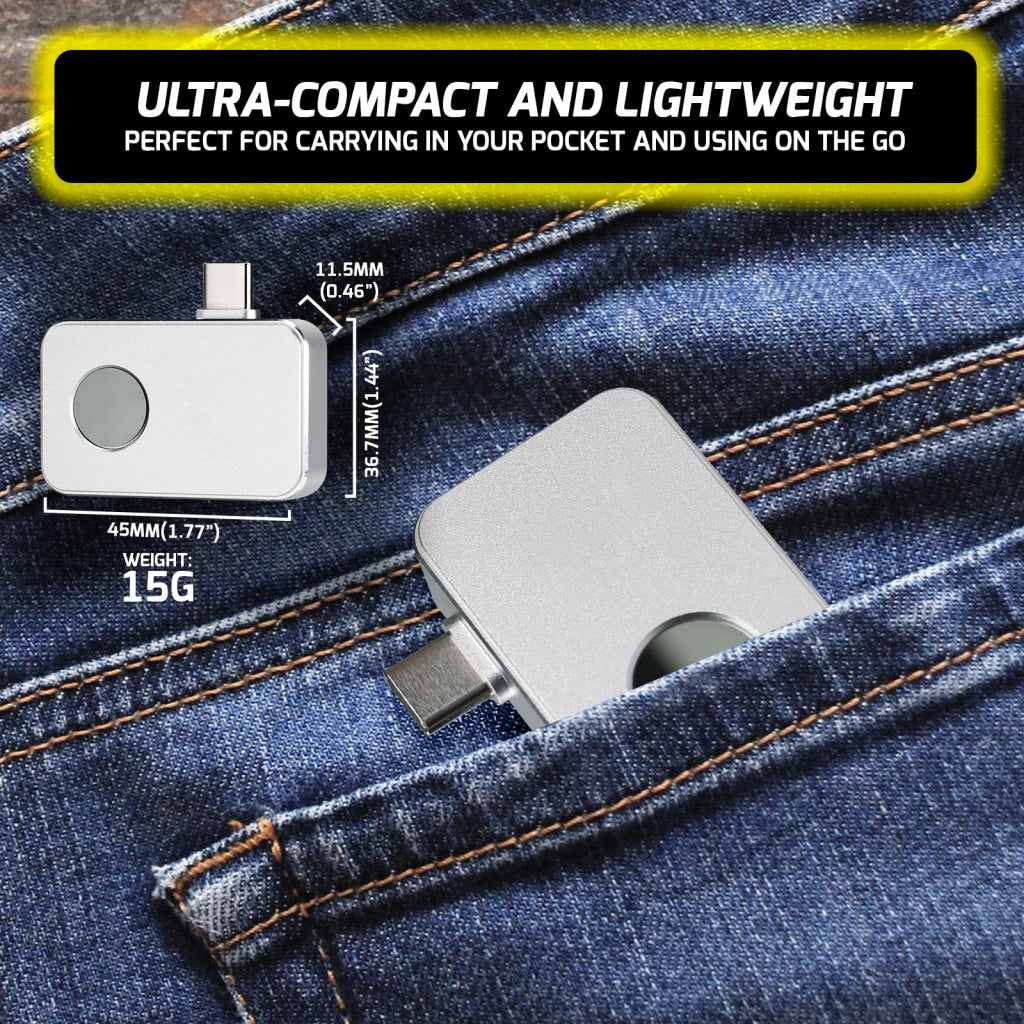

  • Dimension: 45 x 36.7 x 11.5mm
  • Weight: approx. 15gms

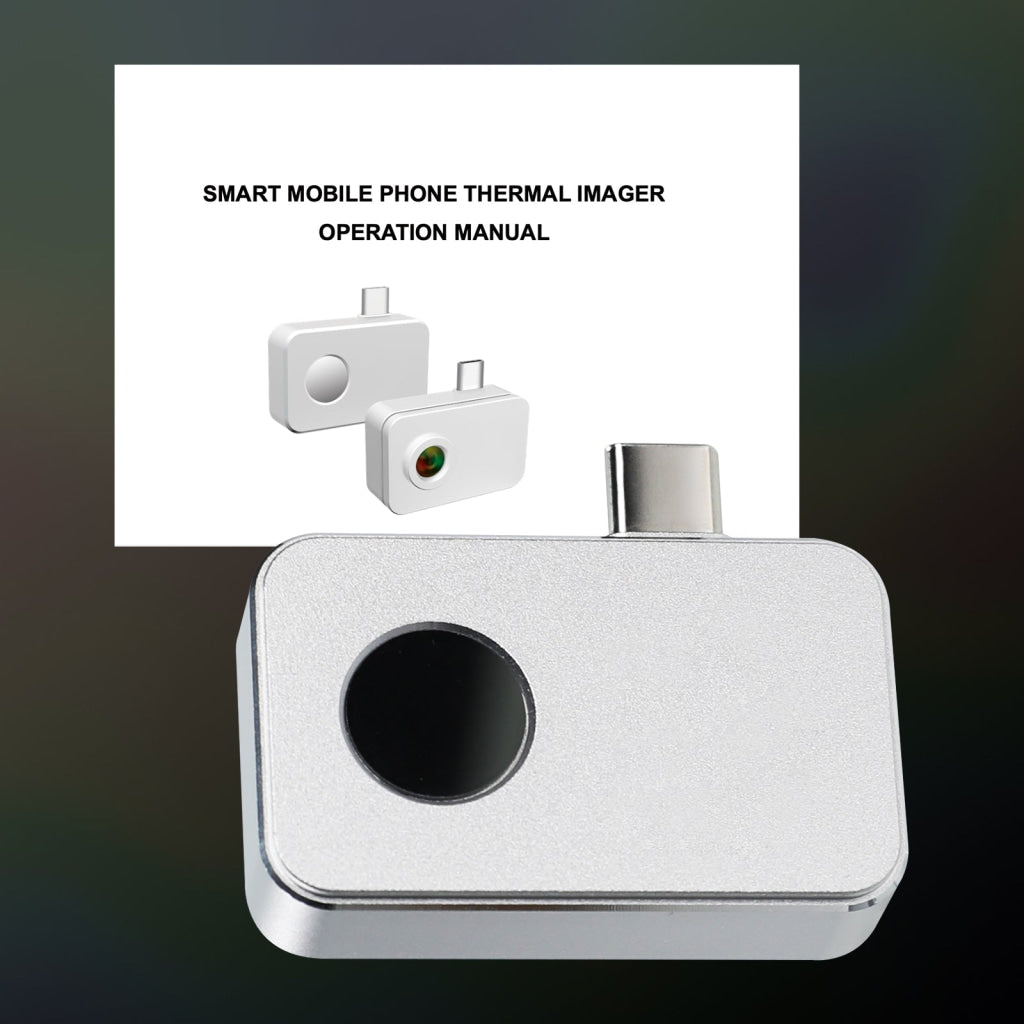

Set Includes

  • 1 x Mobile Phone Thermal Imager
  • 1 x Type-C Cable
  • English Instruction Manual
  • Standard Factory Packaging
